AN EXTENSIBLE ENSEMBLE ENVIRONMENT FOR TIME

SERIES FORECASTING

Claudio Ribeiro, Ronaldo Goldschmidt and Ricardo Choren

Department of Computer Engineering, Military Institute of Engineering, Rio de Janeiro, RJ, Brazil

Keywords: Time Series Forecasting, Ensembles, Software Tool, Data Mining.

Abstract: There have been diverse works demonstrating that ensembles can improve the performance over any

individual solution for time series forecasting. This work presents an extensible environment that can be

used to create, experiment and analyse ensembles for time series forecasting. Usually, the analyst develops

the individual solution and the ensemble algorithms for each experiment. The proposed environment intends

to provide a flexible tool for the analyst to include, configure and experiment with individual solutions and

to build and execute ensembles. In this paper, we describe the environment, its features and we present a

simple experiment on its usage.

1 INTRODUCTION

A time series is a time-ordered sequence of

observation values of a variable made at equally

spaced time intervals Dt, represented as a set of

discrete items x

, x

, ..., etc (Palit and Popovic,

2005). Time series prediction idea is to forecast

(with the best accuracy possible) future unknown

data values based on historical patterns in the

existing data. There are several approaches to time

series forecasting, such as moving average,

exponential smoothing, ARIMA (Box and Jenkins,

1970), and fuzzy logic (Wang and Mendel, 1992).

It is generally accepted that individual models

for time series forecasting are usually unable to

produce satisfactory results (Wang et al., 2005).

Thus it is natural to consider combining multiple

models to generate better data forecasting. Such a

combined system is commonly referred as an

ensemble (Bouchachia and Bouchachia, 2008).

There are several ways to combine base models

predictions in an ensemble. However, the majority

of ensemble applications use several variations

(configurations) of only one base model method.

The ensemble combination method is used to bring

about diversity in the base models’ predictions.

There has been little work (e.g., (Merz, 1999)) on

creating ensembles that use many different types of

base models. This paper presents an environment for

ensemble configuration and execution. It allows the

analyst to use several base model methods to make a

forecast.

The rest of this paper is organized as follows.

Sections 2 and 3 respectively present de DMEE and

its prototype. Section 4 shows an usage example and

section 5 concludes this paper.

2 THE DMEE

This section describes a flexible environment for the

configuration and execution of ensembles, called

Data Mining Ensemble Environment (DMEE). The

DMEE is designed as a framework to allow

extensibility. Figure 1 shows the DMEE general

architecture. It allows the selection of time series;

the configuration (inclusion/exclusion and selection)

of base model methods; the execution of configured

base model methods; the configuration of

combination model methods, and; the selection of

metrics to evaluate the performance of the devised

ensemble. The following subsections describe the

general process underlying the DMEE.

2.1 Time Series Selection

The analyst should begin by selecting the time

series. Thus the analyst indicates the database with

the time series and she selects the attributes (one to

be predicted and another to indicate the time

ordering). Then, the available data are divided into

404

Ribeiro C., Goldschmidt R. and Choren R. (2010).

AN EXTENSIBLE ENSEMBLE ENVIRONMENT FOR TIME SERIES FORECASTING.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Artiﬁcial Intelligence and Decision Support Systems, pages

404-407

 SciTePress

three possible set: training set, validating set and

testing set. This feature allows the analyst to define

the sets that will be used by the ensemble (meta)

method. The base model methods will use the same

sets which were defined for the ensemble. The

DMEE does that to avoid biasing for either a base

model method or for the ensemble method.

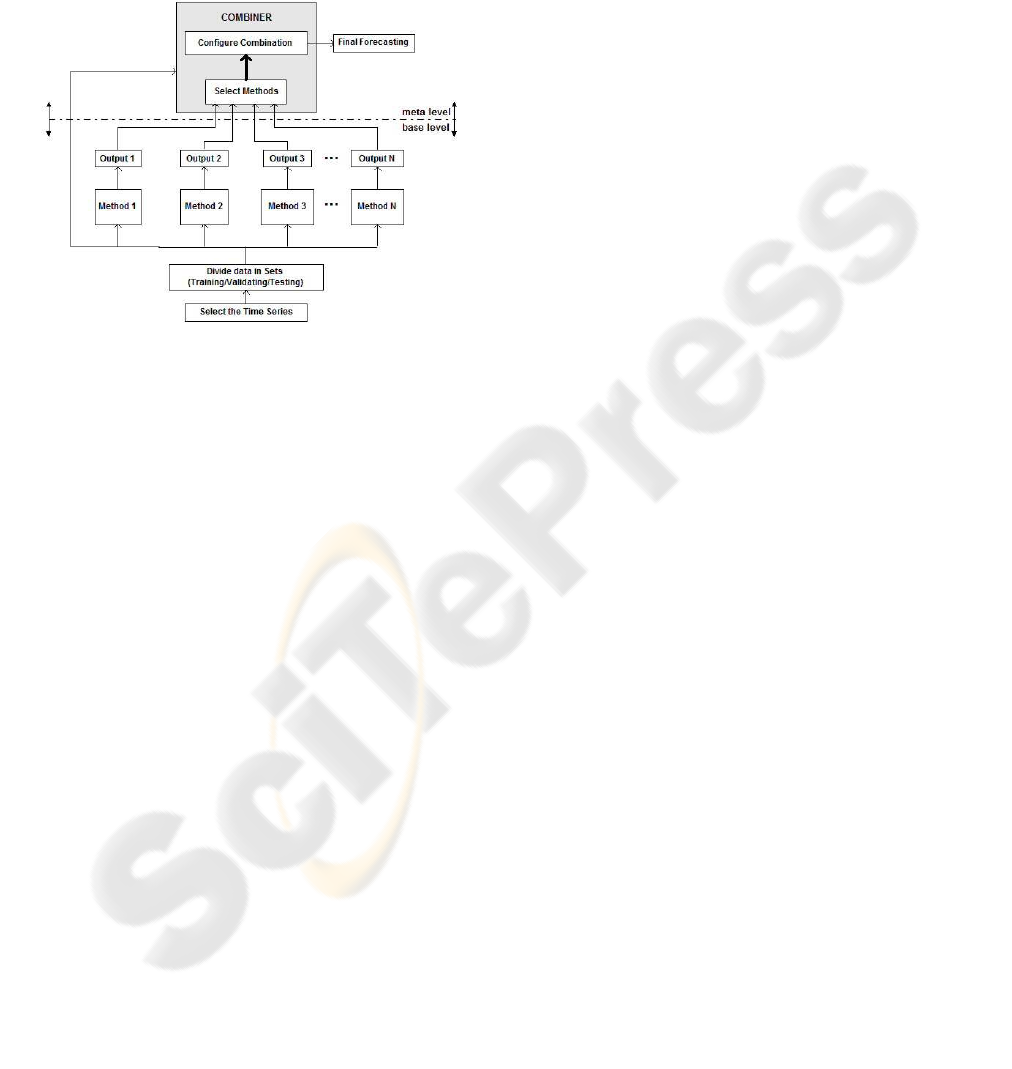

Figure 1: The DMEE general architecture.

2.2 Base Model Method Execution

and Selection

After selecting the time series and the dividing its

data into the appropriate sets for the ensemble, the

analyst should configure and execute the base model

methods chosen from the repository to be used in the

ensemble. The DMEE core functionality executes

each base model method each one at a time and it

stores the prediction results in a database. These

results will be used as input for the ensemble

combination method.

It is interesting to mention that, since the DMEE

stores a base model method result, this result can be

used anytime later. The execution of a method is

very time consuming and, in the current version of

the DMEE, there is no concurrency. The idea behind

this feature is to save time by trying to reuse the

results of a particular method execution (i.e. a

specific base model method configuration).

After executing the base model methods, the

analyst can verify their performance (based in

whichever criteria the analyst desires). To improve

the ensemble results, she can select which base

model methods will build the ensemble. The DMEE

provides five approaches for base model methods

selection: (i) all methods: the results from all the

base model methods executed will be used in the

ensemble combination method; (ii) individual

selection: the analyst can choose which base model

method results will be used in the ensemble

combination method; (iii) selection by maximum

index: the analyst indicates a maximum error value

for the base model method results. The DMEE will

select those base model methods that present a

prediction error smaller than the value provided by

the analyst; (iv) selection by percentage index: this

approach is similar to the above. The difference is

that the metric used to analyze the base model

method performance does not indicate an absolute

error, but rather a percentage error; (v) automatic

selection (based on simple averaging combination):

this approach allows the DMEE to automatically

select the set of base model method results to be

used in the ensemble by executing a series of

simulations to evaluate the combination of the

obtained results.

2.3 Combination Method Selection

and Execution

After selecting which base model methods will be

used in the ensemble, the analyst should select the

combination method. The DMEE provides two types

of combination methods: linear and non-linear. The

available linear combination methods are simple

averaging and weighted averaging. If the analyst

chooses to use non-linear combination, she can use

any method (from the DMEE repository) to combine

the base model method results. In the DMEE, the

analyst can configure two strategies for the

combination method: combination and training. The

idea is to let the analyst execute several possibilities

for the same ensemble method.

The combination strategies are: (i) simple

combination: only the results of the base model

methods are used as input for the combination

method; (ii) compound combination: besides the

results of the base model methods, the original time

series is used as input for the combination method.

The training strategies are: (i) single phase training:

the composition method uses only the training set;

(ii) two phase training: the composition method uses

both the training and the validation sets.

The DMEE executes the combination method

and stores its results for analysis purposes. The

execution of the combination method has a

particular issue when the base model methods use

the prediction window concept (e.g. regression

methods). The prediction windows of the base

model methods should be aligned to indicate the

initial time index to be used in the training phase of

the combination method. If the combination method

AN EXTENSIBLE ENSEMBLE ENVIRONMENT FOR TIME SERIES FORECASTING

405

itself uses a prediction window, this window should

be considered in the alignment.

2.4 Result Analysis

The analyst can make a result analysis. The analyst

selects metrics to view the performance of the base

model methods and of the composition method. The

results are shown graphically to the analyst.

3 THE DMEE PROTOTYPE

The current version of the DMEE prototype was

developed using Java. To start using the DMEE tool

(including the base model methods already

imported) for forecasting, the analyst must select a

time series. The original data of the time series must

be stored in a database.

After selecting the time series to forecast, the

analyst should configure the training, validation and

testing subsets (figure 2). This configuration will be

used by the DMEE to execute the code for each

selected base model method. As mentioned, the

methods are executed one at a time and their results

are stored for future reuse.

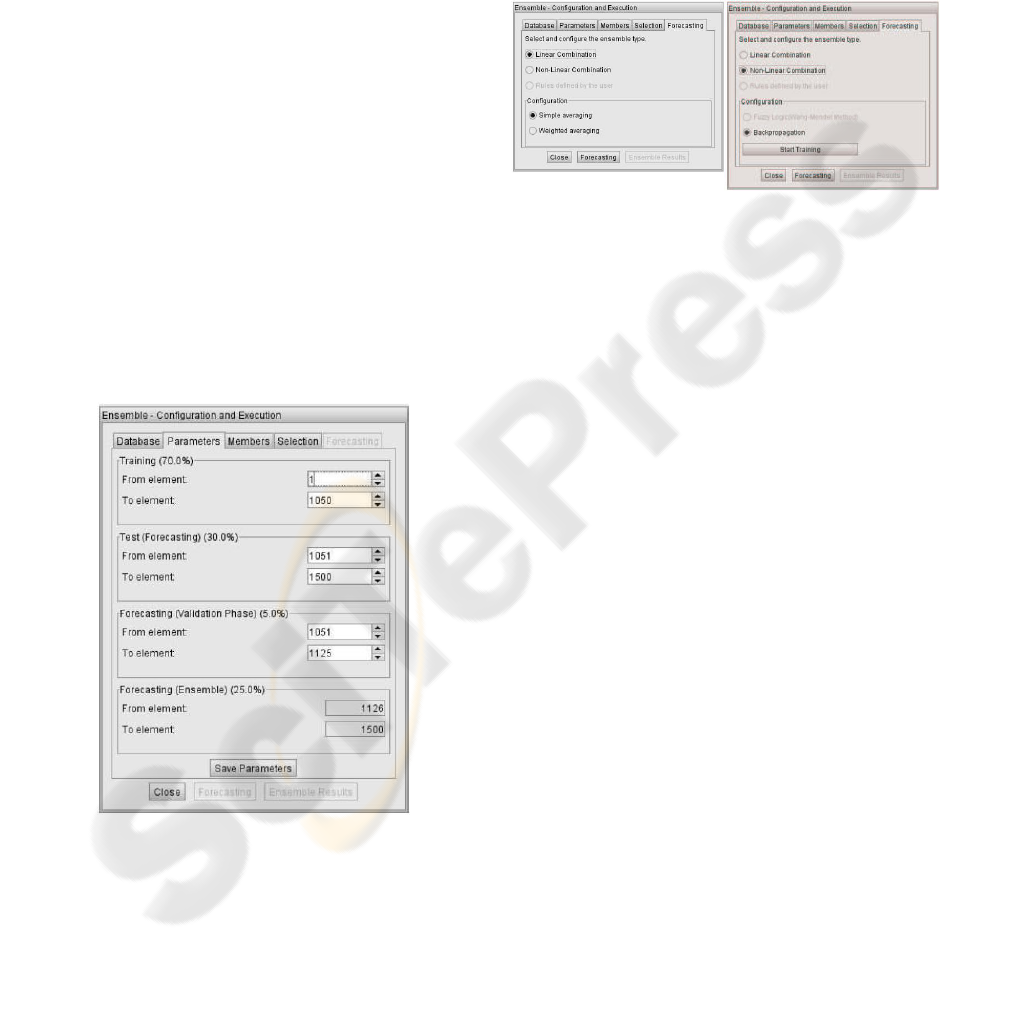

Figure 2: Subset configuration.

Then, the analyst can select the base model

methods results that will be used as input for the

ensemble method. This selection can be done using

one of the five approaches listed in section 2.2.

Currently, the metrics that can be used in the

selection by maximum index and selection by

percentage index are: U-Theil, mean square error,

root mean square error, sum of squares error, mean

absolute error and mean absolute percentage error.

The analyst must configure the ensemble method

(figure 3). The DMEE prototype executes the

ensemble method and stores its results in a database.

These results can be analyzed to compare the

performances of the individual base model methods

with the ensemble method.

Figure 3: Ensemble configuration (linear and non-linear).

4 A SAMPLE STUDY

This section presents an experiment on using the

DMEE environment for the prediction of the

Mackey-Glass (Wan, 2009) time series. The data

used encompassed 1500 records, the lowest series

value was 0.212559300 and the highest series value

was 1.378507200.

In this study, all available base model methods

were used. The configurations were:

i. Naive Forecasting: no configuration needed

ii. Exponential Smoothing: smoothing factor = 0.9

iii. Moving Average: prediction window = 3

iv. Wang-Mendel: prediction window = 7; number

of fuzzy sets = 7

v. Backpropagation: learning rate = 0.6;

momentum factor = 0.3; number of epochs =

5.000

a. Input layer: # of neurons = 9; activation

function = linear

b. Hidden layer: # neurons = 9; activation

function = sigmoid

c. Output layer: # neurons = 1; activation

function = linear

Table 1 shows the results for the base model

methods executions, using the configurations

depicted above. The backpropagation method gave

the best results while the Moving Average presented

the worst results. Figure 4 shows the results for an

ensemble using a non-linear combination configured

with a backpropagation method. The ensemble used

all base model method results. In this scenario (all

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

406

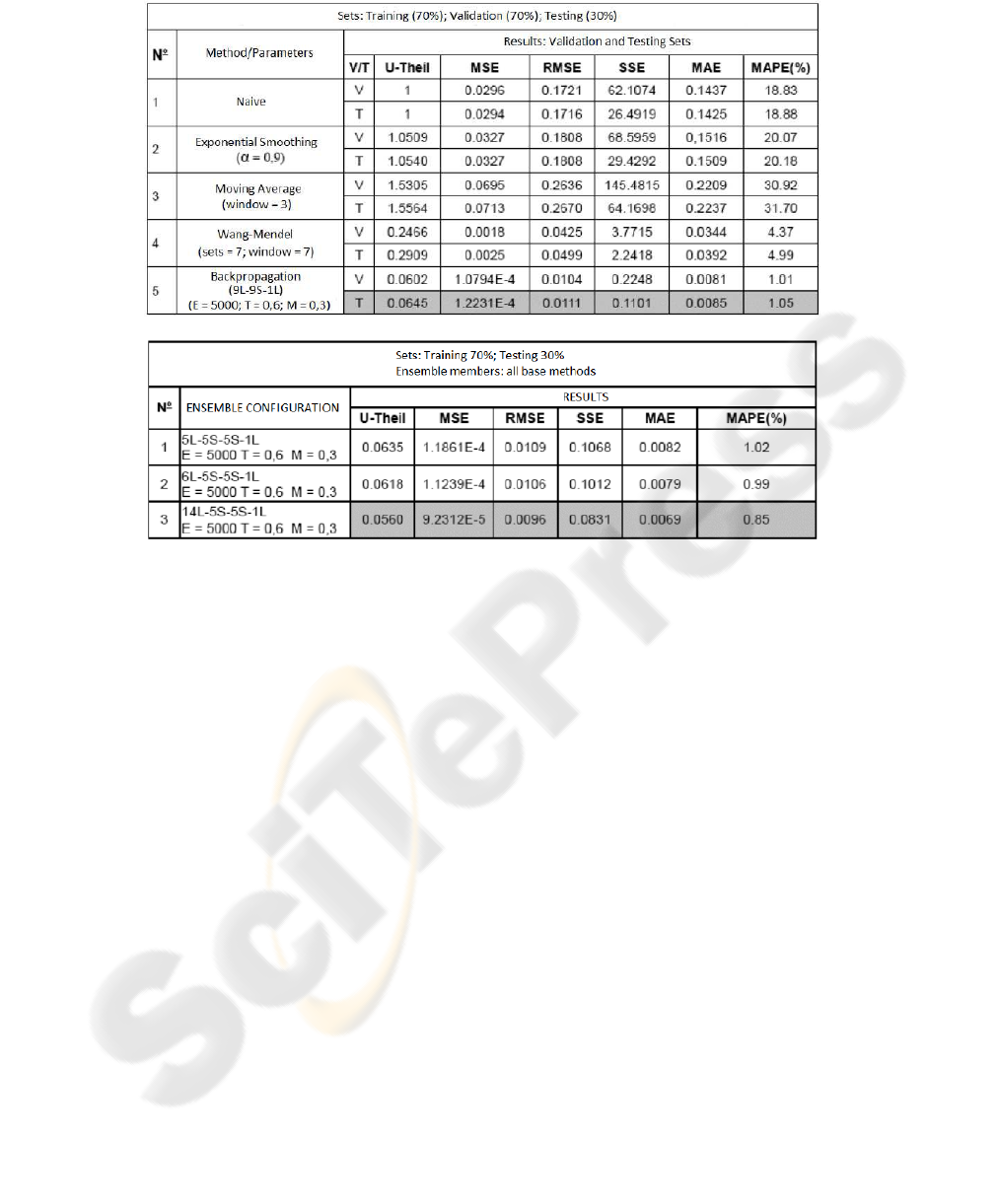

Table 1: Base model methods results.

Figure 4: Ensemble results.

base model methods and backpropagation) the

ensemble results were only slightly better than the

results achieved by the base model methods.

5 CONCLUSIONS

This paper has presented an extensible environment

for experimentation in time series forecasting using

ensemble approaches in conjunction with popular

forecasting methods. The idea is to provide a tool to

configure and test several ensemble options. The

DMEE allows for base model methods extension,

ensemble configuration and base model method

results persistence. The diversity of information

required to configure base methods and ensembles

were summarized for simplicity.

It was not our intention in this work to run

experiments to compare single base model method

results with ensemble results. The main purpose of

this work is to show an environment to help analysts

try ensemble approaches for time series forecasting.

REFERENCES

Bouchachia, A. and Bouchachia, S., 2008. Ensemble

learning for time series prediction. In Proceedings of

the International Workshop on Nonlinear Dynamic

Systems and Synchronization.

Box, G. E. P. and Jenkins, G. M., 1970. Time series

analysis: forecasting and control. Holden-Day.

Merz, C. J., 1999. A principal component approach to

combining regression estimates. Machine Learning,

36:9–32.

Palit, A. K. and Popovic, D., 2005. Computational

intelligence in time series forecasting: theory and

engineering applications. Springer-Verlag.

Wan, E. A., 2010. Time series data. Department of

Computer Science and Electrical Engineering. Oregon

Health & Science University (OHSU), available at

http://www.cse.ogi.edu/~ericwan/data.html

Wang, L. X. and Mendel, J. M., 1992. Generating fuzzy

rules by learning from examples. IEEE Transactions

on Systems, Man and Cybernetics, 22(6):1414–1427.

Wang, W., Richards, G., and Rea, S., 2005. Hybrid data

mining ensemble for predicting osteoporosis risk. In

Proceedings of the 27th IEEE Engineering in

Medicine and Biology Conference, pages 886–889.

AN EXTENSIBLE ENSEMBLE ENVIRONMENT FOR TIME SERIES FORECASTING

407
