ENGINEERING AGENT-BASED INFORMATION SYSTEMS

A Case Study of Automatic Contract Net Systems

Vincent Couturier, Marc-Philippe Huget and David Telisson

LISTIC – Polytech'Savoie, Université de Savoie, B.P. 80439, F - 74944 Annecy-le-Vieux Cedex, France

Keywords: Enterprise Information Systems, Agents, Software Patterns, Reuse.

Abstract: In every business the tender has become an indispensable part to foster the negotiation of new trade

agreements. The selection and the attribution are nowadays a long process conducted manually. It is

necessary to define criteria for selecting the best offer, evaluate each proposal and negotiate a business

contract. In this paper, we present an approach based on agents for the development of an automatic award

of contracts (here called Automatic Contract Net Systems). The selection and negotiation are then

automatically performed through communication between agents. We focus in this paper on the tendering

and selection of the best offer. To facilitate the development of complex systems such as multi-agent

systems, we adopt software patterns that will guide the designer in the analysis, design and implementation

on an agent-based execution platform.

1 INTRODUCTION

Historically, companies have felt the need to

communicate and share information in order to

create economic partnerships. The concept of

extended enterprise has spread widely in the

industrial world where it is common now to launch a

tender via a website in order to award a new contract

to a subcontractor. However, beyond the tender and

deposit records, the whole process (receipt of

nominations, terms of partnership and

implementation) is rarely automated.

Various research works have focused on

management of tenders by developing information

systems. These approaches allow to deploy systems

upstream (dissemination and consultation of

proposals) and downstream (data exchange) of the

awarding contracts. However, the selection of

tenders and awarding contracts still remain a binding

process as it requires decision making and strong

autonomy of the actors involved.

In this paper we propose an approach and tools

(software patterns) to design an automatic contract

net system (ACNS) based on intelligent agents. The

choice to develop our solution with intelligent agents

comes from the autonomy requirement given above.

Indeed, the tasks of an award procedure require that

different market actors (suppliers, customers,

partners, etc.) take decisions correlated to the

sociological and environmental parameters defined

by characteristics to their field of activities. These

autonomous decisions should promote cooperation

and coordination tasks to end in an economic

partnership. It is necessary to have a system able to

search for the best offer according to given criteria

and to negotiate with the contractor if his/her

proposal is not fully satisfactory. We choose an

intelligent-based agent solution since each intelligent

agent presents intelligent decision making, and

autonomy regarding its actions. We adopt the

Contract Net Protocol (Smith, 1980) (FIPA, 2002)

for the whole process of proposing tasks, issuing

proposals and enacting contract. As part of a multi-

agent system, agents are active entities, autonomous,

intelligent and goals directed. They will work

together to achieve their personal goals

(Wooldridge, 2002).

Agent theory is now well-developed and covers

many domains from intelligent decision making,

negotiation, trust to planning to name a few.

Existing development methodologies (Gaia

(Wooldridge et al., 2000), MaSE (DeLoach et al.,

2001), etc.) for agent-based systems are not suitable,

in general, for inexperienced developers. In

particular, they may face various problems in the

analysis or design stage because of their

inexperience. This leads to inconsistent analysis or

design and poor reliability of the resulting agent-

based systems.

242

Couturier V., Huget M. and Telisson D. (2010).

ENGINEERING AGENT-BASED INFORMATION SYSTEMS - A Case Study of Automatic Contract Net Systems.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Information Systems Analysis and Speciﬁcation, pages

242-248

 SciTePress

In this paper, we propose to use the concept of

software patterns for the development process of

agent-based solutions, like existing approaches such

as Tropos (Giorgini et al., 2005) or PASSI

(Cossentino et al., 2004).

Patterns we propose in this paper cover the

whole development process from requirements

analysis to code generation. The designer of an

ACNS can thus follow our guidelines to develop

his/her solution. Thus, it will lead novice developers

to produce complex applications and to rapidly adapt

to any implementation environment.

The following paragraph explains the concept of

pattern. Then, we present the categories of patterns

dedicated to engineering ACNS and the reuse

process.

2 THE CONCEPT OF PATTERN

Alexander introduced the concept of pattern in 1977

for the design and construction of homes and offices

(Alexander et al., 1977). Patterns were adapted to

software engineering and mainly to object-oriented

programming and are called software patterns.

In Alexander’s proposition, a pattern describes a

problem which occurs over and over again in an

environment as well as a solution that can be used

differently several times. A software pattern follows

the same principle and offers a solution to

developers when building software in a specific

context. Thus, patterns can be seen as abstractions

used by design or code experts that provide solutions

in different phases of software engineering.

Patterns can be divided into four categories:

analysis patterns (Fowler, 1997), architectural

patterns (Buschmann et al., 1996), design patterns

(Gamma et al., 1995), and idioms (Coplien, 1992),

the latter are also known as implementation patterns.

3 CATEGORIES OF PATTERNS

DEDICATED TO AUTOMATIC

CONTRACT NET SYSTEMS

AND THEIR REUSE

3.1 Pattern Categories

The first patterns applied for engineering of

Automatic Contract Net Systems are Agent Analysis

Patterns. They define agent structure and design

multiagent systems at a high level of abstraction.

They can be applied to design either reactive or

cognitive agents. As mentioned before, we propose

to develop agent-based Automatic Contract Net

Systems. Thus, the designer will be able to reuse

these patterns to design agents for his/her ACNS at a

high level of abstraction.

Agent Analysis Patterns are generic and have to

be applied with ACNS domain patterns. These ones

capitalize the domain knowledge specific to

Automatic Contract Net Systems and favour its

reuse.

Patterns dedicated to architectural representation

and design of ACNS are ACNS architectural

patterns and design patterns.

The former have to be applied at the beginning

of the design process and help defining the ACNS

structural organization. They represent the different

architectural styles for ACNS which are means of

capturing families of architectures and can be seen

as a set of design rules that guide and constrain the

development of ACNS architecture (levels, internal

elements, collaborations between elements…).

Architectural styles depend on which architecture

we choose for the ACNS: Market-based one,

Subcontract-based one or Peer-to-Peer-based one.

Design patterns describe technical elements

required to develop agent-based Automatic Contract

Net Systems. Analysis and conceptual models

obtained by applying ACNS domain patterns and

Agent Analysis Patterns are refined with behaviour,

collaboration and software entities. Thus, the ACNS

design model is obtained by adapting software

elements specified in the design patterns solutions.

Among them, we can distinguish generic Agent

Design Patterns (dedicated, for instance, to define

interaction protocols between agents such as

Contract Net Protocol), and patterns specific to

ACNS design, called ACNS design patterns.

Finally, we have specified two kinds of support

patterns: Model Transformation Patterns and Reuse

Support Patterns.

Model Transformation Patterns help ACNS

developers to build applications from ACNS and

Agent design patterns and can be applied at the end

of the design phase. They specify transformation

rules to map design models to models specific to

agent development frameworks such as JADE

(Bellifemine et al., 2007), Madkit (Gutknecht &

Ferber, 2000) or Mercury (Huget, 2008).

Reuse Support Patterns are process patterns

which help developers navigating into a collection of

patterns and reusing them. They describe, by using

activity diagrams, a sequence of patterns to apply to

resolve a problem. ACNS Reuse Support Patterns

help developers to design and build such systems by

guiding them among our collection of patterns.

ENGINEERING AGENT-BASED INFORMATION SYSTEMS - A Case Study of Automatic Contract Net Systems

243

The different patterns described here regarding

the development cycle of an ACNS are shown on

Figure 1.

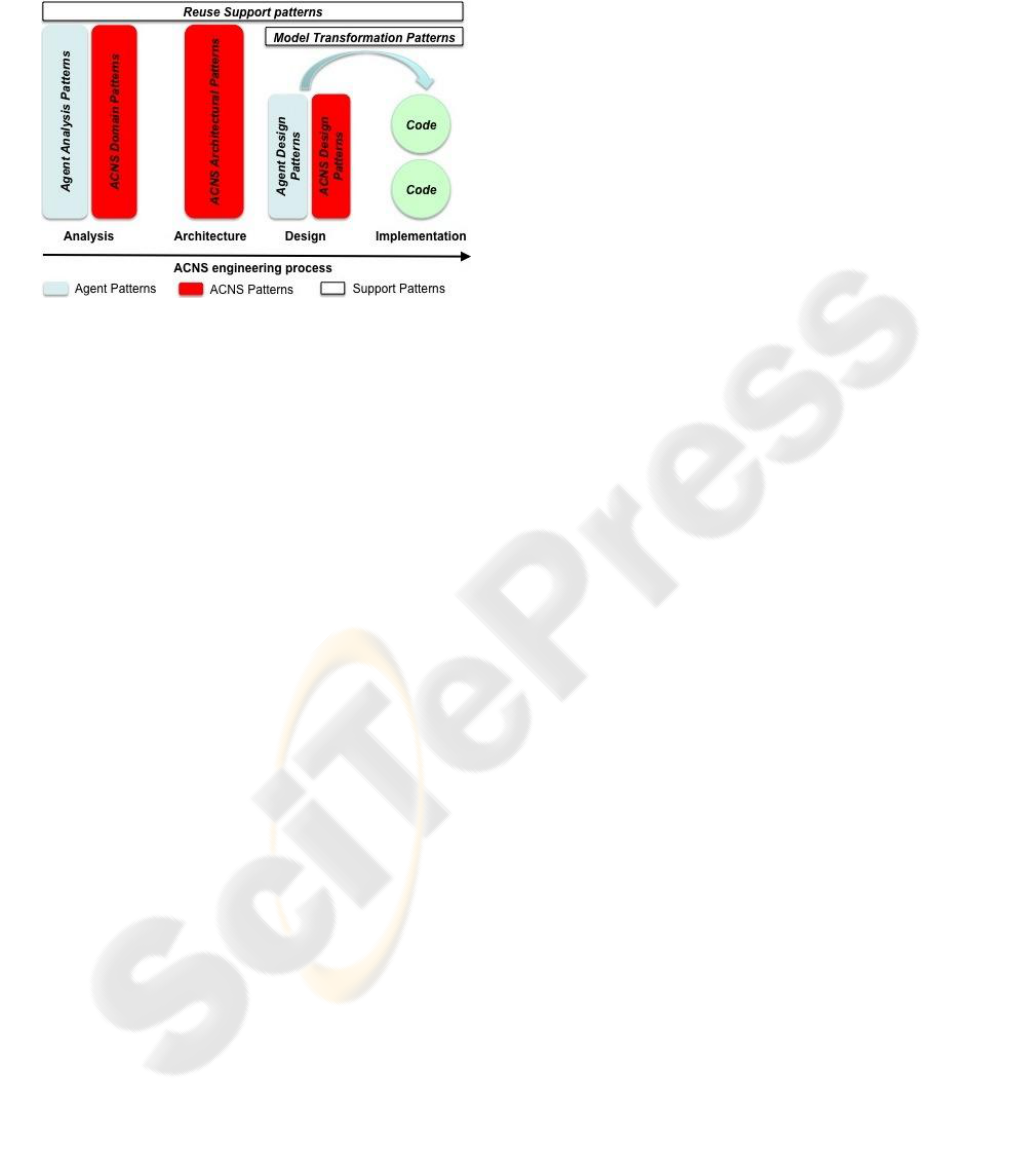

Figure 1: The use of the different proposed patterns in the

development cycle of an ACNS.

Note: The different patterns presented here are

shorter version ones.

3.2 Pattern Reuse

The reuse of patterns dedicated to develop ACNS

consists in applying them during analysis, design

and implementation phases. First, developers

analyze context and problem and select relevant

patterns. This activity can be favoured by using

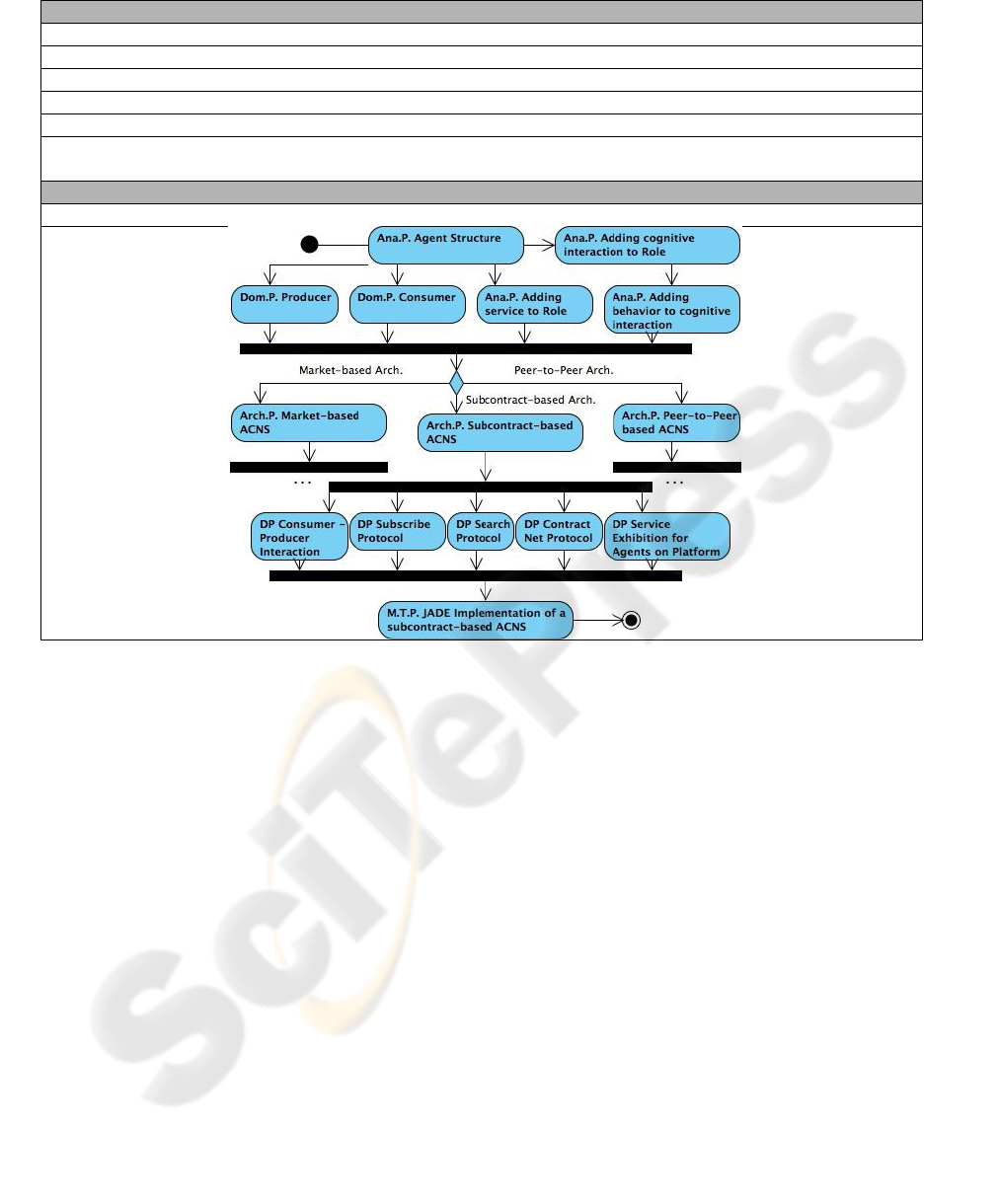

Reuse Support Patterns (see Table 1) which

represent sequences of patterns that can be applied

to develop Automatic Contract Net Systems. Thus,

developers adapt pattern solution elements

(instantiation) to represent the system they want to

develop. Finally, the third activity aims at using

Model Transformation Patterns to generate skeleton

application from pattern instances.

We present, in next section, Agent Patterns and

ACNS Patterns we designed to develop Automatic

Contract Net Systems.

4 PATTERNS

FOR ENGINEERING

AUTOMATIC CONTRACT NET

BASED SYSTEMS

4.1 Patterns for the Analysis Phase

Agent Analysis Patterns are generic ones used for

building agents at a high level of abstraction:

 Pattern “Agent Structure”: this pattern defines

what an agent is in terms of its structure. An

agent is a set of roles it will play during its

execution.

 Pattern “Adding cognitive interaction to Role”:

this pattern inserts the notion of protocol and

message within the agent. The agent is then

able to communicate via high-level messages

with other agents.

 Pattern “Adding behavior to cognitive

interaction”: this pattern defines the behavior

associated to sending and receiving messages.

Two domain patterns were designed for the ACNS

application. An Automatic Contract Net System

considers two kinds of interacting entities: (1) one or

more Consumer and (2) one or more Producer. The

“Consumer” pattern defines the Consumer concept.

The “Producer” pattern is equivalent to this one

except it considers the concept of Producer instead

of the concept of Consumer.

4.2 Patterns for the Design Phase

In this section, we present ACNS Architectural

Patterns for the architectural design of a Contract

Net system then patterns for the detailed design of

an ACNS. These patterns have to be applied after

analysis patterns and domain patterns described

above.

4.2.1 ACNS Architectural Patterns

We develop three architectural patterns related to the

different architectures an ACNS could have:

 Pattern “Market-based ACNS”: a

marketplace is defined with this pattern. A

marketplace is composed of several

consumers and several providers.

Consumers try to find the best proposal for a

service. Two approaches are possible to

retrieve this best proposal: (1) A descending

price auction or (2) A call for proposals.

 Pattern “Subcontract-based ACNS”: An

ACNS with subcontracts is a restricted

version of the previous pattern “Market-

based ACNS”. In this particular case, there

is only one consumer and several providers.

The best proposal is found after a call for

proposals.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

244

Table 1: Reuse Support Pattern “Engineering an Automatic Contract Net System”.

Interface

Name

Engineering Automatic Contract Net Systems

Classification

Reuse Support Pattern

Rationale

This pattern presents ACNS and agent patterns that can be applied to develop Automatic Contract Net Systems.

Note: We only describe here patterns for the development of a subcontract-based ACNS for JADE platform.

Solution

Process

 Pattern “Peer-to-Peer-based ACNS”:

previous patterns impose to use a central

server so as to store the address of the

different consumers and providers. This

approach does not resist to the scalability

problem and the bottleneck is located on

searching the central server to retrieve the

different consumers and providers.

In this pattern here, there is no more central

server and the different consumers and providers

know each other via social networks. This kind of

architecture copes with the scalability problem.

4.2.2 Agent Design Patterns and ACNS

Design Patterns

These patterns describe the different concepts

needed for designing an ACNS (ACNS Design

patterns) and for designing a multiagent system used

for ACNS (Agent Design Patterns). Only one pattern

of the former is presented in abstract form (Cf. Table

2).

4.3 Patterns for the Phase

of Implementation: Model

Transformation Patterns

We define several Model Transformation patterns

for developing ACNS for different architectures

(subcontract-based architectures, market-based ones

and peer-to-peer-based ones) and for different

execution platforms (JADE, Madkit, and Mercury).

Due to space restriction, we only present here in

Table 3, a short version---without method

transformations---of a Model Transformation pattern

for JADE implementation of a subcontract-based

ACNS.

ENGINEERING AGENT-BASED INFORMATION SYSTEMS - A Case Study of Automatic Contract Net Systems

245

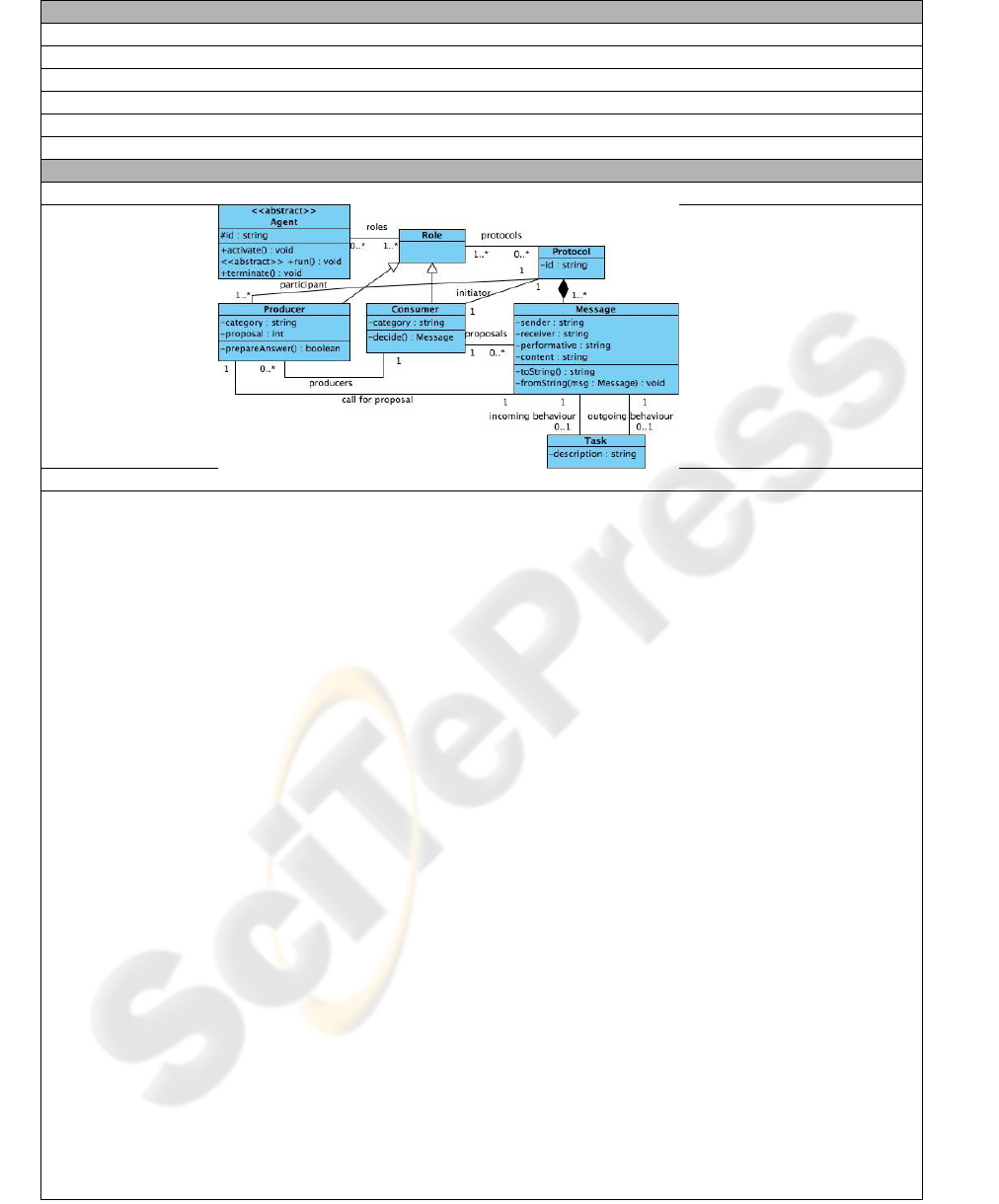

Table 2: ACNS Design Pattern “Consumer-Producer Interaction”.

Interface

Name

Consumer-Producer Interaction

Classification

Design Pattern ^ACNS Pattern

Rationale

This pattern describes the interaction between Consumer agents and Producer agents and behaviours associated with this interaction.

Solution

Model

Participants

The Agent concept corresponds to the notion of agent defined in the agent theory. An agent is an autonomous, active entity which

asynchronously interacts with other agents and cooperates with others so as to solve a global problem.

The Role concept defines a catalogue of behaviours the agent will play within the multiagent system.

The Consumer concept refers to the notion of customers in commerce. Customers acquire a service from providers. The Consumer

concept inherits from the Role concept since it represents a specific role in a Contract Net system. A field category is associated to this

concept to refer to the kind of service the Consumer is looking for.

The Producer concept refers to the notion of producers in commerce. Producers propose services to customers. The Producer

concept inherits from the Role concept since it represents a specific role in a Contract Net system. The Producer concept has two

attributes: category and proposal. Category defines the kind of service the Producer provides. Proposal refers to the proposal the

Producer issues when receiving a call for proposals from the Consumer. Here, the proposal is an amount for performing the service.

The Consumer concept is related to the Producer concept through an association entitled producers. The consumers association

describes a Consumer asks to 0 or more Producer for a service given criteria and a Producer provides service to a Consumer. It is

possible a Consumer does not find a Producer if there is no Producer for the given criteria.

The Consumer concept is related to the Message concept through an association entitled proposals. A Consumer sends 0 or more

Message to Producer and a Message is related to only one Consumer. Exchanged messages are those found in the Contract Net Protocol

pattern. The different proposals coming from the Producer are those in this association.

The Producer concept is related to the Message concept through an association entitled call for proposal. A Producer receives one

Message from Consumer and a Message is related to only one Producer. This message corresponds to the call for proposals the

Consumer does in the context of the Contract Net protocol (Contract Net Protocol pattern).

The Protocol concept defines a protocol. This Protocol is composed of an attribute id that uniquely identifies the protocol. A protocol

is a legal suite of sequences of messages.

The Message concept refers to the notion of messages in protocols. A message has several attributes: sender and receiver which

respectively refer to the sender of the message and the receiver of the message. The attributes performative and content correspond to the

content of the message for the latter and the illocutionary force--the verb--for the former. A performative is the verb used to describe the

action and is applied on the content.

The Task concept refers to the notion of behaviours. Here, behaviours correspond to the behaviours when sending and receiving

messages. Behaviours when sending messages are denoted by the outgoing behaviour association between the Task concept and the

Message concept. Behaviours when receiving messages are denoted by the incoming behaviour association between the Task concept

and the Message concept.

It is optional to describe behaviours when designing protocols and messages. The Task has one attribute description that gives the

associated behaviour. There is no predefined format for this attribute. Designers may decide to use formal methods or programming

languages, to represent only one action or a workflow depending on behaviour complexity.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

246

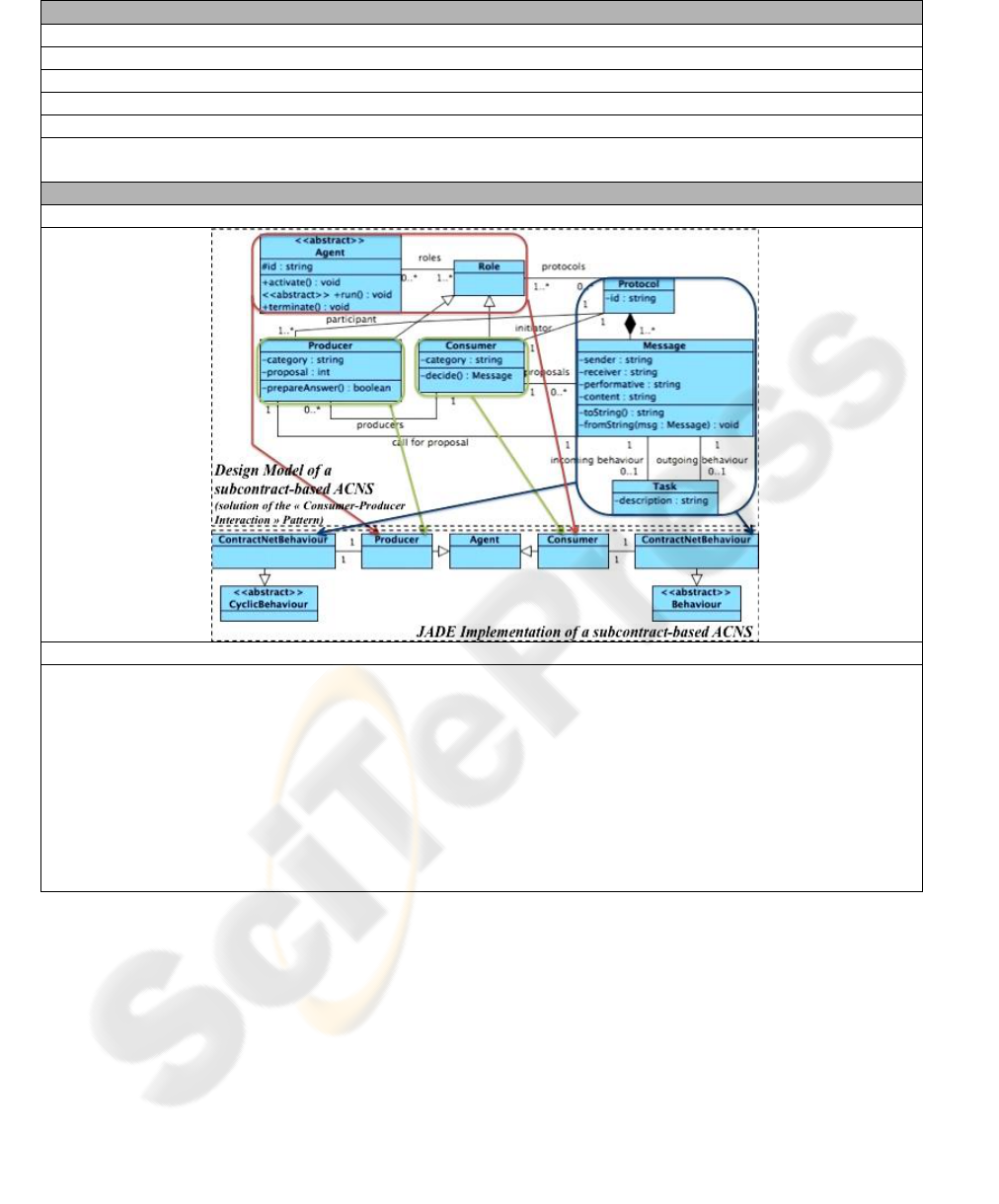

Table 3: Model Transformation Pattern “JADE Implementation of a Subcontract-based ACNS”.

Interface

Name

JADE Implementation of a subcontract-based ACNS

Classification

Model Transformation Pattern ^ ACNS Pattern

Rationale

An Automatic Contract Net System considers two kinds of interacting entities: (1) one or more Consumer and (2) one or more Producer.

This pattern defines the Consumer concept.

Solution

Model

Participants

This pattern ensures the transformation from a conceptual model of an ACNS to a set of classes for the JADE platform. Agents on the

JADE platform are defined as a specialization of the Agent class provided by the JADE platform. The Consumer and Producer concepts

are derived as Consumer and Producer classes inheriting from the Agent class. The Agent class from the JADE platform provides the

different methods required for the Agent lifecycle (creation, invocation, execution and deletion). These methods correspond to the ones

proposed in the Agent concept. The set of attributes and methods from the Role concept is added to the Consumer and Producer classes.

Behaviours on incoming messages and outgoing messages are defined via the Message and the Task concepts in the upper part of the

figure. Behaviours in the JADE platform are defined as a specialization of the Behaviour class. We distinguish the Consumer behaviours

from the Producer behaviours during the transformation. Actually, we consider the Producer behaviours as cyclic; the Producer learns

from previous calls for proposals to prepare better proposals. It is not possible with the Behavior class to define cyclic behaviour hence

explaining why the behaviour for Producer inherits from CyclicBehavior.

5 CONCLUSIONS

This paper describes our work about specifying and

reusing patterns so as to engineer agent-based

Automatic Contract Net Systems (ACNS). The

different patterns presented here represent the

building blocks which, after adaptation, can be used

to develop analysis and design models for a new

ACNS, define the architecture and ease

implementation. The patterns cover the phases of

analysis, design and implementation for engineering

an ACNS.

The approach developed and the different

patterns are experimentally validated on a specific

ACNS for booking flight tickets. The client is here

the travel agency and the providers are the different

flight companies. Reusing the patterns help eliciting

the business entities (analysis model), architecting

the system (the architecture is a subcontract-based

one since there is a unique consumer and several

producers), defining the design model and

generating skeleton code for the JADE platform.

ENGINEERING AGENT-BASED INFORMATION SYSTEMS - A Case Study of Automatic Contract Net Systems

247

We have developed a toolkit so as to ease

engineering Information System applications and

specifically ACNS. This toolkit is based on our

software patterns. It takes as input a Reuse Support

Pattern, guides the developer--by asking questions--

through the different patterns to be used, and finally

generates code skeleton. The process is then not

fully automated due to developer’s interventions.

Thus, s/he can complete and refine the generated

code and run his/her agents on a JADE platform.

Future work aims at reusing the different

patterns presented here and augmenting the set of

patterns so as to develop other Enterprise

Information Systems (schedule management for

instance).

REFERENCES

Alexander, C., Shikawa, S., Silverstein, M., Jacobson, M.,

Fiksdahl-King, I., & Angel, S., 1977. A pattern

language: towns, buildings, construction, New York,

Oxford University Press.

Bellifemine, F. L., Caire, G., & Greenwood, D., 2007.

Developing Multi-Agent Systems with JADE, New

York, Wiley.

Buschmann, F., Meunier, R., Rohnert, H., Sommerlad, P.

& Stal, M., 1996. Pattern-Oriented Software

Architecture: A System of Patterns, New York, John

Wiley & Sons.

Coplien, J.O., 1992. Advanced C++: programming styles

and idioms, Addison-Wesley.

Cossentino, M., Luca, S., & Antonio, C., 2004. Patterns

Reuse in the PASSI Methodology, In A. Omicini, P.

Petta, J. Pitt (eds.), LNCS (LNAI): vol. 3071, ESAW

2003, pp. 294-310, Springer.

DeLoach, S.A., Wood, M.F., & Sparkman, C.H., 2001.

Multiagent Systems Engineering. International

Journal of Software Engineering and Knowledge

Engineering, 11(3).

Foundation for Intelligent Physical Agents, 2002. FIPA

Contract Net Interaction Protocol Specification, from

http://www.fipa.org/specs/fipa00029/

Fowler, M., 1997. Analysis Patterns, Addison-Wesley.

Gamma, E., Johnson, R., Helm, R., & Vlissides, J., 1995.

Design patterns, elements of reusable object-oriented

software, Addison-Wesley.

Giorgini, P., Kolp, M., Mylopoulos, J., & Castro, J., 2005.

Tropos: A Requirements-Driven Methodology for

Agent-Oriented Software, Agent-Oriented

Methodologies, pp. 20-45.

Gutknecht, O., & Ferber, J., 2000. The MADKIT agent

platform architecture, In T. Wagner (Ed.), LNCS : vol.

1887, International Workshop on Infrastructure for

Multi-Agent Systems, Springer-Verlag, pp. 48-55.

Huget, M. Ph., june 2008. Mercury: une plate-forme pour

l'exécution de systèmes multi-agents, Paper presented

at the 8ème Conférence Internationale sur les

NOuvelles TEchnologies de la REpartition (NOTERE

2008), Lyon, France (in French).

Smith, R.G., 1980. The Contract Net Protocol: High level

Communication and Control in a Distributed Problem

Solver, IEEE transactions on Computers, 29(12), pp.

1104-1113.

Wooldridge, M., Jennings, N. R., & Kinny, D., 2000. The

Gaia Methodology For Agent-Oriented Analysis And

Design, Journal of Autonomous Agents and Multi-

Agent Systems, vol. 3, pp. 285-312.

Wooldridge, M.J., 2002. An Introduction to MultiAgent

Systems, New York, Wiley.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

248
