MODELING DATA INTEROPERABILITY FOR E-SERVICES

José C. Delgado

Instituto Superior Tecnico, Technical University of Lisbon, Av. Cavaco Silva, Porto Salvo, Portugal

Keywords: Service interoperability, Service modeling, Structural conformance.

Abstract: In global, distributed systems, services evolve independently and there is no dichotomy between compile

and run-time. This has severe consequences. Static data typing cannot be assumed. Data typing by name and

reference semantics become meaningless. Garbage collection cannot be used in this context and (references

to) services can fail temporarily at one time or another. Classes, inheritance and instantiation also don’t

work, because there is no coordinated global compile-time. This paper proposes a service interoperability

model based on structural conformance to solve these problems. The basic modeling entity is the resource,

which can be described by structure and by behavior (service). We contend that this model encompasses and

unifies layers found separate in alternative models, in particular Web Services and RESTful services.

1 INTRODUCTION

Complex and distributed information systems are

typically built by code in a general purpose

programming language, such as Java or C#, wrapped

into Web Services and orchestrated by a process

based workflow language such as BPEL.

Distributed data interoperability has been a

recurring issue, with XML and Web Services based

solutions as the main answers to this problem.

Higher levels of interoperability have been identified

(Tolk, 2006) in the context of the semantic web.

However, XML is essentially a text-based

serialization format, conceived mostly as an

extensible, customizable and self-describable way of

specifying documents, both in content and structure

(schema), and not a general purpose structured data

format designed for e-service interoperability.

Binary data is still treated in a separate, special way.

The relevance and widespread use attained in

just a few years by web browsing, intrinsically user

driven, was enough to justify the option of designing

XML as an evolution of HTML (maintaining text-

based markup) in what browsing and hypermedia

document description is concerned.

E-services and their interoperability, in the same

line of thought, became aligned with XML and built

on top of it, by using SOAP and the WS-* stack.

Unfortunately, this has introduced a level of

complexity and overheads that have motivated the

appearance of alternatives and variants, such as

REST (Pautasso, 2009) and WOA (Thies and

Vossen, 2009), in an attempt to build simpler and

more efficient systems.

This paper considers the original problem,

service interoperability, and draws a model of the

requisites it should comply with. This model is then

compared with the canonic XML-based solutions

available on the market today and the advantages of

this model analyzed.

2 THE PROBLEM

2.1 Data Interoperability

Although we commonly use the term semantic web,

ontologies are increasingly used and defined,

researchers identify several levels of interoperability

(Tolk, 2006) and knowledge transfer is a popular

term (in April 2010, Google Scholar was able to

retrieve more than 80,000 entries), the fact is that in

the end interoperability boils down to data. All the

other levels must build on top of it.

If a service wants to share information or

knowledge with another, it can’t. What it must do is

to produce data from its context, pack it into a

message and send it to the other service, which must

reinterpret it in its own context. If the ontology is not

the same, the information retrieved and the resulting

knowledge (or belief) will be different from the

original. But common ontologies can only be

271

C. Delgado J. (2010).

MODELING DATA INTEROPERABILITY FOR E-SERVICES.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Information Systems Analysis and Speciﬁcation, pages

271-276

DOI: 10.5220/0002907902710276

 SciTePress

established cooperatively by data communication, so

no entity can be certain that the message it sends

gets correctly understood.

This can only be done by prior agreement

between the programmers of both services, using

some other form of communication. In fact, the set

of primitive data types used in a message format can

be considered the lowest common agreed ontology.

Both parties need to know what a byte sequence is to

exchange at low level a group of bytes, even without

further meaning. This paper does not tackle higher

levels of service interoperability (e.g., semantics).

2.2 Problems in Distributed Services

When programming one application, programmers

have the luxury of compiling the entire source

program at the same time (separate compilation is

just an optimization that avoids compiling modules

that do not depend on some change). In other words,

the life cycles of all the services contained in that

application are synchronized. Figure 1 illustrates a

typical life cycle of a service, with two loops. If

evaluation (according to some KPIs) is not

satisfactory, the cycle is restarted. If there is a

change, a new version is built (and the current

finalized). If the strategy finds that the service is not

worthwhile changing, it is eliminated.

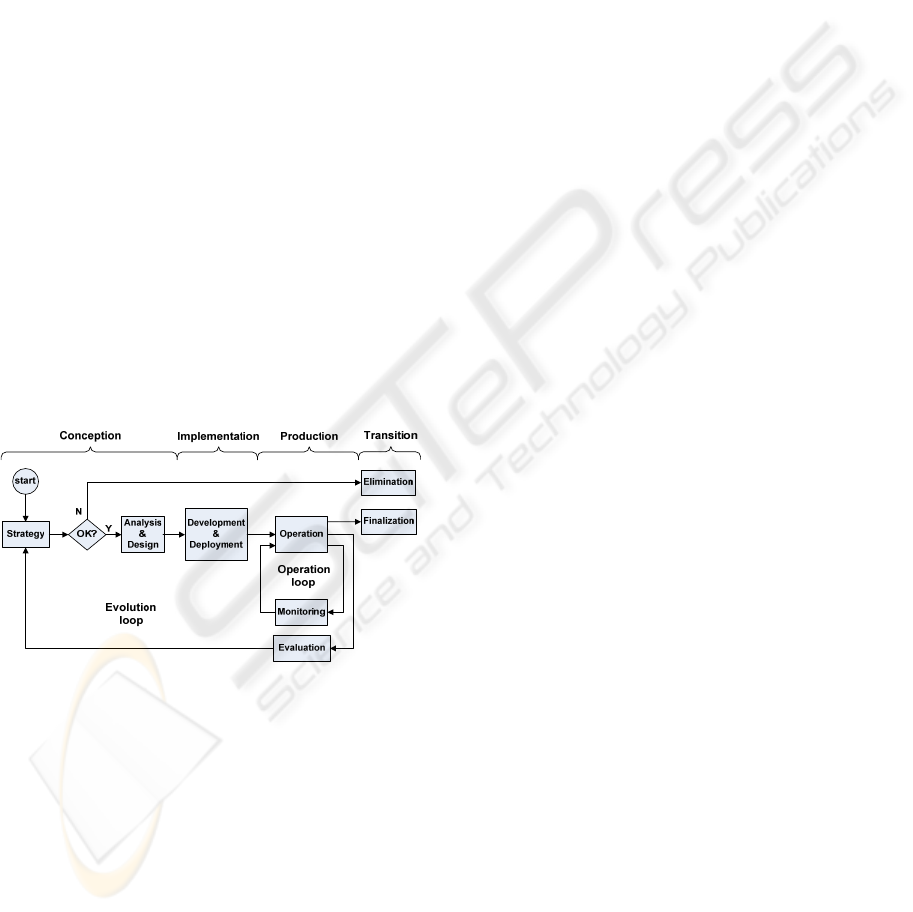

Figure 1: Typical lifecycle of a service.

In global, distributed systems, services evolve

independently and there is no dichotomy between

compile and run-time. The system is always in run-

time and the interface of a service (and even its

location, through migration) can change at any time

without warning.

This has severe consequences. Static data typing

cannot be assumed. In fact, data typing by name and

reference semantics, usually basic programming

features, become meaningless. Reliable garbage

collection becomes much more difficult to achieve

in this context and (references to) services can fail

temporarily at one time or another. Classes,

inheritance and instantiation also don’t work,

because there is no globally coordinated compile-

time. How can we cope with such an environment?

3 AN INTEROPERABILITY

MODEL

This section presents a simple model, adequate for

distributed systems and reflecting our idea of what

service data interoperability should be based on.

3.1 Structure

We use structured models to capture the essential

aspects of structured entities of the real world, in

which change is the only constant. Therefore,

services must be prepared and agile to cope with

changes. The best way of achieving this is to have a

model that resembles reality as close as possible, so

that a small change in reality translates into a small

change in the model. An entity can be modeled by:

 Behavior only (black box approach, described

exclusively by how it reacts to stimuli from

the outside world);

 Structure only (its behavior depends entirely

on the interaction behavior resulting from its

internal component entities and how they are

interconnected);

 Both structure and behavior.

The main structuring paradigm is composition

(in the UML sense). One entity can only be part of

another, in a tree-based structuring hierarchy. An

entity can reference another outside its context, but

with the reference as one of its component entities.

Behavior as a reaction to stimuli implies

interaction. In the context of e-services, our model

assumes discrete stimuli in the form of electronic

messages, which are entities in their own right and

under the same model. To interact, two entities must

be directly connected at some interaction point or

have a third one (that acts as a channel) connecting

directly to both. The channel can support

addressability, when it connects to many entities, but

this is a mechanism built on top of the basic

interaction model.

We use the term resource to broadly designate

the entities that are part of this model and service to

designate the behavior exhibited by a resource at an

interaction point. From the outside, a service appears

to be a non-structured resource with one interaction

point. A structured resource is a collection of

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

272

resources that, when expanded, yields a tree of

structured resources with services at the leaves.

Figure 2 illustrates the structure in this model.

Each resource can be described as a black box in

terms of behavior (the set of messages it is able to

respond to at the interaction points and

corresponding reactions) or structure (its component

resources, including internal connections that allow

private component resources to interact without

making them visible externally).

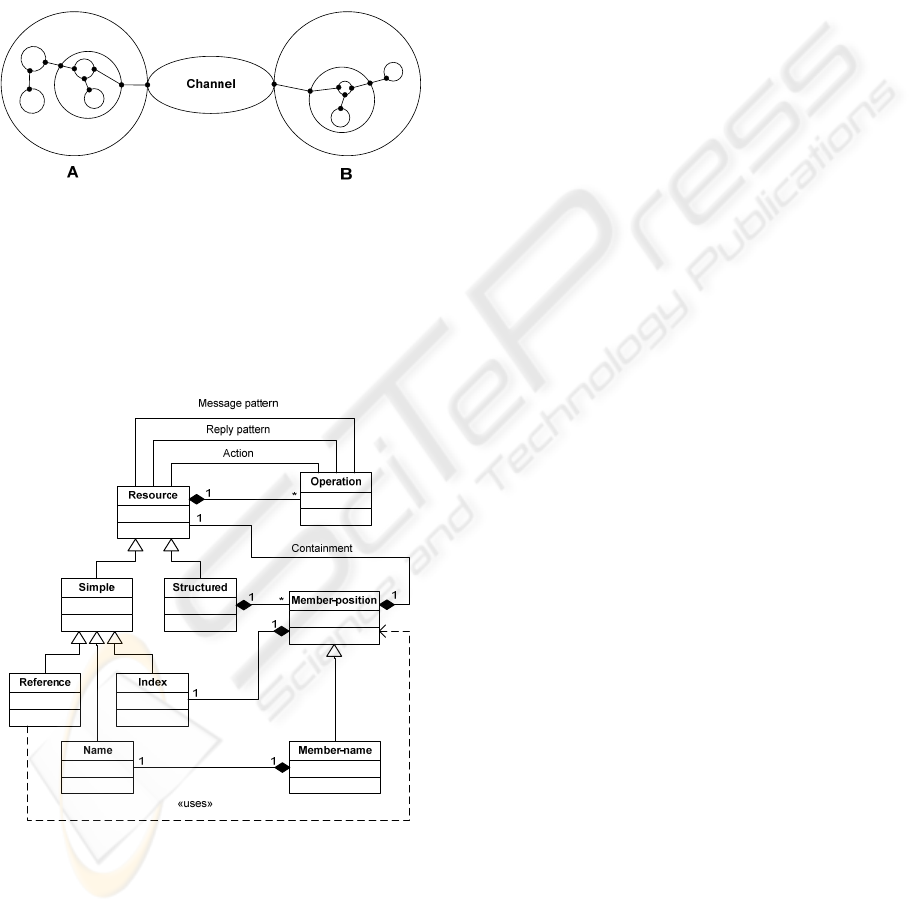

Figure 2: Example of structural modeling. Black dots are

the interaction points.

Figure 3 depicts the UML conceptual resource

metamodel (there are actually no classes involved).

A simple resource has no structure (just the service)

and is described only by its behavior, specified as a

set of operations.

Figure 3: Conceptual resource metamodel.

A structured resource is a collection of member

(component) resources, accessible from the

containing resource given its index (position) in the

collection. Some can also be associated with a name

and accessed by it. Members are the interaction

points in Figure 2. A visibility (public/private)

mechanism can be added to specify which members

are accessible from outside a resource.

The index and name would normally be modeled

as attributes of the Member classes, but in this way it

becomes clearer that we somehow need to model the

notions of a non-negative integer and of a string,

most likely as primitive resources. The reference is

another potential primitive resource, possibly

implemented as a URI with a resolution mechanism

that supports migration. Having a reference to a

resource implies registering it in some resource that

offers a directory service.

Therefore, we have two mechanisms to relate

resources:

 Containment. Migrating a resource implies

migrating all the resources it contains. Its

container needs to externalize it, removing it

(and its members) from its containing list;

 Usage. An access mechanism (by position and

by name) needs to be provided so that, given a

resource, a reference to any of its members

can be obtained.

3.2 Message based Interaction

Messages are themselves resources. If, in Figure 2, a

service in resource A wants to send a message to a

service in resource B to invoke some functionality, it

needs to:

 Create the message in the context of A;

 Externalize it to the channel;

 Internalize it in the context of B.

A message is in fact migrated from one resource

to another, in whose context it must be understood

without requiring additional service specific data

that leads to tight coupling.

A service transaction is defined as the entire set

of operations needed at A to produce and send a

request, execute it in B and eventually send a reply

and cope with it back in A.

Although higher level interaction patterns are

possible (Zdun, Hentrich and van der Aalst, 2006),

the basic model of message based service transaction

should be asymmetric (who defines the transaction

details is essentially the provider and the consumer

must comply with this), robust (the consumer must

deal with potential faults), push-based (the provider

must receive the message on the terms it specifies

and not be obliged to scavenge the message in

search of a potential request), self-describing,

loosely-coupled and asynchronous (e.g., using the

future mechanism of some concurrent languages).

MODELING DATA INTEROPERABILITY FOR E-SERVICES

273

3.3 Mechanisms for Distribution

Loosely coupled interoperability is one of the main

guiding tenets in distributed systems. Both consumer

and provider must assume the minimum possible

about each other, which precludes the use of many

of the features that modern programming languages

(in particular, object-oriented) have introduced.

The main solutions provided by our distributed

service model are:

 Any resource can change itself dynamically;

 Use of prototypes and cloning instead of

classes and instantiation;

 Use of delegation and composition for

behavior sharing, instead of inheritance and

interface implementation;

 Use of one single, recursive structuring

mechanism (the resource);

 Separation of data from the engines that

process them, so that services can exchange

data but use their own engines;

 Structural conformance (Kim, D., and Shen,

W., 2007), to match messages with patterns,

based on a structure built out of primitive

resources, instead of named typing;

 Use by all interacting services of a low level

common abstraction (such as a byte sequence)

to be used as a basis for the message format.

3.4 The Model in Action

The actual implementation of the resources and their

services is their internal affair, depending on the

engines they use to implement their behavior.

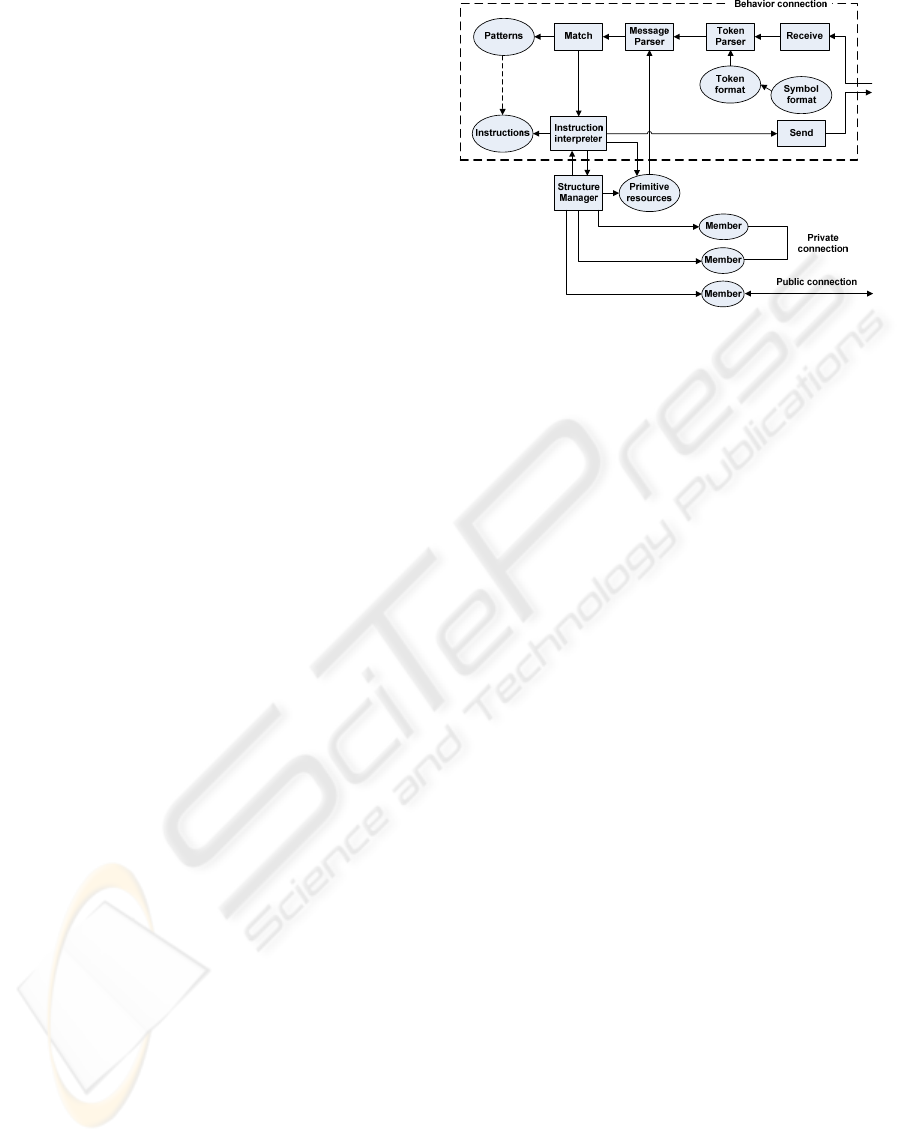

Figure 4 illustrates the basic operational model

of a resource, contemplating members described by

behavior (the upper broken line rectangle; only one

behavior interaction point represented) and by

structure (the lower part; two internal members, with

private interaction points, and one with a public

interaction point represented). Structurally, this

model is recursive, which means that the members in

the lower part have a similar structure. The Structure

Manager is an engine that supports the topology of

interconnections and the access (by name or

position) to the resource’s members. The set of

primitive resources is not really part of the resource

and is represented to make apparent that they are

available to be replicated (cloned) or shared by using

a reference.

The Receive engine includes the message listener

and eventually a message buffer. It implements a

given transport protocol and deals with the lowest

level data abstraction (sequence of bytes).

Figure 4: The operational model of a structured resource.

The Token Parser is an engine that reconstructs a

sequence of tokens, each representing a non-

structured, primitive resource. A symbol format may

be used if the underlying alphabet is higher level

than bytes (such as characters). The Message Parser

engine reconstructs the message as a structure (tree)

resource, using primitive resource tokens and

structure tokens as input. The Match engine tries to

successively match the message with one of the

patterns specified in the operations (Figure 3)

specified in the resource, using structural

conformance. If it succeeds, passes that information

to the next engine. Otherwise, it either resends the

message to another resource (delegation) or simply

ignores the message. The Instruction Interpreter

engine reads the (compound) instruction

corresponding to the pattern matched and executes

actions according to whatever meaning it assigns to

what it reads. Possible instructions include replying

to the message received or sending a message to

another service, which is the job of the Send engine,

complementary to the Receive engine.

All these engines need to support concurrency.

Reception of a new message creates a new task or

thread to carry out the corresponding request. The

Receive engine may limit this to avoid saturation of

the resource’s response capacity. The primitive

resources are shared by the various tasks.

3.5 Structural Conformance

Sending a message to a (remote) service is, in its

essence, a (remote) assignment. In a distributed

environment, reference semantics are meaningless or

not practical, which means the default must be copy-

semantics (reference-semantics is possible with the

Reference primitive resource). The value to assign

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

274

(the message) is transferred to the context of the

resource that receives it and likely affects its state.

One of the basic problems in an assignment is to

know whether the operation is acceptable, i.e., if the

message conforms to what the receiver expects and

knows how to cope with. Here, we cannot compare

data types by name. We only have tree structures

whose leaves are primitive resources and that are

structurally self-describing. Therefore, we need to

compare two trees and perform a structural

conformance. Specifically, we need to know if a

message just received conforms to one of the

patterns specified in the receiver service.

A pattern is nothing more than a normal

structured resource definition, in which each

member is declared as a replica of some other.

Named members can have some initial resource

value specified. If this is the case, it indicates that

this is an optional member for the message. The

basic algorithm of structural conformance can be

specified recursively in pseudo-code as described

below, where p and m are abbreviations for pattern

and message, respectively, and x <== y is a simple

notation for y conforms to x. Member names must be

unique within each resource. If more than one has a

given semantics, they should be encapsulated in a

structured resource with that name (and not in an

XML style sequence).

conforms = true;

for each named member in p

if (there is a

m.member.name == p.member.name)

if (p.member <== m.member)

p.member = m.member;

else {conforms = false; break;}

else if (p.member is optional)

p.member = default value;

else {conforms = false; break;}

An incoming message will match (conform to) a

pattern if all the named pattern members are

conformed to, either by message members with the

same names (assigned to the pattern members) or by

their default values. If there is no match, the

message will be tested for conformance against the

next specified pattern. In case of match, the resulting

(structured) value of the pattern can then be used by

the engine executing the (structured) instruction

corresponding to that pattern as if it were the real

message. Note that the matching is oriented by the

pattern that the receiving service expects and not by

the message. This means that all the message

members that do not match will be ignored.

Structural conformance, allowing default values,

members out of order and ignoring extra data, is a

fundamental aspect in supporting the loose coupling

in service interoperability.

This structural conformance algorithm can easily

be extended for non-named (by position) members,

but space limitations prevent full discussion here.

3.6 Describing and Specifying Services

A service should be described by its semantics.

However, this is still an insurmountable obstacle for

non-trivial services and description is usually limited

to a computer-readable interface, complemented

with some human-readable comments. We must

keep in mind that a service compiler cannot rely on

some available service interface description, because

the service might have been changed in the

meantime. It is more a hint than a specification.

What the consumer may expect as a reply after

sending a request message to some service provider

is also important, including not only the normal

responses but possible exceptions. All these are

resources and can be treated as such when

processing the reply. Exception treatment can be

carried out by some try-catch instruction. Structural

conformance applies in all cases.

The description of a service can be derived

automatically from the source specification of the

service itself and consists mainly of the list of

message and reply patterns in each operation (Figure

3). A resource is described by its services and,

recursively, by its public structured members.

This is just the basic interoperability model.

Higher level mechanisms, such as message access

control and security, can be implemented by

enclosing the message in another message that acts

as an outer envelope and that carries the required

information (which varies from service to service).

To describe and interoperate resources, we

basically need (Figure 4):

 A programmer level language or notation

(with structure, message patterns and

instructions), out of which interface

descriptions can be automatically extracted;

 A set of primitive resources, simple or

structured and both data and instructions;

 A serialization format, to support resource

migration (and message communication) and

processing by the engines;

 A compiler to translate the source

specifications to the serialization format;

 A server type of runtime environment to

support the engines;

 A transport protocol (at the byte stream level).

MODELING DATA INTEROPERABILITY FOR E-SERVICES

275

4 DISCUSSION AND RATIONALE

No system today implements this interoperability

model. The most widely available solutions to the

e-service interoperability problem are based on Web

Services (Peltz, 2003) and REST (Pautasso, 2009).

Both are layered approaches. Instead of one model

designed for services from ground up, they are based

on XML, a document description language, on top

of which messages, service descriptions (e.g.,

WSDL or WADL), behavior (e.g., BPEL) and even

protocols (e.g., SOAP) are built as if they were

documents described by schema documents. All

these layers introduce complexity and overheads.

There is an inherent mismatch here, because

XML was not conceived for message based systems.

The underlying XML model is symmetric and pull-

based, in the sense that an entity produces an XML

document and another reads it using typically the

same schema. The reader (message receiver in

services) then must browse the message in search of

what it needs, instead of having it delivered in the

format that it expects. That’s the difference between

a grammar based schema and a pattern based one.

There is also a lack of dynamicity. Data binding

takes care of softening (within limits) changes in the

schema in what the receiver is concerned. But that

usually requires re-compilation.

Our model contemplates document description

precisely in the same way as message passing, with

the added bonus that data binding is automatic and

dynamic, through the mechanism of structural

conformance. The receiver copes with a message

through its own pattern schema. Which schema the

sender used and even if the message complies with it

is irrelevant. The only thing that matters is if the

message conforms to the schema of the receiver.

Another fundamental issue is the intrinsic

difference between the WS and REST styles. The

Web Services are usually medium to high

granularity and have functionally rich interface.

Essentially, they are based on behavior. In contrast,

RESTful services are adequate to lower granularities

and emphasize a rich structure with a uniform

interface. Neither can really change their mode of

operation, unlike our model that has the intrinsic

ability of tuning up both behavior and structure, by

emphasizing structure with simpler interfaces or the

other way around. This is a feature granted by the

fact that the model is unique and not layered.

Another manifestation of this paradigm is the

unification of data and behavior within the model

itself. This means that actually programming the

behavior of services does not need another layer, as

with BPEL, but continues to use the basic service

paradigm with a foundation on structural

conformance. Active XML (Abiteboul, Benjelloun

and Milo, 2008) also contemplates the possibility of

invoking Web Services from an XML document, but

the model is still document-centered.

Coupled with this issue, and not of lesser

importance, lies the mechanism used to produce a

schema from a service/resource specification, by

simply removing instructions and private resources.

If no security issues arise, the schema is simply the

public part of the service/resource itself.

5 CONCLUSIONS

We have presented a model of service

interoperability, based on many of the ideas fostered

by the XML structural extensibility and separation

of data and processing engines, but in which the

basic unit is not the document but the resource,

including both structure and behavior (services).

An implementation is under development,

tackling the topics mentioned at the end of section

3.6, but not described here due to lack of space. It

deals with service interface only, but the model in

itself does not hamper semantic conformance (on top

of the structural one), which will be pursued next.

REFERENCES

Abiteboul, S., Benjelloun, O., Milo, T., 2008. The Active

XML project: an overview. The VLDB Journal, 17(5),

1019-1040.

Kim, D., and Shen, W., 2007. An Approach to Evaluating

Structural Pattern Conformance of UML Models. In

SAC'07, ACM Symposium on Applied Computing,

1404-1408, ACM Press.

Pautasso, C., 2009. RESTful Web service composition

with BPEL for REST. Data & Knowledge

Engineering, 68, 851–866.

Peltz, C., 2003. Web Services Orchestration and

Choreography. IEEE Computer, 36(10), 46-52.

Thies, G., Vossen, G., 2009. Modelling Web-Oriented

Architectures. In APCCM’09, Asia-Pacific Conference

on Conceptual Modelling. Australian Computer

Society Press.

Tolk, A., 2006. What comes after the Semantic Web -

PADS Implications for the Dynamic Web. In

PADS'06, 20th Workshop on Principles of Advanced

and Distributed Simulation. IEEE-CS Press.

Zdun, U., Hentrich, C., and van der Aalst, W., 2006. A

survey of patterns for Service-Oriented Architectures.

International Journal of Internet Protocol Technology,

1(3), 132-143.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

276
