USING SQL/XML FOR EFFICIENTLY TRANSLATING QUERIES

OVER XML VIEW OF RELATIONAL DATA

Fernando Lemos

PRiSM Lab, Université de Versailles, 45 avenue des Etats-Unis, Versailles, France

Clayton Costa, Vânia Vidal

Departament of Computing, Federal University of Ceará, S/N av. Eng. Humberto Monte, Fortaleza, Brazil

Keywords: XML, Web Services, Relational Database.

Abstract: XML and Web services are becoming the standard means of publishing and integrating data over the Web.

A convenient way to provide universal access (over the Web) to different data sources is to implement Web

services that encapsulate XML views of the underlying relational data (Data Access Web Services). Given

that most business data is currently stored in relational database systems, the generation of Web services for

publishing XML view of relational data has special significance. In this work, we propose RelP, a

framework for publishing and querying relational databases through XML views. The main contribution of

the paper is an algorithm that translates XML queries over a published XML view schema into a single

SQL/XML query over the data source schema.

1 INTRODUCTION

A convenient way to provide universal access (over

the Web) to different data sources is to implement

data access Web services, i.e., Web services that

publish XML views of data stored in a data source.

Given that, a user can query the data source through

XML views. Without an XML view, the XML

application developer must be aware of the relational

schema and must write and maintain all the queries

to transform the SQL data into the desired XML

structure. In this case, the use of XML views causes

the developer to know only the exported XML

schema, over which he can write less complex XML

queries to retrieve the relevant date.

This strategy not only offers a flexible and

transparent way to publish underlying data but also

encapsulates details of access and transformation

between the application and the data. Moreover, with

the Semantic Web, the use of Web services and

ontologies will make the data store content machine-

processable and machine-interpretable.

The two main problems resulting from XML

publishing are: defining the XML view (how to

specify the mappings from source to target schemas)

and query answering (how to use the mappings to

answer correctly the queries posed on the XML view

schema). Additionally, approaches for publishing

relational data to XML must meet three requirements

(Fernández, 2002): (i) be general, i.e., the mapping

language must be flexible enough to allow specifying

complex XML schemas over the relational schema;

(ii) be selective, i.e., only the relevant data must be

materialized, since, in general, it consists of a small

part of the whole data; and (iii) be efficient, i.e., must

guarantee an efficient query processing by exploiting

the database optimizers and evaluation engines.

We have recently seen research aiming to provide

high level mapping languages for data migration

purposes (Haas, 2005; Popa, 2002; Melnik, 2005).

Meanwhile, the problem of query answering is

addressed in (Funderburk, 2002; Fernández, 2002;

Jiang, 2007; Krishnamurthy, 2003, Benham, 2003).

The query answering approach in these works must

handle mappings which are hard to manipulate,

leading to less-efficient query processing. Moreover,

they don’t guarantee efficient query processing and

the lack of mapping formalism in some works leads

to complex query-like mappings management.

In this paper, we present a framework, called

RelP, for publishing and querying relational

databases through XML views. In RelP, users can

269

Lemos F., Costa C. and Vidal V. (2010).

USING SQL/XML FOR EFFICIENTLY TRANSLATING QUERIES OVER XML VIEW OF RELATIONAL DATA.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Databases and Information Systems Integration, pages

269-274

DOI: 10.5220/0002909302690274

 SciTePress

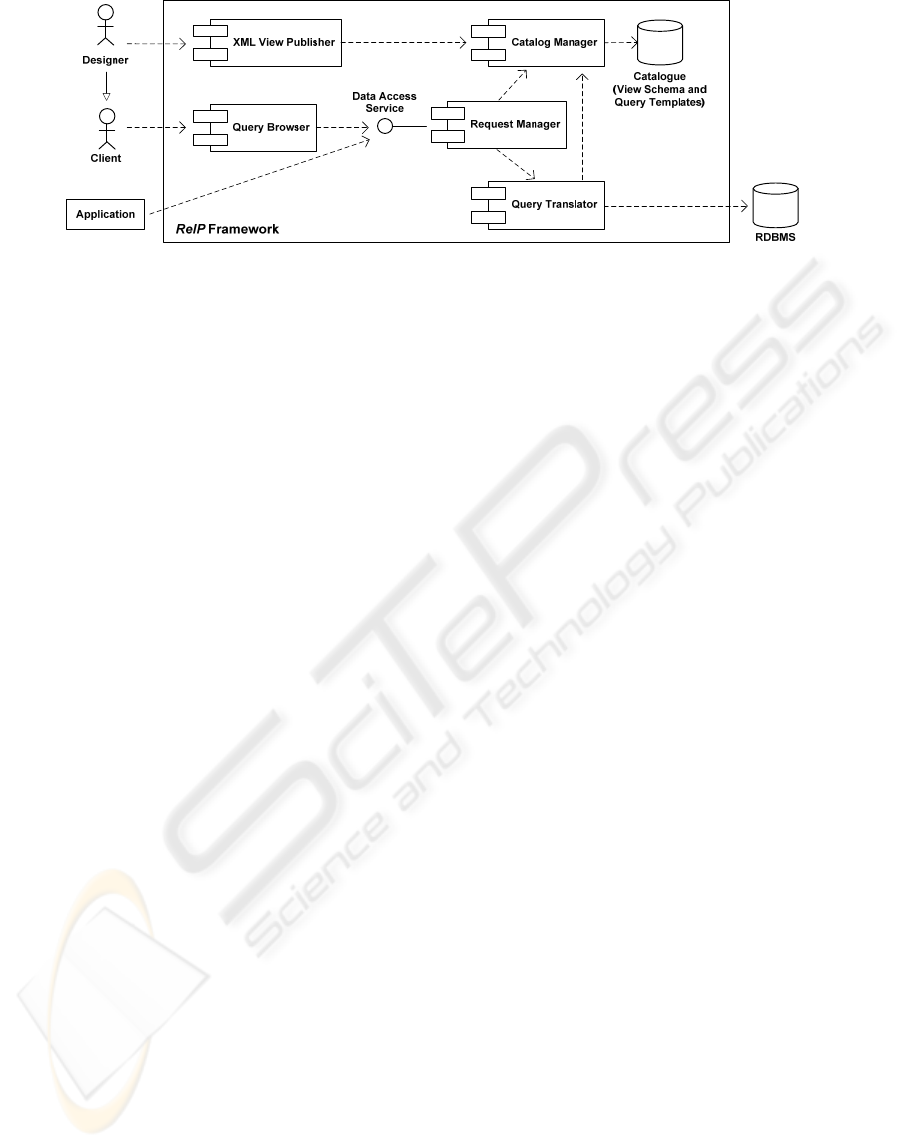

Figure 1: Components and interfaces required for RelP.

define XQuery queries over an XML view schema.

The query is translated into a single equivalent

SQL/XML (Eisenberg, 2004) query defined over the

relational schema. The choice for the SQL/XML

standard relies in its flexibility and simplicity to build

arbitrarily complex declarative queries that return

XML data from relational data in the structure the

user desires. These characteristics allow us to

guarantee that a single SQL/XML query is obtained

in the query answering process.

In our approach, a view is specified by a set of

correspondence assertions (Popa, 2002; Vidal, 2006),

which defines how to transform source states to view

states. The views that we address are focused on

schema-directed XML publishing (Bohannon, 2004).

As such, the correspondence assertions induce

schema mappings defined by the class of projection-

selection-equijoin (PSE) SQL/XML queries, which

support most types of data restructuring that are

common in data exchange applications. We make a

compromise in constraining the expressiveness of

mappings so we can have a query answering

algorithm that is much more efficient than those

implemented by others XML publishing tools.

The main contribution of the paper is an

algorithm that translates XML queries over a

published XML view schema into a single

SQL/XML query over the data source schema. The

efficiency of our algorithm relies in two particulars:

(i) the view mappings analysis is done at design time

to generate a set of SQL/XML fragments (Query

Templates), which are used in the query answering

process; and (ii), the execution of SQL/XML queries

takes advantage of traditional relational optimizers,

which represents a considerable gain in performance

(Liu, 2005). RelP also features a graphical interface

to help in the creation of the XML view.

The rest of the paper proceeds as follows. Section

2 discusses the related works. Section 3 gives an

overview of the main components of RelP. Section 4

discusses the process for publishing an XML view

with RelP. Section 5 presents the query answering

process in RelP. Finally, Section 6 presents the

conclusions and shows experimental results and

corresponding analyses.

2 RELATED WORK

In the last years, several middlewares and

frameworks have been proposed to treat the problem

of XML publishing.

In XTables (Funderburk, 2002) and SilkRoute

(Fernández, 2002), the XML view schema and

mapping knowledge is specified by an XQuery

query over a canonical XML representation of the

relational schema. A query defined over the view

schema is translated into equivalent SQL queries and

the SQL results are tagged to produce the final XML

document. Efficient query processing is not

guaranteed, since for a single query more than one

SQL queries can be generated. Moreover, the lack of

mapping formalism leads to complex XQuery-based

mappings generation and maintenance.

In Clio’s Three-Phase Framework (Jiang, 2007),

a view is specified by a set of tuple-generating

dependencies (tgds) (Haas, 2005). These mappings

can be generated with the help of Clio tool (Haas,

2005). The framework (i), based on the view tgds,

extracts the relevant data from the data source, (ii)

generates XML fragments from the relevant data,

and (iii) merges/groups the XML fragments to

produce the final result. The framework is used in

the transformation and transport of data between

source and view schemas. Therefore, it is not

possible to query the database through the view.

In XML Publisher (Vidal, 2004), the view is

defined by its schema and a set of correspondence

assertions between the view schema and the data

source schema. Based on the view mappings, a

canonical object view is created in the underlying

DBMS. A query defined over the view schema is

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

270

FK1

CUSTOMERS_REL

CUST_NO

CUST_NAME

STREET

CITY

STATE

ZIP

PHONE1

PHONE2

PHONE3

ORDERS_REL

ORDER_NO

CUST_NO (FK)

ORDER_DATE

SHIP_DATE

TO_STREET

TO_CITY

TO_STATE

TO_ZIP

LINE_ITEMS_REL

ORDER_NO (FK)

ITEM_NO

PROD_NO (FK)

QUANTITY

DISCOUNT

PRODUCTS_REL

PROD_NO

NAME

PRICE

TAX_RATE

PurchaseOrder_T

@ID (

integer

)

OrderDate (date)

Customer (

Customer_Type

)

Address (Address_Type

)

Street (string

)

City (string

)

ZIP (string)

Phone*

(

string

)

LineItem*

(

LineItem_Type

)

ItemNo (integer

)

Product (string

)

Quantity (integer)

Name (string

)

State (string)

Discount (

float

)

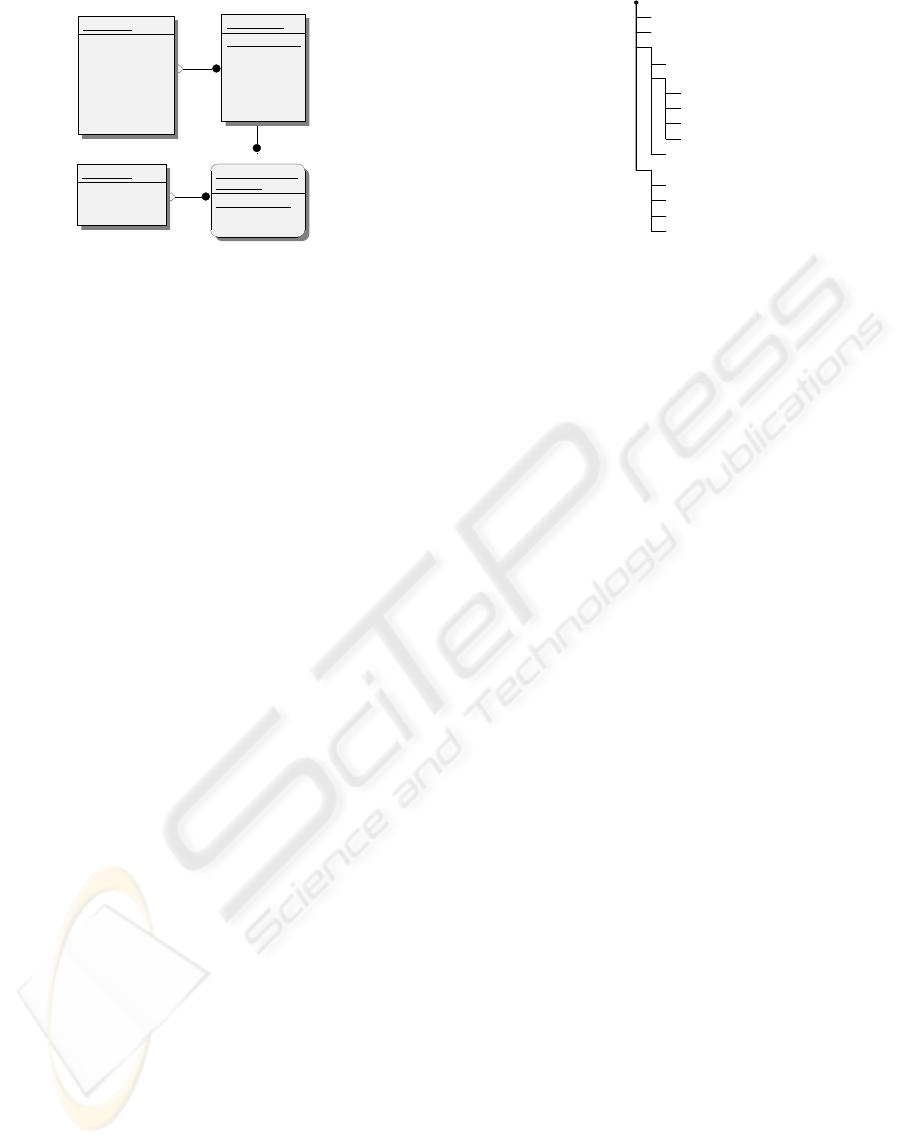

Figure 2: Relational Schema ORDERS_DB. Figure 3: XML Type PurchaseOrder_Type.

first translated into a SQL:92 query over the

canonical view schema, and then the DBMS view

mechanism takes place to answer the query. The

obligation to create an object view at the data source

level makes the approach undesirably intrusive.

A significant amount of DBMSs, such as Oracle,

DB2 and PostgreSQL, currently features publishing

SQL data in XML format using the SQL/XML

standard. Among them, only Oracle provides a

SQL/XML view mechanism in which views can be

queried using XQuery language.

In summary, on the one hand, we have

middleware approaches that have complex mapping

languages and do not guarantee efficiency in query

processing. At the same time, we have some

database systems that feature the SQL/XML

standard, but a few number of them provides an

SQL/XML view mechanism. Thus, the need for low-

cost solutions that support the creation of XML

views in a simple way to ensure easy access to data

and efficient query processing motivates this work.

3 RelP ARCHITECTURE

A simplified view of the RelP architecture is shown

in Figure 1. The XML View Publisher is an evolution

of XVBA tool (Vidal, 2007). As XVBA, this

component allows users to graphically define XML

views, but, instead of generating the SQL/XML

view definition, it generates the query templates of

the view, which are used in the query translation.

The view schema and its query templates are stored

via the Catalogue Manager component.

The Query Browser component allows users to

graphically define a query over the XML views. The

Query Translator component translates an XML

query posed in terms of an XML view schema into

an SQL/XML query over the data source schema by

using the query templates stored in the Catalogue.

The Data Access Service interface provides

standard access for querying the XML views. It

provides the following methods: (i) getCapabilities:

requests the capabilities of the data access service

(specifically, which XML views are serviced); (ii)

describeViewType: requests the description of an

XML view serviced by the data access service; (iii)

query: requests the execution of an XQuery query

over the schema of an XML view serviced by the

data access service.

The Request Manager component simply

redirects the requests to the appropriate components.

4 PUBLISHING AN XML VIEW

The publication of an XML view in RelP consists of

two steps: (i) First, with the help of the XML View

Publisher, the user defines the XML view schema and

the correspondence assertions between the view

schema and the relational schema, as explained in

(Vidal, 2007). (ii) Then, the query templates are

automatically generated based on the view assertions.

The query templates of a view are composed of a set

of SQL/XML fragments, each one responsible to

generate an attribute/element of the view. The

procedure that automatically generates the query

templates can be found in (Lemos, 2010).

Consider the relational schema ORDERS_DB

depicted in Figure 2. Suppose the XML view

PurchaseOrder_XML, which is a set of

<PurchaseOrder> elements, instances of type

PurchaseOrder_Type (Figure 3), generated from the

tuples of the relational scheme ORDERS_REL. The

correspondence assertions of PurchaseOrder_XML can

be found in (Vidal, 2006).

The query templates generated from the

correspondence assertions of the view are shown in

Figure 5. In the PurchaseOrder_Type template, for

example, each attribute/element of the complex

type PurchaseOrder_Type have one corresponding

USING SQL/XML FOR EFFICIENTLY TRANSLATING QUERIES OVER XML VIEW OF RELATIONAL DATA

271

INPUT: output node $node

of a tree pattern query; node $node

of a

query template QT

OUTPUT: SQL/XML subquery Q

CASE 1: I

$node

is not labelled with * THEN

Q := $node

.query + GenFilter( f ), where f is the set of conditional

expressions of $node

;

CASE 2: If $node

is labelled with * THEN

LET $node'

:= $node

.reference;

Q := $node'

.query + GenFilter( f ), where f is the set of conditional

expressions of $node

;

Qc := "";

FOR EACH output child $child

of $node

, where δ is the path from

$node

to $child

LET δ

be the equivalent path of δ in QT;

Qc := Qc + $node'

.δ

.query;

END FOR

REPLACE %content% in Q by Qc;

RETURN Q;

Note: GenFilte

( f ) translates the conditional expressions in f to the

correspondent SQL filter clauses.

Figure 4: Procedure GenSubquery.

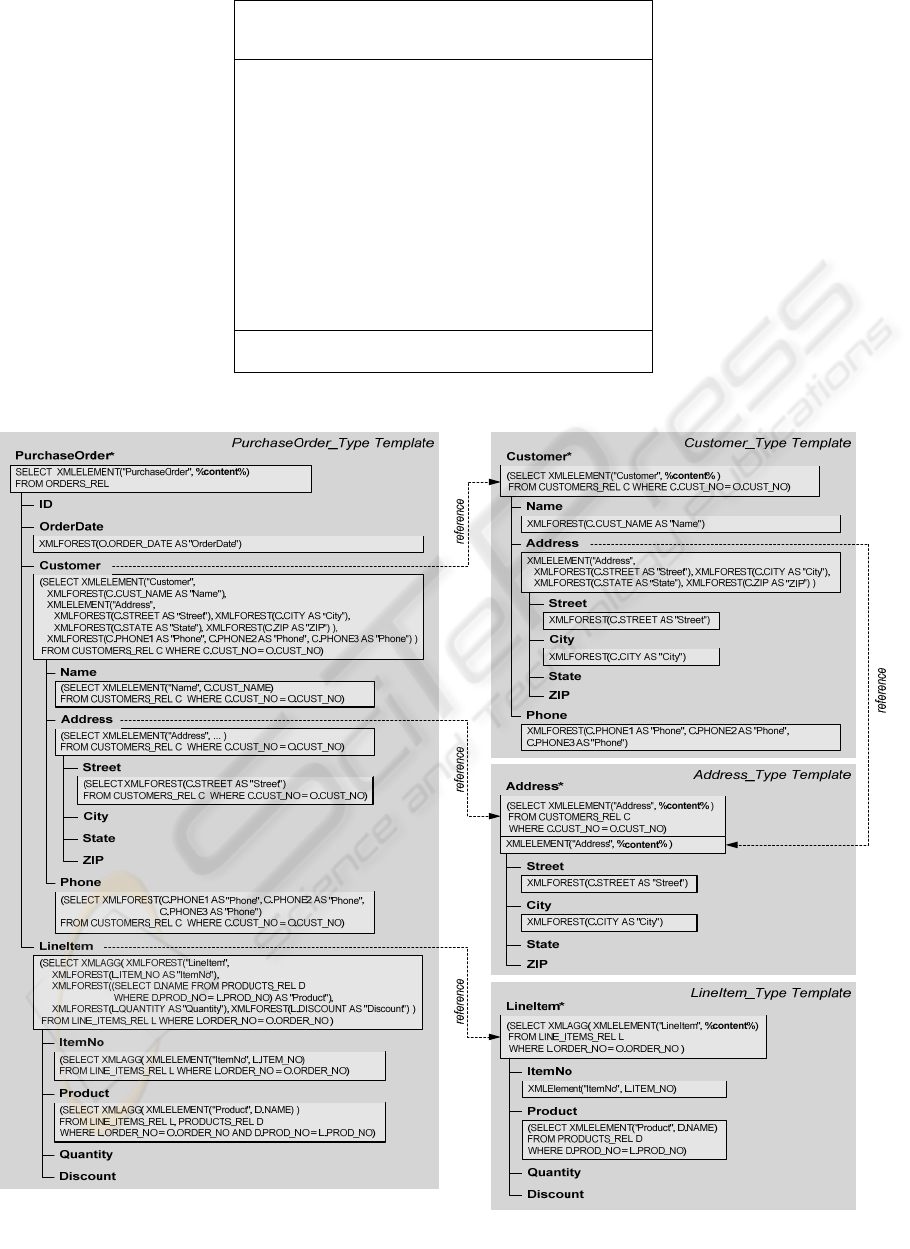

Figure 5: Query Templates for PurchaseOrder_XML.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

272

SELECT XMLELEMENT("PurchaseOrder",

XMLFOREST(O.ORDER_DATE AS "OrderDate"),

(SELECT XMLELEMENT("Customer",

XMLFOREST(C.CUST_NAME AS "Name"),

XMLELEMENT("Address",

XMLFOREST(C.STREET AS "Street"), XMLFOREST(C.CITY AS "City"),

XMLFOREST(C.STATE AS "State"), XMLFOREST(C.ZIP AS "ZIP") ),

XMLFOREST(C.PHONE1 AS "Phone", C.PHONE2 AS "Phone", C.PHONE3 AS "Phone") )

FROM CUSTOMERS_REL C WHERE C.CUST_NO = O.CUST_NO),

(SELECT XMLAGG( XMLELEMENT("LineItem",

(SELECT XMLFOREST(D.NAME AS "Product")

FROM PRODUCTS_REL D WHERE D.PROD_NO = L.PROD_NO),

XMLFOREST(L.QUANTITY AS "Quantity") ) )

FROM LINE_ITEMS_REL L WHERE L.ORDER_NO = O.ORDER_NO AND L.QUANTITY < 20) )

FROM ORDERS_REL O, CUSTOMERS_REL C WHERE O.CUST_NO = C.CUST_NO AND C.CITY = 'Baltimore';

Figure 8: Translated SQL/XML query.

for $v1 in

view(PurchaseOrder_XML)/PurchaseOrder

where $v1/Customer/Address/City = "Baltimore"

return <PurchaseOrder>{

$v1/OrderDate, $v1/Customer,

for $v2 in $v1/LineItem

where $v2/Quantity < 20

return <LineItem>{

$v2/Product, $v2/Quantity

}</Line Item>

}</PurchaseOrder>

Figure 6: XQuery Q

PurchaseOrder*

Customer

ddress

City

OrderDate LineItem*

Product Quantity

"Baltimore”

Figure 7: Tree pattern query T

SQL/XML subquery that specifies how it is computed

from the data source. The remaining templates

contain the fragments of other complex types used in

the view type definition.

5 ANSWERING XML QUERIES

IN RELP

The user can query an XML view through the Data

Access Service interface using XQuery language.

The user can graphically formulate the query using

the Query Browser component.

The Query Translator component translates an

XML Query Q

posed in terms of an XML view

schema into a SQL/XML query Q

over the data

source schema. Q

is a correct translation for Q

which means that the result of executing Q

over the

XML view state is equivalent to the result of

executing Q

over the database state, in a given time

(Lemos, 2010).

The Query Translator component accepts any

XQuery queries that can be expressed as a tree

pattern query (TPQ). In our approach, a tree pattern

query is a labelled tree whose nodes are labelled by

element/attribute names or data values. Nodes

pointed by arrows are called output nodes, and

indicates that the correspondent attribute/element is

part of the query result. Element nodes having its

content restructured are also labelled by the symbol

*. Filters are selection expressions modelled labelling

the edge with a Boolean operator. Filters are applied

to the closest unbounded ancestor output node.

For instance, consider the XQuery Q

presented

in Figure 6. The query asks for the orders of

customers in Baltimore, and for each order, it asks

for the items having quantity greater than 20. The

correspondent TPQ T

is shown in Figure 7. In TPQ

, the filter “City = Baltimore” is applied to

PurchaseOrder node and “Quantity > 20” is applied to

LineItem node.

The Query Translator algorithm translates an

XQuery query into a single correspondent

SQL/XML query over the source relations. The

translation is done by matching the TPQ against the

query templates of the view. The SQL/XML

fragments of the matched nodes are composed to

generate the final query.

The procedure GenSubquery shown in Figure 4

generates the SQL/XML subquery that computes the

XML element represented by an output node. For

example, consider the XQuery Q

of Figure 6. The

steps of the query translation are presented below:

from PurchaseOrder_Type Template, Customer node

from PurchaseOrder_Type Template, OrderDate node

from PurchaseOrder_Type Template, LineItem* node

from LineItem_Type Template, Product node

from LineItem_Type Template, Quantity node

from PurchaseOrder_Type Template, PurchaseOrder* node

USING SQL/XML FOR EFFICIENTLY TRANSLATING QUERIES OVER XML VIEW OF RELATIONAL DATA

273

(1) Generation of the TPQ T

(see Figure 7).

(2) Matching of the output node

PurchaseOrder* of T

with the node

PurchaseOrder* of the PurchaseOrder_Type

template. The conditional expression

Customer/Address/City = "Baltimore" is translated

into a correspondent SQL clause, which is added

to the WHERE clause of the SQL/XML fragment

of PurchaseOrder* node.

(3) Matching of the output nodes Customer and

OrderDate with the nodes Customer and OrderDate

of PurchaseOrder_Type template, respectively.

(4) Matching of the output node LineItem* with

the node LineItem* of LinteItem_Type template. The

conditional expression Quantity > "20" is translated

into the correspondent SQL clause and added to

the WHERE clause of the fragment of LineItem*

node.

(5) The placeholder %content% in the

SQL/XML fragment of PurchaseOrder* node is

replaced by the SQL/XML fragments of

Customer, OrderDate and LineItem*.

(6) Finally, the nodes Product and Quantity of

are matched with the nodes Product and

Quantity of LineItem_Type template, respectively.

The placeholder %content% in the SQL/XML

fragment of LineItem* node is replaced by the

SQL/XML fragments of Product and Quantity.

Figure 8 shows, in details, the SQL/XML

translation for the XQuery Q

shown in Figure 6.

Figure 8 indicates the template and path used to

generate each subquery.

6 PERFORMANCE ANALYSIS

AND CONCLUSIONS

In this paper, we presented RelP, a framework for

publishing and querying relational databases through

XML views. We first showed how to specify a view

with the help of correspondence assertion. Next, we

presented an algorithm that translates XML queries

over a published XML view schema into a single

SQL/XML query over the data source schema.

We evaluate the performance of our algorithm

with respect to the query complexity and time

response. We compared our implementation with the

approach of using Oracle’s built-in XML view

mechanism. The results in Figure 10 show that our

approach can be significantly faster, if not, we have

similar performance (Lemos, 2010).

The main reason of this performance benefit

comes from our query templates, which are

generated at view creation time. It means that the

query translator component doesn’t have to deal

with the complexity of the view mappings at

execution time.

200

400

600

800

1000

1200

1400

1600

1800

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

Time(ms)

XQuer

Queries

Oracle RelP

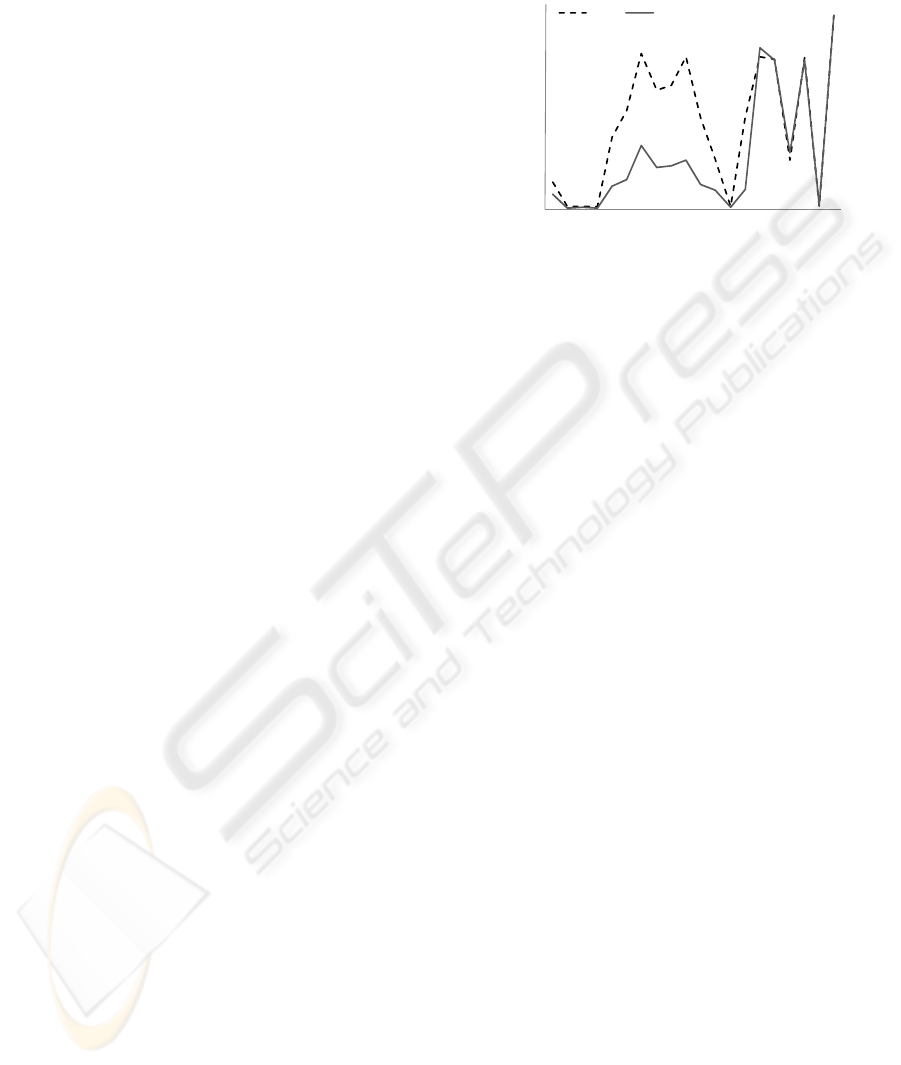

Figure 9: Response time vs. query.

REFERENCES

Benham, S E 2003, 'XML-Enabled Data Management

Product Architecture and Technology', XML Data

Management, Native XML and XML-Enable Database

Systems, Addison Wesley.

Bohannon, P et al 2004, 'Incremental evaluation of schema-

directed XML publishing', SIGMOD’04, pp. 503-514.

Eisenberg, A et al 2004, 'SQL:2003 has been published'

SIGMOD’04, pp. 119-126.

Fernández, M et al 2002, 'SilkRoute: A framework for Pu-

blishing relational data in XML', TODS’02, pp.438-493.

Funderburk, J E et al 2002, 'XTABLES: Bridging relational

technology and XML', IBM Systems Journal, vol.41, n. 4.

Haas, L M et al 2005, 'Clio Grows Up: From Research

Prototype to Industrial Tool', SIGMOD’05, pp. 805-810.

Jiang, H et al 2007, 'Mapping-driven XML Transformation',

WWW’07, pp. 1063-1072.

Krishnamurthy, R et al 2003, 'XML-to-SQL Query

Translation Literature: The State of the Art and Open

Problems', XSym’03, pp. 1-18.

Lemos, F C et al 2010, 'Using SQL/XML for Efficiently

Translating Queries over XML View of Relational

Data', Technical Report, http://lia.ufc.br/~arida

Liu, Z H et al 2005, 'Native XQuery Processing in Oracle

XMLDB', SIGMOD International Conference on

Management of Data, pp. 828-833.

Melnik, S et al 2005, 'Supporting Executable Mappings in

Model Management', SIGMOD’05, pp. 167–178.

Popa, L et al 2002, 'Translating Web Data', VLDB’02, pp.

598–609.

Vidal, V M P & Lemos, FC 2007, 'XVBA: A Tool for

Semi-Automatic Generation of SQL/XML Views', IV

Demo Session, SBBD’07, pp. 57-62.

Vidal, V M P et al 2006, 'Automatic Generation of

SQL/XML Views', SBBD’06, pp. 221–235.

Vidal, V M P et al 2004, 'XML Publisher: Um Framework

para Publicação de Dados Armazenados em Banco de

Dados Relacional ou Objeto Relacional como XML', 1st

Demo Session, SBBD’04, pp. 07-12.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

274
