Table 1: General Data of Bays in a Substation.
Type of
BAY
Quantity.
Alarms for
a Bay
Failures
to a Bay
Total
alarms by
Ba
Total
failures
Ba
Feeder 11 16 20 176 220
Capacitor
Bank
2 19 20 38 40
General
Secondary
2 19 62 38 124
Line 2 13 32 26 64
Backward 2 67 157 134 314
TOTAL: 19 134 291 412 762
3 INTELLIGENT SYSTEM
MODELLING
Intelligent System modelling and development
involves defining the architecture and simulation
strategies that will define the necessary tests and
simulations (Silva, D.T., 2008).
The first alternative uses a single neural network
that receives all the alarms and returns their failures.
Such neural network would have 412 inputs (alarms)
and would deal with 762 faults. It resuls in a very
large neural network and would require too much
time to train it.
As the substation can be divided into functional
blocks, called bays which are repeated in other
substations, that approach was adopted in order to
characterize the system identification failures. The
adopted model comprises a set of ANNs, responsible
for identifying the faults.
The advantage of using several ANNs, one for
each functional block, or bay, will be apparent later
on.

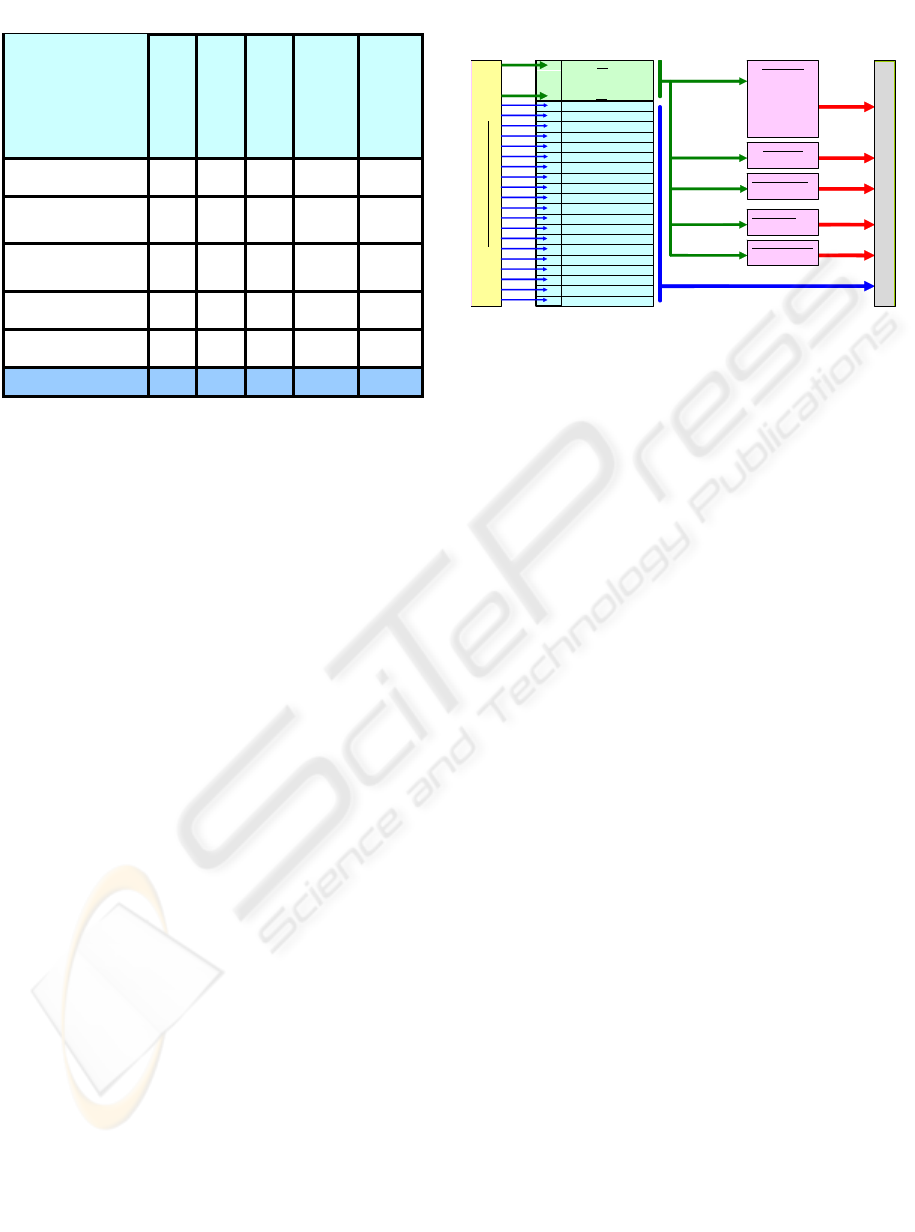

The general system diagram is depicted in figure
1.
The identification of faults is carried out by a set of
five ANNs, each specializing in a bay of the
electrical system (Feeder, Capacitor Bank, General
Secondary Line and Backward). Each ANN has the
function to map groups of alarms into specific
failures. It is, therefore, a typical problem of pattern
classification (Biondi, 1997), where each neural
network is trained using the backpropagation
algorithm. The used patterns for training are
provided by experts, consisting of combinations of
412 alarms, for a total number of 762 faults.
Figure 1: Failure identification System diagram.
For each type of bay, two ANNs models were
considered. For the first model, the first layer had a
number of output neurons which was the same as
the number of possible failures for that bay. The
second model had a single neuron in the output.
4 NUMBER OF NEURONS IN
THE HIDDEN LAYER
The number of neurons in the input layer is
determined by the number of alarms in a bay, i.e.,
there is one neuron for each alarm and the number of
neurons in the output layer equals the number of
possible failures for a given bay, such as the case of
an ANN with multiple neurons in the output
according to the first model.
The number of neurons in the input and output
are fixed, so this paper will consider changing the
number of neurons in the hidden layers.
It should be noted that for the ANN with multiple
neurons in the output layer there are two hidden
layers and the ANN with one neuron in the output
there are three hidden layers.
In order to better organize the simulations equal
numbers of hidden layers neurons were used,
although the simulations could be easily adapted for
testing with different numbers of neurons in those
layers.
Now some simulations results are presented
involving some investigated ANNs.

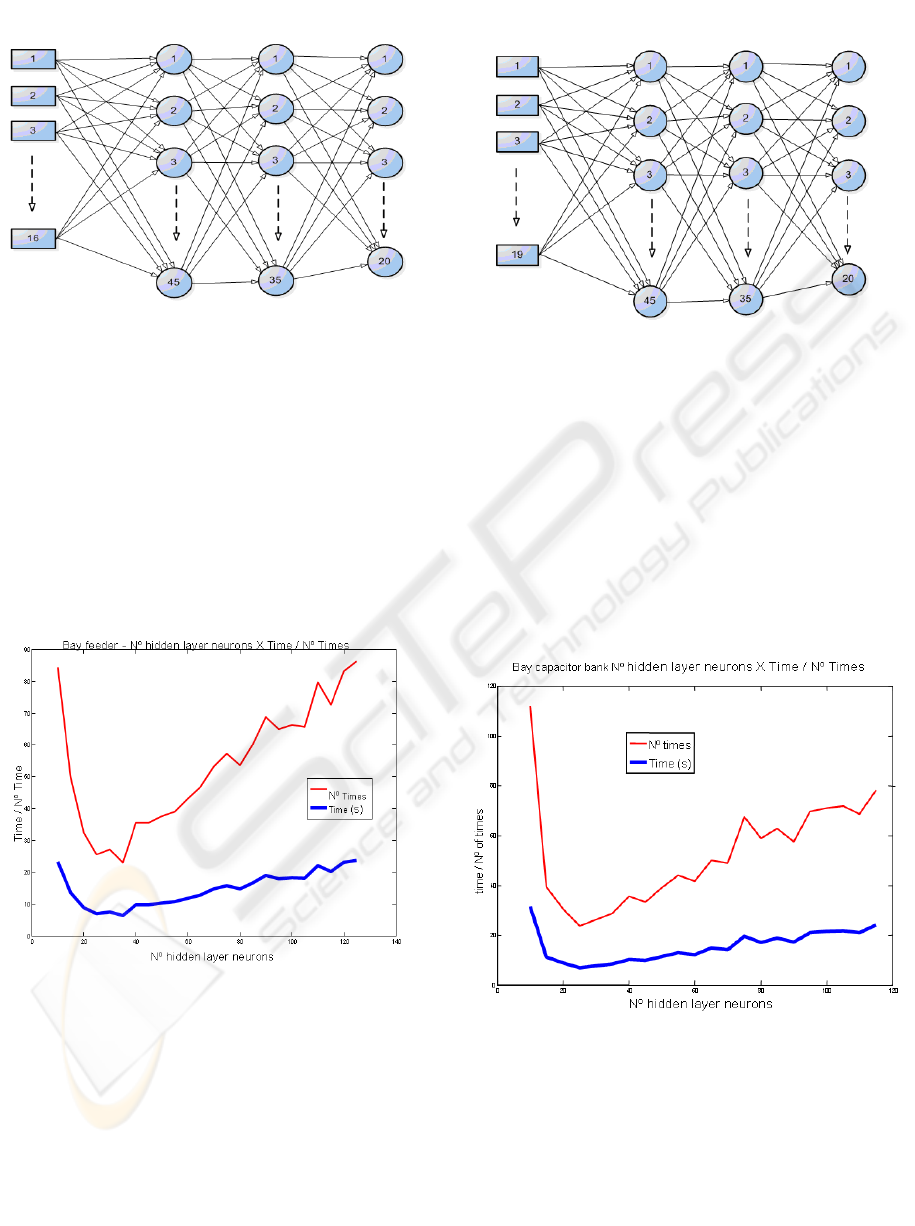

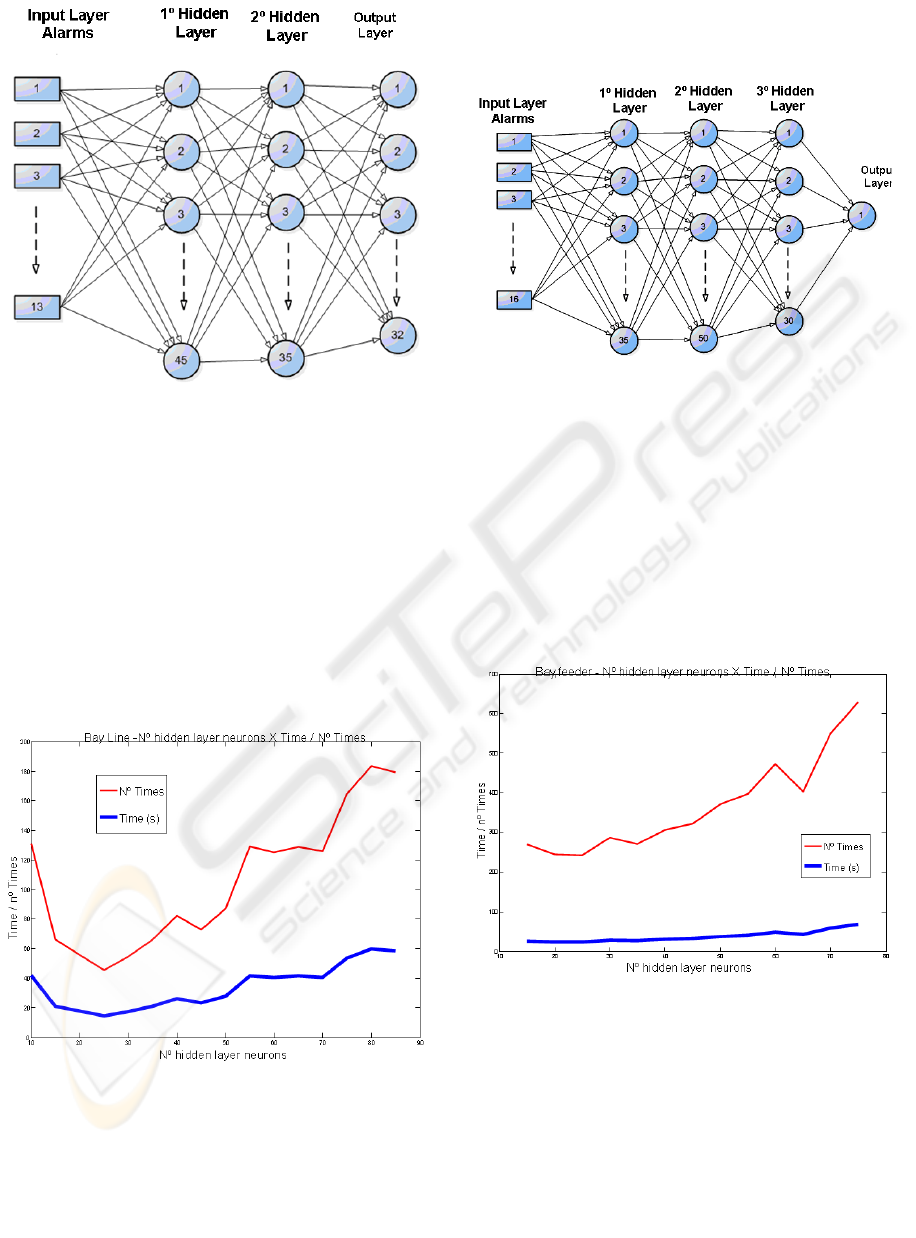

Figure 2 shows a Feeder bay ANN with multiple
neurons in the output.
AL 001-176
AL 177-214
AL 215-252
AL 253-278
AL 279-412
FL 001-220
FL 221-260
FL 261-384
FL 385-448
FL 449-762
TAG’S 001-020
INTERFACE # 1
RNA BAY BCO
BCO 3
BCO 4
RNA BAY ALIM
PAR 5
PAR 22
PAR 17
PAR 11
PAR 14
PAR 8
PAR 6
PAR 15
PAR 9
PAR 7
RNA BAY GER. SEC.
GERAL T3
GERAL T4
RNA BAY LINH
LI ALC/ADR 3
LI ALC/ADR 1
RNA BAY RET
GUARD
LI ALC/ADR 3
LI ALC/ADR 1
.
.
DIGITAL SCADA DECODIFICADO
ALARME 001
• ALARME 412
o TAG 20 - OPERAÇÃO NORMAL
o TAG 19 - RET
-LI ALC/ADR 1
o TAG 18 - RET
-LI ALC/ADR 3
o TAG 17 - LI ALC/ADR 1
o TAG 16 - LI ALC/ADR 3
o TAG 15 - GERAL T4
o TAG 14 - GERAL T3
o TAG 13 - BCO 4
o TAG 12 - BCO 3
o TAG 11 - PAR 10
o TAG 10 - PAR 7
o TAG 09 - PAR 9
o TAG 08 - PAR 15
o TAG 07 - PAR 6
o TAG 06 - PAR 8
o TAG 05 - PAR 14
o TAG 04 - PAR 11
o TAG 03 - PAR 17
o TAG 02 - PAR 22
o TAG 01 - PAR 5
