A MODEL-DRIVEN APPROACH TO MANAGING

AND CUSTOMIZING SOFTWARE PROCESS VARIABILITIES

Fellipe Araújo Aleixo

1,2

, Marília Aranha Freire

1,2

, Wanderson Câmara dos Santos

and Uirá Kulesza

Federal University of Rio Grande do Norte (UFRN), Natal, Brazil

Federal Institute of Education, Science and Technology of Rio Grande do Norte (IFRN), Natal, Brazil

Keywords: Software Process, Software Product Lines, Model-Driven Development.

Abstract: This paper presents a model-driven approach to managing and customizing software process variabilites. It

promotes the productivity increase through: (i) the process reuse; and (ii) the integration and automation of

the definition, customization, deployment and execution activities of software processes. Our approach is

founded on the principles and techniques of software product lines and model-driven engineering. In order

to evaluate the feasibility of our approach, we have designed and implemented it using existing and

available technologies.

1 INTRODUCTION

Nowadays, the importance of using software

processes is already consolidated and is considered

fundamental to the success of software development

projects. Large and medium software projects

demand the definition and continuous improvement

of a software process in order to promote the

productive development of high-quality software.

Customizing and evolving existing software

processes to address the variety of scenarios,

technologies, culture and scale is a recurrent

challenge required by the software industry. It

involves the adaptation of software process models

for the reality of their projects. Besides, it must

promote the reuse of past experiences in the

definition and development of software processes

for the new projects. The adequate management and

execution of software processes can bring a better

quality and productivity to the produced software

systems.

In this context, automated tools supporting the

definition, customization and deployment are

increasingly necessary. Although there are already

many existing tools to specify processes (IBM 2010)

(EPF Project 2009), there is a strong need to develop

tools, technologies and techniques that help: (i) the

management of components and variations of such

processes; and (ii) the automatic composition and

derivation of these elements to generate a

customized process for a project. Furthermore, we

know that the definition of a software process is a

complex activity that requires much experience and

knowledge of many areas and disciplines of software

engineering. Our main research question is thus

related to: how a software organization can reuse

existing software processes by rapidly and

automatically allowing their customization for new

projects?

In this paper, we propose an approach that

supports: (i) the variability management of software

processes; and (ii) the automatic product derivation

of customized specifications of software processes.

Besides, it also allows automatically transforming

these customized software processes to workflow

specifications, which can be deployed and executed

in existing workflow engines. Our approach is

founded on the principles and techniques of software

product lines (Pohl, Bockle and Van der Linden

2005) and model-driven engineering (Kleppe,

Warmer and Bast 2003). In order to evaluate the

approach feasibility, we have implemented it using

several model-driven technologies. The software

processes are specified using Eclipse Process

Framework (EPF). The variability management and

product derivation of software processes has been

implemented as an extension of an existing product

line tool, called GenArch (GenArch Plugin 2009).

Finally, ATL and Acceleo (OBEO 2009)

transformation languages are adopted to transform

Araújo Aleixo F., Aranha Freire M., Câmara dos Santos W. and Kulesza U. (2010).

A MODEL-DRIVEN APPROACH TO MANAGING AND CUSTOMIZING SOFTWARE PROCESS VARIABILITIES.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Information Systems Analysis and Speciﬁcation, pages 92-100

DOI: 10.5220/0002910300920100

 SciTePress

EPF process to jPDL workflow language

specifications in order to enable the deployment and

execution of software processes in the JBoss BPM

workflow engine.

The remainder of this paper is organized as

follows. Section 2 presents existing research work

on software processes reuse by identifying several

challenges in the variability management of software

processes. Section 3 gives an overview of the main

elements and functionalities of our approach.

Section 4 describes the approach implementation

using existing model-driven technologies. Finally,

Section 5 presents the conclusions and points out

future work directions.

2 SOFTWARE PROCESS REUSE

Over the last years, several approaches have been

proposed that explore the development of software

product lines (SPLs) (Pohl, Bockle and Van der

Linden 2005). The main aim of these approaches is

to maximize reuse and minimize costs by promoting

the identification and management of commonalities

and variabilities (common and variable features) of

software families. Software product line engineering

promotes the effective reuse of software artifacts

based on the organization of similar artifacts

according to commonalities and variabilities

(Rombach 2005). A common and flexible

architecture is designed to address the

commonalities and variabilities of the SPL. Finally,

a set of reusable assets is implemented following the

SPL architecture. After the design and

implementation of the SPL architecture and code

assets, which is called domain engineering, new

applications (products) can be easily derived by

reusing and customizing the code assets developed

for the SPL architecture. Currently, there are some

existing tools, such as Gears (Gear/BigLever

Software 2009), pure::variants (Pure::Variants 2009)

and GenArch (GenArch Plugin 2009), which

automate the automatic derivation of new

applications/products from existing code assets.

They facilitate the streamline selection, composition

and configuration of code assets.

In the software development process scenario,

recent work has been developed to allow the reuse of

process assets, in the same way that code assets can

be reused. The Eclipse Process Framework (EPF

Project 2009) is one of these initiatives. It facilitates

the definition of software processes using: (i) the

UMA (Unified Method Architecture) metamodel;

(ii) a supporting tool (EPF Composer); and (iii)

content (process asset) that can be used as the basis

for a wide range of processes. The EPF Composer

allows authoring, configuring and publishing

methods. You can add, remove and change process

elements according to your team and project needs.

In other words, the EPF Composer allows software

development processes be extended and customized

in a simple way (Haumer 2007).

Although the EPF already provides some support

to specify and define software processes, it does not

allow the representation and automatic

customization of existing software processes. Next,

we present some recent research work that proposes

the adoption of SPL techniques to enable the

automatic management, reuse and customization of

software processes.

Rombach (Rombach 2005) presents the first

studies to describe the term Software Process Line.

His proposal suggests the organization of families of

similar processes. It has been applied in small

domains and points out the feasibility of applying

this approach in more general contexts. However,

his work does not define any approach or tools to

effectively promote the reuse of software processes.

Xu et al (Xu, et al. 2005) present a definition of a

standardized representation and retrieval of process

components. The focus is on: (i) the specific

components organization of a process and its

representation; and (ii) the recovery process

definition based on the reuse of existing

components. The main drawback of their approach

is that it requires high expertise for the

representation and retrieval of components.

Barreto et al (Barreto, Murta and Rocha 2009)

propose an approach to the componentization of

legacy software processes. Their strategy aims to

facilitate the achievement of expected results for

maturity models. This work states that make

processes reusable is a costly task, because many

different situations must be provided and addressed

by components, lines and features. The work is

restricted to the definition of reusable process

fragments, and it does not propose any automation

for the effective reuse.

3 A MODEL-DRIVEN

APPROACH FOR PROCESS

DEFINITION,

CUSTOMIZATION AND

EXECUTION

In this section, we present an overview of our

A MODEL-DRIVEN APPROACH TO MANAGING AND CUSTOMIZING SOFTWARE PROCESS VARIABILITIES

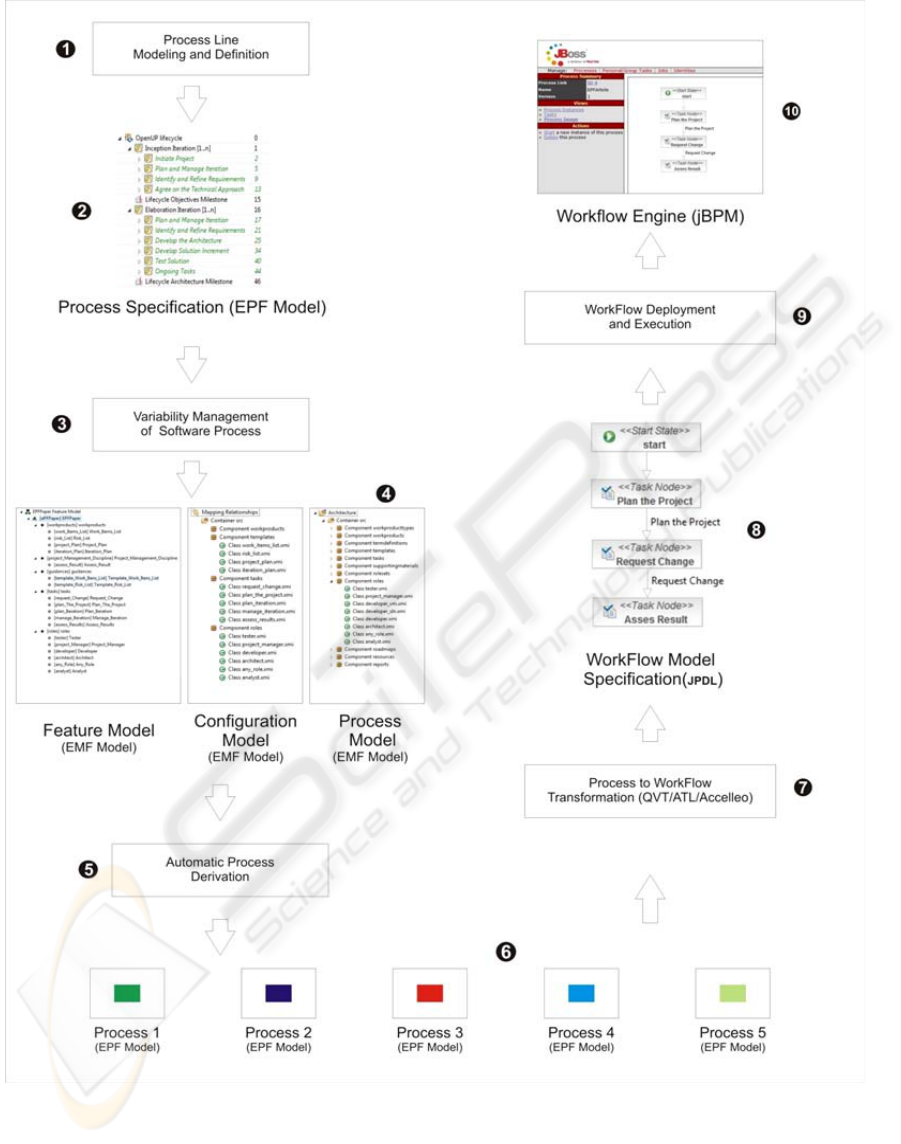

Figure 1: Approach Overview.

approach for process definition, customization and

execution. It is founded on the principles and

techniques of software product lines and model-

driven engineering. Figure 1 illustrates the main

elements of our approach and their respective

relationships. Next we briefly explain the activities

of the proposed approach.

The first stage of our approach is the software

process modelling and definition (steps 1 and 2 in

Figure 1). Existing tools such as EPF provides

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

support to address it by using the UMA metamodel.

After that, our approach concentrates on the

variability management of software process

elements. This second stage consists on the creation

of a variability model (e.g. feature model) that

allows specifying the existing variabilities of a

software process (steps 3 and 4). A product

derivation tool can then be used to allow the

selection of relevant features from an existing

software process, thus enabling the automatic

derivation of customized specifications of the

software process addressing specific scenarios and

projects (steps 5 and 6). Finally, our approach

supports the automatic transformation of the

software process specification to a workflow

specification (steps 7 e 8) in order to make possible

their deployment and execution in a workflow

engine (steps 9 and 10). Through these

transformations, the sequence of activities of the

process is mapped to a workflow definition.

In order to evaluate the feasibility of our

approach, we have designed and implemented it

using existing and available technologies. Figure 1

also provides an overview of the implementation of

our approach. The process specification is supported

by EPF composer using the UMA metamodel (step 2

in Figure 1).The variability management of the EPF

specifications is addressed by GenArch product

derivation tool (Cirilo, Kulesza and Lucena, A

Product Derivation Tool Based on Model-Driven

Tecniques an Annotations 2008) (E. Cirilo, U.

Kulesza and R. Coelho, et al. 2008b) (Cirilo,

Kulesza and Lucena, Automatic Derivation of

Spring-OSGi based Web Enterprise Applications

2009). This tool was extended to explicitly

indicating which variabilities in a feature model are

related to different process fragments from an EPF

specification (step 4). The tool uses this information

to automatically derive customized versions of a

software process (step 6). Finally, we have

implemented model-to-model transformations

(M2M) codified in ATL/QVT (OMG 2009) to allow

the translation of the EPF specification of an

automatically customized process to JPDL model

elements (step 7). This JPDL specification is then

processed by a model-to-text (M2T) transformation

implemented using Acceleo language (OBEO 2009)

to promote the generation of Java Server Faces (JSF)

web forms from a JPDL workflow specification

(step 8). These web forms can then be deployed and

executed in the JBoss Business Process Management

(jBPM) workflow engine. Section 4 describes our

approach in action by detailing a customization

example of a software process.

Our approach brings several benefits when

compared to other existing research work (Barreto,

Murta and Rocha 2009) (Rombach 2005) (Xu, et al.

2005). First, it promotes the variability management

of existing software processes by allowing to

explicitly specifying which process fragments

(activities, guides, roles, tasks, etc) represent

variabilities (optional and alternative) to be chosen

and customized when considering specific projects.

Second, it allows automatically deriving, deploying

and executing software processes in workflow

engines by supporting the systematic transformation

of process specifications to workflow specifications.

Last but not least, the approach is flexible enough to

allow the adoption of process and workflow

specifications defined in different languages and

notations, as well as to promote the adoption of

different tools to process definition, automatic

derivation, deployment and execution.

4 IMPLEMENTING THE

MODEL-DRIVEN APPROACH

In this section, we present the approach

implementation by exploring the adopted techniques

to managing software process variabilities and

deploying software processes in workflows engines.

4.1 Managing Variabilities in Software

Processes

Figure 2 presents a fragment of a case study

developed in the context of research and

development projects of a technical educational

organization (Aleixo, et al. 2010). It illustrates three

projects of software development, which are: (i) an

integrated academic management information

system, called SIGA; (ii) a professional and

technological education information system, called

SIEP; and (iii) an enterprise system development

project, called PDSC. Each project used a

customized version of the OpenUP process (EPF

Project 2009). The detailed analysis of these

OpenUP customizations allowed us identifying and

modelling the commonalities and variabilities of this

process family. Due to restriction space, in this

paper we only focus on the project management

discipline.

Figure 2 presents the details of the plan project

task of the project management discipline. Some

steps of this task were performed in every project –

the commonalities, such as: (i) establish a cohesive

team; (ii) forecast project velocity and duration; (iii)

A MODEL-DRIVEN APPROACH TO MANAGING AND CUSTOMIZING SOFTWARE PROCESS VARIABILITIES

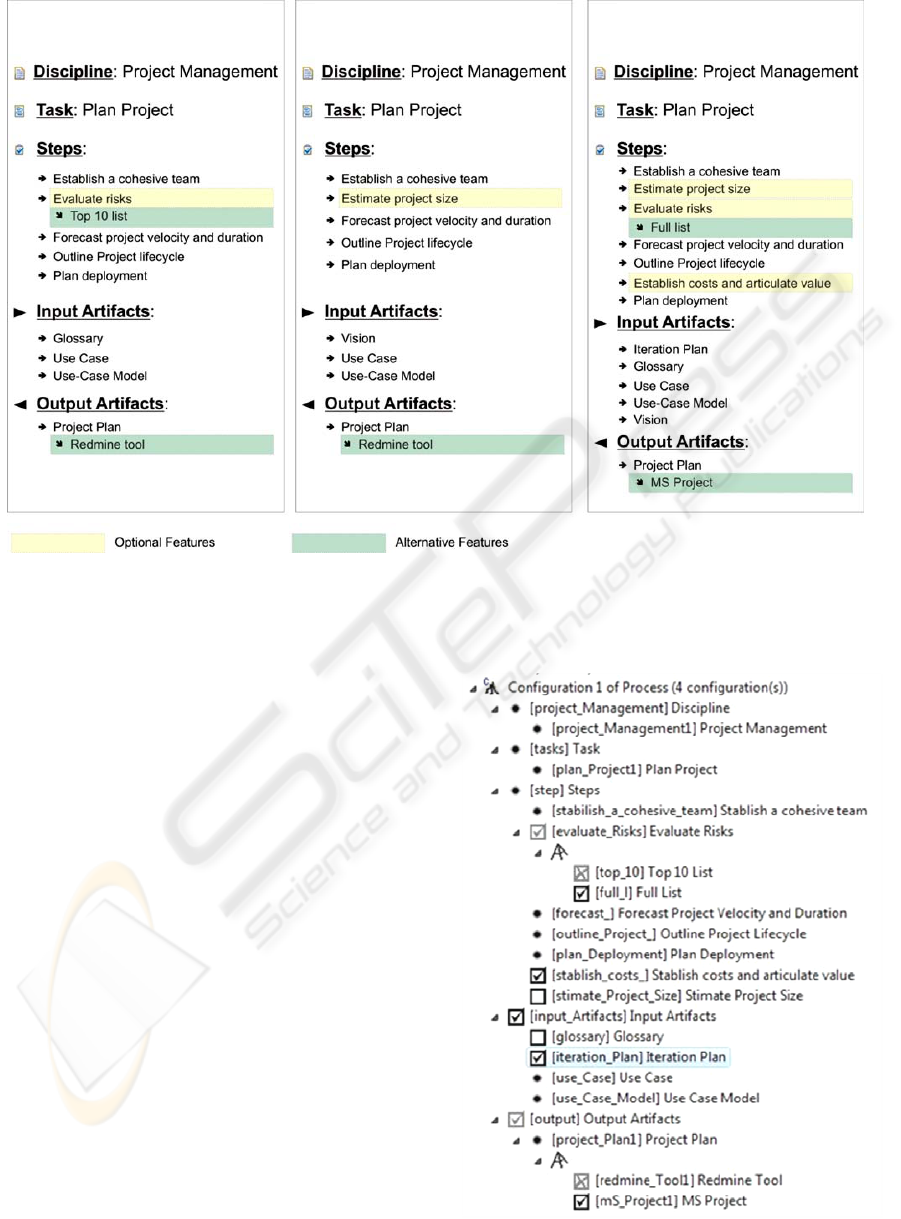

Figure 2: Fragment of Case Study Result.

outline project lifecycle; and (iv) plan deployment.

Some steps can be executed or not (optional

features), such as: (i) evaluate risks; (ii) estimate

project size; and (iii) establish costs and articulated

value. Some steps include the use of specific

artefacts, which should demand the change of

original document template provided by the OpenUP

(alternative features). Examples of such alternative

templates are: (i) risk list template – that can be top

10 or full list; and (ii) project plan template – that

can be specified using the Redmine or MS-Project

tools. Figure 3

shows the correspondent feature

model for this fragment of the project management

discipline.

The variability management in a software

process is based on the used representation notation.

One of most cited notation is the SPEM (OMG

2010), an initiative of the OMG. In our work, we

have adopted an evolution of SPEM, called Unified

Method Architecture – UMA (Eclipse Foundation

2010), which is supported by the Eclipse Process

Framework – EPF (Eclipse Foundation 2009). EPF

was used to specify a software process line that

models a family of processes that shares common

and variable features. The software process line

maintains all the process elements that can be found

in any process to be customized from it. It allows

systematically reusing common process content

elements and fragments of existing software

processes.

Figure 3: Feature Model Resultant for the Case Study.

Process 1: SIGA

Process 2: SIEP

Process 3: PDSC

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

The variability management of the software

process line is supported by a product derivation

tool. This tool enables us to relate variability models

(e.g. feature models) to the process content

elements. This is a similar strategy adopted by

existing product derivation tools to manage the

variabilities of software product lines. In our

approach, we have adapted an existing product

derivation tool, called GenArch, to support the

variability management of software process lines.

The original implementation of GenArch provides

three models: (i) feature model – that represents the

commonalities and variabilities; (ii) architecture

model – that represents all the code assets

implemented for a software product line; and (iii)

configuration model – that defines the mapping

between features and code assets in order to enable

the automatic product derivation. To enable the

usage of GenArch in the software process line

context, we replaced our architecture model by the

EPF process model. It allows specifying how

specific variabilities (optional and alternative

features) from a feature model are mapped to

existing elements from a process specification.

Figure 5(A) shows an example of the variability

management of process lines for project

management process activities. As we can see, the

feature model is used to indicate the optional,

alternative and mandatory features of an existing

process line.

The configuration model defines the mapping of

these features to process elements. The complete

configuration model is automatically produced from

feature variabilities annotations that are inserted in

the EPF process specification.

Figure 4 shows an example of feature annotation

inside the

Assess_Result activity from an EPF

specification. As we can see, each annotation defines

the name (

Assess_Result), parent (tasks) and type

(optional) of the feature that the related artefact

represents.

Figure 4: Feature Annotation in an EPF specification.

The following process variabilities have been

found in the process line case study that we have

already modelled and specified: (i) optional and

alternative activities in process workflows; (ii)

optional and alternative steps from process

activities; (iii) optional and alternative specification

templates for any specific tool or activity; and (iv)

optional and alternative technology developer guides

that provides principles and guidelines to adopt

specific technologies (CASE tools, modelling and

programming languages, API libraries, components

and frameworks, and so on). Besides, we are

currently exploring fine-grained variabilities

(parameters, variables, text portions) that can occur

as part of the descriptions of process activities and

steps.

Due to restrictions space, this paper does not

present additional details about these variabilities.

Additional information about process line

variabilities modelling can be found in (Aleixo, et al.

2010). After specifying the mapping between

variabilities in the feature model to the process

elements from an EPF specification, GenArch tool

can automatically derive customized versions of a

software process line. This stage is similar to what is

called product derivation (Clements 2002) in

software product line approaches.

During the process derivation, the process

engineer chooses the desired variabilities (optional

and alternative features) in a feature model editor.

Next, the GenArch tool processes the mappings

specified in the configuration model to decide which

process elements will remain in the final customized

process according to the variabilities selection.

Resolution of feature constraints and process

component dependencies are also computed by the

tool during this step of process customization.

Finally, after all this processing, the tool is

responsible to produce the only EPF specification

that represents a customized process to be adopted

by a specific project. After the feature selection, the

Genarch can be used to generate a new process that

makes sense in the features selected in the feature

model. Figure

5(B) illustrates two examples of

feature selection (configuration1, configuration2)

that are processed by GenArch tool to produce two

different set of project management activities for

specific projects (SIGA, SIEP, and PDSC).

4.2 Deploying and Executing a

Software Process in a Workflow

Engine

Nowadays, organizations are investing in

<?xml version="1.0" encoding="UTF-8"?>

<!-- @Feature(name=Asses_Results, parent=tasks,

type=optional) -->

<org.eclipse.epf.uma:TaskDescription xmi:version="2.0"

xmlns:xmi="http://www.omg.org/XMI"

xmlns:org.eclipse.epf.uma=

"http://www.eclipse.org/epf/uma/1.0.5/uma.ecore"

xmlns:epf="http://www.eclipse.org/epf" epf:version="1.5.0"

xmi:id="_a3uz4LBYEdm7Eph_l9Cn9w"

name="assess_results,_0l53cMlgEdmt3adZL5Dmdw"

guid="_a3uz4LBYEdm7Eph_l9Cn9w"

changeDate="2007-05-01T13:24:08.202-0300"

version="1.0.0">

...

A MODEL-DRIVEN APPROACH TO MANAGING AND CUSTOMIZING SOFTWARE PROCESS VARIABILITIES

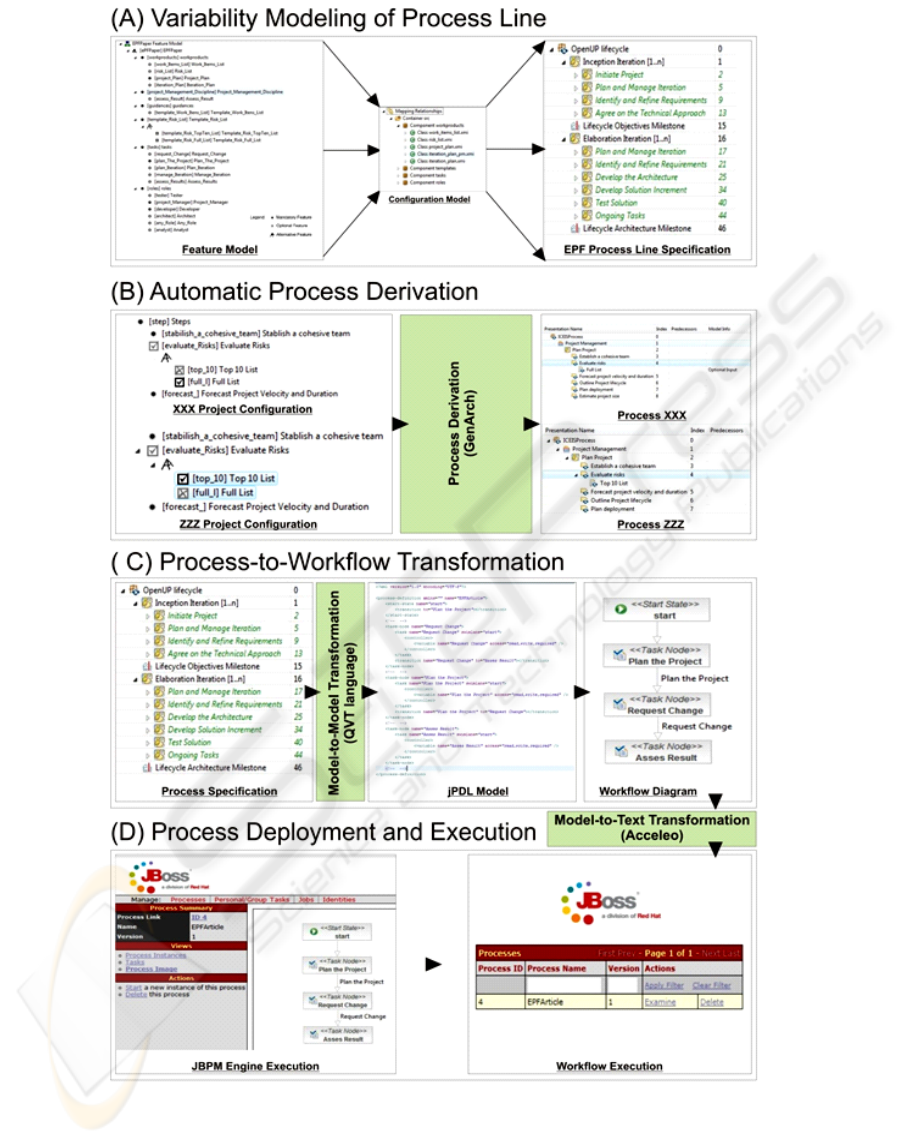

Figure 5: Approach Implementation.

information technology to support their processes.

With this increasing need to control and improve

processes, we include the concept of Business

Process Management (BPM), which in essence is the

union of resources in information technology to the

analysis of business management focused on

improving business processes.

Our approach allows automatically deploying

and executing a customized software process

automatically derived by GenArch in the jBPM



ICEIS 2010 - 12th International Conference on Enterprise Information Systems

workflow engine. jBPM (Hat 2009) is a framework

of JBoss that allows the creation of business

solutions based on business processes using

graphical notations and graph-oriented

programming. It also provides a workflow engine.

We use the jBPM engine to run and monitor

software process activities, which were previously

defined in EPF process specification and customized

by GenArch tool. In our approach, we have

implemented transformations that automatically

convert the EPF process to the jPDL workflow

specification language. This language is used to

specify business processes graphically in terms of

tasks, wait states, timers, automated actions, and so

on. This model-to-model transformation (EPF

process specification to jPDL specification) was

implemented using the ATLAS Transformation

Language (ATL) inside the Eclipse platform. ATL is

an implementation of the QVT (Query/Views

/Transformations) transformation language (OMG

2009), which is the OMG's standard language for

expressing queries, views and transformations on

MOF models. Figure 5(C) shows how an EPF

customized specification produced as result of the

variability management of the process line (Figure 5

A and B) can be automatically translated to jPDL

workflow specifications. It can observed that many

activities (“plan the project”, “request change” and

“assess result”) are present in both textual and

graphical jPDL specification.

The jBPM enables from a definition of a jPDL

workflow model, the creation of Java Server Faces

forms implementations to monitor the process flow.

This monitoring functionality is responsible to store

information about the tasks and or decisions taken

during the process execution. In order to generate a

process definition archive, in jPDL schema, and the

related JSF forms for the jPDL workflow

specification, we implemented a model-to-text

transformation using Acceleo (OBEO 2009). This is

a code generation tool that allows transforming

models to code. We also generated the “forms.xml”

file, which is a XML file that matches each specific

task node to a JSF form. All of these files were

generated in a jPDL Eclipse project. Through of

simple configurations, this project can be deployed

in the jBPM workflow engine.

After the deployment of the process workflow in

the jBPM engine, the user can request the start of a

new instance of the process. Figure 5(D) shows the

result of the deployment of the process previously

customized and generated by GenArch tool. When

starting the execution of a new instance of the

process, the user can visualize the actual state of the

specific process – that presents details of the activity

that have to be done. After the execution of each

activity, the user notifies the workflow engine that

requests the user to enter some information about the

activity in a specific JFS form. All the information is

stored in a specific database, related to the process

instance. Finally, the workflow engine shows that a

new activity is now required. All these steps are

repeated for each activity until the end of the

process, when the end state of the workflow was

reached.

5 CONCLUSIONS

In this paper, we presented a model-driven approach

to managing and customizing software processes

variabilities. Our approach also provides support to

the execution of the customized process in a

workflow engine. The approach has been

implemented and validated using existing model-

driven and software product line technologies. The

main benefits of our approach are: (i) the variability

management of software processes that directly

contributes to productivity improvement when

producing customized software processes to related

projects; and (ii) the integration and automation of

the process definition, customization, deployment

and execution. Additionally, our approach has been

designed in a flexible way that allows its easy

adaptation to deal with new technologies (e.g., new

process or workflow specification notations or

languages, new model-driven technologies).

As a future work, we intend to apply and

evaluate our approach to more extensive and

complex software process customization scenarios.

We are currently refining the approach to apply it in

an industrial scenario of a company that defines and

reuses its processes using the Rational Unified

Processes (RUP) framework. Additional details

about the approach and its implementation can be

found in (Aleixo, et al. 2010).

ACKNOWLEDGEMENTS

This work was supported partially by Brazilian

Research Council (CNPq) under grants: No.

313064/2009-1, No. 552010/2009-0, and No.

480978/2008-5.

A MODEL-DRIVEN APPROACH TO MANAGING AND CUSTOMIZING SOFTWARE PROCESS VARIABILITIES

REFERENCES

Aleixo, Fellipe A., Marília A. Freire, Wanderson C.

Santos, and Uirá Kulesza. 2010. http://

softwareprocesslines.blogspot.com/ (accessed 01

2010).

Barreto, A. S, L.G.P Murta, and A. R Rocha.

"Componentizando Processos Legados de Software

Visando a Reutilização de Processos." Ouro Preto:

Anais do VIII SBQS, 2009.

Cirilo, Elder, U. Kulesza, and C. Lucena. "Automatic

Derivation of Spring-OSGi based Web Enterprise

Applications." ICEIS, 2009.

Cirilo, Elder, U. Kulesza, and C. Lucena. "A Product

Derivation Tool Based on Model-Driven Tecniques an

Annotations." Journal of Universal Computer Science,

2008, nº 8 ed.

Cirilo, Elder, U. Kulesza, R. Coelho, C. J.P. Lucena, and

A. von Staa. "Integrating Component and Product

Lines." ICSR, 2008b.

Clements, Paul. Software Product Lines: Practices and

Patterns. Boston: Addison-Wesley, 2002.

Eclipse Foundation. Eclipse Process Framework (EPF)

Composer 1.0 Architecture Overview. 2010.

http://www.eclipse.org/epf/composer_architecture/

(accessed 01 2010).

Eclipse Process FrameWork. 2009. http://

www.eclipse.org/epf/ (accessed 08 2009).

EPF Project. EPF. 2009. http://www.eclipse.org/

epf/ (accessed November 2009).

Gear/BigLever Software. Gears. 2009.

http://www.biglever.com (accessed November 2009).

GenArch Plugin. Generative Architectures Plugin. 2009.

http://www.teccomm.les.inf.puc-rio.br/genarch/

(accessed November 2009).

Hat, J. JBPM. 2009. http://labs.jboss.com/jbossjbpm/

(accessed 09 2009).

Haumer, P. Eclipse Process Framework Composer:Part 1:

Key Concepts. http://www.eclipse.org/

epf/general/EPFComposerOverviewPart1.pdf, 2007.

IBM. Rational Method Composer. 2010. http://www-

01.ibm.com/software/awdtools/rmc (accessed 01

2010).

Kleppe, Anneke G., Jos B. Warmer, and W. Bast. MDA

Explained: The Model Driven Architecture: Pratice

and Promisse. Addison-Wesley, 2003.

OBEO. Acceleo: MDA generator. 2009. http://

www.acceleo.org/pages/home/en (accessed 10 2009).

OMG. OMG: QVT Specification. 2009. http://

www.omg.org/spec/QVT/1.0/ (accessed 10 2009).

Software & Systems Process Engineering Metamodel

Specification (SPEM). 2010. http://www.omg.org/

spec/SPEM/2.0/.

Pohl, Klaus, G. Bockle, and F. van der Linden. Software

Product Line Engineering: Foundations, Principles

and Techniques. New Yourk: Springer

Berlin/Heidelberg, 2005.

Pure::Variants. 2009. http://www.pure-systems.com

(accessed November 2009).

Rombach, Dieter. "Integrated Software Process and

Product Lines." In Unifying the Software Process

Spectrum, 83-90. Berlin / Heidelberg: Springer, 2005.

Xu, Ru-Zhi, H. Tao, C. Dong-Sheng, X. Yun-Jiao, and Q.

Le-Qiu. "Reuse-Oriented Process Component

Representation and Retrieval." The Fifth International

Conference on Computer and Information

Technology, 2005.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

100
