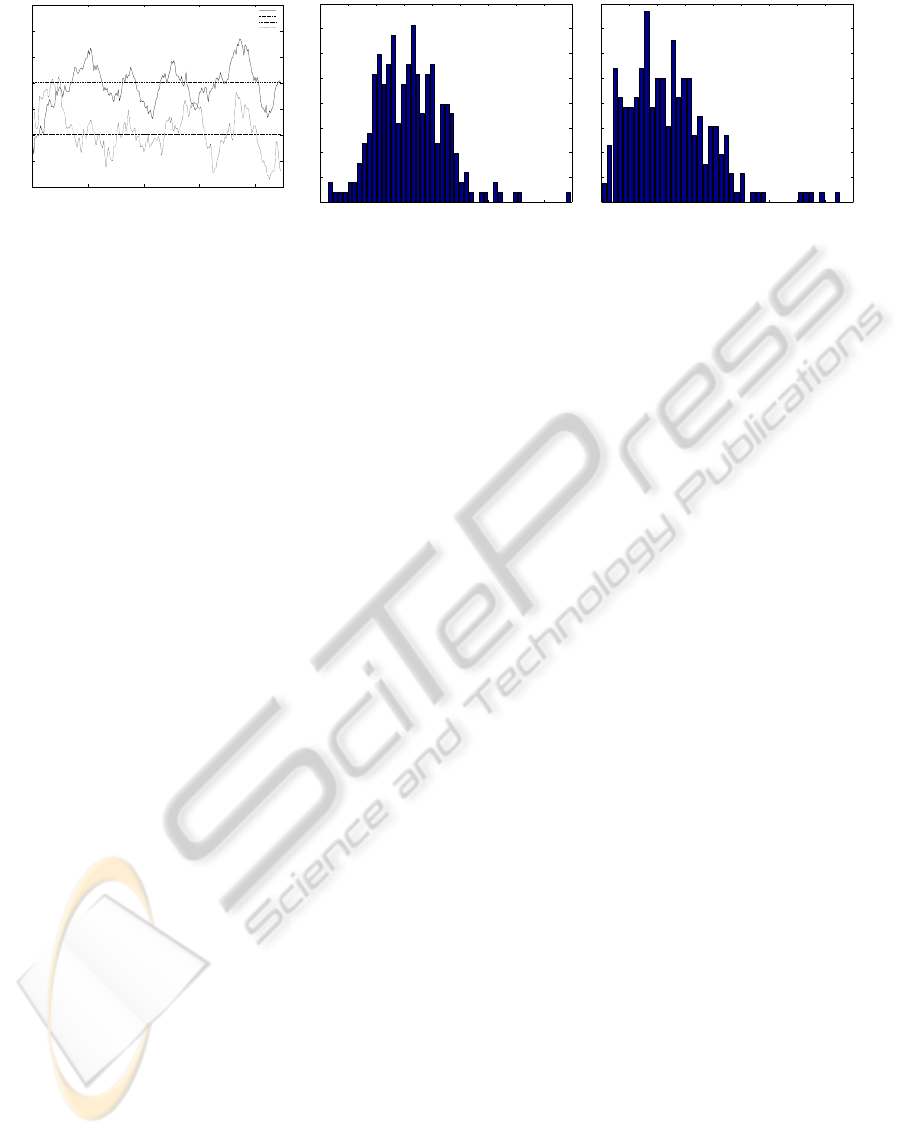

Figure 6: Experimental results: Left: The rolling and total average of the two setups. The learning variant outperforms the
static version. Middle and right: Histogram showing the absolute error distribution without and with learning. Right: Large
errors occur less frequent.
7 SUMMARY AND
CONCLUSIONS
In this paper we presented a navigation system based
on predefined motion templates which are combined
with a tree-search technique to achieve efficient tra-
jectories. We introduced Velocity Grids to represent
difficult or impassable terrain by means of a maxi-
mum admissible velocity. The system has the ability
to adjust the motion templates according to the actual
robot movement, which is measured by an IMU, GPS,
and lidar-based motion estimation. The soundness of
our approach has been shown both in real-word navi-
gation tasks. The system proved that it can navigate a
robot through an obstacle course, and that it is able to
adapt to different surfaces quickly.
Future work will focus on improving the perfor-
mance of the motion learning and adapting mecha-
nisms. The current countermeasure against pattern
pool depletion causes temporarily outdated predic-
tions. The most promising remedy would be to prop-
agate the changes of one Motion Pattern to all others,
provided that a sufficiently precise online approxima-
tion can be found. Another improvement worth inves-
tigating is the usage of the pattern deviation that is de-
termined by the learning module as uncertainty mea-
sure in order to optimize the Motion Patterns’ safety
margins.
