TOWARDS A ‘UNIVERSAL’ SOFTWARE METRICS TOOL

Motivation, Process and a Prototype

Gordana Rakić, Zoran Budimac

Department of Mathematics and Informatics, Faculty of Sciences, University of Novi Sad, Novi Sad, Serbia

Klaus Bothe

Institute of Informatics, Humboldt University, Berlin, Germany

Keywords: Software engineering, Software metrics, Software metrics tool, Compiler construction, Parser generator.

Abstract: In this paper we investigate main limitations of actual software metrics techniques/tools, propose a unified

intermediate representation for calculation of software metrics, and describe a promising prototype of a new

metrics tool. The motivation was the evident lack of wider utilization of software metrics in raising the

quality of software products.

1 INTRODUCTION

Software metric (SM) can be defined as a numerical

value that reflects some property of: a whole

software product, its one piece or its specification.

There are numerous categorizations of SM.

Considering the measurement target, metrics could

be divided in three main categories: product metrics,

process metrics and project metrics (Kahn, 2003). In

this paper we shall deal with the product metrics and

primarily code metrics as its sub-category.

SM tools are being used for calculation,

processing and analysis of the SM values.

Improvements in the field of SM tools, such is

creating of a new SM tool with advanced features

may lead to better results of software projects.

This paper will introduce the reader to the

development of one such tool. However, in this

paper we concentrate on just some aspects of such a

tool – independency on input programming language

(IPL) and on SM algorithms to be applied.

Motivations behind designing a new tool lay in

reports on existing tools’ flaws and in tools review

(section 2). We list some of recognized flaws:

 SM tools are generally not independent on IPL.

The different tools are often used for different

projects, for different software components, or even

within a single component.

 SM tools usually compute only a subset of

possible

SM and rarely combine them to gain higher

measure quality.

 SM tools rarely interpret the meaning of

computed numerical results and their correlations in

order to suggest what typical actions should be taken

in order to improve the quality.

 SM tools are usually insensitive to the existence

of additional, useless and duplicate code, as well as

to attempts to ‘cheat’ the metrics algorithm.

Developing an SM tool that will solve the

enumerated flaws would increase the level of

application of SM in practice and improve the

development process and final product quality. This

is underlined as our implicit objective.

The paper is organized as follows. In section 2

the state of the art and open problems in the field

will be presented. This has been used as a guideline

for a development of a new tool. Section 3 explains

the process of designing a tool. Description of the

developed prototype of the new tool follows in

section 4, and conclusions and further work are

given in section 5.

2 RELATED WORK

One of the main problems in wider application of

SM techniques and tools lays in limitations and

inadequacy of available tools.

With the intention to discover main of mentioned

weaknesses, review of available SM tools has been

263

Raki

c G., Budimac Z. and Bothe K. (2010).

TOWARDS A ‘UNIVERSAL’ SOFTWARE METRICS TOOL - Motivation, Process and a Prototype.

In Proceedings of the 5th International Conference on Software and Data Technologies, pages 263-266

DOI: 10.5220/0002916502630266

 SciTePress

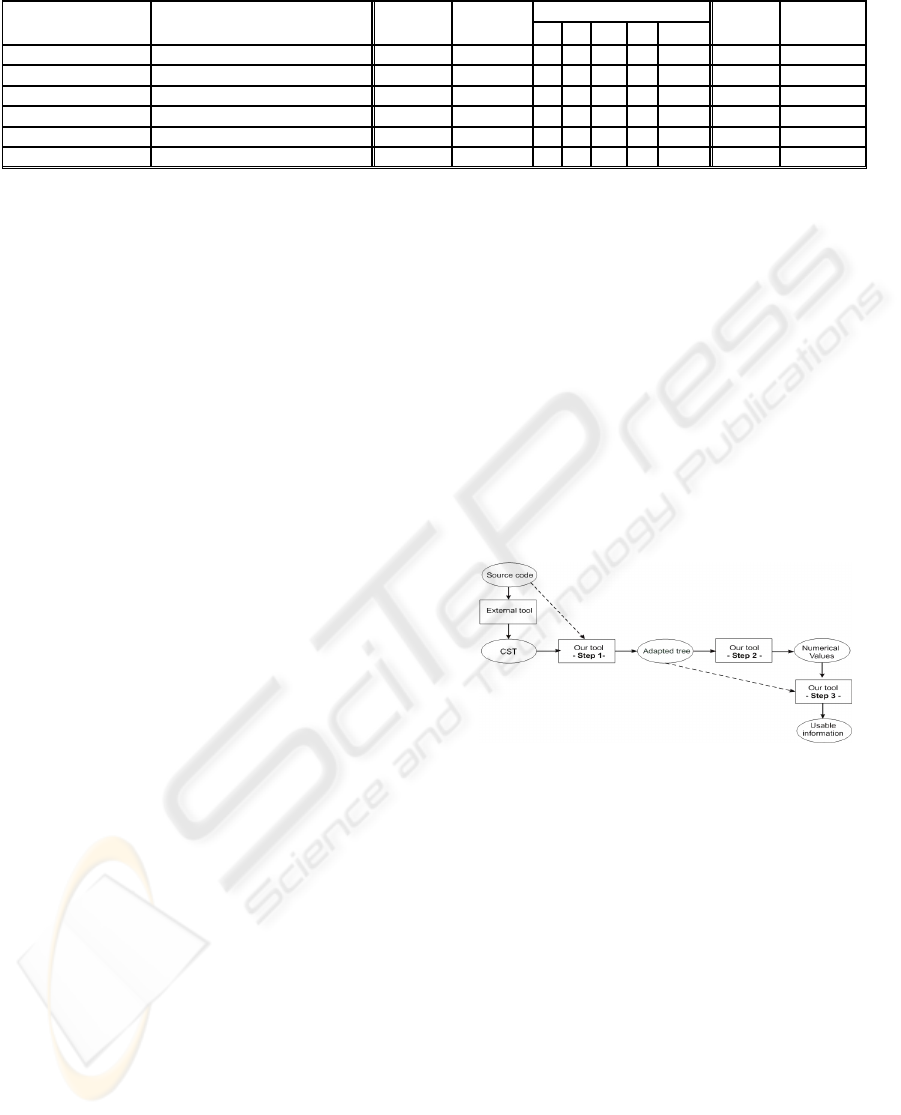

Table 1: The overview of the results of software metric tools review.

Tool See ref

Platform

independ.

IPL

independ.

Supported SM

Code

hist.

Metrics

storing

CC H LOC OO others

SLOC (Wheeler, 2009) - + - - + - - - +

Code Counter Pro (Geronesoft, 2009) - + - - + - - - +

Source Monitor (Campwood Software, 2009) - - + - + + + - +

Understand (ScientificToolworks, 2009) + - + + + + + - +

RSM (MSquaredTechnologies, 2009) + - + + + + + + +

Krakatau Power Software, 2009 - +

+ + + + + - +

done. Criteria for evaluation of each of analyzed tool

are related to the possibility of wide usage of the

tool. Those are: platform dependency, IPL

dependency, and supported SM. Additionally,

following two criteria are related to storing of

produced results and intermediate results: history of

code and metrics storing facility.

The analysis included 20 tools, but actual

situation can be represented by restricted set of six

representative tools (Table 1). Symbol “+” in a cell

of the table indicates that listed tool possess

corresponding characteristic, while “-“ indicates that

this criterion is not satisfied. Mark “

” next to the

symbol “+” means that tool only partially satisfies

specified criterion.

The table contains analysis of support for the

following SM: Cyclomatic Complexity (CC),

Halstead Metrics (H), Lines of Code (LOC) SM

family including Comment LOC (CLOC), Source

LOC (SLOC), etc., Object Oriented Metrics (OO)

and any other SM which is not in list. For details

see (Kan S., 2003).

The most important conclusions of the review

follow.

 Available tools could be divided in two

categories. The first category includes tools that

calculate only simple metrics as are metrics from

LOC family, but for wide set of IPL. The second

category is characterized with wide range of metrics,

but limited to small set of IPL. There are attempts to

bridge the gap between these categories, but without

final success. This is a big limitation if we take into

account that currently most software projects are

being written in more than one PL, usually different

by nature and type. There is also a significant

number of legacy software written in ‘ancient’

languages such are FORTRAN and COBOL. To all

these subsystems, one and uniform SM tool should

be applied to get reliable and uniform results and

interpretation.

 Even if tools support some object-oriented

metrics, this is still weak point of available tools, in

opposite to the wide application of the object-

oriented approach in software development.

General conclusion is that a new tool is needed.

3 TOWARD THE NEW TOOL

The basic idea is to split complete tool development

in three steps with the following explicit goals for

each step (Figure 1):

- Step 1 - to generate an appropriate intermediate

structure for the representation of a source code to

which SM algorithms can be applied.

- Step 2 - to apply SM algorithms to the given

structure and to produce appropriate numerical

values as a result.

- Step 3 - to apply advanced algorithms to the values

of SM calculated in step 2, in order to produce more

usable information to the end user.

Figure 1: Development roadmap.

3.1 Step 1 - Intermediate Structure

Achieving the IPL independency requires creating a

special intermediate structure for particular program

representation. Such structure has to be suitable for

representing source code written in "any" IPL.

Many other tools aiming for language

independency show (e.g., Christodoulakis et al.,

1989; CodeSquale, 2009) that usual intermediate

structure for this purpose is some sort of syntax tree.

The basic idea is to start from parser generator

(e.g., ANTLR (Parr, 2007)) which as input receives

a IPL grammar and as output provides the IPL

scanner and parser.

Parser generators usually generate Abstract

(AST) and Concrete (CST) Syntax Tree, as

intermediate structures. Structure and content of

these trees is determined by IPL grammar and used

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

264

parser generator. The CST contains all information

about IPL constructions and elements of the source

code, so it would be possible to apply SM

algorithms to such structure directly.

ANTLR generates AST and CST which is easy

to be extended with additional (imaginary) nodes

and enriched with additional information. This

enrichment is possible by simple changes inserted in

the IPL grammar – see (Parr, 2007) for details.

Generally, structure of the CST is always the

same and independent on the IPL. This is not the

case for the content of the nodes which differs for

different languages even if it represents analogue

IPL constructions. Application of SM algorithms to

this structure requires modification of the CST to

avoid implementation of SM algorithms for each

IPL.

For this purpose a separate tree structure that is

suitable for representation of the CST generated by

the parser generator was developed and called

‘enriched CST’ (eCST). It is based on XML

structure that provides independency with respect to

the IPL and SM. Tree representation of the source

code prepared in this way is the starting point in the

second step.

3.2 Step 2 - Calculating Metrics Values

The eCST representation of the source code is the

starting point for implementation of as many SM

algorithms as possible and to produce rich enough

set of numerical characteristics of the source. The set

of SM which is to be calculated consists of code

metrics and other SM which could be calculated on a

source code represented by the given structure.

Calculated values should be stored and well

organized for further manipulation in the third step.

3.3 Step 3 - Usable Information

After application of all SM algorithms and collecting

required values, calculated data should be input

parameters to advanced algorithms for delivering

useful information to the end user in the form of

advice for improving the software product or its

elements.

4 THE PROTOTYPE

Determination of the eCST structure was based on:

 comparative analysis of application of a single

SM to different IPLs;

 comparative

analysis of application of different

SM to a single IPL.

eCST is designed to be suitable for unique

representation of a source code written in different

IPLs and for application of different SM algorithms

(see section 4.1)

The prototype of the new SM tool has been

implemented in Java. It dynamically recognizes IPL,

after which the source code is being parsed and

eCTS is generated and stored to an XML file

(section 4.1). Production of eCST is a result of a

simple modification of the language grammar rules

by adding generation of imaginary nodes in the tree.

The calculated SM values are also stored into

XML document together with brief information

about corresponding elements of the source code.

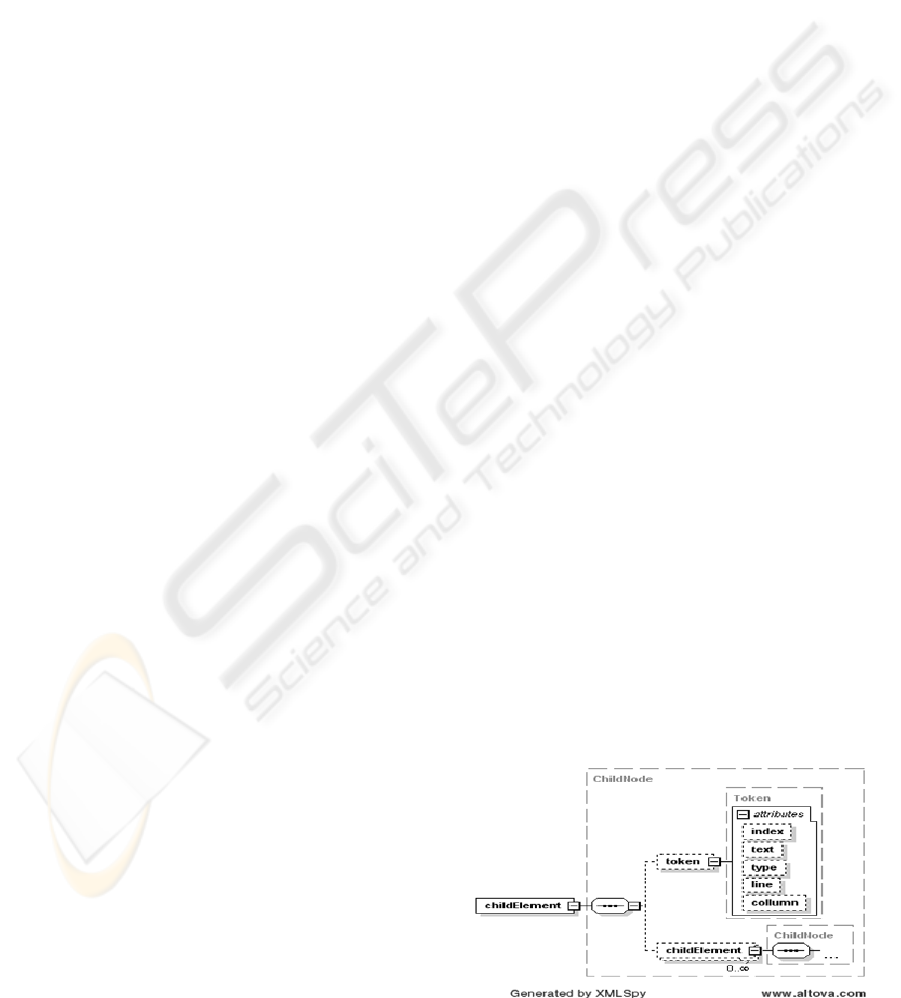

4.1 Storing the Generated eCST

Generated eCST consists of nodes and branches.

Some of the nodes are imaginary and provide useful

additional information about structure of the source

code and IPL elements. These imaginary nodes have

been added by modification of IPL grammar to

enrich the tree for IPL independency purpose by

enabling application of unique implementation of

the SM algorithms for different languages.

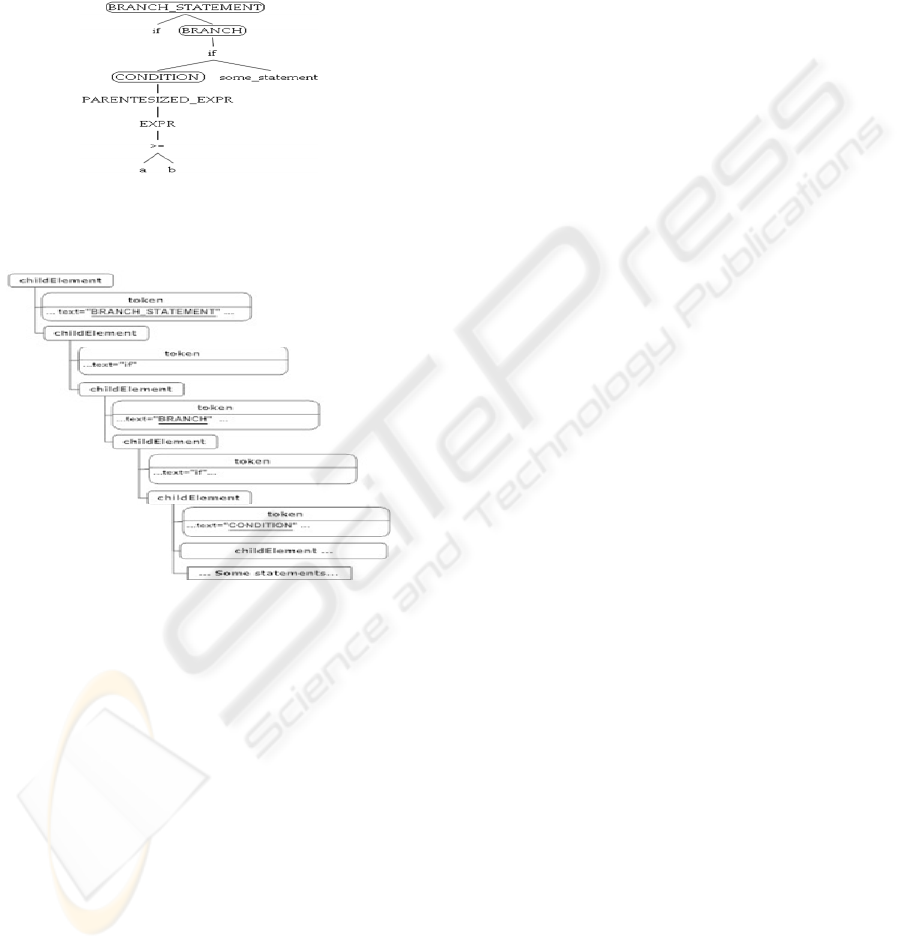

For example one of the CC calculation

algorithms is based on counting certain IPL

constructs indicating loops, branches, logical

operations, etc. These constructs are usually

different in different IPLs. This is the reason for

adding unique imaginary node before each branch,

each loop, etc. which will initiate recognition and

counting of the factor independently of IPL.

This tree modification does not affect the

structure of the tree. Each node consists of general

data about character and position of the source code

element and possible sub-nodes. This is basic

structure of syntax trees, and parsers generated by

different parser generators are usually producing

trees in that or in slightly modified form.XML

schema for keeping generated eCST is presented in

figure 2.

Figure 2: XML structure of an eCST.

TOWARDS A 'UNIVERSAL' SOFTWARE METRICS TOOL - Motivation, Process and a Prototype

265

The following example shows how the simple “if’

statement is stored to the given structure. Let the

statement that we want to store be the following one.

if (a >= b) //SomeStatement;

Let part “//SomeStatement(s)” represents list of

statements. The graphical representation of the

matching part of the eCST is presented in figure 3.

Figure 3: Simple "if" statement.

Figure 4 illustrates equivalent part of the XML tree.

Figure 4: XML tree representing “if” statement.

“BRANCH_STATEMENT”, “BRANCH” and

“

CONDITION” are imaginary nodes added to achieve

IPL independency. “

BRANCH_STATEMENT”

represents the beginning of the block that contains

“if” branching. It may contain one or more sub-trees

whose root is node named “

BRANCH”. It represents

start of the each branch in the branching block.

Moreover, each sub-tree that contains single branch

may contain sub-tree representing condition. Root of

this sub-tree is “

CONDITION” node.

5 CONCLUSIONS

SM tools are at this moment a weak point in SM

field and their wider application because of the

numerous limitations of available implementations.

In this paper, the most important weaknesses in

this area have been examined and presented together

with possible solutions. In that direction the basic

idea for development of a new SM tool and its

prototype were proposed.

Current prototype works for IPLs Modula-2 and

Java, calculating two characteristic SM (LOC and

CC). It is based on usage of parser generator

producing eCST which is stored in XML structure.

The immediate following task is to add more

IPLs by generating appropriate scanners and parsers.

Similarly much more SM algorithms will be

supported, primarily by adding imaginary nodes.

ACKNOWLEDGEMENTS

We acknowledge support of DAAD (German

Academic Exchange Service), project "Software

Engineering: Computer Science Education and

Research Cooperation" for partial support of the

reported work. We are also grateful to a bilateral

project between Serbia and Slovenia (project no. 27)

that enabled the exchange of visits and ideas with

colleagues of Faculty of Electronics, Computing and

Informatics (Maribor, Slovenia).

REFERENCES

CampwoodSoftware, 2009, Source Monitor,

http://www.campwoodsw.com/sourcemonitor.html

Christodoulakis D.N, Tsalidis C, C.J.M. van Gogh,.

Stinesen V.W, 1989, Towards an automated tool for

Software Certification, , International Workshop on

Tools for Artificial Intelligence,. Architectures,

Languages and Algorithms, IEEE, ISBN: 0-8186-

1984-8, pp. 670-676

CodeSquale, 2009, http://codesquale.googlepages.com/

Geronesoft, 2009, Code Counter Pro

http://www.geronesoft.com/

Kan S., 2003, Metrics and Models in Software Quality

Engineering - Second Edition, Addison-Wesley,

Boston, ISBN 0-201-72915-6

MSquaredTechnologies, 2009, Resource Standard Metrics

– RSM, http://msquaredtechnologies.com/

Parr T., 2007, The Definitive ANTLR Reference - Building

Domain-Specific Languages, The Pragmatic

Bookshelf, USA, ISBN: 0-9787392-5-6

PowerSoftware, 2009, Krakatau Essential PM (KEPM)-

User guide 1.11.0.0, http://www.powersoftware.com/

PowerSoftware, 2009, Krakatau Suite Management

Overview, http://www.powersoftware.com/

ScientificToolworks, 2009, Understand 2.0 User Guide

and Reference Manual March 2008,

http://www.scitools.com

Wheeler D. A., 2009, SLOCCount User's Guide,

http://www.dwheeler.com/sloccount/

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

266
