NOTES ON PRIVACY-PRESERVING DISTRIBUTED MINING AND

HAMILTONIAN CYCLES

Renren Dong and Ray Kresman

Department of Computer Science, Bowling Green State University, Bowling Green, OH, U.S.A.

Keywords:

Data mining, Privacy-preserving mining, Hamiltonian cycle, Edge disjoint Hamiltonian cycle.

Abstract:

Distributed storage and retrieval of data is both the norm and a necessity in today’s computing environment.

However, sharing and dissemination of this data is subject to privacy concerns. This paper addresses the role

of graph theory, especially Hamiltonian cycles, on privacy preserving algorithms for mining distributed data.

We propose a new heuristic algorithm for discovering disjoint Hamiltonian cycles in the underlying network.

Disjoint Hamiltonian cycles are useful in a number of applications; for example, to ensure that someone’s

private data remains private even when others collude to discover the data.

1 INTRODUCTION

In our everyday lives, we see the use and collection of

various kinds of data by a number of entities. Data

mining is the process of extracting hidden patterns

from the underlying data repository. It provides tech-

niques for new knowledge discovery, ﬁnding hidden

patterns in the data set such as classiﬁers and associ-

ation rules (Han and Kamber, 2006). With the explo-

sion of the internet, distributed storage and retrieval

of data is both the norm and a necessity. Distributed

data mining (DDM) helps mine this data by distribut-

ing the mining computation too.

The globally networked society places great de-

mand on the dissemination and sharing of private

data. For example, imagine a situation where compet-

ing schools trying to discover a set of core classes as-

sociated with high grades. While knowing that calcu-

lus, English 10, and Spanish 101 are associated with

high scholastic achievement on an aggregate level,

it would be unfavorable, in particular, for Underdog

Academy to admit its rampant failure at teaching any

of these subjects with excellence. Hence, Underdog

Academy would like to know what classes to put its

small budget into without giving its competition a leg

up on its weaknesses (Shepard, 2007).

Privacy issues are also relevant to a host of other

domains, including banking (Bottcher and Obermeier,

2008), patient medical records (Karr et al., 2007),

electronic voting (Baiardi et al., 2005), and others

(Chaum, 1988; Verykios et al., 2004) . Privacy pre-

serving distributed data mining (PPDM) algorithms

mine distributed data while addressing these privacy

concerns.

Secure multiparty computation (SMC) is the ba-

sic operation in PPDM. SMC was ﬁrst introduced in

(Andrew, 1986). It is predicated on the notion that

a computation is secure if at the end of the compu-

tation, no party knows anything except its own input

and the results. Hamiltonian cycles, and its derivative

edge-disjoint Hamiltonian cycles, play a crucial role

in SMC/PPDM.

This paper is about privacy preserving distributed

data mining algorithms and the role of these cycles,

speciﬁcally edge disjoint ones. The rest of this paper

is organized as follows. In Section 2 we formally de-

ﬁne these cycles. We also provide the motivation for

our work and describe a popular approach that uses

these cycles to mine distributed data. In Section 3,

we take a closer look at the cycles and state two new

theorems. Then, we propose a heuristic method for

ﬁnding the edge disjoint cycles. Concluding remarks

are given in Section 4.

2 HAMILTONIAN CYCLES AND

MINING

2.1 Mathematical Preliminaries

Hamiltonian cycles (HC) play an important role in

graph theory. A Hamiltonian cycle, H, is a cycle

103

Dong R. and kresman R. (2010).

NOTES ON PRIVACY-PRESERVING DISTRIBUTED MINING AND HAMILTONIAN CYCLES.

In Proceedings of the 5th International Conference on Software and Data Technologies, pages 103-107

DOI: 10.5220/0002922001030107

 SciTePress

that visits every node in the graph exactly once be-

fore returning to the source node. Alternatively, a

Hamiltonian cycle can be described as a sequence

of edges where any two adjacent edges share ex-

actly one unique node in the graph, where the ﬁrst

and last edge in the cycle share exactly one unique

node in the graph, and where the number of edges

in H equals the number of nodes in the graph. In

graph G = (V, E), if we deﬁne Hamiltonian cycle as

H = {h

, h

, . . . , h

}, h

∈ E, 1 ≤ i ≤ N, we will have

N = |V|, and V = (∪

N−1

i=1

∩ h

i+1

) ∪ (h

∩ h

Now we deﬁne an edge-disjoint Hamiltonian cy-

cle (EDHC). A set of Hamiltonian cycles is called

edge-disjoint if every edge in one Hamiltonian cycle

is disjoint with every edge in the rest of the Hamilto-

nian cycles of the set. Formally, suppose we have a

set H = {H

(i)

is a Hamilton cycle in graph G},

|H| is the size of H. H is edge-disjoint if ∀e ∈ H

(i)

e 6= d, ∀d ∈ H

( j)

, 1 ≤ i 6= j ≤ |H|.

EDHC is useful in computer networks. It can be

used to improve the capacity of the network or to

provide fault-tolerance and computer security (Urabe

et al., 2007b). For example, if a route in a network is

faulty or compromised, trafﬁc can be routed through

another - edge disjoint cycle or - route that does not

share any edges with the previous route. So, an inter-

esting question is how to ﬁnd the various EDHCs.

Other researchers have investigated this problem

for specialized network topologies. Alspach et. al.,

(Alspach et al., 1990) provide an algorithm to gener-

ate the EDHCs for fully connected networks. Bae and

Bose (Bae and Bose, 2003) give a method for gen-

erating EDHCs in Torus and k-ary n-cubes by using

Gray Codes. A polynomial time distributed algorithm

for k-ary n-cubes and hypercubes is given in (Stewart,

2007). Our research, in this paper, appeals to the gen-

eration of EDHCs in more general networks, and to

their application in privacy preserving data mining

2.2 An Example

A number of useful primitives for privacy preserving

distributed data mining are given in (Clifton et al.,

2002), including secure set union (Bottcher and Ober-

meier, 2008), secure size of intersection, and secure

sum, the last of which we use in this paper. Many

more algorithms exist, see (Verykios et al., 2004) for

a review. Secure sum (Schneier, 2007) can be deﬁned

formally as follows.

• Secure Sum (SS): The goal of SS is that the value

of each site’s individual input be masked while

the global sum of all inputs is universally known.

This means that at the end of the computation, no

party knows anything except its own input and the

global sum. Assume we have N sites. For each

site we have a value V

, 1 ≤ i ≤ N and we want to

calculate global sum V =

∑

i=1

Figure 1 shows an example of HC (Dong and Kres-

man, 2009). Assume the presence of a HC as shown

in Figure 1. The algorithm initiates a SS computation

starting at the source station p

whose private value

is x

= 8. p

uses a random r

, r

= 5, to mask its

private value. Then p

sends x

+ r

= 13 to the next

station. p

receives x

+ r

= 13 and adds its local

value, x

, to the sum before sending it to the next sta-

tion. At the end, start node, p

, receives r

∑

i=1

Since p

selected r

= 5, the global sum can be easily

calculated. A similar algorithm can also be used to

compute secure set union and secure set intersection

(Clifton et al., 2002).

Figure 1: Secure Sum Computation - One Cycle.

Clifton and Vaidya (2002) lay the foundation for

a cycle-partitioned secure sum (CPSS) algorithm by

noting how any node in a secure sum can divide

its value into random shares such that each share is

passed along a different secure sum circuit or cycle.

Collusion protection is then achieved when no node

has the same neighboring nodes twice for each cycle.

(See (Urabe et al., 2007a) for additional discussions.)

An example of CPSS is given in Figure 2 (Dong and

Kresman, 2009). Here, p

is connected to 4 other par-

ticipants which means that at least 4 other participants

have to collude - or join together - in order to discover

’s contribution to the global sum.

Note that the HCs used in Figure 2 are edge-

disjoint. However, the number of EDHCs in a given

graph is usually very limited. The limited number

of EDHCs in the graph constrains the application of

CPSS algorithms. So an interesting problem is how

to enumerate the EDHCs in a graph: in the rest of

this paper, we refer to it as the EDHC problem or just

EDHC.

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

104

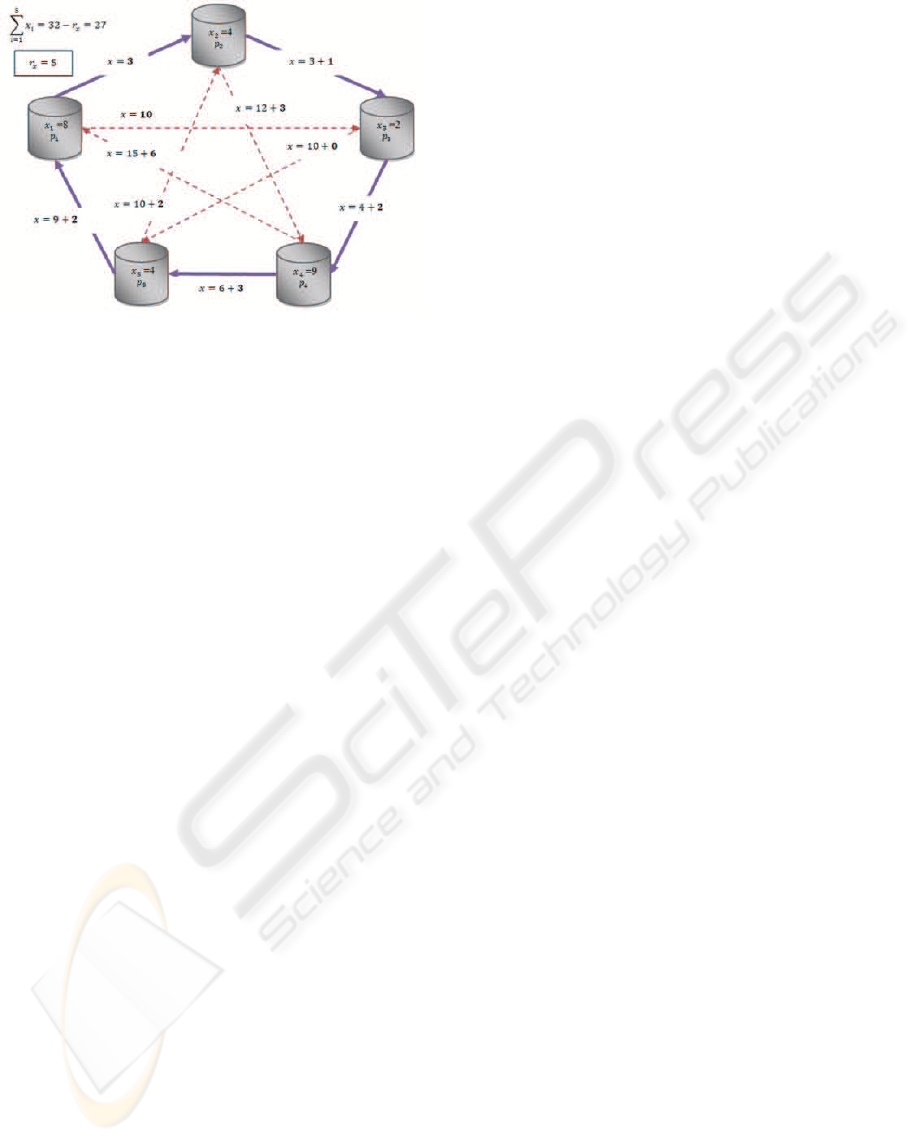

Figure 2: Secure Sum Computation - Two Cycles.

3 OUR CONTRIBUTION

Recall that edge-disjoint HC is a special type of

Hamiltonian cycles. It is well-known that HC is NP-

complete (Garey et al., 1979). We have proved the

following two theorems. However, because of the

application nature of this conference, we state them

without the underlying mathematical proof (please

see (Dong and Kresman, 2010) for the proof).

• Theorem 1: The EDHC problem is NP Complete.

• Theorem 2: The order in which the various edge-

disjoint HC is discovered may limit the number of

HC that can be found.

In Section 2 we noted the importance of EDHC

for privacy preserving data mining algorithms. In this

section we focus on how we can ﬁnd these EDHCs.

One obvious way to ﬁnd EDHC is to use a greedy al-

gorithm that invokes the single HC algorithm repeat-

edly. However, due to Theorem 2 above, a simple

greedy algorithm is not guaranteed to ﬁnd many edge-

disjoint HCs in a given graph.

Theorem 1 notes the difﬁculty of solving the

EDHC problem. In fact, even the decision problem

of determining whether a given graph has a given

number of edge disjoint Hamiltonian cycles can also

shown to be NP complete; again, we omit the proof

here, but it can be found in (Dong and Kresman,

2010). Just like many other NP-complete and NP-

hard problems, we do not have any efﬁcient (polyno-

mial time) algorithm for the EDHC problem. Heuris-

tic algorithms, which work by using some heuristic

rules to guide their search of the solution space, are

powerful tools to solve NP-hard problems. However,

they may converge to an approximate or suboptimal

solution.

In this section, we will ﬁrst present a connection

between the EDHC problem and another graph theo-

retic problem, maximum clique (MC): for MC, given

an undirected graph G and a positive integer k, we ask

if graph G has a fully-connected subgraph SG(V, E)

with the constraint |SG(V)| ≥ k. In the later part of

this section, we will provide a heuristic algorithm for

EDHC problem.

MC is one of the fundamental NP-complete prob-

lems (Garey et al., 1979) and is well researched.

The purpose of ﬁnding a connection between EDHC

and MC is to apply some of the results from MC

to the EDHC. We present a procedure to transform

the EDHC problem to MC. Note, we assume that we

have an oracle machine that lists all the HCs in a

given graph. The oracle machine we assume here is

only used to explain the transform and it will be re-

placed by another algorithm later (see Section 3.1).

The transform works as follows: take a graph G(v, e)

as an input to the EDHC problem; then use the ora-

cle machine to obtain a set HCPool which contains all

the HC in the given graph; ﬁnally, construct another

graph G

′

(v, e) in which each vertex in G

′

has a corre-

sponding HC in the set HCPool, and if two elements

in HCPool is edge-disjoint then there is an edge be-

tween the two corresponding vertices in G

′

and vice

versa. Then, solving the MC problem in G

′

gives us

the results for the original EDHC problem.

Now, the question is what is a good MC algorithm

that can be used as a basis for our EDHC problem.

Pullan and Hoos (2006) present a stochastic MC algo-

rithm – that does a local search – called Dynamic Lo-

cal Search (DLS-MC). According to them, the DLS-

MC outperforms other state-of- the-art - MC search

algorithms in many instances. See (Pullan and Hoos,

2006) for a discussion of other algorithms. In our

work, we will take DLS-MC as a basis to construct

a dynamic local search algorithm to solve EDHC.

We explain DLS-MC in the next paragraph. Then,

we note the process for constructing the oracle that

can enumerate the HCs. Finally, we formally describe

our dynamic local search algorithm in Section 3.1.

DLS-MC algorithm works as follows: start with

a random initial vertex from the given graph as a

current clique C. Then the search alternates be-

tween an iterative improvement phase and a plateau

search phase. In the iterative improvement (or ex-

pand) phase, suitable vertices (connect to each ele-

ment in current clique) are repeatedly added to current

clique. The expand phase terminates when there is no

more vertex can be added intoC. In the plateau search

phase, one vertex of current clique C is swapped with

a vertex currently not in C. The plateau search termi-

nates when all the possible swap operation have been

tried. Following the plateau search, a numerical value

is added to each vertex as vertex penalties. The al-

NOTES ON PRIVACY-PRESERVING DISTRIBUTED MINING AND HAMILTONIAN CYCLES

105

gorithm repeats the above steps - expand phase and

plateau phase - until large enough clique is found or

the step limitation is reached. Algorithm details and

empirical results can be found in (Pullan and Hoos,

2006).

As noted earlier, we can transform the EDHC

problem to MC, and there are many algorithms for

solving MC. The only barrier left is the construction

of the oracle machine to enumerate the HCs. Our

solution is to replace the oracle machine with some

heuristic algorithms (or backtrack algorithm) for HC

problem. We will not try to generate all the HCs - an

impossible task, due to Theorem 1 above. Instead, we

will dynamically construct the graph for the DLS-MC

program. In our algorithm, we will consider a HC

algorithm for ﬁnding HC as a component since it is

very hard to determine what the best heuristic HC al-

gorithm is. In practice, one can choose a heuristic HC

algorithm based on his/her needs because algorithms

that need more accuracy may take up more comput-

ing time. In our work, all HC algorithms take two

parameters as input, a graph and a random number.

We know that most of the HC algorithms start with

picking an edge (or vertex) in the graph. The pur-

pose of the random number is to give the algorithm

an opportunity to return a different HC each time. All

algorithms return a HC if it ﬁnds a new HC else re-

turn ‘NULL.’ For notational convenience, we use the

term singleHCAlg(G, r) to mean any HC algorithm

with parameters G and r.

3.1 A Heuristic Algorithm for EDHC

Based on the above considerations, we introduce a

new heuristic algorithm Algorithm 1 for ﬁnding ED-

HCs: edge-disjoint HC using Heuristic Dynamic Lo-

cal Search-EDHC. An outline of the algorithm is

given in Algorithm 1. For the given graph G(v, e),

we start with ﬁnding a set of EDHC as current so-

lution curEDHC by expandSearch. Then, we exe-

cute expandSearch and plateauSearch alternatively.

The process repeats until enough EDHC are found

or or step limit is reached. For brevity, the code for

expandSearch and plateauSearch are omitted here,

but we explain their functionality in the next two para-

graphs.

In expandSearch, our goal is to expand the

curEDHC set as much as possible. To achieve this

goal, we construct a graph G

′

by removing all the HCs

in curEDHC from G, and feed singleHCAlg with G

′

It is obvious that any new HC found by singleHCAlg

can be used to expand the size of curEDHC. Repeat

this process until singleHCAlg returns NULL which

means no more HC can be found in the remaining

graph G

′

. expandSearch returns the updated version

of curEDHC.

Algorithm 1. Heuristic Dynamic Local Search-EDHC.

Procedure HDLS-EDHC(G,targetSize,maxStep)

Iuput:

G: Graph G(v,e)

targetSize: Number of HC we want to find

maxStep: Steps limitation

Output:

a set of EDHC with size at least target-

Size or the best EDHC set found.

Begin

numStep:=0;

bestEDHC:={};

curEDHC:={};

(HCPool,HCPenalties):={};

curEDHC:=expandSearch(G,curEDHC);

If |curEDHC| is at least targetSize

return curEDHC as result and exit;

If curEDHC is better then bestEDHC

replace the bestEDHC with curEDHC;

curEDHC:= plateauSearch(G,curEDHC);

update Penalties for HCs in curEDHC;

While numStep < maxStep;

Return bestEDHC;

End

In plateauSearch,we try to ﬁnd a different EDHC

set based on the curEDHC. The EDHC set we ﬁnd in

plateauSearch should also has |curEDHC| HCs. The

main idea behind plateauSearch is to replace some

of the HCs in curEDHC by other new HCs found

by singleHCAlg. We ﬁrst construct a new graph,

graph G

′′

, by combining a HC in curEDHC with

the remaining graph G

′

(after removing all the HC in

curEDHC from G). So we have |curEDHC| possible

′′

. We start with the HC with the least penalty vaule.

The penalty value here is used to indicate how fre-

quent a HC is used in the previous search process. By

selecting the HC with least penalty vaule, we are try-

ing to avoid searching the same group of HCs. Feed

singleHCAlg with each G

′′

; if any singleHCAlg re-

turns a new HC, then replace the new HC with the

one used to construct G

′′

. If all singleHCAlg return

nothing, set curEDHC to nothing and then exit. So

the program can start over again.

At the end of plateauSearch, the cycle penalties

are updated by incrementing the penalty values of all

cycles in curEDHC by 1. So in HDLS-EDHC, if a

HC has less penalty, this means the HC is less fre-

quently used in the searching process and vice versa.

In sum, following the computation of the algo-

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

106

rithm (Algorithm 1), we return a set of EDHCs with

a size at least targetSize or we will return the best so-

lution found within the search process as the result,

given by bestEDHC - the set of EDHCs in G.

4 CONCLUDING REMARKS

This paper focused on distributed mining and the role

of Hamiltonian cycles in keeping information pri-

vate. We stated a couple of theorems on edge disjoint

Hamiltonian cycles, but without proof. Then, we pro-

posed a heuristic algorithm to enumerate these cycles.

These cycles have applications in data mining, net-

work routing and fault tolerant computing. In an ex-

tended version of this paper, we will formally prove

these theorems and compare the performance of the

heuristic algorithm with that of the greedy algorithm.

REFERENCES

Alspach, B., Bermond, J., and Sotteau, D. (1990). Decom-

position into cycles 1: Hamilton decompositions. Cy-

cles and Rays, page 9.

Andrew, C. (1986). How to generate and exchange secrets.

In Proc. of the 27th IEEE Symposium on Foundations

of Computer Science, pages 162–167.

Bae, M. and Bose, B. (2003). Edge disjoint Hamiltonian

cycles in k-ary n-cubes and hypercubes. IEEE Trans-

actions on Computers, 52(10):1271–1284.

Baiardi, F., Falleni, A., Granchi, R., Martinelli, F., Petroc-

chi, M., and Vaccarelli, A. (2005). SEAS, a secure

e-voting protocol: design and implementation. Com-

puters & Security, 24(8):642–652.

Bottcher, S. and Obermeier, S. (2008). Secure set union and

bag union computation for guaranteeing anonymity of

distrustful participants. Journal of Software, 3(1):9.

Chaum, D. (1988). The dining cryptographers prob-

lem: Unconditional sender and recipient untraceabil-

ity. Journal of Cryptology, 1(1):65–75.

Clifton, C., Vaidya, J., Kantarcioglu, M., Lin, X., and Zhu,

M. Y. (2002). Tools for privacy preserving distributed

data mining. SIGKDD Explor. Newsl., 4(2):28–34.

Dong, R. and Kresman, R. (2009). Indirect disclosures in

data mining. In Frontier of Computer Science and

Technology, Japan-China Joint Workshop, pages 346–

350, Shanghai, China. IEEE Computer Society.

Dong, R. and Kresman, R. (2010). Proof of certain proper-

ties of edge disjoint Hamiltonian cycles. Under prepa-

ration.

Garey, M., Johnson, D., et al. (1979). Computers

and Intractability: A Guide to the Theory of NP-

completeness. W.H. freeman San Francisco.

Han, J. and Kamber, M. (2006). Data mining: concepts and

techniques. Morgan Kaufmann.

Pullan, W. and Hoos, H. (2006). Dynamic local search for

the maximum clique problem. Journal of Artiﬁcial

Intelligence Research, 25:159–185.

Schneier, B. (2007). Applied cryptography: protocols, al-

gorithms, and source code in C. A1bazaar.

Shepard, S. (2007). Anonymous Opt-Out and Secure Com-

putation in Data Mining. Master’s thesis, Bowling

Green State University, Bowling Green, OH, USA.

Stewart, I. (2007). Distributed algorithms for building

Hamiltonian cycles in k-ary n-cubes and hypercubes

with faulty links. Journal of Interconnection Net-

works, 8(3):253.

Urabe, S., Wang, J., Kodama, E., and Takata, T. (2007a).

A high collusion-resistant approach to distributed

privacy-preserving data mining. IPSJ Digital Courier,

3(0):442–455.

Urabe, S., Wong, J., Kodama, E., and Takata, T. (2007b).

A high collusion-resistant approach to distributed

privacy-preserving data mining. In Proceedings of the

25th conference on Proceedings of the 25th IASTED

International Multi-Conference: parallel and dis-

tributed computing and networks, page 331. ACTA

Press.

Verykios, V. S., Bertino, E., Fovino, I. N., Provenza, L. P.,

Saygin, Y., and Theodoridis, Y. (2004). State-of-the-

art in privacy preserving data mining. SIGMOD Rec.,

33(1):50–57.

NOTES ON PRIVACY-PRESERVING DISTRIBUTED MINING AND HAMILTONIAN CYCLES

107
