QuEF

An Environment for Quality Evaluation on Model-driven Web Engineering

Approaches

F. J. Domínguez-Mayo, M. Mejías, M. J. Escalona and A. H. Torres

University of Seville, Seville, Spain

Keywords: Model-Driven Engineering, Quality, Software Metrics, Model-Driven Web Engineering, Methodologies.

Abstract: Due to the high number and wide variety of methodologies which currently exist in the field of Model-

Driven Web Engineering (MDWE) methodologies, it has become necessary to evaluate the quality of the

existing methodologies to provide helpful information for the developers. Since proposals are constantly

appearing, the need may arise not only to evaluate quality but also to find out how it can be improved. This

article presents work being carried out in this field and describes tasks to define QuEF (Quality Evaluation

Framework), which is an environment to evaluate, under objective measures, the quality of Model-Driven

Web Engineering methodologies.

1 INTRODUCTION

Model-Driven Engineering (MDE) is a paradigm of

software development that consists of the creation of

models closer to a particular domain rather than

concepts or a specific syntax. The domain

environment specific to MDE for web engineering is

called Model-Driven Web Engineering (MDWE).

The Object Management Group (OMG) has

developed the standard Model-Driven Architecture

(MDA) which defines an architecture platform for

proposals based on the Model-Driven paradigm

The concept of platform independence appears

frequently in MDA. Models may have the quality of

being independent from the characteristics of any

technological platform. By applying this paradigm,

the lifecycle of a software system is completely

covered, from requirements capture to its own

maintenance, through the generation of the code. In

recent years, the growing interest in the internet has

led to the generation of a high number of proposals

(W. Schwinger et al., 2008) which offer a frame of

reference for the Web environment. On the other

hand, there are a high number of approaches without

standard consensus, a lack in the use of standards,

and scarcity of both practical experience and tool

support. In the face of this situation, an important

need to assess the quality of existing methodologies

arises. In this paper, therefore, an environment for

the quality evaluation of Model-Driven Web

methodologies based on MDA is proposed.

The paper is organized into the following

sections. In Section 2 a global analysis of the

situation is presented. Section 3 presents the

problem, motivation and goal, and is intended to lay

the basis of a framework that allows evaluate the

quality of different methodological proposals. In

Section 4 concepts such as framework and MDWE

methodology are explained and the elements which

define the Quality Evaluation Framework (QuEF)

are provided. In Section 5, an example of applying

the framework proposed with the NDT methodology

is performed. Finally, in Section 6, a set of

conclusions, contributions and possible future work

are given.

2 RELATED WORK

A great amount of work has been published in the

area of MDWE, as have numerous studies related

with MDWE approaches (Escalona and Aragón,

2008), (Kroiβ and Koch, 2008). Along this line

(Schwinger et al., 2008) must be considered where a

well-defined fine-grained catalogue of more than 30

evaluation criteria about approaches is defined.

Some work related with quality evaluation and

137

J. Domínguez-Mayo F., Mejías M., J. Escalona M. and H. Torres A. (2010).

QuEF - An Environment for Quality Evaluation on Model-driven Web Engineering Approaches.

In Proceedings of the 5th International Conference on Software and Data Technologies, pages 137-142

DOI: 10.5220/0002928501370142

 SciTePress

software metrics are considered in this section. The

idea of developing a MDE framework for evaluating

quality has been applied in various studies of

(Mohagheghi et al.), where it is stated that the

quality of models is affected by the quality of

different factors. From the methodological

perspective, software measurement is supported by a

wide variety of proposals, the ISO 15539 and IEEE

1061-1998 standards deserving special attention. As

far as web metrics quality is concerned, in (Calero et

al., 2005) some important metrics proposed for web

information systems are classified.

3 PROBLEMS, MOTIVATION

AND GOALS

The main goal of this research is to lay the basis of a

QuEF that facilitates the quality assessment of

different methodological proposals under some

specific criteria. Today’s modern web information

systems are called to manage a huge amount of

information and are difficult to develop and

maintain. Hence, there is a need for the suitable

design of MDWE methodologies and effective tools.

To this end, our work concentrates on evaluating and

comparing existing proposals. One aspect that must

be considered is the use of an MDWE methodology

and its influence on the final product quality.

Nowadays, in the software industry, there is an even

greater need to produce faster, cheaper software of

higher quality.

4 DEFINING A QUALITY

EVALUATION FRAMEWORK

FOR MDWE

METHODOLOGIES

In this work, an approach, or methodology, is a

Model-Driven proposal for the development of web

applications. It may provide a set of guidelines,

techniques, processes and/or tools for the structuring

of specifications, which are expressed as models.

The QuEF is a basic conceptual structure composed

of a set of elements used to evaluate MDWE

methodologies. Therefore, an environment with a set

of elements based on existing literature is proposed,

where four components for the evaluation of the

quality of MDWE methodologies can be seen:

 Approach Characteristics Template: This

component would have the responsibility of

describing the input methodology characteristics

to be evaluated.

 Thesaurus & Glossary: This component would

be responsible for improving the standardization

of the access channel and communication

between users of different MDWE

methodologies.

 Quality Model: This component is responsible

for providing the basis for specifying quality

requirements with the purpose of evaluating

quality.

 Quality Evaluation Process: This component

would have the responsibility of carrying out the

quality evaluation process.

4.1 QuEF for MDWE Methodologies

We present the steps for defining QuEF for MDWE

methodologies. The main component for QuEF is

the Quality Model. Concepts, tasks to be performed

for each step, framework structuring and

components which result for each step are described.

In this work, a Quality Model is a set of

characteristics, subcharacteristics and metrics,

quality factors, quality attributes and the

relationships between them, which provides the

basis for specifying quality requirements and

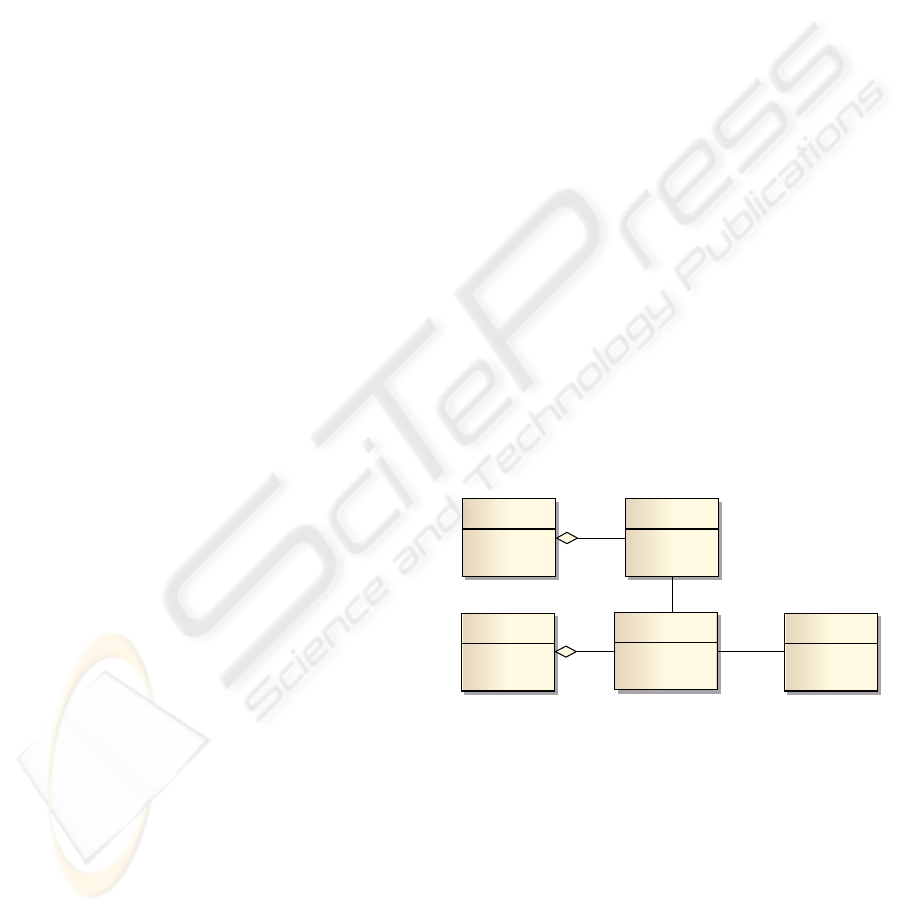

evaluating quality. In Figure 1, the Quality Model

metamodel with the relations between the different

elements in the Quality model are shown, and the

elements are described and explained.

Quality Factor Quality Attribute

Characteristic

Subcharacteristic

Metric

1..*

1..*1..*

1..*

Figure 1: Quality Model Metamodel.

 Quality Factor: This is a higher-level feature that

affects an item's quality. For example, a quality

factor could be Usability, Functionality or

Portability. Each quality factor and attribute in

ISO 9126 is described in relation with a software

product but in our particular case all quality

factors and attributes are described in relation

with approach characteristics.

 Quality Attribute: A quality attribute is a feature

or characteristic that affects an item's quality

(Syn: quality factor). In a hierarchy of quality

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

138

attributes, higher-level attributes may be called

quality factors, lower-level attributes called

quality attributes (IEEE 610). For example,

Usability is defined for various quality attributes

such as Learnability, Understandability,

Operability, etc.

 Characteristic: This is a higher-level concept of

an approach. It may be, for example, the

software development process, models,

metamodels, languages, tools, transformations or

the quality assurance techniques.

 Subcharacteristic: This is a lower-level concept

of an approach. For example, the Model-Driven

Engineering characteristic may have various

subcharacteristics such as, the Language

Definition, Transformations and Trace

Generation.

 Metric: In the Quality Model, metrics should

indicate which quality attribute is affected by

subcharacteristics and also the degree to which it

is affected. For example, the evaluation may be

via measuring quantitatively by metrics or

subjective evaluation, inspections using

checklists or interviewing the users.

Therefore, a Quality Model contains a minimal

amount of characteristics and subcharacteristics

through which any kind of MDWE approach can

be evaluated. In order to define a Quality Model, it

contains association links between the

subcharacteristics and the quality attributes. These

association links represent the dependencies

between subcharacteristics and quality attributes.

They show quality attributes which are affected by

subcharacteristics or the areas of the methodology

that will be significantly affected if the approach is

changed. Association links may be based on

proven and real-world experience. The impact of

each subcharacteristic on quality attributes must be

demonstrated and the requirements determined by

real case study applications to a number of real

projects. Hence, a quality factor has various

quality attributes and a characteristic has various

subcharacteristics, as is shown in Figure 1.

4.1.1 Identifying Quality Factors

A set of quality factors based on current literature,

such as ISO/IEC 9126, IEEE and other standards

which are adapted to MDWE methodologies, has to

be identified, classified and hierarchical. The

Quality Factors of an approach include Usability,

Functionality, Reliability, Maintainability and

Portability. Each quality factor and attribute in ISO

9126 is described in relation with a software product

whereas in our study all quality factors and attributes

would be described in relation with approach

characteristics. In this work, Reliability is taken as

an example of the quality factor. In ISO 9126,

Reliability is a quality factor which is defined as:

The ability of the software product to perform its

required functions under stated conditions for a

specified period of time, or for a specified number of

operations. This definition could be adapted to

more closely fit our specific domain: “The ability of

a characteristic approach to perform its required

functions under stated conditions for a specified

period of time, or for a specified number of

operations” or in a general way could be described

as: “A set of attributes that bear on the capability of

a characteristic approach to maintain its level of

performance under stated conditions for a stated

period of time”.

4.1.2 Identifying Quality Attributes for each

Quality Factor

For each quality factor, a set of quality attributes

have to be identified. For example, quality attributes

related with Reliability are described in the same

way by adapting other definitions from ISO, IEEE,

other standards and work already published. Some

of these quality attributes may be described as:

 Maturity: The capability of a characteristic

approach to avoid failure as a result of defects in

the approach.

 Recoverability: The capability of a characteristic

approach to re-establish a specified level of

performance and recover a stated development

point affected in case of failure.

 Fault Tolerance: The capability of a

characteristic approach to maintain a specified

level of performance in cases of faults (defects)

or of infringement of requirements.

 Compactness: The state of being compact. A

characteristic approach is more compact if it is

getting closer to a specific domain.

4.1.3 Identifying Characteristics

In MDWE, models are refined progressively and

transformed into new models or code with tools.

Moreover, each methodology may define its

development process and/or techniques. The idea is

to characterize the whole MDWE process. The

quality of methodologies in turn depends on the

following Characteristics: The Model-Driven

Engineering, the knowledge of MDWE methodology

users, the web modelling, the customization

QuEF - An Environment for Quality Evaluation on Model-driven Web Engineering Approaches

139

modelling, the maturity of a methodology, the tool

support and the quality assurance techniques.

Methodology users and developers use the available

modelling languages, tools and processes and

develop models based on their knowledge of the

problem and their experience.

4.1.4 Identifying Subcharacteristics and

Metrics for each Characteristic

For each subcharacteristic, a specification of its

evaluation is necessary. For example, the evaluation

may be carried out via quantitative measurement

using either metrics or subjective evaluation,

whereby checklists are used in inspections, or users

and designers are interviewed, respectively. Metrics

defined so far are qualitative metrics which indicate

if the subcharacteristic is Supported (S), Partly

Supported (PS) or Not Supported (NS).

4.1.5 Specifying Association Links between

the Subcharacteristics and the Quality

Factors

In this step, the association links between

subcharacteristics and quality attributes have to be

defined. A set of hypotheses has to be proposed to

indicate which quality attribute is affected by each

subcharacteristic. For example, Reliability is

described as a set of quality attributes. These quality

attributes could be affected by one of various

subcharacteristics as shown in Table 1.

Table 1: Association links between realiabilty quality

attributes and Tool support subcharacteristics.

Reliability quality factor

Maturity

Recoverability

Fault Tolerance

Availability

Currency

Compactness

Relevancy

Tool Support

characteristic

Creation Tool X X X X X

Analysis Tool X X X X X X X

Transformation Tool X

X X X X

Composition Tool X X X X X

Test Tool X X X X X X X

Trace Tool X X X X X X X

Repository Tool X X X X X X X

Subcharacteristics and the relations between quality

attributes are described below. The employment of

Tool Support could give the approaches a broader

application base. Our initial hypothesis is that it

could bear influence on:

 Maturity: The use of tools can prevent faults

in the use of a methodology because tthey

make this methodology easier to handle.

 Recoverability: With subcharacteristics,

certain mistakes can be detected and a stated

point in the development can be recovered in

case of faults.

 Fault Tolerance: Analysis, Test and Trace

tool support help to make the use of a

methodology more reliable in the case of

faults.

 Compactness: Every subcharacteristic is

getting closer to the MDWE specific domain.

The Quality Model component would then be

refined and improved based on results, experience or

current literature. Other subcharacteristics have to be

proposed and they have to be associated with quality

attributes. In this work, a set of Tool Support

subcharacteristics and a set of hypotheses for linking

these subcharacteristics to quality attributes of

Reliability are proposed as an example. A

consequence of having this matrix could be that in

the case of improving a web development

methodology, priority can be given to

subcharacteristics which improve a greater number

of quality attributes, and therefore, the quality

process improvement is optimized.

4.1.6 Defining the Quality Evaluation

Process

The Quality Evaluation Process component

compares the information from each input Approach

Characteristics Template with information from the

Quality Model. The idea is to determine which

aspect needs to be improved in MDWE

methodology. The results provide an assessment

report of the methodology and this may be used for

comparison with the evaluation of other MDWE

methodologies. Along these lines, Microsoft Excel is

currently used for implementing a brief prototype for

proofs. A spreadsheet is used to simulate the

Approach Template Characteristic component

where the user selects subcharacteristics according

to a set of metrics. For example, the metric value is 1

if it is supported, 1/2 or the arithmetic mean of

supported elements from among the total elements if

it is partly supported, and 0 if it is not supported.

The total value for the quality attribute is the number

of values divided by the total metrics in the

subcharacteristic. For every quality attribute, a

quantitative value for each subcharacteristic is then

calculated. A spreadsheet with a matrix which

represents the association links between

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

140

subcharacteristic and quality attributes indicates if

the quality attribute is influenced by the

subcharacteristic. Finally, on another spreadsheet,

graphics and total values of evaluation are shown.

5 EXAMPLE APPLICATION:

NDT METHODOLOGY

EVALUATION

NDT (Navigational Development Techniques) is a

methodological approach oriented towards Web

Engineering. It is an approach defined in the Model-

Driven paradigm and it offers a suitable and easy-to-

use methodological environment. With the use of

NDT-Suite, NDT offers tool support for each phase

of the complete life cycle of a software project. In

the following evaluation of NDT, the extended

revision supported by NDT-Suite is considered.

5.1 Applying the Approach

Characteristic Template in NDT

Methodology for Tool Support

The Approach Characteristics Template component

has been applied using an implementation in

Microsoft Excel. However, the Approach

Characteristics Template component has not yet

been fully developed, and only Tool Support

characteristic, MDE characteristic and Maturity

characteristic can be considered. In this example,

only some metrics of Transformation Tool Support

are shown in Table 2 as an example of the Template.

Other subcharacteristics, such as Creation,

Composition, Test, Trace, Repository Tool Support,

are not shown but they have been considered in the

evaluation process of this example in Section 5.2.

An MDWE tool is a tool used to develop, interpret,

compare, align, measure, verify and transform

models or metamodels in the context of MDWE.

For example, with respect to the Transformation

Tool Support subcharacteristic in the template, the

synchronization tool metric PSM2PIM, PSM2CIM,

Code2CIM and Code2PSM is Not Supported for

NDT methodology as is shown in the Table 2. Other

metrics are supported. Total metric results of Tool

Support characteristics are shown in Figure 2. In the

figure, black bars represent NDT result metric

values for each subcharacteristic of the Tool Support

characteristic.

Table 2: Metrics of Transformation Tool Support

subcharacteristic.

TRANSFORMATION TOOL SUPPORT

SUBCHARACTERISTICS AND METRICS

Model-Driven Reverse Engineering or Synchronization

Tool

This supports a Reverse Engineering Tool: A tool intended

to transform particular legacy or information artifact

portfolios into fully-fledged models.

This supports a synchronization tool between

transformations such as:

PIM2CIM S Code2CIM NS

PSM2PIM NS Code2PIM NS

PSM2CIM NS Code2PSM S

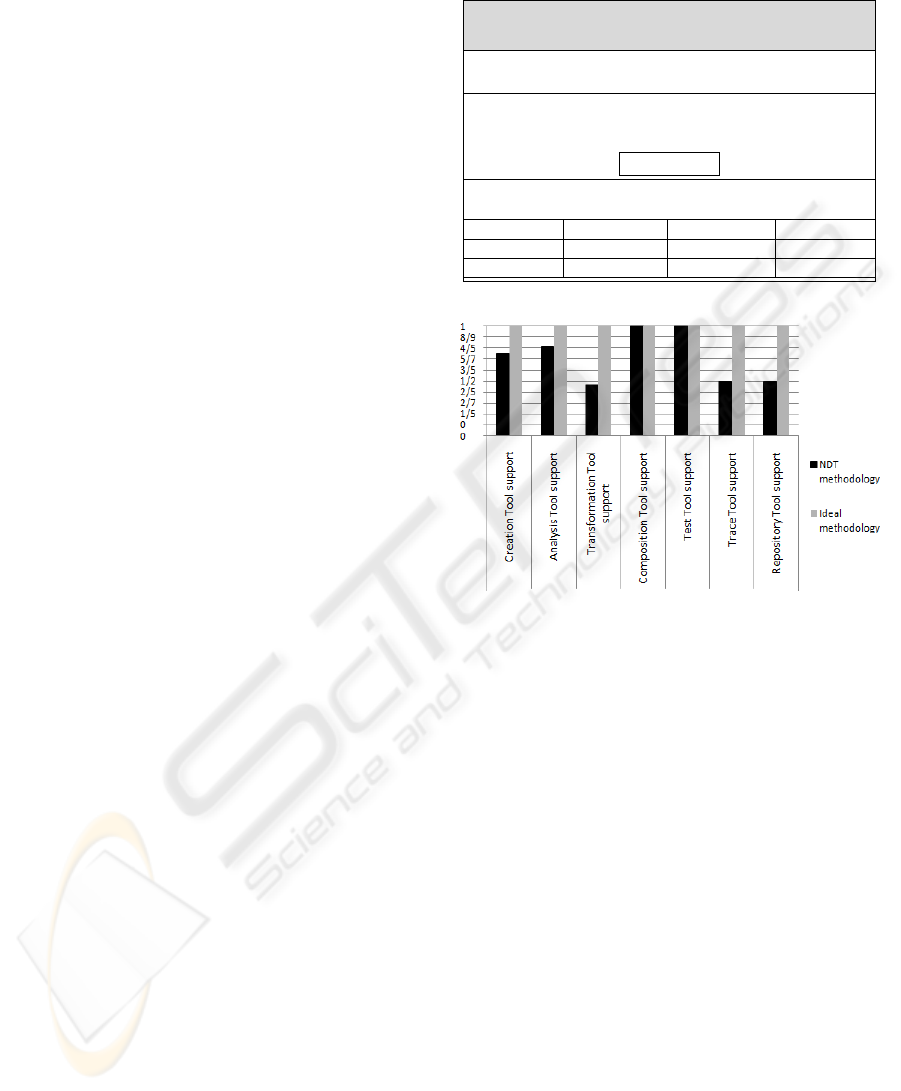

Figure 2: Graph of results in the Tool Support

characteristic template.

5.2 A Reliability Quality Factor

Evaluation of NDT Methodology

for Tool Support

In the implementation in Microsoft Excel,

Functionality, Reliability, Portability and Usability

quality factors have been studied. In this example

the Reliability factor is shown and its relations with

the Tool Support characteristic. This is shown in

Figure 3, where the black line represents Reliability

on the NDT methodology and the grey line

represents the ideal Reliability in an ideal approach

according to the subcharacteristics under

consideration. According to the results of the

evaluation of the NDT methodology, only one

characteristic has been considered in the example.

Hence, the same subcharacteristics have been

considered for each quality attribute of Reliability.

If other characteristics are considered (for

example MDE characteristic) and subcharacteristics,

then the results could be very different. In Figure 4,

the Tool Support and the MDE characteristics are

QuEF - An Environment for Quality Evaluation on Model-driven Web Engineering Approaches

141

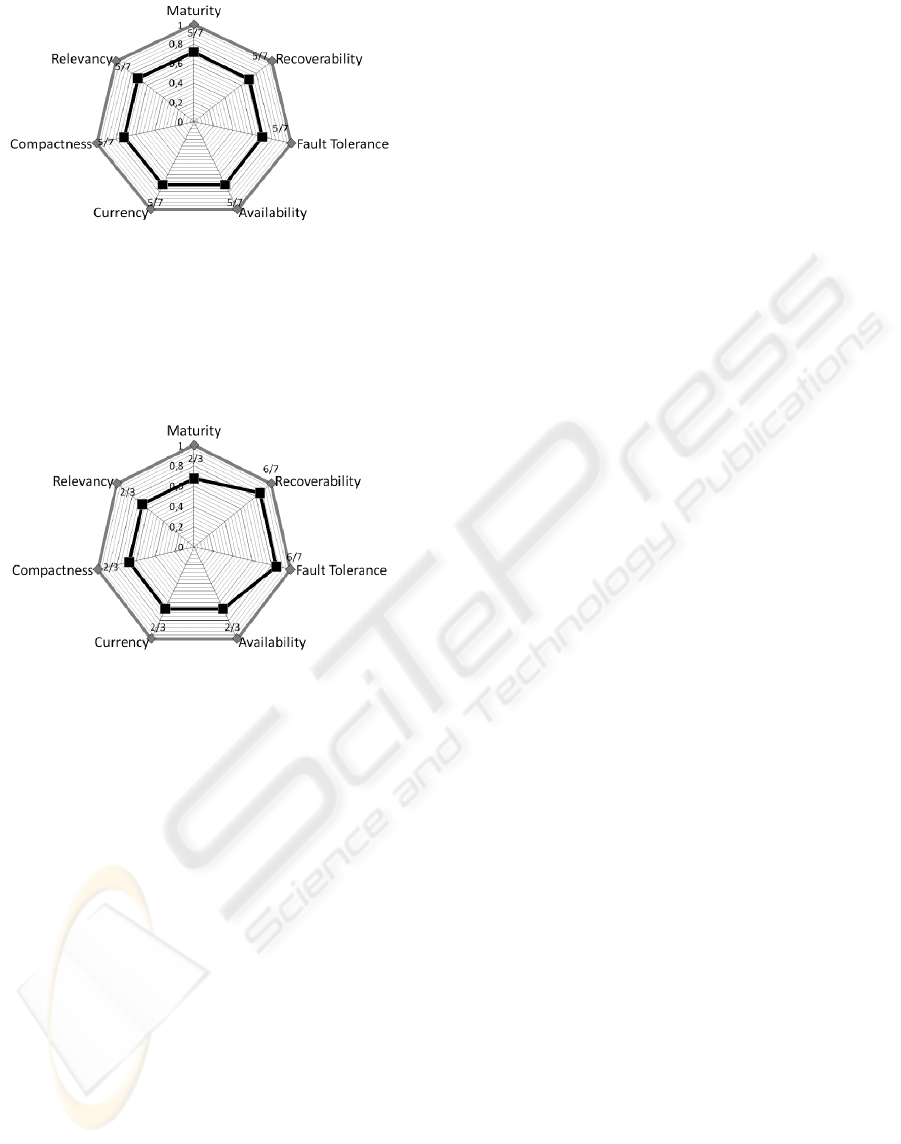

Figure 3: Reliability quality factor evaluation for the Tool

Support characteristic.

considered for the evaluation of the Reliability

quality factor about NDT methodology. In this case,

is seen that NDT is better in Recoverability and

Fault Tolerance than in Maturity, Relevancy,

Compactness and Currency.

Figure 4: Reliability quality factor evaluation for Tool

support and MDE characteristics.

6 CONCLUSIONS & FUTURE

WORK

The fundamentals of a quality environment for

MDWE methodologies are proposed in this paper.

With regards to the contributions obtained from this

research, a framework is required for the

improvement of current proposals or the

development of a new methodology. We consider

that the use of QuEF will enhance the quality of

products, processes and techniques of approaches.

Furthermore, we have described those

subcharacteristics related with the Tool Support

characteristic which are required for the

measurement of the value of MDWE methodologies

in order to be able to assess and improve their

Reliability. Therefore the use of QuEF can improve

the efficiency and effectiveness of MDWE

methodologies, and in turn may make their use more

widespread since this approach evaluation helps one

understand the strengths and weaknesses of a

methodology. Further characteristics and quality

factors have still to be developed. To this end,

Microsoft Excel is currently being employed.

ACKNOWLEDGEMENTS

This research has been supported by the project

QSimTest (TIN2007-67843-C06_03) and by the

RePRIS project of the Ministerio de Educación y

Ciencia (TIN2007-30391-E), Spain.

REFERENCES

C. Calero, J. Ruiz, M. Piattini. 2005, Classifying web

metrics using the web quality model. Vol. 29 No. 3,

pp. 227-248

F. J. Domínguez-Mayo, M. J. Escalona, M. Mejías, A. H.

Torres. “Towards A Quality Evaluation Framework

for Model-Driven Web Engineering Methodologies”

WEBIST 2010. Vol. 2, pp. 191-194, 2010.

M. J. Escalona, G. Aragón, 2008. NDT. A Model-Driven

Approach for Web Requirements. IEEE Transactions

on software engineering, Vol. 34, No. 3.

M. J. Escalona, N. Koch, 2004, Requirements Engineering

for Web Applications – A comparative study. Journal

of Web Engineering. Vol. 2, No. 3, pp. 193-212.

IEEE Std 610.12-1990. IEEE Standard Glossary of

Software Engineering Terminology,

ISO-International Organization for Standardization,

ISO/IEC 9126-1, http://www.iso.org

C. Kroiβ, N. Koch, 2008. UWE Metamodel and Profile,

User Guide and Reference. Technical Report 0802.

Programming and Software Engineering Unit (PST),

Institute for Informatics. Ludwig-Maximilians-

Universität München, Germany.

P. Mohagheghi, V. Dehlen, 2008. Developing a Quality

Framework for Model-Driven Engineering. MoDELS

2007 Workshops, LNCS 5002, pp. 275–286,

OMG: MDA. http://www.omg.org/mda/faq_mda.htm

W. Schwinger, W. Retschitzegger, A. Schauerhuber, G.

Kappel, M. Wimmer, B. Pröll, C. Cachero Castro, S.

Casteleyn, O. De Troyer, P. Fraternali, I. Garrigos, F.

Garzotto, A. Ginige, G-J. Houben, N. Koch, N.

Moreno, O. Pastor, P. Paolini, V. Pelechano Ferragud,

G. Rossi, D. Schwabe, M. Tisi, A. Vallecillo, van der

Sluijs and G. Zhang, 2008. A survey on web modeling

approaches for ubiquitous web applications.

International Journal of web Information Systems Vol.

4 No. 3, pp. 234-305.

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

142
