AN EXPERIMENTAL ANALYSIS ON ITERATIVE BLOCK CIPHERS

AND THEIR EFFECTS ON VOIP UNDER DIFFERENT

CODING SCHEMES

Gregory Epiphaniou, Carsten Maple, Paul Sant

Institute for Research in Applicable Computing, University of Bedfordshire, Park Street, Luton, U.K.

Matthew Reeve

Modern Networks, Hitchin, U.K.

Keywords: VoIP, DES, 3DES, AES, HMAC-SHA-1, NS-2.

Abstract:

IP telephony (IPTel) refers to the technology to transport real-time media over an IP network. This technology

is considered as the key to providing advanced communication for end users at an affordable price whilst also

assuring signiﬁcant cost savings for the Internet Telephony Service Providers (ITSP). As with adoption of any

new technology, utilizing VoIP is not without its risks. Digitizing voice that can be routed through hostile

environments such as packet switched networks makes VoIP vulnerable to all of the risks of an IP network

including viruses, Denial of Service (DOS) attacks and conversation eavesdropping. This paper focuses on

the effects of iterative block ciphers on VoIP trafﬁc in terms of average end-to-end delay and packet loss rates.

We have tested the majority of voice codecs as well as all the variable payload sizes they can support. Finally,

the simulations have been carried out by using the NS-2 network simulator.

1 INTRODUCTION

Applying security protocols to voice trafﬁc may

introduce processing overheads to the actual head-

ers added to the VoIP frame. Security protocols

such as Encapsulation Security Payload (ESP) and

Authentication Header (AH) are found to increase

(disproportionally) the ratio between the actual voice

payload and the header sizes carried across the net-

work and dramatically reduce the effective bandwidth

used (Barbieri et al., 2002). In addition, the total time

required to add the appropriate cryptographic func-

tions to the payloads, introduces further delays during

transmission. Recent studies have directed towards

the proper selection of ciphers (block or stream) for

VoIP based on their characteristics (Elbayoumy and

Shepherd, 2007).

Authors suggested that in a homogeneous ar-

chitecture where packet-switched networks are

inter-connected, the choice of block cipher option

is the most appropriate due to negligible corruption

but sufﬁcient loss rates in those architectures. The

tradeoff between the packet size used for encryption

and the actual throughput of the crypto-enginee has

also investigated (Elbayoumy and Shepherd, 2005).

The case of encrypted VoIP streams under vari-

able payload sizes currently supported by G.711 (64

kbps), G.726 (32 kbps),G.726 (24 kbps) G.723.1 (6.3

kbps), G.723.1 (5.3 kbps) and G.729 (8 kbps) have

been investigated by using the Pareto ON/OFF trafﬁc

model. In voice trafﬁc the packets are generated in

active ON state whereas in silent OFF state no pack-

ets are generated (Li, 2008), (Bohnert and Monteiro,

2005). The interval periods are taken by the actual

codecs’ speciﬁcations which can effectively produce

the required number of packets per second, without

changing the codec rate.

The IPSec scenario in transport mode has

been used, assuming that the endpoints (IP

phones/softphones) can support cryptographic

operations. This framework of open standards is

widely known for its network layer authentication,

data integrity, conﬁdentiality and replay protection

(Benvenuto and Keromytis, 2003). IPSec uses

the Internet Key Exchange (IKE) process for key

exchange consisting of two phases, in which a mutual

authentication between the communication parties

Epiphaniou G., Maple C., Sant P. and Reeve M. (2010).

AN EXPERIMENTAL ANALYSIS ON ITERATIVE BLOCK CIPHERS AND THEIR EFFECTS ON VOIP UNDER DIFFERENT CODING SCHEMES.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 17-25

DOI: 10.5220/0002930000170025

 SciTePress

takes place based on a secret key and establish a new

session key to protect the rest of the transmission.

The second phase relies on the session key created

at phase one to establish a session two key for

protecting the data in the security association (Radia

and Kaufman, 2000).

This paper focuses on the effect of iterative block

ciphers to VoIP trafﬁc under different coding schemes

structured as follows: In section 2 we calculate the

overhead in terms of bandwidth and packet size when

encryption is applied for the IPSec scenario, by using

a mathematical framework proposed (Xenakis et al.,

2006). In section 3 the simulation topology and initial

parameters related to average end-to-end delay and

packet loss rates for each codec, are also presented.

In section 4 the main results and discusions are

presented and ﬁnally in section 5 we withdraw main

conclusions and areas of future work.

2 QUANTIFY THE ENCRYPTION

OVERHEAD

In terms of quantifying the encryption penalty upon

network transmissions, an extended mathematical

framework has been proposed by Xenakis et al.

(2006). The authors have quantiﬁed the impact that

different symmetric ciphers such as DES, 3DES, AES

and hashing algorithms HMAC-SHA1, HMAC-MD5

may impose in terms of communication quality and

consumption (effective bandwidth) used.

The total time for a crypto-engine to encrypt a

plain user packet of speciﬁc payload size S

with a

processing speed C

by using DES, 3DES is:

DES

(x,C

) =

8∗ S

∗

DES/3DES

(1)

Where T

DES

= 3697 and T

3DES

= 8091 are the num-

ber of operations required to encrypt a block of user

data with these block ciphers. For AES the total time

required to encrypt/decrypt one block of data is given

below (Xenakis et al., 2006):

AES

(x,C

) =

8∗ S

128

∗

AES−enc

(2)

AES

(x,C

) =

8∗ S

∗

AES−dec

(3)

The processing cycles for encrypt/decrypt a user data

block for a speciﬁc key length with AES (Elkeelany

et al., 2002):

AES−enc

(128) = 6168

AES−enc

(192) = 7512

AES−enc

(256) = 8856

AES−dec

(128) = 10992

AES−dec

(192) = 13408

AES−dec

(256) = 15824

The ciphering overhead created by padding the origi-

nal packet in order to create multiple blocks supported

by the ciphers. The additional ﬁeld added has also

been addressed by the authors as follows:

ESP−CNF−ATH

) =

+ 22

∗ Bl + 40 (4)

Where S

is the payload size and Bl is the block size

of each cipher used (8 bytes for DES/3DES and 16 for

AES). Table 1, illustrates the codecs used in the sim-

ulations as well as the packet overheads for plain and

encrypted trafﬁc for both modes in IPSec operation.

The total number of packets produced per second for

each codec is given by the following:

PPS(pkts/sec) =

Codec bit rate (bits)

Payload Size (bits)

(5)

The total bandwidth required per VoIP call has been

calculated as follows:

Band(kbps) = Voice pkt size (bits)∗ PPS (6)

During our simulation there is no voice activity de-

tection (VAD) used since this metric can effectively

reduce the utilisation up to 65% of the full rate (Press,

2009). A ﬁrst observationthroughout our calculations

is that when G.726 (32 kbps) is used with payload size

20 bytes all ciphers examined seem to add exactly the

same overhead in terms of packet size. The total IP

packet for this payload size is 88 and 104 bytes and

the ethernet bandwidth recorded is 265.5 kbps. Sim-

ilar results were extracted in the case of G.726 (24

kbps) with payload size 40 bytes and total IP packet

size of 104 and 136 bytes for AES (both IPSec modes)

and 104 and 128 for DES/3DES. The required band-

width in that case was measured at 121kbps. No dis-

crepancies in terms of packet overhead and ethernet

bandwidth required were noticed either in the case of

G.729 (8 kbps) for payload sizes 10, 20, 40 bytes re-

spectively.

3 SIMULATION TOPOLOGY

An access network topology was designed by us-

ing NS-2 (NS2, 2001) consisting of 300 user agents

(UA) where encryption takes place on an end-to-end

fashion (Transport mode)(ﬁgure 1). A total number

of 600 UA were interconnected by using switches

SIGMAP 2010 - International Conference on Signal Processing and Multimedia Applications

Table 1: VoIP Ethernet packet overheads for encrypted trafﬁc with AES/DES/3DES and IPSec in two modes of operation.

Codec P.Size[bytes] AES trans. AES tunn. DES/3DES trans. DES/3DES tunn.

G.711 (64 kbps) 120 152 168 144 168

200 232 248 224 248

280 312 328 304 328

G.726 (32 kbps) 60 88 104 88 104

120 136 152 128 144

160 184 216 184 208

G.726 (24 kbps) 120 152 168 144 168

80 104 136 104 128

100 136 152 128 144

G.729 (8 kbps) 50 72 104 72 69

60 88 104 88 104

70 104 120 96 112

80 104 136 104 128

90 120 136 112 136

100 136 152 128 144

G.723.1 (6.3 kbps) 64 88 120 88 112

88 120 136 112 136

G.723.1 (5.3 kbps) 60 88 104 88 104

80 104 136 104 128

and routers and two stateful inspection ﬁrewalls at

the core entrance points. A script written in python

has been created that automates the simulation pro-

cess. The simulation starts with an initial conﬁgu-

ration stored in a ﬁle called parameters.dat that the

python script reads prior to topology generation. Ta-

ble 2 illustrates the initial parameters regarding propa-

gation delay, link capacity, payload size and burst/idle

times. The idle and burst time is based on the Pareto

ON/OFF model and depends totally on each codec in-

dividually.

Table 2: Initial simulation parameters.

P.D.[ms] L.C.[Mb] P.S.[bytes] b./i.[ms]

10 5 160 20-10

The parameters.dat ﬁle includes the basic con-

ﬁguration details for G.711 (64 kbps). This ﬁle is

used as an input to the PythonTopology.py script that

generates 300 tcl scripts corresponding to each VoIP

call to be simulated. The input ﬁle is automatically

accessed by the python script if the simulation pa-

rameters change. We have particularly focused on

DES/3DES and AES with HMAC-SHA1. Once tcl

topologies have been written, the NS-2 simulator is

called and run against each tcl script to extract simu-

lation results. Figure 2 illustrates the simulation pro-

cess.

During the simulations the total buffer queue size

was set to 50 packets and the default ﬁrst-in-ﬁrst-out

(FIFO) queue management was implemented (Braden

et al., 1998). The network was overloaded by VoIP

ﬂows gradually increasing from 1 to 300 calls, up

to the congestion level where packets were simply

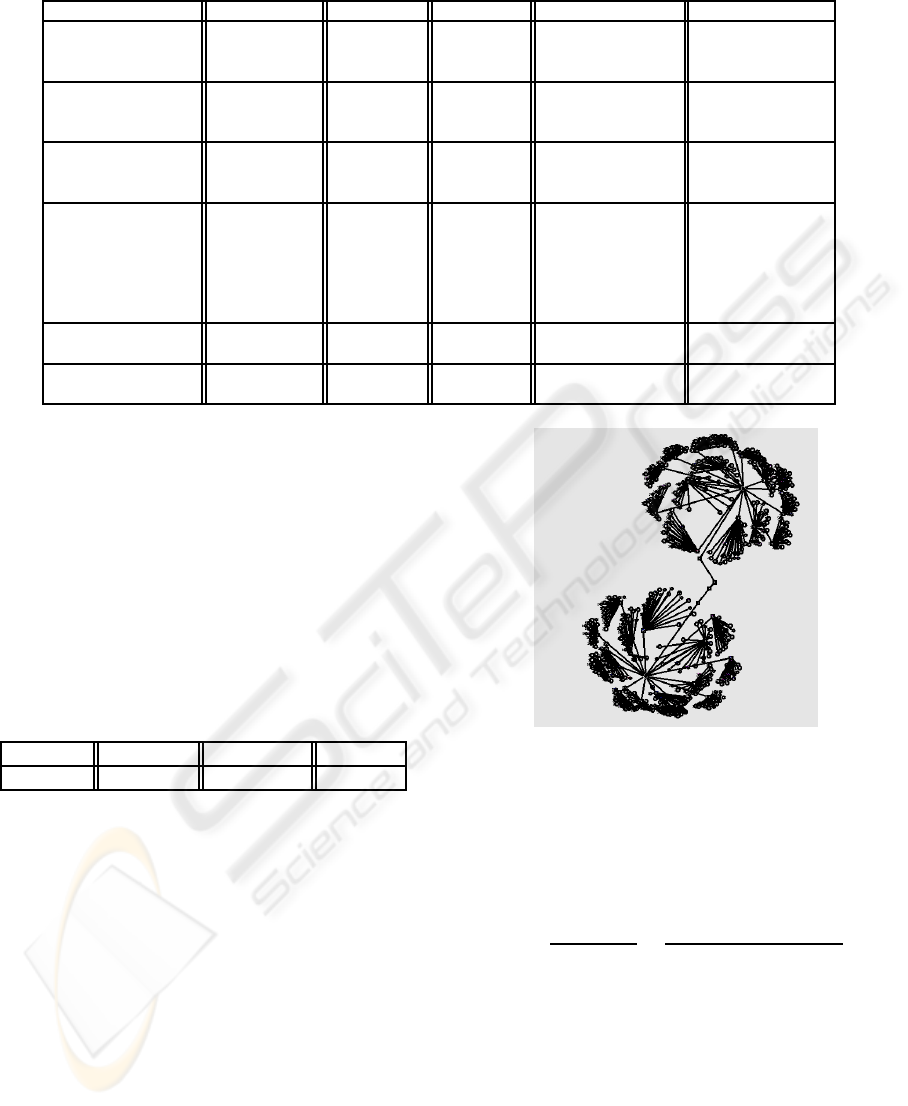

Figure 1: Simulation topology.

dropped. In addition, packet loss concealment (PLC)

is not employed, therefore, there is no compensation

for dropped packets. We have described packet loss

rate as a multiplicative function of each value of the

packet loss rate at a speciﬁc link during a transmis-

sion.

Plr

pkts

lost

pkts

received

pkts

sent

− pkts

received

pkts

received

(7)

We have derived the overall packet loss rate of a route

with several links for unicast transmissions as fol-

lows:

PLR

= 1−

∑

f∈F

(1− Plr

) (8)

Where f denotes a speciﬁc trafﬁc ﬂaw within the net-

work ﬂaws F.

PLR

≤ 0.05 ∗ Pkts

sent

(9)

Equation (9) is dirived by the National Institute of

Standards and Technology (NIST) recommendations

AN EXPERIMENTAL ANALYSIS ON ITERATIVE BLOCK CIPHERS AND THEIR EFFECTS ON VOIP UNDER

DIFFERENT CODING SCHEMES

parameters.dat

PythonTopology.py

File1.tcl

File300.tclFile2.tcl

Calling NS-2 Simulator

Out1.tr

Out2.tr Out300.tr

measure_avg.delay.awk

measure_pkt loss_rate.awk

Avg Delay1.dat

Avg Delay2.dat

Avg Delay300.dat

Pkt_loss_rate1.dat

Pkt_loss_rate2.dat

Pkt_loss_rate300.dat

Change Simulation Parameters

Figure 2: Simulation ﬂow chat.

which suggest the total packet loss for a voice call

must not exceed 5% of the total packets transmitted

(Kuhn et al., 2005). Although simulations were car-

ried out based on the maximum number of 300 simul-

taneous calls, there is a point at the delay traces were

packets are simply dropped above the acceptable lim-

its. This investigation focuses only on those call vol-

umes where trasmissions are feasible and within the

limits posted by the International Telecommunication

Union (ITU). The limits posted by ITU-T regarding

one-way delay limits are 0-150ms for most network

applications and 0-200msfor encrypted transmissions

(It, 1993).

4 RESULTS AND DISCUSSION

In this section we present the experimental results of

our simulations based on the ciphers and codecs in-

troduced in section 2. For the sake of brevity only the

most important ﬁndings are presented. In the case of

G.711 (64 kbps) with plain trafﬁc, a signiﬁcant trade-

off between the actual payload size and e2e delay,

as well as e2e delay and packet loss rates has been

recorded. Only one third of the total VoIP calls fed

into the network are feasible since packet loss dra-

matically increases after 100 simultaneous calls.

Although e2e delay seems to be constant and be-

low the limits for an unacceptable call, the packet loss

rates when G.711 (64 kbps) is used, are catastrophic

for the calls above 100 no matter payload size used.

In the case of G.723.1 (5.3 kbps) the majority of calls

are delivered successfuly with minor effects on e2e

delay and packet loss rates. This can be explained

mainly due to the low codec rate and the actual link

capacity. The buffer queue size at 50 pps is also an-

other factor positively contributes to low packet loss

rates. In the case of G.723.1 (6.3 kbps) when the pay-

load size is 24 and 48 bytes the overall average de-

lay and packet loss rates seem to be slightly higher

then G.723.1 (5.3 kbps) and its corresponding pay-

load sizes. Even in that scenario, however, effects on

delay and packet loss rates seem to be negible in com-

parison to G.711 where dropping symptoms are rapid

after 100 VoIP calls.

The smallest payload size used in both cases

seems to create unacceptable dropping rates at the

very early stages of 140 and 60 simultaneous VoIP

calls respectively in the case of G.726. Throughout

the simulations with the selected codecs when pay-

load size of 80 and 120 bytes is used, this modiﬁca-

tion seems to allow more calls into the network prior

to drastic dropping rates. An interesting observation

is that with G.726 (32 kbps) and payload size of 20

bytes the overall packet loss rates are higher than any

other payload used even with the same codec under

different rates. An overall increase of up to 20% drop-

ping rates with 300 VoIP calls has been observed. In

the case of plain voice trafﬁc, G.726 (32 kbps) seems

to perform better with a given payload size of 120

bytes. For the case of G.729 (8 kbps) this codec seems

to inserts the maximum number of VoIP calls into the

network mainly due to its low bit rate and packets pro-

duced per second. A successful delivery of all VoIP

calls with payload sizes of 40, 50 and 60 bytes re-

spectively has recorded. The average e2e delay for

the ﬁrst three payload sizes gradually increases fol-

lowing a step-wise function behaviour, due to the ag-

gregation of the incoming trafﬁc those payloads cre-

ate in the buffer queue. The default payload size of

10 bytes seems to outperform regarding packets loss

rates since its dropping symptoms exceed 5% of the

total packets submitted after 200 calls.

4.1 Encrypted VoIP Trafﬁc with

DES/3DES and HMAC-SHA1

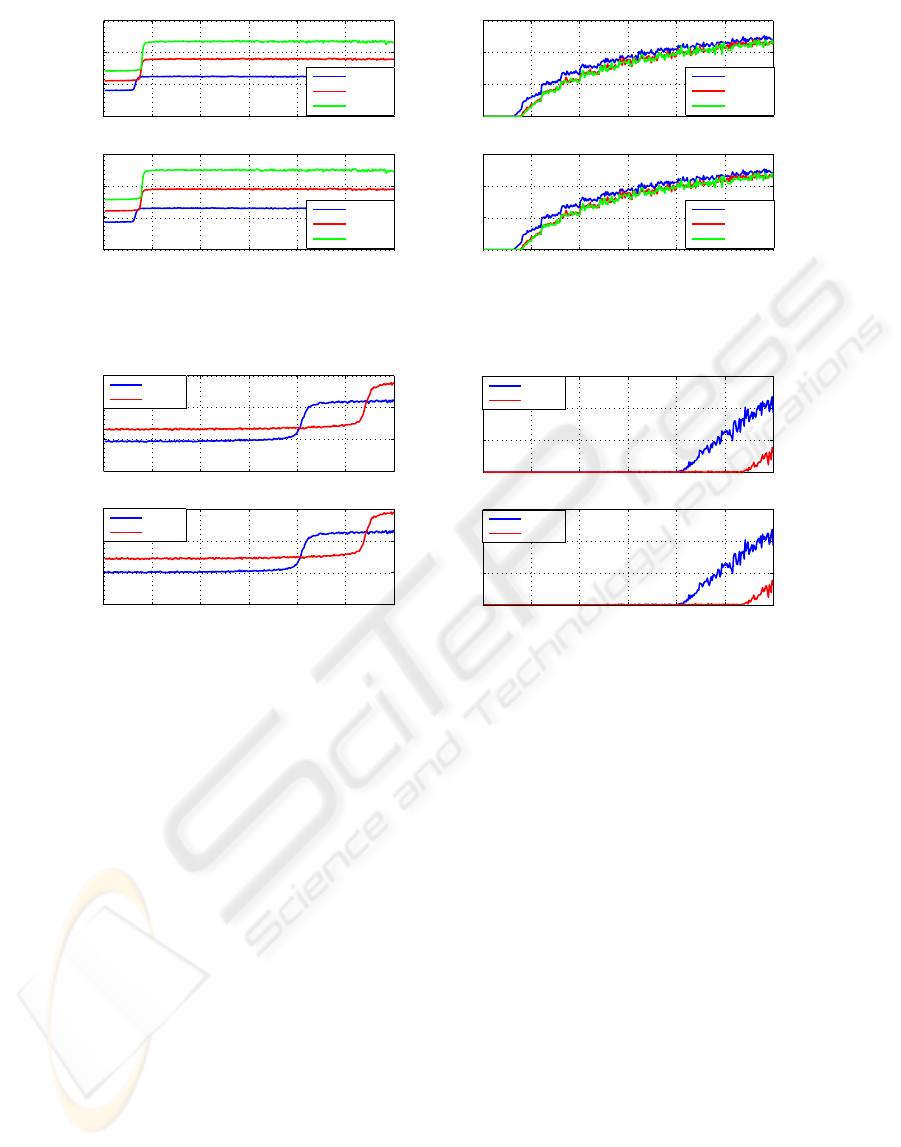

Figure 3 illustrates average e2e delays and packet loss

rates in the case of encrypted VoIP trafﬁc for G.711

(64 kbps). A direct effect of encryption regarding

G.711 operation is the actual increase on average e2e

delay suffered from all calls fed into the network.

This increase has been measured up to 90 ms higher

then plain trafﬁc with the same codec. Although DES

and 3DES with HMAC-SHA1 are in place, no signif-

icant discripancies were found regarding the two ci-

phers’ effects upon VoIP. The analysis has shown very

SIGMAP 2010 - International Conference on Signal Processing and Multimedia Applications

0 50 100 150 200 250 300

0.1

0.15

0.2

0.25

Number of VoIP calls with G.711 (64kbps) for DES & HMAC−SHA1

Avg E2E Delay [sec]

payload80

payload160

payload240

0 50 100 150 200 250 300

0.1

0.15

0.2

0.25

Number of VoIP calls with G.711 (64kbps) for 3DES & HMAC−SHA1

Avg E2E Delay [sec]

payload80

payload160

payload240

(a)

0 50 100 150 200 250 300

Number of VoIP calls with G.711 (64kbps) for DES & HMAC−SHA1

Packet Loss Rate %

payload80

payload160

payload240

0 50 100 150 200 250 300

Number of VoIP calls with G.711 (64kbps) for 3DES & HMAC−SHA1

Packet Loss Rate %

payload80

payload160

payload240

(b)

Figure 3: Average e2e delay and packet loss rates for G.711 (64 kbps) with DES/3DES and HMAC-SHA1.

0 50 100 150 200 250 300

0.12

0.13

0.14

0.15

Number of VoIP calls with G.723.1 (5.3kbps) for DES & HMAC−SHA1

Avg E2E Delay [sec]

payload20

payload40

0 50 100 150 200 250 300

0.12

0.13

0.14

0.15

Number of VoIP calls with G.723.1 (5.3kbps) for 3DES & HMAC−SHA1

Avg E2E Delay [sec]

payload20

payload40

(a)

0 50 100 150 200 250 300

Number of VoIP calls with G.723.1 (5.3kbps) for DES & HMAC−SHA1

Packet Loss Rate %]

payload20

payload40

0 50 100 150 200 250 300

Number of VoIP calls with G.723.1 (5.3kbps) for 3DES & HMAC−SHA1

Packet Loss Rate %

payload20

payload40

(b)

Figure 4: Average e2e delay and packet loss rates for G.723.1 (5.3 kbps) with DES/3DES and HMAC-SHA1.

similar behaviour in terms of network impairments,

although 3DES is considered to be a computationally

more expensive cipher than DES. Both ciphers used

have managed to allow less feasible VoIP calls into

the network. In ﬁgure 3, the overall dropping symp-

toms started at under 50 simultaneous VoIP calls, al-

lowing up to 50 calls into the network within the ac-

ceptable packet loss limits. Figure 4 illustrates the

ﬁndings for G.723.1 (5.3 kbps). An increase has been

noticed regarding e2e delay for up to 70ms in com-

parison to plain trafﬁc, mainly due to cryptographic

operations. As the number of VoIP calls increases,

a constant e2e delay recorded up to the level of 200

calls for 20 bytes payload size and 260 calls for 40

bytes. In terms of packet loss rates, for both payload

sizes, no value exceeded 5% for either cipher exam-

ined. The good behaviour of the VoIP trafﬁc, even in

the case where encryption is applied can be partially

explained by the low bit rate of the codec, as well as

the link capacity.

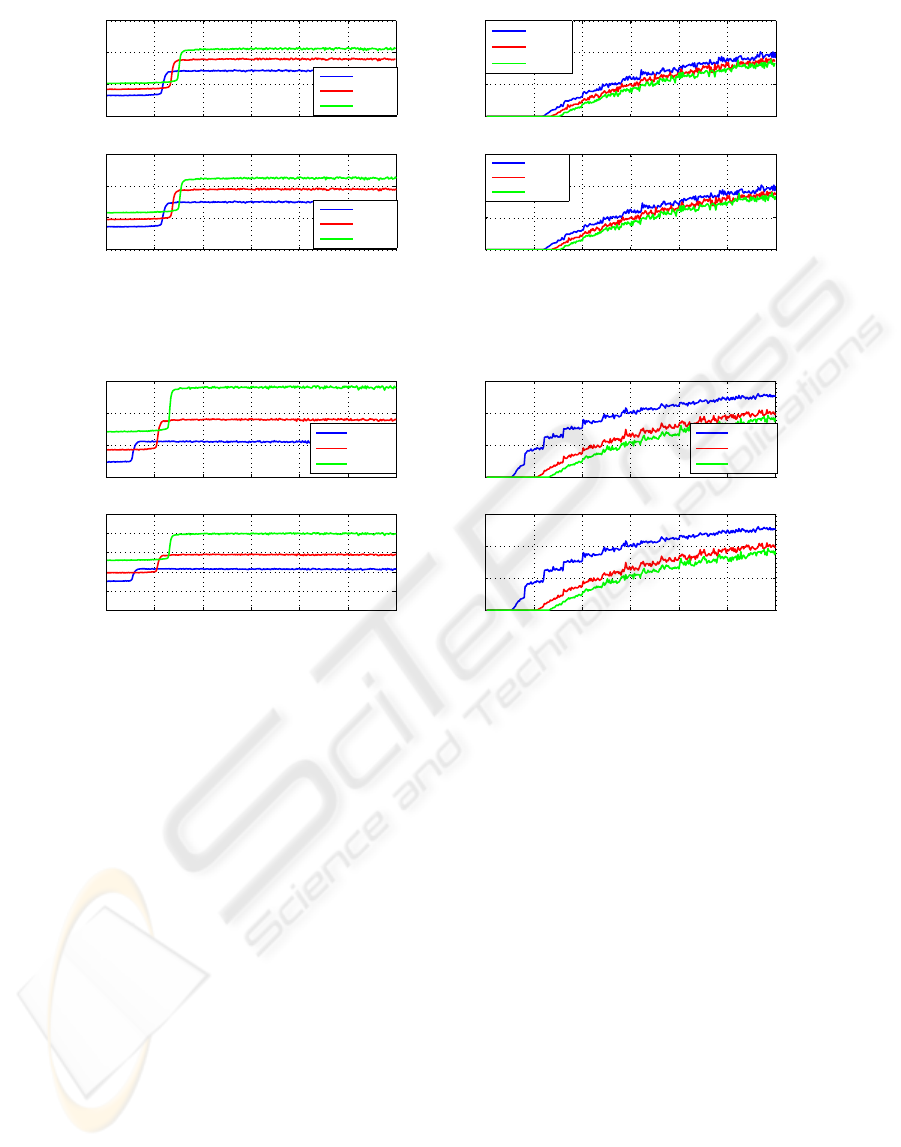

Figure 5 illustrates the average e2e delay and

packet loss rates as measured for G.726 (24 kbps).

An overall e2e delay of 43ms has been added as a

result of the encryption process. In terms of pay-

load sizes, the actual operation of the codec with 80

bytes payload may contribute to higher rates of e2e

delay, however, it seems to feed more calls into the

network (Figure 5). The dropping symptoms based

on this network topology with the existing charac-

teristics are considered to be dramatic after a certain

number of concurrent VoIP calls (60 calls) for all pay-

loads supported. In the case of both DES/3DES, the

overall packet loss rate takes place earlier as the VoIP

call volume increases in comparison to plain trafﬁc,

which is an expected network behaviour due to the

additional overhead introduced. Although the actual

payload size does not by itself constitute an improve-

ment in terms of packet loss rates, however, with en-

cryption in place and G.726 (24 kbps) as the codec se-

lected, the payload of 80 bytes seems to perform bet-

ter. This can be partially explained by the relationship

between the actual packet size and the cryptographic

engine’s throughput. A slightly different behaviour

has been recorded with G.726 (32 kbps) and its small-

est payload size. Although the codec’s operation with

the speciﬁc payload size of 20 bytes presents the low-

AN EXPERIMENTAL ANALYSIS ON ITERATIVE BLOCK CIPHERS AND THEIR EFFECTS ON VOIP UNDER

DIFFERENT CODING SCHEMES

0 50 100 150 200 250 300

0.12

0.14

0.16

0.18

Number of VoIP calls with G.726 (24kbps) for DES & HMAC−SHA1

Avg E2E Delay [sec]

payload40

payload60

payload80

0 50 100 150 200 250 300

0.12

0.14

0.16

0.18

Number of VoIP calls with G.726 (24kbps) for 3DES & HMAC−SHA1

Avg E2E Delay [sec]

payload40

payload60

payload80

(a)

0 50 100 150 200 250 300

Number of VoIP calls with G.726 (24kbps) for DES & HMAC−SHA1

Packet Loss Rate %

payload40

payload60

payload80

0 50 100 150 200 250 300

Number of VoIP calls with G.726 (24kbps) for 3DES & HMAC−SHA1

Packet Loss Rate %

payload40

payload60

payload80

(b)

Figure 5: Average e2e delay and packet loss rates for G.726 (24 kbps) with DES/3DES and HMAC-SHA1.

0 50 100 150 200 250 300

0.12

0.14

0.16

0.18

Number of VoIP calls with G.726 (32kbps) for DES & HMAC−SHA1

Avg E2E Delay [sec]

payload20

payload80

payload120

0 50 100 150 200 250 300

0.1

0.12

0.14

0.16

0.18

0.2

Number of VoIP calls with G.726 (32kbps) for 3DES & HMAC−SHA1

Avg E2E Delay [sec]

(a)

0 50 100 150 200 250 300

Number of VoIP calls with G.726 (32kbps) for DES & HMAC−SHA1

Packet Loss Rate %

payload20

payload80

payload120

0 50 100 150 200 250 300

Number of VoIP calls with G.726 (32kbps) for 3DES & HMAC−SHA1

Packet Loss Rate %

(b)

Figure 6: Average e2e delay and packet loss rates for G.726 (32 kbps) with DES/3DES and HMAC-SHA1.

est average e2e delay, it seems to have dispropotion-

ally high dropping symptoms in comparison to the

other payloads supported. In the case of encryption

the overall precentage regarding packet loss rates has

been also increased by up to 10%. The average e2e

delay remains constant, mainly due to rapid dropping

symptoms. Similarly, the aggregation of the incom-

ing trafﬁc, as well as the total buffer queue size, has

contributed negatively to the overall packet loss rates.

The area of feasible VoIP calls is illustrated in Fig-

ure 6. An interesting observation is that the encryp-

tion overhead reduces dramatically the total number

of simultaneous VoIP calls fed into the network by

50% for all payload sizes used in comparison to un-

encrypted trafﬁc for the same scenario.

4.2 Encrypted VoIP Trafﬁc with AES

and HMAC-SHA1

A similar investigation has been carried out with VoIP

conﬁdentiality and authentication to be assured with

AES and HMAC-SHA1. Figure 6 shows the average

e2e delay and packet loss rates for G.711 (64 kbps) for

the case of AES and HMAC-SHA1. For all the pay-

load sizes currently supported by the codec, the aver-

age e2e delay does not exceed 200ms for the feasible

area of calls (1-50). The higher e2e delay values have

been recorded with payload size of 160 bytes from

a starting point of 170ms up to nearly 200ms for an

increased number of calls. The default payload size

used by the codec (160 bytes) preserves those values

no matter the key length used. It is clear through-

out the simulation that the payload size of 240 bytes

seems to feed more calls into the network with an ac-

ceptable e2e delay and packet loss rate for the feasi-

ble area investigated. The average e2e delay is up to

150ms whereas payload size 80 bytes seems to record

slightly higher values.

Under the burst trafﬁc conditions, as well as the

network parameters as conﬁgured in the tcl simula-

tion scripts, G.723.1 (5.3 kbps) seems to behave bet-

ter in terms of average e2e and packet loss rates when

encryption is applied (Fig. 8). In the case that AES

& HMAC-SHA1 is used, similar delay traces have

been recorded as in the DES/3DES scenario, how-

ever, the delay increase has been reported 50 calls

SIGMAP 2010 - International Conference on Signal Processing and Multimedia Applications

0 50 100 150 200 250 300

0.1

0.2

Number of VoIP calls with G.711 (64kbps) for AES(128bit) & HMAC−SHA1

Avg E2E Delay [sec]

payload80

payload160

payload240

0 50 100 150 200 250 300

0.1

0.2

Number of VoIP calls with G.711 (64kbps) for AES(192bit) & HMAC−SHA1

Avg E2E Delay [sec]

0 50 100 150 200 250 300

0.1

0.15

0.2

Number of VoIP calls with G.711 (64kbps) for AES(256bit) & HMAC−SHA1

Avg E2E Delay [sec]

(a)

0 50 100 150 200 250 300

Number of VoIP calls with G.711 (64kbps) for AES(128bit) & HMAC−SHA1

Packet Loss Rate %

payload80

payload160

payload240

0 50 100 150 200 250 300

Number of VoIP calls with G.711 (64kbps) for AES(192bit) & HMAC−SHA1

Packet Loss Rate %

0 50 100 150 200 250 300

Number of VoIP calls with G.711 (64kbps) for AES(256bit) & HMAC−SHA1

Packet Loss Rate %

(b)

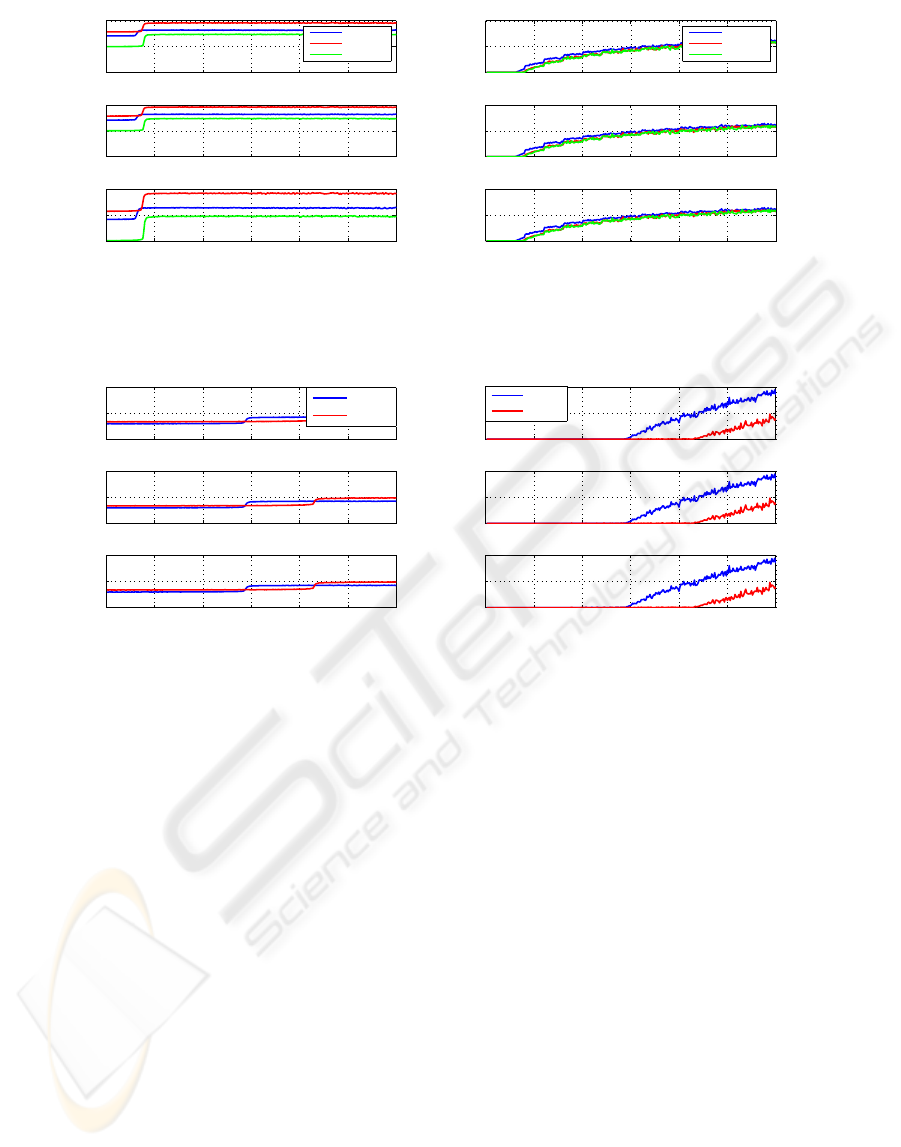

Figure 7: Average e2e delay and packet loss rates for G.711 (64 kbps) with AES and HMAC-SHA1.

0 50 100 150 200 250 300

0.1

0.15

0.2

Number of VoIP calls with G.723.1 (5.3kbps) for AES(128bit) & HMAC−SHA1

Avg E2E Delay [sec]

payload20

payload40

0 50 100 150 200 250 300

0.1

0.15

0.2

Number of VoIP calls with G.723.1 (5.3kbps) for AES(192bit) & HMAC−SHA1

Avg E2E Delay [sec]

0 50 100 150 200 250 300

0.1

0.15

0.2

Number of VoIP calls with G.723.1 (5.3kbps) for AES(256bit) & HMAC−SHA1

Avg E2E Delay [sec]

(a)

0 50 100 150 200 250 300

Number of VoIP calls with G.723.1 (5.3kbps) for AES(128bit) & HMAC−SHA1

Packet Loss Rate %

payload20

payload40

0 50 100 150 200 250 300

Number of VoIP calls with G.723.1 (5.3kbps) for AES(192bit) & HMAC−SHA1

Packet Loss Rate %

0 50 100 150 200 250 300

Number of VoIP calls with G.723.1 (5.3kbps) for AES(256bit) & HMAC−SHA1

Packet Loss Rate %

(b)

Figure 8: Average e2e delay and packet loss rates for G.723.1 (5.3 kbps) with AES and HMAC-SHA1.

earlier. The same behaviour seems to apply for the

dropping symptoms as well. Simply put, in the case

of DES/3DES and payload size of 20 bytes the rapid

dropping symptoms start at 200 calls whereas in the

AES case this behaviour starts 50 calls earlier. In

addition, higher dropping rates have been measured

for AES than DES/3DES for the same payload size.

However, even if AES is used, with this decrease of

the feasible area of VoIP calls, the codec seems to be-

have better than any other codec under investigation

for the same scenarios.

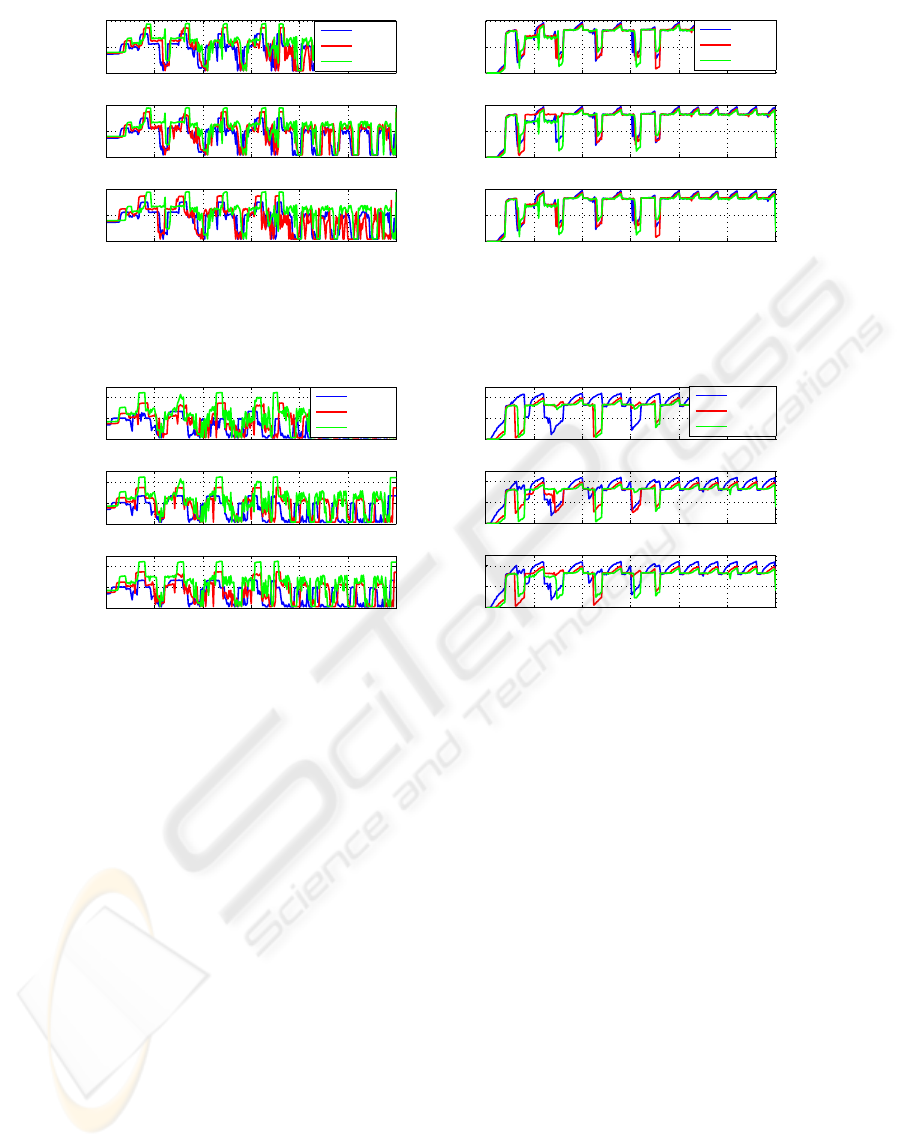

Figure 9 clearly shows the devastating effects of

AES and HMAC-SHA1when G.726 (24 kbps) is used

under the given simulation scenario. The available

area of feasible calls has been reduced to 1-30 si-

multaneous calls, reduced by almost 20 VoIP calls

in comparison to DES/3DES and HMAC-SHA1. An

obvious observation is that every call above the feasi-

ble area is practically impossible, since for a speciﬁc

time frame and calls the average e2e delay exceeded

300ms and the corresponding loss rates 35% of the

total number of packets transmitted.

With AES used under pre-deﬁned and strict pa-

rameters reported an overall 10% higher dropping

rates then the higher dropping rate value recorded

with DES/3DES for this codec. This signiﬁes the im-

portance in terms of impact of such modiﬁcation re-

garding the encryption level even when the payload

size and rates remain constant. The penalty factors

contributing to such behaviour except the actual cryp-

tographic overhead, are the relatively small payload

size, the rate of the codec as well as the aggregation

of the incoming trafﬁc in the buffer queue.

A closer investigation in the area of feasible VoIP

calls with the selected codec, has shown that when

a payload size of 80 bytes is used, the maximum

number of calls is fed into the network with rela-

tively acceptable network impairments suffered dur-

ing the transmission. However, the use of AES as it

is recorded in that case does not constitute a signiﬁ-

cant improvement regarding VoIP call volume deliv-

ery. Finally, even in that particular case, the default

payload size supported by the codec does not seems

to be the most appropriate selection when encryption

is active. Similar results were extracted in the case of

G.726 (32 kbps) and its corresponding payload sizes

AN EXPERIMENTAL ANALYSIS ON ITERATIVE BLOCK CIPHERS AND THEIR EFFECTS ON VOIP UNDER

DIFFERENT CODING SCHEMES

0 50 100 150 200 250 300

0.2

0.4

Number of VoIP calls with G.726 (24kbps) for AES(128bit) & HMAC−SHA1

Avg E2E Delay [sec]

payload40

payload60

payload80

0 50 100 150 200 250 300

0.2

0.4

Number of VoIP calls with G.726 (24kbps) for AES(192bit) & HMAC−SHA1

Avg E2E Delay [sec]

0 50 100 150 200 250 300

0.2

0.4

Number of VoIP calls with G.726 (24kbps) for AES(256bit) & HMAC−SHA1

Avg E2E Delay [sec]

(a)

0 50 100 150 200 250 300

Number of VoIP calls with G.726 (24kbps) for AES(128bit) & HMAC−SHA1

Packet Loss Rate %

payload40

payload60

payload80

0 50 100 150 200 250 300

Number of VoIP calls with G.726 (24kbps) for AES(192bit) & HMAC−SHA1

Packet Loss Rate %

0 50 100 150 200 250 300

Number of VoIP calls with G.726 (24kbps) for AES(256bit) & HMAC−SHA1

Packet Loss Rate %

(b)

Figure 9: Average e2e delay and packet loss rates for G.726 (24 kbps) with AES and HMAC-SHA1.

0 50 100 150 200 250 300

0.2

0.4

Number of VoIP calls with G.726 (32kbps) for AES(128bit) & HMAC−SHA1

Avg E2E Delay [sec]

payload20

payload80

payload120

0 50 100 150 200 250 300

0.2

0.4

Number of VoIP calls with G.726 (32kbps) for AES(192bit) & HMAC−SHA1

Avg E2E Delay [sec]

0 50 100 150 200 250 300

0.2

0.4

Number of VoIP calls with G.726 (32kbps) for AES(256bit) & HMAC−SHA1

Avg E2E Delay [sec]

(a)

0 50 100 150 200 250 300

Number of VoIP calls with G.726 (32kbps) for AES(128bit) & HMAC−SHA1

Packet Loss Rate %

payload20

payload80

payload120

0 50 100 150 200 250 300

Number of VoIP calls with G.726 (32kbps) for AES(192bit) & HMAC−SHA1

Packet Loss Rate %

0 50 100 150 200 250 300

Number of VoIP calls with G.726 (32kbps) for AES(256bit) & HMAC−SHA1

Packet Loss Rate %

(b)

Figure 10: Average e2e delay and packet loss rates for G.726 (32 kbps) with AES and HMAC-SHA1.

of 20, 80 and 120 bytes. Figure 10 illustrate that the

feasible area of VoIP calls has been reduced to 1-15

and the overall packet loss rates have been increased

above 40% for a speciﬁc time frame and payload size.

Although any call above 15 is practically unfeasible,

it is clear from the Figure 10 the tradeoff between the

actual packet size, delay and packet loss rates. The

spiky waveform of the average e2e delay and packet

loss rates is mainly presented due to the codec rate

and its resulting packets per second, as well as the

queuing mechanism (FIFO) used. A comparison be-

tween DES/3DES and AES shows a vast increase in

the actual delay, which has been almost doubled as

recorded during the simulations.

5 CONCLUSIONS

During our simulations an in depth investigation has

been carried out regarding the feasible area of VoIP

calls for each codec examined. We have found that

in the case of G.711 (64 kbps) the encryption can add

up to 90ms average e2e delay for the same streams in

comparison to plain trafﬁc with the same codec. The

area of feasible transmissions has been measured be-

low 45 simultaneous VoIP calls in the case of encryp-

tion with DES/3DES and HMAC-SHA1. Also, the

payload size of 240 bytes recorded the highest feasi-

ble call volume in comparison to other payload sizes

supported by the codec when encryption is applied no

matter the cipher used for the same codec.

In the case of G.726 (24 kbps) and G.726 (32

kbps) the payloads of 80 bytes and 120 bytes respec-

tively seem to perform better in terms of e2e delay

within the area of feasible VoIP calls (1-65), for both

codecs. In contrast, the smallest payload sizes sup-

ported by both codecs have reported higher dropping

symptoms at earlier stages during our simulations.

For G.723.1 (5.3 kbps) and G.723.1 (6.3 kbps), the

payload sizes of 40 bytes and 48 bytes have recorded

the lowest dropping symptoms, although all calls have

managed to feed into the network successfuly. Only

in the case of AES with HMAC-SHA1 has the fea-

sible area of VoIP calls been reduces to 1-200 calls

for G.723.1 (5.3 kbps) and payload 20 bytes and 1-

SIGMAP 2010 - International Conference on Signal Processing and Multimedia Applications

260 for payload of 40 bytes. For G.723.1 (6.3 kbps)

and AES with HMAC-SHA1 the area of feasible VoIP

calls has been reduced to 0-160 for payload size of

24 bytes and 1-240 for payload size of 48 bytes.

The dropping rates were almost double than those

recorded with DES/3DES and HMAC-SHA1. In gen-

eral, the crypto-engine seems to perform better with

large payload sizes and, in the majority of the cases

examined, the default payload size shipped with each

codec, is not the appropriate selection when encryp-

tion is concerned.

ACKNOWLEDGEMENTS

Special thanks must go to Nikolaos Pavlidis, from

Information Services Directorate, University of Bed-

fordshire, Dr. Peter Norrington from the Centre for

Excellence in Teaching & Learning (CETL) at the

University of Bedfordshire as well as Dr. Helen Ja-

cobs (Modern-Networks) for all the valuable support

and fruitful ideas during the implementation of this

work. Finally, acknowledgement must be credited to

Engineering and Physical Sciences Research Council

(EPSRC) for the ﬁnancial support of this project.

REFERENCES

Barbieri, R., Bruschi, D., and Rosti, E. (2002). Voice over

ipsec: Analysis and solutions. Computer Security Ap-

plications Conference, Annual, 0:261.

Benvenuto, M. C. and Keromytis, A. D. (2003). Easyvpn:

Ipsec remote access made easy. In LISA ’03: Proceed-

ings of the 17th USENIX conference on System admin-

istration, pages 87–94, Berkeley, CA, USA. USENIX

Association.

Bohnert, T. and Monteiro, E. (2005). A comment on

simulating lrd trafﬁc with pareto on/off sources. In

CoNEXT ’05: Proceedings of the 2005 ACM confer-

ence on Emerging network experiment and technol-

ogy, pages 228–229, New York, NY, USA. ACM.

Braden, B., Clark, D., Crowcroft, J., Davie, B., Deering, S.,

Estrin, D., Floyd, S., Jacobson, V., Minshall, G., Par-

tridge, C., Peterson, L., Ramakrishnan, K., Shenker,

S., Wroclawski, J., and Zhang, L. (1998). Recom-

mendations on Queue Management and Congestion

Avoidance in the Internet. RFC 2309 (Informational).

Elbayoumy, A. D. and Shepherd, S. J. (2005). Using the tiny

encryption algorithm for securing voice over ip. In

Proceedings of 7th Annual International Symposium

on Advanced Radio Technologies. INSTICC Press.

Elbayoumy, A. D. and Shepherd, S. J. (2007). Stream or

block cipher for securing voip? I. J. Network Security,

5(2):128–133.

Elkeelany, O., Matalgah, M., Sheikh, K., Thaker, M.,

Chaudhry, G., Medhi, D., and Qaddour, J. (2002). Per-

formance analysis of ipsec protocol: encryption and

authentication. ICC, 2(2):3225–3241.

It, U. (1993). ITU-T recommendation G.114. Technical

report, International Telecommunication Union.

Kuhn, D. R., Walsh, T., Fries, S., of Standards, N. I., and

(U.S.), T. (2005). Security considerations for voice

over IP systems [electronic resource] : recommenda-

tions of the National Institute of Standards and Tech-

nology / D. Richard Kuhn, Thomas J. Walsh, Steffen

Fries. U.S. Dept. of Commerce, Technology Admin-

istration, National Institute of Standards and Technol-

ogy, Gaithersburg, MD :.

Li, I.-H. (2008). Effects of on-off variability in two-state

pareto trafﬁc models on multimedia application trans-

mission performance. Networked Computing and Ad-

vanced Information Management, International Con-

ference on, 2:426–431.

NS2 (2001). The Network Simulator ns-2 (v2.1b8a).

http://www.isi.edu/nsnam/ns/.

Press, C. (2006 (accessed September 23, 2009)).

Voice over IP Per Call Bandwidth Consumption.

http://www.cisco.com/warp/public/788/pkt-voice-

general/bwidth consume.pdf.

Radia, P. and Kaufman, C. (2000). Key exchange in ipsec:

Analysis of ike. IEEE Internet Computing, 4:50–56.

Xenakis, C., Laoutaris, N., Merakos, L., and Stavrakakis,

I. (2006). A generic characterization of the overheads

imposed by ipsec and associated cryptographic algo-

rithms. Comput. Netw., 50(17):3225–3241.

AN EXPERIMENTAL ANALYSIS ON ITERATIVE BLOCK CIPHERS AND THEIR EFFECTS ON VOIP UNDER

DIFFERENT CODING SCHEMES
