GRASPING WITH VISION DESCRIPTORS AND MOTOR

PRIMITIVES

Oliver Kroemer

Max Planck Institute for Biological Cybernetics, Spemannstr. 38, 72076 Tuebingen, Germany

Renaud Detry, Justus Piater

University of Liege, Grande Traverse 10, 4000 Liege, Belgium

Jan Peters

Max Planck Institute for Biological Cybernetics, Spemannstr. 38, 72076 Tuebingen, Germany

Keywords:

Dynamical Motor Primitives, Early Cognitive Vision Descriptors, Grasping.

Abstract:

Grasping is one of the most important abilities needed for future service robots. Given the task of picking up

an object from betweem clutter, traditional robotics approaches would determine a suitable grasping point and

then use a movement planner to reach the goal. The planner would require precise and accurate information

about the environment and long computation times, both of which may not always be available. Therefore,

methods for executing grasps are required, which perform well with information gathered from only standard

stereo vision, and make only a few necessary assumptions about the task environment. We propose techniques

that reactively modify the robot’s learned motor primitives based on information derived from Early Cognitive

Vision descriptors. The proposed techniques employ non-parametric potential ﬁelds centered on the Early

Cognitive Vision descriptors to allow for curving hand trajectories around objects, and ﬁnger motions that

adapt to the object’s local geometry. The methods were tested on a real robot and found to allow for easier

imitation learning of human movements and give a considerable improvement to the robot’s performance in

grasping tasks.

1 INTRODUCTION

Consider the scenario wherein you want to have a hu-

manoid robot grasp an object in a cluttered space. The

ﬁrst stage of most grasp planners determines a suit-

able grasp location on the object (Saxena et al., 2008;

Arimoto, 2008; Bicchi and Kumar, 2000). Having se-

lected a ﬁnal location and orientation for the hand, the

robot must then determine how to execute the grasp

so as not to collide with the object or any of the sur-

rounding objects.

The traditional solution for this scenario involves

supplying the robot with a CAD model of the objects

and a laser scanner or other means (ERFID, previous

position, etc.) for obtaining their precise positions.

These tools give the robot ample knowledge to apply

a planning algorithm that determines a suitable path

to the goal. This process relies on precise sensor in-

formation and can be very time consuming given a

complex scene with numerous possible object colli-

sions to test for at each step. In contrast, humans can

perform successful grasps of objects in the periphery

of their vision, where visual information is limited.

Taking inspiration from human movements, we

propose a reactive method for robots grasping ob-

jects in cluttered environments using potential ﬁelds

based on only a small amount of visual information.

Speciﬁcally, we present methods for incorporating in-

formation derived from Early Cognitive Vision De-

scriptors (ECVD) (Pugeault, 2008) into the dynam-

ical system motor primitives (DMP) (Schaal et al.,

2003) framework. The Early Cognitive Vision sys-

tem (see Appendix and Figure 2) was chosen since it

makes only a few assumptions about the object being

grasped, while the motor primitives (see Appendix)

were chosen because they generalize well to new sit-

uations and can be learned through imitation (Ijspeert

et al., 2002). The two frameworks are also compatible

Kroemer O., Detry R., Piater J. and Peters J. (2010).

GRASPING WITH VISION DESCRIPTORS AND MOTOR PRIMITIVES.

In Proceedings of the 7th International Conference on Informatics in Control, Automation and Robotics, pages 47-54

DOI: 10.5220/0002938100470054

 SciTePress

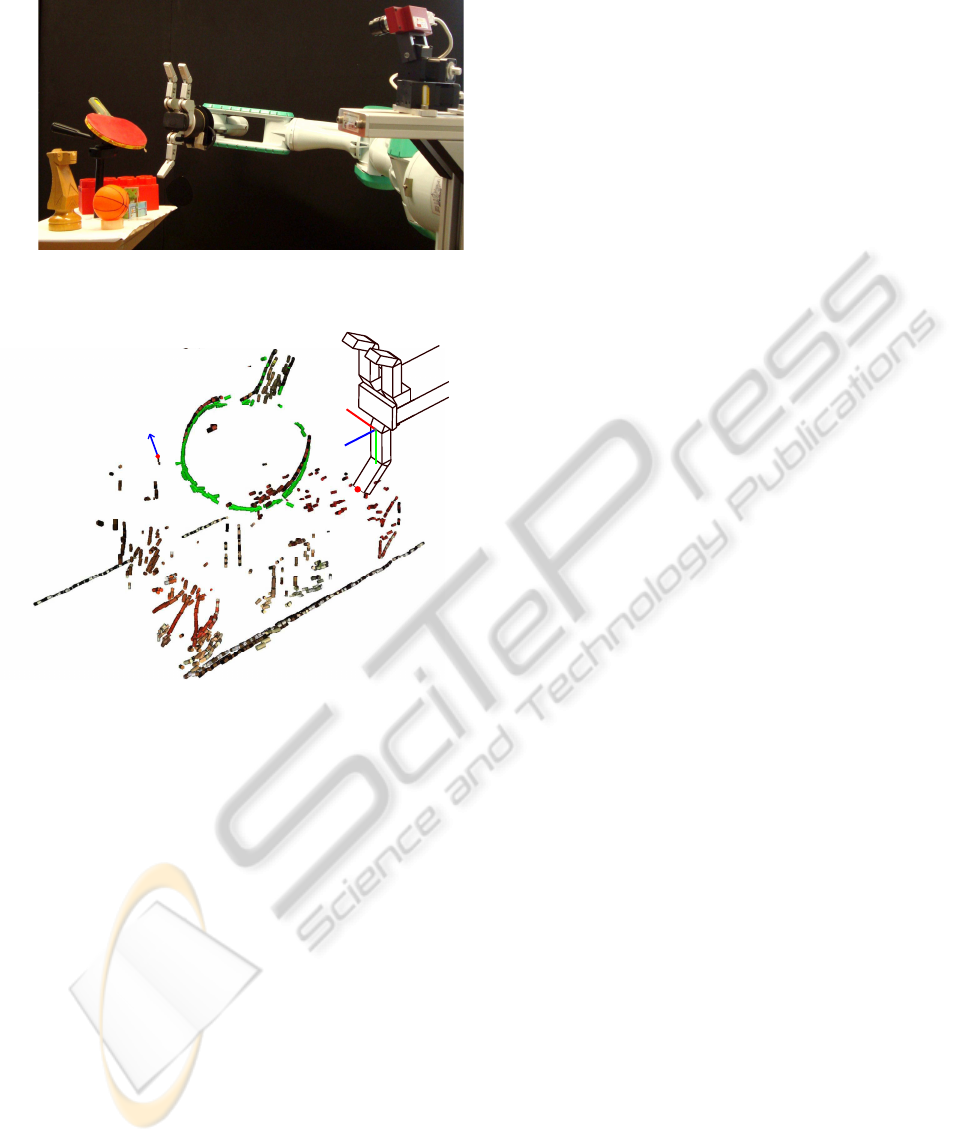

Figure 1: The robot used in our experiments and an example

of a grasping task in a cluttered environment.

Figure 2: The green ECVD represent the object to be

grasped, while the surrounding ECVDs in the scene are

clutter. The coordinate frame of the third ﬁnger of the Bar-

rett hand (the lower ﬁnger in the image) and variables used

in section 2 are shown. The x-y-z coordinate system is lo-

cated at the base of the ﬁnger, with z orthogonal to the palm,

and y in the direction of the ﬁnger. The marked ECVD

on the left signiﬁes the j

descriptor, with its position at

= (v

)

, and edge direction e

= (e

)

of unit length. The position of the ﬁnger tip is given by

p = (p

, p

)

with each other and thus straightforward to combine.

The ECVDs were used to elegantly augment the

DMPs for grasping tasks, resulting in the robot being

able to avoid obstacles, curve its reaching trajectories

around the object to grasp, and adapting the ﬁngers to

the local geometry of the object.

2 METHODS FOR REACTIVE

GRASPING

The methods proposed in this section were inspired

by human movements. Human grasping movements

can be modeled as two linked components, trans-

portation and ﬁnger posture, synchronized by a shared

timer or canonical system (Chiefﬁ and Gentilucci,

1993; Oztop and Kawato, 2009). Transportation

refers to the actions of the arm in moving the hand,

while the ﬁnger posture aspect relates to the preshap-

ing and closing of the ﬁngers (Jeannerod, 1997).

Humans perform the reaching/transportation com-

ponent in a task-speciﬁc combination of retina and

hand coordinates (Graziano, 2006), which allows for

easier speciﬁcation of object trajectories in a manipu-

lation task than joint coordinates would and results in

a reduction in dimensionality. These movements also

have curved trajectories that are needed for avoiding

obstacles and reaching around objects, which mainly

occurs in a planar subspace (Wank et al., 2004).

Similar to the transportation component, the main

purpose of the ﬁnger posture component is to pre-

shape the hand by extending the ﬁngers sufﬁciently

for them to pass around the object upon approach, and

then close on the object simultaneously for a good

grasp. Over-extending the ﬁngers is undesirable as

it makes collisions with the environment more likely

and is therefore usually restricted to situations that

present large uncertainties about the object (Oztop

et al., 2004; Chiefﬁ and Gentilucci, 1993).

Curved reaching trajectories and preshaping of the

hand were incorporated into the robot via a potential

ﬁeld, as described in Sections 2.1 and 2.2. Subse-

quently, a higher level controller is proposed in Sec-

tion 2.3, which allows the grasping movements to be

interpolated better to new target grasp locations.

2.1 DMP based Attractor Field

The ﬁrst step towards specifying the grasping move-

ments is to deﬁne an attractor ﬁeld as a DMP that en-

codes the desired movements given no obstacles. The

principal features that need to be deﬁned for these

DMPs are 1) the goal positions, and 2) the generic

shape of the trajectories to reach the goal.

Determining the goal posture of the hand using

the ECV descriptors has been previously investigated

in. (Detry et al., 2009). In this work, possible grasp

locations were hypothesized from the geometry and

color features of the ECVDs, and used to create a ker-

nel density estimate of suitable grasps, which is then

reﬁned by attempting grasps to test them.

However, this grasp synthesizer only gives the

ICINCO 2010 - 7th International Conference on Informatics in Control, Automation and Robotics

desired location and orientation of the hand, but

leaves ﬁnger placement to a secondary ﬁnger con-

troller, e.g., (Hsiao et al., 2009; Steffen et al., 2007).

Using the ECVDs, the goal position of each ﬁn-

ger is approximated by ﬁrst estimating a contact

plane for the object in the ﬁnger coordinate system

shown in Figure 2. To make it a local approxima-

tion, the inﬂuence of the i

ECVD is weighted by

= exp(−σ

−2

− σ

−2

− σ

−2

), where σ

, σ

and σ

are length scale constants, and v

is the po-

sition of the ECVD in the ﬁnger reference frame.

The hand orientation was chosen such that the Z di-

rection of the ﬁnger is parallel to the approximated

contact plane, which reduces the problem to de-

scribing the plane as a line in the 2D X-Y space.

The X-Y gradient of the plane is approximated by

φ = (

∑

i=1

)

−1

∑

i=1

arctan(e

), where N is

the number of vision descriptors, and e

is the direc-

tion of the i

edge. The desired Y position of the

ﬁngertip is then given by

˜p

∑

i=1

− tan(φ)w

)

∑

i=1

which can be easily converted to a joint parameter us-

ing the inverse kinematics of the hand.

Having determined the goals of both transporta-

tion and ﬁnger-posture components, the next step is

to deﬁne the trajectories used to reach these goals.

Many of the beneﬁcial traits of human movements,

as described earlier, can be transferred to the robot

through imitation learning. Learning by imitation in-

volves a human demonstrating a motion and the robot

then mimicking the movement. Details for imitation

learning with DMPs can be found in (Ijspeert et al.,

2002).

We can now combine the goals and imitation

learned trajectories to specify the DMPs and thus the

attractor ﬁelds.

2.2 ECVD based Detractor Fields

Having speciﬁed the rudimentary grasping move-

ments, a detractor ﬁeld is employed to reﬁne the mo-

tions in order to include obstacle avoidance for the

transportation and ensure that the ﬁnger tips do not

collide with the object during the hand’s approach.

The detractor ﬁeld will be based on ECVDs,

which can be envisioned as small line segments of

an object’s edges localized in 3D, as shown in Fig-

ure 2 for a scene as shown in Figure 1. The detractive

potential ﬁelds for ECVDs are characterized by two

main features; i.e., the detractive forces of multiple

ECVDs describing a single line do not superimpose,

and the ﬁeld does not stop DMPs from reaching their

ultimate goals. The system therefore uses a Nadaraya-

Watson model (Bishop, 2006) of the form

u = −s(x)

∑

i=1

∑

j=1

to generate a suitable detractor ﬁeld, where r

is a

weight assigned to the i

ECVD, s is the strength of

the overall ﬁeld, x is the state of the DMPs’ canoni-

cal system, and c

is the detracting force for a single

descriptor.

The weight of an ECVD for collision avoidance is

given by r

= exp(−(v

− p)

h(v

− p)), where v

the position of the i

ECVD in the local coordinate

system, h is a vector of positive length scale hyper-

parameters, and p is the ﬁnger tip position, as shown

in Figure 2. The detractor therefore puts more impor-

tance on ECVDs in the vicinity of the ﬁnger.

The strength factor ensures that the detractor

forces always tend to zero at the end of a movement

and thus it can not obstruct the attractor from achiev-

ing its goal at the end. Therefore, the strength of the

detractors is coupled to the canonical system of the

DMP; i.e., s(x) = (

∑

j=1

)

−1

∑

i=1

x, where x is

the value of the canonical system, ψ are its basis func-

tions, and w specify the varying strength of the ﬁeld

during the trajectory.

The transportation and ﬁnger-posture movements

react differently to edges and thus employ different

types of basis functions c

for their respective poten-

tial ﬁelds. For the ﬁngers, the individual potential

ﬁelds are logistic sigmoid functions about the edge of

each ECVD of the form ρ(1 + exp(d

−2

))

−1

, where



(p− v

) − e

(p− v

)



is the distance from

the ﬁnger to the edge, ρ ≥ 0 is a scaling parameter,

and σ

≥ 0 is a length parameter. Differentiating the

potential ﬁeld results in a force term of

= ρ

exp



−2





1+ exp



−2



As the logistic sigmoid is monotonically increasing,

the detractor always forces the ﬁngers open further

to move their tips around the ECVDs and thus ensure

that they always approach the object from the outside.

The hand uses instead the Gaussian basis func-

tions of the form ρexp(−0.5d

−2

), where d

(q − v

) − e

(q − v

)

is the distance from the end

effector position, q, to the edge, and ρ ≥ 0 and σ

≥ 0

are scale and length parameters respectively. Differ-

entiating the potential with respect to d

gives a force

term in the Y direction of



ρd

−2

exp(−0.5d

−2

)



which can be interpreted as a radial force from the

edge with an exponentially decaying magnitude.

GRASPING WITH VISION DESCRIPTORS AND MOTOR PRIMITIVES

The detractor ﬁelds, of both the grasping and

reaching components, have now been deﬁned, and

can be superimposed into the DMP framework as

¨y =



(β

−2

(g− y) − τ

−1

˙y) + aτ

−2

f(x)



− τ

−2

which then represents the entire ECVD and MP based

potential ﬁeld.

2.3 High Level DMP Controller for

Grasping

Having deﬁned the potential ﬁeld for a single grasping

motion, we interpolate the movements to new target

grasps. Having a motion representation that can be in-

terpolated to new targets is crucial for imitation learn-

ing. Given such a representation, the number of ex-

ample trajectories required from the demonstrator can

be greatly increased, making learning easier. While

DMPs can interpolate to arbitrary goal positions, they

have two drawbacks for grasping tasks; i.e., 1) the

approach direction to the grasp can not be arbitrarily

deﬁned, and 2) the amplitude of the trajectory is un-

neccessarily sensitive to changes in the start position

and the goal positon g if y

≈ g during training,

which can cause the robot to reach the limits of its

workspace.

These difﬁculties can be overcome by including a

supervisory controller that modiﬁes the hyperparam-

eters of the DMPs appropriately. The supervisor can

maintain the correct approach direction by using a

task-speciﬁc coordinate system. Due to the transla-

tion invariance of DMPs, only a rotation, R ∈ SO(3),

between the two coordinate systems needs to be de-

termined. The majority of the motions will lie in a

plane deﬁned by the start and goal locations, and the

ﬁnal approach direction.

The ﬁrst new in-plane axis x

is set to be along

the approach direction of the grasp; i.e., x

= −a as

shown in Figure 3. As a result, the approach direc-

tion is easily deﬁned and only requires that theY

and

primitives reach their goal before the X

primi-

tive. The second axis, y

, must be orthogonal to x

and also in the plane, as shown in Figure 3. It is set

to y

= b

−1

((g− s) − x

(g− s)

), where b

−1

is a

normalization term, and s and g are the motion’s 3D

start and goal positions respectively. The third vec-

tor, z

, is orthogonal to the plane, and is derived by

completing the right-handed coordinate system, i.e.,

= x

× y

. The DMPs can now be speciﬁed by

the supervisor in the X

-Y

-Z

coordinate system, and

mapped to the X

-Y

-Z

world reference frame by

multiplying by R

= [x

]

The second problem relates to the scaling of mo-

tions with ranges greater than y

−g, which both com-

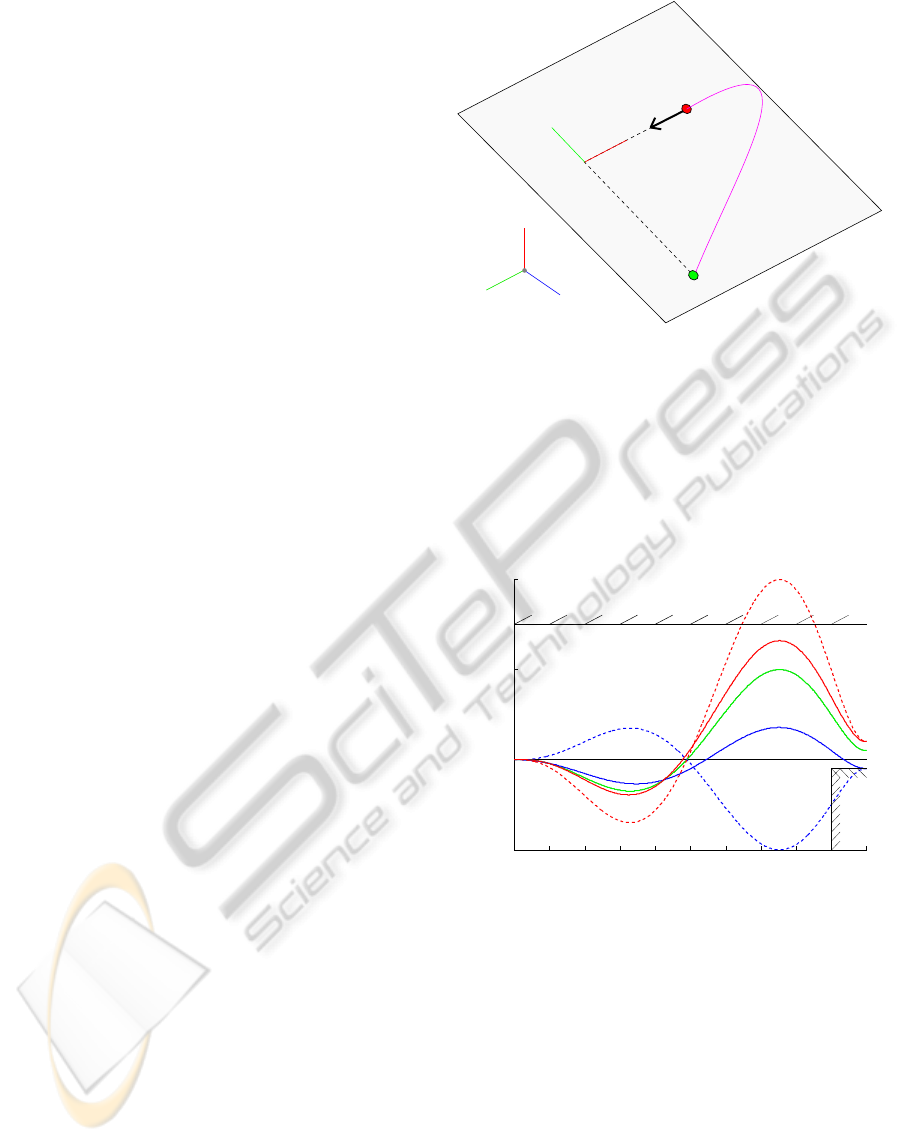

Figure 3: The above diagram shows the the change in co-

ordinate systems for the transportation DMPs. The axes

-Y

-Z

are the world coordinate system, while X

-Y

-Z

is the planar right handed coordinate system in which the

DMP is speciﬁed. The trajectory of the DMP is shown by

the pink line, starting at the green point, and ending at the

red point. Note that X

is parallel to the approach direc-

tion of the hand, which is shown by the black arrow a. The

planar axis Y

is perpendicular to X

, and pointing from the

motor primitive’s starting location s towards the goal g.

EFFECTS OF DMP AMPLITUDE a FACTOR

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

−0.05

0.05

0.1





Figure 4: This is a demonstration of the effects of augment-

ing the amplitude variable a of DMPs. The black lines rep-

resent boundaries. The green plot shows the trained trajec-

tory of the DMP going to 0.05, and is the same for all am-

plitude values. Now consider the scenario wherein the goal

is placed at 0.1, but the workspace is limited to ±0.75 (top

boundary). The dashed red line is the standard generaliza-

tion to a larger goal, while the red plot uses the new ampli-

tude. Notice how the new amplitude restricts the range of

the trajectory to the workspace. In a different scenario, we

move the goal to −0.05, but require the goal to be reached

from above (lower right boundary), e.g., a ﬁnger placed on a

surface. The dashed blue line is the standard generalization

to a negative goal, and the blue trajectory uses the new am-

plitude. Note that the trajectory is not ﬂip in the case of the

new amplitude and thus stays within the restricted region.

Both of the new trajectories were generated with η = 0.25,

and maintain shapes close to that of the training trajectory.

ICINCO 2010 - 7th International Conference on Informatics in Control, Automation and Robotics

INTERPOLATION OF REACHING AROUND AN

OBJECT

−0.2 −0.1 0 0.1 0.2 0.3 0.4

0.2

0.4

0.6

0.8

1.2

1.4





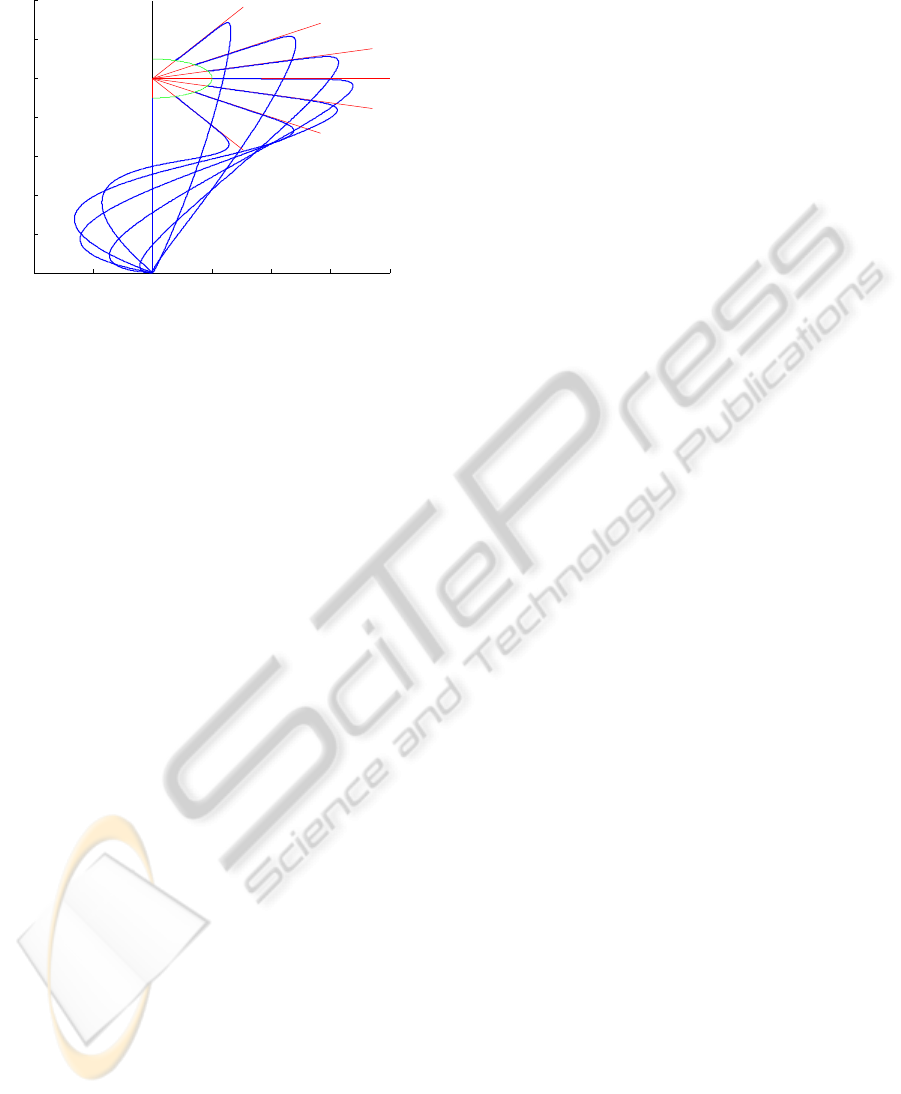

Figure 5: The plot shows workspace trajectories, wherein

the x and y values are governed by two DMPs sharing a

canonical system. The red lines indicate the desired ap-

proach direction while the green semicircle indicates the

goal positions along them. The blue lines show the trajec-

tories for the different goals. They make use of the higher

level controller of Subsection 2.3, with η = 0.25. The ap-

proach direction DMP was trained on an amplitude of one.

ponents require to move around the outside of ob-

jects. In the standard form a = g − y

(Ijspeert et al.,

2003), which can lead to motions that easily exceed

the robot’s workspace if g ≈ y

during the training,

but not during the motion reproduction. The supervi-

sor can control these trajectories by scaling the shap-

ing force (see Appendix), and thus we propose the

amplitude term

a = kη(g− y

) + (1− η)(g

− y

)k,

where g

and y

are the goal and start positions

of the training data respectively, and η ∈ [0,1] is

a weighting hyperparameter. The resulting trajec-

tory amplitude is in the convex hull of the training

amplitude and the standard interpolation value (a =

g − y

) (Ijspeert et al., 2003) and thus only affects

how conservative the generalization to new points is,

as can be seen in Figure 4. By taking the absolute

value of the amplitude, the approach direction is not

reversed, giving a result similar to the use of a con-

stant amplitude proposed by Park et al. (Park et al.,

2008), which corresponds to the special case of η = 0.

Example interpolations of a transportation trajec-

tory can be seen in Figure 5.

3 GRASPING EXPERIMENTS

The methods described in Section 2 were imple-

mented and evaluated on a real robot platform. The

robot consists of a Videre stereo camera mounted on

a pan-tilt unit, a Barrett hand, and a Mitsubishi PA10

arm. The robot was given the task of grasping an ob-

ject amongst clutter using only an ECVD model of

the object. The results of these trials were then com-

pared to trials of the same grasps using other stan-

dard robotics methods for comparison. We hypothe-

size that our method will result in signiﬁcantly more

successful grasps than the other methods.

3.1 Grasping Experiment Procedure

Before the robot can perform a grasping task, its mo-

tions must be initialized. Determining the ﬁnger goal

state and specifying the detractor ﬁelds introduces

several new hyperparameters that have simple geo-

metrical interpretations. For instance, h = 2[w l l]

where w and l are the width and length of the ﬁn-

ger respectively. To reﬂect the human tendency to-

wards more precise movements during the last 30%

of a motion (Jeannerod, 2009), the strength function,

s(x), was set to give the highest strengths during the

ﬁrst 70% of the motion for the transportation, and the

last 30% for the ﬁnger posture.

A VICON

motion tracking system was used to

record the movements of a human test subject dur-

ing a grasping task, which used a different object to

the one used by the robot. As the reaching trajecto-

ries are encoded in task space rather than joint space,

the correspondence problem was not an issue for the

imitation learning. Similarly, the DMPs of the ﬁn-

gers are homogeneous, which circumvents the corre-

spondence problem of mapping the ﬁve human ﬁn-

gers onto the three ﬁngers of the robot. The imita-

tion learning was performed using locally weighted

regression in the the X

-Y

-Z

coordinate system, as

proposed by Ijspeert et al. (Ijspeert et al., 2002).

Having deﬁned the basic motions, the robot was

then given the task of grasping an object without hit-

ting surrounding obstacles (see Figure 1). Each trial

begins with an estimate of the pose of the object rela-

tive to the robot (Detry et al., 2008) and sets its grasp

location accordingly. The model’s ECVD are then

projected into the scene, and the robot attempts to

perform the grasp and lift the object 15cm so that it

is clear of the stand. The trial is a success if the robot

can detect the object in its hand at this point. If the

hand collides with an obstacle or knocks the object

down, the trial is marked as a failure. Grasps were

varied to include different approach directions and lo-

cations around the object. The experiment consisted

of 45 trials.

Two alternative approaches were compared with

our proposed method. The ﬁrst represents a stan-

dard robotics approach of specifying a trajectory by

GRASPING WITH VISION DESCRIPTORS AND MOTOR PRIMITIVES

via points std. DMP ECVD DMP

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

Percentage of Trials

Success Object Coll. Obstacle Coll.

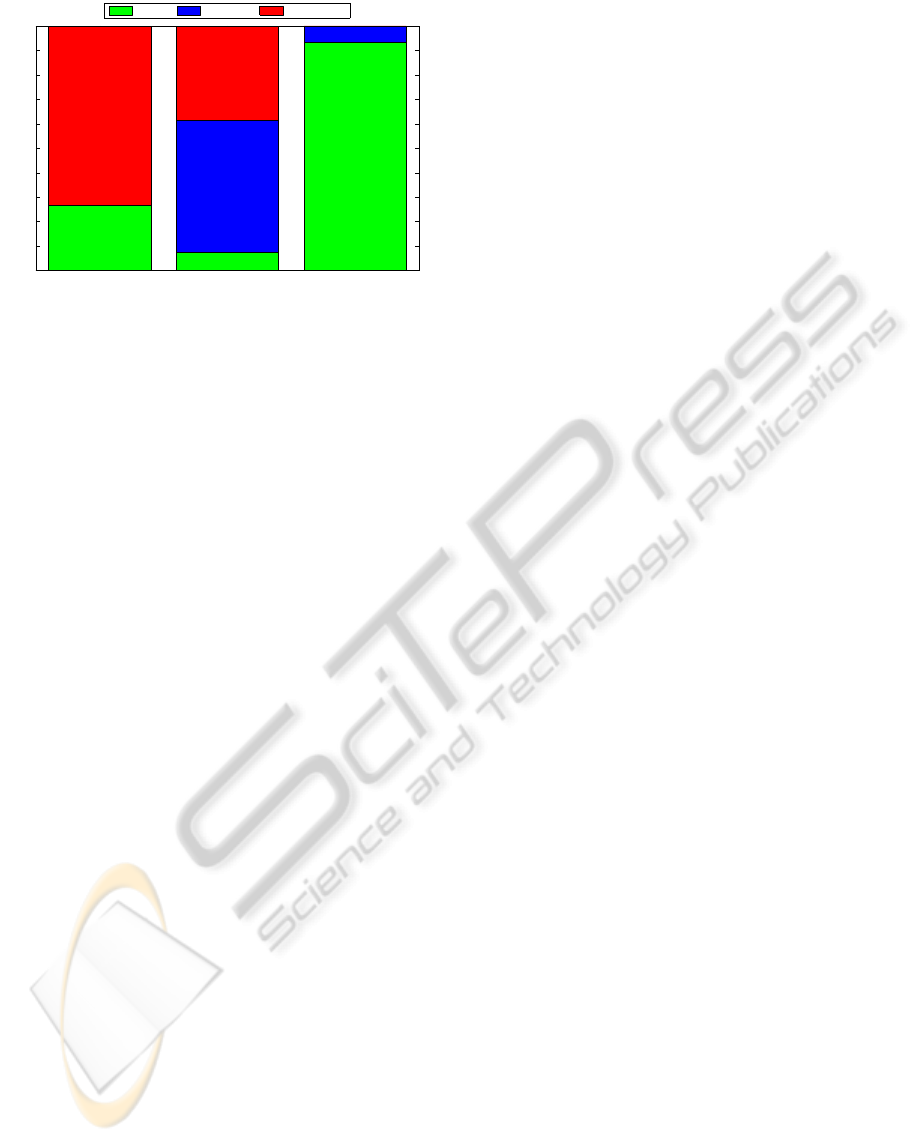

Figure 6: The occurrences of successes and collision types

for the different methods are shown. The ﬁrst column

presents the results for the traditional robotics method of

specifying trajectories by via points. The second column

corresponds to using standard DMPs, while the ﬁnal col-

umn incorporates the ECVD based potential ﬁeld and su-

pervisory DMP controller. The occurrences are given as the

percentage of trials. Trials that collided multiple times, are

classiﬁed by their ﬁrst collision.

straight lines between via points and uses fully ex-

tended ﬁngers with no preshaping of the hand. The

other approach is to use standard DMPs learned from

the same human demonstrated movements as our pro-

posed methods, but without the proposed detractor

ﬁeld and supervisory controller. The same grasp lo-

cations were proposed to the different methods, and

obstacles were placed in similar positions for the the

different trials to allow for a fair comparison between

the methods.

3.2 Experimental Results

From the three tested methods, the proposed method

acquired the highest success rate, as can be seen in

Figure 6. The task was not trivial, and all of the meth-

ods encountered both successes and problems during

the trials.

The standard DMP method encountered the most

problems (success rate of only 7%) a majority of

which were caused by collisions with the object. This

high failure rate can be attributed to the method not

speciﬁcally incorporating a desired approach direc-

tion. In successful trials, the approach direction was

close to that of the initial imitation learning. There-

fore the proposed DMP supervisor improved the gen-

eralization of the movement to new target grasps, and

the system would beneﬁt from it even in uncluttered

environments. Similarly, the open-loop preshaping of

the hand helped avoid obstacles, but occasionally pre-

vented the hand from being sufﬁciently open to accept

the object. The proposed detractor ﬁeld successfully

overcame this problem for the ECVD DMPs.

The via points method encountered no collisions

with the object, and would have worked well in an

uncluttered environment. The method still encoun-

tered collisions with the obstacles for 73% of the tri-

als, but this is more reﬂective of the difﬁculty of the

task rather than the via point method. The method

can therefore be considered as a good approach if it

were combined with a suitable path planning method

for obstacle avoidance. However, the path planner

would need additional information and assumptions

about the scene and possibly even extra hardware to

acquire it.

The proposed method had a success rate of 93%,

with no occurrences of collisions with obstacles. The

trials that did fail were the result of the object falling

down while the ﬁngers were closing and thus do not

indicate problems with the approach used to reach-

ing the grasp location. The method does have certain

restrictions though. The magnitude of the detractor

ﬁelds needs to be calibrated based on the density of

ECVDs for common objects, but some obstacles en-

countered may present lower densities. As the current

set of ECVD relies on object edges, smooth objects

can lead to noisy or very sparse descriptors, and there-

fore not create a suitable basis for obstacle avoidance.

As the number of descriptor types increases (e.g., cor-

ner and plane descriptors), this will become less of a

problem. Occluded obstacles will also need to rely

on additional information (e.g., force feedback) to be

avoided, although this is a source of error for all vi-

sion based planners.

Given a few restrictions, the results still show that

our hypothesis was correct and the proposed methods

represent a suitable basis for avoiding obstacles with-

out relying on a complicated path planner and using

only a small amount of vision information compared

to standard robot systems.

4 CONCLUSIONS

The proposed methods augment dynamical system

motor primitives to incorporate Early Cognitive Vi-

sion descriptors by using a potential ﬁeld. These

methods represent important tools that a robot needs

to reactively execute grasps of an object in a cluttered

environment without relying on a complex planner.

The techniques allow for preshaping the ﬁngers to

match the shape and size of the object and curving

the trajectory of the hand around objects(Wank et al.,

2004). These modiﬁcations were tested on a real

robot, and it was discovered that the methods were

not only successful at performing the task, but also

ICINCO 2010 - 7th International Conference on Informatics in Control, Automation and Robotics

allowed for easier imitation learning, better interpola-

tion of the learned trajectories, and signiﬁcantly better

chances of a success of a grasp in cluttered environ-

ments than standard motor primitives. Although the

experiments were performed within a grasping task

scenario, the proposed methods can be beneﬁcial for

other manipulation tasks, such as pressing buttons and

pushing objects.

REFERENCES

Arimoto, S. (2008). Control Theory of Multi-ﬁngered

Hands. Springer London.

Bard, C., Troccaz, J., and Vercelli, G. (1991). Shape analy-

sis and hand preshaping for grasping. In Proceedings

of IROS’91.

Bicchi, A. and Kumar, V. (2000). Robotic grasping and

contact: a review. In ICRA 2000 proceedings.

Bishop, C. M. (2006). Pattern Recognition and Machine

Learning. Springer.

Chiefﬁ, S. and Gentilucci, M. (1993). Coordination be-

tween the transport and the grasp components during

prehension movements.

Detry, R., Kroemer, O., Popovic, M., Touati, Y., Baseski, E.,

Krueger, N., Peters, J., and Piater, J. (2009). Object-

speciﬁc grasp affordance densities. In ICDL.

Detry, R., Pugeault, N., and Piater, J. (2008). Probabilistic

pose recovery using learned hierarchical object mod-

els. In International Cognitive Vision Workshop.

Graziano, M. S. (2006). Progress in understanding spatial

coordinate systems in the primate brain. Neuron.

Hartley, R. and Zisserman, A. (2000). Multiple View Geom-

etry in Computer Vision. Cambridge University Press.

Hsiao, K., Nangeroni, P., Huber, M., Saxena, A., and Ng,

A. (2009). Reactive grasping using optical proximity

sensors. In ICRA 2009 Proceedings.

Iberall, T. (1987). Grasp planning for human prehension. In

Proceedings of ICAI’87.

Ijspeert, A. J., Nakanishi, J., , and Schaal, S. (2002). Move-

ment imitation with nonlinear dynamical systems in

humanoid robots. In ICRA.

Ijspeert, A. J., Nakanishi, J., , and Schaal, S. (2003). Learn-

ing attractor landscapes for learning motor primitives.

In NIPS.

Jeannerod, M. (1997). Perspectives of Motor Behaviour and

Its Neural Basis, chapter Grasping Objects: The Hand

as a Pattern Recognition Device.

Jeannerod, M. (2009). Sensorimotor Control of Grasping:

Physiology and Pathophysiology, chapter The study

of hand movements during grasping. A historical per-

spective. Cambridge University Press.

Krueger, N., Lappe, M., and Woergoetter, F. (2004). Bi-

ologically motivated multimodal processing of visual

primitives. The Interdisciplinary Journal of Artiﬁcial

Intelligence and the Simulation of Behaviour.

Oztop, E., Bradley, N. S., and Arbib, M. A. (2004). Infant

grasp learning: a computational model.

Oztop, E. and Kawato, M. (2009). Sensorimotor Control of

Grasping: Physiology and Pathophysiology, chapter

Models for the control of grasping. Cambridge Uni-

versity Press.

Park, D.-H., Hoffmann, H., Pastor, P., and Schaal, S.

(2008). Movement reproduction and obstacle avoid-

ance with dynamic movement primitives and poten-

tial ﬁelds. In IEEE International Conference on Hu-

manoid Robots(HUMANOIDS).

Pugeault, N. (2008). Early Cognitive Vision: Feedback

Mechanisms for the Disambiguation of Early Visual

Representation. Vdm Verlag Dr. Mueller.

Saxena, A., Dreimeyer, J., Kearns, J., Osondu, C., and Ng,

A. (2008). Experimental Robotics, chapter Learning

to Grasp Novel Objects using Vision. Springer Berlin.

Schaal, S., Peters, J., Nakanishi, J., and Ijspeert, A. (2003).

Learning movement primitives. In Proceedings of

ISRR’03.

Steffen, J., Haschke, R., and Ritter, H. (2007). Experience-

based and tactile-driven dynamic grasp control. In IRS

proceedings.

Wank, V., Fischer, A., Bos, K., Boesnach, I., Moldenhauer,

J., and Beth, T. (2004). Similarities and varieties in

human motiontrajectories of predeﬁned grasping and

disposing movements. International Journal of Hu-

manoid Robotics.

APPENDIX

Dynamical Systems Motor Primitives

The dynamical systems motor primitives (DMPs) pro-

posed by Ijspeert et al. (Ijspeert et al., 2003) were in-

spired by the simple, but highly adaptive,motions that

animals employ,and combine to obtain more complex

motions. The primitives are implemented as a passive

dynamical system with an external force, and repre-

sented as

¨y = α

(β

−2

(g− y) − τ

−1

˙y) + aτ

−2

f(x), (1)

where α

and β

are constants, τ controls the duration

of the primitive, a is an amplitude, f(x) is a nonlinear

function, and g is the goal for the state variable y.

By selecting α

and β

appropriately, and setting

a = 0, the system reduces to ¨y = α

(β

(g− y) − τ˙y)

and becomes a critically damped global attractor. It

can be visualized as a spring and damper system that

ensures state y will always end at the goal value g.

The function f(x) is a shaping function based on

the state, x ∈ [0,1], of the canonical system that syn-

chronizes the DMPs ˙x = −α

τx, where α

is a time

GRASPING WITH VISION DESCRIPTORS AND MOTOR PRIMITIVES

constant. The function takes the form

f (x) =

∑

j=1

(x)w

∑

i=1

(x)

where M is the number of basis functions, ψ(x) are

Gaussian basis functions, and w are weights acquired

through locally weighted regression (Ijspeert et al.,

2003). This function has the effect of introducing a

non-linearity that can affect the spring-dampersystem

to output any arbitrary trajectory speciﬁed by the user.

Due to the dependence of f(x) on x, the shaping term

decays to zero with x, so that the spring and damper

beneﬁcial properties of the attractor are maintained.

The resulting primitives can encode arbitrary tra-

jectories, and still ensure that the goal state is always

achieved. The trajectories can also be scaled in time

and space by setting the τ and g variables appropri-

ately and thus generalize to a range of situations.

Early Cognitive Vision System

The entire prehensile process effectively occurs be-

fore the hand has even touched the object and thus

the vision system plays a very important role (Bard

et al., 1991; Iberall, 1987). Our system uses the Early

CognitiveVision methods of Pugeault et al. (Pugeault,

2008; Hartley and Zisserman, 2000), which makes a

minimal number of assumptions about the object, and

has been successfully implemented to determine good

grasp locations (Detry et al., 2009). A principal idea

of this vision system is to store additional low level

information and perform perceptual grouping on it to

later aid the higher level stereo matching and 3D con-

structions.

The methods extract local features of a scene,

which it localizes and orientates in space (Krueger

et al., 2004). Each descriptor is a symbolic rep-

resentation for an edge in 3D. The resulting fea-

tures are called early cognitive vision descriptors

(ECVD) (Pugeault, 2008), and can be used in generat-

ing models of objects for pose estimation (Detry et al.,

2008), and for symbolically describing 3D scenes. By

using a large amount of small ECVDs, any arbitrary

object can be represented.

When performing a grasping task, the robot uses

a hierarchical Markov model of the object’s ECVD

geometry (Detry et al., 2008) to determine its pose,

which can then be used to superimpose the ECVDs

of the model back into the scene. The grasping tech-

niques can therefore use geometric information of a

partially occluded object.

ICINCO 2010 - 7th International Conference on Informatics in Control, Automation and Robotics
