KASKADA – MULTIMEDIA PROCESSING PLATFORM

ARCHITECTURE

Henryk Krawczyk

Electronics, Telecommunications and Informatics Faculty, Gdansk University of Technology

Narutowicza 11/12, Gdansk, Poland

Jerzy Proficz

Academic Computer Center – TASK, Gdansk University of Technology, Narutowicza 11/12, Gdansk, Poland

Keywords: Multimedia systems, Multimedia processing, Cluster computing, Distributed architecture.

Abstract: The architecture of Context Analysis of the Camera Data Streams for Alert Defining Applications platform

(Polish abbreviation: KASKADA, i.e. waterfall), a part of MAYDAY EURO 2012 project, is provided. A

new multilayer processing model for multimedia streams is proposed. The model layers: services,

computational tasks and processes are described. The composition of complex services with simple service

scenario descriptions is presented. An example scenario and its realization in the environment is provided.

The object-oriented domain analysis, component and deployment diagrams with their relations to the model

are proposed.

1 INTRODUCTION

Context Analysis of the Camera Data Streams for

Alert Defining Applications platform (Polish

abbreviation: KASKADA, i.e. waterfall), a part of

MAYDAY EURO 2012 project, is designed for

implementation and evaluation of multimedia

streams analysis algorithms. Its main goal is to

support development of the multimedia based

applications, currently represented by three pilot

projects: detection of dangerous situations in public

places, illness recognition in endoscopy and

detection of plagiarism.

Because of the high computation expectation,

deployment of the platform is placed in the cluster

environment of the Academic Computer Center in

Gdansk (TASK, 2010). We use the supercomputer

'Galera' with theoretical computational power of 50

TFlops. The key requirements of the whole platform

include efficiency – especially regarding the number

of the processed streams, reliability – when usage of

a single algorithm on the stream is not enough,

security – the natural requirement for all systems

with sensitive data, and fault-tolerance – in case

some hardware/system part is damaged.

The usage of the centralized computation site has

also the following disadvantages: network

bandwidth – many multimedia streams, especially

video HD, require fast connection, assurance of

proper quality of service – especially latency in

client notifications, long delay when starting the

tasks due to use of the typical queue system, stream

recording – the mass storage capacity.

In the next section, we present the processing

model supporting the solution of the above

problems. The section three describes the platform

architecture based on the proposed model, including

UML (OMG, 2009) diagrams, and the last section

provides the conclusions.

2 THE PROCESSING MODEL

Figure 1 presents the processing model used during

the KASKADA platform design. It consists of four

layers, including two layers related to webservices:

simple and complex, computational tasks analyzing

streams and processes.

The work was realized as a part of MAYDAY EURO 2012

project, Operational Program Innovative Economy 2007-2013,

Priority 2 „Infrastructure area R&D”.

Krawczyk H. and Proﬁcz J. (2010).

KASKADA – MULTIMEDIA PROCESSING PLATFORM ARCHITECTURE.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 26-31

DOI: 10.5220/0002944800260031

 SciTePress

Simple services

Computation tasks

Processes/threads

stream

distribution

task

distribution

Complex services

scenario

execution

Figure 1: Layered processing model of KASKADA

platform.

The top-level layer represents complex services.

They are responsible for the functionality directly

provided to the user applications (at client or

application server). Their execution is performed

according to a defined service scenario. Such a

scenario enables composition, cooperation and data

exchange between simple services.

cam 1 bg #2 detect #3decode #1

decode #4 bg #5 detect #6

count #7

cam 2

Figure 2: Graph representation of the example scenario.

The sample scenario below is a part of a video-

surveillance system supporting the monitoring of

entrances with automatic comparison of the amount

of people passing the gates, generating an alert when

any gate is overcrowded (see figure 2), version for 2

gates:

1. call service: task startup (#1) – decoding video

stream from the gate 1

2. call service: task startup (#2) – background

exclusion on the stream received from task #1

3. call service: task startup (#3) – people detection

on the stream received from task #2

4. call service: task startup (#4) – decoding video

stream from the gate 2

5. call service: task startup (#5) – background

exclusion on the stream received from task #4

6. call service: task startup (#6) – people detection

on the stream received from task #5

7. call service: task startup (#7) – counting and

comparison of events from tasks: 4 and 6,with

parameters indicating alert (event) if the

number of passing people on any gate is 20%

greater than average – it means that we need a

new procedure for system monitoring (i.e.

observation for the gates with more cameras, or

send the information to the security center for

manual handling)

The typical execution of a scenario by a complex

service consists of the following steps:

1. Creation and validation of a service graph. In

the preliminary phase of service execution, the

platform creates a graph of simple services used

by the particular steps of the scenario. It consists

of the vertices representing the services and

directed edges indicating data flow. We assume

the graph is acyclic – no feedback is allowed.

During this step the service descriptions are

retrieved from the repository and the types of

their input-output data types are validated, see

figure 3 (a). The repository are a part of the

platform, it is

2. Algorithms' selection and required resource

estimation. In this step, the service graph is

converted into a new data flow graph including

the computational tasks as vertices and directed

edges representing data streams, see figure 3

(b). This transformation is dependent on the

requested quality parameters, which can have

influence on the algorithm selection as well as

on the input data, e.g. camera resolution.

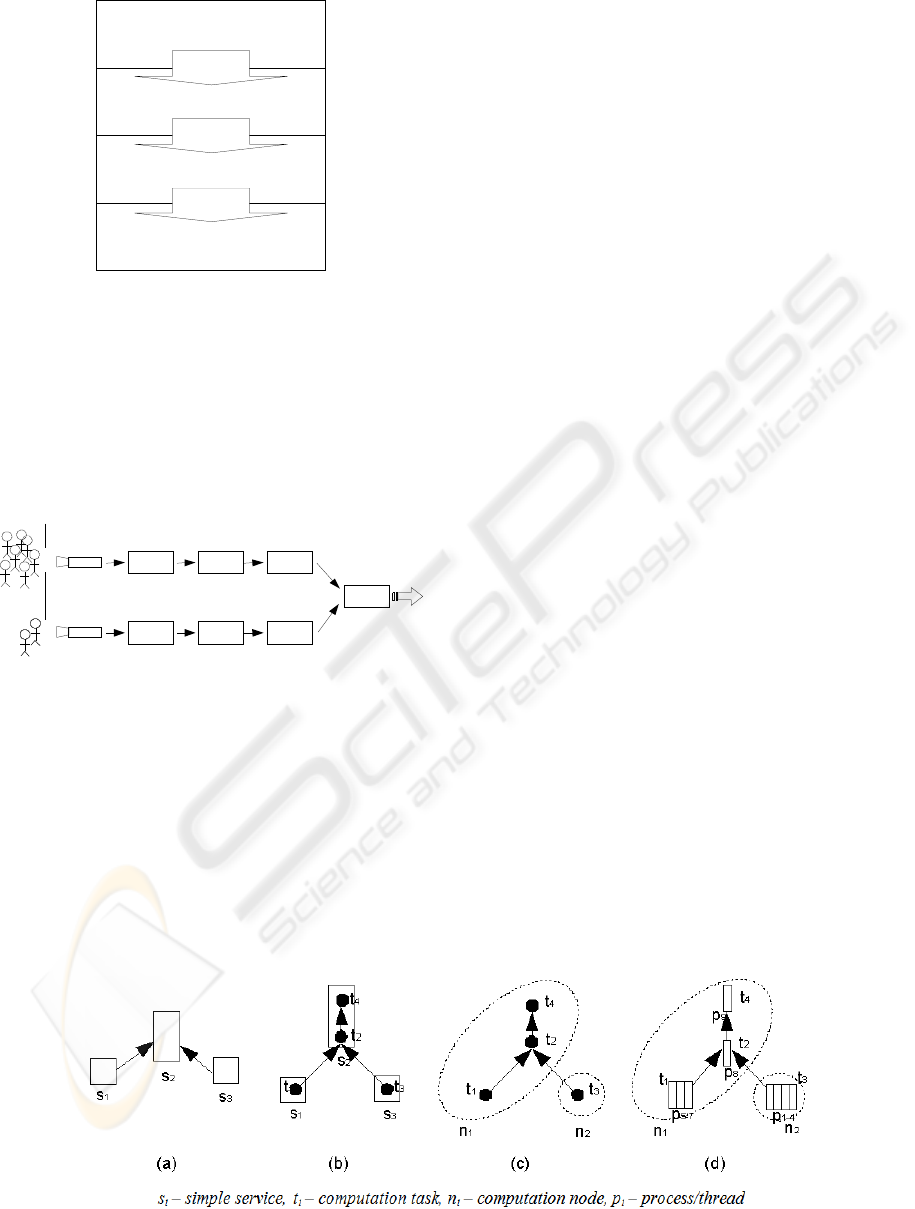

Figure 3: Phases of preparation to service scenario execution: (a) simple services, (b) task graph, (c) graph assignment to

the computation nodes, (d) running processes/thread.

KASKADA - MULTIMEDIA PROCESSING PLATFORM ARCHITECTURE

3. Task assignment to the cluster nodes. In this

step, the vertices of the data flow graph, i.e.

computational tasks (derived from the simple

services) are assigned to the concrete cluster

nodes, see figure 3 (c). We would like to

emphasize, this is not a typical scheduling

problem, see (El-Rewini, 1994): the tasks need

to be executed concurrently and none of them

can be delayed – this is a usual requirement for

on-line processing and is more similar to

variable sized bin packing problem (Haouari,

2009). The above node assignment can be

optimized according to the different criteria, e.g.

minimizing the number of partially used nodes

(defragmentation), minimizing network load or

the delay of the scenario processing.

4. Scenario startup. In this step, the computational

tasks of the respective simple services are

started up on the cluster nodes according to the

given assignment. The task identifiers are

generated and distributed. The proper data

streams are connected and the communication is

initialized. Each task consists of one or more

processes/threads, whose execution is managed

directly by the operating system of the related

node, see figure 3 (d).

5. Scenario monitoring. During the scenario

execution, the platform will monitor the running

tasks: processor load, memory usage,

multimedia, event and plain data streams' flow.

The above procedures are used for continuous

collecting and verification of quality related

meta-data related to the particular services.

6. Scenario shutdown. In this last step, the

platform is responsible for the correct

finalization of all computational tasks executed

with the scenario. During this time, all related

processes and threads are finished, the

associated resources are freed, the multimedia

streams are closed, and the proper information

messages are sent to the client.

The next layer of the proposed model is involved in

execution of the simple services, which are

responsible for selection of the proper algorithm

depending on the requested quality parameters

defined by user. Afterwards, the multimedia stream

distribution to the computational tasks is established.

For the sake of minimizing network load, the RTSP

(Schulzrinne, 1998) protocol with the optional

multicast (Savola, 2008) will be used.

The next layer contains the computational tasks,

which are the implementation of the concrete stream

analysis algorithms. They use the libraries provided

by the platform, being embedded into the framework

supporting the cooperation with other components of

the platform, such as storage or an event server. We

can perceive the framework as a template, which

already includes common elements used by the

algorithm implementation, e.g. an image frame

iterator for a video stream (Krawczyk, 2010), see

figure 4. This layer is responsible for task

distribution and requested resource acquisition:

nodes and processors. We use a typical launcher for

these purposes, however it needs to consider

additional qualities of service policies, e.g. delays to

start of the task.

algorithm

program

framework

computation

task

computation

task

implementation

linking

Figure 4: Development of a computation task.

The process/thread layer enables execution of the

computational tasks. They can use typical

mechanisms of concurrency and parallelism. The

platform supports POSIX (The Open Group, 1997)

threads and other similar mechanisms (i.e.

semaphores, mutex etc.) provided by the underlying

operating system.

3 THE SOFTWARE

ARCHITECTURE

The proposed processing model was implemented as

KASKADA platform, below we present the software

components. Figure 6 contains the domain model of

KASKADA obtained by the requirements' analysis.

From the user’s point of view the main goal of the

platform is to provide the webservices in SOA

(Krafzig, 2004) architecture. They will be

responsible for execution of the complex service

scenarios using simple services. The example

sequential diagram of the scenario execution is

presented in figure 5.

Both service types, i.e. simple and complex ones,

are going to be deployed on the same JEE

application server, we consider to use a Tomcat web

container for this purpose. They will utilize SOAP

(W3C, 2007a) technologies over HTTP(S) (W3C,

1999) protocol, in case of synchronous remote calls,

and a queue system, i.e. ActiveMQ (Apache

Software Foundation, 2010) for asynchronous

SIGMAP 2010 - International Conference on Signal Processing and Multimedia Applications

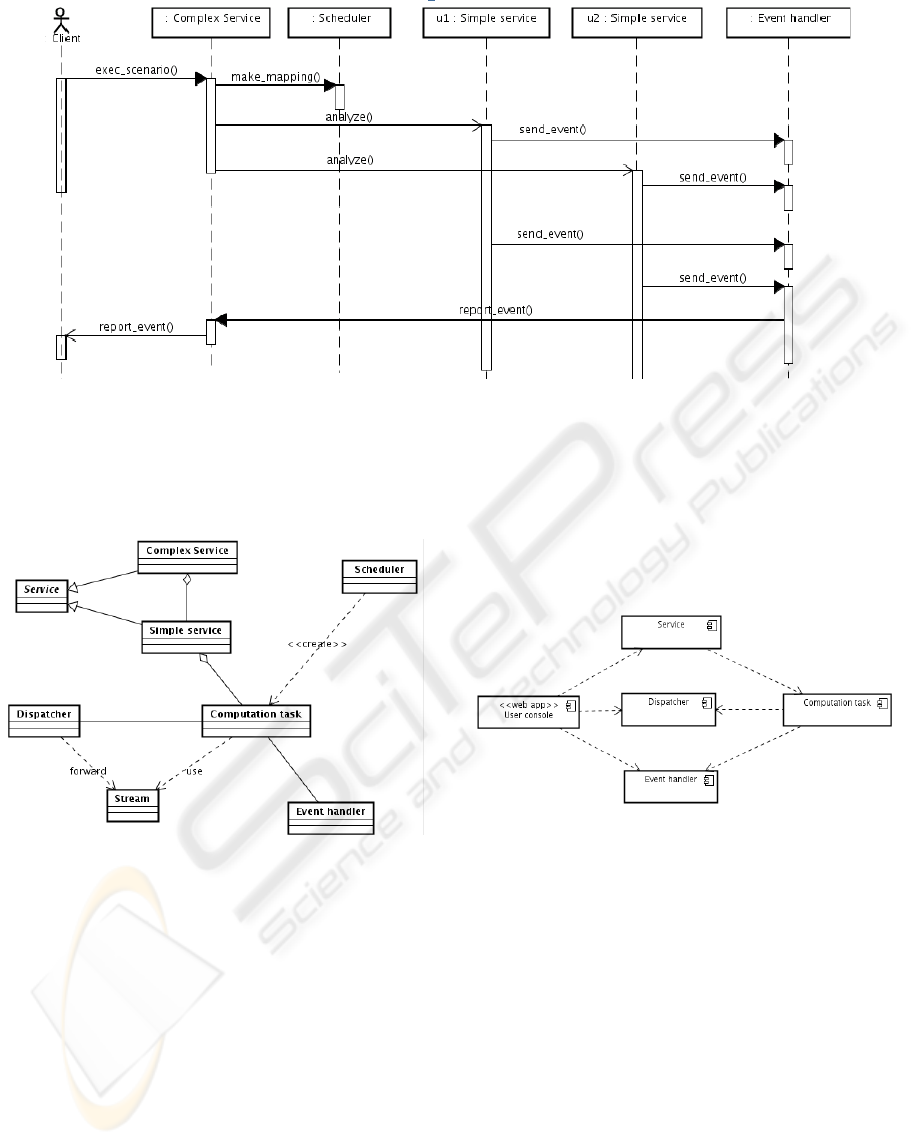

Figure 5: A sequence diagram of the complex service execution within the domain model (see figure 6).

communication within JMS (Oracle Corp., 2010c)

interface. The result return will be performed in

separated objects (and components): Event Handler

for messages and Dispatcher for multimedia streams.

Figure 6: Domain class diagram of the KASKADA

platform.

According to the assumed processing model, simple

services manage the distribution of the input and

output data streams (see figure 1) for their

computational tasks. The object of classes

Dispatcher and Scheduler support this functionality.

Moreover the responsibility of the Dispatcher object

is the stream recording in the storage and sending

them back to the client. The example sequential

diagram of the simple service is presented in figure

Computational tasks – the executable code of the

multimedia stream analysis algorithms embedded in

the framework accomplish the appropriate

computations. They receive the multimedia streams

generated by camera, microphone, or other device

(e.g. medical equipment) and send an output data

stream including discovered event messages or

processed multimedia stream, which are delivered to

the proper components, respectively Event Handler

and Dispatcher, forwarding them through the service

layers to the client – a user or an external application

(see figure 7).

Figure 7: Component diagram of the KASKADA

platform.

During the algorithm implementation, the

programmer can use software components provided

by the computation cluster environment: POSIX

threads (The Open Group, 1997) and openMP

(OpenMP Architecture Review Board, 2010) library

for shared memory processing and object

serialization (supported by boost library (Boost.org,

2010)) for object data exchange between the

computational tasks.

Almost all the above domain classes can be

straightforwardly converted into the software

components of the proposed platform. The only

exception is the User Console component which

aggregates Scheduler class as well as manages the

other platform components including operations on

the multimedia and other data streams (especially in

KASKADA - MULTIMEDIA PROCESSING PLATFORM ARCHITECTURE

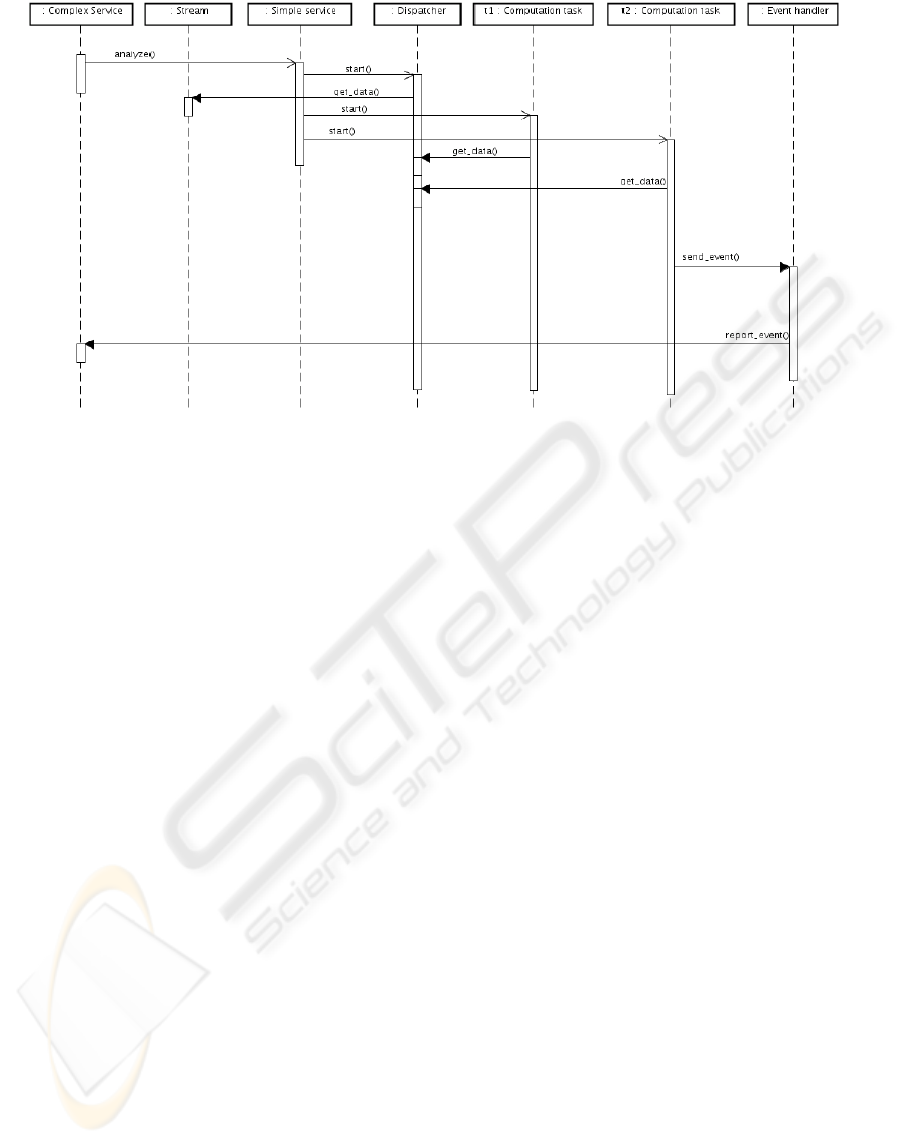

Figure 8: A sequence diagram of the simple service execution within the domain model (see figure 6).

off-line mode – using recorded data), security and

service configuration and deployment (a service

repository with the WSDL (W3C, 2007b) and UDDI

(OASIS, 2002) support).

User console functionality is provided through a web

interface and can be easily accessed with an Internet

browser. For its development, we use JEE (Oracle

Corp., 2010b) standard supported by an application

server, i.e. a Tomcat web-container, including

technologies: JSP (Oracle Corp., 2010d) and AJAX

(Oracle Corp., 2010a).

4 THE HARDWARE

ARCHITECTURE

To execute computation tasks all software

components should be deployed on computer

systems. Figure 9 presents the deployment diagram

including hardware nodes with the assigned software

components. The core of the platform is the cluster

executing computational tasks. It consists of 672

two-processor nodes connected by the fast

Infiniband (IBTA, 2010) network, each processor

has 8 cores, which gives in total 5376 cores.

The stream managing sever is responsible for

multimedia stream format and communication

protocol conversion enabling its usage by the

computational tasks and receiving by the clients. It is

especially important due to the large number of

streams and network load minimizing strategy: some

cameras or other devices, do not support mutlicast

(Savola, 2008) data transmission, so it needs to be

provided by the platform. The Dispatcher

component is responsible for this functionality, as

well as stream recording and archiving.

The process managing server is responsible for

direct cooperation with the client software. Here are

deployed services and the User console component.

It is prepared for serving a large number of

webservices, the simple ones – which are easily

mapped to the computational tasks, as well as the

complex ones – executing the scenarios.

The messaging server supports the Event handler

component. It enables receiving, analysis and former

processing of the data (but not multimedia) streams

containing discovered events. It cooperates with the

process managing server where the event related

services are deployed.

The data server is used for recorded data storage.

We plan to use high performance hard drives with

500TB capacity and the Lustre file system (Oracle

Corp., 2010e), the server is going to be connected to

the cluster and other servers by the Infiniband

(IBTA, 2010) network, for its low delay and high

bandwidth.

During the initial phase of the project, three pilot

applications are to be developed. The first one is

supposed to provide automatic detection, recognition

and alerting, for dangerous events and objects in the

audio-video streams received from the security

monitoring cameras. The next application is

responsible for detection of abnormal characteristics

during endoscopy. The third application enables

detection of copyright violation of the electronic

productions, compositions and documents.

SIGMAP 2010 - International Conference on Signal Processing and Multimedia Applications

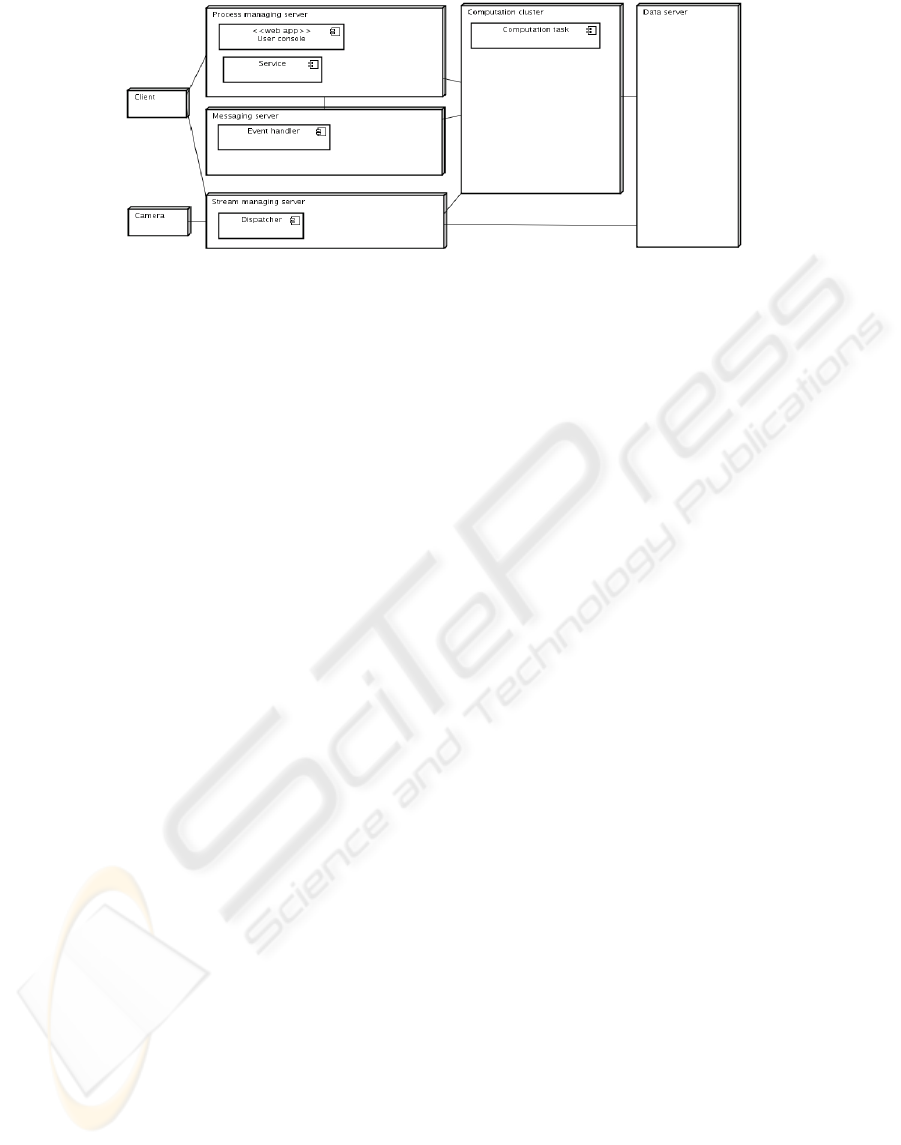

Figure 9: Deployment diagram of KASKADA platform.

5 CONCLUSIONS

The proposed architecture is supposed to process the

great amount of data generated by the multimedia

stream sources. The performed requirements

analysis indicated the software components to be

implemented for the proper functionality and

quality. The proof-of-concept prototype is already

developed providing an exemplary web-service and

the web application for managing and monitoring its

behavior.

The current development of the platform is

focused on the software components and framework

libraries. The future work is going to cover further

component development, deployment, and tests. The

quality analysis is still to be performed, especially

for such factors as: effectiveness, performance,

reliability, security and safety. The additional work

needs to be done for supporting algorithm

implementation and assessment.

REFERENCES

Apache Software Foundation, 2010. ActiveMQ Homepage,

Available: http://activemq.apache.org/

Boost.org, 2010. boost C++ Homepage, Available:

http://www.boost.org/

El-Rewini H., Lewis T. G., Ali H. H., 1994. Task

Scheduling in Parallel and Distributed Systems,

Prentice-Hall Series In Innovative Technology

Haouari M., Serairi M., 2009. Heuristics for the variable

sized bin-packing problem, Computers & Operational

Research 36, 2877-2884

IBTA, 2010. InifniBand Trade Association Homepage,

Available: http://www.infinibandta.org/

Krafzig D., Banke K., Slama D., 2004. Enterprise SOA:

Service-Oriented Architecture Best Practices, Prentice

Hall PTR

Krawczyk H., Banczyk K., Proficz J., 2010. Parallel

processing of multimedia stream, XV Conference

Computer Applications in Electrical Engineering,

Poznan, Poland, 267-268

OASIS, 2002. UDDI Version 2 Specifications, Available:

http://www.oasis-open.org/committees/uddi-spec/doc/

tcspecs.htm#uddiv2

OMG, 2009. Unified Modeling Language (UML), v. 2.2,

Available: http://www.omg.org/technology/documents/

formal/uml.htm

OpenMP Architecture Review Board, 2010. OpenMP

Homepage, Available: http://openmp.org/

Oracle Corp., 2010a. Ajax Technology Center, Available:

http://developers.sun.com/scripting/ajax/

Oracle Corp., 2010b. Java Enterprise Edition (JEE,

J2EE), Available: http://java.sun.com/javaee/

Oracle Corp, 2010c. Java Message Service (JMS),

Available: http://java.sun.com/products/jms/index.jsp

Oracle Corp, 2010d. Java Server Pages, Available:

http://java.sun.com/products/jsp/

Oracle Corp., 2010e, Lustre Homepage, Available:

http://wiki.lustre.org/

Savola P., 2008. Overview of the Internet Multicast

Routing Architecture, RFC 5110, Available:

http://www.faqs.org/rfcs/rfc5110.html

Schulzrinne H., Rao A., Lanphier R., 1998. Real Time

Streaming Protocol (RTSP), RFC 2326, Available:

http://www.ietf.org/rfc/rfc2326.txt

TASK, 2010. Academic Computation Center – TASK

Homepage, Gdansk University of Technology,

Available: http://www.task.gda.pl/

The Open Group, 1997. The Single UNIX ® Specification,

Version 2, Threads, Available: http://opengroup.org

/onlinepubs/007908775/xsh/threads.html

W3C, 1999. Hypertext Transfer Protocol – HTTP/1.1

Specification, RFC 2612, Available: http://

www.w3.org/Protocols/rfc2616/rfc2616.html

W3C, 2007a. Simple Object Access Protocol

Specification, Available: http://www.w3.org/TR/soap/

W3C, 2007b. Web Services Description Language (WSDL),

Available: http://www.w3.org/TR/wsdl20-primer/

KASKADA - MULTIMEDIA PROCESSING PLATFORM ARCHITECTURE
