PATTERNS FOR TEMPORAL REQUIREMENTS ENGINEERING

A Level Crossing Case Study

∗

A. Mekki

1,2

, M. Ghazel

1,2

and A. Toguyeni

1,3

Univ Lille Nord de France, F-59000 Lille, France

INRETS, ESTAS, F-59666, Villeneuve d’Ascq, France

EC LILLE, LAGIS, F-59651, Villeneuve d’Ascq, France

Keywords:

Model Transformation, Time-Constrained System, UML State Machines, Timed Automata, Veriﬁcation and

Validation.

Abstract:

This work presents a method for verifying temporal requirements of time-constrained systems. The method

predates by establishing a new time constraints (properties) taxonomy. Then, a basis of observation patterns

relative to the predeﬁned requirements is developed. Our approach allows the automated veriﬁcation of tem-

poral requirements, initially expressed in a semi-formal formalism, through model transformation and model-

checking. The contributions of the paper are: the deﬁnition of a new time constraints (properties) typology

as well as a basis of appropriate State Machines (SM) observation patterns. The second contribution consists

in developing an algorithm for transforming UML SM with time annotations into Timed Automata (TA). In

practice, in order to verify the temporal aspects of a given speciﬁcation, the observation patterns relative to

the investigated properties are instantiated to make appropriate observers. Then using our transformation al-

gorithm, the system speciﬁcation (denoted in the shape of an UML SM model) with time annotations as well

as the obtained observers are translated into TA models. The TA system model is next synchronized with the

TA observers. Thereby, the veriﬁcation process is reduced to a reachability analysis.

1 INTRODUCTION

Given their practical implication on safety and cor-

rectness of critical applications (e.g. transportation

systems, nuclear plants), speciﬁcation and veriﬁca-

tion are one of the most important research topics in

critical systems engineering since such kind of sys-

tems must achieve a high level of robustness and relia-

bility. In addition, these systems usually involve time-

dependent functionality. Consequently, methods for

behavior modeling and verifying (especially temporal

requirements) are increasingly important. The most

used approaches for specifying timed systems are

based on Timed Automata (TA). TA are well suited

for expressing timed behavior and for modeling real-

time components. A number of automatic veriﬁcation

tools for TA have been developed and have proven to

be efﬁcient e.g., Uppaal (Larsen et al., 1997) and Kro-

nos (Yovine, 1997). Nevertheless, specifying and ver-

∗

This research has been partially supported by Rgion Nord Pas de Calais

and European fund Feder under the FUI National project FerroCOTS, la-

belled by i-Trans.

ifying time constraints is becoming a more and more

difﬁcult task due to the widespread applications and

increasing complexity of checked systems. Despite

the different advantages proposed by TA, such as par-

allel composition, users often need to manually ex-

press the time properties into a set of clock variables

with complex calculated clock constraints. This pro-

cess is tedious, error-prone and requires sophisticated

logical and/or mathematical skills.

On the other hand, in order to cope with the com-

plexity of critical systems engineering, approaches

based on Model Driven Engineering (MDE) seems

to be very useful (Schmidt, 2004). The aim of this

work is to introduce a new temporal requirements’

veriﬁcation method based on MDE. First, we deﬁne

a Patterns’ Basis for monitoring time constraints. In-

deed, based on a new time constraints’ classiﬁcation,

we developed a set of time observation patterns ex-

pressed in Uniﬁed Modeling Language (UML) State

Machines (SM)(UML, 2009): this is expected to be a

relatively inexpensive activity since this procedure is

done once and for all. UML has been chosen since it

is relatively intuitive, offers a graphic description, is

Mekki A., Ghazel M. and Toguyeni A. (2010).

PATTERNS FOR TEMPORAL REQUIREMENTS ENGINEERING - A Level Crossing Case Study.

In Proceedings of the 7th International Conference on Informatics in Control, Automation and Robotics, pages 45-52

DOI: 10.5220/0002947500450052

 SciTePress

implemented by several tools and ﬁnally is a standard

notation well supported by the Object Management

Group. This set of patterns facilitates high-level sys-

tem design. These patterns cover a large class of com-

mon time constraints.

Since our aim is to keep a high precision level,

a subsequent step consists in giving an accurate def-

inition of each developed pattern. Hence, for each

pattern, we give (1) a textual deﬁnition, (2) an UML

SM model, (3) a structured English speciﬁcation

and ﬁnally (4) a temporal logic expression (Timed

Computational Tree Logic (TCTL)) relative to the

property concerned.

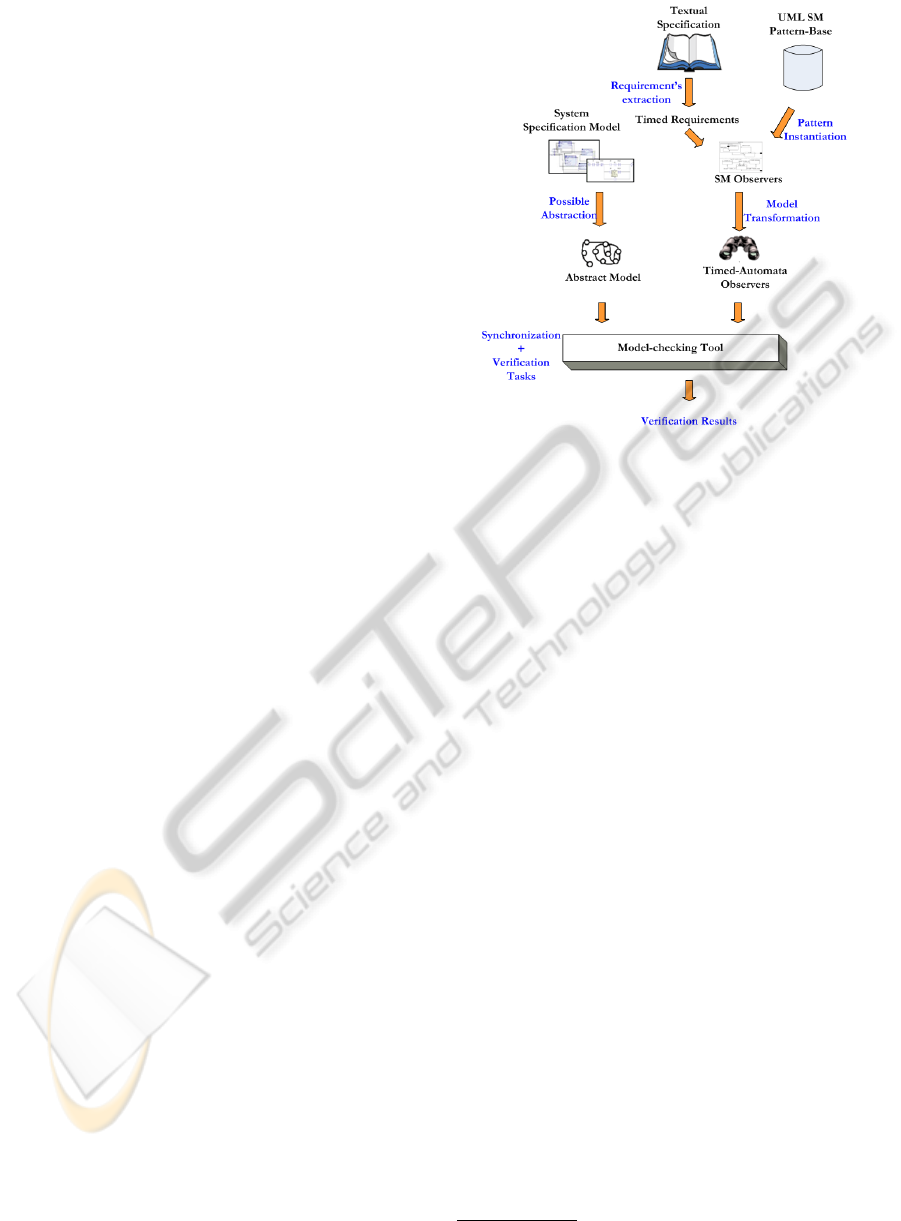

Concretely, the veriﬁcation process is based on the

set of patterns. The suitable patterns corresponding

to the time constraints extracted from the system re-

quirements are picked up and instantiated. This in-

stantiation step generates a set of SM Observers. The

SM observers are translated into more formal nota-

tion, the TA, which provides support for the prop-

erties’ veriﬁcation. The translation is made accord-

ing to a transformation algorithm that will be dis-

cussed later in the paper. In this way, analyzers ex-

ploit the beneﬁts of formal notations without having

to go through the complex and expensive formal mod-

eling phase. This transformation generates a set of

TA Observers. A system’s model, which is also gen-

erated by the same transformation algorithm, is syn-

chronized with the obtained TA observers to obtain

a global model. Hence, the veriﬁcation task is per-

formed, on this obtained model, with a reachability

analysis while checking whether the observers’ for-

bidden states - corresponding to constraints violation

- are reachable.

The paper is organized as follows. In Section 2,

we set the context and we brieﬂy go through some

related works. Section 3 describes our ﬁrst contribu-

tion by introducing the new time-constraints taxon-

omy and the patterns basis. The second contribution

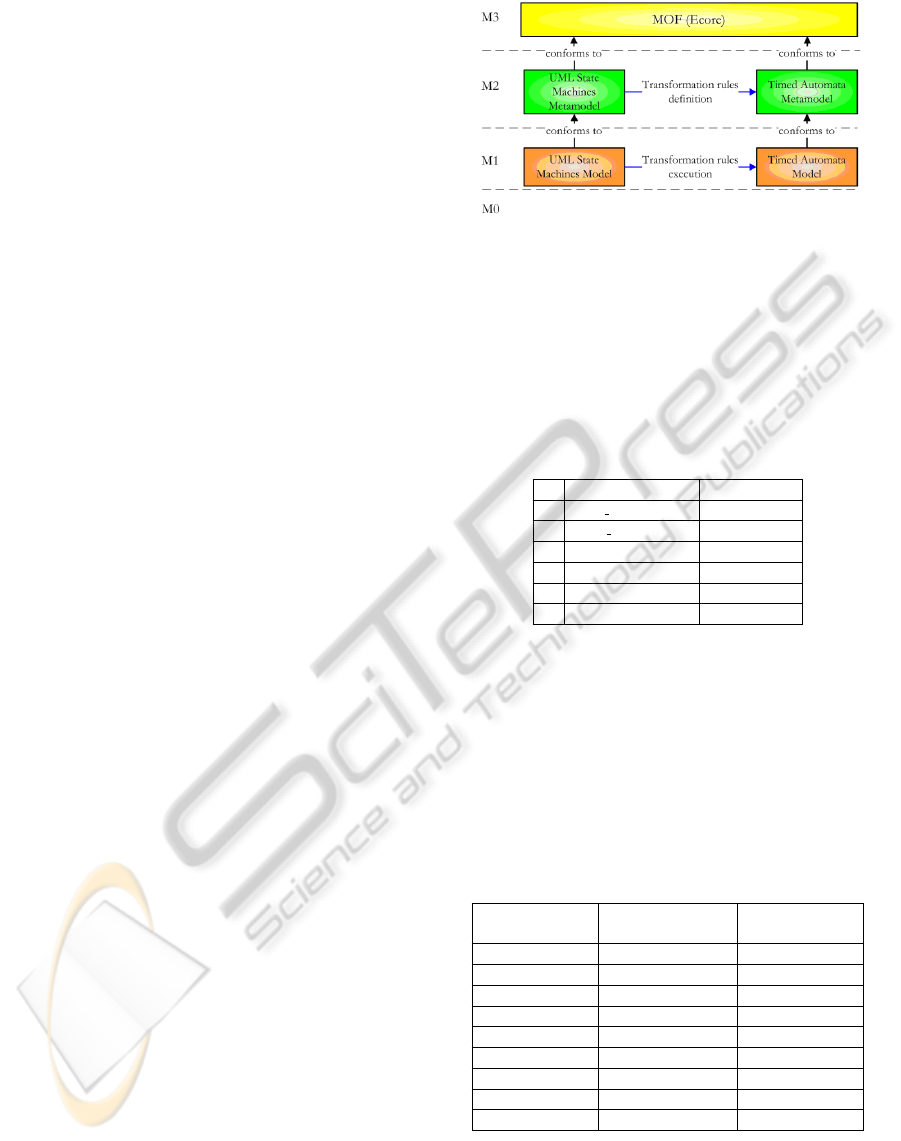

of our method is outlined in Section 4 where the trans-

lation from UML SM, with time annotations, to TA

is described. The method is illustrated using a Level

Crossing (LC) case study in Section 5. Section 6 con-

cludes the paper while drawing some future work.

2 CONTEXT AND BACKGROUND

2.1 Related Work

There are many recent research efforts in the ﬁeld

of time-constrained system validation. Only two of

these research will be discussed in this section. First,

based on the Dwyer (Dwyer et al., 1999) pattern basis,

Dhaussy (Dhaussy et al., 2009) deﬁnes a textual lan-

guage, called ”CDL”, for requirement speciﬁcation.

The requirements are then translated into observer au-

tomata. Furthermore, Dhaussy deﬁnes for each re-

quirement a path, called ”context” where the require-

ment should be checked. Finally, the system model,

the observer automata and the context are translated

into IF notation (Intermediate Format). Then, the ver-

iﬁcation is carried out using the IFx tool. Second,

Nascimento (Nascimento et al., 2009) presents an ap-

proach for automatic generation of network of timed

automata from a functional speciﬁcation depicted via

UML class and sequence diagrams. Nascimento uses

UML sequence diagrams for the property speciﬁca-

tion phase. However, sequence diagrams suffer from

a limited expressiveness when dealing with temporal

aspects, since they only depict order.

Unlike the above methods, our approach uses TA

as target notation; TA are assumed to be more expres-

sive and well supported.

On the other hand, several projects have intro-

duced natural-language-based approaches where nat-

ural language is mapped into a more formal speciﬁ-

cation. (Dwyer et al., 1999) proposes several patterns

applicable to properties speciﬁcation expressed in dif-

ferent formalisms and logics such as LTL, CTL, GIL,

and quantiﬁed regular expressions (QRE). (Konrad

and Cheng, 2005) proposes an extension to Dwyer’s

classiﬁcation and real-time properties are added to the

original classiﬁcation. Moreover, TCTL, MTL and

RTGIL are used to specify the added real-time prop-

erties.

Comparatively to the above-mentioned works, our

contribution offers the following advantages:

• Our method takes advantage of the ﬂexibility and

expressiveness of UML SM in modeling tasks and

the precision of TA formalism in the veriﬁcation

tasks, also UML SM are more expressive than

UML sequence diagrams or UML collaboration

diagrams used in other works,

• TA are well supported,

• Patterns facilitate high-level speciﬁcation and pro-

mote reusability and knowledge capitalization,

• The veriﬁcation task is reduced to a reachability

analysis, this allows us to overcome some limita-

tions met with some existing tools, such as Up-

paal.

2.2 Observer Technique

We deal with observer whenever we set artifacts to

watch system behavior (Dong et al., 2008). Let us

recall here that the goal of our approach is to check

whether the temporal requirements expected from a

ICINCO 2010 - 7th International Conference on Informatics in Control, Automation and Robotics

given system are satisﬁed. Hence, we make use of

observers in order to express the satisfaction vs the vi-

olation of the predeﬁned requirements (Ghazel et al.,

2009). Typically, checking a given temporal property

consists in examining whether the error state of the

corresponding observer is reachable.

3 OBSERVATION PATTERNS

In this section, we ﬁrst propose a classiﬁcation of

all the common temporal requirements one may meet

when dealing with critical systems. Then, we develop

a structured English grammar that we use to express

the predeﬁned properties. Next, we introduce the pat-

terns used in order to monitor the predeﬁned temporal

requirements. Finally, a standardized description of

these patterns is suggested.

3.1 Main Time-constraints

We strive to identify all the common requirements

one may meet when dealing with critical systems.

The main identiﬁed requirements are deﬁned and ex-

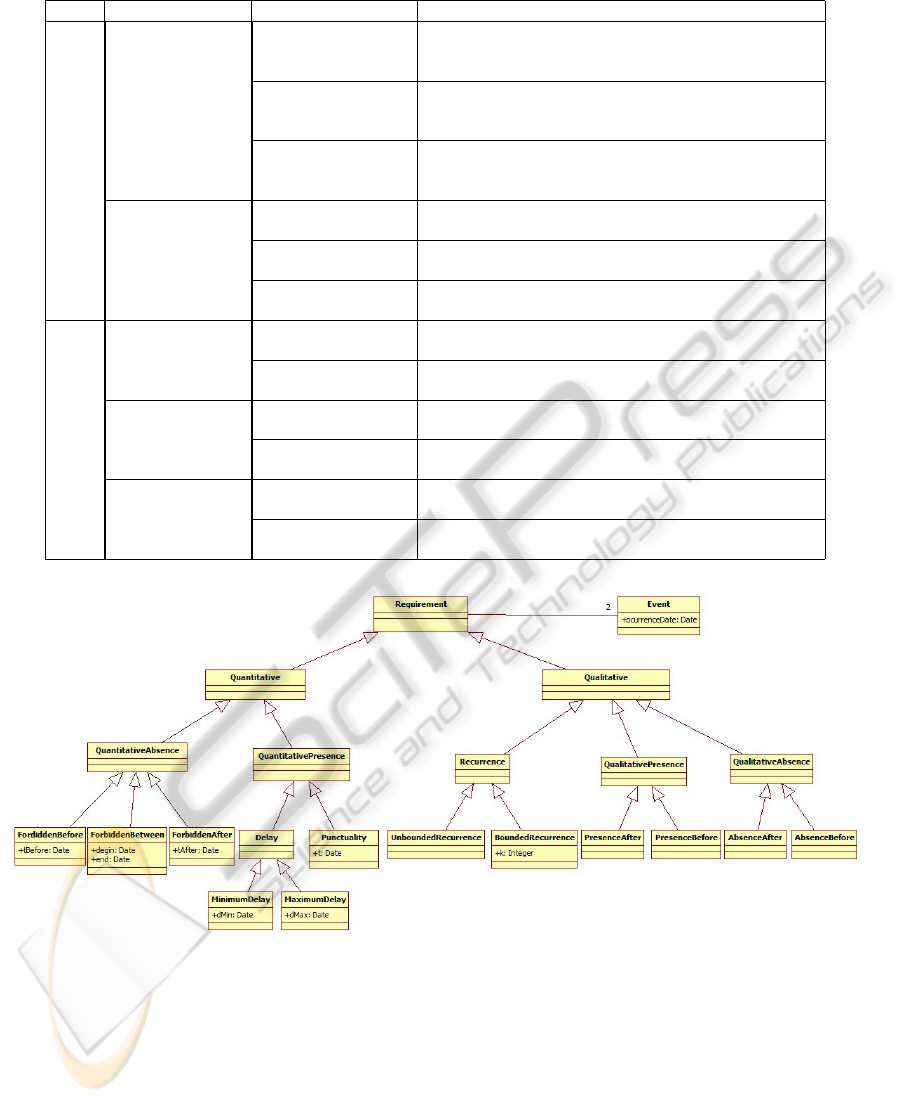

plained in Table 1 (The relation which denotes that a

system S satisﬁes a requirement R is written S|=R)

and also are depicted in the shape of a UML Class

diagram (Figure 1). This classiﬁcation offers the ad-

vantage that it deals with requirements on events only,

since we used to express the requirements on states

using two events: the ﬁrst event represents the activa-

tion of the state and the other the deactivation.

3.2 Structured English

To facilitate the expression and the formalization of

temporal properties, we have developed a structured

English grammar. This grammar supports both quali-

tative and quantitative properties. Each sentence gen-

erated by our grammar describes a temporal property

and serves as handler that helps expressing and under-

standing the requirement. Our grammar is expressed

below using BNF (Backus-Naur Form ) notation:

Property = {<Scope>: <Speciﬁcation>};

Speciﬁcation = {<Entity><Obligation>occur <Reference>} ;

Scope = Global |Before <Entity>|After <Entity>|Between

<Entity>and <Entity>;

Entity = “Event” |“Active( State)” |“Desactive(State)”;

Obligation = must |cannot;

Reference = ((exactly at <time>over) |(After [a delay of <

time>over]) |(<Before [a delay of <time>over])) <Entity>;

Time = <Number>tu;

Number = <Digit>+ ;

Digit = {0|1|2|3|4|5|6|7|8|9} ;

Literal terminals are given in bold font, non-literal

terminals are delimited by quotation marks (“ ”) and

non-terminals are given in italics. The start symbol

of the grammar is property and the language L of the

grammar is ﬁnite, since the grammar is non-circular

and has no repetitions.

3.3 Observation Patterns Basis

A pattern is a commonly reusable model in software

systems that guarantees a set of characteristics and

functionalities. The identiﬁcation of a pattern is based

on the context in which it is used. The goal behind de-

veloping patterns is to offer a support for system de-

sign and development. Using patterns helps in keep-

ing design standardized and useful and minimizes the

reinventing in the design process, since they facili-

tate reusability and knowledge capitalization (Gamma

et al., 1995).

In this work, we deﬁne a set of patterns which

will serve as basis to generate observers for all the

identiﬁed temporal requirements. The notation used

is UML State Machines. The basis of patterns is in-

troduced regardless the systems’ speciﬁcation and is

used to model all the common temporal requirement

types that one may express. This pattern basis guar-

antees the reusability and the genericity of the mech-

anisms developed within our approach.

3.4 Pattern Formalization

We have introduced a new temporal requirement clas-

siﬁcation that is used in implementing our pattern

repository. Additionally, we include a graphical rep-

resentation of each pattern in the shape of UML SM

diagram. This ﬁeld will be used later as input model

to the model transformation phase. Each pattern in

the repository contains the following ﬁelds:

Pattern Name: The pattern name serves as a handle

for the pattern’s use and describes the type of the

pattern.

Pattern Deﬁnition: A short description and deﬁni-

tion of the requirement for which the pattern is

used.

Scoped Structured English Speciﬁcation: The

scoped structured English sentence captures the

invoked property using the grammar deﬁned

previously. The scope, initially introduced by

Dwyer in (Dwyer et al., 1999), is used to express

the applicability interval (scope) of the property.

Four scopes are used in our grammar: globally,

before an event occurs, after an event occurs and

between two events.

PATTERNS FOR TEMPORAL REQUIREMENTS ENGINEERING - A Level Crossing Case Study

Table 1: Temporal Requirement’s Taxonomy Descriptions.

Class Category Pattern Name Description

Quantitative

QuantitativeAbsence

Forbidden Before

R ensures that an event (E

mon

) must never occur before a minimum

be f ore

(time unit over E

Re f

). S|=R is true if this event does not occur

before T

be f ore

Forbidden After

R ensures that an event (E

mon

) must never occur after a deadline T

a f ter

(time unit over E

Re f

). S|=R is true if this event does not occur after

a f ter

Forbidden Between

R ensures that an event (E

mon

) must never occur between a temporal

interval ]t

Begin

; t

End

[ (over E

Re f

). S|=R is true if this event does not

occur between temporal interval ]t

Begin

; t

End

QuantitativePresence

MinimumDelay

R ensures that an event (E

mon

) must occur after a minimum time T

min

(time unit over E

Re f

). S|=R is true if this event occurs after T

min

MaximumDelay

R ensures that an event (E

mon

) must occur before a deadline T

max

(time unit over E

Re f

). S|=R is true if this event occurs before T

max

Punctuality

R ensures that an event (E

mon

) must occur at one punctual date t (time

unit over E

Re f

). S|=R is true if this event occurs at the t date.

Qualitative

Recurrence

UnboundedRecurrence

R ensures that an event (E

mon

) must occur inﬁnity of time. S|=R is

true if this event occur.

BoundedRecurrence

R ensures that an event (E

mon

) must occur k time. S|=R is true if this

event occur k time.

QualitativePresence

PresenceAfter

R ensures that an event (E

mon

) must occur after E

Re f

have been de-

tected. S|=R is true if this event occurs at least once after E

Re f

PresenceBefore

R ensures that an event (E

mon

) must occur before E

Re f

. S|=R is false

if E

Re f

occurs before E

mon

QualitativeAbsence

AbsenceAfter

R ensures that an event must never occur after E

Re f

. S|=R is true if

this event does not occur.

AbsenceBefore

R ensures that an event (E

mon

) must never occu before E

Re f

r. S|=R

is true if E

mon

does not occur before E

Re f

Figure 1: Temporal Requirements Classiﬁcation.

Temporal Logic Description: Contains mappings

of the property monitored by the pattern to

TCTL for each of the four deﬁned scopes. We

chose TCTL since it allows quantitative temporal

properties expression.

4 TRANSFORMATION

APPROACH

Since the observation patterns’ basis has been intro-

duced, we will discuss now how to use this basis in

the veriﬁcation process. In practice, once the tempo-

ral requirements for the system under study are iden-

tiﬁed and extracted, the appropriate patterns for these

ICINCO 2010 - 7th International Conference on Informatics in Control, Automation and Robotics

requirements are selected and instantiated with the

suitable parameters, thus resulting in some SM ob-

servers. Each SM observer monitors an elementary

requirement. The SM observers are then translated

into TA observers. This transformation will be pre-

sented hereafter.

4.1 Transformation Idea

In spite of the number of automated analyzers devel-

oped for TA, these tools suffer from two main lim-

itations: the ﬁrst is that users must be familiar with

their formal notations. The second is the lack of pat-

terns for high-level system design (hierarchy notion

namely). On the other hand, semi-formal languages,

such as UML SM, are suitable for expressing system

requirements. However, the automatic veriﬁcation of

these models is unfeasible directly. The temporal re-

quirement veriﬁcation approach that we propose takes

advantage of the expression ﬂexibility of SM and the

analysis facilities offered by TA formalism.

The various rules of the transformation algo-

rithm we have deﬁned are expressed according to the

Model-Driven Architecture (MDA) approach. MDA

is an initiative and a standard proposed by the OMG,

allowing developers to create systems entirely based

on models. It points out the idea of separation of con-

cerns by unlinking/uncoupling the application logic

from the implementation platforms technology (Weis

et al., 2003).

Figure 2 illustrates the use of the MDA four-layer

metamodeling architecture for our transformation;

• The source model (resp. target model) is ex-

pressed according to the source metamodel (resp.

target metamodel),

• The metamodels are deﬁned and expressed ac-

cording to the MOF metametamodel (in our trans-

formation, we used the Ecore metametamodel,

which is the Eclipse implementation of MOF),

• A metamodel is developed for TA. On the other

side, we used the UML metamodel distributed in

the Eclipse framework,

• All the rules are introduced at the metamodel

level,

• The transformation takes a UML SM model as a

source model and generates a TA model with a

corresponding formatted code.

4.2 Time Annotations

Here we use SM as a modeling notation to take advan-

tage of the ﬂexibility they offer. However, since we

strive to obtain an accurate speciﬁcation, we should

Figure 2: Transformation Approach.

guide the user while introducing the temporal con-

straints. Concretely, we propose a set of timed anno-

tations in order to express the states’ characteristics as

well as the transition guards. Table 2 shows some ex-

amples of them and deﬁnes the signiﬁcation of each

annotation.

Table 2: Time annotations used.

Time annotation Signiﬁcation

1 at most(T

max

) t≤ T

max

2 at least(T

min

) t≥ T

min

3 after(d) t=d

4 between(T

min

, T

max

) T

min

≤t≤ T

max

5 upper(T

min

) t> T

min

6 lower(T

max

) t< T

max

4.3 Transformation Algorithm

One of the key parts of our method is the translation

of UML SM with time annotations into TA. For sake

of space, we will brieﬂy describe the transformation

rules while giving the source and target element for

each of them in 3. For more details, the reader can

refer to (Mekki et al., 2010).

Table 3: Transformation Rules.

Rule Name Source element:

UML SM

target element:

FromStateMachine StateMachine TA

Simple2Simple State State

Final2State Final Pseudostate State

OR2Automata State Automaton

AND2Automata State Automaton

Trans2Trans Transition Transition

Entry2State EntryAction State

Exit2State ExitAction State

Do2State DoActivity State

The main rule of this algorithm is FromStateMa-

chine rule. This rule is the ﬁrst one carried out by

the transformation algorithm. It picks elements in

the source model, then calls on other rules to trans-

late the selected elements into TA elements in the tar-

PATTERNS FOR TEMPORAL REQUIREMENTS ENGINEERING - A Level Crossing Case Study

get model. Likewise, the called rules behave in the

same way; they select elements in the source model

and call the appropriate rule for transforming them.

For example, the FromStateMachine rule is applied

to elements of type “UML::StateMachine” and trans-

lates them into a “TA::AutomataMachine” element.

Also, different element types are selected and differ-

ent rules are called on in this rule. First, the rule

selects all the UML states. Then for each selected

state, according to its type, the rule Simple2Simple or

OR2Automata or AND2Automata is called on. Sec-

ondly, it translates the “UML::Transition” elements

by invoking rule Trans2Trans. Also, this rule deals

with another element type, the “UML::Pseudostate”,

by invoking some other rules such as Final2State.

This internal transformation process is the same

for all the rules; each rule transforms the source ele-

ment into the target one. Then, it selects subelements

of the source element and calls on the appropriate rule

to transform them.

4.4 Veriﬁcation Process

Once our observation patterns’ basis is implemented,

we introduce a veriﬁcation process based on this ba-

sis. This section will outline the global architecture

of our approach. The architecture is depicted graphi-

cally in Figure 3 (Mekki et al., 2009).

Concretely, our approach is composed of four pro-

cesses: ﬁrst, temporal requirements for the system un-

der study are identiﬁed and extracted. Second, the

appropriate patterns for these extracted requirements

are selected and instantiated with the suitable param-

eters. This second process results in some SM ob-

servers. Each SM observer corresponds to an elemen-

tary requirement. Third, the SM observers are trans-

lated into TA observers. In parallel and in the same

way, the speciﬁcation under study (SM model with

time annotations) is abstracted and translated into a

TA model. The translation from the UML SM to TA

is performed using the MDA model transformation

technique as shown previously.

Finally, the generated TA are synchronized with

the formal system’s speciﬁcation model (TA) to gen-

erate a global model holding both the system speci-

ﬁcation and the requiements’ monitoring. Thus, the

veriﬁcation task is reduced to an error-state reachabil-

ity search on the obtained global model.

Figure 3: Method Global View.

5 CASE STUDY

5.1 Case Study Description

A classical automatic level crossing system is com-

posed of several modules. The local control sys-

tem which manages the trafﬁc in the crossing area,

a pair of barriers (gate), trafﬁc lights whose role is to

alert and prevent road users from entering the cross-

ing zone and a train-sensing module which monitors

trains approaching/leaving (Ghazel, 2009). The sub-

systems mentioned above execute in parallel and syn-

chronize through events.

Several requirements

∗

are given in textual speci-

ﬁcation in Figure 4. Next, using this textual speciﬁ-

cation, we will show how patterns are used to express

and monitor requirements.

5.2 Using Patterns

For sake of space, only two requirements will be

checked on the basis of the textual system speciﬁ-

cation. For each requirement, formalization is intro-

duced using the deﬁned generic template. First, a tex-

tual description of the requirement is presented, fol-

lowed by an intuitive graphical representation in the

shape of an UML SM (SM patterns). Then, a deﬁ-

nition using our structured English grammar is given

and ﬁnally a temporal logic expression is used to ex-

press formally the requirement. 1) The 1

require-

∗

http://www.dagstuhl.de/ﬁleadmin/redaktion/Programm/Seminar/

07241/07241.CaseStudy.pdf

ICINCO 2010 - 7th International Conference on Informatics in Control, Automation and Robotics

1. “. . . As long as an approaching train runs over the activation

sensor the sensor shall generate an occupied signal. When the last

axle of the train has traversed the activation sensor it shall

generate a free signal again. If the control unit receives an

occupied signal from the activation sensor in the unsaved mode, it

will enter the saving mode and gives the command to turn on the

yellow lamp of the set of lights. Three seconds after entering the

saving mode the control unit has to give the command for

switching off the yellow lamp and turning on the red lamp. . . ”

2. “. . . By entering saved mode the controller shall switch on the

supervision signal to show signal aspect LC1, which means to turn

on the blinking light. Twelve seconds after the system has entered

the safed mode it must start to lower the gate. The activity of

lowering or raising the gate must not last longer than six seconds

from one end position to the other. When the gate has reached the

lower end position within the six seconds interval the control unit

will enter the mode saved and gates closed. . . ”

Figure 4: Speciﬁcation Example.

ments states that three seconds after receiving the en-

tering signal, the controller should send command for

switching lights. This requirement consists in a punc-

tuality property (Figure 5) of 3 seconds between en-

tering signal and switch signal.

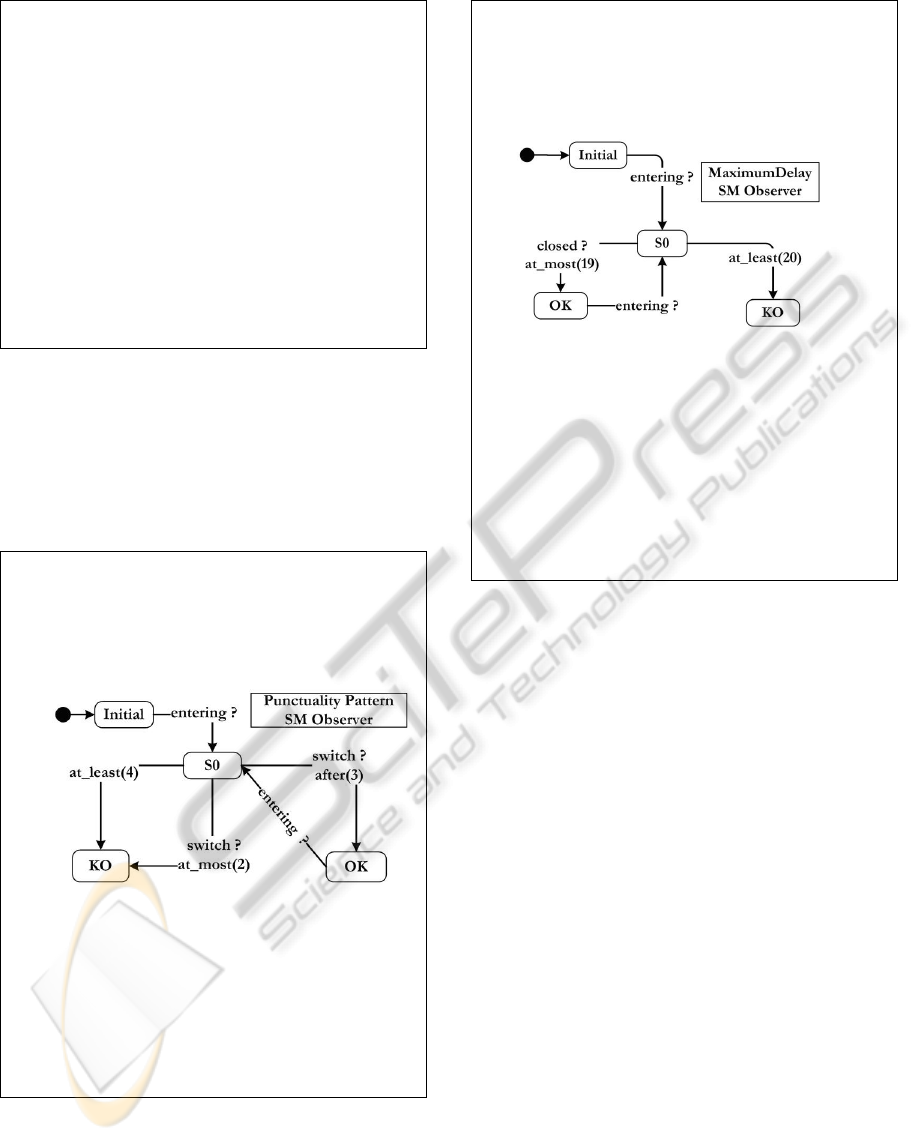

Punctuality Pattern

Pattern Name: Punctuality

Textual Description: The Punctuality pattern is used to check that a

given event execution is delayed by exactly d time units relatively

to a given reference.

UML SM Diagram:

Structured English:

Scope “switch” must occur exactly at “3” tu over “entering”.

Temporal Logic description:

Globally: AG[receive(entering) ⇒ AF

receive(switch)]

After E

: AG(E

→(EG[receive(entering) ⇒ AF

receive(switch)]))

Before E

: A((AG[receive(entering) ⇒ AF

receive(switch)]) U E

)

Between E

and E

P=AG[receive(entering) ⇒ AF

receive(switch)]

AG((E

∧¬E

)→(P) U E

)

Figure 5: Punctuality Pattern.

2) The 2

requirement states that the command sig-

nal closed should be detected at most 19 seconds after

entering signal. This requirement consists in maxi-

mumdelay property (Figure 6) of 19 time units be-

tween entering and closed signals.

MaximumDelay Pattern

Pattern Name: MaximumDelay

Textual Description: The MaximumDelay pattern is used to check if

event execution is delayed by at most a given value ` time units

from a given reference. This value ` should be in [0, T

max

] interval.

UML SM Diagram:

Structured English: Scope “closed” must occur Before a delay of

“19” tu over “entering”.

Temporal Logic description:

Globally: AG[receive(entering) ⇒ ¬closed U

≤19

receive(closed)]

After E

AG(E

→(AG[receive(entering) ⇒ (¬closed U

≤19

receive(closed))]))

Before E

A((AG[receive(entering) ⇒ (¬closed U

≤19

receive(closed))]) U E

)

Between E

and E

P=AG[receive(entering) ⇒ (¬closed U

≤19

receive(closed))]

AG((E

∧¬E

)→(P) U E

)

Figure 6: MaximumDelay Pattern.

5.3 Veriﬁcation

The above step consists in instantiating the appropri-

ate patterns in order to obtain observers for the ex-

tracted requirements. These observers are then trans-

lated into TA models to be synchronized with the sys-

tem speciﬁcation. The veriﬁcation process consists in

examining the reachability of the KO-states within the

observers. The veriﬁcation of our case study is carried

out using the UPPAAL model checker.

6 CONCLUSIONS

In this paper, we have presented a model-based

method applicable to formal speciﬁcation and valida-

tion of time-constrained systems. The approach uses

a set of observation patterns that we have established

and which act as watch-dogs for the deﬁned temporal

requirements. Each pattern has been deﬁned using a

standard template we developed. Using patterns of-

fers genericity and reusability.

On the other hand, we have developed a trans-

formation algorithm to translate SM with time anno-

tations into TA. The aim being to make a basis for

the veriﬁcation process. For this purpose, we have

PATTERNS FOR TEMPORAL REQUIREMENTS ENGINEERING - A Level Crossing Case Study

introduced a TA metamodel using an extended def-

inition of the original TA deﬁnition given by (Alur

and Dill, 1994) (for briefness reasons, the TA meta-

model description is omitted in this paper). Once the

relationships (transformations rules) between UML

SM metamodel elements and TA metamodel ele-

ments are deﬁned, we expressed them in the QVT

(Query/View/Transformation) language, deﬁned by

the OMG as the standard for the transformation phase.

Then we used QVTo -an Eclipse Plugin- to run the al-

gorithm.

Processing the veriﬁcation upon the TA observers

synchronized with the system speciﬁcation reduces

the veriﬁcation task to a reachability analysis of the

KO-nodes within the observers.

Validation of the model transformation algorithm

we have developed is a key issue to ensure the correct-

ness of our approach. Hence, a rigorous validation

step is still needed where several properties should

be checked such as; syntactic and behavioral equiv-

alence, termination and conﬂuence (K

uster, 2006).

Based on the structured English grammar we have

developed, a prototype tool which offers interest-

ing facilities in terms of requirements speciﬁcation

and requirements consistency-check has been imple-

mented. A subsequent step will be to extend this tool

with a new module which automatically instantiates

observers for the entered requirements using the ob-

servation patterns repository.

REFERENCES

Alur, R. and Dill, D. (1994). A theory of timed automata.

Theoretical Computer Science, 126:183–235.

Dhaussy, P., Pillain, P.-Y., Creff, S., Raji, A., Traon, Y. L.,

and Baudry, B. (2009). Evaluating context descrip-

tions and property deﬁnition patterns for software for-

mal validation. In 12th ACM/IEEE International Con-

ference, MODELS 2009, Denver, Colorado, USA.

Dong, J. S., Hao, P., Qin, S., Sun, J., and Yi, W. (2008).

Timed automata patterns. IEEE Transactions on Soft-

ware Engineering, 34(6):844–859.

Dwyer, M. B., Avrunin, G. S., and Corbett, J. C. (1999).

Patterns in property speciﬁcations for ﬁnite-state ver-

iﬁcation. In In Proceedings of the 21st International

Conference on Software Engineering, pages 411–420.

Gamma, E., Helm, R., Johnson, R., and Vlissides, J.

(1995). Design Patterns : Elements of Reusable

Object-Oriented Software. Addison Wesley.

Ghazel, M. (2009). Using stochastic petri nets for level-

crossing collision risk assessment. IEEE Transaction

on Intelligent Transportation Systems, 10(4):668–677.

Ghazel, M., Toguyni, A., and Yim, P. (2009). State ob-

server for DES under partial observation with time

petri nets. Journal of Discrete Event Dynamic Sys-

tems, 19(2):137–165.

Konrad, S. and Cheng, B. (2005). Real-time speciﬁca-

tion patterns. In Proceedings of the 27th Interna-

tional Conference on Software Engineering (ICSE05),

St Louis, MO, USA.

uster, J. M. (2006). Deﬁnition and validation of model

transformations. Software and System Modeling,

5(3):233–259.

Larsen, K., Pettersson, P., and Yi, W. (1997). Uppaal in a

nutshells. International Journal of Software Tools for

Technology Transfer, 1(1/2):134–152.

Mekki, A., Ghazel, M., and Toguyeni, A. (2009). Vali-

dating time-constrained systems using uml statecharts

patterns and timed automata observers. In 3rd Inter-

national Workshop on Veriﬁcation and Evaluation of

Computer and Communication Systems Vecos09, Ra-

bat, Morroco.

Mekki, A., Ghazel, M., and Toguyeni, A. (2010). Time-

constrained systems validation using mda model

transformation. In Proceedings of the 8th ENIM IFAC

International Conference of Modeling and Simula-

tion, Hammamet, Tunisia.

Nascimento, F., Oliveira, M., and Wagner, F. (2009). For-

mal veriﬁcation for embedded systems design based

on mde. In IESS’09 - International Embedded Sys-

tems Symposium, Friedrichshafen, Germany.

Schmidt, D. C. (2004). Model driven engineering. IEEE

Computer, 23(2):25–31.

UML (2009). Uniﬁed Modeling Language Speciﬁcation,

Version 2.2. OMG.

Weis, T., Ulbrich, A., and Geihs, K. (2003). Model meta-

morphosis. IEEE Software, IEEE Computer Society,

20(5):46–51.

Yovine, S. (1997). Kronos: a veriﬁcation tool for real-time

systems. International Journal of Software Tools for

Technology Transfer, 1(1/2):123–133.

ICINCO 2010 - 7th International Conference on Informatics in Control, Automation and Robotics
