A FLEXIBLE ROBOTICS AND AUTOMATION SYSTEM

Parallel Visual Processing, Realtime Actuator Control

and Task Automation for Limp Object Handling

Thomas M

uller, Binh An Tran and Alois Knoll

Robotics and Embedded Systems, Faculty of Informatics, Technische Universit

at M

unchen

Blotzmannstr. 3, 85748 Garching, Germany

Keywords:

Flexible automation, Parallel processing, Realtime actuator control, Limp object handling.

Abstract:

In this paper, an intrinsically parallel framework striving for increased ﬂexibility in development of robotic,

computer vision, and machine intelligence applications is introduced. The framework comprises a generic

set of tools for realtime data acquisition, robot control, integration of external software components and task

automation. The primary goal is to provide a developer- and user-friendly, but yet efﬁcient base architecture

for complex AI system implementations, be it for research, educational, or industrial purposes. The system

therefore combines promising ideas of recent neuroscientiﬁc research with a blackboard information storage

mechanism, an implementation of the multi-agent paradigm, and graphical user interaction.

Furthermore, the paper elaborates on how the framework’s building blocks can be composed to applications

of increasing complexity. The ﬁnal target application includes parallel image processing, actuator control, and

reasoning to handle limp objects and automate handling-tasks within dynamic scenarios.

1 INTRODUCTION

These days, robots are common in industrial produc-

tion setups. They accompany assembly lines all over

the world, as they have interesting properties for pro-

duction processes: they never tire, provide high ac-

curacy, and are able to work in environments not

suitable for humans. Still, todays industrial robots

are often limited to very speciﬁc repetitive tasks, as

they must be statically programmed (“teached”) in ad-

vance. But industrial applications nowadays tend to

require greater ﬂexibility, as the manufactured prod-

ucts become highly customized and thus the produc-

tion scenarios become more complex. Also, automa-

tion engineers strive to advance to production ﬁelds

like handling of limp or deformable objects, that have

not been considered before. In this context sensori-

motor integration, visual servoing, and adaptive con-

trol are some of the most prominent buzz-words being

investigated in the recent past by academics.

The ﬂexible robotics and automation framework

presented in Section 3 refers to these topics and pro-

vides a generic, conﬁgurable, and interactive; but

nevertheless sound and efﬁcient foundation for such

tasks. Section 4 then shows, how the proposed frame-

work can be used to build an application for robot-

assisted, semi-automated limp object handling.

2 RELATED WORK

This section elaborates on how the proposed frame-

work ﬁts into ﬁndings / results of existing recent

research in related ﬁelds. Furthermore, common

robotics frameworks are mentioned and their relation

to the presented system is discussed.

2.1 Related Research

We ﬁnd relevant sophisticated approaches primarily

within the area of cognitive and blackboard architec-

tures, or multi-agent systems.

Cognitive architectures originate from psychol-

ogy and by deﬁnition try to integrate all ﬁndings

from cognitve sciences into a general framework from

which intelligence may arise. Multiple systems have

been proposed to fulﬁll this requirement, including

Act-R (Newell, 1994; Anderson, 2007) and Soar

(Lehman et al., 2006). Although these approaches

may be biologically plausible and have the potential

to form the foundation of some applications in reality,

they all face the problem of being a mere scientiﬁc

289

Müller T., An Tran B. and Knoll A. (2010).

A FLEXIBLE ROBOTICS AND AUTOMATION SYSTEM - Parallel Visual Processing, Realtime Actuator Control and Task Automation for Limp Object

Handling.

In Proceedings of the 7th International Conference on Informatics in Control, Automation and Robotics, pages 289-294

DOI: 10.5220/0002951002890294

 SciTePress

approach to cognition. We argue that, in order to de-

velop applications also suitable for industrial automa-

tion, a framework for intelligent robotics and senso-

rimotor integration has to be designed keeping this

scope in mind. Furhtermore, additional requirements

like robustness and repeatability, generic interfacing,

user-friendlyness and graphical interaction have to be

taken into account with high priority. Still, we are im-

pressed by the incredible performance of biological

cognitive systems and, although we do not propose a

cognitive architecture, try to integrate certain aspects

where we ﬁnd them useful and appropriate.

The principle theory considering blackboard ar-

chitectures is based on the assumption, that a com-

mon database of knowledge, the “blackboard”, is

ﬁlled with such by a group of experts (Erman et al.,

1980). The goal is to solve a problem using con-

tributions of multiple specialists. We adopt the ba-

sic ideas of this concept in the implementation of the

information storage of the proposed framework (see

Section 3.3). Nevertheless, a drawback with tradi-

tional blackboard systems is the single expert, i.e., a

processing thread, that is activated by a control unit

(Corkill, 2003). There is no strategy for concurrent

data access in parallel scenarios. Futhermore, there

is no space for training an expert over time, e.g., ap-

plying machine learning techniques, or even exchang-

ing a contributor with another one in an evolutionary

fashion. We deal with these shortcomings within the

proposed framework and present our approach in Sec-

tion 3.2 and 3.3.

Finally, a multi-agent system (MAS) is a system

composed of a group of agents. According to a com-

mon deﬁnition by Wooldridge (Wooldridge, 2009) an

agent is a software entity being autonomous, acting

without intervention from other agents or a human;

social, interacting and communicating with other

agents; reactive, perceiving the environment and act-

ing on changes concerning the agent’s task; and

proactive, taking the initiative to reach a goal. Most

existing implementations (e.g., JADE (Bellifemine

et al., 2003)) use a communication paradigm based on

FIPA’s agent communication language (FIPA, 2002),

which is designed to exchange text messages, not

complex data items. Thus we instead implement

the blackboard paradigm which is capable of main-

tenance of complex items. Still, we acknowledge the

above deﬁnition and the fact, that agents may concur-

rently work on a task and run in parallel. The process-

ing units of our framework are hence implemented ac-

cording to these MAS paradigms.

2.2 Related Systems

The following paragraphs discuss some of the most

widespread robotics frameworks with respect to ap-

plicability for vision-based limp object handling and

automation in the target scenario.

Orca

adopts a component-based software en-

gineering approach without applying any additional

architectural constraints. The framework is open-

source, but uses the commercial Internet Communica-

tions Engine (ICE)

for (distributed) communication

and deﬁnition of programming language independent

interfaces. ICE provides a Java-based graphical user

interaction/control instance, but capabilities to incre-

mentally compose applications by connecting the ex-

ecutable nodes at runtime is very limited. One may

start/stop nodes, but the communication is established

using a publish/subscribe mechanism implicitly by

implementing the corresponding interfaces. So while

providing facilities for efﬁcient distribution of tasks

on multiple computers, Orca lacks the required ﬂex-

ibility when trying to automate tasks without time-

consuming reprogramming (runtime reconﬁguration).

The Robot Operating System

(ROS) is another

open-source software framework striving to provide a

(robot-)platform independent operating system. The

framework uses peer-to-peer technology to connect

multiple executables (nodes) at runtime in a pub-

lish/subscribe way. A master module is instantiated

for the required node-lookup. An interesting fea-

ture of ROS is the logging and playback functional-

ity (Quigley et al., 2009) allowing for replication of

recorded data-streams for later usage, e.g., in a simu-

lation environment. Still, the framework lacks a facil-

ity to record an application conﬁguration in order to

conveniently replicate an application setup for a spe-

ciﬁc task, e.g., load a pick- and place task descrip-

tion and execute it on various robotic setups. Mi-

crosoft’s Robotics Studio

, released in 2007, is a

Microsoft Windows speciﬁc .NET-based software li-

brary for robotic software applications. The fram-

work utilizes the Coordination and Concurrency Run-

time (CCR) and the Decentralized Software Services

Protocol (DSSP) for message processing and passing.

It includes a simulation environment and, most no-

tably, a convenient facility to develop applications in

a user-friendly graphical way. Still, it is closed source,

and in addition to that, “not an ideal platform for real-

time systems” (Jackson, 2007), since there is no guar-

antee, that a service is not interrupted.

http://orca-robotics.sourceforge.net

http://www.zeroc.com

http://ros.sourceforge.net

http://www.microsoft.com/Robotics

ICINCO 2010 - 7th International Conference on Informatics in Control, Automation and Robotics

290

The open-source Player/Stage

project provides

another popular and widespread framework for

robotics. Here, a system typically comprises a

“player”, which implements a TCP-server on the

robot, and “clients”, the user control programs, such

as a joystick controller or a keyboard device, that may

connect to the server, send messages, and control the

robot (Vaughan and Gerkey, 2007). Although being

powerful, in the eye of the authors, Player/Stage is

rather complex to setup and application development

is not user-friendly. I.e., one needs to implement a

character device and a interface/driver model atop the

Player Abstract Device Interface (PADI), combine it

with the Player Protocol and ﬁnally implement the ap-

plication semantics, even for a simple pick- and place

task. The ﬂexible robotics and automation system in-

troduced in this paper strives to overcome the draw-

backs of the aforementioned systems. Furthermore,

it incorporates the useful features of the above archi-

tectures to form a foundation for user-friendly limp

object handling applications.

3 SYSTEM OVERVIEW

From a software engineering perspective, an applica-

tion built atop of the proposed system is built from

three building blocks shown in Figure 1.

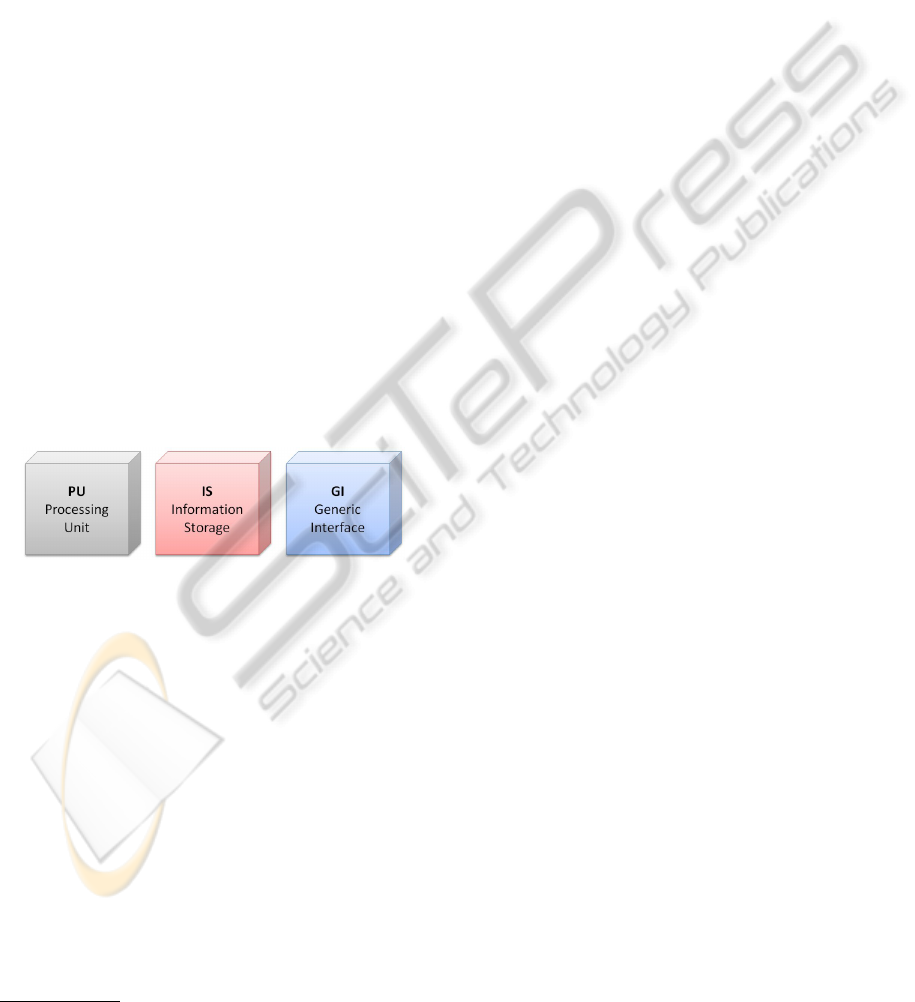

Figure 1: Building blocks of the ﬂexible automation system.

These building blocks, namely the information

storage, processing units, and generic interfaces, are

introduced brieﬂy in the following paragraphs.

3.1 Generic Interfaces (GI)

The ﬁrst building block provides an easy-to-use inter-

face abstraction for accessing external hardware com-

ponents such as the realtime connectors for robot con-

trol, grippers and servos, or image sensors, user IO-

devices (mouse, keyboard, etc.), or other sensory de-

vices, e.g. force-torque sensors (FTS).

But implementing a generic interface is not lim-

ited to IO-devices, but indeed one can write an inter-

face to virtually any external component, be it soft-

ware or hardware. For instance considering soft-

http://playerstage.sourceforge.net

ware libraries, at the time of publication, the frame-

work already provides predeﬁned interfaces to the ro-

bust model-based realtime tracking library OpenTL

(Panin et al., 2008) and the library underlying the efﬁ-

cient EET (exploring / exploiting tree) planner (Rick-

ert et al., 2008) for advanced industrial robot con-

trol. Additionally, in order to support seamless in-

tegration with external applications, interfaces for ac-

cessing socket connectors for remote control, data ex-

change, and remote procedure calls are supplied by

the framework, as well as an interface for running ar-

bitrary executables.

3.2 Processing Units (PU)

The base class for processing data, the PU, provides

a conﬁguration, control and feedback facility and a

possibility to share information with others. Further-

more, each processing unit is designed as a thread and

supplies a description of the action it performs to the

automation system (see Section 3.4).

Typically, an application comprises a set of PUs,

where PUs perform their action in parallel, either con-

tinuously or they are triggered by a start event. While

most hardware interfaces need a cyclic, continuous

update / retrieval (such as the robot joint values or the

camera interface), higher-level actions wrapped into a

PU, e.g. moving the end-effector from A to B, handing

a workpiece over to the next robot, or ﬁnding a grasp-

ing point in a visual scene, most commonly need a

trigger-event in an assembly workﬂow.

3.3 Information Storage (IS)

In order to map a complex assembly workﬂow, ex-

changing data between PUs is essential. For example

the input device unit maps to the target pose genera-

tion unit, which again maps to the joint values corre-

sponding to a robotic end-effector.

The singleton information storage supplied by the

framework is the building block designed for this pur-

pose. Figure 2 shows the workﬂow for data registra-

tion, storage, and retrieval modalities as a diagram.

As shown in the ﬁgure, after registering a data-

item, synchronous and asynchronous data access is

possible, i.e. PUs can either listen for the event gen-

erated, when a data item has changed in the storage,

or poll the data only when needed.

3.4 Task Automation

Tasks are generally described as a set of connected

actions, where each processing unit deﬁnes a such ac-

tion. In order to combine actions to a complex task,

A FLEXIBLE ROBOTICS AND AUTOMATION SYSTEM - Parallel Visual Processing, Realtime Actuator Control and

Task Automation for Limp Object Handling

291

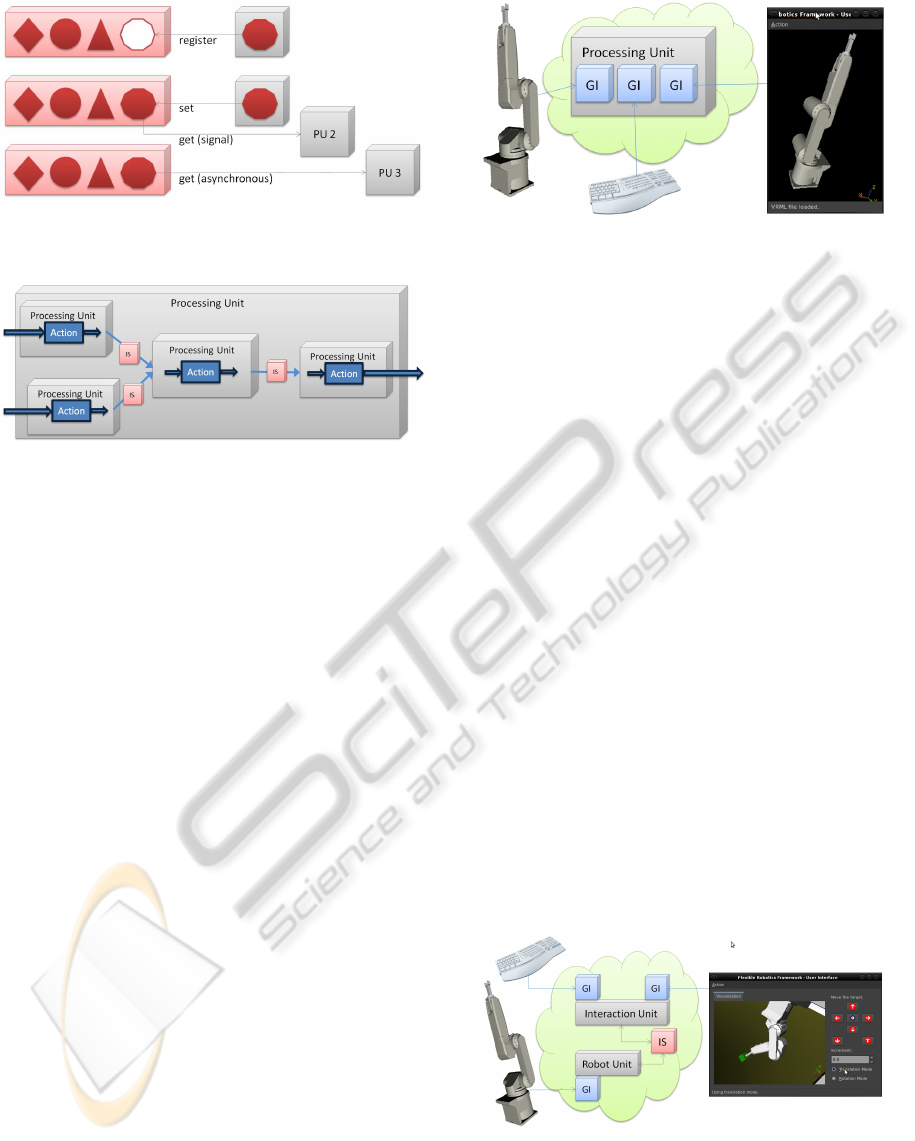

Figure 2: Dataﬂow for a data item in the information stor-

age.

Figure 3: Processing units can be generated online to com-

bine a set of arbitrary actions into a more complex one for

automation.

a generic action description comprising an identiﬁer,

IO and conﬁguration parameters, etc., was developed.

Utilizing this action description, it is possible to spec-

ify a complex task by combination of primitive ac-

tions (e.g., operations like “grasp”, “screw”, “move-

to”).

Furthermore, the framework supplies an automa-

tion unit, which enables a user to transform a task

record into an action and generate a new processing

unit (see Figure 3) from it. Increasingly complex

tasks can be automated, as these composite actions

are provided to the user interface for further combi-

nation. Thus it is easy to quickly and conveniently

adapt, e.g., a production system to a novel product

variant requiring different assembly steps.

4 TOWARDS LIMP OBJECT

HANDLING

The following paragraphs show step-by-step, how the

application for limp object handling is implemented

using the framework’s building blocks.

4.1 A Simple Example

In a very basic, single threaded application example,

the PU shown in Figure 4 is designed for processing

data from and sending data to the robot and interac-

tion with a PC keyboard.

Figure 4: Application scheme for a simple keyboard con-

trolled robot.

The actual hardware components are accessed uti-

lizing the generic interfaces. The PU polls the robot

interface and the keyboard interface continuously in

an endless while-loop. Then, corresponding to the

key pressed by the user, a robot action is computed

and sent via the robot interface to the actual hardware.

Finally, a widget provides for feedback visualization

of robot movements. This widget is statically embed-

ded in a Qt-based graphical user interface, which is

updated cyclically by the PU.

Notably, no communication with other PUs is im-

plemented here, so the application does not need to

initialize an information storage.

Clearly, integration of all hardware interfaces and

computations into a single PU is non-optimal consid-

ering load distribution and parallelization. Therefore,

the next example shows, how this can be improved

using multiple PUs and the information storage.

4.2 Multiple PUs and Information

Sharing

Using the IS to share and exchange processing data

enables the application developer to decompose a

problem into semantically independent tasks and dis-

tribute them to multiple task-speciﬁc PUs.

Figure 5: Multithreaded application for keyboard control of

a robot.

Figure 5 shows a control system, where keyboard

/ mouse events are handled by the GI of the upper PU,

ICINCO 2010 - 7th International Conference on Informatics in Control, Automation and Robotics

292

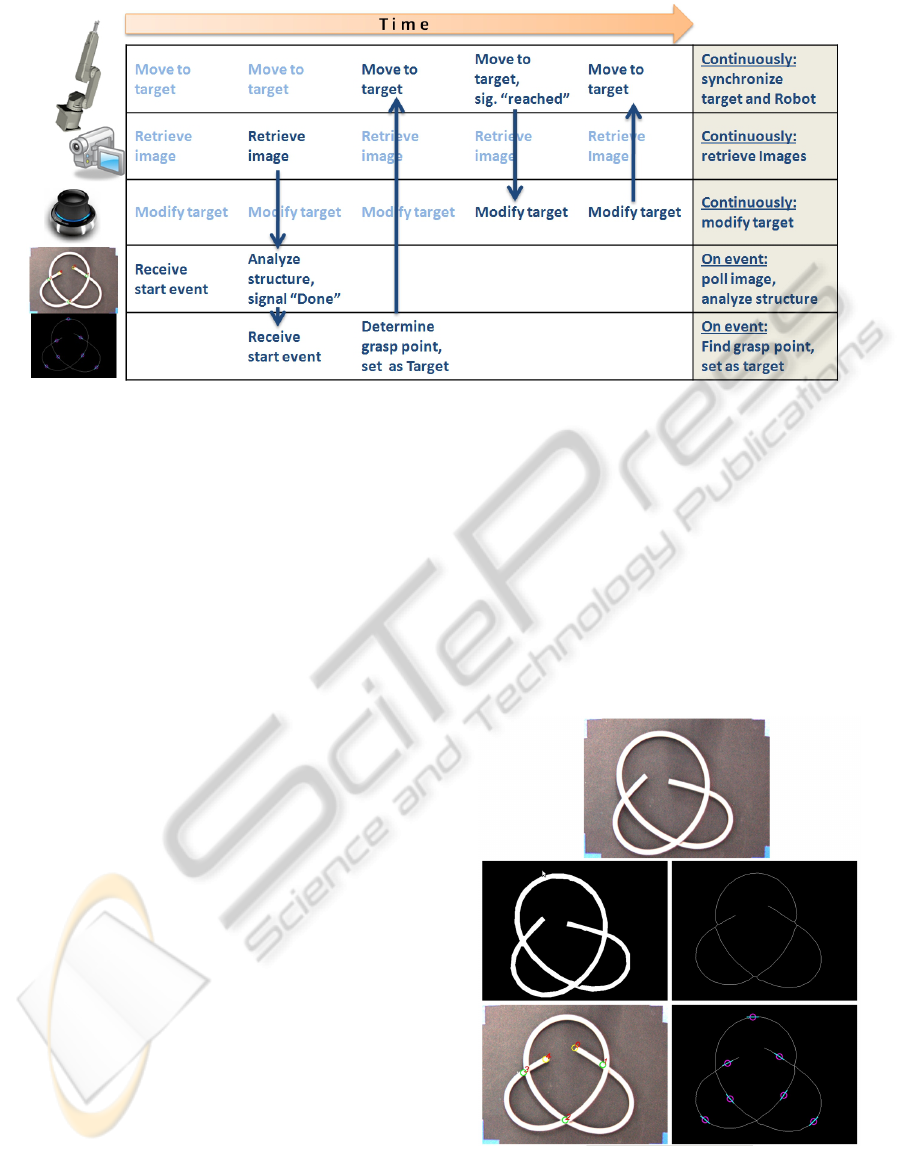

Figure 6: A workﬂow detail for automatically grasping a limp object from the table and handing it over at a pose deﬁned

through user-interaction.

also offering some conﬁguration options in the inter-

action widget (shown in the right part of the screen-

shot). The PU in this case posts a data item contain-

ing the user’s selection for the new target position of

the robot’s end-effector. The robot control unit imple-

ments a listener on that new target position. It com-

putes a trajectory to move the robot to the target and

sends the corresponding commands via the robot GI.

Note, that in the example the listener is not imple-

mented event based (i.e., it does not implement a slot

to the new target signal), but in an asynchronous man-

ner. This ensures, that the robot smoothly completes

a motion. Only after the movement has ﬁnished the

next trajectory may thus be computed.

4.3 Limp Object Handling

Concluding the application section, the following

paragraphs describe a rather complex limp object han-

dling application. Here, all the proposed concepts

from Section 3 are applied.

The application features a 6 DOF mouse-device

PU and a realtime robot control unit sending new po-

sition commands every seventh millisecond and si-

multaneously sharing feedback information (joint an-

gles and Cartesian pose of the end-effector). A sepa-

rate GUI-unit provides for visual feedback, additional

manual robot control through buttons and display of

the live-image and (semi-)processed images from the

IEEE1394 camera. In the application, a focus of at-

tention (FoA) unit implements the attention conden-

sation mechanism (M

uller and Knoll, 2009). This ap-

proach speeds up visual processing by performing a

relevance evaluation on the visual ﬁeld as it creates

regions of interest for salient areas appropriately.

A detail of the workﬂow for manipulation of a

limp object in the workspace of the robot is scetched

in Figure 6.

The ﬁgure shows three PUs performing continu-

ous actions, the robot control unit, the camera unit

and the mouse unit. Furthermore, two event-based

units are shown, one for analyzing the object struc-

ture (ends and intersections) and one for determining

a suitable point for grasping the object (see Figure 7

for a detail of the process).

Figure 7: From top to bottom: The region of interest, back-

ground segmentation, thinning, structure analysis and pos-

sible grasping points.

The application comprises four more units, which

A FLEXIBLE ROBOTICS AND AUTOMATION SYSTEM - Parallel Visual Processing, Realtime Actuator Control and

Task Automation for Limp Object Handling

293

are not shown. These are the FoA unit and the GUI

unit mentioned before, and an event-based gripper

unit. Using the forth one, the automation unit, the

user is able to compose an arbitrary workﬂow (the ap-

plication task), e.g., the one shown in Figure 6, by

connecting the IO-parameters of different units and

then transforming the task into a new PU, e.g., a “ﬁnd-

and-grasp-object” unit.

5 CONCLUSIONS

The paper introduces a ﬂexible robotics and automa-

tion system for parallel, asynchronous and decoupled

processing on hardware architectures like multicore

or multiprocessor systems.

A typical modular application developed with the

framework is an unordered set of instances of the

building blocks. The set may comprise a structure

of processing units; a blackboard for storage and ex-

change of data; and multiple interfaces to hardware

or external software components. Furthermore, the

proposed system incorporates facilities to generate

automation functions, for example from telepresent

teach-in or predeﬁned action primitives.

As an example, the paper shows, how the robotics

system can be used to develop an application for limp

object handling, incorporating parallel visual process-

ing and realtime control of the actuator in a user-

friendly way.

ACKNOWLEDGEMENTS

This work is supported by the German Research

Foundation (DFG) within the Collaborative Research

Center SFB 453 on “High-Fidelity Telepresence and

Teleaction”.

REFERENCES

Anderson, J. R. (2007). How Can the Human Mind Occur

in the Physical Universe? Oxford University Press.

Bellifemine, F., Caire, G., Poggi, A., and Rimassa, G.

(2003). JADE: A White Paper. Technical report, Tele-

com Italia Lab and Universita degli Studi di Parma.

Corkill, D. D. (2003). Collaborating Software: Blackboard

and Multi-Agent Systems & the Future. In Proc. of

the International Lisp Conference.

Erman, L. D., Hayes-Roth, F., Lesser, V. R., and Reddy,

D. R. (1980). The Hearsay-II Speech-Understanding

System: Integrating Knowledge to Resolve Uncer-

tainty. Computing Surveys, 12(2):213–253.

FIPA (2002). ACL Message Structure Speciﬁcation.

Technical report, Foundation for Intelligent Physical

Agents.

Jackson, J. (2007). Microsoft Robotics Studio: A Technical

Introduction. IEEE Robotics and Automation Maga-

zine, 14(4):82–87.

Lehman, J. F., Laird, J., and Rosenbloom, P. (2006).

A Gentle Introduction to Soar, an Architec-

ture for Human Cognition. 14-Sept-2009,

http://ai.eecs.umich.edu/soar/sitemaker/docs/misc/

/GentleIntroduction-2006.pdf.

uller, T. and Knoll, A. (2009). Attention Driven Visual

Processing for an Interactive Dialog Robot. In Proc.

of the 24th ACM Symposium on Applied Computing.

Newell, A. (1994). Uniﬁed Theories of Cognition. Harvard

University Press.

Panin, G., Lenz, C., Nair, S., Roth, E., in Wojtczyk, M.,

Friedlhuber, T., and Knoll, A. (2008). A Unifying

Software Architecture for Model-based Visual Track-

ing. In Proc. of the 20th Annual Symposium of Elec-

tronic Imaging.

Quigley, M., Gerkey, B., Conley, K., Faust†, J., Foote, T.,

Leibs, J., Berger, E., Wheeler, R., and Ng, A. (2009).

ROS: an open-source Robot Operating System. In

ICRA 2009 Workshop on Open Source Software in

Robotics.

Rickert, M., Brock, O., and Knoll, A. (2008). Balanc-

ing Exploration and Exploitation in Motion Planning.

In Proc. of the IEEE International Conference on

Robotics and Automation.

Vaughan, R. T. and Gerkey, B. P. (2007). Software Engi-

neering for Experminetal Robotics, chapter Reusable

Robot Code and the Player / Stage Project, pages 267–

289. Springer tracts on Advanced Robotics. Springer.

Wooldridge, M. J. (2009). An Introduction to MultiAgent

Systems. John Wiley & Sons, 2nd edition.

ICINCO 2010 - 7th International Conference on Informatics in Control, Automation and Robotics

294
