INTEGRATING CONTEXT INTO INTENT RECOGNITION

SYSTEMS

Richard Kelley, Christopher King, Amol Ambardekar, Monica Nicolescu, Mircea Nicolescu

Department of Computer Science and Engineering, University of Nevada, Reno, 1664 N. Virginia St., Reno, U.S.A.

Alireza Tavakkoli

Department of Computer Science, University of Houston-Victoria, 3007 N. Ben Wilson, Victoria, U.S.A.

Keywords:

Intent recognition, Human-robot interaction, Natural language processing.

Abstract:

A precursor to social interaction is social understanding. Every day, humans observe each other and on the

basis of their observations “read people’s minds,” correctly inferring the goals and intentions of others. More-

over, this ability is regarded not as remarkable, but as entirely ordinary and effortless. If we hope to build

robots that are similarly capable of successfully interacting with people in a social setting, we must endow our

robots with an ability to understand humans’ intentions. In this paper, we propose a system aimed at develop-

ing those abilities in a way that exploits both an understanding of actions and the context within which those

actions occur.

1 INTRODUCTION

A precursor to social interaction is social understand-

ing. Every day, humans observe each other and on

the basis of their observations “read people’s minds,”

correctly inferring the goals and intentions of others.

Moreover, this ability is regarded not as remarkable,

but as entirely ordinary and effortless. If we hope to

build robots that are similarly capable of successfully

interacting with people in a social setting, we must

endow our robots with an ability to understand hu-

mans’ intentions. In this paper, we propose a system

aimed at developing those abilities in a way that ex-

ploits both an understanding of actions and the con-

text within which those actions occur.

2 RELATED WORK

Whenever one wants to perform statistical classiﬁca-

tion in a system that is evolving over time, hidden

Markov models may be appropriate (Duda et. al.,

2000). Such models have been very successfully used

in problems involving speech recognition (Rabiner,

1989). Recently, there has been some indication that

hidden Markov models may be just as useful in mod-

eling activities and intentions. For example, HMMs

have been used by robots to classify a number of ma-

nipulation tasks (Pook and Ballard, 1993)(Hovlandet.

al., 1996)(Ogawara et. al., 2002). These approaches

all have the crucial problem that they only allow the

robot to detect that a goal has been achieved after

the activity has been performed; to the extent that in-

tent recognition is about prediction, these systems do

not use HMMs in a way that facilitates the recogni-

tion of intentions. Moreover, there are reasons to be-

lieve (see below) that without considering the disam-

biguation component of intent recognition, there will

be unavoidable limitations on a system, regardless of

whether it uses HMMs or any other classiﬁcation ap-

proach.

Extending upon this use of HMMs to recognize

activities, previous work (of which (Tavakkoli et.

al., 2007) is representative) has examined the use of

HMMs to predict intentions. The work to date has fo-

cused on training a robot to use HMMs (via theory-of-

mind inspired approaches), and on the best informa-

tion to represent using those models. That work has

mostly ignored questions such as scalability and the

role that contextual information plays in the recogni-

tion process. The present work begins to address these

issues, and introduces the idea of using a digraph-

based language model to provide contextual knowl-

edge.

315

Kelley R., King C., Ambardekar A., Nicolescu M., Nicolescu M. and Tavakkoli A. (2010).

INTEGRATING CONTEXT INTO INTENT RECOGNITION SYSTEMS.

In Proceedings of the 7th International Conference on Informatics in Control, Automation and Robotics, pages 315-320

DOI: 10.5220/0002953903150320

 SciTePress

To build that language model, we use the typed de-

pendency extraction facilities of the Stanford Parser

(Marneffe et. al., 2006). In contrast with constituency

grammar, which viewsa sentence as being made up of

phrases, dependency grammar represents grammati-

cal links between pairs of words. Typed dependencies

explicitly label the links between words with gram-

matical relations (Marneffe et. al., 2006). To the best

of our knowledge, such a representation has not yet

been used as the basis for any human-robot interac-

tion work; our graph-based approach is also new.

3 LEXICAL DIGRAPHS

As mentioned above, our system relies on contex-

tual information to perform intent recognition. While

there are many sources of contextual information that

may be useful to infer intentions, we chose to focus

primarily on the information provided by object affor-

dances, which indicate the actions that one can per-

form with an object. The problem, once this choice

is made, is one of training and representation: given

that we wish the system to infer intentions from con-

textual information provided by knowledge of object

affordances, how do we learn and represent those af-

fordances? We would like, for each object our system

may encounter, to build a representation that contains

the likelihood of all actions that can be performed on

that object.

Although there are many possible approaches to

constructing such a representation, we chose to use

a representation that is based heavily on a graph-

theoretic approach to natural language – in particular,

English. Speciﬁcally, we construct a graph in which

the vertices are words and a labeled, weighted edge

exists between two vertices if and only if the words

corresponding to the vertices exist in some kind of

grammatical relationship. The label indicates the na-

ture of the relationship, and the edge weight is propor-

tional to the frequency with which the pair of words

exists in that particular relationship. For example,

we may have vertices drink and water, along with

the edge ((drink,water), direct ob ject, 4), indicat-

ing that the word “water” appears as a direct object

of the verb “drink” four times in the experience of the

system. From this graph, we compute probabilities

that provide the necessary context to interpret an ac-

tivity.

3.1 Dependency Parsing and Graph

Representation

To obtain our pairwise relations between words, we

use the Stanford labeled dependency parser. The

parser takes as input a sentence and produces the set

of all pairs of words that are grammatically related in

the sentence, along with a label for each pair, as in the

“water” example above.

Using the parser, we construct a graph G = (V,E),

where E is the set of all labeled pairs of words re-

turned by the parser for all sentences, and each edge is

given an integer weight equal to the number of times

the edge appears in the text parsed by the system. V

then consists of the words that appear in the corpus

processed by the system.

3.2 Graph Construction and

Complexity

3.2.1 Graph Construction

Given a labeled dependency parser and a set of docu-

ments, graph construction is straightforward. Brieﬂy,

the steps are

1. Tokenize each document into sentences.

2. For each sentence, build the dependency parse of

the sentence.

3. Add each edge of the resulting parse to the graph.

Each of these steps may be performed automatically

with reasonably good results, using well-known lan-

guage processing algorithms. The end result is a

graph as described above, which the system stores for

later use.

One of the greatest strengths of the dependency-

grammar approach is its space efﬁciency: the output

of the parser is either a tree on the words of the in-

put sentence, or a graph made of a tree plus a (small)

constant number of additional edges. This means that

the number of edges in our graph is a linear function

of the number of nodes in the graph, which (assuming

a bounded number of words per sentence in our cor-

pus) is linear in the number of sentences the system

processes. In our experience, the digraphs our system

has produced have had statistics conﬁrming this anal-

ysis, as can be seen by considering the graph used in

our recognition experiments. For our corpus, we used

two sources: ﬁrst, the simpliﬁed-English Wikipedia,

which contains many of the same articles as the stan-

dard Wikipedia, except with a smaller vocabulary and

simpler grammatical structure, and second, a collec-

tion of childrens’ stories about the objects in which

ICINCO 2010 - 7th International Conference on Informatics in Control, Automation and Robotics

316

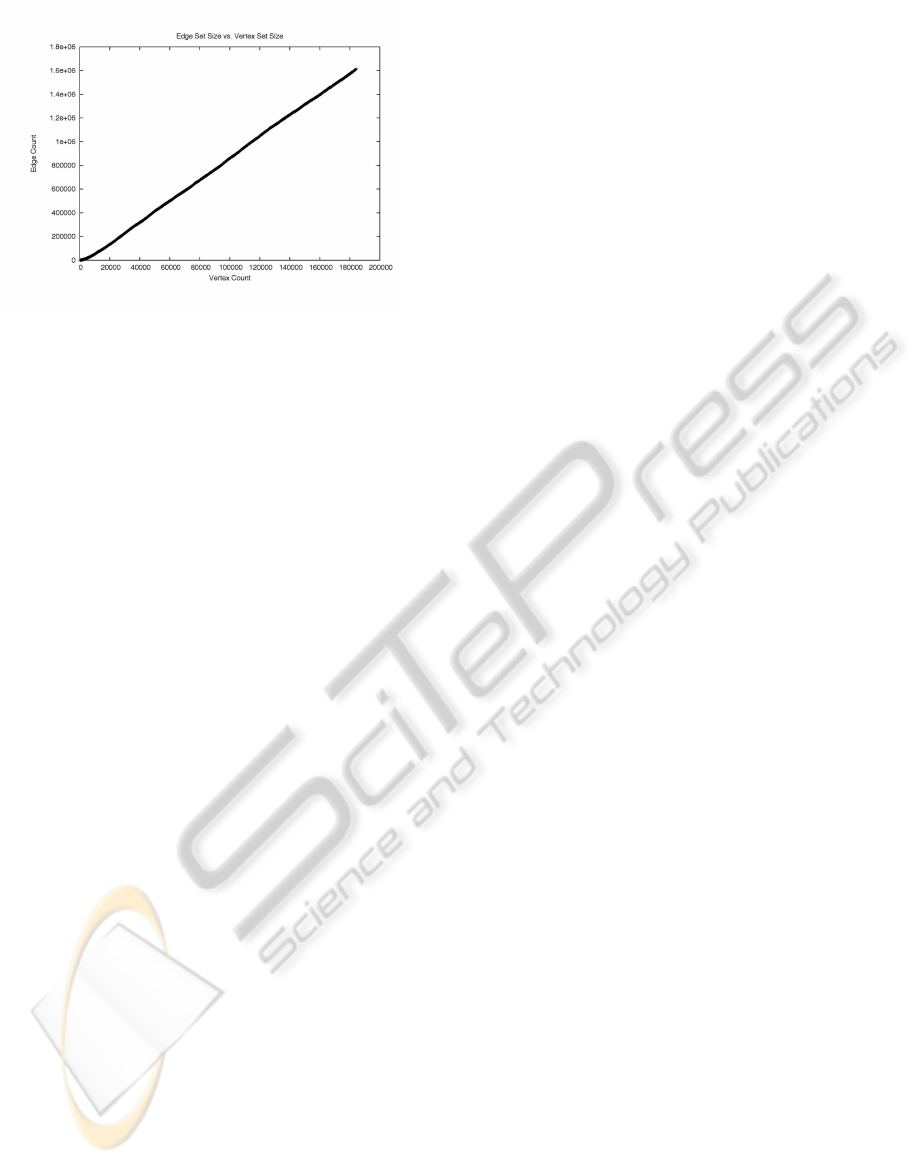

Figure 1: The number of edges in the Wikipedia graph as

a function of the number of vertices during the process of

graph growth.

we were interested. In Figure 1, we show the number

of edges in the Wikipedia graph as a function of the

number of vertices at various points during the growth

of the graph. The scales on both axes are identical,

and the graph shows that the number of edges for this

graph does depend linearly on the number of vertices.

The ﬁnal Wikipedia graph we used in our ex-

periments consists of 244,267 vertices and 2,074,578

edges. The childrens’ story graph is much smaller,

being built from just a few hundred sentences: it con-

sists of 1754 vertices and 3873 edges. This graph was

built to ﬁll in gaps in the information contained in the

Wikipedia graph. The graphs were merged to create

the ﬁnal graph we used by taking the union of the

vertex and edge sets of the graphs, adding the edge

weights of any edges that appeared in both graphs.

4 VISION-BASED CAPABILITIES

In support of our intent recognition system, we re-

quire a number of visual capabilities for our robot.

Among these, our system must be able to segment

and track the motion of both humans and inanimate

objects. Because we are interested in objects and their

affordances, our system must also be able to visu-

ally identify objects and, for objects whose state can

change over time, object states. Moreover, tracking

should be done in three-dimensional space. To sup-

port this last requirement, we use a stereo-vision cam-

era.

To perform segmentation and object recognition,

we use a variant of maximally stable extremal re-

gions for color images (Forssen, 2007). In our vari-

ant, we identify “strong” and “weak” edges in the

image (based on our thresholding), and constrain the

region-merging of color-based MSER so that region

growth is inhibited across weak edges and prevented

entirely across strong edges. This approach allows

for increased stability, for multiple regions of differ-

ent homogeneity to coexist near one another, and for

more coherent segmentation of textured regions.

Having segmented a frame into regions, we per-

form object recognition using a mixture of Gaussians,

computing probabilities at the region level rather than

the pixel level. Because objects tend to consist of a

smaller number of regions than pixels, this can lead

to a substantial speedup.

Once we have segmented a frame and identiﬁed

the regions of interest in that frame, we perform

tracking via incremental support vector data descrip-

tions and connected component analysis. We refer

the interested reader to other, vision-speciﬁc work

(Tavakkoli et. al., 2007).

5 INTENT RECOGNITION

SYSTEM

5.1 Low-level Recognition via Hidden

Markov Models

As mentioned above, our system uses HMMs to

model activities that consist of a number of parts that

have intentional signiﬁcance. Recall that a hidden

Markov model consists of a set of hidden states, a

set of visible states, a probability distribution that de-

scribes the probability of transitioning from one hid-

den state to another, and a probability distribution that

describes the probability of observing a particular vis-

ible state given that the model is in a particular hidden

state. To apply HMMs, one must give an interpreta-

tion to both the hidden states and the visible states of

the model, as well as an interpretation for the model

as a whole. In our case, each model represents a sin-

gle well-deﬁned activity. The hidden states of repre-

sent the intentions underlying the parts of the activity,

and the visible symbols represent changes in measur-

able parameters that are relevant to the activity. No-

tice in particular that our visible states correspond to

dynamic properties of the activity, so that our system

can perform recognition as the observed agents are

interacting.

We train our HMMs by having our robot perform

the activity that it later will recognize. As it performs

the activity, it records the changes in the parameters

of interest for the activity, and uses those to gener-

ate sequences of observable states representing the

activity. These are then used with the Baum-Welch

algorithm (Rabiner, 1989) to train the models, whose

topologies have been determined by a human operator

INTEGRATING CONTEXT INTO INTENT RECOGNITION SYSTEMS

317

in advance.

During recognition, the stationary robot observes

a number of individuals interacting with one another

and with stationary objects. It tracks those individu-

als using the visual capabilities described above, and

takes the perspective of the agents it is observing.

Based on its perspective-taking and its prior under-

standing of the activities it has been trained to under-

stand, the robot infers the intention of each agent in

the scene. It does this using maximum likelihood esti-

mation, calculating the most probable intention given

the observation sequence that it has recorded up to the

current time for each pair of interacting agents.

5.2 Adding Context

Our system uses contextual information to infer inten-

tions. This information is linguistic in nature, and in

section 3 we show how lexical information represent-

ing objects and affordances can be learned and stored

automatically. In this subsection, we outline how that

lexical information can be converted to probabilities

for use in intent recognition.

Context and Intentions. In general, the context for

an activity may be any piece of information. For our

work, we focused on two kinds of information: the

location of the event being observed, and the identi-

ties of any objects being interacted with by an agent.

Context of the ﬁrst kind was useful for basic experi-

ments testing the performance of our system against

a system that uses no contextual information, but did

not use lexical digraphs at all; contexts and intentions

were deﬁned by entirely by hand. Our other source of

context, object identities, relied entirely on lexical di-

graphs. In experiments using this source of informa-

tion, objects become the context and their affordances

– represented by verbs in the digraph – become the

intentions. As explained below, if s is an intention

and c is a piece of contextual information, our sys-

tem requires the probability p(s | c), or in other words

the probability of an affordance given an object iden-

tity. This is exactly what is provided by our digraphs.

If “water” appears as a direct object of “drink” four

times in the robot’s linguistic experience, then we can

obtain a proper probability of “drink” given “water”

by dividing four by the sum of the weights of all edges

which have “water” as the direct object of some word.

In general, we may use this process to obtain a table of

probabilities of affordances or intentions for every ob-

ject in which our system might be interested, as long

as the relevant words appear in the corpus. Note that

this may be done without human intervention.

Inference Algorithm. Suppose that we have an ac-

tivity model (i.e. an HMM) denoted by w. Let s

denote an intention, let c denote a context, and let v

denote a sequence of visible states from the activity

model w. If we are given a context and a sequence of

observation, we would like to ﬁnd the intention that is

maximally likely. Mathematically, we would like to

ﬁnd

argmax

p(s | v, c),

where the probability structure is determined by the

activity model w.

To ﬁnd the correct s, we start by observing that by

Bayes’ rule we have

max

p(s | v, c) = max

p(v | s,c)p(s | c)

p(v | c)

. (1)

We can further simplify matters by noting that the de-

nominator is independent of our choice of s. More-

over, we assume without loss of generality that the

possible observable symbols are independent of the

current context. Based on these observations, we can

write

max

p(s | v,c) ≈ max

p(v | s)p(s | c). (2)

This approximation suggests an algorithm for deter-

mining the most likely intention given a series of ob-

servations and a context: for each possible intention

s for which p(s | c) > 0, we compute the probabil-

ity p(v | s)p(s | c) and choose as our intention that s

whose probability is greatest. The probability p(s | c)

is available, either by assumption or from our linguis-

tic model, and if the HMM w represents the activ-

ity model associated with intention s, then we assume

that p(v | s) = p(v | w). This assumption may be made

in the case of location-based context for simplicity,

or in the case of object affordances because we focus

on simple activities such as reaching, where the same

HMM w is used for multiple intentions s. Of course

a perfectly general system would have to choose an

appropriate HMM dynamically given the context; we

leave the task of designing such a system as future

work for now, and focus on dynamically deciding on

the context to use, based on the digraph information.

5.3 Intention-based Control

In robotics applications, simply determining an ob-

served agent’s intentions may not be enough. Once a

robot knows what another’s intentions are, the robot

should be able to act on its knowledge to achieve

a goal. With this in mind, we developed a simple

method to allow a robot to dispatch a behavior based

on its intent recognition capabilities. The robot ﬁrst

ICINCO 2010 - 7th International Conference on Informatics in Control, Automation and Robotics

318

infers the global intentions of all the agents it is track-

ing, and for the activity corresponding to the inferred

global intention determines the most likely local in-

tention. If the robot determines over multiple time

steps that a certain local intention has the largest prob-

ability, it can dispatch a behavior in response to the

situation it believes is taking place.

6 EXPERIMENTAL VALIDATION

We performed a series of experiments to test differ-

ent aspects of our system. In particular, we wished

to test the following claims: ﬁrst, that contextual in-

formation could improve performance over a context-

agnostic system; second, that intention-based control

as described above can be used to solve basic, but still

realistic, problems; and last, we wished to test lexi-

cal digraphs as a source of contextual information for

inferring intentions related to objects and their affor-

dances.

6.1 Setup

To validate our contextual approach, we performed a

set of experiments using a Pioneer 3DX mobile robot,

with an on-board computer, a laser rangeﬁnder, and

a stereo camera. We trained our robot to understand

three basic activities: following, in which one agent

trails behind another; meeting, in which two agents

approach one another directly; and passing, in which

two agents move past each other without otherwise

directly interacting. We also built a model of reaching

for use in the object-based tests.

We placed our trained robot in several indoor en-

vironments and had it observe the interactions of mul-

tiple human agents with each other, and with multiple

static objects. In our experiments, we considered both

the case where the robot acts as a passive observer and

the case where the robot executes an action on the ba-

sis of the intentions it infers in the agents under its

watch.

The ﬁrst set of experiments was performed in a

lobby, and had agents meeting each other and passing

each other both with and without contextual informa-

tion about which of these two activities is more likely

in the context of the lobby. To the extent that meeting

and passing appear to be similar, we would expect that

the use of context would help to disambiguate the ac-

tivities. Although contrived, these scenarios do facili-

tate direct comparison between a context-aware and a

context-agnostic system.

To test our intention-based control, we set up two

scenarios. In the ﬁrst scenario (the “theft” scenario), a

Table 1: Quantitative evaluation - meet versus pass.

Scenario (with Context) Correct Duration [%]

Meet (No context) - Agent 1 65.8

Meet (No context) - Agent 2 72.4

Meet (Context) - Agent 1 97.8

Meet (Context) - Agent 2 100.0

human enters his ofﬁce carrying a bag. As he enters,

he sets his bag down by the entrance. Another human

enters the room, takes the bag and leaves. Our robot

was set up to observe these actions and send a signal

to a “patrol robot” in the hall that a theft had occurred.

The patrol robot is then supposed to follow the thief

as long as possible.

In the second scenario, our robot is waiting in the

hall, and observes a human leaving the bag in the hall-

way. The robot is supposed to recognize this as a sus-

picious activity and follow the human who dropped

the bag for as long as possible.

Lastly, to test the lexical-digraph-based system,

we had the robot observe an individual as he per-

formed a number of activities involving various ob-

jects. These included books, glasses of soda, comput-

ers, bags of candy, and a ﬁre extinguisher.

6.2 Results

To provide a quantitative evaluation of intent recogni-

tion performance, we use two measures:

• Accuracy rate = the ratio of the number of ob-

servation sequences, of which the winning inten-

tional state matches the ground truth, to the total

number of test sequences.

• Correct Duration = C/T, where C is the total time

during which the intentional state with the highest

probability matches the ground truth and T is the

number of observations.

6.2.1 Similar-looking Activities

As we can see from Table 1, the system performs

substantially better when using context than it does

without contextual information. Because meeting and

passing can, depending on the position of the ob-

server, appear very similar, without context it may be

hard to decide what two agents are trying to do. With

the proper contextual information, though, it becomes

much easier to determine the intentions of the agents

in the scene.

INTEGRATING CONTEXT INTO INTENT RECOGNITION SYSTEMS

319

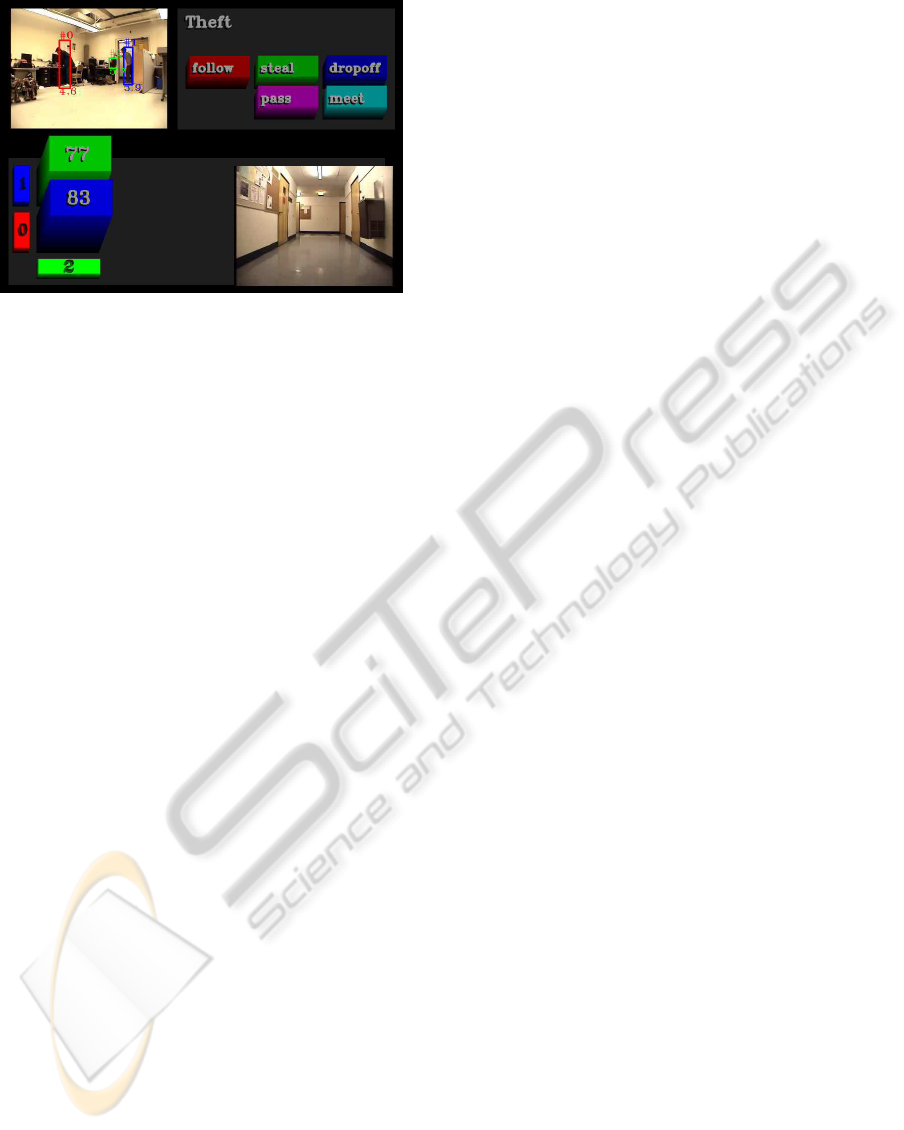

Figure 2: An observer robot catches an agent stealing a bag.

The top left video is the observer’s viewpoint, the top left

bars represent possible intentions, the bottom right bars are

the robot’s inferred intentions for each agent (with corre-

sponding probabilities), and the bottom right video is the

patrol robot’s viewpoint.

6.2.2 Intention-based Control

In both the scenarios we developed to test our

intention-based control, our robot correctly inferred

the ground-truth intention, and correctly responded

the inferred intention. In the theft scenario, the robot

correctly recognized the theft and reported it to the

patrol robot in the hallway, which was able to track

the thief. In the bag drop scenario, the robot correctly

recognized that dropping a bag off in a hallway is a

suspicious activity, and was able to follow the suspi-

cious agent through the hall. Both examples indicate

that intention-based control using context and hidden

Markov models is a feasible approach.

6.2.3 Lexical-digraph-based System

To test the lexically-informed system, we considered

three different scenarios. In the ﬁrst, the robot ob-

served a human during a meal, eating and drinking.

In the second, the human was doing homework, read-

ing a book and taking notes on a computer. In the

last scenario, the robot observed a person sitting on

a couch, eating candy. A trashcan in the scene then

catches on ﬁre, and the robot observes the human us-

ing a ﬁre extinguisher to put the ﬁre out.

Deﬁning a ground truth for these scenarios is

slightly more difﬁcult than in the previous scenarios,

since in these scenarios the observed agent performs

multiple activities and the boundaries between activi-

ties in sequence are not clearly deﬁned. However, we

can still make the interesting observation that, except

on the boundary between two activities, the correct

duration of the system is 100%. Performance on the

boundary is more variable, but it isn’t clear that this is

an avoidable phenomenon. We are currently working

on carefully ground-truthed videos to allow us to bet-

ter compute the accuracy rate and the correct duration

for these sorts of scenarios.

7 CONCLUSIONS

In this paper, we proposed an approach to intent

recognition that combines visual tracking and recog-

nition with contextual awareness in a mobile robot.

Understanding intentions in context is an essential hu-

man activity, and with high likelihood will be just as

essential in any robot that must function in social do-

mains. Our approach is based on the view that to be

effective, an intent recognition system should process

information from the system’s sensors, as well as rel-

evant social information. To encode that information,

we introduced the lexical digraph data structure, and

showed how such a structure can be built and used.

We discussed the visual capabilities necessary to im-

plement our framework, and validated our approach

in simulation and on a physical robot.

REFERENCES

R. Duda, P. Hart, and D. Stork, Pattern Classiﬁcation,

Wiley-Interscience (2000)

L. R. Rabiner, A tutorial on hidden-Markov models and

selected applications in speech recognition, in Proc.

IEEE 77(2) (1989)

P. Pook and D. Ballard, Recognizing teleoperating manipu-

lations, in Int. Conf. Robotics and Automation (1993),

pp. 578585.

G. Hovland, P. Sikka and B. McCarragher, Skill acquisition

from human demon- stration using a hidden Markov

model, Int. Conf. Robotics and Automation (1996),

pp. 27062711.

K. Ogawara, J. Takamatsu, H. Kimura and K.Ikeuchi, Mod-

eling manipulation inter- actions by hidden Markov

models, Int. Conf. Intelligent Robots and Systems

(2002), pp. 10961101.

A. Tavakkoli, R. Kelley, C. King, M. Nicolescu, M. Nico-

lescu, and G. Bebis, “A Vision-Based Architecture for

Intent Recognition,” Proc. of the International Sym-

posium on Visual Computing, pp. 173-182 (2007)

P. Forssen, “Maximally Stable Colour Regions for Recog-

nition and Matching,” CVPR 2007.

M. Marneffe, B. MacCartney, and C. Manning, “Generat-

ing Typed Dependency Parses from Phrase Structure

Parses,” LREC 2006.

ICINCO 2010 - 7th International Conference on Informatics in Control, Automation and Robotics

320
