ACCESS CONTROL MODELS FOR BUSINESS PROCESSES

Vahid R. Karimi and Donald D. Cowan

Cheriton School of Computer Science,University of Waterloo, Waterloo, Ontario, Canada

Keywords:

Access control models and policies, Business processes, Patterns, RBAC, REA.

Abstract:

A business model describes certain operations of an enterprise, and an important aspect of business operations

deals with the speciﬁcation of access control policies, which are used to constrain the business operations by

adding what should, could, or must be. We describe the use of patterns for presenting access control models

and policies. Our goal is to specify access control policies such that they are based on access control models

and have the capability of policy languages, thereby making the foundational blocks of these policies and

operational models identical. Thus, the integration of these policies into operational models is straightforward.

To show our approach, we use Role-based Access Control (RBAC), a well-known access control model, and

also select a business process model whose foundational building blocks are Resources, Events, and Agents

(REA). We make three main contributions: 1) the use of the same foundational building blocks and similar

models to describe business processes and access control models, 2) access control policies that are based on

an access control model, and 3) access control policies that are rule-based and akin to policy languages. As a

result, such models are more understandable, and their future modiﬁcations are more straightforward.

1 INTRODUCTION

The separation of access control policies from ap-

plications has several beneﬁts: it makes possible the

change of access control policies independent of ap-

plications, enables analysis of these policies sepa-

rately, and provides the ability to document them

clearly. Despite these beneﬁts, this approach creates

a problem: integrating these policies into applications

(Ray et al., 2004). Our presentation is intended to

provide some guidelines for this integration but not

necessarily for their inclusion in applications.

The Resources, Events, Agents (REA) (Geerts

and McCarthy, 2006) approach for describing busi-

ness processes was initially introduced by McCarthy

and has been extended over the years. REA has

been chosen to represent business processes for two

reasons: REA includes rules for constructing busi-

ness models, making this process more straightfor-

ward than other representational notations. Moreover,

REA describes both static and dynamic aspects of

business processes by using UML class and activity

diagrams. Both types of diagrams are important, pro-

viding a more comprehensive approach than others

that mainly use a variation of activity diagrams. (A

dynamic REA model has not been discussed in this

paper.) Exchange and conversion models represent

two broad categories of REA business processes. Any

number of exchanges and conversions can be com-

bined to build a larger model. Sales and loans exem-

plify exchange models, whereas production of new

items and repair of existing items represent conver-

sion models. A basic REA exchange model describes

agents participating in events at which resources are

exchanged. Figure 1(a) shows an example in which

an employee receives a client’s cheque and provides

an account modiﬁcation; similarly, the client provides

a cheque and receives an account modiﬁcation.

In our work, the word “pattern” is used to mean

“an idea that has been useful in one practical con-

text and will probably be useful in others,” or sim-

ilarly, “groups of concepts that represent a common

construction in business modeling” (Fowler, 1997).

For instance, Figure 1(b) shows a policy pattern and

can be described as a rule-based statement: e.g., if

the kind of account is savings with a foreignCur-

rency and the kind of modiﬁcation is a withdrawal,

then a maximumAmount for a withdrawal is permit-

ted. Therefore, the rule-based nature of these types of

speciﬁcations makes them akin to policy languages.

Figure 1(b) can subsequently be combined with Fig-

ure 1(a) in which resource (account) and event (ac-

countModifying), their common entities, are merged

together. Note: The class policy in Figure 1(b) and

in other ﬁgures of this paper is included to empha-

size that policies exist. Only one policy class to de-

489

R. Karimi V. and D. Cowan D. (2010).

ACCESS CONTROL MODELS FOR BUSINESS PROCESSES.

In Proceedings of the International Conference on Security and Cryptography, pages 489-498

DOI: 10.5220/0002959904890498

 SciTePress

<<provide>>

maximumModification

kind

<<policy>>

accountModifyingPolicy

account

<<resource>>

<<resource−flow>>

<<event>>

accountModifying

amount

<<resource>>

<<resource−flow>>

(a)

kind

foreignCurrency

<<resourceType>>

accountType

<<apply>>

<<receive>>

<<provide>>

<<receive>>

chequeReceiving

<<event>>

client

<<agent>>

cheque

<<duality>>

(b)

account

<<resource>>

<<typification>>

<<resource−flow>>

<<resource−flow−type>>

amount

accountModifyingType

<<typification>>

<<apply>>

<<event>>

accountModifying

<<eventType>>

employee

<<agent>>

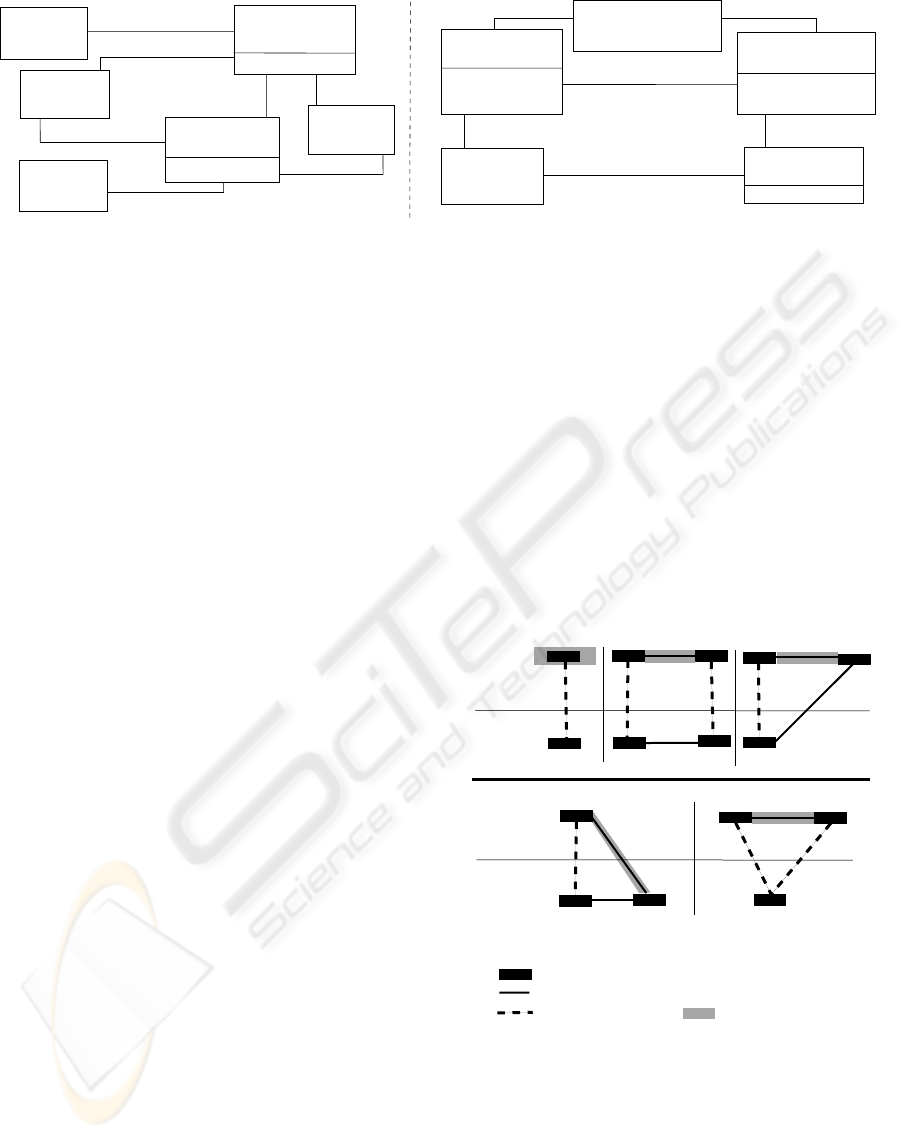

Figure 1: (a) A REA exchange model, (b) a policy.

ﬁne access control policies exists for each application.

For instance, for Figure 1(b), policies can be deﬁned

by the association between accountType and account-

ModifyingType classes.

We use patterns as the basis for representing an ac-

cess control model. The beneﬁts of patterns are com-

monly acknowledged in software engineering. For in-

stance, patterns can enable us to reuse and prevent us

from reinventing the same solutions over and over;

in addition, one can take advantage of the guidelines

on how and when to use patterns (Blaha and Rum-

baugh, 2005). As an additional contribution, we use

the REA model and present an access control model

(i.e., RBAC as an example of a well-known access

control model) for it. This capability is possible be-

cause all the components needed to express an ac-

cess control model exist in our approach. To clarify

this statement, we would like to point to a description

from Ferraiolo et al. (Ferraiolo et al., 2007): almost

any access control model can be described by the ele-

ments of users, subjects, objects, operations, permis-

sions, and the relationships between these notions. A

comparison between these elements and the building

blocks of our model follows: users, objects, oper-

ations, and permissions of an access control model

correspond to the ontological concepts of agents, re-

sources, events, and attributes of agents or some com-

binations of agents, events, and resources, respec-

tively. The subject also corresponds to an application

built by using such ontological building blocks. Fur-

thermore, the terms agents, resources, events appear

to be more intuitive than users, objects, and opera-

tions, at least for describing business processes.

Some researchers (Finin et al., 2008) describe a

synergy between efforts in the development of access

control models (e.g., RBAC) and policy languages

(e.g., eXtensible Access Control Markup Language

(XACML)) as valuable. Our presentation has the

same goal because policies are based on an access

control model, and in addition, the rule-based nature

of these policies resembles the declarative approach

of policy languages.

The question of whether an access control meta-

model for specifying access control policies exists has

been asked (Ferraiolo and Atluri, 2008). Our pre-

sentation describing both access control models and

business models with the same foundational building

blocks is directed toward solving this problem.

2 BACKGROUND

Geerts and McCarthy (Geerts and McCarthy, 2006)

introduced policy-level speciﬁcation for REA mod-

els. Their general policy patterns, shown in Figure 2,

are illustrated using a plane and ﬂight scenario in Fig-

ure 3.

Operational

Hybrid

Operational

: object classes

Legend:

Level

Policy

Level

Policy

Level

Mirror

Basic

Root

: associations but not of typification or grouping

: typification or grouping

: policy definitions

Compromise

Level

Figure 2: Patterns for policy-level speciﬁcations.

Figures 2 and 3 can be described in the follow-

ing manner (Geerts and McCarthy, 2006): The Basic

pattern includes ﬂight, ﬂightType, and a single typiﬁ-

cation association between them. A policy is deﬁned

by a ﬂightType attribute: based on a scheduled de-

parture of a ﬂightType, a policy can state that a ﬂight

should take off at a certain time (which can be differ-

ent from the ﬂight’s actual departure time). In these

SECRYPT 2010 - International Conference on Security and Cryptography

490

two ﬁgures, a typiﬁcation relationship denotes an “is

a-kind-of” association, whereas a grouping associa-

tion represents an “is a-member-of” association.

The Mirror pattern is presented among planeType,

ﬂightType, plane, and ﬂight (i.e., two typiﬁcation or

grouping associations and two other associations). A

policy can express the type of plane to be used for

the type of ﬂight. In the Compromise pattern, a vari-

ation of Mirror, one typiﬁcation or grouping is com-

promised such that it consists of one typiﬁcation or

grouping and two other associations–one of which is

at the policy level. Compromise includes routeType,

cancelationType, and ﬂight; and a cancelationType

can be deﬁned per routeType. The Hybrid pattern,

another variation of Mirror, includes plane, ﬂeet, and

serviceOperator and consists of one typiﬁcation or

grouping and two other associations–none of which

is at the policy level. This pattern is used when one

class has a small number of instances on which the

policy is validated (e.g., a list of people who can pro-

vide service to a ﬂeet).

consumption

Target

PlaneType

actual departure time

actual fuel consumption

ServiceOperator

scheduled departure time

Mirror

Basic

Flight

Plane

CancellationType

Compromise

FlightType

targeted fuel

Compensation

perks

Legend:

PlaneCategory

Fleet

Root

Hybrid

RouteType

Operational−Level Object Class

Grouping Object Class

Type Object Class

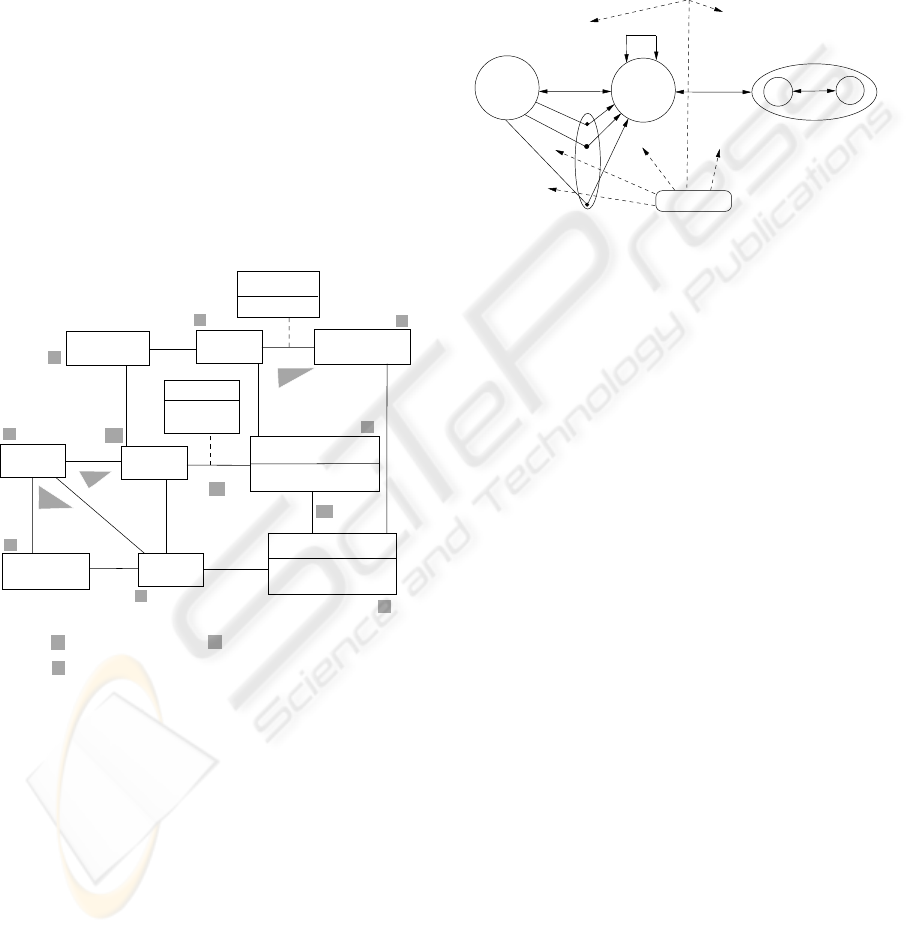

Figure 3: A ﬂight example for policy-level speciﬁcations.

Finally, the Root pattern is deﬁned among ﬂeet,

planeType, and ﬂeet and applies to cases in which

one operational-level object participates in more than

one typiﬁcation or grouping (e.g., the typiﬁcation of

plane and planeType and the grouping of plane and

ﬂeet). This pattern consists of two typiﬁcation or

grouping associations and another association at the

policy level (e.g., a plane should be of a speciﬁc plan-

eType to be a member of a ﬂeet).

3 OUR APPROACH

We adapt the general policy patterns. By this adap-

tation, we represent both access control policies and

an access control model (i.e., RBAC). Our adaptation

is based on an examination of several access control

policy expressions and a review of the RBAC model.

Figure 4 (Ferraiolo et al., 2001) shows RBAC.

Constraints

(PA)

(S)

Sessions

(U)

Users

Sessions

(R)

(UA)

User Assignment

(RH)

HierarchyRole

Roles

Permission

Assignment

PRMS

OBS

OPS

Users

Figure 4: RBAC with permissions as operations on objects.

We describe modeling every element of Figure 4:

a) roles and user assignments and, in addition, the way

roles are assigned to users, which is not described by

RBAC, b) permissions and permission assignments

(RBAC does not describe permission assignment to

roles.), c) role hierarchies, and d) constraint descrip-

tions of users, roles, permissions, role hierarchies, and

static and dynamic separation of duties.

A description of our use of patterns to model all

the cases above follows shortly. We adapt the general

policy patterns, shown in Figures 2 and 3, as a start-

ing point because these patterns differ from ours for

the following reasons:

a) We extend these patterns in various ways.

b) The building blocks of described patterns are

classes and are not identiﬁed as the foundational

building blocks of REA (i.e., resources, agents,

events). We show speciﬁcally the foundational

building blocks and their types needed for build-

ing access control policies: one of our intentions

is to demonstrate that access control policies and

business processes can be built by the same build-

ing blocks.

c) Our adapted patterns represent a well-known ac-

cess control model and, in addition, describe ac-

cess control policies when they are combined. No

speciﬁc rules exist to structure policy deﬁnitions

using the patterns of Section 2, but certain com-

binations of our adopted patterns represent access

control policy deﬁnitions.

d) We explicitly illustrate the modeling of roles and

user assignments, permissions, role hierarchies,

and their constraints. This modeling is important

ACCESS CONTROL MODELS FOR BUSINESS PROCESSES

491

because not only does RBAC comprise these com-

ponents but also any access control model consists

of some of these elements.

3.1 Metadata and Powertype

In our approach and patterns, we use the concept of

type, such as an event type or a resource type, in the

sense of metadata (i.e., the data about data) or a meta-

class (i.e., a class that describes another class) to be

consistent with the current UML modeling approach.

Figure 5 (Blaha and Rumbaugh, 2005) shows a Car-

Model and a PhysicalCar.

* *

Company

CarModel

basePrice

year

modelName

color

serialNumber

options

PhysicalCar

manufacturer

owner

Person

Describes

Figure 5: Metadata and data.

Figure 5 represents a CarModel class as metadata

or a metaclass in relation to the PhysicalCar class be-

cause a CarModel, such as a 2005 Toyota Camry, de-

scribes many PhysicalCars with various serialNum-

bers and colors (i.e., a car model is a car type.)

Data and metadata are relative to each other; other-

wise, “models are inherently metadata, since they de-

scribe the things being modeled (rather than being the

things)” (Blaha and Rumbaugh, 2005).

In our upcoming presentation of patterns, we do

not differentiate between policy and operational lev-

els, for the same reason that models are intrinsically

metadata, and such differentiation between policy and

operational levels is not necessary. To be consistent

with the current UML modeling approach, we use an

event type and a resource type as metaclasses relative

to their resource and event counterparts as described

above. Furthermore, our use of type and typiﬁcation

is also related to the concept of a power type.

Type and Power Type. Power type is an advanced

technique and is mainly used in the analysis phase

(OMG, 2009). A power type describes a class whose

instances are subclasses of another class; therefore,

power types are metaclasses with an extra condition

applied to their instances such that the instances are

also subclasses of a superclass (Martin and Odell,

1998). Figure 6 (OMG, 2009) shows an example.

account classifier

Savings

Account

Checking

Account Type

{disjoint, incomplete}

account

Figure 6: Types and Power Types.

3.2 A Running Example

Figure 7 shows a small running example that is related

to a banking application and is described by Chan-

dramouli (Chandramouli, 2000).

Convention. For the rest of this paper for readability

purposes, we do not use capital letters or underscores

to join words in class names or their attributes; there-

fore, “loan ofﬁcer” and “day of week” are used in-

stead of loanOfﬁcer and dayOfWeek. The same con-

vention holds when tables are presented.

4 PATTERN USE TO REPRESENT

ACCESS CONTROL MODELS

Groups are usually a collection of users but do not

usually represent a collection of permissions (Sandhu

et al., 1996); therefore, a role and a group of users are

not considered identical concepts. In general, policies

apply to group and type entities rather than an individ-

ual entity. A group can have only one member, and a

policy can apply to a group with only one member.

The patterns presented here are not complex and

are therefore consistent with the general presentation

of patterns in the literature, e.g., (Fowler, 1997). Sim-

ilar to the pattern literature, we describe patterns uni-

formly. This description includes “context,” “prob-

lem,” and “solution”–as three main elements–based

on a common deﬁnition that a pattern describes a so-

lution to a problem that happens over and over in

a context. The “resulting context” is adopted from

Hruby’s form (Hruby, 2006). The pattern description

consists of the following elements:

Name. A short descriptive name for a pattern

Context. A description of the situation in which a

pattern applies

Problem. A brief explanation of the problem that a

pattern attempts to solve

Solution. An explanation of the way a pattern solves

a described problem; we intend to describe the solu-

tion in enough detail to be clear, but also to be general

enough to allow the solution to apply broadly.

Example. An example of the solution

Alternative Example. A secondary example that

may not be as common as the main example

Resulting Context. A clariﬁcation and the conse-

quences of the solution in a broader aspect

4.1 Modeling Roles & User Assignments

Name. Role Modeling and User Assignments Pattern

Context. Several research papers describe various ap-

proaches for discovering roles in an organization, but

SECRYPT 2010 - International Conference on Security and Cryptography

492

Banking Case Study (Chandramouli, 2000)

The banking application is used by tellers, customer service reps, loan ofﬁcers, accountants, and accounting

managers.

Policies. The existing policies are as follows:

P1) A teller can modify customer deposit accounts.

P2) A customer service rep can create and delete customer deposit accounts and also has a teller’s permissions.

P3) A loan ofﬁcer can create and modify loan accounts.

P4) An accountant can create general ledger reports.

P5) An accounting manager can modify ledger posting rules and also has the permissions of an accountant.

Hierarchical Role Relationships.

H1) A customer service rep role ranks higher than a teller role.

H2) An accounting manager role ranks higher than an accountant role.

H3) Customer service rep, loan ofﬁcer, and accounting manager roles rank at the same level.

H4) A branch manager ranks the highest.

Static Separation of Duties. A single user cannot hold the following pair of roles:

1) customer service rep and accounting manager 2) loan ofﬁcer and accounting manager

3) teller and accountant 4) teller and loan ofﬁcer 5) accountant and loan ofﬁcer

Dynamic Separation of Duties. One individual cannot hold the following two roles at the same time: customer

service rep and loan ofﬁcer

Figure 7: A banking example.

our intention is not to determine possible roles. We

assume that these roles are already known and want

to describe these roles using various existing entities

and their attributes.

Problem. How can we model the roles of users?

The concept of roles in organizations is signiﬁcant

because activities and tasks are associated with roles.

How are these roles assigned to individuals? In addi-

tion, how can different roles of an individual, if they

arise, be modeled?

Solution. The role modeling and user assignments

pattern (Figure 8) extends Basic and Root patterns

(Section 2) to make possible the modeling of roles and

user assignments to a certain level of detail. Based

on our adaptation, the entities of this pattern can only

be agents because our goal is to represent roles. Not

only the attributes of types (i.e., agent types), as in

the Basic pattern, but also the attributes of an agent

can determine an agent’s role in some detail.

In addition, the role modeling and user assign-

ments pattern also uses a similar approach to the Root

pattern (Figures 2 and 3) by including the “grouping”

relationship to enable an agent to hold more than one

role, depending on afﬁliation with different groups.

(REA models a group, such as an organization unit or

a team, by the “grouping” relationship.) By this inclu-

sion and extension, an agent can participate in a typ-

iﬁcation and grouping relationship, which is similar

to the Root pattern. The association between an agent

type and agent grouping that exists in a Root pattern is

also present in the UML class diagram of Figure 8(a);

as a result, roles can change in relation to various

groups. In addition, using various combinations of

agent attributes, we will be able to describe certain de-

tails of roles and their functions. REA Grouping and

aggregation are related concepts. One possible com-

mon approach for assigning roles to users is based on

the value of user attributes. An extension to this ap-

proach can include describing a role with a certain

level of detail based on the value of attributes, e.g., a

teller’s role is permitted to be active between 9 and 5.

Example. Figure 8(b) shows an example in which

attributes are present (“day of week performed” at-

tribute; e.g., Monday to Friday, or “daily start time”

and “daily end time” attributes.)

Table 1 includes agent, agent attribute, and role

columns and represents possible policy content, as

shown in Figure 8(b). In this table, one or two at-

tributes of an agent determine the agent’s role or the

existing constraints on the role. Several attributes can

contribute to the determination of roles by a similar

approach (to simplify, only one or two attributes are

chosen.) The banking example (Figure 7) does not

contain the roles shown in rows two and three of this

table, but these roles exist to explain that a richer de-

scription of policies is possible with just the use of

attributes. The second row of the table illustrates a

situation in which, based on the status and responsi-

bility attributes, a temporary teller role is recognized.

Finally, the next-to-the last row illustrates the possi-

bility of describing temporal aspects such that a teller

role is deﬁned to be valid only for a permitted time

period (e.g., Monday to Friday and 9:00 to 5:00). The

introduction of temporal aspects is very important be-

ACCESS CONTROL MODELS FOR BUSINESS PROCESSES

493

<<grouping>>

employee type

<<typification>>

participate

attribute b1

role assignments

0..*

<<group>>

0..*

<<agent type>>

<<typification>>

agent group

0..*

participate

0..*

(a)

<<policy>>

role assignments

to users (agents)

0..*

<<apply>>

0..*

<<policy>>

<<agent>>

to employees

attribute b...

attribute a1

0..*

<<agent type>>

attribute a...

0..*

organization unit

<<agent group>>

daily end time

daily start time

day of week performed

specific responsibilities

status

name

responsibilities[1..*]

<<grouping>>

employee

<<agent>>

(b)

0..*

Figure 8: (a) Pattern for modeling roles and user assignments, (b) an example.

Table 1: Entities and attributes of the role modeling and user assignments pattern in a table format.

pattern name user (agent) agent type attribute agent group role

role modeling employee responsibilities - teller

and user employee status, responsibilities - temporary teller

assignment employee day of week performed - teller (when)

pattern employee - branch teller

cause they enable the creation of dynamic and rich

models. The last row shows bank branch as an agent

group.

Resulting Context. More expressive models such as

temporal RBAC (TRBAC) (Bertino et al., 2000) exist;

with TRBAC, temporal aspects of roles are speciﬁed

such that some roles are active at certain times (e.g.,

as in the previous teller example). TRBAC achieves

the expression of temporal aspects of roles by their

activation and deactivation. It may be the case, as

we have described previously, that some features of

these extended models can be expressed by the origi-

nal RBAC model and by the use of temporal attributes

whenever they exist. On this note, we have also as-

sumed that certain attributes such as “responsibilities”

or “the time of an event” exist, an assumption that we

believe is quite realistic.

Alternative Example. An alternative representation

can use the power type concept.

4.2 Modeling Permissions

Name. Permission Modeling Pattern

Context. Permission is one of the main compo-

nents of any access control model and constitutes

an element of an access control policy. Describing

the processes of an organization not only includes

an explanation of what needs to be performed but

also includes permissions and restrictions in perform-

ing these activities. If an authorization is described

using the same entities and models as those used

for business processes, then the integration of these

authorizations into business processes will be more

straightforward.

Problem. How can role permission be modeled? In

general, how can permission as an element of an ac-

cess control model be described?

Solution. Permissions can be represented as opera-

tions on objects, as is shown by the right side of Fig-

ure 4. Operations translate to REA events, and objects

are equivalent to REA resources shown in Figure 9(a).

Therefore, the Mirror pattern presents a viable choice

for modeling this setting. The following brief descrip-

tion of events and operations can be useful and justify

the mapping of events to operations.

Events and Operations: Despite some differences,

these two terms are essentially two different views of

the same thing; an event includes an important or in-

teresting change of state whereas an operation is the

agent of this change (Martin and Odell, 1998). In

other words, the operation view considers the mecha-

nism for this change, and the event view is concerned

about the result of the operation (Martin and Odell,

1998). For instance, verify (order) represents an oper-

ation, whereas (order) veriﬁed describes an event oc-

currence.

The permission modeling pattern clariﬁes and

modiﬁes the Mirror pattern for modeling permis-

sions. The clariﬁcation is based on the identiﬁcation

of event, event type, resource, and resource type as

entities of this pattern, as shown in Figure 9(a). Oper-

ations (OPS), objects (OBS), two typiﬁcation associa-

tions, and two other associations are also presented in

this ﬁgure. An extension to this pattern includes the

use of attributes of operations (i.e., events), objects

(i.e., resources), or both. Therefore, a permission can

SECRYPT 2010 - International Conference on Security and Cryptography

494

maximum modification

kind

currency

an event on a resource

0..*

<<policy>>

0..*

based on curreny

<<apply>>

<<event>>

modification

max deposit account modification

<<policy>>

<<apply>>

0..*

<<resource−flow type>>

<<apply>>

0..*

<<typification>>

0..*

(operation)

0..*

resource type attribute a

resource type attribute a...

event type attribute a

<<event type>>

0..*

<<resource type>>

modification type

<<event type>>

<<event>>

(b)

(a)

<<resource>>

event type attribute a...

<<typification>>

<<typfication>>

<<resource−flow>>

0..*

<<resource type>>

account type

<<typfication>>

deposit account

<<resource>>

<<resource−flow>>

0..*

<<resource−flow type>>

0..*

<<apply>>

0..*

(operation)

(object)

Figure 9: (a) Pattern for modeling permissions, (b) an example.

Table 2: Entities and attributes of permission modeling pattern.

pattern name event type event type resource type resource resource type

attribute attribute

permission modiﬁcation - account deposit account -

modeling create - account loan account -

pattern modiﬁcation maximum account modiﬁcation deposit account currency

specify the maximum amount of modiﬁcation to a de-

posit account if foreign currency is involved. The use

of attributes with this pattern describes constraints on

operations and objects.

Example. Figure 9(b) shows a permission and also

uses currency and maximum modiﬁcation attributes.

Our running example includes a simpler permission:

the ability to modify a deposit account regardless of

the maximum amount of modiﬁcation and the pres-

ence of a foreign currency. Similarly, a power type

representation is possible for an account as shown

previously in Figure 6.

Table 2 presents the entities and attributes used for

describing permissions. The ﬁrst two rows are cases

of the banking example, and the last row shows an ad-

ditional scenario in which the attributes of event and

resource types are also used.

Resulting Context. Using various combinations of

events, resources, and their attributes, we will be able

to describe permissions with a certain level of detail.

4.3 A Core Access Control Model by

Combining Patterns

Name. Core or Base Access Control Model Pattern

Context. A core or base access control model repre-

sents the basic functions of an authorization model. It

is desirable to describe authorization functions similar

to the explanation of business models. For instance,

RBAC

represents a base access control model; ex-

cluding the constraints and role hierarchies from Fig-

ure 4 creates such a model.

Problem. How can a core access control model for

business processes be obtained using the same entities

and similar models of business processes? How can

access control policies be described such that these

policies are based on an access control model? The

synergy between an access control model and access

control policies previously mentioned (section 1) is

related to the latter question.

Solution. The combination of role modeling and user

assignments and permission patterns creates a base

model of authorization. Pattern combination has two

beneﬁts: the combination of patterns enables us to

create an access control model (i.e., RBAC), and ac-

cess control policies can be described uniformly.

Example. Figure 10 shows the combination of these

patterns, and this combination presents an example of

a core RBAC model in which an employee role (i.e.,

teller) is determined in conjunction with one permis-

sion for this role.

Table 3 shows the policies of the banking example

from Figure 7. The columns of this table represent

the operation (event) type, object (resource) type, and

role used to deﬁne various access control policies. In

general, we use a table whose columns are REA enti-

ties or their attributes, or which are deﬁned by these

entities and attributed (e.g., role) to express access

control policies. Figure 10(b) uses a UML class di-

agram and presents the ﬁrst row of Table 3; the other

rows can be presented similarly. The policies of this

table can be described by an access control model:

this table presents policies based on the core RBAC.

Resulting Context. To summarize, the combination

ACCESS CONTROL MODELS FOR BUSINESS PROCESSES

495

<<grouping>>

status

responsibilities[1..*]

name

<<grouping>>

0..*

participate

0..*

<<agent>>

employee

<<agent>>

role attribute

teller role

specific responsibilities

<<group>>

employee type

daily end time

day of week performed

0..*<<apply>>

<<agent type>>

role 1

<<typification>>

daily start time

<<apply>>

<<agent group>>

employee group

0..*

role n

0..*

attribute b1

attribute b...

participate

<<typification>>

0..*

<<Policy>>

0..*

to Users (Agents)

Role Assignments

attribute a...

0..*

agent group

<<agent type>>

attribute a1

0..*

<<typification>>

(operation)

currency

<<resource>>

<<apply>>

deposit account

event type attribute a

event type attribute a...

resource type attribute a...

resource type attribute a

<<resource type>>

0..*

<<resource−flow type>>

0..*

<<resource>>

<<resource−flow>>

<<event>>

(a)

0..*

<<apply>>

<<event>>

modification

<<event type>>

modification type

(b)

0..*

<<apply>>

0..*

<<typfication>>

0..*

<<resource−flow type>>

0..*

<<event type>>

1 0..*

<<typfication>>

<<typification>>

0..*

<<policy>>

teller deposit account modification policy

<<policy>>

an event on a resource

0..*

pattern

modeling

Permission

0..*

pattern

user assignment

Role modeling

<<resource−flow>>

deposit account type

<<resource type>>

kind

(object)

maximum modification

Figure 10: (a) A combination of two presented patterns, (b) an example.

Table 3: A table representation of policies for the banking example.

Permission

policies user type role operation type object type

(agent type) (event type) (resource type)

P1 employee teller modify deposit accounts

P2 employee customer service rep modify, create, delete deposit accounts

P3 employee accountant create general ledger reports

P4 employee accounting manager modify ledger posting rules

P5 employee loan ofﬁcer create, modify loan accounts

of a role modeling and user assignments pattern with

a permission modeling pattern enables us to express a

large range of access control policies. This combina-

tion creates a core (base) access control model.

Furthermore, as Table 3 shows, it is possible to de-

scribe access control policies based on an access con-

trol model. For instance, a rule-based policy based

on the ﬁrst row of this table states that if an agent is

an employee who ﬁlls the role teller, then a permis-

sion can exist for this role to allow the modiﬁcation

of deposit accounts.

4.4 Modeling Constraints and Role

Hierarchies

In general, constraints constitute a majority of autho-

rization speciﬁcations because many such conditions

occur in reality. For instance, constraints are an im-

portant part of RBAC and are sometimes considered

“to be the principle motivation behind RBAC (Sandhu

et al., 1996).” Constraints are also very signiﬁcant

components of any access control policies. In terms

of RBAC, constraints can be on roles, permissions,

SECRYPT 2010 - International Conference on Security and Cryptography

496

0..*

<<apply>>

0..*

<<policy>>

policy

role hierarchies

<<policy>>

mutually exclusive

roles policy

mutually exclusive

<<group>>

agent group

<<group>>

attribute b1

attribute b...

role hierarchies

<<typification>>

<<grouping>>

0..*

<<apply>>

0..*

<<grouping>>

0..*

<<agent>>

<<group>>

0..*

<<role>> 0..*

0..*

<<grouping>>

roles

participate

0..*

Figure 11: Role hierarchies and mutually conclusive roles.

role hierarchies, and sessions. A major category of

constraints is related to the separation of duties.

Constraints on Agents, Roles, and Permissions. the

role modeling and user assignments pattern can model

constraints on agents such as by using “daily start

time” or/and “day of week performed” attributes or

constrain roles using role attributes (Figure 8), as de-

scribed in Section 4.1. Similarly, the permission mod-

eling pattern can model constraints on permissions

(i.e., operations on objects) using an operation (e.g.,

a “maximum adjustment” attribute) and/or an object

(e.g., the “currency” attribute of Figure 9). With con-

straints, it is possible to specify that a pilot (i.e., a

role) based on “skill” or other attributes is authorized

to ﬂy (an operation or an event) certain type of planes

(objects or resources).

Role Hierarchies and Mutually Exclusive Roles.

Both role hierarchies and mutually exclusive roles can

be viewed as cases in which constraints on roles ex-

ist. A variation of the role modeling and user assign-

ments pattern (Section 4.1) is used to describe both

these cases.

Name. A variation of role modeling and user assign-

ments pattern

Context for Role Hierarchies. Role hierarchies in

organizations express the line of authorities or respon-

sibilities and exemplify certain constraints or relation-

ships among roles. Role hierarchies represent a par-

tially ordered set and are written as RH ⊆ R × R: the

set of roles with a binary relationship of inheritance

between roles. Role hierarchies are usually visualized

by a diagram in which, by deﬁnition, the roles with

higher permissions are located at higher positions of

the diagram.

Context for Separation of Duties. Separation of du-

ties is a well-known principle and has two broad cat-

egories: static and dynamic; the dynamic one con-

tains several variations (Simon and Zurko, 1997).

The static separation of duty and the basic form of

dynamic separation of duty represent constraints on

roles and sessions, respectively. The static separation

of duty represents a strong exclusion of roles in which

no user can ever take both roles A and B if these two

roles are exclusive (e.g., that a purchaser and an ap-

prover of an order must be different people is a com-

mon example provided frequently in the literature).

The assumption for mutually exclusive roles indicates

that these roles cannot gain the permission of their

counterpart through using a third role or a combina-

tion of roles.

Problem. How are role hierarchies modeled? How

can this constraint on roles be added to the previously

presented core access model? In general, how can

an ordered set be represented in this context? Since

roles and agents are closely related, agents must be

included in this presentation. In addition, how can the

static separation of duties be modeled?

Solution. Figure 11 presents role hierarchies and mu-

tually exclusive roles in which an agent is also shown.

Example. In Figure 11, if a role is a teller, then

the role hierarchies group contains teller, customer

service rep, and branch manager. Similarly, when-

ever a role is that of a teller, the mutually exclusive

roles group includes teller, accountant, and loan ofﬁ-

cer roles.

Resulting Context. Role hierarchies are a partially

ordered set; therefore, not every member (i.e., role)

of this set can be compared with each other. For in-

stance, the privileges of a loan ofﬁcer and an account-

ing manager cannot be compared. RBAC mentions

dynamic separation of duties whose support needs a

dynamic model. In our future work, using a more de-

tailed example than the ones provided by the banking

case study, we intend to describe a dynamic model in

which dynamic separation of duties is supported.

5 RELATED WORK

Ferraiolo and Atluri (Ferraiolo and Atluri, 2008) ask

whether the movement in access control research has

been toward a unifying model or a meta-model. They

also ponder whether such a unifying framework is a

practical approach in view of the existence of a wide

range of policies. Finin et al. (Finin et al., 2008)

present ROWLBAC for the integration of RBAC (as a

representation of an access control model) with OWL,

as a language describing access control policies.

Rule-based RBAC (RB-RBAC) (Al-Kahtani and

Sandhu, 2002) presents an approach in which users

ACCESS CONTROL MODELS FOR BUSINESS PROCESSES

497

are dynamically assigned to roles based on a ﬁnite set

of rules. The attributes of users are the determining

factors within the rules that assign roles to users. Sev-

eral extensions to RBAC exist; temporal RBAC (TR-

BAC) has been mentioned previously. Bertino et al.

[14] propose TRBAC, which enables periodic activa-

tion and deactivation of roles and allows roles to be ei-

ther active or inactive within a certain time. They pro-

vide the syntax and semantics of TRBAC and show

an example. Various policy languages exist. Cur-

rently, eXtensible Access Control Markup Language

(XACML) (OASIS, 2005) is the XML standard ac-

cess control policy language. Knowledgable Agent-

oriented System (KAoS) (Tonti et al., 2003) enables

speciﬁcation and resolution of policy conﬂicts where

policies are speciﬁed as an ontology. Hruby (Hruby,

2006) presents REA as a group of business patterns,

organized into two categories: operational and policy.

6 CONCLUSIONS

We describe an approach in which both business pro-

cesses and access control policies are speciﬁed us-

ing the same foundational building blocks and similar

models. As a result, the two models can be easily in-

tegrated. Access control policies are described in two

formats: the UML class diagram and a table format.

It has also been explained that the policies have the

advantage of being based on the RBAC model. In ad-

dition, we describe the RBAC model as a combination

of patterns, explained uniformly as is common in the

pattern community.

REFERENCES

Al-Kahtani, M. and Sandhu, R. (2002). A model for

attribute-based user-role assignment. In ACSAC’02,

18th Annual Computer Security Applications Confer-

ence, pages 353–364. IEEE Computer Society.

Bertino, E., Bonatti, P., and Ferrari, E. (2000). TR-

BAC: A temporal role-based access control model. In

RBAC’00, Fifth Workshop on Role-Based Access Con-

trol, pages 21–30. ACM.

Blaha, M. and Rumbaugh, J. (2005). Object-oriented Mod-

eling and Design with UML. Pearson Prentice Hall,

New Jersey, 2nd edition.

Chandramouli, R. (2000). Application of XML tools

for enterprise-wide RBAC implementation tasks. In

RBAC’00, pages 11–18. ACM.

Ferraiolo, D. and Atluri, V. (2008). A meta model for ac-

cess control: Why is it needed and is it even possi-

ble to achieve? In SACMAT’08, 13th Symposium on

Access Control Models and Technologies, pages 153–

154. ACM.

Ferraiolo, D., Kuhn, D., and Chandramouli, R. (2007).

Role-Based Access Control. Artech House, Boston,

2nd edition.

Ferraiolo, D., Sandhu, R., Gavrila, S., Kuhn, D., and Chan-

dramouli, R. (2001). Proposed NIST standard for role-

based access control. ACM Transactions on Informa-

tion and System Security, 4(3):224–274.

Finin, T., Joshi, A., Kagal, L., Niu, J., Sandhu, R., Wins-

borough, W., and Thuraisingham, B. (2008). ROWL-

BAC: Representing role based access control in OWL.

In SACMAT’08, pages 73–82. ACM.

Fowler, M. (1997). Analysis Patterns: Reusable Object

Models. Addison-Wesley, Menlo Park, California.

Geerts, G. and McCarthy, W. (2006). Policy-level speciﬁca-

tions in REA enterprise information systems. Journal

of Information Systems, 20(2):37–63.

Hruby, P. (2006). Model-Driven Design Using Business

Patterns. Springer-Verlag, New York.

Martin, J. and Odell, J. (1998). Object-Oriented Methods: a

Foundation, UML Edition. Prentice Hall, New Jersey,

2nd edition.

OASIS (2005). eXtensible Access Control Markup Lan-

guage (XACML), Version 2.0. Organization for the

Advancement of Structured Information Standards.

OMG (2009). Uniﬁed Modeling Language (UML) Super-

structure, Version 2.2. Object Management Group.

Ray, I., Li, N., France, R., and Kim, D. (2004). Using UML

to visualize role-based access control constraints. In

SACMAT’04, pages 115–124. ACM.

Sandhu, R., Coyne, E., Feinstein, H., and Youman, C.

(1996). Role-based access control models. IEEE

Computer, 29(2):38–47.

Simon, R. and Zurko, M. (1997). Separation of duty in role-

based environments. In CSFW’97, 10th Computer Se-

curity Foundations Workshop, pages 183–194. IEEE

Computer Society.

Tonti, G., Bradshaw, J., Jeffers, R., Montanari, R., Suri, N.,

and Uszok, A. (2003). Semantic web languages for

policy representation and reasoning: A comparison

of KAoS, Rei, and Ponder. In ISWC’03, 2nd Inter-

national Semantic Web Conference, pages 419–437.

Springer.

SECRYPT 2010 - International Conference on Security and Cryptography

498
