ATTACKS ON WEB SERVICES AND MITIGATION SCHEMES

Vipul Patel, Radhesh Mohandas and Alwyn R. Pais

Information Security Research Lab, National Institute of Technology Karnataka, Surathkal, India

Keywords: Attacks on Web Services, XML Injection, XSS Injection, Schema Validation, Schema Hardening,

Attachment Scanner, WS-Trust, WS-Security, Frankenstein Message.

Abstract: Web Services have become dependable platform for e-commerce and many B2B models. Extensive

adaptation of Web Services has resulted in a bunch of standards such as WS-Security, WS-Trust etc. to

support business and security requirements for the same. Majority of the web services are offered over Http

with Simple Object Access Protocol (SOAP) as an underlying exchange infrastructure. This paper describes

attacks targeted at Web Services such as XML injection, XSS injection, HTTP header manipulation,

sending stale message and other protocol specific attacks. We have used XML Re-Writing mechanism to

perform “timestamp modification attack” and WS-Trust, WS-SecureConversation protocols attack. Schemas

stated in WSDL file may not be accurate enough to validate messages effectively; Schemas should reflect

structure of all possible genuine requests. Hence, we have proposed a new self-adaptive schema hardening

algorithm to obtain fine-tuned schema that can be used to validate SOAP messages more effectively. We

have also proposed mitigation techniques to counter attacks using MIME/DIME attachments.

1 INTRODUCTION

A Web Service is used as a basic building block for

the implementation of SOA (Service Oriented

Architecture) based system. Ease of interoperability

and loose coupling are attributed to exchange

infrastructure that SOA based system relies on.

Web Service engine needs a XML parser to

extract the required parameters from an incoming

message. Exploiting this parser can successfully lead

to Denial of Service attacks. Often additional nodes

are injected or existing nodes are tweaked so as to

change the operation parameters. We have tried

these attacks on web services and also developed

mitigation techniques for some of these attacks. To

ensure confidentiality and integrity of SOAP

message, WS-Security standard is used that relies on

XML Encryption and XML Signature. Improper use

of these primitives gives scope for new attacks.

XML Signature Re-Writing attack is one such

attack. This attack paves way to further attacks. We

have shown attacks on WS-Trust and Timestamp

field in Microsoft’s implementation of WS-Security.

Many attacks can easily be circumvented by having

strong schema generation and validation system.

Section 2 reviews related work pertaining to

attacking and defending Web Services. In section 3,

we have discussed attacks carried out by us. In

section 4, we propose new mitigation techniques for

some attacks on Web Services. Section 5 lists our

future work and Section 6 concludes the paper.

2 RELATED WORK

There has been considerable effort in exploring

different kind of attacks on Web Services. Probing

Attacks, Coercive Parsing, External Reference

Attacks and SQL Injections attacks have been

discussed by (Negm, 2004). (Vorobiev, 2006) has

classified attacks as XML attacks, SOAP based

attacks or Semantic WS attacks based on exploits

used. (Jensen, 2007) has demonstrated SOAPAction

spoofing, oversized payload and cryptography based

attacks. The message validation as a technique to

thwart DoS attack is shown by (Gruschka, 2006). It

mentions the use of schema embedded in WSDL

(Web Service Description Language) to validate

messages. (McIntosh and Austel, 2005) have

discussed XML Re-Writing attack which shall serve

as a baseline for the attacks that we have described

here. Use of context sensitive signature as a

countermeasure of XML Re-Writing attack is

outlined by (Gajek, 2009).

499

Patel V., Mohandas R. and R. Pais A. (2010).

ATTACKS ON WEB SERVICES AND MITIGATION SCHEMES.

In Proceedings of the International Conference on Security and Cryptography, pages 499-504

DOI: 10.5220/0002960104990504

 SciTePress

3 ATTACKS ON WEB SERVICES

In this section, we describe different attacks

performed on Web Services.

3.1 Injection Attacks

The Web Service engine parses SOAP request and

converts extracted parameters to native types.

Injection attacks alter parameters within SOAP

request that get processed by the business logic. If a

message generated by a client is tweaked a bit then

validation on the server side can easily be bypassed

without getting noticed.

3.1.1 XML Injection

This attack modifies existing tags or injects new

XML tags inside operation parameters. We

developed .Net Web Service as depicted below:

[WebMethod]

public string Add(int no1, int no2,

string name);

We could override the value of parameter 'no2'

by injecting XML tags inside first method parameter

'no1' as shown in figure 1. Also, we could reset the

value of the first parameter by injecting a XML node

‘no23’.

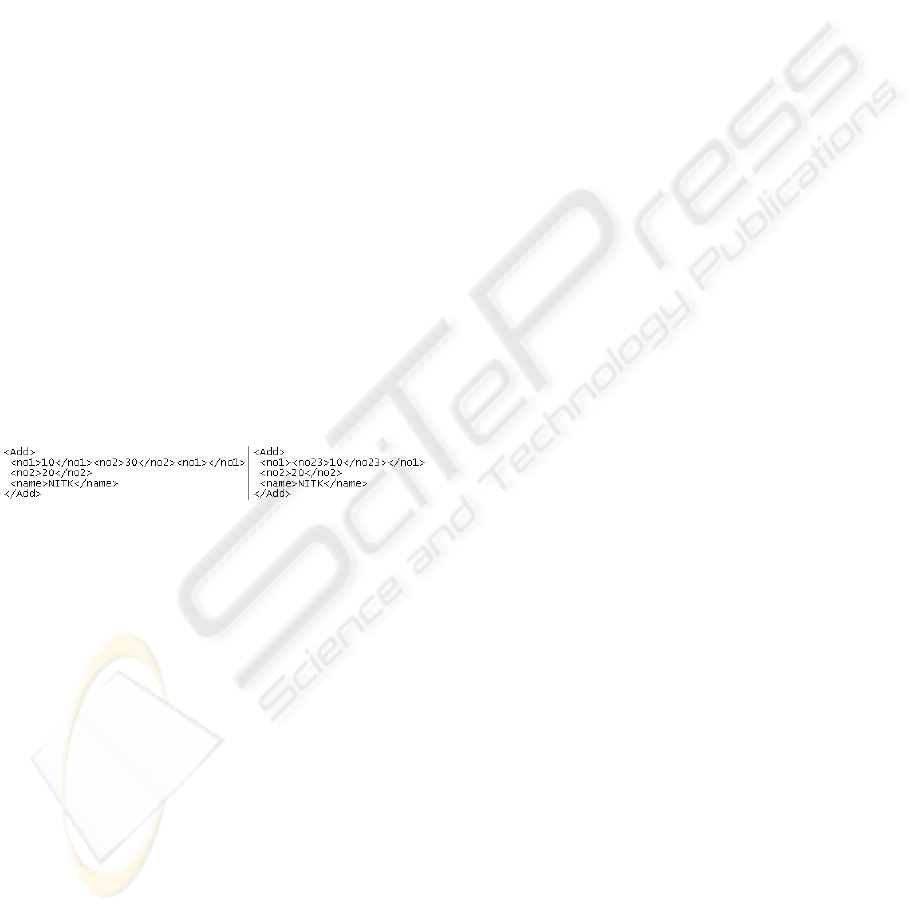

Figure 1: Overriding values of ‘no2’ and ‘no1’.

3.1.2 XSS Injection

In XML, a CDATA section is used to escape a block

of text that would otherwise be parsed as mark up.

Characters like "<" and "&" are considered illegal if

appear as values of XML nodes. An attacker injects

JavaScript by embedding it inside a CDATA tag and

inserts CDATA within operation parameter.

3.2 Header Manipulation

The SOAPAction Http header helps uniquely

identify target operation among multiple operations

available at the same end point. In our setup, two

operations named “AddIntegers” and

“SubtractIntegers” were available at an endpoint:

http://myservice.com/WebService/Service.asmx. We

changed the SOAPAction attribute of “AddIntegers”

operation to http://

company.com/samples/wse/SubtractIntegers without

modifying the Http body. We could successfully

invoke the “SubtractIntegers” operation and

obtained zero as a result value. Hence, it is still

possible to cause unintended behaviour without

changing SOAP body but through manipulation of

SOAPAction header.

3.3 Attacks through SOAP Attachment

The SOAP with Attachments specification allows

transmitting attachments using MIME/DIME

package. The SOAP message package is constructed

using MIME's Multipart/related media type. The

SOAP message can refer to attachments through an

URI.

Binary files containing malware can be posted as

an attachment along with the SOAP message. If a

web service happens to store this attachment as a file

on the server or distribute it further to other entities

then it can result in serious consequences if it does

not check for the presence of virus in the attachment.

An attacker can attach extra attachments to the

original MIME package so as to make it busy by

forcing it to extract these attachments which may

result in a DoS attack. In an obfuscation attack, an

attacker encrypts content of an attachment and

places <xenc:EncryptedData> element inside the

<wsse:Security> header. If this encrypted

attachment contains malicious code then it becomes

difficult to scan it.

3.4 Frankenstein Message: Modify

Timestamp

A common concern in message-oriented systems

relates to the timeliness of data. To handle the time-

related issues Microsoft introduced the

wsu:Timestamp element in their implementation of

WS-Security. By knowing the creation and

expiration time, a receiver can decide if the data is

new or stale. Following elements appear inside

Timestamp element:

Created: The time when the message was created.

Expires: Identifies when the message should expire.

The replaying captured message would result in

a SOAP fault if it is sent past an expiration time. An

attacker can modify “Expires” field and then send

the message successfully. To mitigate such scenario,

digital signature over timestamp is used. The XML

Re-Writing attack comes handy for an attacker to

send stale messages.

SECRYPT 2010 - International Conference on Security and Cryptography

500

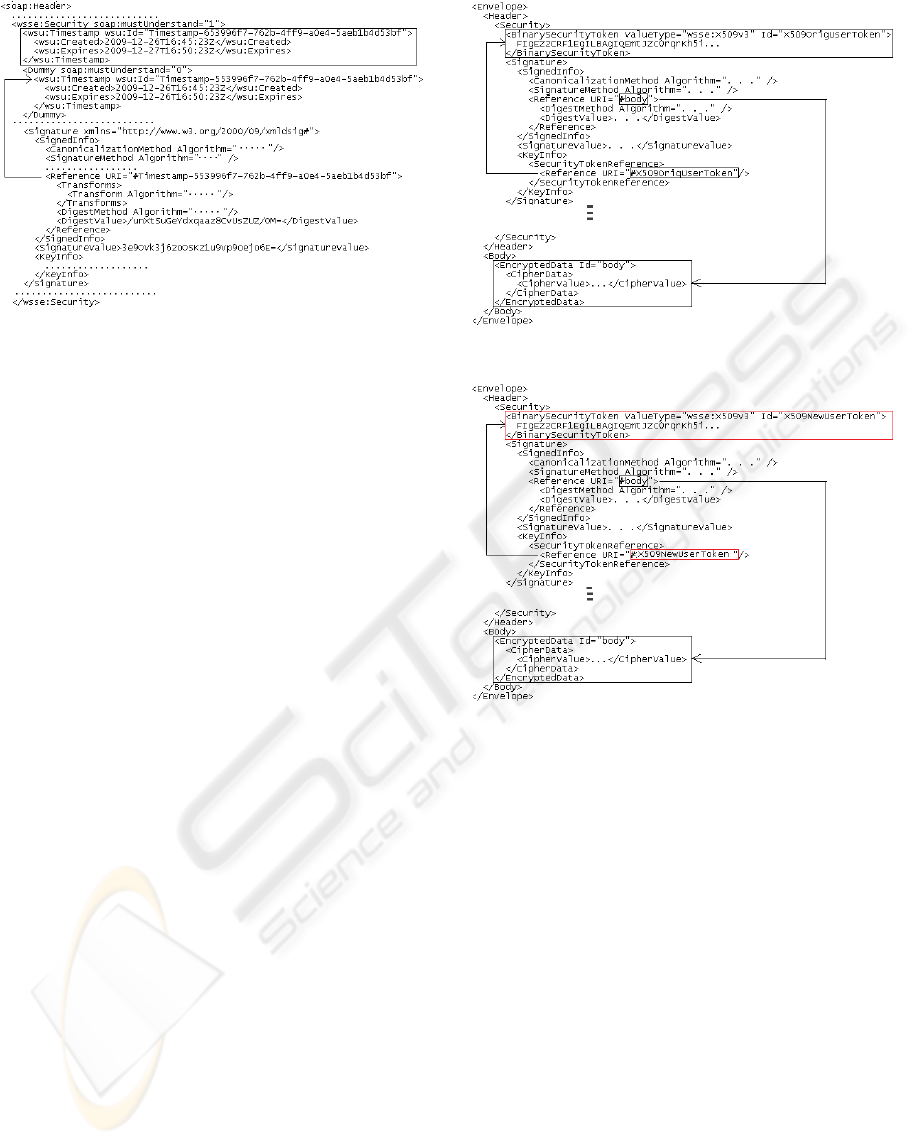

Figure 2: Signature section of stale message.

As shown in figure 2, we injected a new

Timestamp node immediately under Security

element. “Expires” element bears the value one day

ahead in future. We wrapped original Timestamp

element inside Dummy node qualified with

“mustUnderstand=0”. The Signature section refers

to the original timestamp element whose id equals

“Timestamp-553996f7-762b-4ff9-a0e4-

5aeb1b4d53bf” that has been moved intact inside

Dummy node. Again, server does not make sure that

the signed timestamp element is the one against

which server’s timestamp is compared. We could

send this message successfully without causing any

SOAP fault.

3.5 Attack on WS-Security

The WS-Security standard specifies the use of XML

Encryption and Signature operations for a SOAP

message which can be applied to the SOAP message

in either order.

Assume that the message is encrypted first and

then signed. Let’s assume an online marketing

company that sells products online. There are

several registered sellers who sell goods through the

aforementioned company. Company has made a

provision for these sellers to upload details of their

products they offer through a Web Service. Also,

each registered supplier is provided a digital

certificate. All the sellers have a copy of the digital

certificate of the marketing company with them. The

Body of a SOAP message contains product details

which are encrypted with the public key of an online

marketing company so that it is not legible to

unintended recipients.

Figure 3: Genuine Encrypted and Signed Message.

Figure 4: Message with modified Signature.

Figure 3 shows a genuine message sent by a

seller whose certificate is identified by

‘X509OrigUserToken’. Now, let’s assume that there

exists a seller with mala fide intentions who

possesses a digital certificate identified as

‘X509NewUserToken’. The malicious seller

captures SOAP message sent by the other seller and

removes a signature node from the security header

and embeds his own signature node to sign original

message body using his own key as shown in the

figure 4. On processing this message, server assumes

as if message has arrived from the malicious seller

because the key used for signature points to the

malicious seller’s certificate.

3.6 Attack on WS-Trust,

WS-SecureConversation

The Web service may expect an incoming SOAP

message to prove a set of claims. If the requestor

does not have the necessary tokens to prove the

ATTACKS ON WEB SERVICES AND MITIGATION SCHEMES

501

required claims to a service, it can contact an entity

called “security token service” to obtain a security

token using a mechanism specified by WS-Trust.

The requestor can now produce obtained security

token to get an access to the web service. The WS-

SecureConversation specifies the use of such

obtained token for multiple message exchange

between the client and a web service.

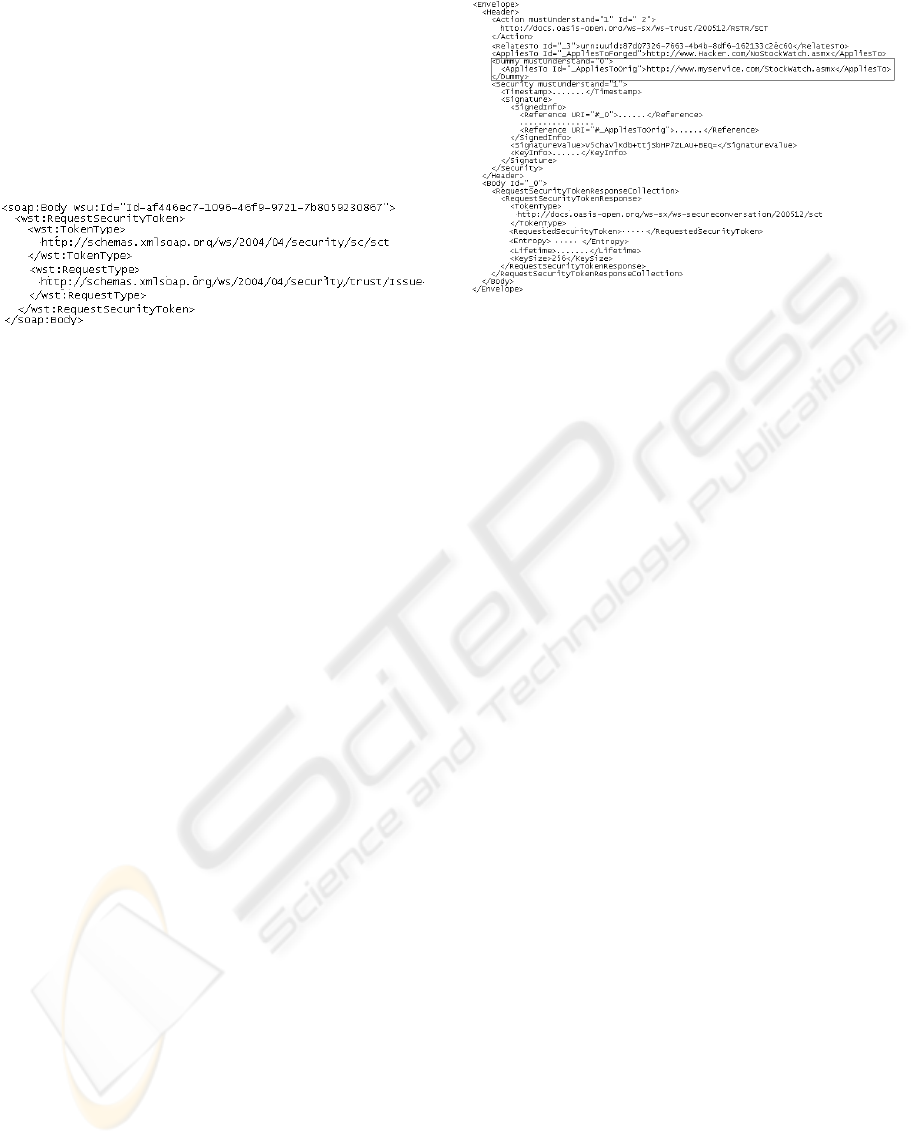

Figure 5: Request Security Token Message.

The client requests for security token by sending

RST (Request Security Token) message to the token

service as shown in figure 5. Token Service sends

back token response containing secret to be used for

subsequent message exchange.

3.6.1 Attack: Changing Service End-point

The Requestor may include “AppliesTo” element

inside “RequestSecurityToken” message. This

element specifies the web service for which the

token is being requested. An obtained security token

can only be used to communicate with the web

service identified by “AppliesTo” element. The

token service would include the same “AppliesTo”

element in a response when issuing the security

token.

The figure 6 shows the token service response

after modification. Issuing service has included

“AppliesTo” element in signature calculation. In this

attack, an attacker changes “AppliesTo” element of

a response so that the client discards obtained

security token and there won’t be any context

establishment with the Web Service. An attacker

would add a Dummy node qualified with

“mustUnderstand=0” and move original

“AppliesTo” element inside it. The signature

verification would be successful as original

“AppliesTo” element is still present though it has

been moved inside Dummy node. However, an

injected new “AppliesTo” element no longer points

to the web service for which token was requested

(Forged node points to

http://www.Hacker.com/NoStockWatch.asmx web

service). The token requestor would discard the

token since it didn’t receive token corresponding to

the service it asked for (http://

www.myservice.com/StockWatch.asmx).

Figure 6: Modified ‘AppliesTo’ element.

4 MITIGATION TECHNIQUES

Here, we shall see SOAP message validation

mechanism along with self-adaptive hardened

schema generation algorithm. Also, we shall see

solution to thwart SOAP attachment based attacks.

4.1 Schema Validation

To mitigate issues such as XML Injection and

SOAPAction manipulation discussed before, we

need an extra layer of input validation in addition to

the default validation functionality provided by the

web service engine. We implemented a solution in

the form of SOAP Extension that works with

Internet Information Services (IIS) server. We

developed a tool that scans through a WSDL file to

identify SOAP ports and then associated operations

along with the value of SOAPAction. Having

identified operations, it generates a set of Xml

Schema Definition (XSD) corresponding to each

operation by processing schema section of WSDL

file. These generated XSDs are then used by our

extension for performing validation.

Our extension captures the SOAP message when

it is available in a raw XML form and subjects it to

the validation against XSDs before it gets converted

to native objects with wrong values. Our Extension

maintains repository of schemas corresponding to

each operation stored according to SOAPAction

attribute. On intercepting incoming SOAP request,

extension obtains SOAPAction HTTP header value.

Then it uses this value to perform lookup in to

schema repository to extract appropriate schema.

The message is then subjected to validation against

retrieved schema. If it is learnt that the schema is

violated then it may be an instance of attack vector

and we do not allow it to be de-serialized and

SECRYPT 2010 - International Conference on Security and Cryptography

502

prevent it from reaching a web service. This

technique also helps us thwart any discrepancy

between SOAPAction and message body as schema

is retrieved in accordance with the value of

SOAPAction attribute.

In addition to validating messages against

schemas, extension should also do the following:

1. An XML node can have text content along with

CDATA section within it. The resultant text of a

node is the concatenation of content inside CDATA

and an actual text content of the node. This resultant

text is matched against a set of regular expressions

that check a presence of potentially dangerous

JavaScript or html mark-up.

2. For XML-Rewriting, mitigation technique would

be to incorporate check that makes sure that signed

nodes do not reside within a node marked with

‘mustUnderstand=0’.

For IIS, such a solution can be implemented in

the form of SOAP Extension as demonstrated

earlier. For servers like apache/tomcat, we can write

an input module which does the similar job.

4.2 Self Adaptive Schema Hardening

Efficacy of validation mechanism largely depends

on an accuracy of schemas used. Easiest way would

be to manually harden schema mentioned in WSDL

file. The quality schema allows all good requests to

pass validation while blocks bad requests. Such a

schema can be obtained by scanning through the

SOAP messages encountered by the web service and

categorizing them into bad and good requests. Then

an XML schema (XSD) can be hand crafted that

would allow good messages to pass validation.

However, this process is cumbersome and an error

prone as schema has to take into account all likely

patterns of the good messages. Here, we propose a

theoretical model of self-adaptive algorithm to

automate hardened schema generation process. Our

algorithm has its roots in the fact that XSDs

corresponding to a good SOAP requests would

either be same or differ insignificantly. These good

schemas can be merged together to obtain a single

schema. The web server extension as described

before would log all incoming SOAP messages in a

data store. Extension (Schema Validator) shall

initially rely on XSD Schemas generated from a

WSDL file (using our tool as mentioned before).

The goal is to deduce a set of schemas based on the

measure of similarity among messages. Figure 7

shows overall architecture of the system.

This algorithm shall run periodically and

operates as follows:

1. Sampling: Pick subset of SOAP requests from the

corpus of SOAP requests logged by an extension.

2. Schema Generation: SOAP message comparison

is easier in XSD domain then in XML domain.

Hence, we generate schema (XSDs) from each of the

sampled SOAP request.

3. Cluster Messages: Messages sharing identical or

similar generated schema become part of the same

cluster. Corresponding schemas are merged together

to obtain a resultant schema that would become

representative of the cluster.

4. Select Winner Cluster: All good requests would

have been mapped to the same cluster due to the fact

that they all share similar schemas. Hence, cluster

representing relatively large number of SOAP

requests would be considered winner cluster.

5. Refine Schemas stored in repository: Fine tune

schemas installed in a repository in line with the

schema corresponding to the winner cluster.

6. Purge logged SOAP requests that have already

been processed.

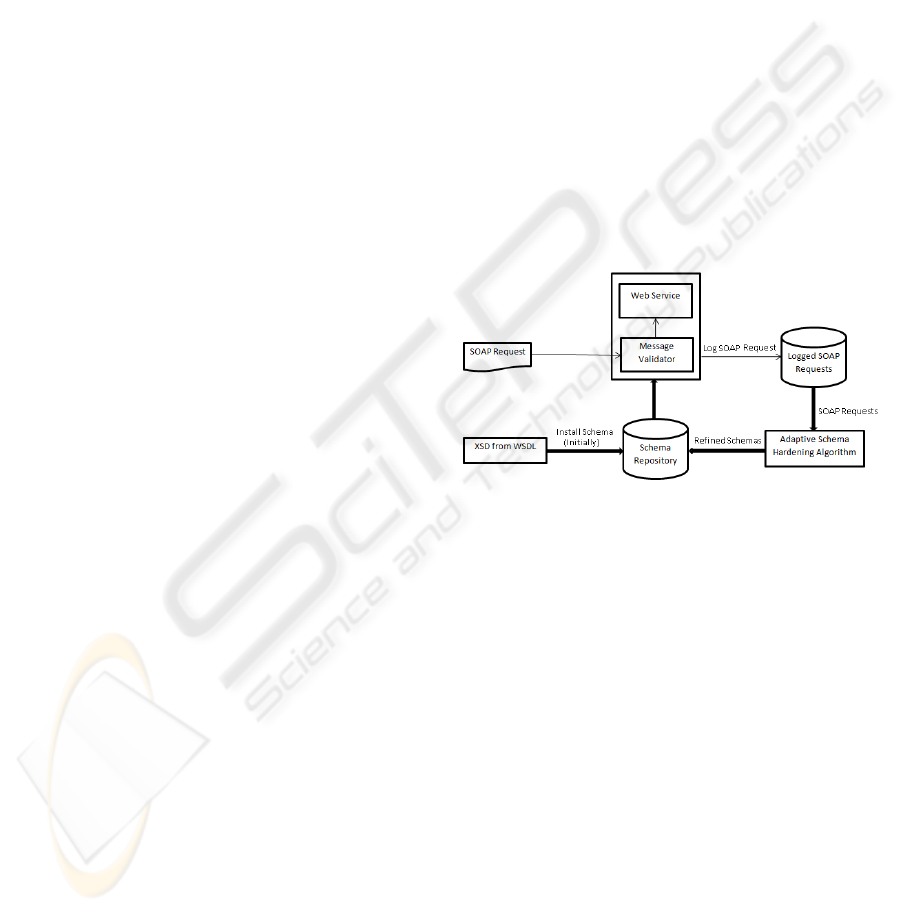

Figure 7: Schematic of Adaptive Schema Hardening

Algorithm.

Web Services are often used with standards like

WS-Security, WS-Routing etc. The use of these

standards introduces additional nodes within SOAP

header and body. However, schemas stated in

WSDL do not necessarily highlight presence of

these nodes in SOAP messages. Our algorithm helps

refine schema to include such nodes which would be

difficult to anticipate otherwise if done manually.

Also, it replaces generic data types used with the

concrete data types based on the values of operation

parameters encountered while processing logged

SOAP messages.

ATTACKS ON WEB SERVICES AND MITIGATION SCHEMES

503

4.3 Thwart SOAP Attachment Attacks

The best mitigation would be to have a SOAP

message interceptor that scans incoming SOAP

request for the presence of an attachment. Then

extract and scan attachment for the presence of virus

signature before being given to a web service. We

used open source ClamAV antivirus to scan

attachments. To prevent inclusion of extra

attachments, mitigation would be to ensure that all

attachments are signed. If any attachment referred

from SOAP message is not found to be signed then

it’s probably an instance of an attachment insertion

attack.

Table 1: Summary of Attacks and Mitigation Schemes.

Attack on/through

Newly

mentioned

Mitigation by

others

Mitigation

by us

XML Injection

No Yes Yes

XSS Injection No Yes Yes

XML Re-Writing No Yes Yes

Header

manipulation

No No Yes

SOAP

Attachments

No Yes Yes

Frankenstein

Message

Yes - -

WS-Security Yes - -

WS-Trust Yes - -

Our proposed solution also highlights mechanism to

automate the process of hardened schema generation.

We have shown the check that makes sure that the

signed nodes do not reside within a dummy node.

We have specifically described the use of open source

antivirus ClamAV for SOAP attachment scanning.

5 FUTURE WORK

Many of the attacks discussed above are direct

consequence of lack of thorough validation. The

XML Injection and Header Manipulation attacks can

be mitigated if we have strong validation logic in

place which in turn depends on quality of schema.

Our future work will focus on materializing efficient

schema hardening algorithm.

6 CONCLUSIONS

Table 1 highlights our contribution. In this paper, we

have shown injection based attacks. We have also

introduced Frankenstein message attack and attacks

on WS-Security and WS-Trust standards. We have

suggested mitigation techniques for subset of these

attacks. From the attacks discussed, it is apparent

that the mere use of security primitives does not

always evade all possible attacks. Use of these

security and other standards in a mature way can

supress new kind of attacks. Also, we have

introduced self-adaptive schema hardening

algorithm to automate the process of hardened

schema generation.

REFERENCES

Lindstrom, P., 2004. “Attacking and Defending Web

Services”, Spire Research Report.

Vorobiev, A., 2006. “Security Attack Ontology for Web

Services”, IEEE Proceedings of the Second

International Conference on Semantics, Knowledge,

and Grid.

Gruschka, N., 2009. “Vulnerable Cloud: SOAP Message

Security Validation Revisited”, IEEE International

Conference on Web Services.

Negm, W., 2004. “Anatomy of a Web Services Attack”,

Forum Systems.

McIntosh, M. and Austel, P., 2005. “XML signature

element wrapping attacks and countermeasures”, In

Workshop on Secure Web Services.

Gajek, S., Jensen, M., Liao, L., and Schwenk, J., 2009.

"Analysis of signature wrapping attacks and

countermeasures", In IEEE International Conference

on Web Services.

Jensen, M., Gruschka, N., Herkenhoner, R., Luttenberger,

N., 2007. “SOA and Web Services: New

Technologies, New Standards – New Attacks”, Fifth

European Conference on Web Services.

Gruschka, N., and Luttenberger, N., 2006. “Protecting

Web Services from DoS Attacks by SOAP Message

Validation", In Proceedings of IFIP International

Federation for Information Processing, pp 171–182.

Orrin, S., "The SOA/XML Threat Model and New

XML/SOA/Web 2.0 Attacks & Threats", Intel

Corporation.

Bidou, R., 2009. “Attacks on Web Services”, OWASP.

Testing for XML Injection (OWASP-DV-008), [online],

Available: http://www.owasp.org/index.php/Testing

_for_XML_Injection_(OWASP-DV-008) “Web

Services Security: SOAP Message Security 1.0”,

OASIS Security Standard, March 2004.

“WS-SecureConversation 1.3”, OASIS Standard, March

2007.

“WS-Trust 1.3”, OASIS Standard, March 2007.

Understanding WS-Security, [online], Available: http://

msdn.microsoft.com/en-us/library/ms977327.aspx

"Web Services Security: SOAP Messages with

Attachments (SwA) Profile 1.1", OASIS Standard, Feb

2006.

ClamAV Anti-Virus, [online], Available: http://

www.clamav.net/

SECRYPT 2010 - International Conference on Security and Cryptography

504
