Image Mining for Infomobility

Massimo Magrini

, Davide Moroni

, Christian Nastasi

, Paolo Pagano

Matteo Petracca

, Gabriele Pieri

, Claudio Salvadori

and Ovidio Salvetti

Institute of Information Science and Technologies (ISTI)

Italian National Research Council (CNR), Pisa, Italy

ReTis Laboratory (CEIIC)

Scuola Superiore SantAnna, Pisa, Italy

Abstract. The wide availability of embedded sensor platforms and low-cost cam-

era sensors – together with the developments in wireless communication – make

it now possible the conception of pervasive intelligent systems based on vision.

Such systems may be understood as distributed and collaborative sensor net-

works, able to produce, aggregate and process images in order to mine the ob-

served scene and communicate the relevant information found about it. In this

paper, we investigate the peculiarities of visual sensor networks with respect to

standard vision systems and we identify possible strategies to tackle the image

mining problem. We argue that multi-node processing methods may be envis-

aged to decompose a complex task into a hierarchy of computationally simpler

problems to be solved over the nodes of the network. We illustrate these ideas by

describing an application of visual sensor network to infomobility.

1 Introduction

In the last years, the wide availability of embedded systems and low-cost camera sensors

– together with the developments in wireless communication – has made it possible to

conceive sensor-based pervasive intelligent systems centered on image data [1]. Such

visual Wireless Sensor Networks (WSNs), employing a great number of low power

camera nodes, may support a large class of novel vision-based applications thanks to

the great informative power of imaging. For example, visual WSNs may be used to

monitor in real-time the crowd in shopping mall, airports and stadiums. By mining the

scene, the network may detect anomalous – and, thus, potentially dangerous – events

[2]. Similarly, visual WSNs may be used for environmental monitoring, for the remote

control of elderly patients in e-Health [3] and for human gesture analysis in ambient

intelligence applications [4].

In brief, the key feature of visual WSNs is the combination of the versatility and

independence from a physical infrastructure typical of general WSNs with the richness

of information that can be gained through imaging techniques, computer vision and

image understanding. In this sense, a visual WSN may be understood as a distributed

and collaborative sensor network, able to produce, aggregate and process images in

order to mine the observed scene and communicate the relevant information found about

Magrini M., Moroni D., Nastasi C., Pagano P., Petracca M., Pieri G., Salvadori C. and Salvetti O. (2010).

Image Mining for Infomobility.

In Proceedings of the Third International Workshop on Image Mining Theory and Applications, pages 35-44

DOI: 10.5220/0002962000350044

 SciTePress

it. In particular, each acquisition node is capable to acquire a view of the scene to be

mined. Then, in cooperation with each other, the various devices in the network are able

to process and aggregate the acquired views in order to predicate something about the

observed scene.

A successful design and development of such a system cannot be achieved without

suitable solutions to the involved computer vision problems. Although the computer vi-

sion problems may be still decomposed into basic computational tasks (such us feature

extraction, object detection and object recognition), in the context of visual WSNs, it

is not directly possible to use all the methods that have been developed to solve such

tasks and that are already available in the speciﬁc literature [5]. Indeed, since WSNs

usually require a large number of sensors, possibly scattered over a large area, the unit

cost of each device should be small to make the technology affordable. Therefore, cost

constraints limit the computational and transmission power of sensor nodes as well as

the ﬁdelity of acquired images, with consequences on the employable computer vi-

sion algorithms. Since untethered sensors are usually supplied by batteries, it is also

necessary to analyze carefully the tradeoffs between quality of processing and energy

consumption, in order to avoid too frequent battery replacement.

In light of these considerations, performing computer vision tasks over WSNs is

somewhat challenging from a technological viewpoint. However, probably, the change

in perspective offered by the possibility to perform pervasive computing and by the duc-

tility in organizing the network topology greatly compensates for the current technical

limits of visual WSNs and is even more intriguing, opening the way to more theo-

retical investigations. In particular, in this paper, we investigate multi-node processing

methods that may be envisaged to decompose a complex vision task into a hierarchy

of computationally simpler problems, to be solved over the nodes of the network. Be-

sides computational advantages, such hierarchical decision making approach may lead

to more robust and fault-tolerant results. We illustrate these ideas by describing an ap-

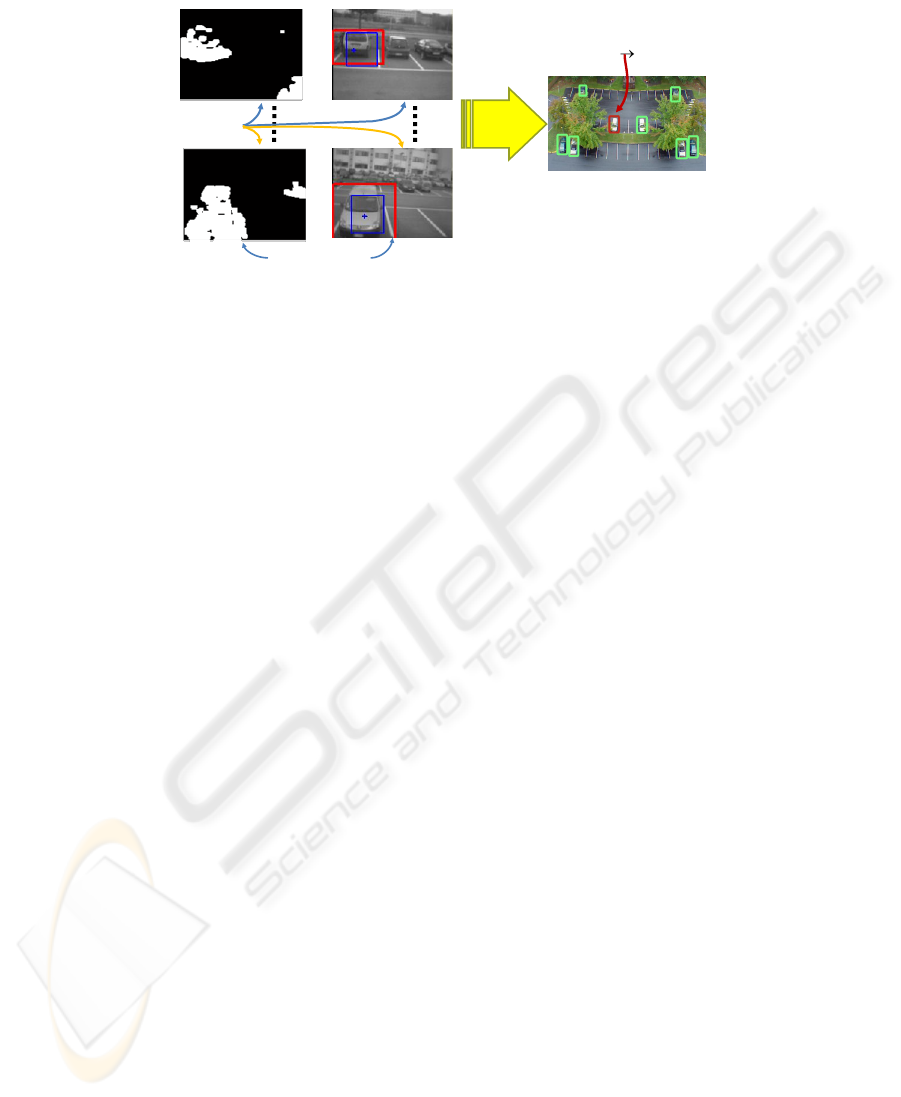

plication of visual sensor network to infomobility. To this end, we consider an experi-

mental setting in which several views of a parking lot are acquired by the sensor nodes

in the network. By integrating the various views, the network is capable to provide a

description of the scene in terms of the available spaces in the parking lot.

2 Background

Embedded vision platform ﬁrst appeared in connection with video-surveillance and

robotics. Thanks to the drop in technology costs, nowadays, their application range

has become wider so as to encompass several sectors of public and private life and, in

particular, infomobility. We ﬁrst discuss existing embedded vision platforms and basic

features of visual WSNs (Section 2.1); then we survey the speciﬁcities of performing

image analysis over WSNs, introducing in particular the multi-view vision problem

(Section 2.2).

2.1 Visual Sensor Networks

Following the trends in low-power processing, wireless networking and distributed

sensing, visual WSNs are experiencing a period of great interest, as shown by the recent

scientiﬁc production (see e.g [6]). A visual WSN consists of tiny visual sensor nodes

called camera nodes, which integrate the image sensor, the embedded processor and

a wireless RF transceiver [1]. The large number of camera nodes forms a distributed

system where the camera nodes are able to process image data locally (in-node pro-

cessing) and to extract relevant information, to collaborate with other-cameras – even

autonomously – on the application speciﬁc task, and to provide the system user with

information-rich descriptions of the captured scene.

In the last years, several research projects produced prototypes of embedded vision

platforms which may be deployed to build a visual WSN. Among the ﬁrst experiences,

Panoptes project [7] aimed at developing a scalable architecture for video sensor net-

working applications. However, the size of the sensor, its power consumption, its rela-

tively high computational power and storage capabilities makes Panoptes sensor more

akin to smart high-level cameras than to untethered low-power low-ﬁdelity sensors. In

the MeshEye project [8], an energy-efﬁcient smart camera mote architecture was de-

signed, mainly with intelligent surveillance as target application. MeshEye mote has an

interesting special vision system based on a stereo conﬁguration of two low-resolution

low-power cameras, coupled with a high resolution color camera. Another interesting

example of low-cost embedded vision system is represented by the CMUcam3 [9], de-

veloped at the Carnegie Mellon University. More precisely, the CMUcam3 has been

specially-designed to provide an open-source, ﬂexible and easy development platform

with robotics and surveillance as target applications. More recently, the CITRIC plat-

form [10], once equipped with a standard RF transceiver, is suitable for the develop-

ment of visual WSN. Indeed, the CITRIC system allows to perform moderate image

processing task in-network, that is along the nodes of the network. In this way, there are

less stringent issues regrading transmission bandwidth than with respect to centralized

solutions.

2.2 Image Analysis Over Visual WSNs

Gathering information from a network of scattered cameras, possibly covering a large

area, is a common feature of many videosurveillance and ambient intelligence systems.

However, most of classical solutions are based on a centralized approach, in which im-

age processing is accomplished in a single unit. In this respect, the need to introduce

distributed intelligent system – where distribution is not merely physical but also se-

mantic – is motivated by several requirements, namely [11]:

– Speed: in-network distributed processing is inherently parallel; in addition, the spe-

cialization of modules permits to reduce the computational burden in the high level

decisional nodes.

– Bandwidth: in-node processing permits to reduce the quantity of transmitted data,

by transferring only information-rich parameters about the observed scene and not

the redundant image data stream.

– Redundancy: a distributed system may be re-conﬁgured in case of failure of some

of it components, still keeping the overall functionalities.

– Autonomy: each of the nodes may process the images asynchronously and may

react autonomously to the perceived changes in the scene.

In particular, these issues suggests to move a part of intelligence towards the camera

nodes. In these nodes, artiﬁcial intelligence and computer vision algorithms are able

to provide autonomy and adaptation to internal conditions (e.g. hardware and software

failure) as well as to external conditions (e.g. changes in weather and lighting condi-

tions).

The mining and deployment of visual information involve particular problems in

computer vision, such as change detection in image sequences, object detection, ob-

ject recognition, tracking, and image fusion for multi-view analysis. For each of this

problems, there exists a large corpus of already implemented methods (see e.g. [12]

for a survey of change detection algorithms); however most of the techniques currently

available are not suitable to be used in visual WSNs, due to the high computational

complexity of algorithms or to excessively demanding memory requirements. Never-

theless, some attempts to employ non-trivial image analysis methods over visual WSN

have been done. For example, [13] presents a visual WSN able to support the query

of a set of images in order to search for a speciﬁc object in the scene. To achieve this

goal, the system uses a representation of the object given by the Scale Invariant Fea-

ture Transform (SIFT) descriptors [14]. SIFT descriptors are known to support robust

identiﬁcation of objects even among cluttered background and under partial occlusion

situations, since the descriptors are invariant to scale, orientation, afﬁne distortion and

partially invariant to illumination changes. In particular, using SIFT descriptors allows

retrieving the object of interest from the scene, no matter at which scale it is imaged.

Interesting computer algorithms are also provided on the CMUcam3 vision system

[9]. Besides basic image processing ﬁlters (such as convolutions), methods for real-

time tracking of blobs on the base either of color homogeneity or frame differencing

are available. A customizable face detector is also included. Such detector is based on a

simpliﬁed implementation of Viola-Jones detector [15], enhanced with some heuristics

to further reduce the computational burden. For example, the detector does not search

for faces in the regions of the image exhibiting low variance.

Camera sensors have limited ﬁelds of views and can only perceive a portion of a

scene from a single viewpoint. In addition, monocular vision totally lacks 3D informa-

tion. To mine the entire scene and to deal with occlusions, it is natural to equip visual

WSNs with multiview capabilities [16]. Due to bandwidth and efﬁciency considera-

tions, however, images cannot be routinely shared on the network, so that no dense

computation of 3D properties (like disparity maps and depth) can be made. Neverthe-

less, by codifying geometrical entities, it is still possible to exchange information about

regions or points of interest and to contextualize these data in the 3D space. To this

end, a coordinator node, knowing the calibration parameters of the camera nodes in the

network, may be introduced, so as to translate events from the image coordinates to

physical world coordinates. Such approach may produce more robust results as well as

a richer description of the scene.

3 Image Mining in WSN

In a distributed reactive application, the mission of the visual WSN is to report any rel-

evant change in the scene, where some real-time constraints should be satisﬁed. To this

end, one should take into account both local computation and network communication

issues to bound the maximum latency in the reaction.

Considering these constraints, but in the need for an efﬁcient mining of the visual

scene under examination, we focused on two different approaches: the ﬁrst one based on

simpler detection methods, but more efﬁcient from a computational and storage points

of view, the latter giving better performances for more speciﬁc object identiﬁcation

tasks while being computationally more intensive.

Moreover, considering a more global analysis and mining of the scene viewed from

several different nodes (i.e. multiview), a ﬁnal processing level for the aggregation of

different single in-node data, and the ﬁnal result of the scene mining needs to be imple-

mented.

In the following we will analyze the above mentioned speciﬁc methods for the de-

tection of changes in a scene, in particular regarding the two categories: simple, but

quick and efﬁcient change detection algorithms in Section 3.1, and on the other hand,

more complex and demanding algorithms for an object detection and identiﬁcation in

Section 3.2. Finally in Section 3.3 we will present methods for the aggregation of hierar-

chical identiﬁcations, made at different level of complexity and from multiple acquiring

points of view, in order to be able to correctly mine the set of images to detect events.

3.1 Event and Change Detection

The task of identifying changes, and in particular regions in the image under analysis,

taken at different times is a widely diffused topic covering very different disciplines

[12]. In this context, the goal is the identiﬁcation of one or more regions of pixels,

relative to a change in the scene, and occurring within a sensible and a priori known

area.

In order to perform fast, efﬁcient, and enough reliable methods for this change de-

tection, the generally adopted low-level methods are based on both frame differencing,

and statistical methods. This assumption can be either the quick and immediate an-

swer to a simple problems, or a preliminary synthesis for a deeper and more effective

higher level analysis. The general model used is mainly based on background subtrac-

tion, where a single frame, acquired in a controlled situation, is stored (BG-image) and

thereafter used as the zero-level, for different types of comparison in the actual process-

ing.

The ﬁrst methods are very low-level ones and are thought in such a way that it can

be possible and feasible to implement them also at ﬁrmware level, so to make them

real-time operative in an automatic way, examples of these can be:

– Thresholding toward the BG-image

– Contrast modiﬁcation with respect to the BG-image

– Basic edge detection on the image resulting from the subtraction with the BG-image

Another class of methods is based on statistical histogram analysis. Template his-

tograms are stored of the regions of interests in the BG-image. Then a standard distance,

such as the Kullback-Leibler divergence is computed between the region of BG-image,

and the region of the actual image. If such distance overcomes a ﬁxed threshold, then a

change event is detected.

N-1

true

false false

…

false false

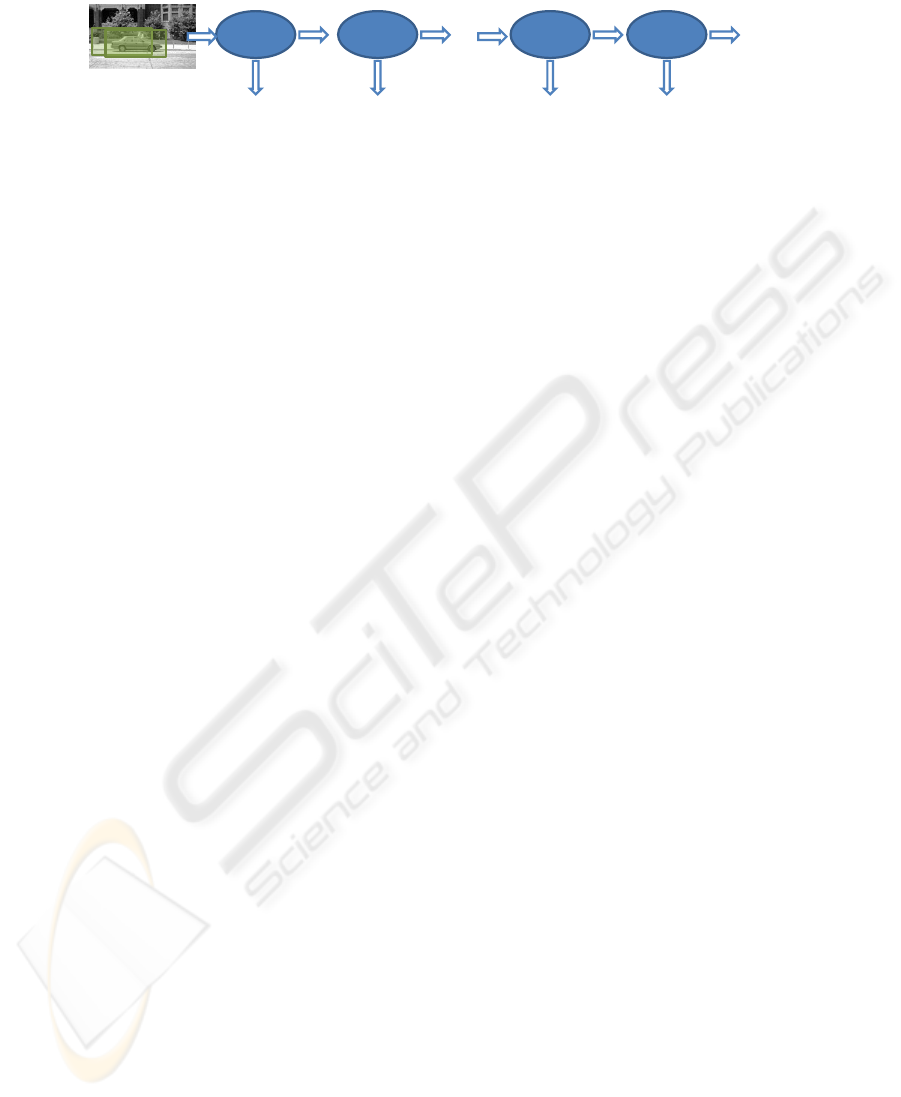

Fig. 1. Cascade of classiﬁer for object detection in a case study of car detection.

3.2 Object Detection

As it is well-known, the problem of detecting classes of objects in cluttered images is

challenging. Supervised learning strategies have demonstrated to provide a solution in

a wide variety of real cases, but there is still a strong research activity in this ﬁeld. In the

context of visual WSN, the preliminary learning phase may be accomplished off-site,

while only the already trained detectors needs to be ported to the network nodes.

Among machine learning methods, a common and efﬁcient one is based on the

sliding windows approach; namely rectangular subwindows of the image are tested

sequentially, by applying a binary classiﬁer able to distinguish whether they contain an

instance of the object class or not. A priori knowledge about the scene or – if available –

information already gathered by other nodes in the network may be employed to reduce

the search space either by a) disregarding some region in the image and b) looking for

rectangular regions within a certain scale range (e.g. rectangular regions covering less

than 30% of the whole image area).

For what regards the binary classiﬁers itself, among various possibilities, the Viola-

Jones method is particularly appealing. Indeed, such classiﬁer is based on the use of

the so-called Haar-like features, a class of features with limited ﬂexibility but which

is known to support effective learning. A Haar-like feature is essentially given by the

difference between sum of pixels in rectangular blocks; as such a Haar-like feature is

computable in constant time, once the integral image has been computed (see [15] for

details). Thus, having enough memory to store the integral image, the feature extrac-

tion process needs only limited computational power. Classiﬁcation is then performed

by applying a cascade of classiﬁers, as shown in Figure 1. A candidate subwindow

which fails to meet the acceptance criterion in some stage of the cascade is immedi-

ately rejected and no further processed. In this way, only detection should go through

the entire cascade. In addition, one may train the cascade – for example using gentle

AdaBoost – in such a way that most of the candidate subwindows that do not correspond

to instances of the object class are rejected in the ﬁrst stages of the cascade, with great

computational advantages.

The use of a cascade of classiﬁers permits also to adapt the response of the detector

to the particular use of its output in the network, also in a dynamical fashion, in order to

properly react to changes in the internal and external conditions. First of all, the trade-

off between reliability of detections and needed computational time may be controlled

by adaptive real-time requirements of the overall network. Indeed, the detector may be

interrupted at an earlier stage in the cascade, thus producing a quick even though less

reliable output, which may be anyhow sufﬁcient for solving the current decision making

problem. In the same way, by controlling the threshold in the last stage of the cascade,

Higher level Processing Higher level Processing

Top level

Quick Change Detection

Aggregation of

data for mining

Fig. 2. Architecture of the hierarchical levels of detection, in a car detection case study.

the visual WSN may dynamically select the optimal trade-off between false alarm rate

and detection rate needed in a particular context.

3.3 Aggregation of Partial Results

Considering a visual WSN with multiple views of the same scene for image mining pur-

poses, the previously described methods can be managed in a hierarchical fashion, with

faster algorithms yielding a primary response to a simple change detection task, and

sending their results up through the hierarchy to more performing algorithms, in case of

a positive detection. These higher level algorithms, due to their greater computational

requirements, are implemented in order to be called only when positive feedback is

given by the lower level ones. At the highest level of the hierarchy, a ﬁnal decision-

maker algorithm, operates having a not so strict computational and storage constraints,

that can aggregate both the results of lower levels processing, but also to combine the

multiple views processing, each one operating with the same hierarchy (see Fig. 2).

A common hypothesis for the multiple views aggregation process works on the

basis of a given knowledge base of information, relative to the approximate possible

positions, or Regions of Interest, where the objects to be mined can be detected. For

example the decision maker algorithm can analyze the speciﬁc outcomes from different

lower-level processing in each single node, and then be able to give a ﬁnal output using

its knowledge and working on the basis of a weighted computation of the single in-node

results.

4 Case Study: A Pervasive Infrastructure for Urban Mobility

The Tuscany regional project IPERMOB – “ A Pervasive and Heterogeneous Infras-

tructure to control Urban Mobility in Real-Time” [17] is exploiting an approach based

on visual WSNs for building an intelligent system capable of analyzing infomobility

data and of providing effective decision support to ﬁnal users, e.g. citizens, parking

managers and municipalities. The partners of the IPERMOB project are a balanced mix

Different levels

Different views

Decision

making

Slot assigned image mined

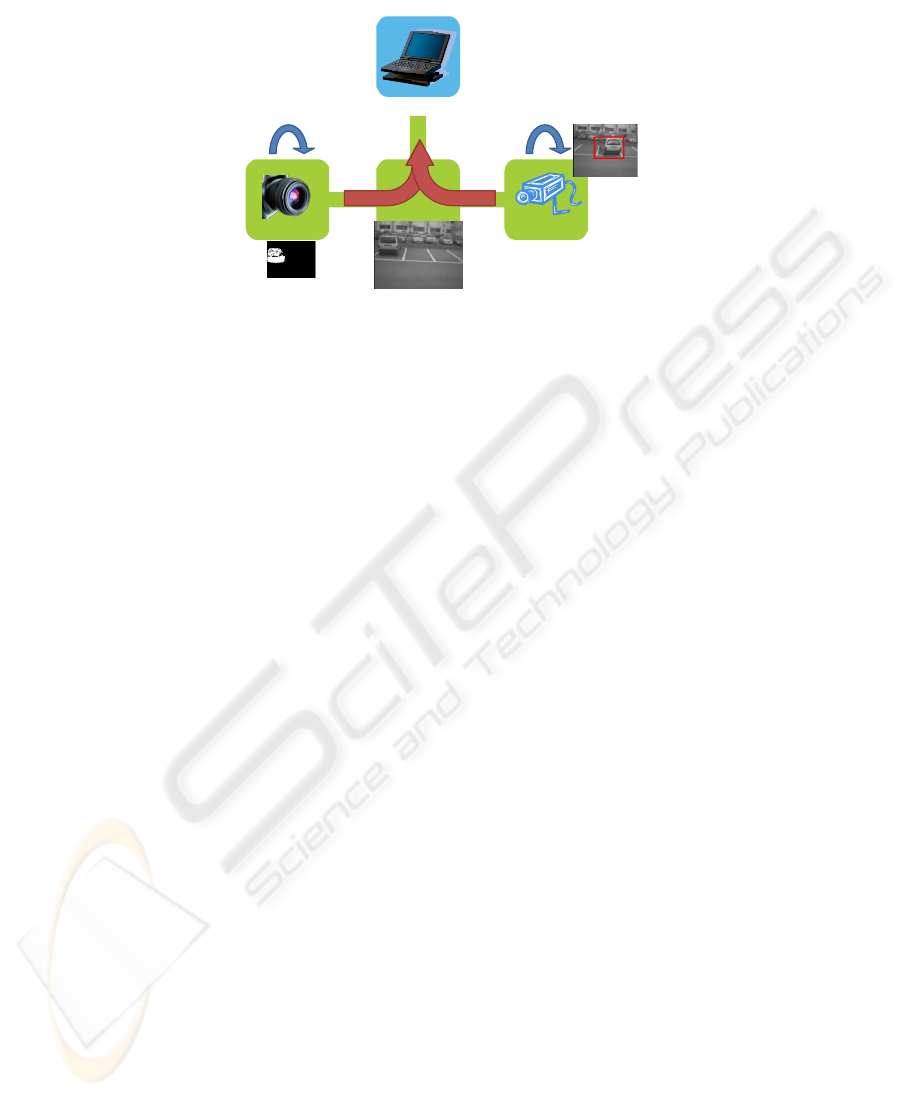

Fig. 3. The aggregation and decision-making process for WSN image mining in IPERMOB

Project.

of academical and industrial partners; the work presented in this paper is mainly im-

plemented by the Signals and Images Lab of the Institute of Information Science and

Technologies of the National Research Council, and the Real Time Systems Lab of the

Scuola Superiore Sant’Anna of Pisa. The IPERMOB project is developing an open,

inter-operable system featuring leading-edge technologies for distributed imaging and

wireless telecommunication. Supported by the real-world data gathered by pervasive

monitoring, IPERMOB aims to become a laboratory for the study of novel models for

mobility and to represent a benchmark for technological integration. IPERMOB infras-

tructure is organized in 3 tiers, corresponding to i) data acquisition and processing,

ii) Metropolitan Information Bus (MIB) and iii) end-users applications. The data ac-

quisition and processing tier (by using visual WSNs and Vehicular ad-hoc Networks

(VANETs)) is in charge of gathering and processing information, and of transmitting

aggregated data to the MIB. The MIB, acting as a middleware application, stores his-

torical data and makes all the information available in a suitable form to the ﬁnal appli-

cations.

In particular, in IPERMOB, visual WSNs are used to monitor parking lots and roads,

in order to mine the observed scenes and predicate something about parking lot occu-

pancy and trafﬁc ﬂow. Here, we focus on a parking lot scenario, i.e. in particular a case

study at the Pisa International Airport for the landside vehicle ﬂow, in which a set of

camera nodes with partially overlapping ﬁeld of views is in charge of observing and

estimating dynamic real-time trafﬁc related information, in particular regarding trafﬁc

ﬂow and availability of parking places. It is assumed that each camera knows the geom-

etry of the parking spaces that it is in charge of monitoring. In addition, we assume that

a coordinator node – on which the ﬁnal decision-maker algorithms described in Section

3.3 are hosted – knows the full geometry of the parking lot as well as the calibration

parameters of the involved cameras, in order to properly aggregate their beliefs.

Figure 3 shows the workﬂow in the real case study. In a typical scenario, some of

the camera nodes in the ﬁrst level of the hierarchy detects a change in the scene (by

using the methods reported in Section 3.1) and triggers object detection methods in the

remaining camera nodes that are in charge of monitoring that area. The aggregation and

decision making process are ﬁnally performed by the coordinator node.

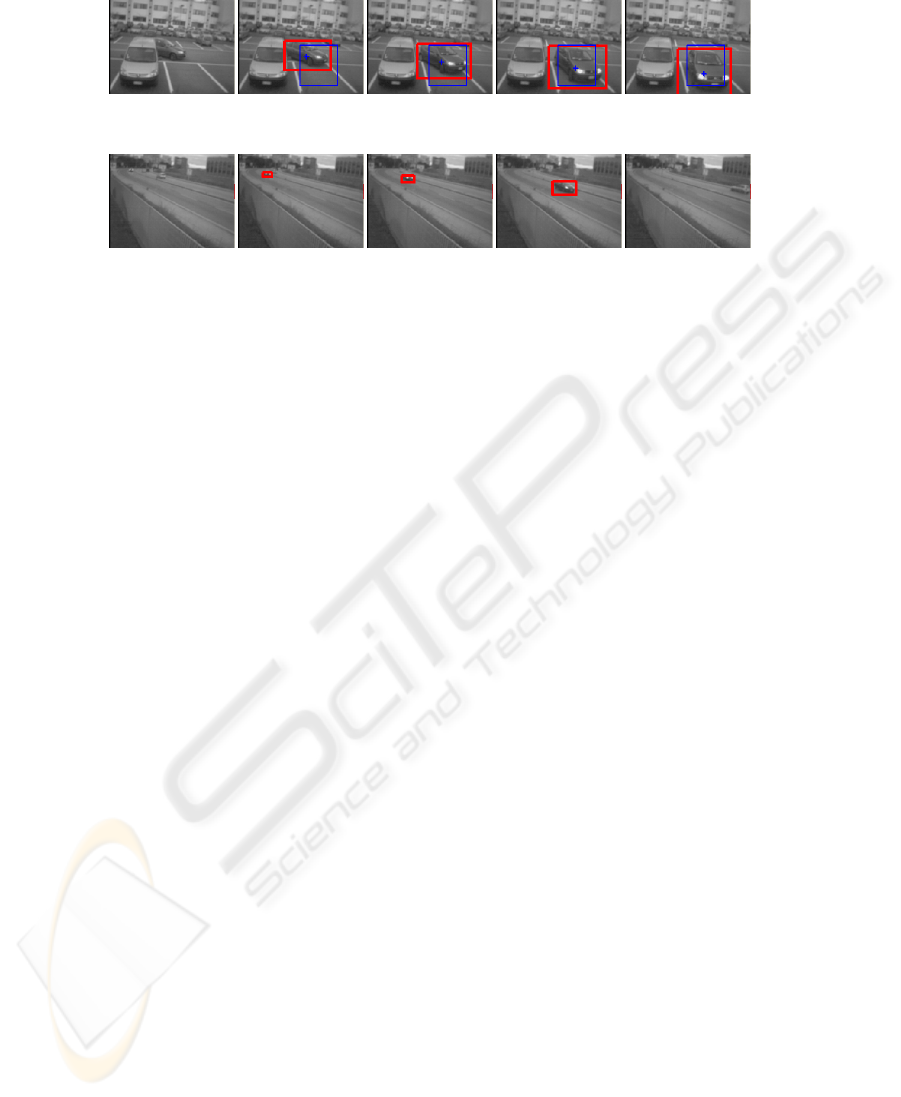

Fig. 4. Car detection and analysis of parking lot occupancy status.

Fig. 5. Detection of vehicles on a road for trafﬁc ﬂow.

For what regards object detection, several cascade of classiﬁers have been trained,

each one specialized in detecting particular view of cars (e.g. front, rear and side views).

A large set of labeled acquisition has been made of the real case study and used for

training purposes. We notice that ﬁrst stages in the cascade have low computational

complexity but reasonable performance (that is almost 100% detection rate but even

50% false alarm rate). Composition of the stages entails then high performance of the

entire cascade, since both overall detection rate and overall false alarm rate are just the

product of the detection rate and false alarm rate of the single stages. For example, using

N = 10 stages in the cascade, each one with detection rate ν = 99.5% and false alarm

rate µ = 50%, one gets an overall detection rate ν

global

= ν

≈ 95% and false alarm

rate µ

global

= µ

≈ 0.1%.

Figures 4 and 5 show examples of two mined image sequences in the framework of

the project, respectively for parking availability and trafﬁc ﬂow.

5 Conclusions and Further Work

In this paper, strategies for tackling the image mining problem over visual sensor net-

works have been presented, taking into account both the structural limits of embedded

platforms and the possibilities gained by performing pervasive computing and by the

greatly ﬂexible organization of the network topology.

A multi-node processing method has been introduced to decompose a complex com-

puter vision task into a hierarchy of computationally simpler problems to be solved over

the nodes of the network. Besides computational advantages, such hierarchical decision

making approach appears to be more robust and fault-tolerant.

Such ideas and preliminary results are illustrated by means of an application sce-

nario regarding infomobility, which is currently in development within the IPERMOB

project. Set-up and commissioning of the visual sensor network in the project testbed

will start in fall 2010. It is expected that the testbed will give precise information

whether the presented approach is mature for technological transfer.

Acknowledgements

This work has been partially supported by POR CReO Tuscany Project “IPERMOB” –

A Pervasive and Heterogeneous Infrastructure to control Urban Mobility in Real-Time

(Regional Decree N. 360, 01/02/2010). We would like to thank Dr.Eng. M. De Pascale

(Societ

a Aeroporto Toscano Galileo Galilei S.p.A.) of the Pisa International Airport for

his kind support and for providing access to the testing area.

References

1. Soro, S., Heinzelman, W.: A survey of visual sensor networks. Advances in Multimedia

(2009) Article ID 640386, 21 pages

2. Adam, A., Rivlin, E., Shimshoni, I., Reinitz, D.: Robust real-time unusual event detection

using multiple ﬁxed-location monitors. IEEE Trans. PAMI 30 (2008) 555–560

3. Colantonio, S. et al.: An intelligent and integrated platform for supporting the management

of chronic heart failure patients, Computers in Cardiology (2008) 897 – 900

4. Salvetti, O., Cetin, E.A., Pauwels, E.: Special issue on human-activity analysis in multimedia

data. Eurasip Journal on Advances in Signal Processing (2008) article n. 293453

5. Pagano, P., Piga, F., Lipari, G., Liang, Y.: Visual tracking using sensor networks. In: Proc.

2nd Int. Conf. Simulation Tools and Techniques, ICST (2009) 1–10

6. Kundur, D., Lin, C.Y., Lu, C.S.: Visual sensor networks. EURASIP Journal on Advances in

Signal Processing Signal Processing 2007 (2007) Article ID 21515, 3 pages

7. Feng, W., Code, B., Kaiser, E.C., Shea, M., chang Feng, W., Bavoil, L.: Panoptes: scalable

low-power video sensor networking technologies. In: ACM Multimedia. (2003) 562–571

8. Hengstler, S. et al.: Mesheye: a hybrid-resolution smart camera mote. In: Proc. 6th Int. Conf.

Inf. proc. in sensor networks, ACM (2007) 360–369

9. Rowe, A. et al.: CMUcam3: An open programmable embedded vision sensor. Technical

Report CMU-RI-TR-07-13, Robotics Institute, Pittsburgh, PA (2007)

10. Chen, P. et al.: Citric: A low-bandwidth wireless camera network platform. In: Distributed

Smart Cameras. (2008) 1–10

11. Remagnino, P., Shihab, A.I., Jones, G.A.: Distributed intelligence for multi-camera visual

surveillance. Pattern Recognition 37 (2004) 675–689

12. Radke, R.J., Andra, S., Al-Kofahi, O., Roysam, B.: Image change detection algorithms: a

systematic survey. IEEE Transactions on Image Processing 14 (2005) 294–307

13. Yan, T., Ganesan, D., Manmatha, R.: Distributed image search in camera sensor networks.

In Abdelzaher, T.F., Martonosi, M., Wolisz, A., eds.: SenSys, ACM (2008) 155–168

14. Lowe, D.G.: Distinctive image features from scale-invariant keypoints. International Journal

of Computer Vision 60 (2004) 91–110

15. Viola, P.A., Jones, M.J.: Robust real-time face detection. International Journal of Computer

Vision 57 (2004) 137–154

16. Pagano, P., Piga, F., Liang, Y.: Real-time multi-view vision systems using WSNs. In: Proc.

ACM Symp. Applied Comp., ACM (2009) 2191–2196

17. IPERMOB: A Pervasive and Heterogeneous Infrastructure to control Urban Mobility in

Real-Time. http://www.ipermob.org/ (2010) Last retrieved Feb 25, 2010.
