NEMO

A Network Monitoring Framework for High-performance Computing

Elio P

erez Calle

Department of Modern Physics, University of Science and Technology of China, 96 Jinzhai Road, Hefei, Anhui, China

Keywords:

High energy physics, Distributed computing, High-performance computing, Monitoring, Security.

Abstract:

The volume of data generated by the Large Hadron Collider (LHC), several PetaBytes (PB) per year, requires a

distributed tier-organised structure of computing resources for mass storage and analysis. The complexity and

diversity of the components of this structure (hardware, software and networks) require a control mechanism

to guarantee high-throughput high-reliability computing services. NEMO is a monitoring framework that has

been developed in one of the computing clusters that receive data from LHC and has been designed to measure

and publish the state of a cluster resources, maximize performance and efﬁciency and guarantee the integrity

of the cluster.

1 INTRODUCTION

Located in the border between Switzerland and

France, at the European Laboratory for Particle

Physics (CERN, Geneva), the Large Hadron Collider

(LHC) is the largest and most ambitious particle ac-

celerator installation ever built. LHC resumed opera-

tions last February, and the volume of data recorded

for off-line reconstruction and analysis will be of the

order of several PetaBytes (PB) per year.

This imposes a computing challenge at the level of

management and access of the data to be analyzed by

all physicists over the world. To archive and analyze

this large amount of data, the LHC depends on the

biggest world-wide computer resource available: the

World-wide Large Hadron Collider Computing Grid

(WLCG).

The WLCG combines the computing resources

of more than 130 computing centers in 34 countries,

aiming to harness the power of 100,000 CPUs to pro-

cess, analyze and store data produced from the LHC,

making it equally available to all partners, regardless

of their physical location. In the case of the LHC, a

novel globally distributed model for data storage and

analysis computing and data Grid was chosen because

it provides several key beneﬁts.

The key features of the WLCG are making possi-

ble multiple copies of data to be kept in different sites,

allowing an optimum use of spare capacity for multi-

ple computer centres, avoiding single points of failure

and making easier round-the-clock work by having

computer centres in multiple time zones.

An additional beneﬁt is the distribution of the cost

of maintainance and upgrades, since individual in-

stitutes fund local computing resources and retain-

responsibility for these, while still contributing to

the global goal. Finally, independently managed re-

sources have encouraged novel approaches to com-

puting and analysis. Some of these approaches, ini-

tially developed to be used in the WLCG, have been

extended to other computing clusters in the collabo-

rating institutes.

The computing architecture of the WLCG is based

on a tier-organised structure of computing resources,

based on a Tier-0 (T0) centre at CERN; 11 Tier-1 (T1)

centres, including one at CERN, for organized mass

data processing and storage, and more than one hun-

dred Tier-2 (T2) and Tier-3 (T3) centres where user

physics analysis over data products from T1s.

The T0 is in charge of storing the data com-

ing from the detector onto mass storage, performs a

prompt reconstruction of the data and distributes the

data among the T1 centres. The T1 sites archive on

mass storage its share of data, run data reprocessing,

organized group physics analysis for data selection

and distribute down the selected data to T2s and T3s

for user analysis.

The WLCG has run around 185 million jobs in the

twelve months since July 2008, and this number is

constantly increasing as new technologies and meth-

ods become available (CERN, 2010).

Pérez Calle E. (2010).

NEMO - A Network Monitoring Framework for High-performance Computing.

In Proceedings of the International Conference on Data Communication Networking and Optical Communication Systems, pages 61-66

DOI: 10.5220/0002968700610066

 SciTePress

2 MONITORING: A KEY ISSUE

The WLCG environment is potentially a complex

globally distributed system that involves large sets of

diverse, geographically distributed components used

for a number of applications. These components in-

clude all the software and hardware services and re-

sources needed by applications. The diversity of these

components and their large number of users render

them vulnerable to faults, failure and excessive loads.

Suitable mechanisms are needed to monitor the com-

ponents, and their use, hopefully detecting conditions

that may lead to bottlenecks, faults or failures. Moni-

toring is a critical facet for providing a robust, reliable

and efﬁcient environment.

The goal of monitoring is to measure and publish

the state of resources at a particular point in time. To

be effective, all components in an environment must

be monitored. This includes software (e.g. operating

systems, services, processes and applications), host

hardware (e.g. CPUs, disks, memory and sensors) and

networks (e.g. routers, switches, bandwidth and la-

tency). Monitoring data is needed to understand per-

for mance, identify problems and to tune a system for

better overall performance, and thereby monitoring is

a key issue to achieve high-throughput high-reliability

computing services required for WLCG.

In addition, a monitoring system can guarantee the

cluster security acting as a intrusion detection system,

allowing to detect an intruders presence in the system

as soon as possible. A quick detection will minimize

any damages produced to the system and will avoid

the platform to be used as a base for further attacks

to other systems. Monitoring can provide this early

detection of any unauthorized access by seeking for

changes in local ﬁles and looking at network trafﬁc

for predened patterns and speciﬁc packets.

2.1 Previous Developments

Since the ﬁrst deployments of the WLCG in 2003,

several software tools have been employed to mon-

itor the computing cluster. Before the deployment

of NEMO, these tools were based on Nagios (Perez-

Calle, 2004a), an open source intrusion detection sys-

tem, and Tripwire (Perez-Calle, 2004b), a ﬁle in-

tegrity scanner. This approach was mainly focused

on host and network security, although the state of

hardware and sotware resources was also taken into

account.

In this environment, Nagios acted as an umbrella

for other monitoring software (mainly Tripwire, Chk-

rootkit and Logcheck), offering a web interface with

graphing capabilities where the information provided

by other software could be displayed. This central-

ized information server simpliﬁed system administra-

tion tasks and reached an important milestone in mon-

itoring for the WLCG and EGEE (Enabling Grids for

E-SciencE) projects (Wartel, 2005).

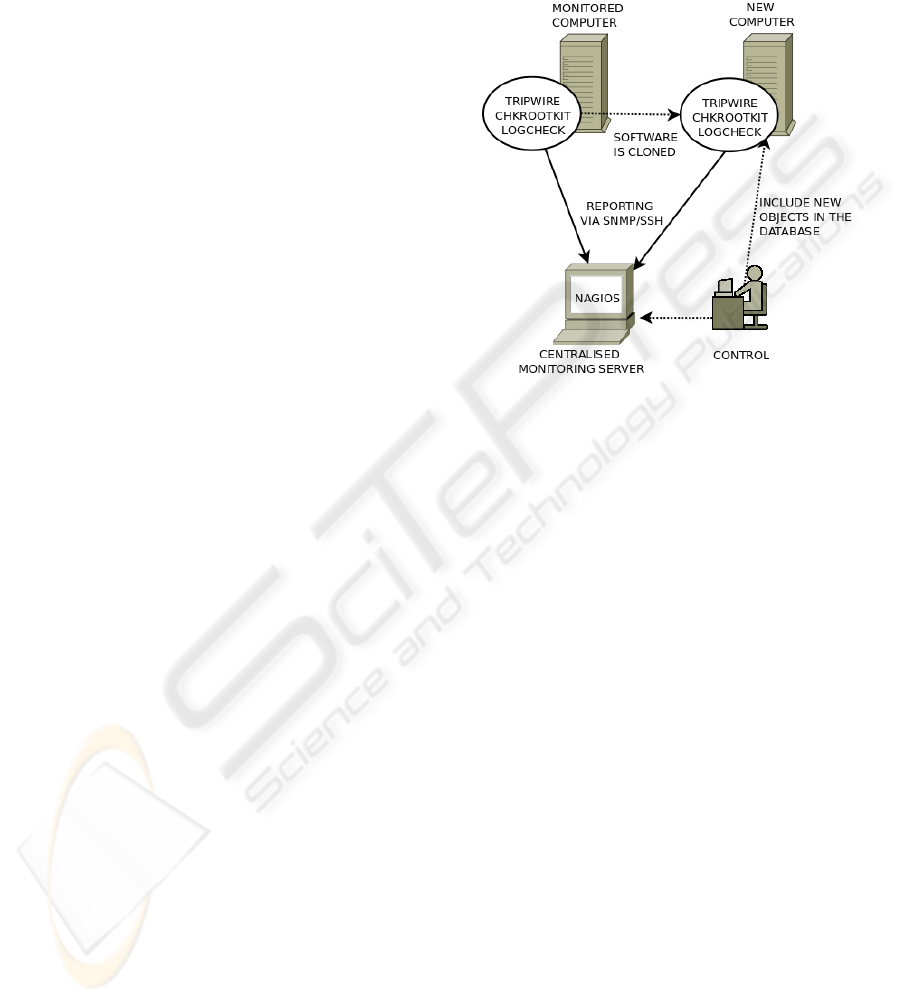

Figure 1: Diagram of a Nagios-based monitoring system.

Dotted lines show monitoring tasks, straight lines show in-

formation ﬂow.

However, this approach showed some limitations

in such a heterogeneous environment as WLCG is,

where fast-growing clusters are composed by differ-

ent computing machines. The Nagios-based toolkit

was relatively easy to deploy, but maintainance turned

to be complex. This software toolkit lacked a tool to

discover newly added machines (so they are automati-

cally added to the application’s database), so new ma-

chines had to be added in the database by operators,

as shown in ﬁgure 1.

In addition to this “passive” behaviour, system ad-

ministrators required a better processing of the mon-

itoring data, so it could be easily turned into relevant

information by detailed sorting. A way to estimate

trends based on the statistic data stored in the database

was also required, as it was considered useful to es-

timate the consequences of cluster ampliations and

helpful to spot future bottlenecks.

2.2 Overview of NEMO

The guidelines of the NEMO framework are designed

to overcome the limits of the previous deployment re-

ducing system administration tasks. Therefore, the

main objectives of this research project are the fol-

lowing:

• Develop an automatic system to measure and pub-

lish the state of the cluster resources, including

DCNET 2010 - International Conference on Data Communication Networking

hardware, software and networks, performing an

“active” behaviour.

• Maximize the cluster performance and efﬁciency

to meet WLCG computing level requirements.

• Guarantee the integrity of the cluster deploy-

ing software inspired by the security-by-design

paradigm.

• Simplify cluster system administration, reducing

unnecessary tasks and obtaining more information

on future trends.

The basic diagram of NEMO is shown in ﬁgure 2.

NEMO performs an active behaviour detecting new

added hardware and is able to process statistical data

recorded to help operators to anticipate future trends.

Once a machine has been detected, its monitoring data

is automatically retrieved, using speciﬁc procedures,

and stored in several centralized servers.

Afterwards this data can be processed and pre-

sented to operators using graphic tools and thereby

simplifying system administration. In addition to

monitoring information, NEMO performs also in-

bound and outbound connection performance mea-

surements, which were not present in previous de-

ployments. These measurements are shared with

other centres in Europe and the USA to obtain a bet-

ter knowledge of the Tier network. Infomation is also

retrieved from those centres, so network performance

measurements are not considered private.

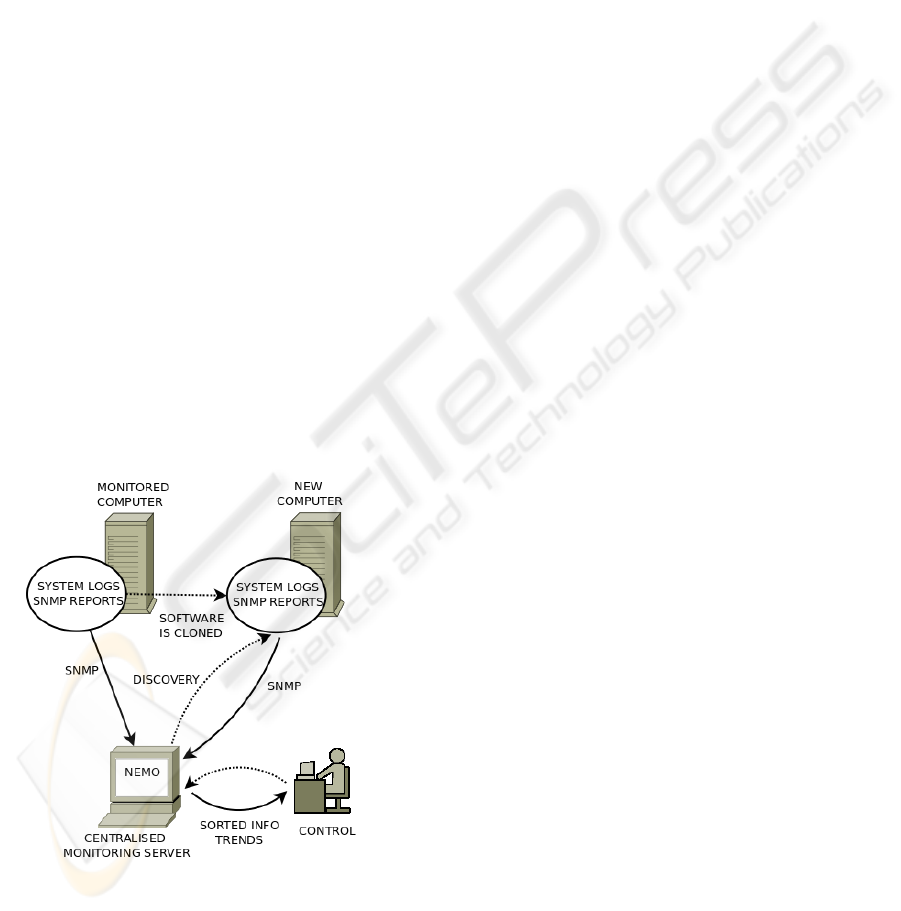

Figure 2: Basic diagram of NEMO. Dotted lines show mon-

itoring tasks, straight lines show information ﬂow.

On the contrary, any information regarding the

state of the cluster resources will be only stored on

local servers and will not be released to the Inter-

net. The data considered private contains detailed

information about system users, processes and hard-

ware capabilities, so every one of these operations

has to be performed with the highest conditions of

safety, security and reliability. In order to achieve this

goal, NEMO combines software designed to provide

a secure environment to transfer monitoring informa-

tion. In summary, public data is retrieved from mon-

itored computers, stored in a central server and avail-

able though the Internet. Private monitoring data is

retrieved, stored in centralised servers and available

only to the system administrators.

3 GENERAL DESCRIPTION

The monitoring information processed by NEMO can

be divided into three different types: operating system

logs analysis (private data), monitoring reports and

graphs (private data), and network performance mea-

surements (public and available through the Internet).

These three kinds of information are handled by three

different software applications: Syslog/NG (retrieves

and classiﬁes system logs), Cacti (obtains monitoring

reports and graphs) and Perfsonar (performs network-

ing measurements).

These three types of information are mainly re-

lated to evaluate the cluster performance and to iden-

tify possible failures. As previous developments were

used, NEMO is also employed as a intrusion detec-

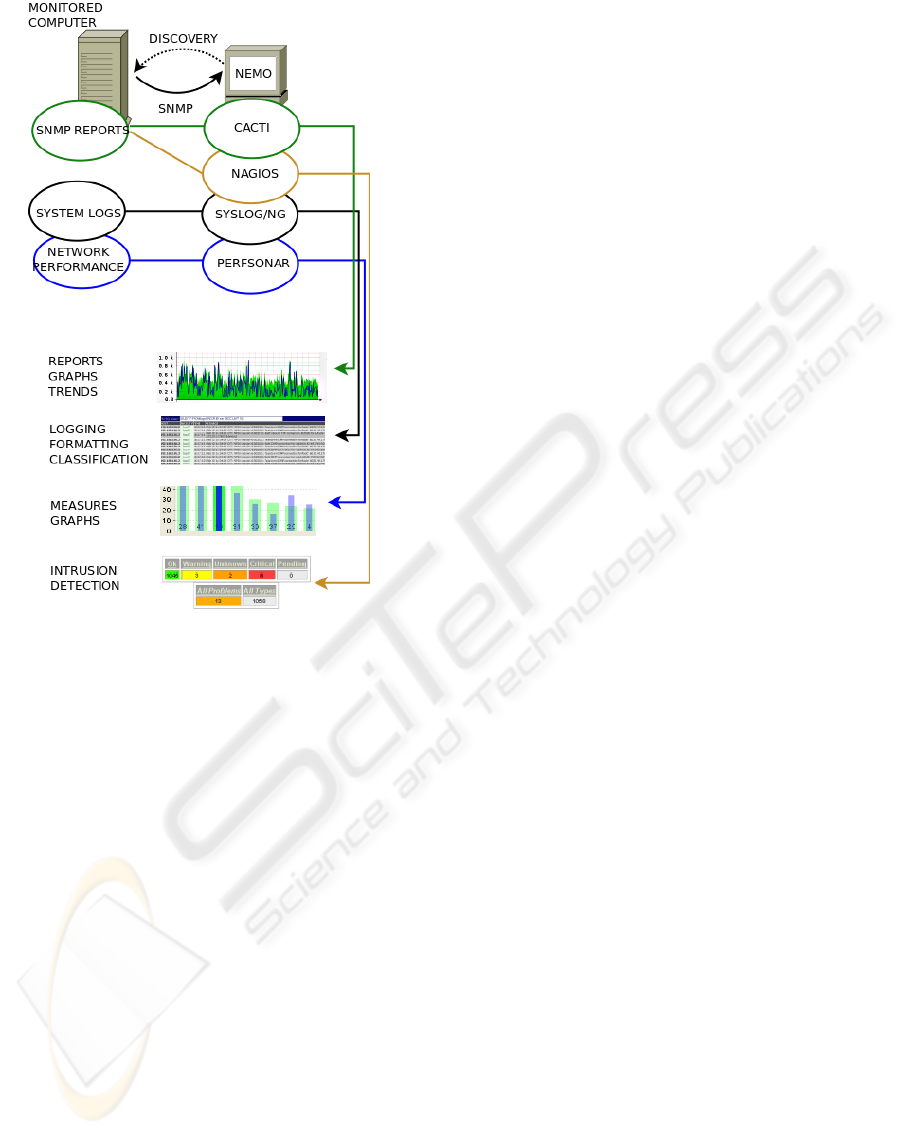

tion system. The functional components of NEMO

are depicted in ﬁgure 3.

3.1 Operating System Logs

Every computer in the cluster runs Scientiﬁc Linux, a

operating system based on RedHat Enterprise Linux.

The operating system records a wide range of infor-

mation produced by the programs, applications and

daemons, including source, priority, date and time of

every message, in the system logs. These logs pro-

vide a valuable source of information in order to iden-

tify any malfunction that could lead to a underperfor-

mance or a system vulnerability that could be used by

a malicious user to cause damage to the computing

cluster.

System logs are stored locally by default, so ev-

ery computer has to be accessed by operators to anal-

yse the information contained. Therefore, the man-

agement of a big computing cluster can be simpli-

ﬁed if all the logs are recorded and centralized in just

one server to be analysed afterwards. Using the Sys-

logng (Balabit, 2010) software, NEMO transfers sys-

tem logs via TCP protocol from the computing nodes

to a remote server. Transport Layer Security (TLS)

NEMO - A Network Monitoring Framework for High-performance Computing

is used to encrypt the communication, and mutual au-

thentication is based on X.509 certiﬁcates. This pro-

cedure guarantees the integrity and the security of the

information from its source to its destination.

After being securely transferred to a central server,

operating system logs coming from multiple comput-

ers can be sorted and classiﬁed based on their content

and various parameters, such as source host, appli-

cation and priority. Directories, ﬁles, and database

tables can be created dynamically using macros. In

addition, complex ﬁltering using regular expressions

and boolean operators offers almost unlimited ﬂexi-

bility to forward only the important log messages to

the selected destinations.

These tools allow operators to transform the data

contained in the system logs in easily readable infor-

mation. Once this information is properly classiﬁed,

trivial messages will be discarded and any important

message will rapidly pop up. Operators can spot any

current situation and anticipate future problems, espe-

cially those related to the cluster overall performance

and the security and integrity of the scientiﬁc data

stored.

3.2 Reports, Graphs and Trends

Operating system logs provide a valuable source of

information about programs, applications and dae-

mons. Nevertheless, they provide very little informa-

tion about the system hardware, not to mention other

devices such as routers and switches. In a complex

computing cluster, another tool has to be used to mon-

itor local hardware and network devices and thereby

guarantee a proper use of the computing resources.

In addition to the information provided by op-

erating systems logs, speciﬁc information will be

recorded:

• Hardware health, e.g. CPUs, mass storage devices

and memory.

• Speciﬁc software, e.g. communication services

and scientiﬁc applications.

• Network devices, e.g. routers, switches, band-

width and latency.

In order to track these parameters, NEMO uses

Cacti (Berry, 2007), a graphing program for network

statistics. Cacti provides a fast poller, advanced graph

templating, and multiple data acquisition methods.

This is a system to store and display time-series data

such as network bandwidth, machine-room tempera-

ture, and server load average, which is a perfect com-

plement to the centralized and classiﬁed system logs

and together provide a complete image of the system.

Cacti provides both another way to retrieve informa-

tion from the computing nodes and a way to present

this information.

3.2.1 Retrieving the Information

Data is retrieved via Simple Network Management

Protocol (SNMP) (Harrington, 2004) or external shell

scripts. Monitored systems (also called Slaves), ex-

ecute locally a software component called an agent,

which reports information via SNMP to the moni-

toring systems (also called Masters). SNMP agents

expose management data on the monitored systems

as variables (such as “free memory”, “system name”,

“number of running processes”, “number of users”).

SNMP also permits active management tasks, such as

modifying and applying a new conﬁguration.

The monitoring system can retrieve the informa-

tion through several protocol operations or the agent

(installed on the monitored system) will send data

without being asked. Monitored systems can also

send conﬁguration updates or controlling requests to

actively manage a system. The variables accessible

via SNMP are organized in hierarchies to simplify

management.

3.2.2 Presenting the Information

In a complex network, made of hundreds or even

thousands of different devices, all the collected in-

formation is useful only if it is presented properly.

Therefore, the information provided by the SNMP

agent is displayed by Cacti using graphs. These

graphs allows the operator to quickly check the over-

all status of the cluster, and its short-time and long-

time evolution, and therefore any malfunction can be

easily spotted. Threshold alerts can be set up to au-

tomatically identify any anomaly, e.g. free memory

below a previously deﬁned limit, and notify the oper-

ator immediately.

Presenting the information is the last but not the

least step of monitoring after retrieving and storing

it. In a similar fashion as system logs are submit-

ted to intense classiﬁcation in the centralised mon-

itoring node, all other information retrieved from

the managed nodes is processed to be shown using

graphs. This graphs allow to better identify current

performance and easily compare it with historic data.

NEMO makes use of Cacti trending capabilities to es-

timate possible future evaluation of performance.

3.3 Intrusion Detection

As it was shown in section 2.1, previous develop-

ments were mainly focused on host and network secu-

DCNET 2010 - International Conference on Data Communication Networking

Figure 3: Functional components of NEMO. Dotted lines

show monitoring tasks, straight lines show information

ﬂow. One of this functional components, Nagios, is actu-

ally operating under Cacti’s umbrella.

rity, acting as intrusion detection systems. The graph-

ing capabilities of Nagios made it an umbrella for

other monitoring sofware, presenting the retrieved in-

formation in its web interface. However, the limita-

tions of a Nagios-based monitoring system regarding

automatic discovery and trend prediction are too im-

portant to continue using Nagios as the base of a het-

erogeneous environment such as WLCG.

Nevertheless, the intrusion detection system capa-

bilities of Nagios can be still used integrating it in

Cacti as a add on. In this situation, Nagios can be

used to spot a failure o malfunction and Cacti can

obtain information over time and present it using de-

tailed graphs –Cacti would be acting as an umbrella

in this case, retrieving information from Nagios as

it does from other sources. Actually, one of Cacti’s

main strengths is the posibility of upgrading it using

plugins, such as the Nagios-Cacti integration one, and

this way some of the code developed for Nagios can

be reused.

3.4 Network Performance

In addition to the performance monitoring and the in-

trusion detection service, NEMO includes a speciﬁc

tool to monitor network performance. As WLCG is a

distributed environment, data has to be sent over the

Internet form LHC to the Tier centers. The measure-

ment of network bandwidth and throughput is a key

priority, and a speciﬁc tool has been set up to monitor

network connections to other Tier centers.

PerfSONAR (Tierney, 2009) is the infrastructure

used by NEMO for network performance monitoring.

PerfSONAR contains a set of services delivering per-

formance measurements in a federated environment.

These services act as an intermediate layer, between

the performance measurement tools and the diagnos-

tic or visualization applications. This layer is aimed at

making and exchanging performance measurements

between networks, using well-deﬁned protocols.

The information provided by PerfSONAR is used

to analyse bandwidth and throughput performance,

and thereby evaluate the efﬁciency of external com-

munication networks. This information is shared with

our project partners through a dedicated server in or-

der to facilitate an overall comprehension of the data

ﬂow, which is a key issue in the WLCG structure of

distributed computing.

3.5 Further Development

NEMO is currently coping all the monitoring neces-

sities of the computing cluster. However, the adqui-

sition of new hardware such as routers with speﬁ-

cic characteristics is continuously offering new chal-

lenges to the system administrators. New features,

mainly related to hardware needs, are currently un-

der study and will be probably added to NEMO in

the near future, as a plugin for Cacti. This approach

allows other members of the community to add this

feature to their deployments and think of NEMO as a

possible solution for their monitoring needs.

4 ALTERNATIVES TO NEMO

Once it was decided that the previous monitoring

framework had to be upgraded, a few alternatives

to NEMO were studied before deciding to build this

software toolkit. The ﬁrst and best known software

to be evaluated was Ganglia (Becker, 2008). Ganglia

is a system monitor widely used in computing clus-

ters and grids that allows the operators to remotely

view historical statistics of the monitored machines.

Despite its widespread aceptation (Ganglia is used at

NEMO - A Network Monitoring Framework for High-performance Computing

CERN itself), Ganglia cannot be fully adapted to the

need of our project, as it is mainly focused on uti-

lization and performance metrics of computer nodes,

rather than focusing on service availability and prob-

lem notiﬁcation, being the latter a important part of

our monitoring needs.

Another alternative to NEMO is Lemon (CERN,

2008), a server/client based monitoring system. On

every monitored node, a monitoring agent launches

and communicates using a push/pull protocol with

sensors which are responsible for retrieving monitor-

ing information. The extracted samples are stored on

a local cache and forwarded to a central Measurement

Repository than can be accessed through a RRDTool-

based web interface. Lemon is a useful tool to detect

failures and malfunctions using the so-called “sen-

sors” but lacks the ﬂexibility of NEMO, provided by

Cacti and the functionality of its plugins. Additionaly,

trend prediction and autodiscovery are not present in

Lemon at this moment.

5 CONCLUSIONS

The NEMO tookit provides a monitoring framework

for a computing cluster, including hardware, software

and networks, allowing a continuous and exhaustive

analysis of the cluster status and its inbound and out-

bound connections in order to maximize running time

and minimize failures. Therefore higher standards of

performance and efﬁciency can be met and a better

use of the computing resources can be achieved, de-

tecting and eliminating possible bottlenecks.

NEMO performs its tasks in a more efﬁcient

way than previous developments. This is possible

by reducing the number of operation tasks enabling

new equipment automatic discovery and making use

of intense classiﬁcation of the information provided

by system logs. The improved efﬁciency facilitates

large-scale centralized execution. The ﬂexibility of

Cacti, NEMO’s main component, allows adapting it

to the needs of a given cluster. This ﬂexibility made

possible the use of previously deployed software, and

therefore NEMO acts also as a intrusion detection

system, providing an extra layer of security to the

computing environment.

Finally, the inclusion of a graphing system sim-

pliﬁes administration providing the operators current

and historic data about the cluster performance. The

statistical data provided by the different tools intre-

grated in NEMO can be used to predict future trends

and therefore simplify the monitoring of large, com-

plex and heterogeneous clusters such as WLCG.

ACKNOWLEDGEMENTS

This work received the support of the EU Science and

Technology Fellowship Programme China.

REFERENCES

Balabit (2010). The Syslog-ng Administration Guide. Bal-

abit IT Security Ltd, 10th edition.

Becker, J. (2008). Marching Penguins: Monitoring Your

HPC Cluster. Linux Magazine.

Berry, I. (2007). The Cacti Monitoring Tool. The Cacti

Group, http://www.cacti.net.

CERN (2008). Lemon: Large Hadron Collider Era Moni-

toring. http://lemon.web.cern.ch/lemon/index.shtml.

CERN (2010). The Worldwide Large Hadron Col-

lider Computing Grid project (WLCG). Euro-

pean Organisation for Nuclear Research, CERN.

http://lcg.web.cern.ch/LCG/.

Harrington, D. (2004). An Architecture for Describing Sim-

ple Network Management Protocol (SNMP) Manage-

ment Frameworks. Internet Engineering Task Force

Request for Comments 3411.

Perez-Calle, E. (2004a). Using Nagios for Intrusion De-

tection. The International Conference on Comput-

ing in High Energy and Nuclear Physics, Interlaken,

Switzerland.

Perez-Calle, E. (2004b). Using Tripwire to Check Clus-

ter System Integrity. The International Conference on

Computing in High Energy and Nuclear Physics, In-

terlaken, Switzerland.

Tierney, B. (2009). Instantiating a Global Network Mea-

surement Framework. BNL Technical Report LBNL-

1452E.

Wartel, R. (2005). Security Monitoring. Second WLCG/

EGEE Grid Operations Workshop, Bologna, Italy.

DCNET 2010 - International Conference on Data Communication Networking
