FINDING AND CLASSIFYING PRODUCT RELATIONSHIPS USING

INFORMATION FROM THE PUBLIC WEB

Daniel Schuster

, Till M. Juchheim

and Alexander Schill

Computer Networks Group, Technische Universit

at Dresden, Helmholtzstr. 10, 01062 Dresden, Germany

Facultad de Informatica, Universidad Politecnica de Madrid

Campus de Montegancedo, 28660 Boadilla del Monte, Madrid, Spain

Keywords:

Product information systems, Web information extraction, Product relationships, Semantic relatedness, Clas-

siﬁcation and clustering.

Abstract:

Relationships between products such as accessory or successor products are hard to ﬁnd on the Web or have

to be inserted manually in product information systems. Finding and classifying such relations automatically

using information from the public Web only offers great value for customers and vendors as it helps to improve

the buying process at low cost. We present and evaluate algorithms and methods for product relationship

extraction on the Web requiring only a set of clustered product names as input. The solution can be easily

implemented in different product information systems most useful in but not necessarily restricted to the

application domain of online shopping.

1 INTRODUCTION

Interaction with other products is often an essential

part in a product’s existence, since such product re-

lationships may inﬂuence the actions of producers,

vendors but mostly customers. Common examples

for such relations are two products competing for the

same market segment or products that complement

each other (a main product and an accessory). Hav-

ing knowledge about the existence of these relations

enables a customer to change his shopping behavior

in order to get the best deal for himself, could trigger

producers to draw more attraction to one of their prod-

ucts or may help vendors to have a better overview on

a market segment in order to properly assemble their

offers.

Today, such relations are either mined manually

using expert knowledge or depend on shopping his-

tories such as ”frequently bought together” or ”What

do customers ultimately buy after viewing this item?”

(examples from amazon.com). But in many prod-

uct information systems (especially in federated PIS),

this information is often not available. Furthermore,

shopping histories are not able to identify all possi-

ble product relationship nor is it possible to correctly

classify connections. All the information necessary

to ﬁnd and classify such relations is available on the

Web, but distributed along different websites and of-

ten unstructured (e.g., a newspaper article about Win-

dows 7 being the successor of Windows Vista).

This leads to the following research question: Is

it possible to ﬁnd and classify connections between

products in an automated, efﬁcient way, relying on

information from the public Web only? The term

efﬁcient implies that we do not want to check each

available product pair for a possible relationship, as

this causes a quadratic growth of tests with a growing

number of products. Thus we have to ﬁnd a method

that has only linear or even logarithmic complexity.

This paper contributes detailed algorithms to ﬁnd

product relationships efﬁciently using only groups of

product names as input (Section 4). The approach

uses semantic relatedness of products as well as key-

word similarity of product descriptions as useful indi-

cators of product relationships. Furthermore, in Sec-

tion 5 we provide a methodology to classify these

connections using a combination of neural network

and decision trees. The evaluation in Section 6 shows

the feasibility of our approach.

2 RELATED WORK

Finding and classifying product relationships is an

important research topic with many promising appli-

300

Schuster D., M. Juchheim T. and Schill A. (2010).

FINDING AND CLASSIFYING PRODUCT RELATIONSHIPS USING INFORMATION FROM THE PUBLIC WEB.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Databases and Information Systems Integration, pages

300-309

DOI: 10.5220/0002973603000309

 SciTePress

cation scenarios. Up to our best knowledge, no cur-

rent system is however able to automatically discover

and describe product relationships as proposed in this

paper.

A well known related area are recommender sys-

tems that are nowadays commonly found in all large

online shops such as Amazon or Buy.com. A de-

cent overview on the state of the art in this ﬁeld can

be found in (Adomavicius and A., 2005). The au-

thors interpret recommender systems as a way to help

customers deal with the information overload caused

by modern information technology. Other sources

like (Han and Karypis, 2005) show that deploying a

decent reommender system may directly result in a

commercial gain. Traditionally these systems mainly

fall into the two categories Content-Based-Filtering

(CBF) or Collaborative Filtering (CF).

CBF suggests items from different categories

based upon the similarity of the currently viewed

item X to each item category (van Meteren and van

Someren M., 2000). Such systems requires an item-

to-category similarity matrix which is usually built by

analyzing items’ textual descriptions. CF or people-

to-people correlation (Schafer et al., 1999) recom-

mends items to users based on what other people with

similar interests found interesting, so it does not di-

rectly relate products but people. Besides these two

approaches there exist many systems that try to com-

bine them like Amazon’s modern appraoch in (Lin-

den et al., 2003) or (Shen et al., 2007) where the user

provides an initial scenario which is then matched to

previous choices of other users. These systems have

in common that, in the eyes of a user, they appear to

relate products to each other. In contrast to our system

this relation is however not based on relevance seman-

tics (Product A is relevant to Product B) but shopping

behaviour and does not further explain the relation-

ships, either.

Another class of interesting systems are Product

Comparison Agents (PCA), online applications that

retrieve, process and re-format product information to

aid a customer’s decision making process (Wan et al.,

2007). A prime example is CNetShopper.com (CBS

interactive, 2010) where a product is related to similar

ones and popular accessories. The website also offers

a detailed comparison tool that relates products on the

level of features. A shortcomming of most PCA sys-

tems is however that they do not gather data automat-

ically from independent sources but rely on manually

tagged data sources.

A different type of product comparison is done

by (Liu et al., 2005) and (Kawamura et al., 2008).

Both systems extract customer opinions on products’

features and then compare products to each other,

based on these opinions, feature by feature. While the

ﬁrst system extracts from rather well known sources

such as CNet reviews, the second one is able to ex-

tract opinions from random blogs, a characteristic that

makes it very powerful and interesting for this work.

A rather new subﬁeld of Information Extrac-

tion (IE) is Relationship Extraction (RE) (Bach and

Badaskar, 2007), whose task is to extract related en-

tities from documents and eventually also specify the

relationship that holds between them. The TextRun-

ner system (Banko and Etzioni, 2008) with its un-

derlying theory is a famous example of state of the

art work in that area. It uses two input terms and

searches large document collections in order to ex-

tract text pieces that relate the terms. Up to now

the system does not interpret its results semantically.

In (Schutz and Buitelaar, 2005) the authors present an

interesting system that searches documents from soc-

cer game news tickers in order to extract relationship

triples containing two concept terms and the relation

between them. Both systems are very unique and in-

teresting but do not yet provide enough foundation for

the task of this work, as they either are incapable of

semantic interpretation of relations or are too ﬁxed on

a special domain and therefore bound to a speciﬁc tex-

tual representation of relationship facts.

3 MAIN CONCEPT

Our concept for relationship classiﬁcation consists of

the three main steps of

1. Setting up a hierarchically clustered product tree,

2. Dicovering connections between these products,

3. Classifying the product relationships found in

step 2.

The rationale behind the ﬁrst step is to limit the

number of necessary comparison operations by ex-

ploiting relatedness of products. It is though very un-

likely to ﬁnd any connection between a digital cam-

era and stilettos so it does make sense to cluster

products before ﬁnding relationships between them.

This can be done either using an existing hierarchi-

cal classiﬁcation like the Amazon catalogue classiﬁ-

cation or without any dependency on external classi-

ﬁcation schemes using k-means clustering. The latter

approach was used for the prototype implementation

shown in Section 6. We describe this method in a sep-

arate companion paper.

In this paper we focus on steps 2 and 3, i.e., con-

nection discovery and classiﬁcation. These steps do

not depend on how the hierarchical clusters where

built in step 1. Thus we only assume to already have a

FINDING AND CLASSIFYING PRODUCT RELATIONSHIPS USING INFORMATION FROM THE PUBLIC WEB

301

hierarchically clustered network of products (product

name, producer name and price) as a starting point.

Producer name and price are only needed for connec-

tion classiﬁcation, so product names are sufﬁcient to

ﬁnd the product links in the ﬁrst place.

4 CONNECTION DISCOVERY

The central question to be asked for discovering con-

nections between products is where and how do prod-

uct relationships usually occur? Many related prod-

ucts tend to be quite similar such as they might both

be phones with similar features, music from the same

band, or clothes of similar style. Other product re-

lationships occur between products that complement

each other such as batteries for a phone, lenses for a

camera, or pants that ﬁt with a set of shirts.

We transfer this model to a two-staged approach

for connection discovery. In the ﬁrst stage we try

to identify the primary link structure between simi-

lar products in the clusters as mentioned before. In

the second stage we use these connections to discover

secondary links crossing the boundaries of the clus-

ters.

4.1 Primary Link Structure

To detect the primary link structure, there are two

main tasks to be solved: A heuristics to select the

most promising relationship candidates for each prod-

uct from the product network and a test to measure the

relevance of a connection between two products.

As can be seen in Algorithm 1, we ﬁrst try to ﬁnd

relevant groups on the same level in the tree as the

group R the actual product p belongs to. We pick

all these candidate groups and test a random sam-

ple of products from each group against a sample of

products from R to check for group similarity (line

9). If the average similarity of the sample products

passes the threshold t, the group is added to the rele-

vant groups H (lines 10-12). Finally, all products in

all groups of H are tested for similarity again to fur-

ther reduce the candidate set (lines 14-18). Only those

products that again pass the threshold t make it to the

next stage. At the end, each remaining candidate is

extensively checked against product p to examine the

actual product relationships (lines 19-21).

The algorithm mentions two testing functions

similarityTest(x, y) and relationTest(x,y). The for-

mer is an easy-to-compute function giving a ﬁrst but

not at all sufﬁcient indication of product relation-

ships. The second function relationTest involves

calls to Web search engine APIs and is very reliable

but time-consuming. Our main idea is thus to use

similarityTest to reduce the number of candidates and

ﬁnally use the more reliable relationTest only on this

smaller set. We describe both algorithms in detail

starting with similarityTest (Algorithm 2).

Algorithm 1: Detecting primary link structure.

1: p = product to test;

2: R = leaf group p belongs to;

3: relevant products P = {};

4: relevant groups H = {R};

5: t = similarity threshold;

6: Pick n representative products R

from R;

7: for all groups S

on lowest tree level do

8: Pick n representative products S

from S

;

9: l

= average similarityTest(R

);

10: if l

> t then

11: add G

to H;

12: end if

13: end for

14: for all products c

in H do

15: if similarityTest(p,c

) > t then

16: add c

to P;

17: end if

18: end for

19: for all candidate products d

in P do

20: relationTest(p,d

);

21: end for

Algorithm 2 : Testing product similarity (similari-

tyTest).

1: if Index

re f

= [] then

2: Create reference word index Index

re f

by Web

random sampling;

3: end if

4: if Index

= [] then

5: Retrieve document set Docs

describing prod-

uct a from the Web;

6: for all words word

in Docs

7: Index

[word

] =

f requency(word

,Docs

)

Index

re f

[word

]

8: end for

9: end if

10: if Index

= [] then

11: Retrieve document set Docs

describing prod-

uct b from the Web;

12: for all words word

in Docs

13: Index

[word

] =

f requency(word

,Docs

)

Index

re f

[word

]

14: end for

15: end if

16: K

= top m keywords of Index

;

17: K

= top m keywords of Index

;

18: return

∩ K

;

Algorithm 2 is based on the idea of content sim-

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

302

ilarity, or more precisely, the non-weighted keyword

similarity of two collections of web pages describing

the two products to compare. The keyword indexes

have to be computed only once per product, i.e., when

the product network is initialized at the beginning or

when a new product is added to the network. Once

the indexes are built, only lines 16 to 18 have to be

processed to test the similarity of two products.

A reference index Index

re f

is needed to weigh the

keywords in analogy to the TF-IDF measure (Singhal

et al., 1996). This index is built using a Web random

sampling tool like NLSampler (Schuster and Schill,

2007) and by building up a generic text index like

Lucene (Apache Foundation, 2009). The index holds

the occurence frequency for each word that appears in

the collected documents. This task is only executed

once when a product relationship network is created,

at the very beginning.

The indexes Index

and Index

for products a and

b are built using a sample of pages describing the re-

spective product (lines 5 and 13). This sample is not

chosen randomly but selected with the help of a web

search index like Yahoo! Search. Our method uses a

product’s name as the search query and then retrieves

the top n ranked documents. A number of n = 50

has shown to be an adequate sample size concerning

method quality and performance. The index vectors

Index

and Index

do not contain absolute frequency

values. The frequency for each word is divided by

the frequency of word word

in the reference index

(lines 7 and 13). The actual comparison in lines 16 to

18 deﬁnes two sets of keywords K

and K

each with

the top m keywords of the product indices. As result

of similarityTest(a,b), the number of keywords oc-

curing in both sets divided by the total number m of

keywords in each of the sets is returned. This results

in a number between 0 and 1 indicating the level of

keyword similarity between products a and b.

The function relationTest(x, y) performs a num-

ber of different tests as can be seen in Algorithm 3.

It is modeled after the idea of semantic relatedness

and combines this measure with the similarity. The

method requires a search engine API like Yahoo!

Search Boss (Yahoo! Inc., 2010). It gathers the num-

ber of total hits of search requests for each of the in-

dividual product names (lines 1 and 2), as well as the

number of their common hits (line 3). The seman-

tic relatedness d

rel

is then calculated as the fraction

of the number of documents where both products oc-

cur and the minimum number of total documents with

one of the products. If two products are unrelated,

it is very unlikely that they are discussed together in

many web documents, thus d

rel

will be very small.

However, if they are in fact related the product names

will occur together more frequently which will natu-

rally result in a larger semantic relatedness. At the end

of relationTest, d

rel

is combined with similarityTest

using arithmetic mean. The resulting number w

link

refers to the link weight of the connection between

both products. The principle ideas is, that two re-

lated products will show a high semantic relatedness,

or a high similarity, or even both. The system holds a

threshold value t

linkweight

, which deﬁnes the minimum

weight a relationship must have to be considered rel-

evant. By increasing the threshold t

linkweight

, we can

increase the recall of the system (ﬁnding more links)

but meanwhile decreasing the precision (ﬁnding more

false connections).

4.2 Secondary Link Structure

Creating the secondary link structure is the second

big part of the link discovery. Our approach for de-

tecting primary links relies on group similarity and

works quite well to identify groups of highly simi-

lar products and their neighbors but it fails in ﬁnd-

ing non-similar but related groups like mobile phones

and their batteries. We could discover connections be-

tween such products using relationTest (Algorithm 3)

between each pair of products but this is very time-

consuming and should be carried out only on a re-

duced set of promising candidates.

Algorithm 3 : Testing product connections (relation-

Test).

1: a = number of search index hits for product x;

2: b = number of search index hits for product y;

3: s = number of search index hits for ”x AND y”;

4: d

rel

min(a,b)

;

5: w

link

= 0.5 · (similarityTest(x,y) + d

rel

);

6: if w

link

> t

linkweight

then

7: return true;

8: end if

9: return false;

The main idea of determining secondary link

structure is to use the network from the primary link

detection and test for transitivity relations. Thus, if a

product A links to product B and product B links to

product C there is a high probability of ﬁnding a di-

rect connection between A and C. As can be seen in

Figure 1, this is done using a tree search.

The algorithm is formally described in Algo-

rithm 4. It keeps a list l

open

of all nodes (products)

that still need to be examined and a closed list l

closed

to remember all products that have already been ex-

amined. Additionally, the method also keeps a candi-

date list l

candidate

. In this list it stores all potential in-

FINDING AND CLASSIFYING PRODUCT RELATIONSHIPS USING INFORMATION FROM THE PUBLIC WEB

303

Figure 1: Discovering secondary links.

direct connections that were encountered on the way.

The fourth list l

connected

is only used temporarily to

identify all nodes connected to the node currently pro-

cessed.

In each iteration, the algorithm picks the ﬁrst item

from l

open

until it is empty (lines 7 and 8). The

similitarityTest mentioned above is used again to

check for a potential connection from the input prod-

uct to the current item from l

open

(line 9). If it passes

the test, its children not yet visited before are added to

the open list l

open

(lines 13-17). The closed list l

closed

is updated in lines 10 and 19 to keep track of all nodes

already visited.

All nodes that reached the temporary open list

open

also make it to the permanent candidate list

candidate

(line 11). These nodes are ﬁnally tested

against the product p (lines 22-26) to ﬁnd secondary

connections using the time-consuming relationTest

as described in Algorithm 3.

Algorithm 4 is a very effective approach to dis-

cover relevant but hard to ﬁnd relationships. It has

clear advantages over na

ıve solutions such as increas-

ing the amount of candidates for the primary link

tests. It is quite easy to implement and if implemented

with care does not cause much additional computa-

tion.

4.3 Improving Discovery Rates

One potential problem of the algorithms presented

above is that certain very rare relationships might

never be discovered. This results from the way the

primary and secondary link structures interact. If a

product does not get connected to anything else within

the primary link structure the second step will not be

able to discover any distant but relevant connections

for it either. Hence, if a product does not get linked

into the primary link structure it will never be linked

to anything. Therefore a modiﬁcation of the algo-

rithms can be used to try to link each product ﬁrst to

at least one product before starting with Algorithm 4.

This attempt to improve the recall intentionally

lowers the threshold t

linkweight

in Algorithm 3 step

by step, thus accepting a number of irrelevant con-

nections that may lead to relevant connections using

Algorithm 4 afterwards. Later, all found connections

may be tested with Algorithm 3 again (but this time

with a proper value for t

linkweight

) to ﬁlter out irrele-

vant connections. This may lead to a strong improve-

ment of the quality of the link detection at the price

of additional computation. When implementing the

approach described here one should thus optionally

decide to use this pre- and post-processing and vary

the threshold parameters according to the concrete re-

quirements.

Algorithm 4: Discovering secondary connections.

1: p = input product;

2: t = similarity threshold;

3: list l

open

=all primary connections of p;

4: list l

closed

= [];

5: list l

candidate

= [];

6: list l

connected

= [];

7: while l

open

6= [] do

8: node

= l

open

[0];

9: if similarityTest(p,node

) > t then

10: add node

to l

closed

;

11: add node

to l

candidate

;

12: l

connected

= all products connected to node

;

13: for all candidates c

in l

connected

14: if c

/∈ l

closed

∧ c

/∈ l

open

then

15: add c

to l

open

;

16: end if

17: end for

18: else

19: add node

to l

closed

;

20: end if

21: end while

22: for all candidates c

in l

candidate

23: if relationTest(p,c

) then

24: create link p −→ c

;

25: end if

26: end for

5 CONNECTION

CLASSIFICATION

While the previous section explained methods for dis-

covering and creating connections between products

this section deals with the semantics of product rela-

tionships. A connection can have such diverse seman-

tics as successor or incompatible product. Thus, the

semantics is an essential part of the product relation-

ship network as the user may ask different questions

such as ”Is there a successor of product A?”, ”What

types of accessory products are available for product

B?”. Before we deﬁne a method for classifying con-

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

304

nections, we ﬁrst deﬁne the types of connections we

want to distinguish.

5.1 Product Meta Relationships

We call these connection types meta relationships as

they are rather general and occur in nearly all poten-

tial product domains. Unfortunately, there is only lit-

tle reference as to how product relationships can be

described. Online shops often use marketing terms

like cross-sells or up-sells, while other systems use

domain-speciﬁc connection types. As can be seen

in Figure 2, a product connection can be ﬁrst clas-

siﬁed to be one of the main types alternative prod-

uct or complementary product. We further divide the

class of alternative products to be either competitor

products, competing for the same market segment or

successor/predecessor products of the same producer.

Complementary products may be of the type acces-

sory or incompatible products.

Product A Product B

ComplementaryAlternative

Competitor

Successor /

Predecessor

Accessory

Incompatible

Figure 2: Product meta relationship structure.

5.2 Classiﬁcation Criteria

The classiﬁcation concept requires a number of tests

to be executed in order to decide for the correct meta

relationship of a connection. Thus we deﬁne the fol-

lowing tests:

Product Name, Price, Similarity. The ﬁrst crierion

used for connection classiﬁcation is the product name.

In some cases the names of the involved products al-

ready indicate a lot about their relationship. One ex-

ample for this is the product name ”premium messen-

ger bag carrying case for Nintendo Wii console” as

it occured in the product training set used for devel-

oping the algorithms and methods described in this

paper. The relationship between the two products is

already identiﬁed and actually even completely ex-

plained in the name of this product. Such patterns

occur frequently in different product domains and can

be used as one feature for connection classiﬁcation.

The next important information to classify a prod-

uct link is the price of the two products. If the meth-

ods described here are used in online shops, the price

is already part of the input product set. Thus we as-

sume the price to be available as an input parameter.

Gathering average prices from the Web is difﬁcult as

there are a lot of advertisements and identiﬁcation of

the correct product is often error-prone.

Additionally, the item similarity as calculated in

Algorithm 2 can be used as a feature for the classiﬁ-

cation.

Date of Market Entry. Another remarkable attribute

of a product is the date a product was introduced to the

market. It is especially important for classiﬁcation of

the successor and predecessor relationships. Natural

language pre-processing (e.g., using LingPipe (Alias-

I, 2009)) allows to extract years from texts quite re-

liably. We use this functionality to build an index of

years from product documents similar to the general

word index in Algorithm 2. The oldest year from the

index with a certain frequency threshold is returned

as the year of market entry.

Product Manufacturer. The product manufacturer

name is necessary to check if two products are man-

ufactured by the same company. We assume this in-

formation to be already available in the input product

set.

Hierarchical Distance. As we order products hier-

achically, the distance in the hierarchy can also be

used as a classiﬁcation feature. The hierarchical dis-

tance of two products a and b thus refers to the num-

ber of steps it takes to reach product b in the tree start-

ing at product a.

Language Indicators. If search engine indexes are

queried using a conjunctive query containing the

product names of a and b, the result set contains

links to documents describing both products in a sam-

ple document. Sometimes such documents contain

phrases describing the nature of the link between the

two products such as ”Playstation 3 Versus Nintendo

Wii: Which is Right for You” or ”Zune HD is a bet-

ter choice than iPod Touch”. While the phrase ”better

choice” in the latter example only represents the opin-

ion of this one web source and can not be interpreted

as a fact without understanding its whole context, it is

possible to interpret it as a clue to the information that

Zune HD and iPod Touch are alternative products.

Research on relationships in natural language (Et-

zioni et al., 2008) has indicated that most relation-

ships are expressed in text pieces in between two en-

tities. The method used here extracts key phrases used

between the two products a and b and compares them

to terms frequently used for describing the four dif-

ferent relationship classes.

FINDING AND CLASSIFYING PRODUCT RELATIONSHIPS USING INFORMATION FROM THE PUBLIC WEB

305

Semantic Relatedness. The semantic relatedness as

deﬁned in Algorithm 3 can be modiﬁed to not only

indicate the degree of relatedness but also the roles

of the two partners within this relation. If we measure

the shared search engine hits for the query ”a AND b”

compared to the total hits returned for ”a” as well as

for ”b”, the two numbers indicate the relevance of the

relationship for each one of the products individually.

With the help of these values it is possible to deter-

mine the roles in a relationship, i.e., which product is

the main product and which one is the accessory in an

accessory relationship.

5.3 Classiﬁcation

As can be seen in Figure 3, we use a combination of

a neural network and decision trees for classiﬁcation

of product relationships. It turned out during testing

that the four criteria product similarity, hierarchical

distance, price similarity, and link weight are best ap-

propriate to distinguish between the two main classes

alternative and complementary product. The network

has to be trained with a labelled training set where the

label 0 is used for alternative products and the label

1 for complementary products. After training phase,

the network returns a value between 0 and 1 for each

new product pair and we deﬁne the threshold to be

0.5. We chose for the neural network as the inter-

action between the four criteria is very complex and

thus vector distance measures or decision trees do not

perform well for this problem.

Figure 3: Product relationship classiﬁcation.

The further reﬁnement of the two main classes at

the next level is more straightforward. We use spe-

cialized decision trees to decide for either competitor

vs. successor/predecessor or accessory vs. incompat-

ible product. The different criteria used are described

in Figure 3. Both decision trees contain the possibility

to reject the decision if there is not enough evidence.

Though the result of the overall classiﬁcation process

is either one of the four classes of the lower layer or

one of the two classes of the upper layer.

6 EVALUATION

To evaluate the concepts presented here we took a

two-staged approach. We ﬁrst implemented the algo-

rithms in a prototype implementation visualising the

product relationship networks and thus enabling hu-

man users to assess the usefulness of such a system.

In a second phase we did several runs on a test collec-

tion to assess the measurable quality (precision/recall)

of the algorithms.

6.1 Implementation

Our implementation is a protoype programmed in

Java using the Processing framework (Fry and Casey,

2010) to visualize the product relationship network.

The coarse layout is split into two applications, one

web application to conﬁgure the system and to present

the results, and one larger management application

that is responsible for building and maintaining the

networks.

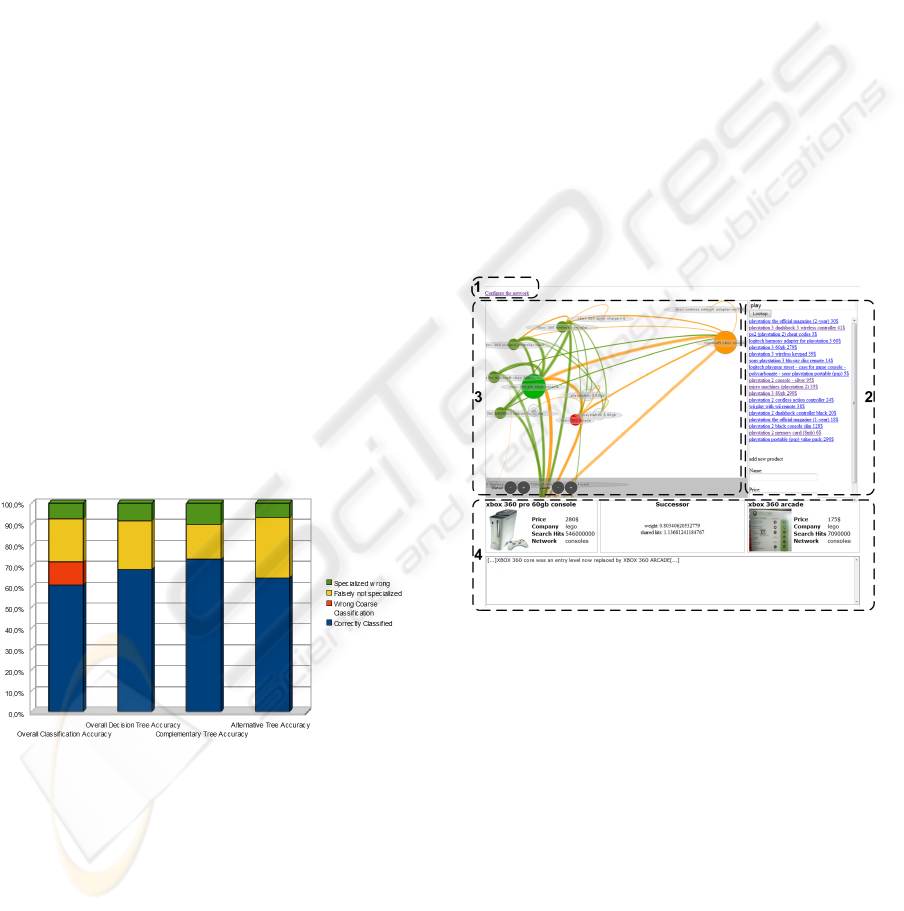

Figure 4: Screenshot of prototype implementation.

Figure 4 shows a screenshot of the prototype

implementation. The management interface can be

reached by a link (1) where new products can be

added to the network. The relationship network is

then updated for each new product. The right part of

the screen (2) contains a search form and displays the

search results. In the example all products in the net-

work containing ”play” are shown. If the user clicks

on an instance (here ”XBox 360 60 GB console”)

the relationships of the product to other products are

shown. If clicking on a link, more information (like

the link classiﬁcation) is shown in the bottom screen

(4).

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

306

6.2 Relationship Discovery

Effectiveness

To measure the quality of the relationship discovery

algorithms, a dataset consisting of 150 products con-

taining 630 relevant relationships was used. The prod-

ucts originated from 7 different product groups: dig-

ital cameras, gaming consoles, mp3 players, mobile

phones, shoes, notebooks and software. Each group’s

share in the dataset is between 7% and 23%. The

relevance assessment for the gold standard was done

manually starting from a test run of the system with

parameters set to produce a very high recall of around

4000 product links that were manually downsized to

630 actually relevant connections.

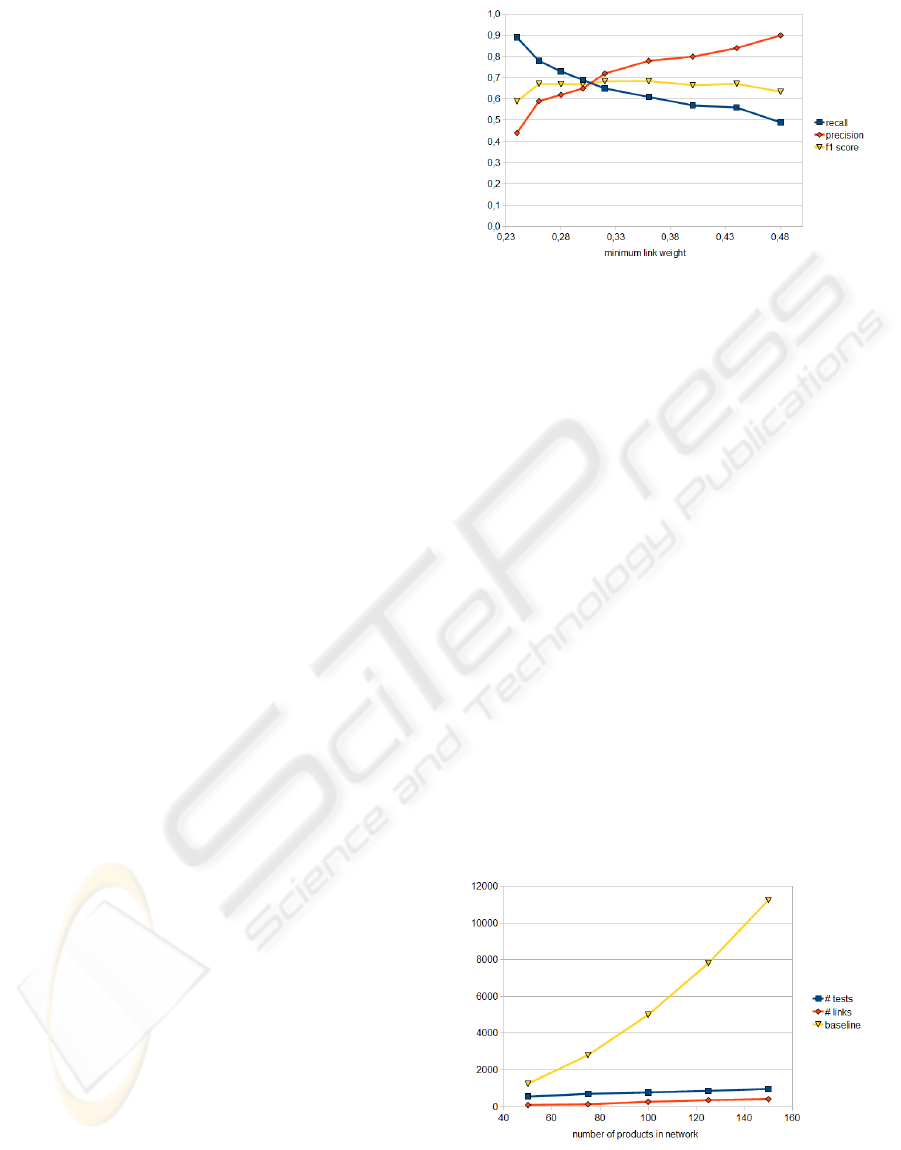

Figure 5 shows the results from different test runs

with the parameter minimal link weight set between

0.2 and 0.5. The diagram shows three curves, one

for the recall, another for the precision and the last is

the F

score as the harmonic mean between the two.

These are the standard measures in evaluation of IR

systems (Manning et al., 2008). In our scenario the

recall refers to the fraction of relevant product links

found by the algorithms while precision means the

fraction of relevant product links among the product

links found.

Thus, if we increase the minimal link weight nec-

essary to classify a link as relevant, more product

links are recognized by the system. But also the num-

ber of false positives increases lowering the precision.

If we take the F

measure as the metric to decide

which link weight performs best, the optimal value

is at w = 0.36. At this point the F

measure is 0.69,

the precision reaches 0.78 and the recall 0.61.

While these results are already good regarding the

unprecise, heterogeneous and often contradictionary

information about product relations in the Web, we

made an in-depth error analysis to identify the best

candidates for further improvement. The distribution

of errors is very uneven among the different cate-

gories, e.g., gaming consoles account for 50% of the

false positives while only 21% of the products where

gaming consoles. On the other hand, relations be-

tween MP3 players where quite hard to ﬁnd: almost

50% of the false negatives result from MP3 players

while they make only 23% of the product collection.

If we remove gaming consoles from the network, we

get an optimal conﬁguration with F

=0.8, recall=0.84

and precision=0.76. Interestingly, if the network con-

sists only of gaming consoles we also reach quite

good scores with F

, recall and precision all being

0.78.

This example shows that relationship discovery is

highly domain-dependent and a domain-neutral clas-

Figure 5: Relationship discovery efﬁciency.

siﬁcation is not likely to reach more than the roughly

70% efﬁciency (F

measure) shown above. But if we

restrict the network to special product domains, 80%

efﬁciency and more can be reached easily. Thus the

algorithms are of better use if applied inside a prod-

uct information system specializing on a product do-

main (like special online stores). But nevertheless

the domain-independent efﬁciency is good enough to

provide an added value for many application areas of

product information systems.

6.3 Relationship Discovery Efﬁciency

Besides presenting methods for ﬁnding product rela-

tionships, one major goal of our approach is to be far

more efﬁcient than the baseline approach of compar-

ing each product with each other product to ﬁnd a

link. Thus we measured the number of tests neces-

sary with different number of products in the test set.

The results are shown in Figure 6.

As can be seen in the graph the number of tests

increases linearily with the number of links in the net-

work and is always far below the baseline approach.

The baseline approach shows quadratic growth, thus

Figure 6: Relationship discovery performance.

for a network of 150 products, the baseline approach

already needs more than 10 times (11250) as much

tests than our approach (968).

FINDING AND CLASSIFYING PRODUCT RELATIONSHIPS USING INFORMATION FROM THE PUBLIC WEB

307

6.4 Relationship Classiﬁcation

Effectiveness

The quality of the relationship classiﬁcation was eval-

uated with the same dataset as the discovery. All en-

tries were additionaly tagged with a target classiﬁca-

tion. The prototype implementation was then used to

classify all entries itself and the outcome was com-

pared to the gold standard.

The results are described in Figure 7. We present

our results divided into four central measurements,

the overall classiﬁcation accuracy (presents the clas-

siﬁcation quality of the system as a whole), the ac-

curacy of the second classiﬁcation step using the de-

cision trees and two measurements representing the

accuracy of each decision tree by itself. The last

three measurements are meant to precisely indicate

strenghts and weaknesses of the system. Each bar

does not only show the total accuracy, but also clearly

distinguish the kinds of mistakes that were made.

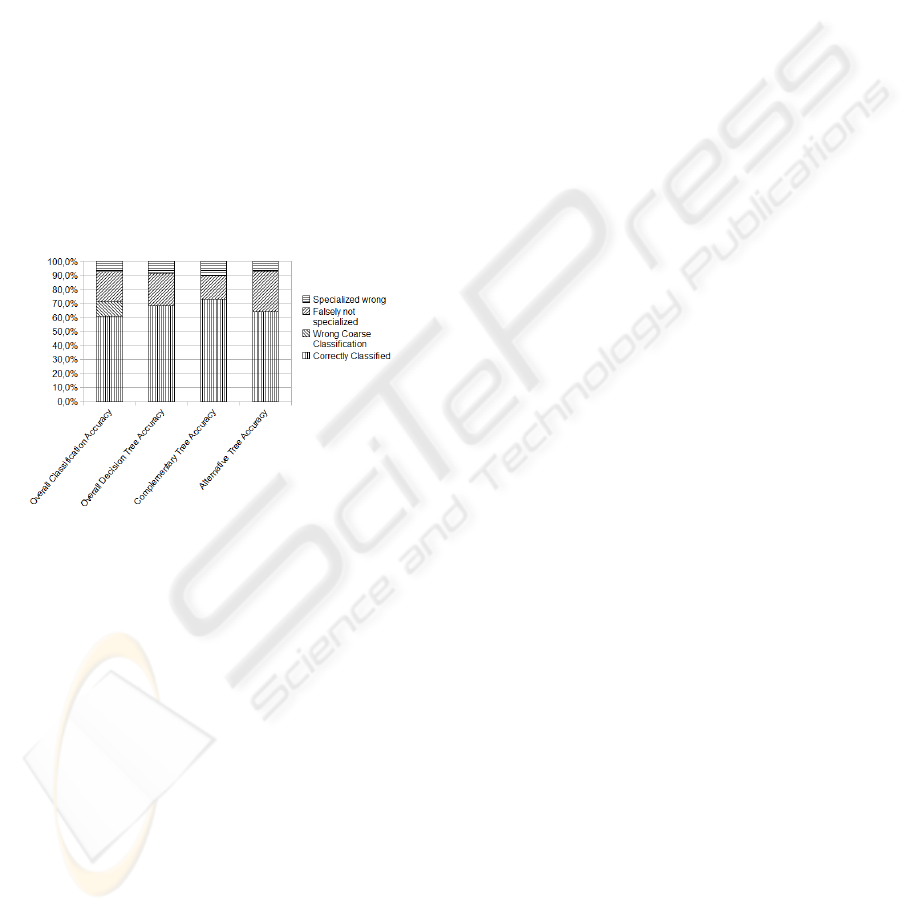

Figure 7: Relationship classiﬁcation efﬁciency.

Our analysis based on these results showed that

the system’s classiﬁcation already performs remark-

ably well, with an overall accuracy of about 60 per-

cent. Especially the ﬁrst stage of the classiﬁcation

(using the neural network) performs very well, with

an accuracy of slightly over 90 percent. In fact the

system only made very little critical mistakes. Most

mistakes were done by not being able to further spe-

cialize a classiﬁcation and less than 10 percent of its

mistakes were done by falsely specializing a classiﬁ-

cation, leading to an erroneous class assignment.

Analysis of the results from measuring the deci-

sion trees’ individual accuracy showed that the al-

ternative decision tree branch is responsible for most

mistakes. The results indicate some problems with its

specialization design, so improvements at this point

could potentially boost the overall accuracy signiﬁ-

cantly.

7 CONCLUSIONS AND FUTURE

WORK

Based on the assumption that product relationships

can be found and classiﬁed using information from

the public Web only, we presented algorithms and

methods to carry out this complex Web information

extraction task starting with a hierachically clustered

tree of product names.

The link discovery algorithms presented in Sec-

tion 4 are the main contribution of this paper and

thus described in a very detailed manner to enable the

readers to implement this method in their own prod-

uct information systems. We believe that this method

is quite powerful and unique and despite its current

prototypical status the results of our evaluation have

been very positive with precision and recall values be-

ing above 0.7 even for the hard to solve general case

of ﬁnding relationships in diverse product categories.

The connection classiﬁcation part as provided in

Section 5 leaves more room for discussion as this is a

ﬁrst step towards giving product relations a meaning

based on information available in the Web. The main

contribution here is the description of features used

for classifying product relations and the layered ap-

proach of ﬁrst assessing a main category (alternative

or complementary) and then using a specialized clas-

siﬁcation method. We choose the combined approach

of neural networks and decision trees based on our

experience and some basic tests with our test set. It

is beyond the scope of this paper if other classﬁcation

methods like Latent Semantic Indexing (LSI) or Sup-

port Vector Machines (SVM) would further improve

the results of these steps.

Especially in terms of scalability the design ful-

ﬁlled its purpose by operating way faster than an or-

dinary brute-force approach, causing at most a linear

growth of computation effort.

The approach offers many possibilities for future

reasearch. It would be very interesting to especially

invest more work into advancing the classiﬁcation ap-

proach to become more open, if not completely self-

learning. Such a system would not require pre-deﬁned

relationship classes anymore but could learn them it-

self, maybe based upon a sizeable tagged set of exam-

ples.

In fact, the latter suggestion provokes the ques-

tion if our approach might be applicable for ﬁnding

and describing relationships outside the product do-

main, too. Except of our classiﬁcation design, all

other parts are already product independent (meaning

they require no product-speciﬁc background knowl-

edge). First small tests have indicated that with ad-

ditional work the method may indeed be used to ﬁnd

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

308

relationships between all entities that are sufﬁciently

discussed in open document collections like the Web.

REFERENCES

Adomavicius, G. and A., T. (2005). Toward the next gener-

ation of recommender systems: A survey of the state

of the art and possible extensions. IEEE Transaction

on Knowledge and Data Engineering, 17(6):734–749.

Alias-I (2009). Lingpipe. http://alias-i.com/lingpipe/.

Apache Foundation (2009). Apache Lucene.

http://lucene.apache.org/java/docs/.

Bach, N. and Badaskar, S. (2007). A survey on relation

extraction. Technical report, Language Technologies

Institute, Carnegie Mellon University.

Banko, M. and Etzioni, O. (2008). The tradeoffs between

open and traditional relation extraction. In Proceed-

ings of ACL-08: HLT, pages 28–36, Columbus, Ohio.

Association for Computational Linguistics.

CBS interactive (2010). Cnet shopper.

http://shopper.cnet.com/.

Etzioni, O., Banko, M., Soderland, S., and Weld, D. S.

(2008). Open information extraction from the web.

Commun. ACM, 51(12):68–74.

Fry, B. and Casey, R. (2010). Processing 1.0.

http://processing.org/.

Han, E.-H. S. and Karypis, G. (2005). Feature-based rec-

ommendation system. In CIKM ’05: Proceedings

of the 14th ACM international conference on Infor-

mation and knowledge management, pages 446–452,

New York, NY, USA. ACM.

Kawamura, T., Nagano, S., and Mizoguchi, Y. (2008).

Ontology-based wom extraction service from we-

blogs. In SAC ’08: Proceedings of the 2008 ACM

symposium on Applied computing, pages 2231–2236,

New York, NY, USA. ACM.

Linden, G., Smith, B., and York, J. (2003). Amazon.com

recommendations: Item-to-item collaborative ﬁlter-

ing. IEEE Internet Computing, 7(1):76–80.

Liu, B., Hu, M., and Cheng, J. (2005). Opinion observer:

analyzing and comparing opinions on the web. In

WWW ’05: Proceedings of the 14th international con-

ference on World Wide Web, pages 342–351, New

York, NY, USA. ACM.

Manning, C. D., Raghavan, P., and Sch

utze, H. (2008). In-

troduction to Information Retrieval. Cambridge Uni-

versity Press, Cambridge, UK.

Schafer, J. B., Konstan, J., and Riedi, J. (1999). Recom-

mender systems in e-commerce. In EC ’99: Proceed-

ings of the 1st ACM conference on Electronic com-

merce, pages 158–166, New York, NY, USA. ACM.

Schuster, D. and Schill, A. (2007). NL sampler: Ran-

dom sampling of web documents based on natural lan-

guage with query hit estimation. In SAC ’07: Proceed-

ings of the 2007 ACM symposium on Applied comput-

ing, pages 812–818, New York, NY, USA. ACM.

Schutz, E. and Buitelaar, P. (2005). Relext: A tool for re-

lation extraction from text in ontology extension. In

Proceedings of the 4th International Semantic Web

Conference (ISWC).

Shen, E., Lieberman, H., and Lam, F. (2007). What am i

gonna wear?: scenario-oriented recommendation. In

IUI ’07: Proceedings of the 12th international con-

ference on Intelligent user interfaces, pages 365–368,

New York, NY, USA. ACM.

Singhal, A., Buckley, C., and Mitra, M. (1996). Pivoted

document length normalization. In SIGIR ’96: Pro-

ceedings of the 19th annual international ACM SIGIR

conference on Research and development in informa-

tion retrieval, pages 21–29, New York, NY, USA.

ACM.

van Meteren, R. and van Someren M. (2000). Using

content-based ﬁltering for recommendation. In ML-

net / ECML2000 Workshop, Barcelona, Spain.

Wan, Y., Menon, S., and Ramaprasad, A. (2007). A classiﬁ-

cation of product comparison agents. Commun. ACM,

50(8):65–71.

Yahoo! Inc. (2010). Yahoo! search boss.

http://developer.yahoo.com/search/boss/.

FINDING AND CLASSIFYING PRODUCT RELATIONSHIPS USING INFORMATION FROM THE PUBLIC WEB

309
