COMPATIBILITY VERIFICATION OF COMPONENTS IN TERMS

OF FUNCTIONAL AND EXTRA-FUNCTIONAL PROPERTIES

∗

Tool Support

Kamil Je

zek and P

remek Brada

Department of Computer Science and Engineering, University of West Bohemia, Pilsen, Czech Republic

Keywords:

Components, Component-based, Functional, Extra-functional, Non-functional, Compatibility veriﬁcation,

Components interchangeability.

Abstract:

Component-based programming, as a technology increasing development speed and decreasing cost of the

ﬁnal product, promises a noticeable improvement in a process of development of large enterprise applications.

Even though component-based programming is a promising technology it still has not reached its maturity.

The main problem addressed in this paper are compatibility checks of components in terms of functional

and extra-functional properties and their insufﬁcient tool support. This paper summarizes a mechanism of

component compatibility checks and introduces a tool whose aim is to ﬁll this gap mainly with respect to

the phase of testing the assembly of components. The introduced mechanism and the tool allow to check

component bindings before deployment into the target environment. It displays a component graph, details of

components and highlights incompatibility problems. Hence, the tool validates the presented mechanism and

provides useful support for developers when deciding which component to use.

1 INTRODUCTION

Nowadays, the need for an exchange of information

leads to the development of enterprise applications.

The complex enterprise applications are often de-

veloped from scratch, which is ineffective. Since a lot

of applications use the same parts, it is effective to use

pre-existing components.

Component-based programming is reaching its

maturity. A variety of industrial component frame-

works such as OSGi (OSGi, nd), Spring (Spring, nd),

Spring DM (Spring DM, nd) or EJB (EJB, 2006) ex-

ist. They are widely used and are supported by devel-

oper tools. Although a development process consists

of several phases, including creation and publication

of components, assembly of component systems, de-

ployment etc., the existing tools typically do not cover

all phases.

Software companies are starting to use these in-

dustrial frameworks, however many companies still

develop components only for internal usage. A world

component market has not evolved yet.

∗

This work was supported by the Grant Agency of the

Czech Republic under grant number 201/08/0266 “Meth-

ods and models for consistency veriﬁcation of advanced

component-based applications”.

1.1 Goal of the Paper

This paper addresses an inadequate means of a tool

support to provide a sufﬁcient veriﬁcation of compo-

nents. This text ﬁrst summarises a possible mecha-

nism of verifying components compatibility. How-

ever the main goal of the paper is to introduce a tool

that performs compatibility evaluation based on the

presented mechanism. The tool aims at covering the

phase of components assembly when the component

system is tested.

2 PROBLEM DEFINITION

Component-based programming still has some limi-

tations. A considerable limitation is the trust a devel-

oper has upon a component: once a developer gains a

component from a vendor he has only a limited possi-

bility to verify whether the vendor provides a compo-

nent with compatible interfaces. Obviously, any kind

of veriﬁcation whether an assembly of the new com-

ponents is correct, increases reliability.

The basic life-cycle of the components in

component-based development consists of several

510

Ježek K. and Brada P. (2010).

COMPATIBILITY VERIFICATION OF COMPONENTS IN TERMS OF FUNCTIONAL AND EXTRA-FUNCTIONAL PROPERTIES - Tool Support.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Information Systems Analysis and Speciﬁcation, pages

510-514

DOI: 10.5220/0002974505100514

 SciTePress

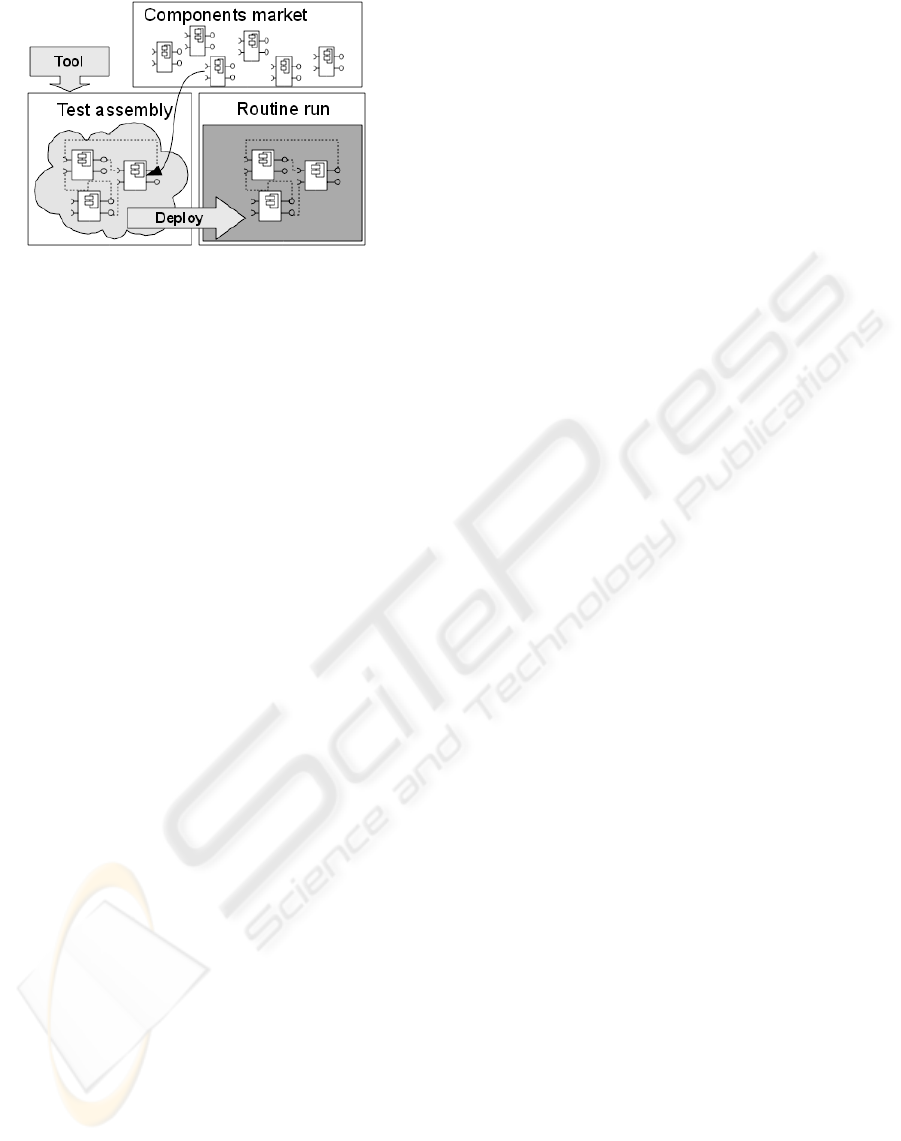

Figure 1: Tool position in component life-cycle.

phases shown in Figure 1: The vendor publishes the

component on the market. The system architect ob-

tains a component from the supplier and assembles

the system. Before its deployment, he must test the

component in a test environment. Only if the system

as a whole works, it may be released (deployed) to

customers. Although this idea is a fundamental one,

it is barely followed in practise. The partial reason is

that commercial companies have no strong tools sup-

porting each phase.

Industrial component frameworks are often sup-

ported by tools, but the tools typically cover only the

development phase (by developers tools) and the run-

time phase (by component framework). On one hand

companies have resources to implement missing tools

and beneﬁt from them. On the other hand they would

unlikely do it in a current state of research because an

instant proﬁt is unsure.

This paper aims at ﬁlling the gap of a missing

tool covering the phase of test assembly with respect

to interface compatibility. The tool aims at help-

ing the developers in everyday work. Consequently,

it should lead to a better adoption of component-

based development. The rationale is that the develop-

ers may easily verify component assemblies without

time-consuming repeated run of the whole application

in the framework. Because one system may be com-

posed from a considerable amount of different com-

ponents, the reduction of testing time would lead to

noticably increased development speed.

3 COMPATIBILITY CHECKS

This section ﬁrst shows a brief overview of our exper-

imental framework that serves as a prototype imple-

mentation. Then the veriﬁcation mechanism, which is

used by the framework and implemented in the tool,

is summarised.

3.1 CoSi Framework

For experimental purposes, we have developed a com-

ponent framework called CoSi (Brada, 2008).

CoSi is implemented in Java and its component is

a jar ﬁle. The jar contains an extended manifest ﬁle

holding interface information. The manifest contains

information which allow compatibility checks.

Each component in CoSi is capable of providing

or requiring services or packages, may set or read at-

tributes, or may send or receive messages. The gen-

eral term for these capabilities is provided/required

features.

3.2 Components Matching

Every time a component is to be replaced by another

one the veriﬁcation is run to check whether the new

component will not break the rest of the system.

There are many comparing mechanisms for com-

ponents. They range from behaviour conformance

(Beyer et al., 2007; Hn

etynka and Pl

sil, 2006), type-

based consistency (Zaremski and Wing, 1995; Fab-

resse et al., 2008) to EFPs (Becker et al., 2009; Mo-

hammad and Alagar, 2008). Here, we summarize a

mechanism used for CoSi and our tool. It combines

type-based and EFPs consistency.

In relation to all the features, the veriﬁcation must

check compatibility in these steps:

1. features are bound by their names;

2. features with the same names match.

Each step must be performed separately for func-

tional and extra-functional properties.

Feature Binding. Functional Properties. The ﬁrst

step for functional properties checks (1) that no fea-

ture (e.g. a service, an attribute) is missing on the

provided side – because another component may use

it – and (2) that no feature is added on the required

side – because no one would fulﬁl its need.

Extra-functional Properties. The ﬁrst step checks

whether no property is missing on the provided side

and no property is added on the required side. The

principle is the same as for functional properties.

Properties Matching. The feature matching is dif-

ferent for functional and extra-functional properties.

For the functional ones it compares versions attached

to the features. The provided side of a new com-

ponent must offer a feature with an equal or greater

version (assuming that new versions keep a backward

compatibility) and a required feature must require an

equal or a lower version than the old feature.

COMPATIBILITY VERIFICATION OF COMPONENTS IN TERMS OF FUNCTIONAL AND EXTRA-FUNCTIONAL

PROPERTIES - Tool Support

511

If backward compatibility of versions is not guar-

anteed or a versioning is fallible, a more comprehen-

sive algorithms should be performed. For instance,

(Brada and Valenta, 2006) introduced a model deriv-

ing a compatibility decision by introspection of byte-

code of Java classes. The current CoSi implementa-

tion relies on the versioning approach.

Matching of extra-functional properties will be

explained in Section 4.

The two components may be marked as compati-

ble ones when steps 1-2 apply for services, packages,

events and attributes in respects with desired function.

Additionally, the steps 1-2 must also hold for extra-

functional properties for all services and the whole

component.

4 EXTRA-FUNCTIONAL

PROPERTIES MATCHING

We developed a mechanism (Jezek et al., 2010) which

stores extra-functional properties in a common repos-

itory.

In the paper (Jezek et al., 2010) we have intro-

duced the function γ : x × y → z;z ∈ {−1,0,1,“n/d”}

attached to each property. It compares two instances

x,y of the property type. The resulting value states

which of the two values is better (in terms of quality).

The meaning of the return values is: −1 ⇒ x is

worse than y; 0 ⇒ x is equal to y; +1 ⇒ x is better

than y; “n/d” ⇒ not-deﬁned.

When two features with the same names are com-

pared, the function γ is computed. The comparison of

two components C

and C

then results in a sequence

) where 1..k denotes each pair of the provided and

required feature which are matched by the name. The

two components then match only when z

prov

∈ {0,1}

for provided properties and z

req

∈ {−1,0} for re-

quired ones.

5 TOOL SUPPORT

The previous sections explained an approach to com-

paring components with one another in terms of their

interface compatibility. This section introduces a tool

that has been developed to implement the comparing

mechanism.

5.1 Components Graph Viewer

The tool supporting compatibility checks we have

been developing is called Component Graph Viewer

(CGV). This section describes the key concepts and

features of the tool.

5.1.1 Compatibility Checking

The main contribution of the CGV is that it serves as a

tool allowing a user to check a chain of implemented

components before they are deployed into a real sys-

tem. The user may check connections and features of

components and estimate whether they are suitable to

the real system. It veriﬁes a system as an assembly

of components rather than checking each component

separately. It is an important aspect of the tool, be-

cause a component tested by its vendor does not have

to work as a part of a complicated system. The tool

provides assurance to the deployer that no connection

between component interfaces is broken.

Figure 2: Components Dependency.

The goal of the tool is to perform checks ad-

dressed in previous Sections 3.2 and 4.

The binding results are expressed by arches con-

necting two components. Currently the tool matches

names and versions of the features. Each component

which poses any problem in the matching process is

highlighted. Basically, it hints where a comparison

mechanism did not ﬁnd any matching required fea-

ture. The example bar with the ”Service C“ that has

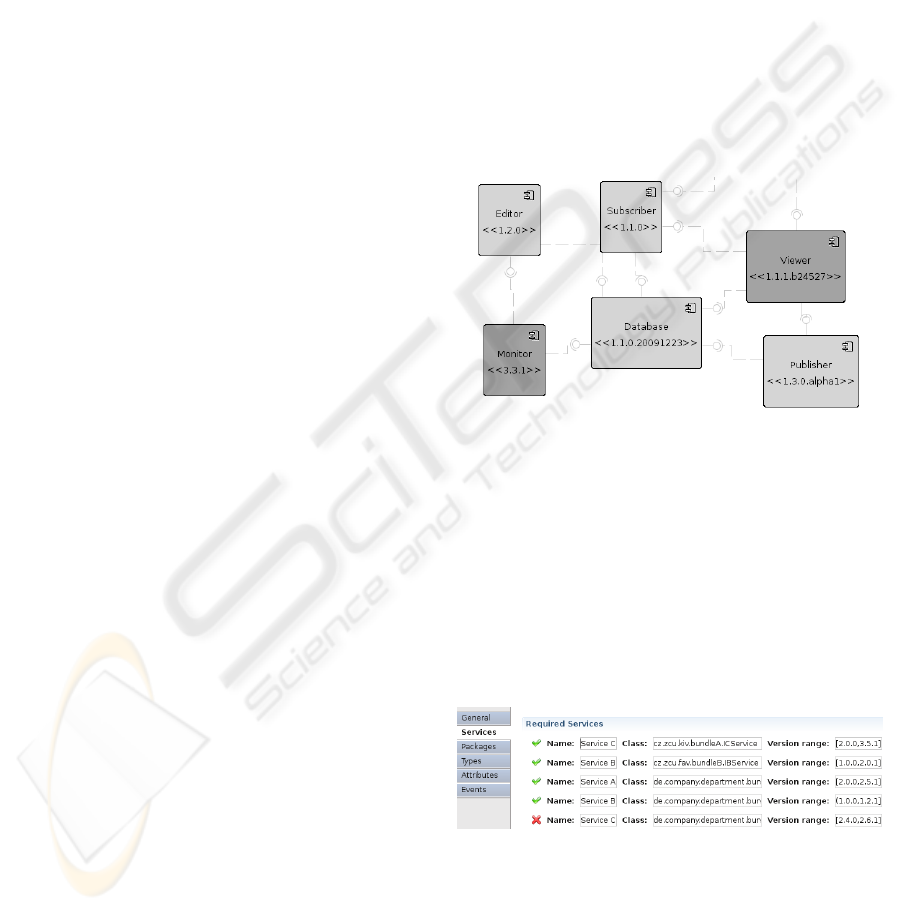

not been matched is shown in Figure 3.

Figure 3: Missing service.

5.1.2 Visual Representation and Usage

The tool is designed to provide the look correspond-

ing to the UML2 components diagram. The overview

of the components graph generated by the tool is

shown in Figure 2.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

512

The CGV allows to show a set of components

which are displayed as boxes and dependencies ex-

pressed by arches. The user may switch the type of

dependency be shown in terms of services, attributes,

packages and events. Every time the user changes the

dependency, the tool re-draws the arches to express

the desired dependency. This way the user may obtain

a brief overview of the system composed from com-

ponents and may estimate which changes will happen

in the system if a component is withdrawn or inter-

changed to another one.

The tool is naturally targeted to be used by hu-

mans and thus provides clear visual means to high-

light dependencies of components. Once a compo-

nent is selected, it re-colours the connected compo-

nents and changes the arches expressing connections

to bold ones. Labels showing the names of features

are dynamically re-drawn for a selected component.

It helps a user not to be confused with a lot of arches

and labels.

The user may select a single component and check

a properties bar with summarized information about

the component.

5.1.3 Design Features

The CGV has been developed on the Eclipse Rich

Client Platform (RCP)

and it displays components

using ZEST

framework. The RCP provides a rich

base for graphical user interfaces that made the im-

plementation of CGV easier. Before selecting ZEST,

we also considered GMF

and GEF

GMF in combination with EMF

allows to model

and generate the application. Despite its comprehen-

siveness, we found it too complicated for implement-

ing the simple graph. The other framework, GEF

is a fundamental graphical framework for RCP with

a wide spectrum of features. It allows to customise

graphical objects, but each feature must be tediously

coded. Finally, we have decided on ZEST which has

only limited possibility of customising the graphical

objects, but it supports easy implementation of fea-

tures such as an automatic layout, zoom, user interac-

tion etc.

The CGV reads information about components via

a Component Loader (CL) which is another tool that

is being developed by our research group. The CL

loads a representation of components and provides

www.eclipse.org/rcp/

www.eclipse.org/gef/zest/

www.eclipse.org/gmf/

www.eclipse.org/gef/

www.eclipse.org/emf/

them in the form of so called Bundle Types (BTs).

The abstraction mechanism is shown in Figure 4.

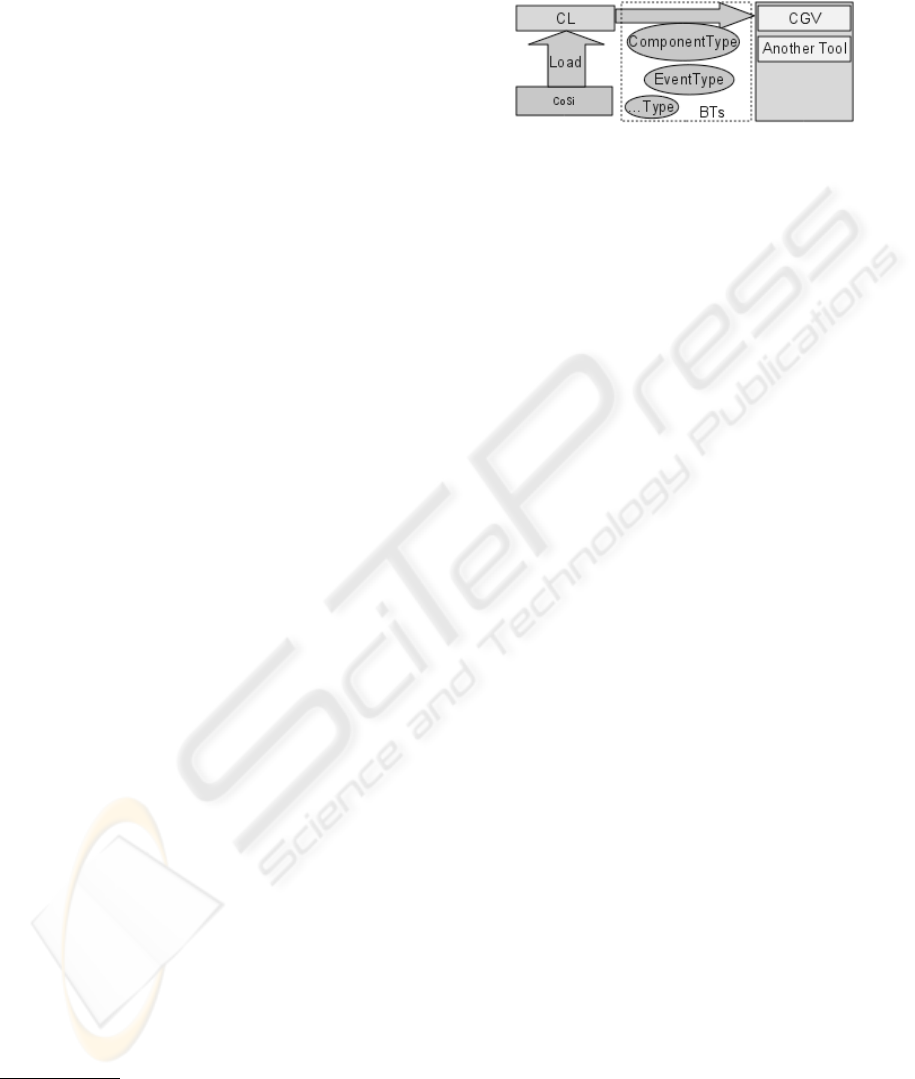

Figure 4: Component Loader.

Bundle Types are Java classes expressing meta-

informations about components. CL loads each com-

ponent and returns concrete Bundle Types, and the

view layer of the CGV then presents one bundle-type

instance as one element. This architecture allows the

CGV to use only meta-information provided by Bun-

dle Types rather than working directly with compo-

nents. CGV is then not tied with a concrete imple-

mentation of the component framework and may eas-

ily load components for other implementations. In ad-

dition, the representation of components may be eas-

ily provided to any other tool.

6 RELATED WORK

The behaviour of the system is addressed in (Beyer

et al., 2007). It generates the detailed speciﬁcation

from the implementation and uses a reﬁnement on

the level of behaviour speciﬁcation. Another com-

ponent model, Palladio (Becker et al., 2009), gener-

ates the speciﬁcation from the models of the system.

The main obstacle is the computational complexity

and the need of considerable amount of complicated

models.

Type-based approaches have relatively low cost

and high ease of use. The work (Brada and Va-

lenta, 2006) introduces a sub-typing framework that

reﬂects real changes in interfaces. The other solution

(Bauml and Brada, 2009) uses Java reﬂection to check

changes is interfaces. It results in a compatibility de-

cision. We would like to extend CoSi by the modiﬁed

comparator in the future. Other approaches, in ad-

dition, cover extra-functional properties (Jezek et al.,

2010; Mohammad and Alagar, 2008).

Components may be graphically represented by

standardised OMG’s UML diagrams (OMG, nd).

Mainly UML2 components diagram. Other ap-

proaches like OMG’s QoS UML proﬁle (OMG, 2008)

or CQML’s proﬁle (Aagedal, 2001) allows to explic-

itly model EFPs. Our tool corresponds closely with

the UML2 components diagram.

COMPATIBILITY VERIFICATION OF COMPONENTS IN TERMS OF FUNCTIONAL AND EXTRA-FUNCTIONAL

PROPERTIES - Tool Support

513

7 CONCLUSIONS AND FUTURE

WORK

This paper has highlighted one of the insufﬁciently

explored areas of component-based programming –

the tool support covering the development process of

component based development. The problem of vi-

sual checking of components connected in a testing

environment has been explicitly targeted.

The main contribution of this paper is a tool pro-

viding a visual component interchangeability veriﬁ-

cation. Our expectation is that such a tool could

help a world wide component market to evolve. We

have overviewed a possible mechanism allowing to

compare two components by matching provided and

required features, and deﬁned a components inter-

changeability checks.

The tool has been successfully tested for a set

of components, however it still needs improvements.

Firstly, we want to ﬁnish the matching to respect EFPs

and real changes in interfaces. Secondly, we would

like to implement the component loader for other

component frameworks. Then the tool will achieve

the overall goal – practical usage by developers.

ACKNOWLEDGEMENTS

We would like to thank our colleagues J. Kr

akora and

J. Ku

cera who took careful effort in coding the pre-

sented graphical tool and the components loader re-

spectively.

REFERENCES

Aagedal, J. Ø. (2001). Quality of Service Support in Devel-

opment of Distributed Systems. PhD thesis, University

of Oslo.

Bauml, J. and Brada, P. (2009). Automated versioning in

OSGi: A mechanism for component software consis-

tency guarantee. In EUROMICRO-SEAA, pages 428–

435.

Becker, S., Koziolek, H., and Reussner, R. (2009). The pal-

ladio component model for model-driven performance

prediction. Journal of Systems and Software, 82(1):3

– 22. Special Issue: Software Performance - Modeling

and Analysis.

Beyer, D., Henzinger, T., and Singh, V. (2007). Algorithms

for Interface Synthesis. In CAV 2007, LNCS, pages

4–19. Springer.

Brada, P. (2008). The CoSi component model: Reviving

the black-box nature of components. In Proceedings

of the 11th International Symposium on Component

Based Software Engineering, number 5282 in LNCS,

Karlsruhe, Germany. Springer Verlag.

Brada, P. and Valenta, L. (2006). Practical veriﬁcation of

component substitutability using subtype relation. In

Proceedings of the 32nd Euromicro SEAA conference,

pages 38–45. IEEE Computer Society.

EJB (2006). Enterprise JavaBeans, Version 3.0. EJB Core

Contracts and Requirements. Sun Microsystems.

JSR220 Final Release.

Fabresse, L., Dony, C., and Huchard, M. (2008). Founda-

tions of a simple and uniﬁed component-oriented lan-

guage. Comput. Lang. Syst. Struct., 34(2-3):130–149.

etynka, P. and Pl

sil, F. (2006). Dynamic reconﬁguration

and access to services in hierarchical component mod-

els. In Proceedings of CBSE 2006, Vasteras, Sweden,

LNCS 4063, pages 352–359. Springer-Verlag.

Jezek, K., Brada, P., and Stepan, P. (2010). Towards context

independent extra-functional properties descriptor for

components. In Proceedings of the 7th International

Workshop on Formal Engineering approches to Soft-

ware Components and Architectures (FESCA 2010).

Mohammad, M. and Alagar, V. S. (2008). TADL -

an architecture description language for trustworthy

component-based systems. In ECSA ’08: Proceedings

of the 2nd European conference on Software Architec-

ture, pages 290–297. Springer.

OMG (2008). UML proﬁle for modeling quality of ser-

vice and fault tolerance characteristics and mechanism

speciﬁcation. Technical report, OMG - Object Man-

agement Group.

OMG (n.d.). UML uniﬁed modeling language. techreport.

ver 2.

OSGi (n.d.). OSGi. OSGi Aliance. Available at

http://www.osgi.org/.

Spring (n.d.). Spring Framework. Spring Comunity, ver. 3

edition. Available at http://www.springsource.org/.

Spring DM (n.d.). Spring Dynamic Modules

for OSGi. Spring Comunity. available at:

http://www.springsource.org/osgi.

Zaremski, A. M. and Wing, J. M. (1995). Signature match-

ing: A tool for using software libraries. ACM Trans-

actions on Software Engineering and Methodology,

4:146–170.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

514
