TREEAD

A Tool that Enables the Re-use of Experience in Enterprise Architecture

Description

Paulo Tom´e

Department of Computing Science, Polytechnic Institute of Viseu, Viseu, Portugal

Lu´ıs Amaral

Department of Information Systems, University of Minho, Guimar˜aes, Portugal

Ernesto Costa

Department of Computer Science, University of Coimbra, Coimbra, Portugal

Keywords:

Enterprise architecture, Enterprise modelling, Case-based reasoning.

Abstract:

Enterprise Architecture (EA) is an important organization issue. The EA, resulting from a development pro-

cess, is an important tool in different situations. It is used as a communication tool between the systems

stakeholders. It is an enabler of changes. More importantly, the EA deﬁnition allows the build of unifying or

coherent forms or structures. There has been growing interest in this topic topic area in recent years. Several

authors have proposed methods, frameworks, languages with the aim of helping organizations in the process

of EA deﬁnition. This paper proposes a software tool that can be used to re-use experience in EA deﬁnition

processes. The tool proposed is independent of the framework, method, language or software tool used in the

EA description process.

1 INTRODUCTION

The EA plays an importante role in organizations

in different situations. Nolan and Mulryan (Nolan

and Mulryan, 1987) considered that architecture is a

key component in the strategic planning process of

companies preparing for the 21st century. First it

contributes to improve a system’s structure. More-

over, the EA is an important communication tool be-

tween system’s stakeholders (Rood, 1994). Rechtin

(Rechtin, 1991) considers that the architecture plays

an important role in several phases of the system. Be-

sides that, Lankhorst et al. (Lankhorst et al., 2005)

considers the EA an important tool in managing a

company’s daily operations and McDavid (McDavid,

1999) considers the EA important in future organiza-

tion changes.

Although there is not a consensual architecture

concept deﬁnition, it is currently accepted that the EA

provides a global and integrated enterprise description

(Bernus et al., 1998). The deﬁnition given by the Ox-

ford Dictionary (Sykes, 1991) considers architecture:

- the art or science of building;

- thing built, structure.

Since 90’s several aspects of the EA have been

greatly researched and given attention. Since then

several books have been published and there are many

conferences and training sessions about EA. Open

Group

, Zifa

and IRM UK

are examples of organi-

zations which promote conferences and training ses-

sions around the world. Other organizations, such as

IEEE (IEEE, 2000) and Carnegie Mellon University

(SEI, 2003) are trying to deﬁne the concept of archi-

tecture. It is important to mention that after the ﬁrst

use by Amdahl et al. (Amdahl et al., 1964) the term

architecture has been widely used in several Informa-

tion Technology domains. Stecher (Stecher, 1993)

www.opengroup.org

www.zifa.com

www.irmuk.co.uk

332

Tomé P., Amaral L. and Costa E. (2010).

TREEAD - A Tool that Enables the Re-use of Experience in Enterprise Architecture Description.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Artiﬁcial Intelligence and Decision Support Systems, pages

332-343

DOI: 10.5220/0002975003320343

 SciTePress

considers the term architecture an umbrella for every-

thing.

The Clinger-Cohen Act

in 1996 was other re-

marking decision that increased attention to the EA

deﬁnition. This decision makes the US public de-

partments to deﬁne their EA. Some of these depart-

ments, like (CIO, 1999; TEAF, 2000) created their

own framework. After eleven years of work, deﬁn-

ing the of EA continues and some of the depart-

ments are still developing their EA (GAO, 2006).

It is also worth mentioning that in the 90’s atten-

tion to ”systems architecting” began (Rechtin, 1991;

Maier, 1996; Rechtin and Maier, 1997; Zwegers,

1998; Rechtin, 1999).

Other authors proposed frameworks, methods,

languages and software tools that can be used in EA

description. There are also proposals of frameworks,

methods, languages and software tools for Software

Architecture, Information Architecture (IA), Informa-

tion Systems Architecture (ISA), Information Tech-

nology (IT) and Business Architecture domains. As

explained above, the EA is on a higher level of the

previously mentioned architecture (Rood, 1994), al-

though some of them make a positive contribution to

the EA.

There are several organization which have pro-

posed software tools to develop EA descriptions. The

IEAD

publishes a list of 17 tools (IFEAD, 2007)

on its website. Besides the software tools oriented

to develop the EA description, some organizations

use other kinds of software tools like PowerDesigner,

Racional Rose, Visio, PowerPoint, Word and ErWin.

It is important to notice that there is not a single soft-

ware tool which is widely used. The study of the

IEAD (IFEAD, 2005) concluded that Visio is the most

widely used tool (33%) in the EA description process.

An important characteristic of EA software tools

is their data repository (EE, 2005). Most of the soft-

ware tools, besides enabling the deﬁnition of the EA

aspects, have a repository with the previous descrip-

tions. However, the use of previous descriptions is no

easy. The software tools users must know what they

want to use, because the software tools do not have

easy mechanisms for retrieving previously developed

descriptions.

Architects play an important role in the EA deﬁ-

nition process (Gore, 2003; Tandon, 2007). The ar-

chitect’s experience also plays an important role in

the EA quality. In the Information Systems domain it

has been demonstrated that experienced analysts pro-

duce better models than young ones (Chaiyasut and

www.cio.gov/Documents/it management reform

act Feb 1996.html

www.enterprise-architecture.info

Shanks, 1994).

This paper shows a software tool that enables the

re-use of experience in the EA description process.

The proposed tool does not intend to be a competitor

to current software tools. Our intention is to propose

a tool that complement the current ones. The tool en-

ables EA descriptions to be stored on a single reposi-

tory and does not depends on the framework, method,

software tool or language used. Another important

characteristic, the main one in fact, is the fact that the

tool enables the experience to be re-used, although

this would be a difﬁcult task (Garlan et al., 1995), in

the EA description process. The tool was developed

based on a theory deﬁned through the formalization

of several EA elements.

It is worth mentioning that our tool wants to

be similar to KB-Case (Lloyd-Williams, 1994; Tau-

zovich, 1990) tools used in Information Systems De-

velopment. Although our tool uses the CBR (Case-

Based Reasoning) method because this method it is

more appropriate in ill deﬁned domains.

In section 2 the most representative frameworks,

methods and languages are presented. It was based on

these elements that the theory above mentioned was

developed. The theory and the software tool structure

is shown in section 3, where the results obtained with

the software tool application are also presented.

2 THE ENTERPRISE

ARCHITECTURE

As previously mentioned, in the EA domain several

authors created frameworks, methods and languages.

The most representative frameworks, methods and

languages are analyzed in the next tree subsections.

2.1 Enterprise Architecture

Frameworks

It is generally accepted, that system’s architecture is

too big and complex to consider building all at once

(Nolan and Mulryan, 1987; Shah and Kourdi, 2007).

For that reason, several authors have proposed EA

frameworks that divide the architecture into several

parts. In the EA domain there are two main types

of frameworks. There are frameworks that deﬁne an

enterprise reference architecture. The other kind of

frameworks enable the EA description. This section

will look into to the latter type of framework. The

frameworks considered in this section will be those

that formally described the EA aspects and as well as

others that informally identiﬁed the EA aspects.

TREEAD - A Tool that Enables the Re-use of Experience in Enterprise Architecture Description

333

As previously mentioned, several authors pro-

posed frameworks that can be used to describe the

EA. Each proposal deﬁnes the set of aspects that must

be described in an EA. Besides that, some of the

frameworks deﬁne the set of languages that should be

used and the relationships that EA elements can be

have.

Zachman (Zachman, 1987) proposed his ﬁrst

framework in 1987. The framework is organized as a

matrix of three columns and ﬁve rows. The columns

represent the following aspects: data, processes and

network which must be described in the EA, while

the rows represent the different views that must be

addressed in the EA. Zachman considers that the fol-

lowing views must be addressed: ballpark, owners,

designers, builders and out-of-context . In 1992 Zach-

man and Sowa (Zachman and Sowa, 1992) proposed

a framework extension. This last framework has the

same rows but the new columns were added. The new

columns correspond to these aspects: people and mo-

tivations and time. Both papers say that EA elements

can have relationships, but they are not identiﬁed.

The Capgemini Enterprise created the IAF (Inte-

grated Architecture Framework) (Capgemini, 2006).

The IAF consists of ﬁve ”aspect areas”: Business,

Information, Information Systems, Technology Infras-

tructure, Security and Governance. Each of these as-

pects is described according to three levels of abstrac-

tion: conceptual, logical and physical. The IAF does

not state the need to use speciﬁc languages in the EA

description. The existence of relationships between

EA elements are mentioned but the relationship types

are not speciﬁed.

Although the main aim of the project was not to

propose a framework, the proposal by Lankhorst et al.

(Lankhorst et al., 2004; Lankhorst et al., 2005), which

is service oriented, considers a three layer EA: Busi-

ness layer; Application layer; and Technology layer.

For each layer Lankhorst et al. proposed a lan-

guage which is described in 2.3.

Besides the software tool (EA WebModeler), Ag-

ilence, Inc. (Agilense, 2007) created an EA frame-

work that comprises the following aspects: Business,

Application, Information, Technical and Methods. In

each of the previous aspects it can be deﬁned more

than a model.

The AMOS (Isaac and Leroy, 1994) framework,

intended to model the ISA, is supported by the AMIS

method. This framework comprises four elements:

Functional, Logical, Technical and Organizational.

In this framework informal languages are used. In the

AMIS meta-model the relationships that architecture

elements can have are identiﬁed.

The BSP method (IBM, 1984) has a phase that de-

ﬁnes an Information Architecture. The Information

Architecture is a matrix where the columns are Data

classes and the rows are Processes. The Processes are

identiﬁed by name as it the case with the Data classes.

If one Process creates a Data classe in the cross cell

a ”C” is written. If a Process uses a Data classes in

the cross cell a ”U” is written.

In 1989 Earl (Earl, 1989) proposed a framework

for describing IT architecture. The framework com-

prises four aspects: Computing, Communications,

Data and Applications. Earl proposes a matrix to de-

scribing IT architecture in which the rows are these

aspects and the columns are: Parameters, Schemas,

Policies and Plans. Earl proposes an informal nota-

tion to describe each aspect and does not identify the

relationships that each element can have.

The Gartner framework (Handler, 2007) com-

prises three aspects: Business, Information and Tech-

nical. Each aspect is described according to three

detail levels: Conceptual, Logical and Implementa-

tion. The framework is organized as a matrix where

the columns are the aspects and the rows are the detail

levels. Some languages are used in the Gartner frame-

work. For example, the lists of policy’s and rules,

messaging and brokers are two examples of descrip-

tions used in the Gartner framework.

IBM also created the IFW (IBM, 1995) for appli-

cation in Financial Institutions. The framework is di-

vided into three main parts: Organization view, Busi-

ness view and Technical view. All the parts are de-

scribed in a ﬁve row-matrix.

The Index framework (Boar, 1999) is organized as

a 4X4 matrix. The columns of the matrix are: Inven-

tory, Principles, Models and Standards. The rows of

the matrix are the aspects: Infrastructure, Data, Ap-

plications and Organization. In the Boar’s neither the

languages nor the relationships that can be used are

speciﬁed.

Kim and Everest (Kim and Everest, 1994) cre-

ated a framework for ISA description based on Zach-

man’s ﬁrst framework. The framework comprises the

aspects: Processes, Data, Control and Technology.

For each of the aspects the authors proposed some

languages. The paper also mentions that there can

be relationships between the pairs of elements: (Pro-

cesses, Data), (Data, Control) and (Control, Technol-

ogy). The elements are related using an XREF matrix.

Rood (Rood, 1994) considered that the enterprise

components are: Strategy, Corporate culture, Peo-

ple, Organization structure, Technology, Information,

Processes and Tasks. According to Rood each of these

components must be described in an EA. The author

does not specify any modelling languages for the EA

description components. Although the paper men-

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

334

tions that the EA elements can have relationships, the

author does not identify the relationship types.

Microsoft proposed a framework in 1999 called

Microsoft Solutions Framework (Microsoft, 1999).

This framework enables the description of the follow-

ing aspects: Business, Applications, Information and

Technology. An informal language is used to describe

each aspect.

Opdahl (Opdahl, 1996) proposed an ISA frame-

work that consists of ﬁve dimensions: Resources,

Guidelines, Agents, Activities and Responsibilities.

The author does not propose any modelling language

nor does he identify the relationship types.

The framework proposed by Tapscott and Caston

(Tapscott and Caston, 1993) is for the IT architec-

ture deﬁnition. These authors consider that ﬁve views

must be deﬁned in an IT architecture: Business view,

Information view, Technical view, Applications view

and Work view. No modelling language or relation-

ship type are identiﬁed in this framework.

The Treasury Enterprise Architecture Framework

(TEAF) (TEAF, 2000) was created by the Department

of the Treasury Chief Information Ofﬁcer Council.

The framework is organized as a 4X4 matrix, where

the columns are: Functional view, Information view,

Organizational view and Infrastructure view and the

rows are: Planner perspective, Owner perspective,

Designer perspective and Builder perspective. Some

modelling are mentioned in the report. The existence

of relationships are also mentioned but they are not

identiﬁed.

The NIH (National Institutes of Health) Enterprise

Architecture framework (NIH, 2007) is based on the

FEAF framework. The NIH framework comprises the

deﬁnition of: Business architecture, Information ar-

chitecture and Technology architecture. In the Busi-

ness architectureit is addressed the following aspects:

What do they do?, Who does it?, Which Information?

and Where is it done?. The Information architec-

ture described: Data, Integration and Applications.

The Technology architecture comprises the aspects:

Security, Data technology, Collaboration, Platforms,

Applications technology, Integration technology, Net-

works and Systems management.

The ARIS framework (Scheer, 1999) comprises

ﬁve aspects: Organization, Data, Control, Function

and Output. For each aspect some formal and infor-

mal languages were proposed (Scheer, 1998). Scheer

proposed a ARIS repository to store all of the models.

In the Control view the relationships between views

are deﬁned.

The ISO/IEC (ISO/IEC, 1998) created a frame-

work for ODP (Open Distributed Processing) sys-

tems. The viewpoints considered in the RM-ODP are:

Enterprise, Information, Computational, Engineering

and Technology. For each viewpoint a modelling lan-

guage was proposed. The concerns of consistency be-

tween viewpoints are deﬁned in the ISO/IEC docu-

ment.

It is important to mention in this section the IEEE

Recommended Practice for Architectural Description

of Software-Intensive Systems (IEEE, 2000). Al-

though this IEEE recommended practice is oriented

for software systems, it can be considered that the

framework can be used in other domains. The frame-

work deﬁned in the recommended practice does not

have any speciﬁc aspect. In the framework it is pro-

posed that an architecture is deﬁned in a set of Views.

Each view is deﬁned according to a point-of-view.

2.2 Enterprise Architecture Methods

The work of Nolan and Mulryan (Nolan and Mulryan,

1987) is one of the oldest methods. The Nolan and

Mulryan’s proposal can be considered an EA method,

because it deﬁnes the phases of an EA deﬁnition pro-

cess.

The AMIS method (Isaac and Leroy, 1995) in-

tends to be used in ISA modelling. The method has

two main phases: analysis-decompositionand design-

composition. In the analysis-decomposition phase

the functional and the organizational aspects of the

AMOS framework (presented above) are described,

whilst in the design-composition phase the technical

and logical aspects are described.

The Institute of Standards and Technology (NIST)

deﬁned an EA model (NIST, 1989) in 1989. Ac-

cording to this model an EA is deﬁned through the

following ordered phases: Business architecture, In-

formation architecture, Information systems architec-

ture, Data architecture and Delivery systems architec-

ture.

It is important to mention that some of the United

States Public Departments EA frameworks are based

on this model.

Ryan and Santucci (Ryan and Santucci, 1993)

proposed a method for the development of the En-

terprise Information Architecture (EIA). According

to these two authors, an EIA must be developed in

seven layers and in this order: environment, business

requirements, data architecture, application architec-

ture, infrastructure, system software and hardware.

The authors do not purpose any speciﬁc modelling

languages nor speciﬁes any kind relationship type.

The CIO Council created the FEAF (CIO, 1999).

Although the authors considered FEAF a framework,

we call it a method because the FEAF deﬁnes the

EA description steps. Four steps are proposed in the

TREEAD - A Tool that Enables the Re-use of Experience in Enterprise Architecture Description

335

FEAF to deﬁne an EA, called Level I to Level IV. The

CIO Council identiﬁed eight EA components: Archi-

tecture drivers, Strategic direction, Current architec-

ture, Target architecture, Transitional process, Archi-

tectural segments, Architectural models, Standards.

In the FEAF there are no references to the languages

that must be used nor to the relationship types of an

EA.

The Los Alamos National Laboratory (Alamos,

1994) created a method called Information Architec-

ture for the planning of the laboratory-wide comput-

ing, information and communication activities. The

method comprises the phases: Grounding in princi-

ples, Design and implementation planning and Imple-

mentation.

The Open Group proposed a method called

TOGAF Architecture Development method (Group,

2002). The method has eight main phases. Each

phase has sub-phases. In the TOGAF report sev-

eral modelling languages it were mentioned. Activity

models, Use Cases and Class models are examples of

languages that can be used in the TOGAF Architec-

ture Development Model.

Targowski and Rienzo (Targowski, 1996) pro-

posed a method for EA deﬁnition that consists of ﬁve

steps:

• Translate an organization’s mission, goals and

strategy into an information mission, goals, and

strategies through business planning;

• Identify the information needs of the busi-

ness functions through the Enterprise Processive

Model;

• Create a Federate Information Systems architec-

ture of the Information Management Complex,

utilizing the Bill of Systems Processor technique,

incorporating functional information needs of the

business as well as information mission and goals.

Systems planning should recognize independent

computerized applications already in place.

• Develop Data/Information/Knowledge, Company

Software, Computer Systems, and Communica-

tion Networks architectures.

• Design the architecture of the overall Information

Management Environment showing system con-

nectivity and integration through graphic design.

In this method informal languages for modelling each

EA aspect are used.

Spewak and Hill (Spewak and Hill, 1995) created

EAP (EnterpriseArchitecture Planning). This method

creates the top two layers of Zachman framework

(ﬁrst framework). In this proposal it were considered

ﬁve layers. In the third layer it is deﬁned: Data ar-

chitecture, Applications architecture and Technology

architecture.

2.3 Architecture Description Languages

Architects use languages to describe the several EA

aspects. Few languages were created with the main

purpose of describing the EA (Architecture Descrip-

tion Languages (ADLs)) aspects. This kind of situ-

ation does not happen in Software Architecture do-

main, where, for example, there are several ADLs

(Medvidovic and Taylor (Medvidovic and Taylor,

2000) describe thirteen ADLs).

The languages used in EA description aspects are:

• Languages with a low level of formality;

• Languages created in other domains;

• ADLs;

In the following paragraphs the main features of each

type of language are described.

As previously mentioned, some EA aspects are

described through informal languages. For exam-

ple, the organization’s computer networks are gener-

ally described with an informal language where each

graph node is a computer or a switch or a router or

other kind of device and the edges are links between

devices.

The ﬂowchart (Chapin, 1970) is perhaps the oldest

language used to describe processes. This language

has four main constructors: Process, Input-output,

Flow and Decision.

Another older notation is the Data Flow Diagram

(Gane and Sarson, 1979). This language, which is

widely used in the Information Systems (IS) domain,

has four types of constructors: Process, Data store,

Flow and External entity.

The National Institute of Standards and Tech-

nology created the IDEF0 (Integration Deﬁnition

for Function Modeling) (Technology, 1993) and the

IDEF1X (Integration Deﬁnition for Information Mod-

eling) (FIPS, 1993) languages. The IDEF0 language

consists of the following constructors: Activity, Input,

Control, Output, Call, and Mechanisms. The IDEF1X

language can be used to model the data aspect. This

languages has the following constructors: Entity, At-

tribute, Relationship and Relation categorizationship.

In the Archimate project (Lankhorst et al., 2004;

Lankhorst et al., 2005) three ADLs were created.

These ADLs were created for the three layers consid-

ered in the project: Application, Business and Tech-

nology.

Eertink et al. (Eertink et al., 1999) proposed a lan-

guage, called AMBER, which allows processes, data

and the organization and people involved to be mod-

elled. The AMBER language recognizes three aspect

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

336

domains: Actor domain, Behaviour domain and Item

domain.

Chen (Chen, 1976) created the most popular

Entity-Relation (ER) language. An ER model con-

sists of Entities, Attributes and Relationships. It is

important to notice that in the Chen notation the at-

tributes are drawn as nodes and are not placed inside

entities like in other ER notations.

The Oracle Corporation created two modelling

languages in the CASE*Method: Entity Relationship

Modelling (Barker, 1995) and Function and Process

Modelling (Barker and Longman, 1992). The En-

tity Relationship Language has two major construc-

tors: Entity and Relationship. The Function and

Process Modelling lanugage comprises the following

constructors: Function, Event, Relation, Objective,

Dependency and Actor.

The Object Management Group created UML

(Uniﬁed Modeling Language) (OMG, 2007). UML

comprises thirteen languages that can be grouped into

structure, behaviour and implementation groups.

BPMN (OMG, 2004) was also created by the

Object Management Group. This language com-

prises several components and connectors construc-

tors. Event, Activity and Gateway are examples of

components constructors while sequence ﬂow and

message ﬂow are connectors constructors.

The Merise/2 (Panet and Letouche, 1994) is a

complete set of tasks, models and techniques for In-

formation Systems Development. The authors of

Merise/2 proposed a set of nineteen languages divided

into three groups: conceptual models, organizational

models and logical models.

In the ISO/IEC 10746-1 (ISO/IEC, 1998) ﬁve

modelling languages are proposed: Enterprise lan-

guage, Information language, Computational lan-

guage, Engineering language and Technology lan-

guage. The aim of an Enterprise speciﬁcation is to

express the objectives and policy constraints on the

system of interest. Through the Information language

the relationship and behavior of ODP information ob-

jects are speciﬁed. The Computational language en-

ables the distribution of processing to be modelled.

The Engineering language focuses on the way object

interaction is achieved and on the resources needed to

do so. Through the Technology language the imple-

mentation of the ODP system in terms of a conﬁgura-

tion of technology objects representing the hardware

and software components of the implementation is de-

scribed. The basic modelling concepts, common to

all languages, are: Objects, Interfaces and Interaction

points.

3 THE RE-USING OF

EXPERIENCE IN ENTERPRISE

ARCHITECTURE

In this section we describe the conceptual framework

that supports the TREEAD development. Afterwards,

we deal with the TREEAD’s structure and results.

The conceptual framework was based on the frame-

works, methods and languages presented in sections

2.1 to 2.3. The proposed conceptual framework is

built using Grammar Attribute (GA) formalism (Wil-

helm and Maurer, 1996). The GA is a rigorous for-

malism that simultaneously has synthesizing and in-

heriting mechanisms enabling the identiﬁcation of ob-

ject’s attributes.

View

Model

Construtor

Figure 1: Hierarchy of the EA Objects.

Our proposal is compatible with all frameworks,

methods and languages available in the EA domain.

As mentioned in the sections 2.1 to 2.3, we consider,

as shownin ﬁgure 1, that the EA has three types of ob-

jects: View, Model and Constructor. Each type of ob-

ject has different kinds of attributes: proper attributes,

synthesized and inherited attributes. The latter comes

from the objects in an upper level and lower level, re-

spectively.

As explained in sections 2.1 and 2.2, an EA com-

prises the deﬁnition of more than one aspect. Follow-

ing the IEEE recommended practice (IEEE, 2000),

we consider that an EA aspect is described as a view,

where each level of detail corresponds to a view. In

table 1 several frameworks and their corresponding

views are described.

Speciﬁcation 1 describes the EA as a set of views.

Besides that, there are also attributes: method (me),

framework (fr), scope (sc), organization type (org t),

terms that characterize the EA (Ea d) and keywords.

The method attribute registers the method used in the

EA description process. The framework used in the

EA description is registered in the attribute frame-

work. The scope attribute registers the type of EA,

which can be the entire organization, a department or

a section description. The organization class is reg-

istered in the type of organization org type attribute.

TREEAD - A Tool that Enables the Re-use of Experience in Enterprise Architecture Description

337

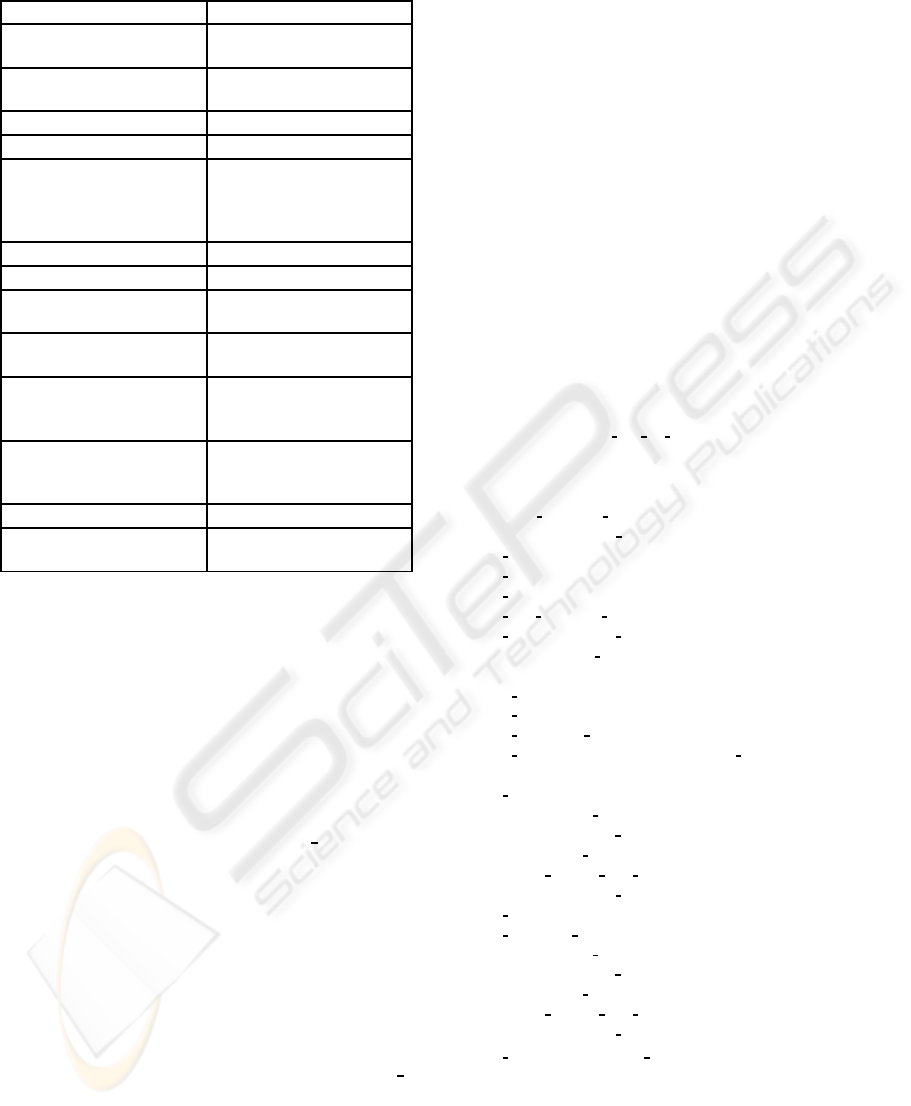

Table 1: Some Examples of framework’s views.

Framework Views

AMOS (Isaac and Leroy, 1994) Functional; Logical; Technical;

Organizational

BSP Information Architecture

(IBM, 1984)

Data

Process

Earl (Earl, 1989) Each element of the 4X4 matrix

Gartner Group (Handler, 2007) Each element of the 3X3 matrix

Rood (Rood, 1994) Strategy; Corporate culture;

People; Organization structure;

Technology; Information;

Processes; Tasks

IFW (IBM, 1995) Each element of all matrixes

Index (Boar, 1999) Each element of 4X4 matrix

Microsoft Solutions Framework

(Microsoft, 1999)

Business; Applications, Infor-

mation; Technology

Opdahl (Opdahl, 1996) Resources; Guidelines; Agents;

Activities; Responsabilities

Tapscott and Caston (Tapscott

and Caston, 1993)

Business view; Informa-

tion view; Technical view;

Applications view; Work view

Targowski and Rienzo (Tar-

gowski, 1996)

Data/Information; Software;

Communications networks;

Computer

TEAF (TEAF, 2000) Each element of 4X4 matrix

Zachman (Zachman and Sowa,

1992)

Each element of the 6X5 matrix

In the terms that characterizes the EA attribute a list

of terms that characterizes the organization to which

the EA is developed is registered. The keywords at-

tribute is synthesized from the view object and will

be described later on.

An EA aspect is described through one or more

view objects. Therefore, view objects can comprise a

set of models. The Speciﬁcation 2 describes a View

object. This object has one proper attribute (aspect)

and the inherited attributes: method (me), framework

(fr), scope (sc), organization type (org

t), terms that

characterize the EA. The keywords attribute is synthe-

sized from the Model object.

An architect builds models to specify an EA as-

pect. The Model object, described in Speciﬁcation

3, has the proper level and aspect (asp) attributes. For

example, for a Data Model the level attribute can have

one of the following values: conceptual, logical or

physical; the aspect attribute has the value data. Fur-

thermore, the Model object inherits the method (me),

framework (fr), scope (sc), organization type (org t),

terms that characterize the EA attributes. The key-

words and number of components (ncomp) attributes

are synthesized from the component constructor ob-

ject.

As explained in section 2.3, a constructor, de-

scribed in Speciﬁcation 4 and 5, can be divided in

two types: component or connector. Generally, a

constructor has a name (name) and some character-

istics (Chs). For example, in the ER notation an at-

tribute has the following characteristics: data type,

length and type of attribute (normal, foreign key or

primary key). Furthermore, we associated to the Con-

structor object an attribute for storing keywords (Ks).

These keywords are used to contextualize the appli-

cation of the constructor. The constructor can belong

to another component or can aggregate other compo-

nents. In the supkeywords attribute and subkeywords

stores the keywords of the owner and owned construc-

tors, respectively. The relationship attribute stores in-

formation that concerns rules used in the modelling

task. For example, in modelling tasks decomposing

rules are applied. Keywords of linked constructors

are stored in the likeywords attribute. The relation

attribute stores data about relations with other con-

structors in a different View.

EA → me fra sc org

t Ea d S v.

EA.method = me.Value;

EA. framework = fra.Value;

EA.scope = sc.Value;

EA.org type = org t.Value;

EA.description = Ea d.description;

S v.method = me.Value;

S v. framework = fra.Value;

S v.scope = sc.Value;

S v.org type = org t.Value;

S v.description = Ea d.description;

EA.keywords = S v.keywords;

Ea d → des.

d.description = des.value;

Ea d → des Ea d.

Ea d

.description = concat(des.value, Ea d

.description);

S v → View.

View.method = S v.method;

View. framework = S v. framework;

View.scope = S v.scope;

View.org type = S v.org type;

View.description = S v.description;

S v.keywords = View.keywords;

S v → View S v.

View.method = S v.method;

View. framework = S v. framework;

View.scope = S v.scope;

View.org type = S v.org type;

View.description = S v.description;

S v

.keywords = concat(S v

.keywords, View.keywords);

Speciﬁcation 1: EA object description.

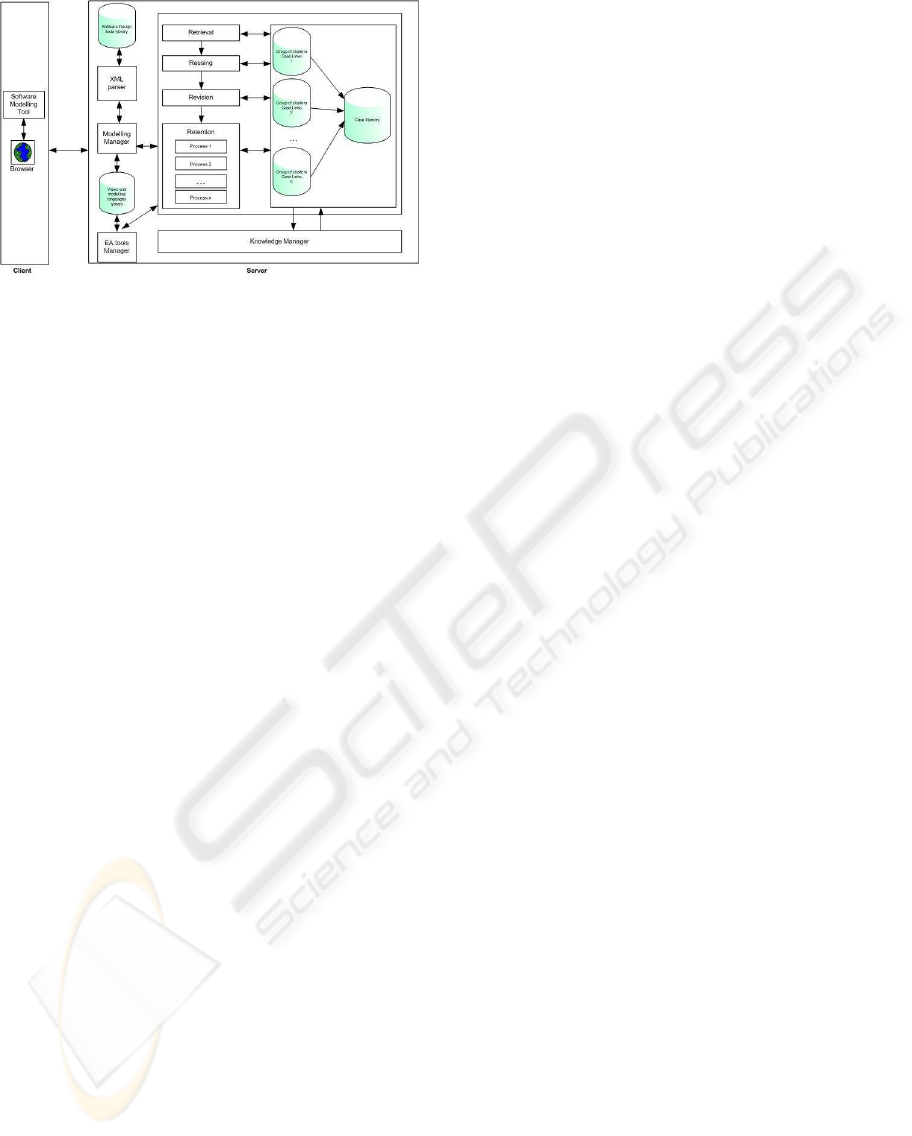

After the grammar speciﬁcation, we created the

TREEAD whose structure is shown in ﬁgure 2. The

tool has two major components: the client and the

server. The architect uses the client components: a

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

338

browser and a software design tool. The browser

is used to communicate with the server component.

It is through the browser that the architect requests

for solutions to problems and stores EA descriptions.

Besides that, it is through the browser that the ar-

chitect conﬁgures the tools (method, framework and

languages) in the server. The server part is imple-

mented using Oracle technologies (Oracle, 2007) and

Microsoft ASPX technology (Ahmed et al., 2002).

View → aspect S m.

m.method = View.method;

S m. framework = View. framework;

S m.scope = View.scope;

S m.org type = View.org type;

S m.description = View.description;

View.aspect = aspect.Value;

S m.aspect = aspect.Value;

View.keywords = S m.keywords;

S m → Model.

Model.method = S m.method;

Model. framework = S m. framework;

Model.scope = S m.scope;

Model.org type = S m.org type;

Model.description = S m.description;

Model.aspect = S m.aspect;

S m.keywords = Model.keywords;

S m → Model S m.

Model.method = S m.method;

Model. framework = S m. framework;

Model.scope = S m.scope;

Model.org type = S m.org type;

Model.description = S m.description;

Model.aspect = S m.aspect;

.keywords = concat(S m

.keywords, Model.keywords);

Speciﬁcation 2: View object description.

The 4Rs cycle proposed by Aamodt and Plaza

(Aamodt and Plaza, 1994) was implemented in the

server. The following modules were also imple-

mented: Software design tools library, XML parser,

Knowledge manager, Modelling manager, EA tools

manager and Views and modelling languages library.

The software design tools library has the parsing rules

that enable the parsing of XML ﬁles by XML parser.

The TREEAD’s users manage the contents of the

Case memory through Knowledge manager. In this

module the user can correct and disable previously

resolved problems. The Modelling manager is re-

sponsible the entire process of developing an EA de-

scription and it allows solutions to problems to be re-

quested and stores new EA descriptions. The EA tools

manager enables of new methods, views and lan-

guages to be conﬁgured. This module uses the meta-

case deﬁnition to specify the meaning for a view and

for a modelling language. The Views and modelling

languages library has the knowledge about each spe-

ciﬁc view and modelling languages as well as the con-

versation rules between different views and modelling

languages.

Model → asp level S

Model.aspmodel = asp.Value;

Model.level = level.Value;

S c.method = Model.method;

S c. framework = Model. framework;

S c.scope = Model.scope;

c.org type = Model.org type;

S c.description = Model.description;

S c.aspect = Model.aspect;

S c.level = Model.level;

S c.aspmodel = asp.value;

S c.ncomp = 1;

Model.keywords = S c.keywords;

S c → Co.

Co.method = S c.method;

Co. framework = S c. framework;

Co.scope = S c.scope;

Co.org type = S c.org type;

Co.description = S c.description;

Co.aspect = S c.aspect;

Co.level = S c.level;

Co.asplevel = S c.asplevel;

Co.ncomp = S c.ncomp;

S c.keywords = Co.keywords;

S c → Co S c.

Co.method = S c.method;

Co. framework = S c. framework;

Co.scope = S c.scope;

Co.org type = S c.org type;

Co.description = S c.description;

Co.aspect = S

c.aspect;

Co.level = S c.level;

Co.asplevel = S c.asplevel;

Co.ncomp = S c.ncomp;

S c

.keywords = concat(S c

.keywords, Co.keywords);

Speciﬁcation 3: Model object description.

It is important to notice that in the retrieval and re-

tention phases clustering techniques (Tan et al., 2006)

are used. These techniques were used to enable a

faster case retrieval. Access to the case-memory is

achieved by using Groups of cluster links as shown in

ﬁgure 2. This strategy signiﬁcantly reduces the num-

ber of case assessments and consequently retrieval

time.

Considering the speciﬁcations illustrated in 1 to

5, the TREEAD comprises four types of cases: EA,

View, Model and Constructor. For each type of case,

the case’s characteristics are the object’s attributes

(proper, inherited and synthesized). The case’s solu-

tion part is the description of each object. The de-

scription of each object is done in XML, a widely

TREEAD - A Tool that Enables the Re-use of Experience in Enterprise Architecture Description

339

Figure 2: TREEAD’s structure.

used language.

We used TREEAD for the speciﬁcation of Zach-

man’s cell (Owner, Data) to create three examples in

different contexts:

• Example 1: ﬁfteen data models for different orga-

nization departments (such as sales, accounting,

manufacturing and so on);

• Example 2: six data models of six hospital medi-

cal services;

• Example 3: nine data models of the same depart-

ment (sales department).

Co →

′

component

′

name Chs Ks Sup Sub Re Li Ore.

Co.type =

′

component

′

;

Co.name = name.value;

Co.characts = Chs.characts;

Co.keywords = Ks.keywords;

Co.supkeywords = Sup.keywords;

Co.subkeywords = Sub.keywords;

Co.relationship = Re.relationship;

Co.likeywords = Li.keywords;

Co.noflinks = Li.number;

Co.relation = Ore.number;

Co.ncomp = Co.ncomp+ 1;

Speciﬁcation 4

: Constructor object description.

ll the data models were speciﬁed using the IDEF1X

in the PowerDesigner (Sybase, 2006) software tool.

The models developed in examples 1) and 3) were de-

ﬁned by different IT professionals while the models

developed in example 2) were deﬁned by only one IT

professional. A total of thirty data models, as shown

in table 2, were used to evaluate the TREEAD tool.

In this experimental study we want to measure the

re-utilization of the tool. Then each model within

each example was introduced sequentially according

to the order speciﬁed in the table.

Figure 3 presents the results of Example 1) where

the models belong to different departments types and

were created by different IT professionals. Despite

the diversity of the data models, there is a mean per-

centage of re-use, around 44% and 23% for connec-

tors and components respectively. It also has to be

noticed that the percentage does not decrease with an

increasing number of models in the case memory.

Co →

′

connector

′

name Chs Ks Sup Sub Re Li Ore.

Co.type =

′

connector

′

;

Co.name = name.value;

Co.characteristics = Chs.characteristics;

Co.keywords = Ks.characteristics;

Co.supkeywords = Sup.keywords;

Co.subkeywords = Sub.keywords;

Co.relationship = Re.relationship;

Co.linkeywords = Li.keywords;

Co.relation = Ore.number;

Co.likeywords = Lid.keywords;

Chs → name val.

Chs.characts = (name.value, val.value);

Chs → name val Chs.

Chs

.characts = concat(Chs

, (name.value, val.value));

Ks → val.

Ks.keywords = val.value;

Ks → val Ks.

.keywords = concat(Ks

, val.value);

Sup → Ks.

Sup.keywords = Ks.value;

Sub → Ks

Sub.keywords = Ks.value;

Re → name Ks.

Re.relationship = (name.value, Ks.value);

Li → Ks.

Li.keywords = Ks.value;

Li → Ks Li.

.keywords = concat(Li

.keywords, Ks.value);

Ore → ε.

Ore → name.

Ore.relation = name.value;

Ore → name Ore.

Ore

.relation = concat(Ore

.relation, name.value);

Speciﬁcation 5

: Constructor object description.

igure 4 shows the results of Example 2) where

the models belong to departments with identical pur-

poses and were deﬁned by the same IT professional.

We can see that the percentage of re-utilization is

high, above 52% and 83% for connectors and com-

ponents respectively. This result has to be expected

considering the similarities of the departments and the

consistency of the modelling phase. And it is shown

that the percentage of re-use increases with the num-

ber of cases in memory.

Figure 5 presents the results of Example 3) where

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

340

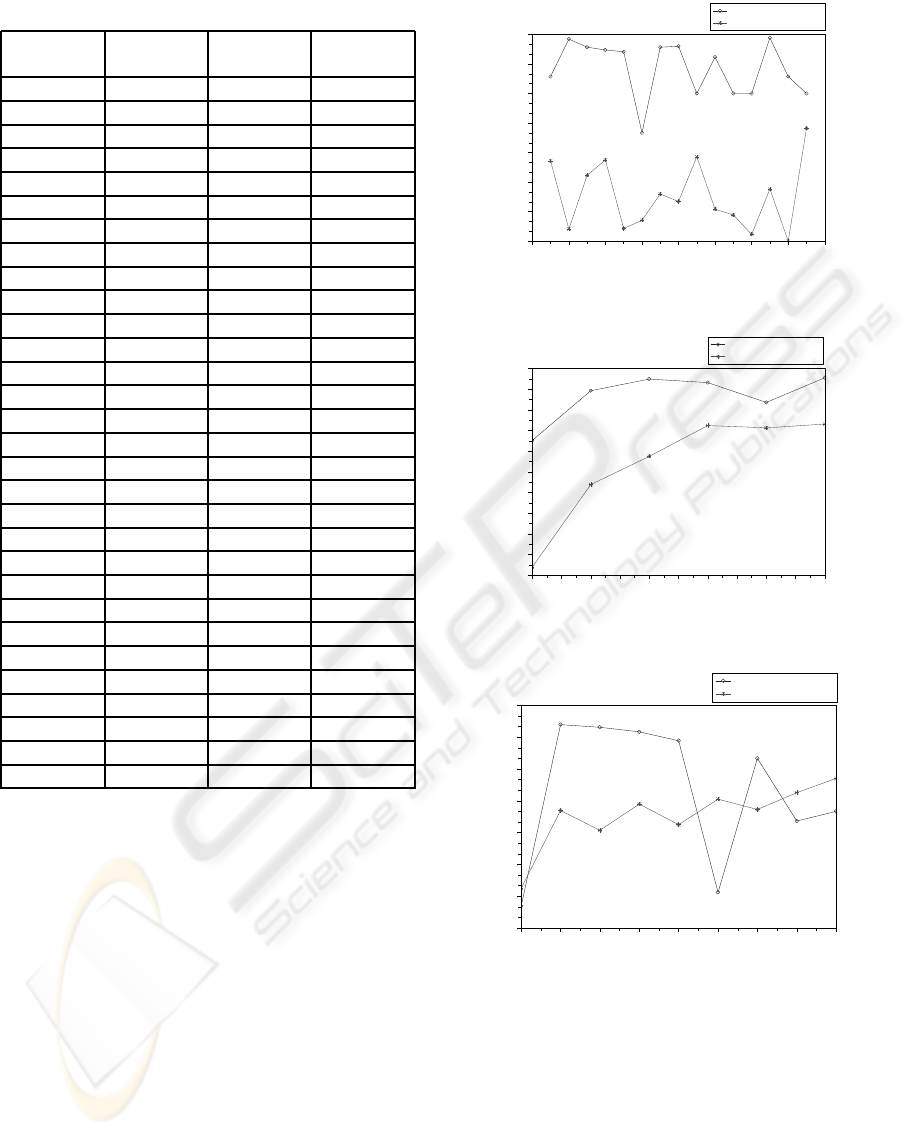

Table 2: Number of constructors of each data model.

Model Example N. of comp. N. of connect.

1 14 7

1 135 63

1 176 23

1 80 19

1 70 17

1 81 6

1 161 23

1 106 25

1 41 5

1 103 13

1 36 5

1 31 5

1 210 87

1 20 7

1 88 5

2 281 69

2 406 93

2 367 78

2 391 88

2 230 61

2 89 394

3 73 19

3 112 33

3 112 29

3 58 12

3 40 9

3 78 17

3 55 12

3 51 11

3 61 15

the models belong to the same department and were

created by different IT professionals. We can see that

the percentage of re-utilization is above 37% and 43%

respectively for connectors and components respec-

tively. This result illustrates that the consistency in the

modelling phase inﬂuences the outcome. The number

cases in the memory is not always related to a high-

percentage of re-use, at least in terms of the re-use of

connectors.

4 CONCLUSIONS

In this paper we proposed a software tool - TREEAD,

based on CBR techniques, which enables the re-use of

experience in EA description. This work also presents

a careful synthesis of methods, frameworks and mod-

elling languages used in EA description. Considering

the reviewed frameworks, methods and languages the

0 2 4 6 8 10 12 14 16

Results of example 1

Data model

Adaptation Percentage

Adapted connectors

Adapted attributes and entities

Figure 3: Results of example 1.

16.0 16.5 17.0 17.5 18.0 18.5 19.0 19.5 20.0 20.5 21.0

100

Results of example 2

Data model

Adaptation percentage

Adapted connectors

Adapted attributes and entities

Figure 4: Results of example 2.

22 23 24 25 26 27 28 29 30

100

Results of example 3

Data model

Adaptation percentage

Adapted connectors

Adapted attributes and entities

Figure 5: Results of example 3.

structure of four EA objects in GA formalism is pre-

sented.

The proposed TREEAD supports the use of

several EA frameworks, methods, modelling lan-

guages and software modelling tools. Furthermore,

TREEAD applies Clustering techniques to improve

retrieval case time.

Finally we presented the results of the application

of TREEAD in three different examples. In spite of

TREEAD - A Tool that Enables the Re-use of Experience in Enterprise Architecture Description

341

the diversity of the models due to different origins or

different strategies of modelling, the percentage of re-

use was always above 33% and 15% for connectors

and components respectively. The results obtained

lead us to conclude that the use of experience in EA

description can contribute to a better system develop-

ment.

REFERENCES

Aamodt, A. and Plaza, E. (1994). Case-based reasoning:

Foundational issues, methodological variations and

systems approaches. AI-Communications, 7(1):39–

52.

Agilense (2007). Agilense enterprise architecture frame-

works.

Ahmed, M., Garret, C., FairCloth, J., and Payne, C. (2002).

ASP.NET Web Developers’s Guide. Syngress Publish-

ing.

Alamos, L. (1994). Information architecture: The founda-

tion. Technical report, Los Alamos National Labora-

tory.

Amdahl, G. M., Blaauw, G. A., and Brooks, F. P. (1964).

Architecture of the ibm system/360. IBM Journal,

8(2):87–101.

Barker, R. (1995). Case*Method - Entity Relationship Mod-

elling. Addison-Wesley.

Barker, R. and Longman, C. (1992). Case*Method - Func-

tion and Process Modelling. Addison-Wesley.

Bernus, P., Mertins, G., and Schmidt, G. (1998). Handbook

On Architectures of Information Systems. Springer-

Verlag.

Boar, B. H. (1999). Constructing Blueprints for Enterprise

IT Architectures. John Wiley & Sons, Inc.

Capgemini (2006). Architecture and the integrated

architecture framework. Technical report,

Capgemini - Consulting, Technology, Outsourc-

ing. www.capgemini.com, Consulted in October

2007.

Chaiyasut, P. and Shanks, G. (1994). Conceptual data mod-

elling process: A study of novice and expert data mod-

ellers. In Halpin, T. and Meersman, R., editors, First

International Conference on Object-Role Modelling,

pages 310–323, Brisbane - Queensland.

Chapin, N. (1970). Flowcharting with the ansi standard: A

tutorial. Computing Surveys, 2(2).

Chen, P. P.-S. (1976). The entity-relationship model - to-

ward a uniﬁed view of data. ACM Transactions on

Database Systems, 1(1):9–36.

CIO (1999). Enterprise architecture conceptual framework.

Technical report, CIO Council. Federal Conceptual

Model Subgroup.

Earl, M. J. (1989). Management Strategies For Information

Technology. Prentice Hall.

EE (2005). Repository-centric enterprise architecture.

white paper.

Eertink, H., Janssen, W., and Luttighuis, P. O. (1999). A

business process design language. In World Congress

on Formal Methods in Development of Computing

Systems, pages 708–727, Toulose - France. Springer.

FIPS (1993). Integration Deﬁnition for Information Model-

ing (IDEF1X). Federal Information Processing Stan-

dards Publications.

Gane, C. and Sarson, T. (1979). Structured Systems Analy-

sis: Tools and Techniques. Prentice-Hall.

GAO (2006). Enterprise architecture: Leadership remains

key to establishing and levearing architectures for or-

ganizational transformation. Technical report, Chair-

man, Committee on Governmentm Reform, House of

Representatives.

Garlan, D., Allen, R., and Ockerbloom, J. (1995). Archi-

tectural mismatch: Why resuse is so hard. IEEE Soft-

ware, 12(6):17–26.

Gore, M. (2003). Thoughs on the information system archi-

tect role. In ITC’03, pages 706–710. IEEE - Computer

Society.

Group, O. (2002). The open group architectural framework.

Technical report, The Open Group. Verso 8.

Handler, R. (2007). Closing the gap between architecture

and model-driven development. In Gartner Enterprise

Architecture Summit, London, UK. Gartner.

IBM (1984). Business Systems Planning: Information Sys-

tems Planning Guide. IBM Corperation.

IBM (1995). Information Framework (IFW) Description.

IBM, 1.02 edition.

IEEE (2000). IEEE Recommended Practice for Archi-

tectural Description of Software-Intensive Systems.

IEEE.

IFEAD (2005). Trends in enterprise architecture 2005: How

are organizations progressing.

IFEAD (2007). Enterprise architecture tools review.

www.enterprise-architecture.info/EA tools.htm, Con-

sulted at 27-12-2007.

Isaac, J. C. and Leroy, D. (1994). The amos study: Toward a

user validation of the cis architecture design. In BRG

Symposium on C2 Research, California.

Isaac, J. C. and Leroy, D. (1995). Architecture modeling for

better requirements and system speciﬁcation. In First

International Symposium on Command and Control

Research and Technology, Washington D. C.

ISO/IEC (1998). Information technology - open distributed

processing - reference model: Overview.

Kim, Y. G. and Everest, G. C. (1994). Building an is archi-

tecture collective wisdom from the ﬁeld. Information

& Management, 26:1–11.

Lankhorst, M., Iacob, M., Jonkers, H., Torre, L., Proper, H.,

Arbab, F., Boer, F., Bonsangue, M., Hoppenbrouw-

ers, S., Zanten, G., Groenewegen, L., Buuren, R.,

Slagter, R., Campschoer, J., Arbab, F., Steen, M.,

Stam, A., Wieringa, R., Eck, P., Krukkert, D., Doest,

H., Leeuwen, D., Fennema, P., Bosma, H., Cuvelier,

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

342

M., Penders, P., Bekius, S., and Janssen, W. (2005).

Enterprise Architecture at Work: Modelling, Commu-

nication and Analysis. Springer.

Lankhorst, M., Jonkers, H., Buuren, R., Leeuwen, D., and

Doest, H. (2004). Enterprise architecture modelling -

the issue of integration. Advanced Engineering Infor-

matics, 18(4):205–216.

Lloyd-Williams, M. (1994). Expert system support for

object-oriented database design. International Jour-

nal of Applied Expert Systems, 1(3).

Maier, M. W. (1996). Systems architecting: An emergent

discipline? In IEEE Aerospace Applications, vol-

ume 3, pages 231–246.

McDavid, D. W. (1999). A standard for business architec-

ture description. IBM Systems Journal, 38(1):12–31.

Medvidovic, N. and Taylor, R. N. (2000). A classiﬁcation

and comparison framework for software architecture

description languages. IEEE Transactions on Soft-

ware Engineering, 26(1):70–93.

Microsoft (1999). Microsoft solutions framework. White

Paper.

NIH (2007). Nih enterprise architecture framework. Tech-

nical report, National Institutes of Health.

NIST (1989). Information management directions: The

integration challenge. Technical report, Institute of

Standards and Technology.

Nolan, R. L. and Mulryan, D. W. (1987). Undertaking an

architecture program. Stage By Stage, 7(2).

OMG (2004). Business process modeling notation speciﬁ-

cation. Technical report, Object Management Group.

OMG (2007). Uniﬁed modeling language: Superstructure.

Technical report, Object Management Group.

Opdahl, A. L. (1996). A model of the is-architecture align-

ment problem. In Lind, M., Axelsson, K., Goldkuhl,

G., and Hedberg, P., editors, VITS Autumn.

Oracle (2007). www.oracle.com.

Panet, G. and Letouche, R. (1994). Merise / 2: Modles et

Techniques Merise Avancs. Les ditions D’ Organisa-

tion.

Rechtin, E. (1991). Systems Architecting: Creating &

Building Complex Systems. Prentice Hall.

Rechtin, E. (1999). Systems Architecting Of Organizations:

Why Eagles Can’t Swim. CRC Press.

Rechtin, E. and Maier, M. W. (1997). The Art of Systems

Architecting. CRC Press.

Rood, M. A. (1994). Enterprise architecture: Deﬁnition,

content, and utility. In Third Workshop on Enabling

Technologies: Infrastructure for Collaborative Enter-

prises, pages 106–111, Morgantown, USA. IEEE.

Ryan, H. and Santucci, J. (1993). Building an enterprise

information architecture. Infoworld, pages 57–58.

Scheer, A.-W. (1998). ARIS - Business Process Frame-

works. Springer-Verlag, 2ł edition.

Scheer, A.-W. (1999). ARIS - Business Process Modeling.

Springer-Verlag, 2ł edition.

SEI (2003). How do you deﬁne software architecture -

www.sei.cmu.edu/architecture/deﬁnitions.html. Con-

sulted in 1-07-2003.

Shah, H. and Kourdi, M. E. (2007). Frameworks for enter-

prise architecture. IT PrO, September — October:36–

41.

Spewak, S. H. and Hill, S. C. (1995). Enterprise Architec-

ture Planning, Developing a Blueprint for Data, Ap-

plications and Technology. John Wiley & Sons, Inc.

Stecher, P. (1993). Building business and application sys-

tems with retail application architecture. IBM Systems

Journal, 32(2):278–306.

Sybase (2006). www.sybase.com/products/.

Sykes, J. B. (1991). The Concise Oxford Dictionary. Oxford

University Press.

Tan, P. N., Steinbach, M., and Kumar, V. (2006). Introduc-

tion to Data Mining. Pearson Education.

Tandon, R. (2007). The role of solution architects in sys-

tems integrations. IT PrO, March, April:26–33.

Tapscott, D. and Caston, A. (1993). Paradigm Shift: The

New Promise of Information Technology. McGraw-

Hill.

Targowski, A. S. (1996). Global Information Infrastruc-

ture: the Birth, Vision and Architecture. Idea Group

Publishing.

Tauzovich, B. (1990). An expert system for conceptual

data modelling. In 8th International Conference on

the Entity-Relationship Approach, Toronto, Canada.

TEAF (2000). Treasury enterprise architecture framework.

Technical report, Department of Treasury.

Technology, N. I. S. (1993). Integration Deﬁnition for

Function Modeling (IDEF0). Federal Information

Processing Standards Publications.

Wilhelm, R. and Maurer, D. (1996). Compiler Design.

Addison-Wesley.

Zachman, J. A. (1987). A framework for information sys-

tems architecture. IBM Systems Journal, 26(3):276–

292.

Zachman, J. A. and Sowa, J. F. (1992). Extending and for-

malizing the framework for information systems ar-

chitecture. IBM Systems Journal, 31(3):590–616.

Zwegers, A. (1998). On Systems Architecting - a study in

shop ﬂoor control to determine architecting concepts

and principles. Ph.d thesis, Technische Universiteit

Eindhoven. ISBN 90-386-0699-4.

TREEAD - A Tool that Enables the Re-use of Experience in Enterprise Architecture Description

343
