TOWARDS LOCATION-BASED SERVICES
STANDARDIZATION
An Application based on Mobility and Geo-Location
El Kindi Rezig
University of Science and Technology, USTHB, BP 32 EL ALIA, 16111, Bab Ezzouar, Algiers, Algeria
Valérie Monfort
Université De Sfax, MIRACL, Sfax, Tunisie
Université Paris 1 Panthéon Sorbonne, 90 rue de Tolbiac, 75634 Paris cedex 13, Paris, France
Keywords: LBS, Mobility, Ambient context adaptability, Web services.
Abstract: Location based services (LBSs) have improved users’ life drastically because of their useful applications
such as location-based advertising, vehicle tracking, mobile commerce… etc. However most LBS
applications are provider-specific and can’t (generally) cohabit with other LBS applications from other
providers, consequently, consumers have to use different platforms and applications in order to discover and
interact with different LBS applications. In our paper, we present an infrastructure based on geo-location
and Web services to promote the uniformity of the way LBS providers publish their services on one hand,
and the way consumers discover and interact with the LBSs they look for on the other hand. Moreover the
proposed infrastructure is context-aware and promotes dynamical services accessibility by offering
consumers, as they are moving, the nearest services they are interested in.
1 INTRODUCTION
Location based services (LBSs) (Sen, Sengupta,
2007) are offered through devices with location
capabilities such as mobile phones, GPS
devices…etc. These services include a wide range of
applications such as looking for the closest
restaurant, finding someone,…etc. LBSs have
become a lucrative business for both wireless
carriers and developers of location-aware
applications. Today, LBSs have become part of
users’ everyday life, using several media as: mobile
phones, PDAs…etc to find the closest clinic, to do
bank transactions…etc.
Geo-location is the cornerstone of this research
work. Geo-location aims to locate a user, an object,
a data … on a map with geographical coordinates.
This operation is possible using a device able to be
located (GPS, …) and to publish (on real time for
instance) the geographical coordinates. The location
can be seen on online maps using laptops, PDAs,
Mobile phones... .
Moreover, we noticed that Service Oriented
Architecture (SOA) (
Curbera, Khalaf, 2008) offers a
great flexibility to Information Systems (IS) because
each application owns interfaces masking
implementation details. So, applications own
interfaces including services and are seen as black
boxes independently connected to a middleware as
Enterprise Application Integration bus (EAI) with its
connectors and adaptors. Moreover, Web services
are based on standards and are till now the cheapest
and simplest solution to support interoperability
between platforms. Based on Web services,
Enterprise Services Bus (ESB) (
Chappell, 2006)
(Mulesoft, n.d) is a kind of services Web based EAI
and allows loosely coupling with low costs.
However, even if Web services offer technical
connection means for interoperability, they address
neither adaptability nor context aware adaptability.
We aim:
 To define a platform that uniforms the way
LBSs providers publish their services and the
310
Kindi Rezig E. and Monfort V. (2010).
TOWARDS LOCATION-BASED SERVICES STANDARDIZATION - An Application based on Mobility and Geo-location.
In Proceedings of the 12th International Conference on Enterprise Information Systems - Databases and Information Systems Integration, pages
310-315
DOI: 10.5220/0002975503100315
Copyright
c
 SciTePress

way consumers discover and interact with
LBSs.
 To associate the location of a user to a set of
services proposed by different entities
belonging to this zone as restaurants, banks,
hospitals, airports,… The user can define the
distance between him and the entities.
 To provide required services from anywhere for
mobile users via any media.
 To adapt the panel of offered services according
to the current location of the user.
This paper presents a concrete design and
implementation of context awareness for mobile
users and an improved platform to standardize the
discovery, interaction and publication of LBSs, We
mainly used Web services and Microsoft .NET 3.5
to achieve this. We shall process as follows, The
second section introduces Web services. The third
section presents LBS. The fourth section proposes a
case study. Section five shows different
implementations of the presented platform.
2 WEB SERVICES
Web services (Web Services Architecture, 2004),
like any other middleware technologies, aim to
provide mechanisms to bridge heterogeneous
platforms, allowing data to flow across various
programs (Web Services and Service-Oriented
Architectures, n.d), (Windows Communication
Foundation, n.d). The Web service technology looks
very similar to what most middleware technologies
looks like. Consequently, each Web service has an
Interface Definition Language, namely WSDL (Web
Service Description Language) (Web Services
Description Language, 2007), that is responsible for
the message payload, itself described with the
equally famous protocol SOAP (Object Access
Protocol) (Simple Object Access Protocol 1.2,
2007), while data structures are expressed by XML
(Extensible Markup Language) (Extensible Markup
Language, n.d). Very often, Web services interfaces
are stored in UDDI (Universal Description
Discovery and Integration) registry (The UDDI
Version 3.0.2 Specification, 2004)
as shown Fig. 1.
In fact, the winning card of this technology is not
its mechanism but rather the standards upon which it
is built. Indeed, each of these standards is not only
open to everyone but, since all of them are based on
XML, but it is also pretty easy to implement them
for most platforms and languages. For this reason,
WS are highly interoperable and do not rely on the
underlying platform they are built on, unlike many
ORPC (Object Request Procedure Call). Web
services standards are gathered in WSA (Web
Service Architecture) (Web Services Architecture,
2004).

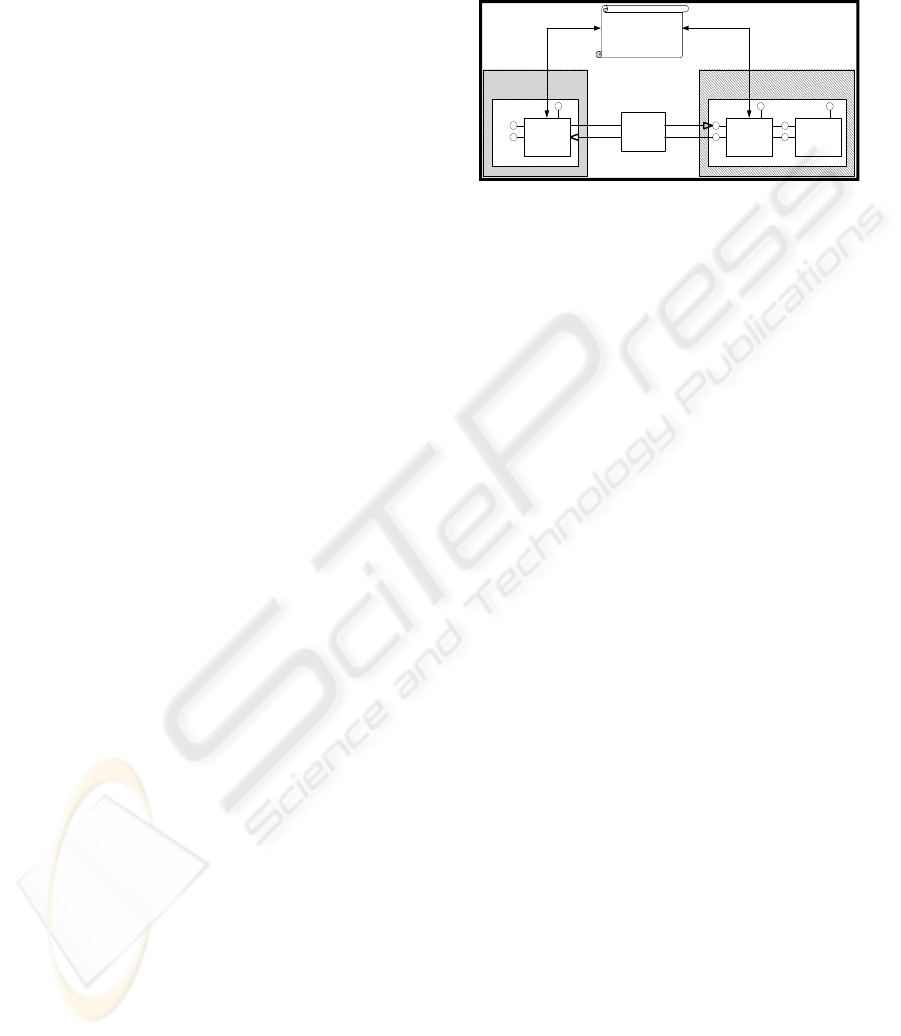

Figure 1: WSDL as a starting point for client and service
generation.
According to a vast majority of industrial
leaders, Web service is the best fitted technology for
implementing Service Oriented Architectures. Web
services provide a minimalist mechanism to
interconnect different applications. But one
fundamental point is the importance of the WSDL
(
Web Services Description Language, 2007) being the
exact interface of the system. As we said earlier,
most of ORPC solutions take a great care of hiding
the message layer details from the developer. The
WSDL contract constitutes the design view upon
which developers can generate both client and server
sides (proxy and stub). WS-BPEL (Business Process
Execution Language) is a Web services
orchestration language. An orchestration specifies an
executable process that involves message exchanges
with other systems, such that the message exchange
sequences are controlled by the orchestration
designer. WS-BPEL (Web Services Business
Process Execution Language, 2007
) provides a
language for the specification of Executable and
Abstract business processes. By doing so, it extends
the WS interaction model and enables it to support
business transactions. WS-BPEL defines an
interoperable integration model that facilitates the
expansion of automated process integration (Ferrara,
2004) in both the intra-corporate and the business-
to-business spaces.
Geographical discovery of services has improved
users’ everyday life dramatically, and it has made
people’ life easier, services include road navigation,
geographical social networks, ….etc, such solutions
already exist today and they are being increasingly
popular for their big usefulness, however most of the
existing geographical solutions are vertical, meaning
that they are vendor-specific and can’t live in the
same environment because of their heterogeneity.
Having Web services that can express their offers
XML
WSDL
Stub
WSDL
WSDL
Proxy
Machine A Machine B
Invoke
Web Service
TOWARDS LOCATION-BASED SERVICES STANDARDIZATION - An Application based on Mobility and
Geo-location
311

geographically improves drastically the capabilities
of today’s Web services, in fact, customers will be
able to search for them geographically and according
to their location constraints. Moreover, Web services
resolve the problem of the geographical services
heterogeneity.
Our goal is to design and implement a location-
aware system that takes advantage of Web services
with geographical capabilities, our system is able to
deliver the services that the client looks for
according to his current location, we mean the
nearest services to the client.
3 TOWARDS A HOMOGENOUS
LBSS ENVIRONMENT
Location based services application can be described
as applications that are dependent on the user’s
location in order to work. In other words LBS
applications give information based on the device’s
geographical position (D'Roza, Bilchev, 2003).
LBSs can be divided into two categories as:
Triggered and user-requested. In the triggered
category, LBS relies on a certain condition to be met
in order to retrieve the user’s position and use it in
the location-aware application, for example, when a
vehicle has an accident, an automatic emergency call
with the vehicle’s position would be triggered. In
user-requested LBS, users transmit their current
location to have relevant information like driving
directions, finding the nearest shopping malls…etc
Many efforts are in progress to standardize
LBSs, the most popular LBS standard is OpenLS
(OpenLS Implementation Standards, 2010) defined
by the Open Geospatial Consortium (OGC), it
offers implementation specifications to the most
critical parts of LBSs. Unfortunately, the current
methods of designing LBS applications are not
enough to get the most of LBS applications using
open standards. This limitation is addressed in our
paper using SOA and GML.
Location based services providers increasingly
worry about the visibility of their services to
potential consumers, unfortunately because LBSs
are provider-specific each editor has a discovery
policy through which consumers can find it.
Moreover, providers of LBSs may use different
ways to access and interact with their services.
Eventually, LBS providers have different ways to
describe their services in terms of their locations and
how to interact with them. To express all the
aforementioned features we defined a three-layered
stack. Layers are aspects that LBSs are concerned
about: Discovery, Description, Access.
When every provider offers a different stack,
users wouldn’t be able to discover it as long as they
aren’t sticking to the provider’s discovery policy; the
same issue is applicable to the access and

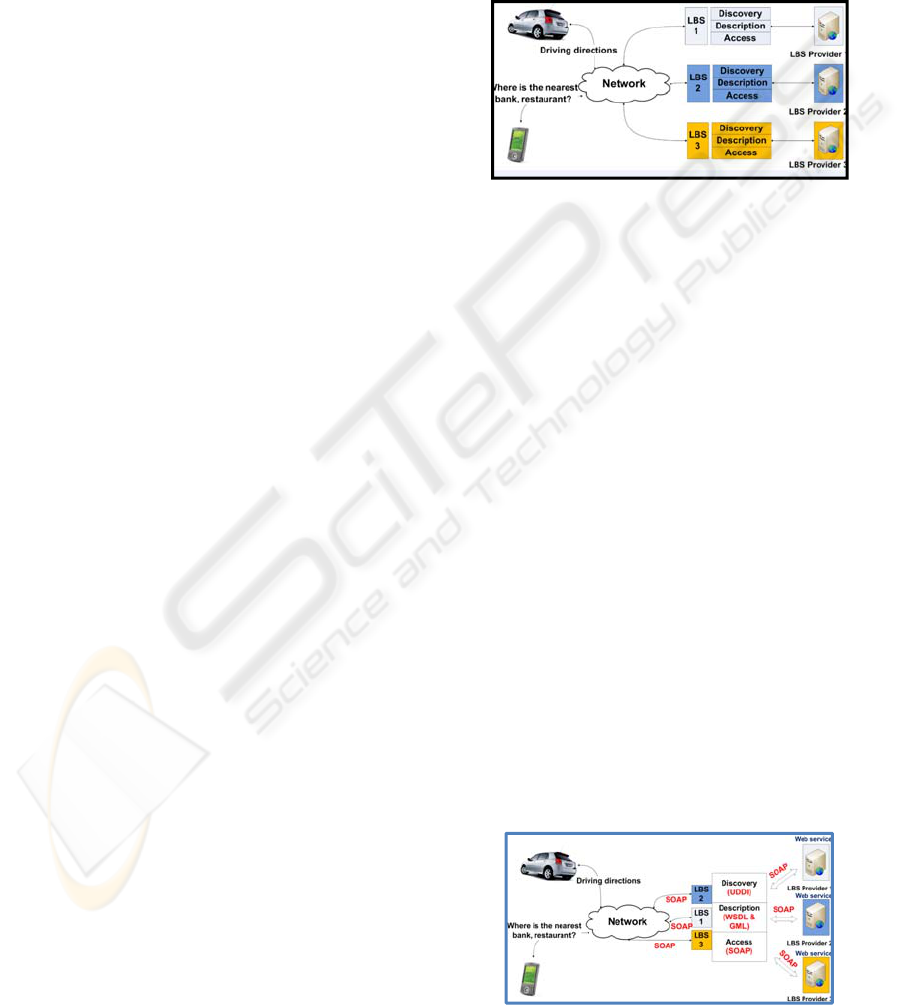

description policies. The following Fig.2 shows the
scenario where every LBS provider defines its own
concerns stack.
Figure 2: LBS providers in a heterogeneous environment.
In order to improve the aforementioned situation,
each LBS provider should stick by the same
concerns stack, this following way. All LBSs use the
same discovery, services description and access
policies. By having this scenario, LBS providers
share the same platform between each other, this
helps maximizing their visibility, and consumers
would have more choices to pick the most
convenient LBS. In order to achieve an homogenous
LBS environment, we have used Web services as
they are the best way to make heterogeneous
environments interoperable. Each LBS is a Web
service, and with Web services we can associate
standardized items to the three layers of the concerns
stack as follows:
 Discovery: We use the UDDI registry to
publish and discover all LBSs.
 Description: Descriptions of LBSs is done
through the Web service’s WSDL, geographical
description is done through the Web service’s
GML profile (explained in section 5).
 Access: All interactions with the Web services
are done with SOAP.
The following Fig.3 shows the LBS providers in
a homogenous environment:
Figure 3: LBS providers in a homogenous environment.
ICEIS 2010 - 12th International Conference on Enterprise Information Systems
312

Web services are the fitted solution for flexibility
to changes and interoperability but as mentioned in
previous related works (Hmida, Tomaz, Monfort,
2006) (Haddad, Moreaux, Rampacek, 2006)
(Tomaz, Hmida, Monfort, 2006) they do not offer
context aware adaptability.
4 CASE STUDY
4.1 Context
Users can ask for geographical services (LBSs
wrapped in web services) via a UDDI registry. They
can also use their cars, and, while driving, ask for
the closest services as banks or hospitals, … Since
all he LBSs are Web services, users can interact with
these services using the WS’s WSDL and the WS’s
GML profile.
4.2 Technical Architecture
4.2.1 First scenario: User accesses
geographical services (LBS application
wrapped in web services)
Let us focus on the LBSs accessibility. Fig. 4 shows
two parts as client and server sides. On the client
side, the user is detected by different kinds of
devices to determine his location and the area
corresponding to his location. Then, on the server
side, a specific interface (as a gateway) provides a
mapping between the area and the services
corresponding to this area.
4.2.2 Second scenario: An actor publishes
geographical services
This second scenario explains how to fulfil the
UDDI registry and the correspondence between an
area and a service. Then, for instance, a bank
manager wants to inform potential users that his
bank offers a set of services as ATM. He can ask for
a service provider to subscribe an account. A
contract is signed between the bank and the service
provider with financial engagements. The service
provider proposes a GUI pattern as a form, to be
fulfilled by the bank manager to promote bank
services. So, the publisher gives the Web service
WSDL as well as its GML (Geography Markup
Language) profile that geographically expresses the
Web service. GML is an XML grammar that
expresses geographical information, ranging from
complex graphical representations to simple points
representations, GML has been defined by the Open
Geospatial Consortium (OCG). GML can also serve
as an interchange format for geographical data. The
accuracy of this language has led us to choose it in
order to describe geographical information.
The bank manager uses a Publication module
and the service provider defines the link between the
services and the area including bank via UDDI
Publish Interface and then via UDDI registry. Then,
this module is in charge of the communication
between the publisher and the UDDI registry, it
publishes the information the publisher gives but
most importantly, it associates the GML profile to
the publisher’s Web services via tModels.
A tModel is a data structure representing a
service type (a generic representation of a registered
service) in the UDDI (Universal Description,
Discovery, and Integration) registry. Each business
registered with UDDI categorizes all of its Web
services according to a defined list of service types.
Businesses can search the registry's listed service
types to find service providers. The tModel is an
abstraction for a technical specification of a service
type; it organizes the service type's information and
makes it accessible in the registry database. For
every published Web service, the publish module
publishes a tModel that holds the GML profile
information. This tModel will be used in the
geographical discovery. So, every published Web
service has two descriptors: i)WSDL that explicitly
describes the Web service interface and ii)GML
profile that expresses the Web service geographical
information.

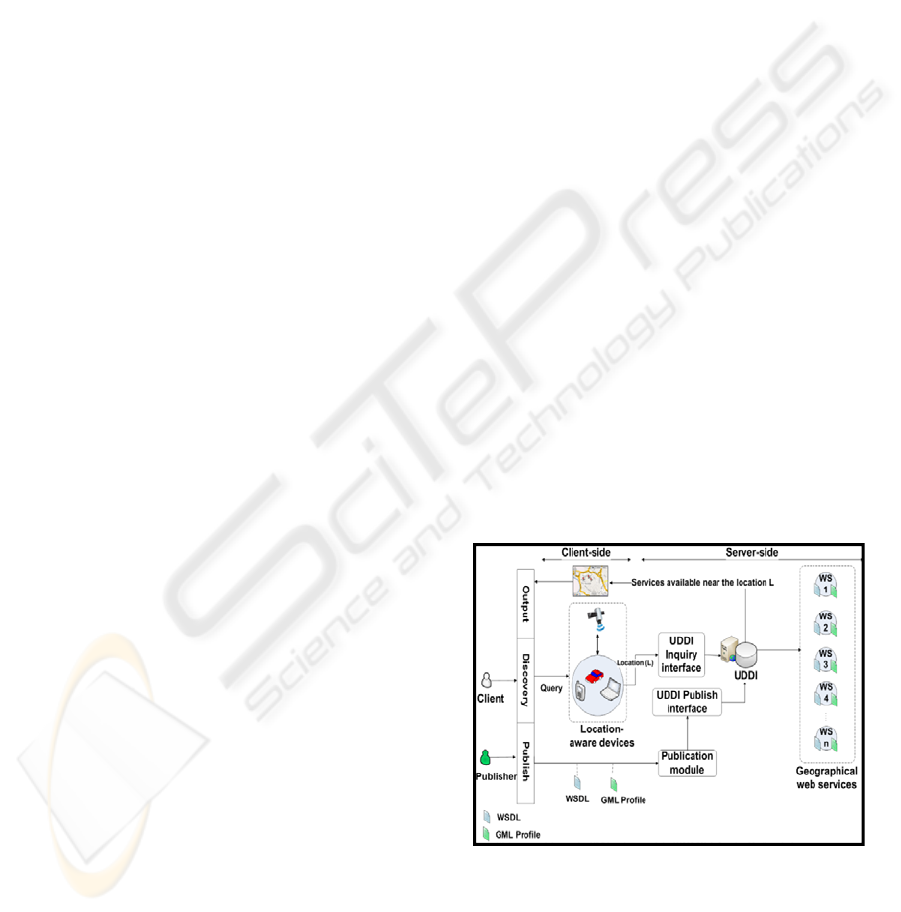

Figure 4: Technical architecture.
5 IMPLEMENTATION
The Windows 7 sensors and location platform has
brought a tremendous facility in developing
TOWARDS LOCATION-BASED SERVICES STANDARDIZATION - An Application based on Mobility and
Geo-location
313

location-aware applications in the Microsoft .NET
platform, while most existing location platforms
today are vendor-specific, the Windows 7 sensors
and location platform defines a uniform model for
location devices, each sensor respecting this model
will enable developers to handle it without worrying
about the implementation details of the sensor’s
driver. In order to simulate a GPS receiver we use a
virtual location sensor: Laptop Lojack (Laptop
LoJack project, 2009), an open source virtual GPS
ready to work with the Windows7 sensors and
location platform. We implemented the system as a
WPF application since it offers rich and intuitive
GUIs that is convenient to any user. The Windows
Presentation Foundation (or WPF) is a graphical
subsystem for rendering user interfaces in Windows-
based applications. WPF, previously known as
"Avalon", was initially released as part of .NET
Framework 3.0. WPF is built on DirectX, that
provides hardware acceleration and enables modern
UI features like transparency, gradients and
transforms. WPF provides a consistent programming
model for building applications and provides a clear
separation between the user interface and the
business logic. We chose Microsoft .NET 3.5 for the
development environment, for location awareness
we used the Windows 7 sensors and location
platform to make the application location-aware. To
interact with UDDI registry we used Microsoft
UDDI SDK. As UDDI registry, we used jUDDI.
This project is under the Apache foundation (jUDDI
project, 2009). The core layer shows back end
applications. This section presents the code of some
relevant parts of our application written in C#. In
order to return the most relevant services according
the user’s location, the following code in Fig5 has
been proposed (as a part of the discovery module).

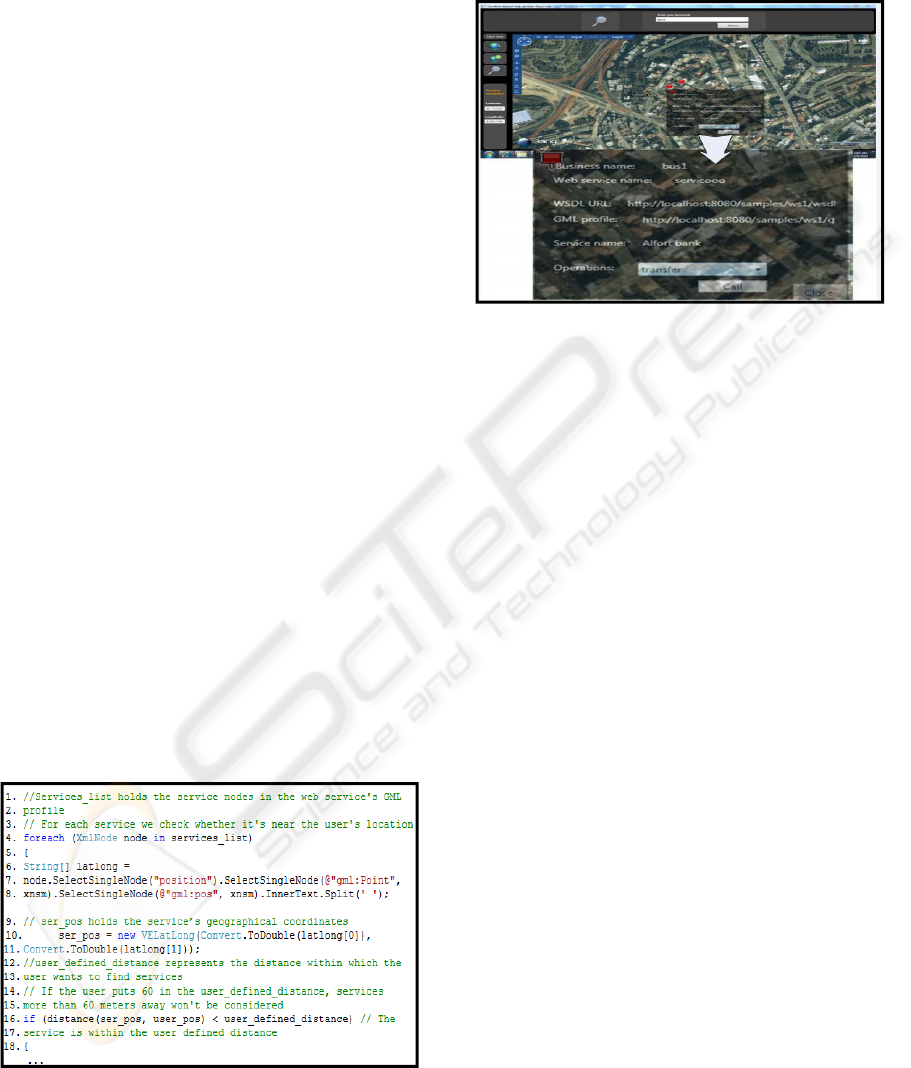

Figure 5: The distance checking code.
The application’s GUI has been made with WPF,
the following picture 5, shows the search interface
with the results shown on the map.
Figure 5: The search results shown on the map.
6 RELATED WORKS
Several research works aim to use meta modelling
such as (Farias, Pires, Sinderen, 2007), (Frankel,
2003) (Gottschalk, der Aalst, Wil, Vullers, 2008),
(Klein, Hélouet, Jézéquel, 2006), (Lundesgaard,
Solberg, Oldevik, France, Aagedal, Eliassen, 2007)
(Matthias, Dustdar, Rosenberg, 2007), context
awareness platform as WComp (TIGLI,
LAVIROTTE, REY, HOURDIN, CHEUNG- FOO-
WO, CALLEGARI, RIVEILL, 2009) or other
platforms to promote adaptability. (Sen, Sengupta,
2007) presents the need to standardize LBSs using
open standards and the key benefits of this move,
however it just focuses on the standardization of the
geographical part of the LBS applications using
GML, thus, no means to standardize the LBS
applications globally. We did not find any research
work using context aware platform in this domain.
Moreover, we did not find any research work using
the same approach to locate a user and to associate
Web services to geographical location with GML
extensions.
7 CONCLUSIONS
This research paper presents a new means to standardize
LBS environments, on one hand this means allows LBS
providers to be more visible to consumers, on the other
hand consumers don’t have to use proprietary mechanisms
to access and interact with LBS applications. Adaptability
is given by Geo-location that allows to select services
according to the location context. We used web services as
ICEIS 2010 - 12th International Conference on Enterprise Information Systems
314

a technical means to standardize LBS applications, we
used Microsoft .NET 3.5 for the development environment
and for location awareness we used the Windows 7
sensors and location platform. We described a genuine
mechanism to associate the position of a user to an area
and to services (defined and subscribed in this area) via an
extended GML and UDDI. We implemented the whole
case study and we showed examples of code. We have
now to improve adaptability to auto adaptability with
reflection mechanism and to also improve Geo location
data bases.
REFERENCES
Web Services Architecture, retrieved from the website
http://www.w3.org/TR/ws-arch/
Simple Object Access Protocol 1.2, 2007, retrieved from
the website http://www.w3.org/TR/SOAP
Web Services and Service-Oriented Architectures,
retrieved from the website http://
www.service-architecture.com/
Windows Communication Foundation retrieved from the
website http://
msdn.microsoft.com/Webservices/build-ing/wse/
The UDDI Version 3.0.2 Specification, 2004, retrieved
from the website http://
www.uddi.org/pubs/uddi_v3.htm
Web Services Description Language, 2007, retrieved
from the website http://www.w3.org/TR/wsdl20/
Extensible Markup Language, retrieved from the website
http://www.w3.org/XML/
Web Services Business Process Execution Language,
2007, retrieved from the website http://
www.oasis-open.org/committees/tc_home.php?
wg_abbrev=wsbpel
F. Curbera, R. Khalaf, N. Mukhi, Quality of Service in
SOA Environments. An Overview and Research
Agenda (Quality of Service in SOA-Umgebungen). it -
Information Technology 50 (2): 99-107, 2008.
D. Chappell, Enterprise Service Bus. Publisher: O’Reilly,
2006 Alexander Ryan
De Farias, C. R. G., Pires, L. F., and van Sinderen, M. A
MOF Metamodel for the Development of Context-
Aware Mobile Applications. In Proceeding of the
22nd ACM Symposium on Applied Computing
(SAC'07) (2007).
Ferrara, A. (2004). Web services: a process algebra
approach. In ICSOC ’04: Proceedings of the 2nd
international conference on Service oriented
computing, pages 242–251, New York, NY, USA.
ACM Press.
Frankel S. David., Model Driven Architecture: Applying
MDA to Enterprise Computing, Wiley Publishing,
Inc(2003)
Gottschalk, F. and van der Aalst, Wil M. P. and Jansen-
Vullers, M. H. and La Rosa, M. (2008) Configurable
Workflow Models. International Journal of
Cooperative Information Systems (IJCIS).
Haddad, S., Moreaux, P., and Rampacek, S. (2006). Client
synthesis for Web services by way of a timed
semantics. In Proceedings of the 8th Int. Conf. on
Enterprise Information Systems (ICEIS06), pages 19–
26.
Mulesoft, retrieved from the website http://
www.mulesoft.org/display/MULE/Home
Hmida, M. B., Tomaz, R. F., and Monfort, V. (2006).
Applying aop concepts to increase Web services
flexibility. Journal of Digital Information Management
(JDIM), 4(1):37–43.
J. Klein, L. Hélouet, and J. M. Jézéquel. -- Semantic-based
weaving of scenarios. -- In Proceedings of the 5th
International Conference on Aspect-Oriented Software
Development (AOSD'06), Bonn, Germany, March
2006. ACM
S. Lundesgaard, A. Solberg, J. Oldevik, R. France, J.
Oyvind Aagedal, F. Eliassen, Construction and
Execution of Adaptable Applications Using an Aspect-
Oriented and Model Driven Approach, IFIP DAIS
2007, LNCS 4531, 76-89, 2007
Matthias, B., Dustdar, S., and Rosenberg, F. A survey on
context-aware systems. International Journal of ad
Hoc and ubiquitous Computing 2 (2007).
J.Y. T
IGLI, S. LAVIROTTE, G. REY, V. HOURDIN, D.
C
HEUNG-FOO-WO, E. CALLEGARI, M. RIVEILL.
«WComp Middleware for Ubiquitous Computing:
Aspects and Composite Event-based Web Services ».
Annals of Telecommunications, volume 64, n° 3-4,
pages 197, april 2009. ISSN 0003-4347
Tomaz, R. F., Hmida, M. B., and Monfort, V. (2006).
Concrete solutions for Web services adaptability using
policies and aspects. The International Journal of
Cooperative Information Systems (IJCIS), 15(3):415–
438.
Winograd, T. Architectures for context. Human-Computer
Interaction (HCI) Journal 16 (2001)
GML Encoding Standard, 2010, retrieved from the
website http://
www.opengeospatial.org/standards/gml
Laptop LoJack project, 2009, retrieved from the website
http://laptoplojack.codeplex.com
jUDDI project, 2009, retrieved from the website
http://ws.apache.org/juddi/
T. D'Roza, G. Bilchev, 2003, An Overview of Location-
Based Services, BT Technology Journal, Springer
Netherlands, volume 21, number 1,
OpenLS Implementation Standards, 2010, retrieved from
the website
http://www.opengeospatial.org/standards/ols
Sumit Sen, Smita Sengupta, Open standards in location
based services, 2007, retrieved from the website:
www.gisdevelopment.net/technology/lbs/techlbs002.ht
m
TOWARDS LOCATION-BASED SERVICES STANDARDIZATION - An Application based on Mobility and
Geo-location
315
