COMBINING SEMANTIC TECHNOLOGIES AND DATA

MINING TO ENDOW BSS/OSS SYSTEMS

WITH INTELLIGENCE

Particularization to an International Telecom Company Tariff System

Javier Martínez Elicegui, Germán Toro del Valle

Telefónica Investigación y Desarrollo, Parque Tecnológico de Boecillo, Boecillo, Valladolid, Spain

Marta de Francisco Marcos

Alten Soluciones, Parque Tecnológico de Boecillo, Boecillo, Valladolid, Spain

Keywords: Semantic technologies, Data mining, BSS, OSS, Telecom, Tariff.

Abstract: Businesses need to "reduce costs" and improve their “time-to-market" to compete in a better position.

Systems must contribute to these two goals through good designs and technologies that give them agility

and flexibility towards change. Semantics and Data Mining are two key pillars to evolve the current legacy

systems towards smarter systems that adapt to changes better. In this article we present some solutions to

evolve the existing systems, where the end user has the possibility of modifying the functioning of the

systems incorporating new business rules in a Knowledge Base.

1 INTRODUCTION

Companies in general and telecom operators in

particular face a constant need to reduce costs and

improve their time-to-market to compete in a better

position in today’s highly competitive global market.

Informational systems in the shape of OSS

(Operational Support Systems) and BSS (Business

Support Systems) contribute to these goals (Turban

et al, 2006) providing the tools needed to increase

the efficiency, agility and flexibility of organizations

as a way to adapt themselves to a continuously

changing environment.

In spite of the usefulness of these informational

systems, the complexity of the current market

landscape has caused an important decrease on their

effectiveness requiring new techniques and

technologies to recoup the lost space.

Semantic technologies and data mining

constitute two key pillars to evolve the current

legacy informational systems towards smarter ones

which let us improve their adaptation to the current

business environment.

In this paper we detail the procedure followed in

Telefónica Investigación y Desarrollo (the R+D

company of the Telefónica Group) as well as the

results obtained from the application of these

techniques and technologies to a critical

informational system of the Telefónica Group as it is

its tariff system.

The structure of the paper is as follows. The first

section of the paper constitutes this introduction. In

the second section, we introduce the tariff system

used by Telefónica and the main problems it faces

nowadays. The third section details the solution

proposed with a special enfasis on the techniques

and technologies applied as well as the results

obtained. The forth section is devoted to the final

conclusions.

2 THE TARIFF SYSTEM OF THE

TELEFÓNICA GROUP

Gathering information from switchboards and billing

telecom operator clients in real-time as they use the

network, keeping updated on a second-by-second

basis their consumption, is a complex challenge

every telecom operator has to face. This complexity

increases in the presence of highly heterogeneous

350

Martínez Elicegui J., Toro del Valle G. and de Francisco Marcos M. (2010).

COMBINING SEMANTIC TECHNOLOGIES AND DATA MINING TO ENDOW BSS/OSS SYSTEMS WITH INTELLIGENCE - Particularization to an

International Telecom Company Tariff System.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Information Systems Analysis and Speciﬁcation, pages

350-355

DOI: 10.5220/0002975603500355

 SciTePress

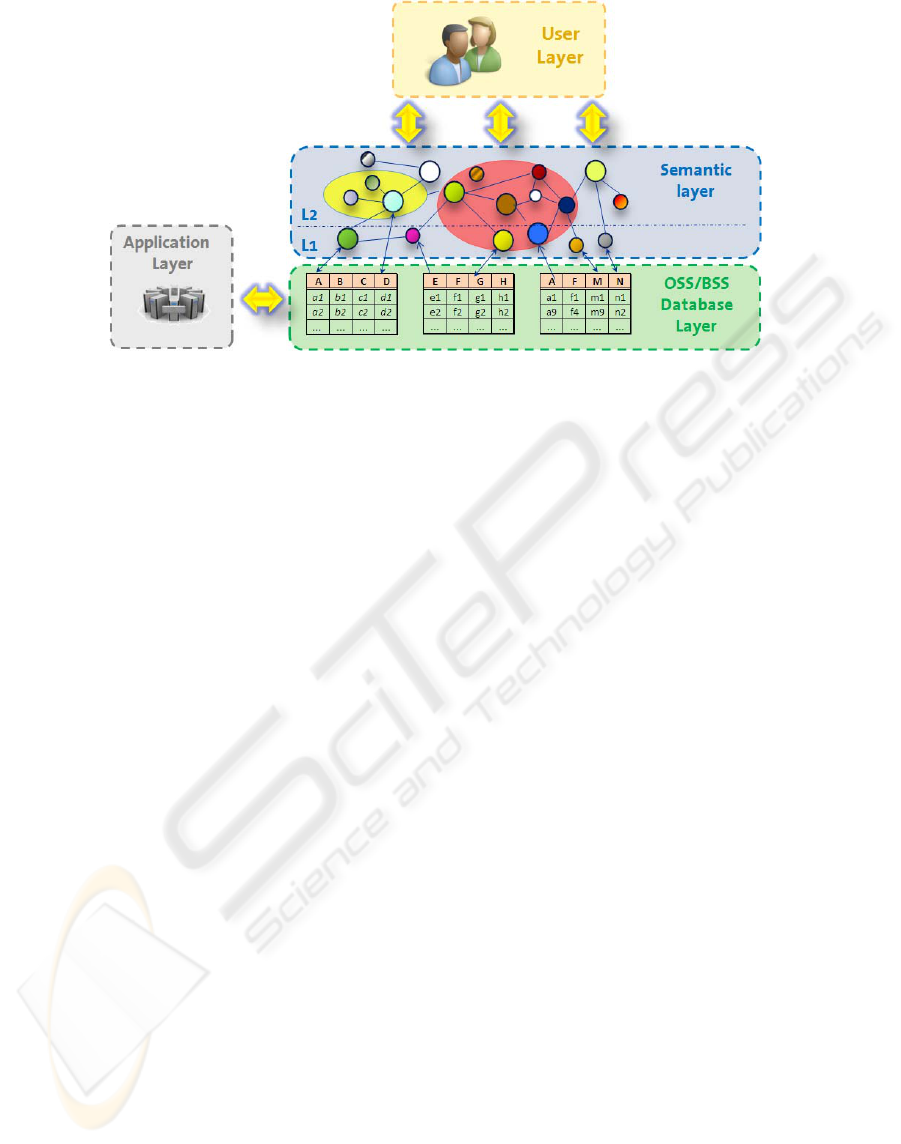

Figure 1: High level design of the proposed solution.

networks composed of equipments from distinct

providers with a need to homogenize and to

standardize the information provided by them, to

relate this information to each phone call or data

connection and to calculate the applicable cost.

Calculating the tariff to apply on second-by-

second basis is probably one of the most complex

parts of the whole billing process, since the tariff

system makes it possible to define thousands of

tariff schemas based on many criteria like, for

example, the type of contract, promotions, origin

and destination of the call, day of the week and time,

duration of the call, etc.

To manage this complexity, Telefónica

Investigación y Desarrollo has implemented a tariff

system for mobile networks which is currently

deployed in more than 15 countries from Europe and

South America. Although this spread is a direct

consequence of the success of this solution, it also

becomes a major problem since the idiosyncrasy of

each country raises particular needs which

complicates the software versioning and

maintenance.

To avoid the need to maintain a particular

version of the tariff system for each country or area,

the system has been designed as a highly

parametrized system able to be configured and

adapted to each particular case and installation,

covering not only current needs but needs to appear

in the future.

However, the level of granularity of this

parametrization has its drawbacks since its

management becomes a highly complex and

specialized task as well as a not inconsiderable

source of errors.

This situation combined with the increasing

existent gap between business people (closer to the

markets) and technical ones (closer to the particular

implementation of the tariff system) made it

necessary to rethink the problem and to face it using

new techniques and paradigms which, on the one

hand, made it easier to manage such a complex

system and, on the other hand, brought the system

closer to its final users (typicaly, business people in

charge of defining the appropriate tariff schemas).

3 PROPOSED SOLUTION

To solve the aforementioned problem, the proposed

solution consisted on building an Intelligent

Configuration Assistant to exploit the inherent

knowledge existent in the tariff system as a way to

expose this knowledge directly to business people

for their consumption and manipulation.

To build such a system, we leaned on semantic

technologies (W3C: Semantic Web Case Studies)

(Baader et al, 2004) (Davies et al, 2002), as a way to

model this knowledge in a language close to

business for its subsequent mapping to the more

technical and parametrized language used by the

final system.

The proposed solution, depicted in Figure 1, is

based on four main layers:

• OSS/BSS Database Layer. corresponds to

the tariff system configuration database.

• Semantic Layer. corresponds to a level on

top of the tariff database. It includes a first

level of concepts (L1) directly associated to

the parameters stored in the database from

which a second level of concepts (L2), more

abstract and closer to business, can be defined

COMBINING SEMANTIC TECHNOLOGIES AND DATA MINING TO ENDOW BSS/OSS SYSTEMS WITH

INTELLIGENCE - Particularization to an International Telecom Company Tariff System

351

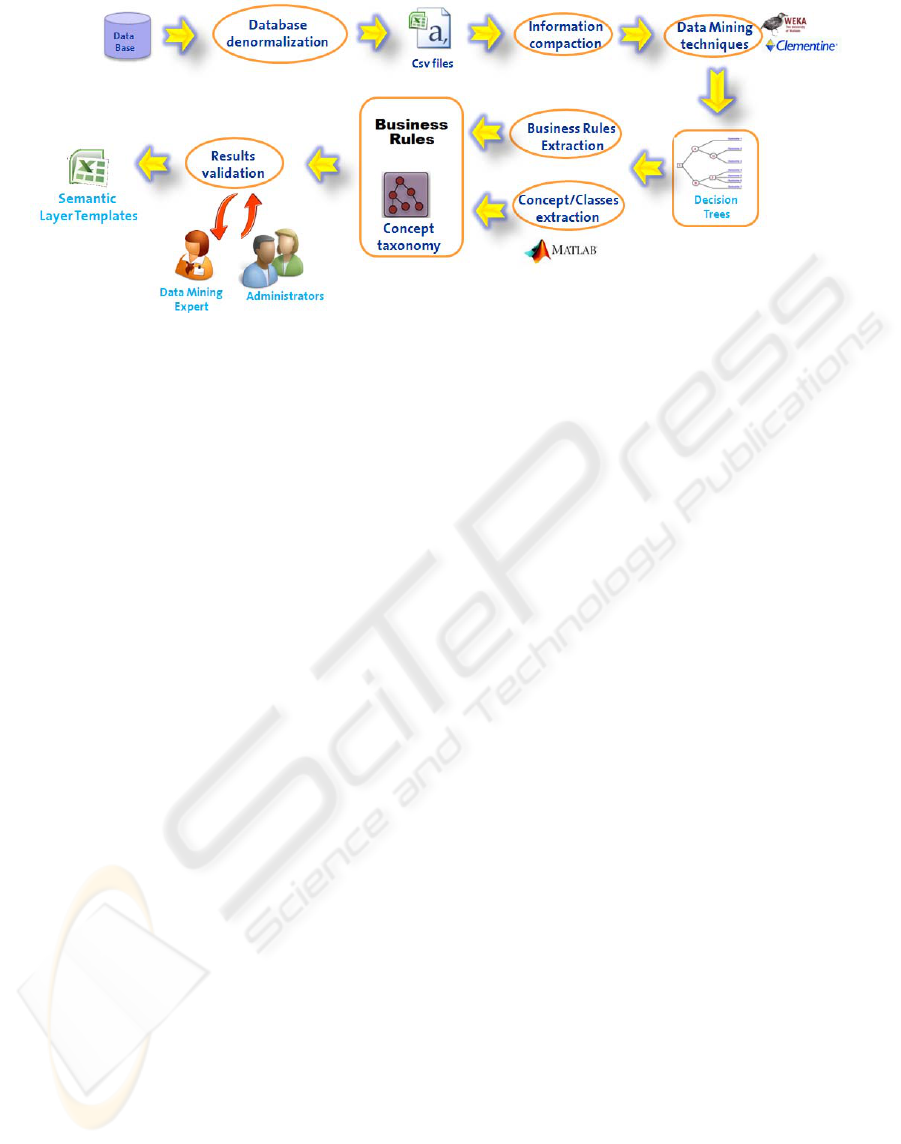

Figure 2: The knowledge extraction process algorithm.

by the administrators of the tariffs.

• User Layer. corresponds to the administrators

of the tariff system who are able to define the

business logic or rules amongst the concepts

previously mentioned. The availability closer

to business more abstract concepts makes it

possible to define and to model business logic

using not technical languages.

• Application Layer. corresponds to legacy

applications which use the configuration

parameters database during their execution to

materialize the business concepts and rules

defined. In this sense, a major requirement has

been to provide a non-intrusive solution from

a performance and current systems impact

perspective.

From a practical viewpoint, the administrators are

provided with Microsoft Excel templates which

guide them through the definition of the Semantic

Layer. Basically, they are able to define an ontology

of high-level concepts based on already existent

configuration parameters. Using a very simple

syntax, administrators are also able to define the

axioms which materialize the business rules which

relates these high-level concepts to each other.

One of the most important difficulties of this

process is providing the administrators with a

preliminary version of the semantic layer based on

the already existent configuration parameters.

Although this knowledge or model currently

exists in the tariff system administrators minds as a

way to translate the business schemas and

requirements they receive to concrete configuration

parameters stored in the system database, trying to

extract and model this knowledge becomes an

unapproachable task, mainly because of the

reticences of the administrators themselves to

expose the knowledge they have spent years

collecting.

As a way to solve this cold start dilema, we

have turned to data mining techniques as a way to

extract a layer of semantics from the currently

existent configuration parameters. These data

mining techniques have allowed us to analyse the

content of the databases used by the tariff system to

extract a preliminary layer of inherent concepts,

patterns and rules.

3.1 Knowledge Extraction through

Data Mining Techniques

Identifying the inherent patterns, concepts and rules

present in any database is a complex and laborious

task consisting on a reverse engineering process

applied to the design and contents of a concrete

database.

At a first glance, this does not seem to be a hard

problem to solve when we have a normalized

database. Nevertheless, the problem increases when

the database is populated with concrete data since

from this population new subconcepts, patterns,

rules and relationships (not even considered by the

database designers) arise. For example, although the

database may explicitly model the concept

“Contract”, after populating the database with real

data many other implicit concepts may arise like, for

instance, “YoungContracts”, “ImmigrantContacts”,

etc., which have to be modeled as well as their

relationships to other implicit and explicit concepts

exposed by the database. For example: “contracts by

immigrants should be charged 0€ when the call is

made to the country they were born in and 0,15€ to

the rest”.

To solve this problem and to detect explicit and

implicit concepts, patterns, rules and relationships

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

352

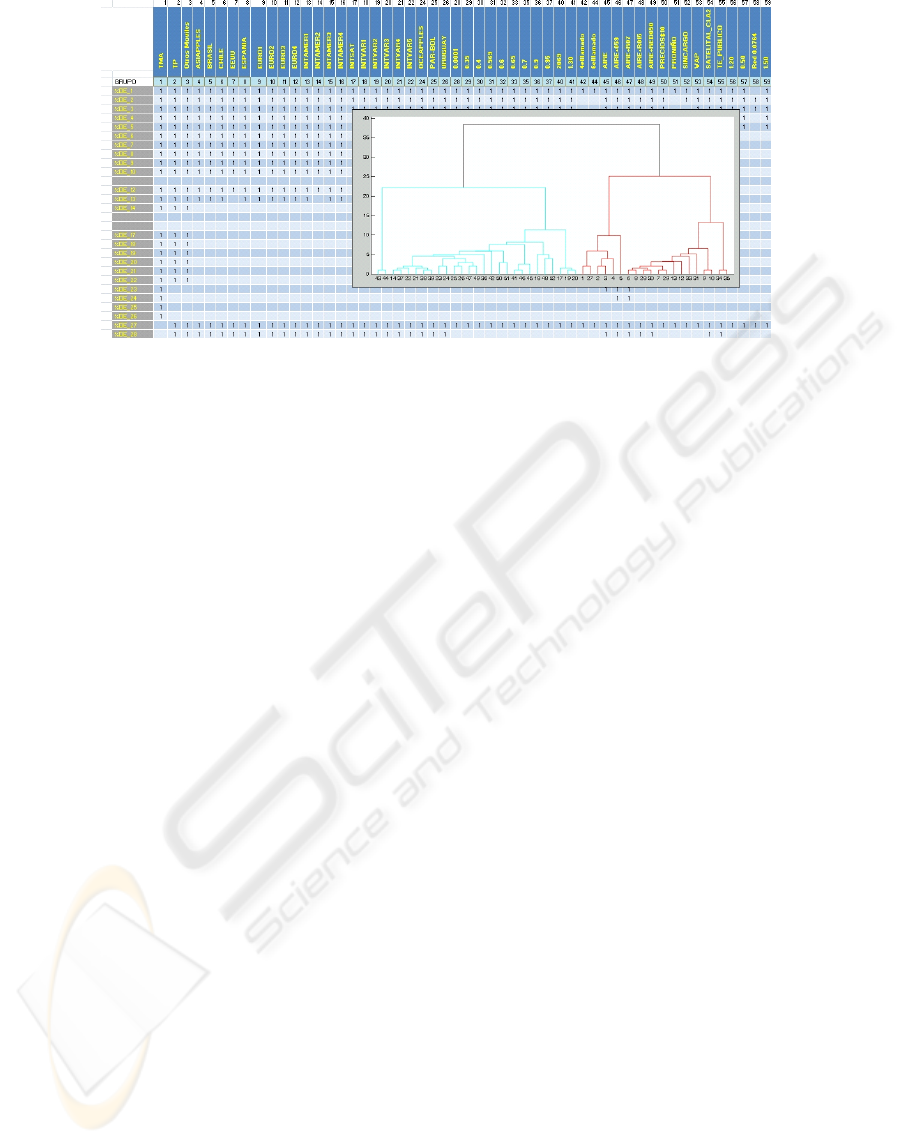

Figure 3: Concept taxonomy after applying clustering techniques.

exposed by the database, a 8-steps process has

been proposed (see Figure 2):

1. Database Denormalization. the first step

consists on generating the files where the data

mining techniques will be applied. This step

requires combining information spread

amongst distinct tables of the database as a

consequence of the database normalization

design process. Sequences of queries are

executed to combine fields of distinct tables

and generate the desnormalization files.

2. Information Compaction. many entries of

the database only differ in some easily

identifiable concrete values. These similar

registries can be grouped and treated as a set,

reducing the data volume dramatically and

increasing the efficiency of the data mining

techniques to be applied afterwards. For

example: entries which only differ in the time

value can be grouped as one concrete instance

assigned to a period of the day (i.e., “from

8:00 AM to 17:00 AM”).

3. Data Mining Techniques. once the

information has been properly processed, it is

analysed using distinct data mining techniques

(Hair et al, 1995) (Fayyad et al, 1996).

Initially, we used Weka data mining software

(http://www.cs.waikato.ac.nz/~ml/weka)

(Witten and Frank, 2005), more concretely the

BFTree and J48 classification algorithms, but

the high volume of data (more than 100.000

registries) and the complexity of these

registries (more than 100 fields) made it

unusable since the processing of the

information went on for several days and

frequently aborted because of unknown

reasons. As a way to solve these performance

issues, we moved to the SPSS’ Clementine

solution (http://www.spss.com), obtaining

much better results. In this sense, the C5

classification algorithm showed itself as a

highly efficient algorithm to get optimum

decision trees.

4. Concept Extraction. the decision trees

obtained from the previous step expose data

patterns. We can find sets of values,

systematically repeated in different tree nodes,

which denote some kind of semantic relation

amongst them. From this assumption, we

automatically process the decision trees

searching for these data patterns and model

them semantically in the shape of concepts

(a.k.a. classes) which include the semantically

related values (a.k.a. instances). The concepts

defined in this step are manually validated by

an administrator at a later extent, assigning

them more precise business names.

5. Concept Taxonomy. after the previous step,

we typically get a huge list of concepts which

can hardly be assimilated all together by the

administrators of the tariff system. To

facilitate its understanding, we apply

clustering and graphical representation

techniques to the data (i.e. concepts) using

tools such as pdist and dendrogram Matlab

(http://www.mathworks.com) utilities (see

Figure 3).

6. Business Rules Extraction. after the previous

analysis to extract and to organize concepts,

the decision trees are automatically processed

COMBINING SEMANTIC TECHNOLOGIES AND DATA MINING TO ENDOW BSS/OSS SYSTEMS WITH

INTELLIGENCE - Particularization to an International Telecom Company Tariff System

353

as business rules easier understandable by the

administrator (i.e., Rule: IF contract= %TT23

AND destination=%DE62 AND day= (2)

AND time = %TM12 …. THEN Q2=0)

The concepts extracted from the previous

steps are used to model these business rules as

a way to obtain more compact rules. These

concept names are still cryptic (i.e. %DE62)

and need to be renamed by business names.

7. Result Validation. at this point, the results

obtained from all the automatic previous steps,

in the shape of a taxonomy of concepts and a

set of business rules, have to be validated

jointly by the data mining experts and the

administrators of the tariff system. This step

makes it possible to detect errors as well as to

model the knowledge extracted from the

system database using more natural

mechanisms (i.e. decomposing concepts into

new subconcepts more familiar to the

administrator of the tariff system, renaming

concepts by business names, etc.), solving the

cold start problem previously stated.

8. Excel Templates Generation. Finally, all the

concept and business rule definitions are

written down into the Excel templates to guide

administrator during Semantic Layer

maintenance.

3.2 Knowledge Modelling using

Semantic Technologies

Modelling the inherent knowledge managed by the

tariff system using semantic technologies (i.e., high-

level concepts and business rules) highly simplifies

the work of the administrators of the system and

reduces the gap between them and the business

experts, minimizing the probability of

misunderstandings. The initial administrators job

consisting on manually fine-tuning hundreds of

parameters (in which case the business logic is

implicit in the data managed) has been replaced with

simple high-level business rules manipulations using

Excel templates (in which case the data logic is

explicitly exposed). This way, the administrators can

easily adapt the tariff system to concrete business

needs, considerably reducing not only the time-to-

market but also the errors introduced into the

system.

From this point, a whole new process start whose

main aim is, on the first hand, to validate the

specifications defined by the new semantic layer

and, on the second hand, to act accordingly uppon

the tariff system parameters database to expose this

new behavior. This process is outlined in Figure 4

and consists on the following steps:

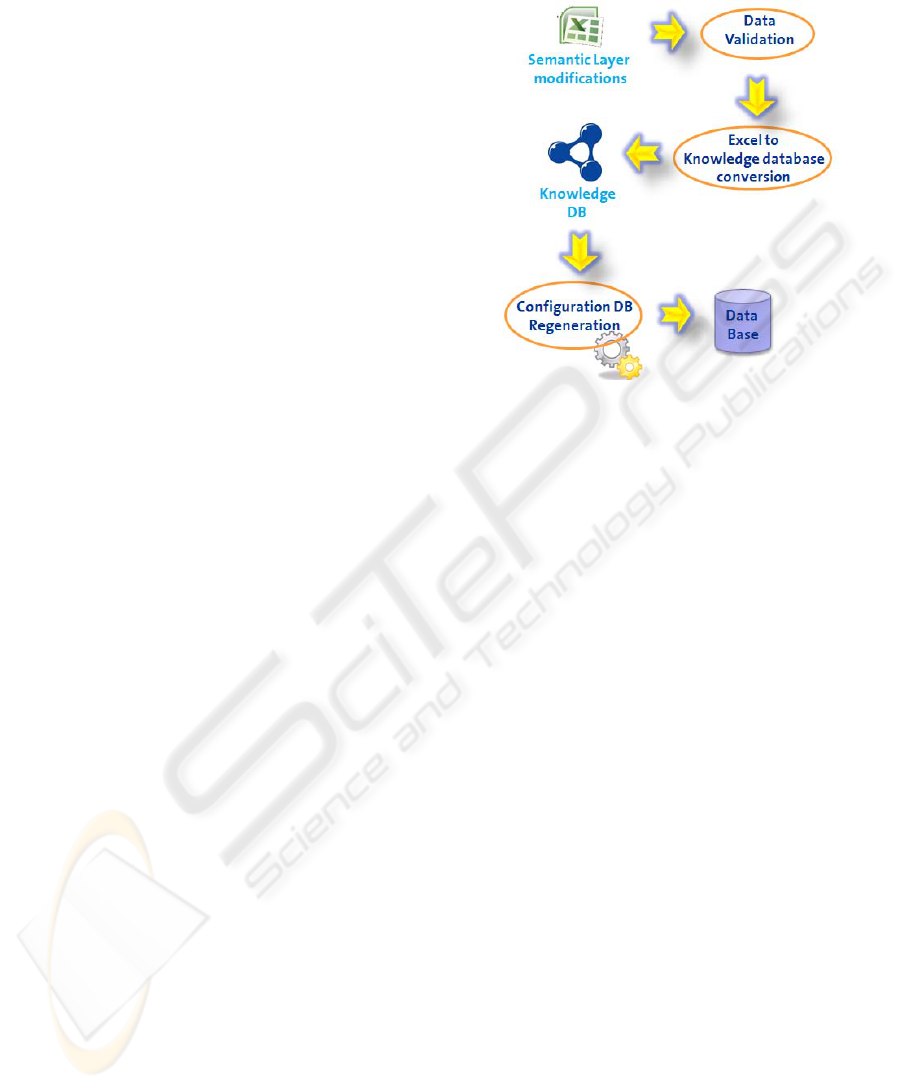

Figure 4: Knowledge modeling schema.

1. Data Validation. The new version of the

semantic layer is validated verifying that the

the business rules syntax is correct, and

consistent with tariff system database.

2. Excel to Knowledge Database Conversion.

once the semantic layer has been validated, its

content is converted from human syntax

(business rules) to machine syntax (OWL)

(McGuiness and van Harmelen, 2004). This

translation is automatically made using a set

of UNIX scripts which fill with content

previously prepaired OWL templates.

3. Configuration Database Regeneration. once

a valid OWL ontology is available expressing

the new concepts and business rules, a

mapping of this ontology to the configuration

detail parameters stored in the tariff system

database has to be acomplished. For it, a set of

queries allows us to extract the business logic

expressed by the ontology and map it to

concrete parameters of the database.

3.3 Lessons Learnt

One of the main problems we have faced during this

project has been trying to improve the performance

of the inference processes. In fact, we managed to

reduce the initial 28 hours process to less than 1

hour.

To illustrate the problem and the solution proposed,

consider the following business rule (see Figure 5),

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

354

where Q2 is a configuration parameter used by the

tariff system.

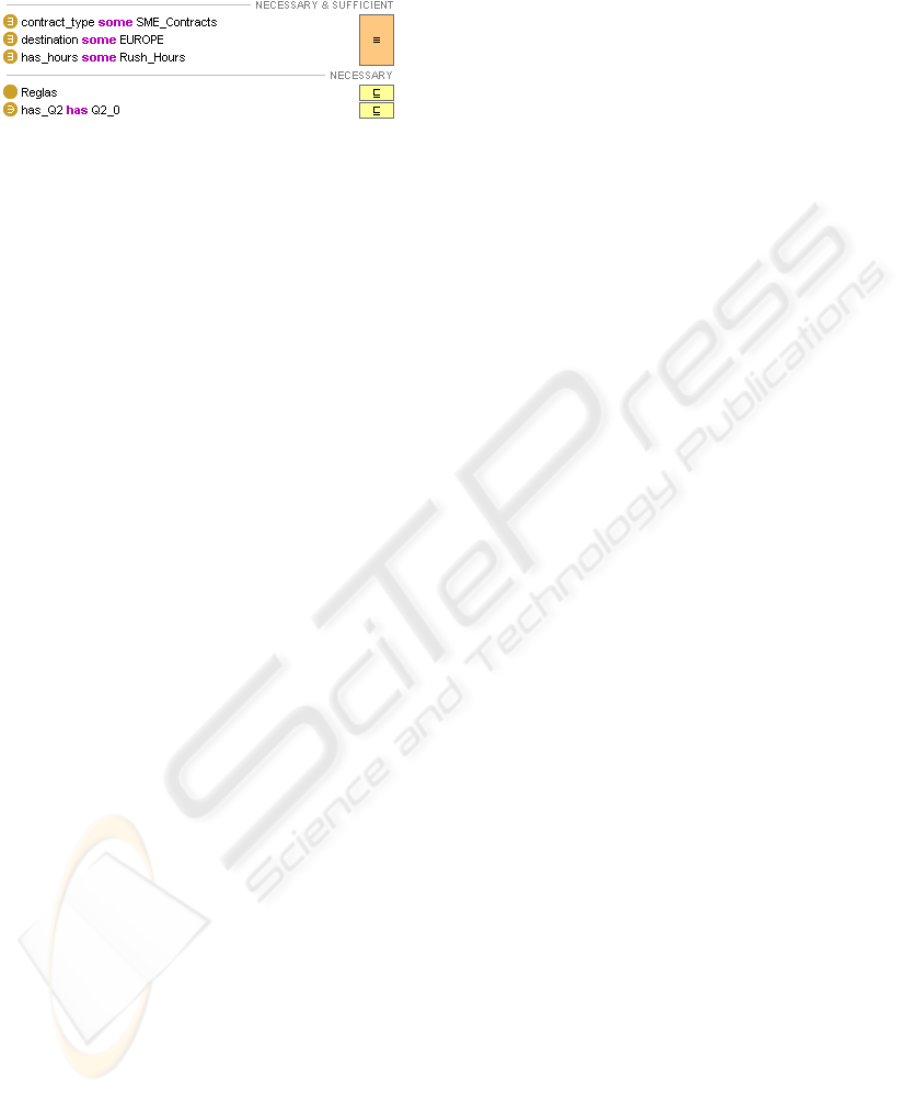

Figure 5: Rule with premises as unique blank node express

in Protégé (http://protege.stanford.edu/).

Using this kind of modeling, we obtained very

bad performance during the inference phase, even if

we reduced the data volume to 10% of the total.

A subsequent study of the reasons of this bad

performance let us find out that each rule restriction

was represented as a unique blank node (i.e,

has_hours some Rush_hours). As a consequence, in

case an instance is a member of one of these

restrictions, it is also member of all blank nodes with

the same logic in the rest of rules. This issue causes

a larger number of anonymous clases and worst

performance.

To avoid this behavior, we assign a unique

named class to each restriction(i.e.

RSV_Rush_Hours ≡ has_hours some Rush_Hours).

This modelling technique let us significantly

improve the performance of the inference process

(66% time reduction) as well as reduce the data

volume to manage (50% reduction of number of

triples).

A second aspect which let us significantly

improve the performance of the whole process was

to apply a “divide and conquer” strategy when

feeding the assistant with data. We observed that

feeding the assistant with a hundred of thousands

instances significantly decreased the performance of

the whole system. As a consequence, we divided the

data into chunks of 15.000 instances and since the

processing of each particular tariff instance is

independent from the rest we processed the

information in batch getting improvements in the

processing time in a factor of 10.

4 CONCLUSIONS AND FUTURE

WORK

In this article we have elaborated on some of the

possibilities that semantic technologies and data

mining offer to endow OSS/BSS systems with

intelligence.

These technologies have a sufficient maturity

level to be applied successfully to current legacy

systems to provide a semantic layer on top of current

databases.

As a particular case, we have applied this

tecniques to the tariff system of the Telefónica

Group where ongoing tariff calculations use the

existing tables but a semantic layer on top of it helps

us maintain the values of these tables up-to-date and

consistent.

The main benefits of the implemented solution

are:

• Explicit Knowledge: the tariff logic is now

explicit, easily verifiable and editable by

administrators.

• Ease of Maintenance: the knowledge

managed by the system is now expressed in

the shape of business rules. A simple change

in one of these business rules may affect

hundreds or thousands of records in the tariff

tables with the certainty that the effect will be

the desired one.

• Risk Control: expressing the knowledge

managed by the system using formal semantic

technologies allows us to automatically detect

inconsistencies amongst rules, which prevent

many of the current errors.

The experience and results obtained from this

project encourages us to move forward and apply

these same data mining and semantic techniques to

other OSS/BSS systems of the company.

REFERENCES

Turban, E. et al, 2006. Decision Support and Business

Intelligence Systems. Prentice-Hall, Inc.

Semantic Web Case Studies and Use Cases. W3C,

(http://www.w3.org/2001/sw/sweo/public/UseCases)

Baader,F., Horrocks, I., Sattler, U., 2004. Handbook on

Ontologies, Springer.

Davies, J., Fensel, D., van Harmelen, F., 2002. Towards

the Semantic Web: Ontology-driven Knowledge

Management. John Wiley and Sons, Inc.

Hair, J. F., Anderson, R. E., Tatham, R. L., and Black, W.

C., 1995 Multivariate Data Analysis (4th Ed.): with

Readings. Prentice-Hall, Inc.

Fayyad, U.,M. et al, 1996. Advances in Knowledge

Discovery and Data Mining. AAAI/MIT Press.

Witten, Ian H., Frank Eibe. 2005. Data Mining: Practical

Machine Learning Tools and Techniques. Morgan

Kaufmann Publishers.

McGuiness, D. L., van Harmelen, F., 2004. OWL Web

Ontology Language Overview. W3C

Recommendation. (www.w3.org/TR/owl-features)

COMBINING SEMANTIC TECHNOLOGIES AND DATA MINING TO ENDOW BSS/OSS SYSTEMS WITH

INTELLIGENCE - Particularization to an International Telecom Company Tariff System

355
