ENTERPRISE WIMAX

Building the Next Generation Enterprise Wireless Infrastructure with WiMAX

Kai X. Miao

Intel Labs China, Building A, Raycom Info Park, Beijing 100190, Beijing, Republic of China

Keywords: Enterprise WiMAX, WiFi, Authentication, EAP-TTLS, EAP-TLS, Mobile Virtual Network Operator,

Mobile Enterprise Network Operator, MVNO, MENO, Handoff, Cloud, Network as a Service, NaaS.

Abstract: As an all-IP broadband wireless technology, WiMAX uniquely integrates well with existing enterprise

network infrastructure, which allows an enterprise to either directly host a WiMAX network or,

alternatively, use a public WiMAX network hosted by a network service provider for its enterprise services.

In this paper, we will discuss these two different network hosting models for the enterprise. In particular, we

will discuss 1) what the WiMAX network architecture should look like; 2) how can the security models of

WiMAX be made stronger to serve the needs of enterprise users; 3) how WiMAX and WiFi can work

together seamlessly to give the user a unified experience. The content in this paper is based on our recent

research in this area.

1 INTRODUCTION

Although WiMAX was created almost exclusively

with the consumer market in mind, it resembles

WiFi in being designed as an all-IP wireless

technology and for running IP applications and

services, which makes WiMAX a potential

candidate for enterprise usages. Recently, there has

been a growing amount of interest in using WiMAX

in different enterprise markets, with the goal to

improve enterprise wireless coverage and roaming

capabilities. There are on-going efforts in the

industry on specific enterprise WiMAX usages in

different markets, extending WiMAX for enterprise

usage, and trial deployments to validate and

demonstrate enterprise usages of WiMAX.

It is important to realize, when considering using

WiMAX for the enterprise, the complementary

nature between WiFi and WiMAX in some key

aspects. While WiFi has a short coverage range of

about 100 meters, WiMAX offers a significantly

greater coverage in a range of 500 meters and

beyond; while WiFi offers high raw data bandwidth

with poor traffic control capabilities, WiMAX is

capable of highly sophisticated traffic management

and control. With the greater coverage, strong QoS

capabilities, and superior mobility support natively

built it, WiMAX is providing to us a potential for

transforming enterprise wireless infrastructure not

only in an office environment, but also in different

market vertical environments such as a university

campus, railways, oil fields, city roads and

highways, etc.

Unlike WiFi, however, WiMAX largely works

in licensed frequency bands, which, while making a

WiMAX network more managed for ensuring better

service performance, complicates how a WiMAX

network can be hosted in an enterprise environment

and how a WiMAX network should be actually

deployed in any real situation. In other words, for

WiMAX usages in an enterprise, both business

model and network architecture can be very different

from those of WiFi. IT can no longer easily own the

network, as it does in the case of a network WiFi,

and the involvement of a wireless service provider

or government who owns the frequency spectrum is

a critical part of a WiMAX network solution. This

single fact makes the WiMAX usage by an

enterprise significantly more complicated in terms of

business model, network deployment, security

model, roaming, and architecture considerations.

Apparently, to fully resolve and clarify the issues

surrounding the business model and network hosting

architecture requires an industry level effort

involving service providers, enterprise leaders,

standard bodies, and government. In addition, as

different countries may have different policies

concerning spectrum allocation and ownership,

X. Miao K. (2010).

ENTERPRISE WIMAX - Building the Next Generation Enterprise Wireless Infrastructure with WiMAX.

In Proceedings of the International Conference on Wireless Information Networks and Systems, pages 31-35

DOI: 10.5220/0002980400310035

 SciTePress

WiMAX usages may also differ from country to

country.

In the following, we divide our discussion

around two different architectural models, enterprise

hosted vs. provider hosted enterprise. In the

enterprise hosted WiMAX model, our primary goal

is to develop a unified network architecture for WiFi

and WiMAX. In the provider hosted WiMAX for the

enterprise, our goal is to derive a network

architecture that meets the requirement of an

enterprise in terms of security and manageability.

2 UNIFYING WIMAX AND WIFI

NETWORKS IN ENTERPRISE

In many enterprise environments, we need to

consider WiFi and WiMAX as a whole, i.e. treating

them as complementary and leveraging the strengths

associated with each in the overall enterprise

environment. In a university campus environment,

e.g. WiFi can be used for supporting indoor high

speed data applications and WiMAX can be used for

outdoor coverage. As another example, in railway

application scenarios, WiFi can be used inside a

train for passengers to access various services and

WiMAX on the other hand can be used for wireless

connectivity between a train and the ground. In

particular, WiMAX is well suited for voice and

video applications indoor or outdoor, due to its

strong QoS capabilities, to serve the critical needs in

almost every vertical market for full multimedia

communications and collaborations.

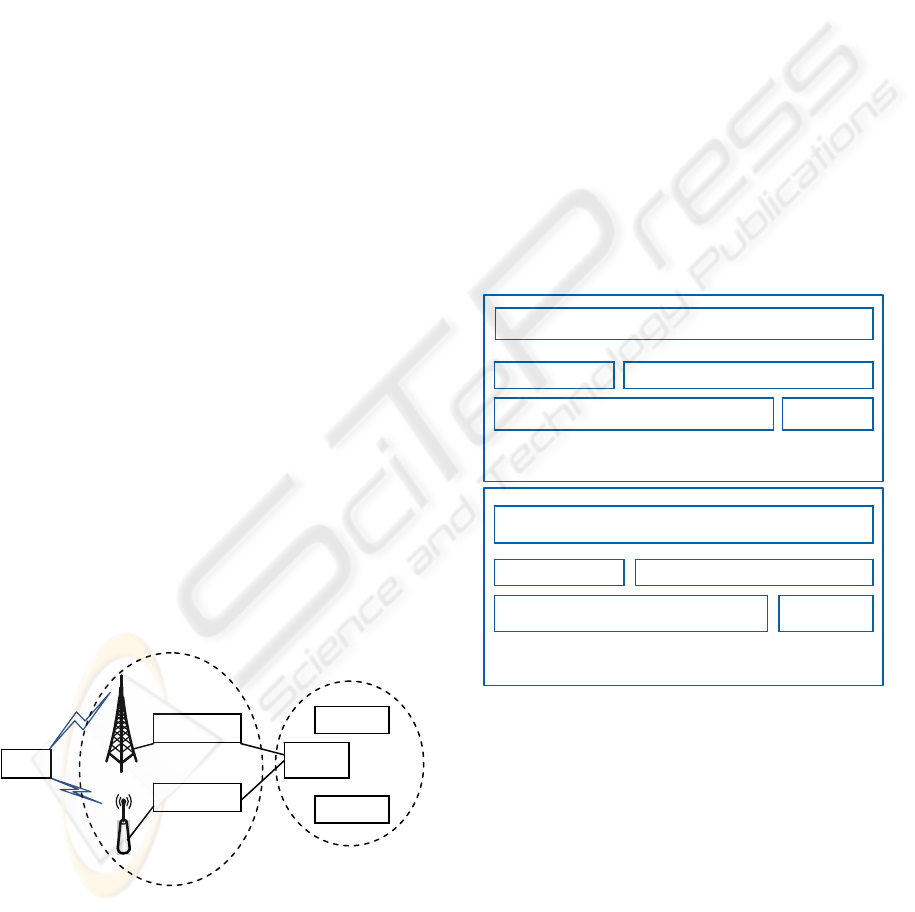

Figure 1 below shows an integrated WiFi and

WiMAX network, consisting of typical network

components in WiFi and WiMAX for client network

access, client authentication, and client roaming.



CSN

ASN

AAA

DHCP

WiMAX GW

WiFi GW

Figure 1: Integrated WiFi and WiMAX Network.

The integration of WiFi and WiMAX happens in

both the access network layer and the core service

network layer. In the core service network, common

network servers (AAA, DHCP, and HA) are used for

both WiFi and WiMAX. An AAA server is

responsible for authenticating and authorizing the

network access of a client, a Home Agent (HA)

serves a user client when it roams from WiFi to

WiMAX or vice versa, and a DHCP server works to

provide IP addresses to a client device at the

beginning of a network access or in a (Simple IP)

handoff operation from one network to another. In

the access network, we have defined two entities

called WiFi Gateway and WiMAX Gateway, with

their internal composition and subcomponents

shown in Figure 2.

Note, a WiFi gateway (or a WiMAX gateway)

defined in this paper is only a logical network entity,

with a set of standard subcomponents in the

industry. In addition, a WiFi gateway and a WiMAX

gateway consist of almost exactly the same types of

subcomponents except for their wireless network

specific components, i.e. WiFi AC and WiMAX

ASN, forming a logically unified layer for netowrk

access.

DHCPProxy PMIPClient(orCMIPProxy)

AuthenticatorRelay

ForeignAgent(FA)

DHCPProxy PMIPClient(o rCMIPProxy)

AuthenticatorRelay

ForeignAgent(FA) ASNWG

WiFiGateway

WiMAXGatewa

Figure 2: Composition of WiFi and WiMAX Gateways.

The subcomponents in a WiFi gateway or

WiMAX gateway have been chosen to meet security

and roaming requirements in an enterprise

environment and the function of each subcomponent

serves to provide a specific capability following its

functionl definition in the industry.

Apparently, a number of issues deserve detailed

attention under the unified WiFi and WiMAX

architecture. More specifically, the certificates used

in network and client authentication should be the

same for both WiFi and WiMAX; the security model

for WiMAX should be adequate for the enterprise,

WINSYS 2010 - International Conference on Wireless Information Networks and Systems

i.e. providing enterprise level security. In our

investigation, we developed two different

authentication models for WiMAX in consideration

of enterprise security requirements. In the first

model, we adopted a modified version of EAP-

TTLS defined in the WiMAX standard, in which

enterprise certificates are used instead of certificates

issued by VeriSign. In the second model, we

introduced an additional layer of authentication for

the enterprise on top of the WiMAX authentication

which can be seen as the basic authentication layer.

We will discuss these two authentication modles in

more details later in this paper. Another important

topic in this architecture is WiFi/WiMAX handoff

for application mobility, which can be done via the

HA and FAs in this architecture and a handoff

engine inside the client. Due to space limitation in

this paper, we are not able to provide detailed

discussion on this topic.

3 PROVIDER HOSTED WIMAX

A provider-hosted mobile infrastructure for the

enterprise may offer several key advantages in

comparison to a mobile infrastructure hosted by an

enterprise itself. First of all, an enterprise may

benefit in network (equipment and maintenance)

cost from a provider-hosted mobile enterprise

infrastructure due to economies of scale. In this age

of Cloud Computing today, provider-hosted wireless

connectivity for the enterprise, which we may call

Network as a Service or NaaS, seems quite

straightforward to understand. After all, a Wireless

Network Cloud is a resource that can be shared by

multiple types of users just like a Compute Cloud. A

public network is in fact a shared resource by

different users (i.e. “multi-tenant”) by definition, but

how a public network should be shared by different

enterprises has never been studied, which is the

focus of our discussion here. In NaaS, a WiMAX

network owned by a network provider would be

shared by enterprise users (and consumers) for

accessing services that belong to different

enterprises (and other service providers). Therefore,

the same value that drives Cloud Computing should

also drive what we are proposing here as NaaS. The

second potential advantage of a provider-hosted

mobile architecture for the enterprise is architecture

unification, which means an enterprise would no

longer need to have isolated islands of on-campus

mobile access networks geographically distributed

on one hand and provider hosted access on the other,

but a unified architecture on and off all campuses

around the globe implemented over providers’

networks. Apparently, with such a unified mobile

infrastructure, comes true mobility, which is the

third advantage.

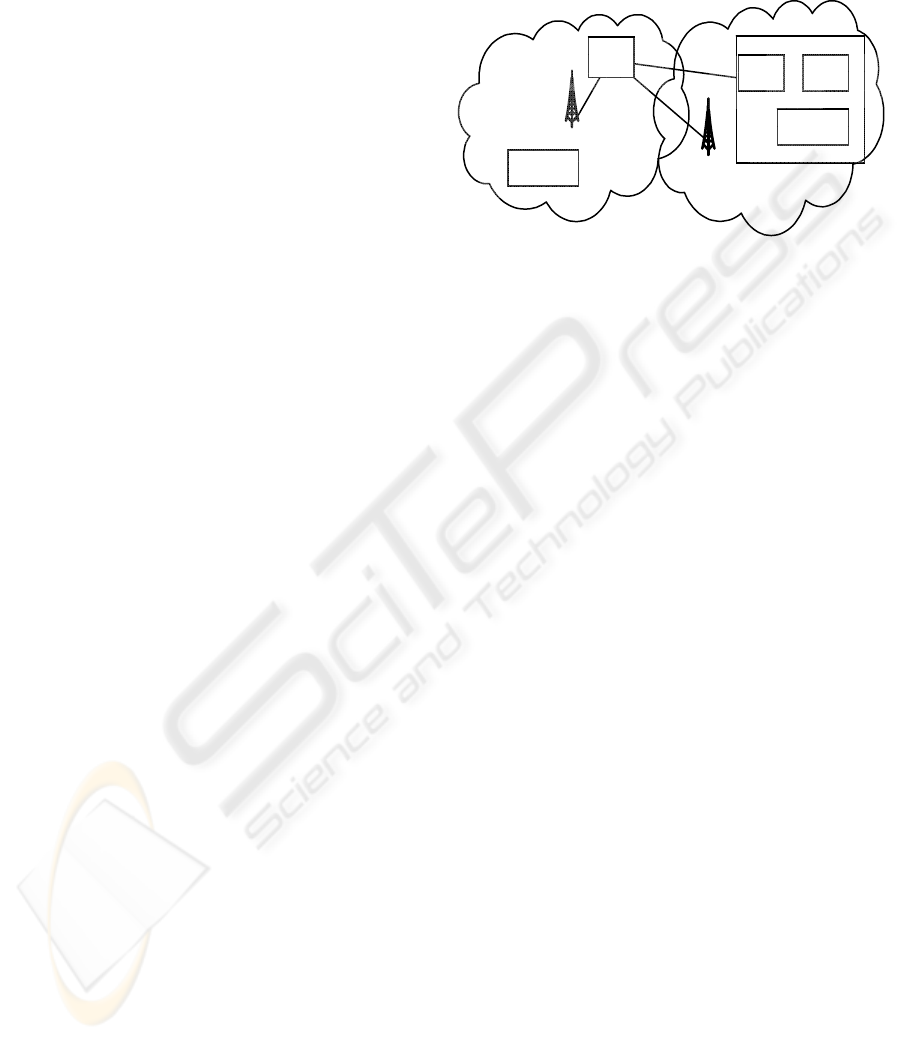

Figure 3: Provided hosted enterprise WiMAX.

With the NaaS vision for the provider-hosted

mobile enterprise proposed in this paper, we now

describe a WiMAX network architecture shown in

Figure 3 which allows us to actually achieve NaaS.

Before proceeding, however, it is important to point

out that a sound security model is essential for a

provider-hosted mobile enterprise infrastructure,

thus should be a key focus, although we will not

treat it as a separate topic below.

As shown in Figure 3, an enterprise network has

all the core network components but it uses WiMAX

networks of service providers for user mobile access

to enterprise services both on and off campus. In the

enterprise network, an AAA server is used for

enterprise device and user authentication, a DHCP

server is for dynamically distributing IP addresses to

enterprise clients, a HA (Home Agent) is for Mobile

IP (tunnel) management, and a IPSec gateway is for

securing data in communication between a mobile

client and a host in the enterprise network, all over a

provider network. Upon entering a WiMAX network

of a provider, a mobile client is authenticated by the

AAA server of the enterprise network and the

provider AAA server is acting as a proxy that

forwards the authentication messages between the

enterprise client and the enterprise AAA server.

After successful authentication with IT certificates

and other credentials, the client is given a Mobile IP

address and a MIP tunnel is established between the

HA and a FA (Foreign Agent) in the provider

WiMAX network. A security association is then

established between the IPSec gateway and the

mobile client for carrying application traffic over a

secure IP connection.

Such an architecture has several key features: 1) it

enables full client mobility because it uses Mobile IP

to allow a client to carry the application traffic in

Provider

Network

Enterprise

Client

Enterprise

Client

ASN

AAA

Provider

Network

ENTERPRISE WIMAX - Building the Next Generation Enterprise Wireless Infrastructure with WiMAX

real-time from one WiMAX network to another (or,

to a WiFi network on campus!); 2) On-campus

WiMAX coverage is done in the same way as off-

campus coverage, all via providers’ WiMAX

networks; 3) Client authentication uses enterprise

security factors (certificates etc.), rather than public

(VeriSign) certificates; 4) IP addresses can be

enterprise internal addresses, rather than public IP

addresses; 5) Data security can be implemented

either with IPSec tunnel model (i.e. IP VPN) or with

IPSec transport mode; 6) Security and mobility are

largely controlled by the enterprise rather than a

provider.

Apparently, the central idea in the architectural

direction of NaaS is enterprise managed mobility

and security while leveraging providers’ WiMAX

networks for enterprise mobile access. In term of

security, we could use provider’s public

authentication mechanism as the first authentication

and then have a second enterprise specific

authentication for further security, which was what

we discussed earlier and actually implemented in our

lab as Two-layer Authentication.

It is important to realize that a new business

model, which formally defines the relationship

between an enterprise and a provider and allows the

enterprise to have sufficient control over enterprise

services and data, is needed for this architecture In

the cellular world, there is a type of service

providers called MVNO (Mobile Virtual Network

Operator), in which a virtual provider would offer

services to real consumers out of the whole-sale

subscriptions it acquired from large (real) providers.

The MVNO model can be extended to a large

enterprise, resulting in MENO, Mobile Enterprise

Network Operator, for an enterprise that acts like a

virtual provider. In MENO, an enterprise would

provide real services to enterprise users as IT does it

today, but it does not need to own any mobile

networks. Like a MVNO, a MENO would acquire

network accesses at whole-sale from service

providers for its own enterprise users. Apparently,

MENO and NaaS go hand in hand.

4 SECURITY CONSIDERATIONS

As shown in Figure 1, WiFi and WiMAX can have

the same overall architecture in term of not only

network access but also client and network

authentication. This section discusses authentication

of WiMAX for an enterprise environment.

Our effort on WiMAX authentication was

motivated by: 1) to develop a few realistic

authentication models in consideration of WiMAX

enterprise usages so that enterprise grade

authentication can be achieved for WiMAX; 2) to

use the WiMAX standards as much as possible

while making minor modifications or additions; and

3) to leverage existing components in enterprise

authentication solutions such as that in WiFi.

The short coverage of WiFi provides a natural

physical protection in network access as one has to

be physically on premise to access a WiFi network.

At Intel, we indeed take this into consideration and

include physical location as one factor of

authentication in addition to using IT defined

certificates. For WiMAX, with its increased range of

coverage, additional factors in WiMAX

authentication need to be considered.

In our effort to find appropriate enterprise

authentication models for WiMAX in mind, we

investigated several possible models which we will

discuss next.

1) WiMAX EAP-TTLS Model



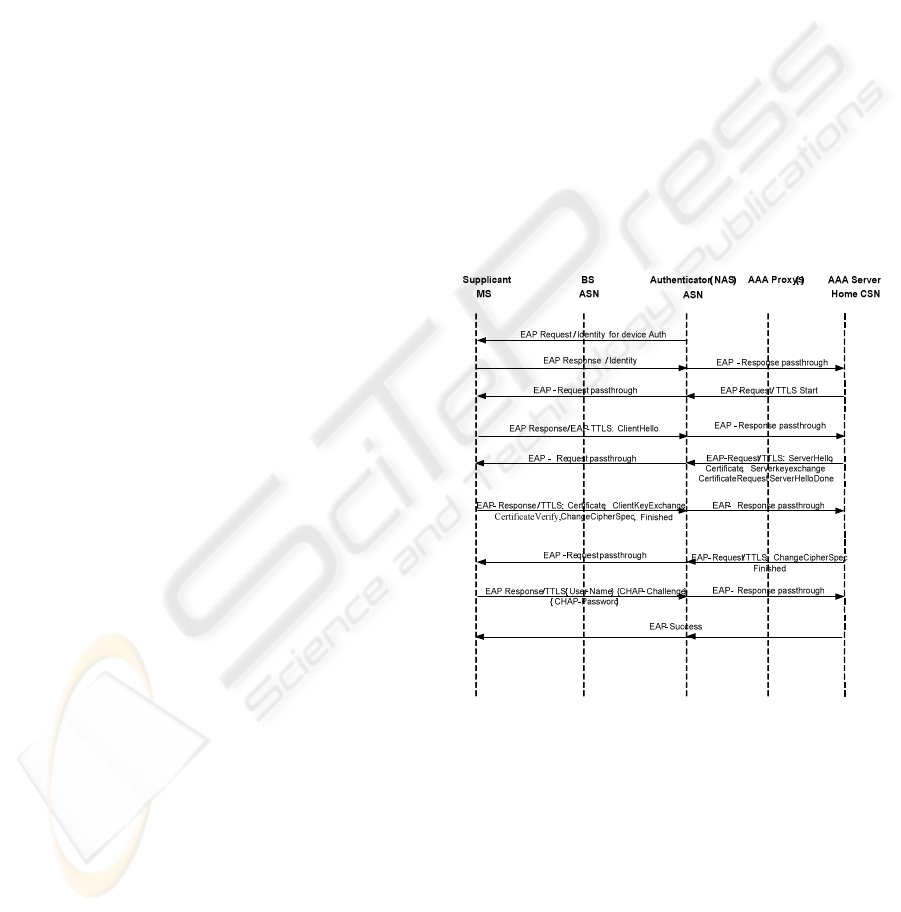

Figure 4: WiMAX EAP-TTLS.

The most straightforward approach to a model

for enterprise WiMAX authentication is to evaluate

how we can use authentication models as specified

in the current WiMAX standard to find out if any of

them can meet enterprise requirements and, if not,

how we can adapt anything in these models to better

meet the requirements but with minimal

modifications. The WiMAX EAP-TTLS, which

offers multiple authentication factors, appears to be

a very likely option. The WiMAX EAP-TTLS is

shown in Figure 4 below.

WINSYS 2010 - International Conference on Wireless Information Networks and Systems

In WiMAX EAP-TTLS, MAC address, WiMAX

certificates, and user name and password are used in

the authentication process. In addition, it allows the

use of network certificate only or both network

certificate and client certificate in an authentication

process, as a configurable option. A WiMAX

certificate is one that is managed by WiMAX Forum

with VeriSign as the 3

party Certification Authority

(CA).

Apparently, it is conceivable that we adapt in the

way that EAP-TTLS is used with changing the

protocol as defined by WiMAX Forum. For

example, instead of using the VeriSign certificate in

the hardware of a device, IT certificate or a TPM

certificate can be used; instead of using MAC

address, email address can be used; and, instead of

using user name and password, a software ID or user

finger print can be used. In our lab, we have built a

system framework consisting of clients, BS, ASN,

and AAA which allows the use of different device

certificates and different user level information or

secretes to carry out authentication operations as a

research prototype.

In this approach, the use of EAP-TTLS can fall

back to “public model” when the network is a

provider network, i.e. to carry out authentication in

exactly the same way as specified by WiMAX

Forum.

2) Layered EAP Model

It is sometimes desirable to keep the use of EAP-

TTLC as specified by WiMAX Forum and introduce

additional authentication factors independently for

increased enterprise security on top of WiMAX. In

Layered EAP model, we introduce EAP over IP

(EAPoUDP or EAPoIP) just for enterprise

authentication which runs after the standard

WiMAX EAP-TTLS in an authentication operation.

This model can therefore be viewed as a two-stage

authentication process, i.e. public network

authentication followed by enterprise authentication.

The advantage of this approach is the clear

separation between the two stages with each

dedicated to a particular type of network, which can

conceivably translate into a clean AAA architecture.

The questions associated with this model are how

enterprise IT would be able to manage public

certificates and if managing public authentication is

indeed necessary in an enterprise environment.

3) Double EAP Model

A double EAP model is shown Figure 5. In this

model, two different EAP TLS (or TTLS) form a

single authentication process in the WiMAX layer,

with a standard EAP-TLS authentication followed

by an enterprise EAP-TTLS authentication, as

specifically proposed here.

Figure 5: A Double EAP Model.

In addition, specific content in EAP-TTLS can

be used in to make it more suitable for enterprise

usages. In this approach, public network

authentication is valid, when the network to be

accessed is not an enterprise network, and can be

automatically triggered during the access process.

5 CONCLUSIONS

WiMAX is no doubt important for the enterprise

industry, although WiMAX as a standard was

developed with the consumer market in mind.

However, key challenges still exist today for

Enterprise WiMAX in terms of network architecture

and business models. In the conceptual framework

of using WiMAX in an enterprise environment from

technical viewpoint, the architectural discussion in

this paper paves the way for the next generation

Mobile Enterprise beyond local area network

coverage for business users. The two different

architecture models discussed can each play a role in

the marketplace depending on whether an enterprise

has the WiMAX frequency spectrum required to

host a WiMAX network and what it prefers based on

enterprise requirements and business considerations.

REFERENCES

WiMAX Forum, 2005, IEEE Standard 802.16e-2005

C. Perkins, 2002, IETF RFC 3344, IP Mobility for IPv4

S. Gundavelli, 2008, IETF RFC5213, Mobile IPV6

EAP-TTLS

Radius Server

EAP

Radius Protocol

UDP/IP

EAP

UDP/IP

Server in Client in

Supplicant in

Client

ENTERPRISE WIMAX - Building the Next Generation Enterprise Wireless Infrastructure with WiMAX
