FUZZY DECISION MAKING OF IT GOVERNANCE

Sung Eui Cho, Sang Hyun Lee

Department of Computer Engineering, Mokpo National University, Jeonnam, Korea

Kyung-Il Moon

Department of Computer Engineering, Honam University, Gwangju, Korea

Keywords: IT Governance, Concerns, Complexity, Fuzzy Logic.

Abstract: IT governance implies a system in which all stakeholders, including the board, internal customers and

related areas such as finance, have the necessary input into the decision making process. IT governance is

the preparation for, making of and implementation of IT-related decisions regarding goals, processes,

people and technology on a tactical or strategic level. But, the concepts of IT governance are broad and

ambiguous which in turn implicate difficult and inaccurate assessments. In particular, the traditional

handling of IT management by board-level executives is that due to limited technical experience and IT

complexity, key decisions are deferred to IT professionals. This paper presents a fuzzy reasoning model for

assessing IT governance complexity based on an extensive literature study. This model can be used for a

good understanding how the concerns of IT governance behave, how they interact and form the behaviour

of the whole system. The model for assessing IT governance is employed to compare how IT governance is

defined in practitioners and Cobit.

1 INTRODUCTION

This paper suggests a collective behaviour model

based on fuzzy reasoning with respect to IT

governance concerns considered important in

literature, and to represent how the concerns should

be really addressed by practitioners and Cobit.

Understanding how the concerns of IT governance

behave, how they interact and form the behaviour of

the whole system can certainly be interesting

through this model. Factors such as concerns (and

the number of them), interaction between concerns,

environment, and IT governance activities can be

equally interesting when studying “self-organized”

IT governance systems, if the aim is understanding.

But when we go about designing, a control system,

we will be guiding its organization and we need to

understand the complexity of the concerns and the

emerging whole. Returning to complex interaction,

we feel a need to attempt relating the system.

2 IT GOVERNANCE

COMPLEXITY PROFILES

Complex system typically has some characteristic

properties, but the extent to which a particular

system exhibits any given property can vary. In this

respect, IT governance complexity is a nonlinear

mapping concept.

2.1 Domain Complexity

The domain complexity denotes a nonlinear function

of what the decisions should consider. It comprises

four complexity variables: goal, processes, people

and technology. Goals include strategy-related

decisions, development and refinement of IT

policies and guidelines, and control objectives used

for performance assessments. Processes include the

implementation and management of IT processes,

e.g. acquisition, service level management, and

incident management. People include the relational

architecture within the organization, and the roles

and responsibilities of different stakeholders. Finally,

IT governance is of course about managing the

132

Eui Cho S., Lee S. and Moon K. (2010).

FUZZY DECISION MAKING OF IT GOVERNANCE.

In Proceedings of the International Conference on e-Business, pages 132-136

DOI: 10.5220/0002984401320136

 SciTePress

technology itself. The complexity variable

technology represents the physical assets that the

decisions consider, such as the actual hardware,

software and facilities.

2.2 Scope Complexity

The scope complexity denotes a nonlinear function

of different impacts implied by each decision. There

is a long term aspect and a short time aspect of every

decision that is made. The scope dimension is used

to differentiate between different levels of decision-

making. Firstly, there are detailed, rapidly carried

out, IT-focused tactic decisions. Examples of tactic

decisions include whether to upgrade a certain

workstation today or tomorrow, how to configure a

user interface that is only used internally, or the

manning of a single IT project.

There also exists top management, low detailed,

business oriented strategic decisions with long

timeline. A strategic decision might consider

whether it is most appropriate to develop an

application in-house or to purchase it off the shelf,

or how the performance of IT processes should be

reported to top management.

2.3 Decision Making Complexity

The decision complexity denotes a nonlinear

function of different steps required to make

decisions within the different domains. This

complexity deals with the relation between IT, and

the models of the reality used for decision making.

Before making any decision regarding e.g. the

outsourcing of a helpdesk function, the organization

must be clearly understood. Facts have to be thought

over and investigated, and transformed into a model.

The model might be a simple cognitive map, present

nowhere else but in the head of the decision-maker,

or a more formalized, abstract model put on print.

This process of analysis and understanding is

denoted the understanding phase. Once the model is

created, the actual decision can be made according

to corporate IT principles, in a timely manner, by the

right individuals, etc. In the IT governance definition,

this is represented by the decision phase, which also

includes planning of how to make the decision.

3 IT GOVERNANCE

COMPLEXITY MODEL

The objective of this section is to understand the

relationship between the complexity profiles and to

construct a fuzzy reasoning model including the

complexity of collective behaviour with respect to

IT governance.

3.1 Relationship between Complexity

Profiles

IT governance is not strict hierarchy. It contains

lateral interactions that enable control to bypass the

hierarchy. However, by focusing on an idealized

control hierarchy it is possible to understand the

nature of this structure. Such a focus will help in

understanding the relationship between this structure

and complex collective behavior. In an idealized

hierarchy all communication, and thus coordination

of activities, is performed through the hierarchy.

Figure 1 denotes a hierarchical network structure. It

describes the content of different statements

identified in literature with respect to IT governance

concerns.

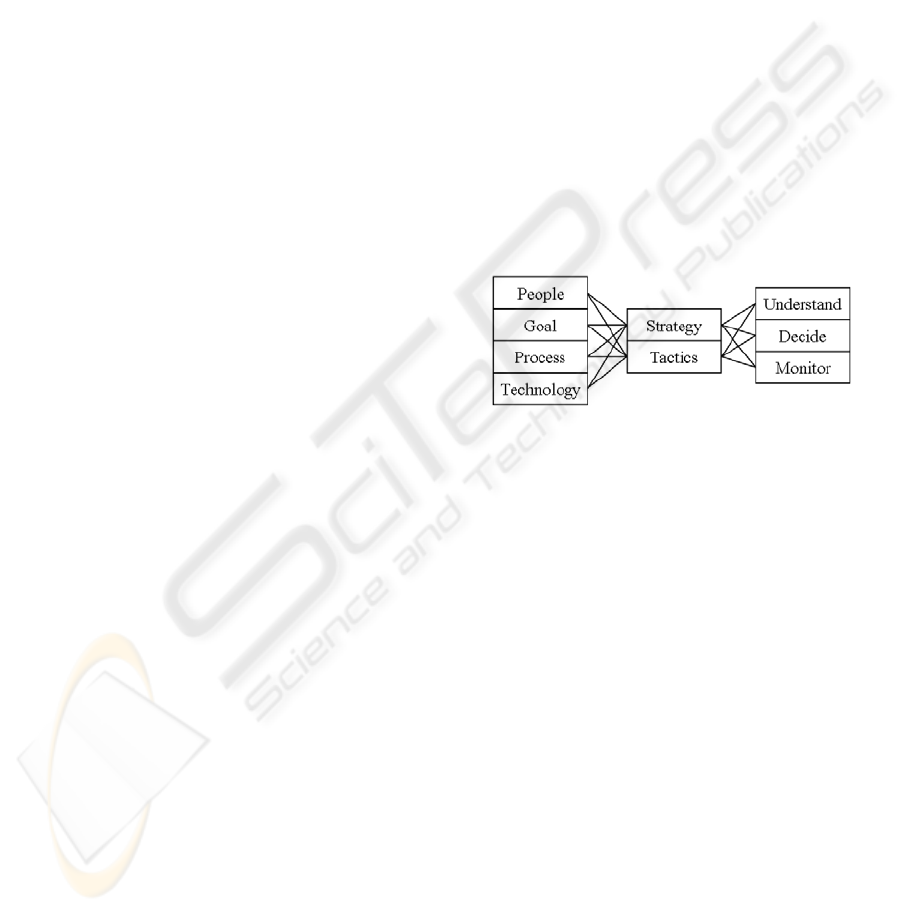

Figure 1: Hierarchical Structure of IT governance.

This structure imposes a limitation (say, network

weight) on the degree of collective behaviours of IT

governance. This can be understood by considering

more carefully the processes of coordination. The

hierarchy is responsible for ensuring coordination of

various concerns of IT governance. Lower levels of

the hierarchy are responsible for locally coordinating

smaller parts of IT governance and higher levels of

the hierarchy are responsible for coordinating the

larger parts of IT governance.

3.2 Fuzzy Reasoning Approach to

Complexity Profiles

Fuzzy rules are usually formulated as IF-THEN

statements, with one or more antecedents connected

to a consequent via operators like AND, OR, etc.

IF (Antecedent

) OP (Antecedent

) … OP

(Antecedent

) THEN (Consequent) (w)

Here n is an integer, OP is standing for operators

like AND, OR, etc., and w

represents a weight value

indicating the importance of a rule. In this study, our

FUZZY DECISION MAKING OF IT GOVERNANCE

133

fuzzy reasoning method is based on two assumptions

as the following.

 Every activation of an input fuzzy set is regarded

to be a piece of (fuzzy) concerns supporting the

domain knowledge an expert formulated via

rules and fuzzy sets.

 Each piece of concerns should be incorporated

more actively in the decision-making process.

Table 1: Example of 3 steps.

low normal High

Domain 0.86 0.37

Scope 0.77

Accumulation 0.86 1.14

Normalization 0.75 1.00

Decision making DM=DM

normal

/1.00

These assumptions can be implemented in 3 steps,

concerns accumulation, normalization, decision-

making. For example, Table 1 illustrates an

application of 3 steps. The accumulation of the

pieces of concerns produces: DM

low

=0.86, and

normal

=0.37+0.77= 1.14. Normalization of these

values generates: DM

low

=0.75, and DM

normal

=1.00.

The method therefore produces the outcome:

DM=normal. This approach can be also applied to

aggregation of the consequents across the rules, as

there are many different weights indicating the

importance of the rule.

When available computational capabilities are

restricted by equipment size or cost, special attention

should be given to defuzzification process. In these

cases, the computational time must be reduced in

order to improve the system performance. Hence, it

is important to use fast defuzzification methods. As

an alternative, faster and simple methods can be

used such as finding the mean of maxima or by

finding the half-area point. we presents a simple fast

method for computing a centroid approximation by

fitting the fuzzy output area into a triangular shape,

see figure 2.

This approach consists in adapting any output

shape into one single triangle. The computational

time required by this algorithm is reduced with

respect to that of the bisector method. This

approximation gives the exact centroid position for

any cluster shapes having a base length and areas

ratio of 1 to 3. For fuzzy outputs not located at the

origin, the triangular shape maximum position is

located at the maximum output shape position.

When the fuzzy output presents more than one

maximum, the location of the triangle maximum is

computed as the average of maxima.

Figure 2: Output fitting to triangular function.

4 APPLICATION

Table 2 shows the results for these theoretical

complexity variables, i.e. literature’s concerns of IT

governance. The total score for each dimension is

100%. Also, it includes the normalization within

each dimension complexity, explained in previous

section. Related to Domain complexity, twelve rules

are defined in the rule base. We used the normalized

rule weights for fuzzy pieces of IT governance

concerns where many rules apply to the same

conclusion, and used the simple fast defuzzification

method in the previous section.

Table 2: IT Governance concerns according to literature.

Dim. Complexity

Variables

Literature

Concerns

Normal

Domain People 0.37 1.00

Goal 0.26 0.70

Process 0.20 0.54

Technology 0.17 0.46

Scope Strategy 0.70 1.00

Tactics 0.30 0.43

phase

Monitor 0.42 1.00

Decide 0.33 0.79

Understanding 0.25 0.60

The theoretical IT governance concerns show that

the dimensional variables “People”, “Strategic”, and

“Monitor” were most frequently used within the 50

articles and within their dimensions respectively. IT

governance mainly comprises strategic concerns

according to literature. The daily use of IT, all the

operational concerns for bread-and-butter IT are

surely important, but they are not in the scope of IT

governance. Regarding the decision-making phases,

monitoring of IT-related decisions is emphasized.

Technology issues are not the mayor concerns to

ICE-B 2010 - International Conference on e-Business

134

decide upon, and literature rather stresses the

importance of establishing roles and responsibilities,

and an accountability framework that supports the

business goals.

In the Fuzzy DM of IT governance concerns,

there are five parts of the fuzzy DM process:

fuzzification of the input variables, treatment of the

fuzzy pieces evidence, implication from the

antecedent to the consequent, aggregation of the

consequents across the rules, and defuzzification.

Figure 3 only illustrates fuzzy sets for Domain

complexity. The two variables have each been

divided into 3 overlapping sets labeled Low,

Normal, and High. The first vertical line represents a

measurement of Process, which has a membership

level of 0.2 in all the Low, Normal, and High sets,

c.f. (Table 2). The second represents a measurement

of Goal, which has a membership level of 0.26 in all

sets. We can construct fuzzy sets of Scope and DM

complexity in a similar manner. Related to Domain

complexity, 12 rules are defined in the rule base.

Figure 3: Fuzzy sets for Process and Goal in Domain

complexity.

Figure 4 shows the surface plot between input

variables of Domain complexity. Clearly it is

evident from the plot that “People” is more

significant than other input variables. IT governance

concerns in Literature denotes that “Technology” is

less significant than other ones. But, considered as a

whole, “Process” is less significant than other ones,

c.f. (Table 3). In particular, in proportion as “Goal”

rises “Technology” concerns increase. Table 3

illustrates the comparison of values estimated by

using four input variables.

According to the survey with practitioners,

practitioner’s concerns were mainly about IT goal

setting, while IT processes and technology issues

were less stressed. Table 4 illustrates the comparison

of values estimated by our fuzzy model. Here,

“Goal” is more stressed. Table 5 illustrates the

Figure 4: Mapping surface of Domain complexity.

Table 3: Comparison of values by fuzzy model.

Process Goal Technology People Domain

0.2 0.4 0.6 0.8 0.571

0.2 0.6 0.4 0.8 0.571

0.4 0.6 0.2 0.8 0.564

0.4 0.2 0.6 0.8 0.527

0.6 0.4 0.2 0.8 0.564

0.6 0.2 0.4 0.8 0.527

Table 4: Comparison of values by practitioners’ concerns.

Process Goal Technology People Domain

0.2 0.8 0.4 0.6 0.536

0.2 0.8 0.6 0.4 0.536

0.4 0.8 0.2 0.6 0.527

0.6 0.8 0.2 0.4 0.527

comparison of values estimated by our fuzzy model.

The result denotes that there is discrepancy in the

range of the concerns identified in literature. Figure

5 shows the surface plots between input variables of

DM and scope complexity, respectively. For DM

complexity, the nine rules and normalized weights

are included in the fuzzy rule system.

The theoretical concerns showed that the

dimensional variable “Monitor” was more frequently

used within the DM complexity. But, monitoring the

implementation of decisions already made receives

somewhat less attention from the practitioners,

according to the survey. Also, comparing Cobit’s

concerns of IT governance to literature, it showed

that Cobit does support most needs, but lacks in

providing information on how decision-making

structures should be implemented.

Table 5: Comparison of values by Cobit.

Process Goal Technology People Domain

0.8 0.6 0.2 0.4 0.492

0.8 0.4 0.2 0.6 0.492

0.8 0.2 0.4 0.6 0.460

0.8 0.2 0.6 0.4 0.460

FUZZY DECISION MAKING OF IT GOVERNANCE

135

Applied to our fuzzy model, the dimension

variables of DM complexity are almost uniformly

stressed. The relative concerns for the DM

complexity remain a bit more uncertain. The

difference seems to lie in their interconnection

weights (and interactions) between the concerns of

IT governance. For scope complexity, strategic

concerns are most often dealt with, while tactical

concerns are only briefly discussed. The six rules

and normalized weights are included in the fuzzy

rule system.

IT governance mainly comprises strategic

concerns according to literature. According to the

practitioners responding the survey, IT governance

decision making is mainly a strategy issue while

tactical decisions are less important. Similarly, Cobit

spends more effort in discussing strategic concerns

and less on tactical concerns. But, according to the

mapping surface of Figure 5, strategic and tactical

concerns that make up a large collective behaviour

must be correlated and not independent.

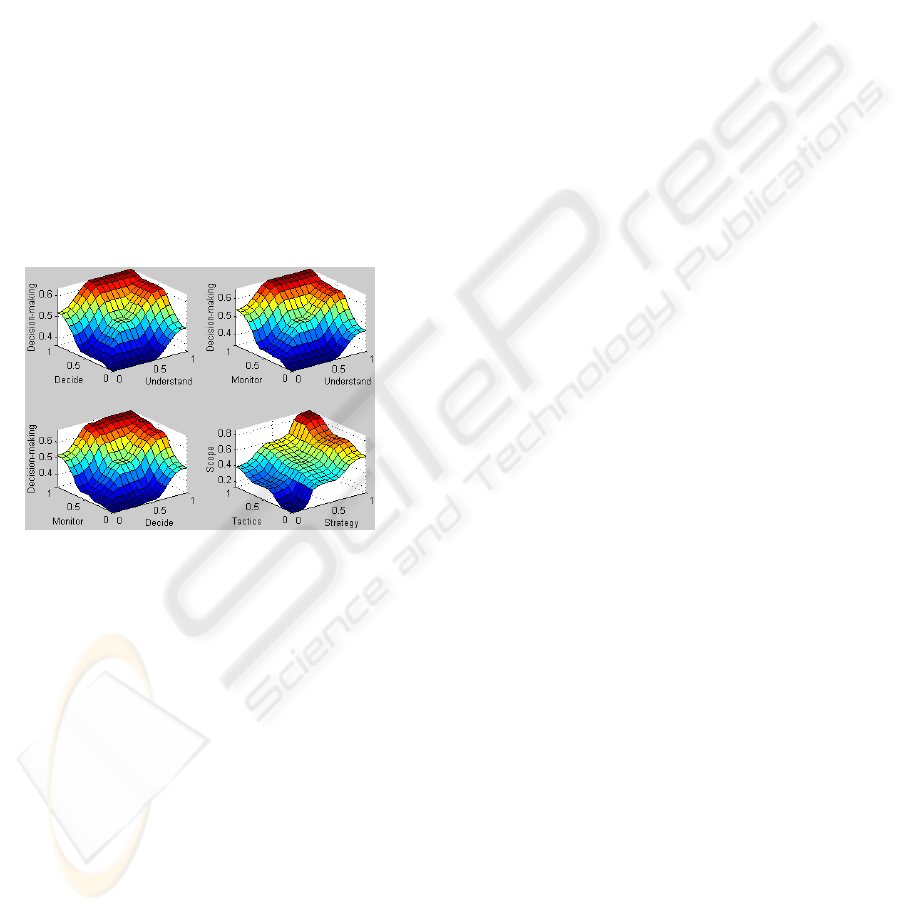

Figure 5: Mapping surface of DM and Scope complexity.

5 CONCLUSIONS

This paper presented a framework to understand the

relationship between the complexity profiles in view

of complexity science, and then developed a fuzzy

reasoning model including the complexity of

collective behaviour with respect to IT governance.

It is necessary to understand the exact nature of the

interconnections and how their weights give some

effects on the behaviour of the whole IT governance.

When there are such interconnections and they are

not simple, a complex system can be used. In

particular, IT governance complexity is a fuzzy

concept. Thus, we suggested a fuzzy model for

analyzing IT governance complexity based on an

extensive literature study. IT governance concerns in

literature were mapped onto the framework for this

model, and a comparison study was carried out.

Results showed that the major differences exist

within the concerns of the domain complexity in the

case of Cobit.

REFERENCES

Dahlberg, T., and Kivijärvi, H., 2006. An Integrated

Framework for IT Governance and the Development

and Validation of an Assessment Instrument.

Proceedings of the 39th Hawaii International

Conference on System Sciences.

De Haes, S., and Van Grembergen, W., 2005. IT

Governance Structures, Processes and Relational

Mechanisms – achieving IT/Business alignment in a

major Belgian financial group. Proceedings of the 38th

Hawaii International Conference on system Sciences.

Holm Larsen, M., Kühn Pedersen, M., and Viborg

Andersen, K., 2006. IT Governance – Reviewing 17

IT Governance Tools and Analysing the Case of

Novozymes A/S. Proceedings of the 39th Hawaii

International Conference on System Sciences.

Johansson, E., 2005. Assessment of Enterprise

Information Security – How to make it Credible and

Efficient. Ph.D. Thesis at the Department of Industrial

Information and Control Systems, Royal Institute of

Technology, Stockholm, Sweden.

Ridley, G., et al., 2004. COBIT and its utilization: A

framework from the literature. Proceedings of the 37th

Hawaii International Conference on System Sciences.

Wang, H. F., and Huang, Z. H., 2002. Top-down fuzzy

decision making with partial preference information.

Fuzzy Optimization and Decision Making 1, 161-176.

Warland, C., and Ridley, G., 2005. Awareness of IT

control frameworks in an Australian state government:

A qualitative case study.

Webb, P., Pollard, C., and Ridley, G., 2006. Attempting to

define IT Governance: Wisdom or Folly. Proceedings

of the 39th Hawaii International Conference on system

Sciences.

Yager, R. R., 2002. On the evaluation of uncertain courses

of action. Fuzzy Optimization and Decision Making 1,

13-41.

ICE-B 2010 - International Conference on e-Business

136
