A NOVEL INTRUSION DETECTION SYSTEM FOR MANETS

Christoforos Panos

, Christos Xenakis

and Ioannis Stavrakakis

Department of Informatics & Telecommunications, University of Athens, Panepistimioupolis

Ilisia, PC 15784, Athens, Greece

Department of Digital Systems, University of Piraeus, Karaoli and Dimitriou 80, PC 18534, Piraeus, Greece

Keywords: Intrusion detection system, IDS, Mobile ad hoc networks, MANETs, Random walks, Specification-based

intrusion detection.

Abstract: This paper proposes a novel Intrusion Detection System (IDS) for Mobile Ad Hoc Networks (MANETs)

that aims at overcoming the limitations and weaknesses of the existing IDSs. The proposed IDS

incorporates a novel random walk-based IDS architecture as well as a multi-layer, specification-based

detection engine. The proposed solution does not belong to any of the existing intrusion detection

approaches, since it relies on a set of robust, self-contained Random Walk Detectors (RWDs), which may

freely move from node to node and randomly traverse a network, while monitoring each visiting node for

malicious behaviour. RWDs exhibit a number of benefits including locality, simplicity, low overhead, and

robustness to changes in topology. Moreover, the multi-layer, specification-based engine monitors the

transport, network and data link layers of the protocol stack, providing an integrated solution capable of

detecting the majority of security attacks occurring in MANETs.

1 INTRODUCTION

Mobile ad hoc networks (MANETs) are wireless

networks, which operate without the aid of any

established infrastructure or centralized authority. In

MANETs, the nodes themselves implement the

network management in a cooperative fashion and

thus, all of them are responsible for this. MANET

nodes have stringent resource constrains and they

are typically mobile, forming a highly dynamic

network topology, absent of any clear network

boundaries. As a result, MANETs are susceptible to

a variety of attacks such as eavesdropping, routing,

packet modification, etc. (Djenouri et al., 2005), and

securing a MANET under such conditions is

challenging. An effective way to identify when an

attack occurs in a MANET is the deployment of an

Intrusion Detection System (IDS). An IDS is a

sensoring mechanism that monitors nodes’ and

network activities in order to detect malicious

actions and, ultimately, an intruder. An IDS can be

divided into two parts: (i) the architecture that

exemplifies its operational structure; and (ii) the

detection engine that is the mechanism used to

detect malicious behavior(s).

The existing IDS architectures for MANETs fall

under three basic categories (Mishra et al., 2004): (a)

stand-alone, (b) cooperative, and (c) hierarchical.

The stand-alone architectures use an intrusion

detection engine installed at each node utilizing only

the node’s local audit data. This fact (i.e., relying

only on local audit data to resolve malicious

behaviors) limits them in terms of detection

accuracy and the type of attacks that they detect (Sen

et al., 2009) (due to the distributed nature of

MANETs) and, thus, we will exclude them from the

analysis carried in section 2. On the other hand, the

cooperative and hierarchical architectures process

each host’s audit data locally (i.e., similarly to stand-

alone), but they also use collaborative techniques to

detect more accurately a wider set of attacks. Thus,

the majority of the most recent IDSs for MANETs

are based on them (Sen et al., 2009). The

cooperative architectures include an intrusion

detection engine installed in every node, which

monitors local audit data and exchanges audit data

and/or detection outcomes with neighboring nodes,

in order to resolve inconclusive (based on single

node’s audit data) detections. The hierarchical

architectures amount to a multilayer approach, by

dividing the network into clusters. Specific nodes

are selected (based on specific criteria) to act as

Panos C., Xenakis C. and Stavrakakis I. (2010).

A NOVEL INTRUSION DETECTION SYSTEM FOR MANETS.

In Proceedings of the International Conference on Security and Cryptography, pages 25-34

DOI: 10.5220/0002989100250034

 SciTePress

cluster-heads and undertake various responsibilities

and roles in intrusion detection, which are usually

different from those of the simple cluster members.

The latter typically run a lightweight local intrusion

detection engine that performs detection only on

local audit data; while the cluster-heads run a more

comprehensive engine that acts as a second layer of

detection, based on audit data from all the cluster

members. However, since the majority of the

existing cooperative and hierarchical IDS

architectures for MANETs are inherited from static

or mobile networks, which differ radically from

MANETs with respect to the network topology,

available resources, nodes’ mobility and security

vulnerabilities, they present significant limitations

and weaknesses, which are analyzed in section 2.

On the other hand, the intrusion detection

engines employed in MANETS are classified into

three main types (Mishra et al., 2004): (i) signature-

based, (ii) anomaly-based, and (iii) specification-

based. Signature-based engines rely on a predefined

set of patterns (signatures) to identify attacks. The

signatures are stored in a database and if the engine

matches a monitored activity with a signature, then

the activity is marked as malicious. This type of

engines fails to detect novel attacks and requires

always maintaining a signature database. The

anomaly-based engines establish specific models of

nodes’ behaviors (normal profiles) and mark nodes

that deviate from these profiles as malicious. This

type of engines can detect unknown attacks and does

not require a database. However, it is prone to high

rates of false alarms, since any legitimate behavior

that deviates from normal profiles is also considered

as malicious. Finally, specification-based engines

rely on a set of constrains or specifications that

describe the correct operation of programs or

protocols; and monitor the execution of

programs/protocols with respect to the deﬁned

constraints/specifications. They combine the benefits

of both signature and anomaly-based detection, since

they: (i) can detect new types of attacks, (ii) do not

maintain a database and (iii) do not present high

rates of false alarms. However, the required

constrains/specifications have to be manually

developed, which might be time consuming.

This paper proposes a novel IDS for MANETs

that aims at overcoming the limitations and

weaknesses of the existing IDSs. The proposed IDS

incorporates a novel random walk-based IDS

architecture as well as a multi-layer, specification-

based detection engine. The proposed solution

consists of a set of self-contained Random Walk

Detectors (RWDs), which randomly traverse a

network, while monitoring each visiting node for

malicious behaviors. The key advantage of this

approach is that it is robust and scalable to network

changes and produces little overhead. The number of

RWDs on a network may increase and decrease

accordingly, in order to cope with changes in the

network topology, and, thus, RWDs may replicate or

merge. At each visiting node, a RWD deploys a

multi-layer, specification-based intrusion detection

engine, which monitors the protocols and operations

at the transport, network, and data-link layers,

protecting the most critical functionality of

MANETs. The proposed engine can detect both

known and unknown attacks without requiring a

database, and does not present high rates of false

alarms.

The rest of this article is organized as follows.

Section 2, outlines the limitations of the existing

IDSs that motivate this work. Section 3, presents the

proposed IDS, focusing on both the architecture and

the detection engine. Section 4 briefly presents the

advantages of the proposed solution as well as future

work. Finally section 5 contains the conclusions.

2 MOTIVATION

2.1 Limitations of IDS Architectures

Taking into account the deployment environment of

MANETs and its limitation, it is evident that the

processing overhead, which is added by the IDS

architectures to the underlying network nodes,

should be kept to a minimum. However, in almost

all the cooperative IDS architectures, one or more

comprehensive detection engines (which are based

on signature or anomaly detection) are employed in

every node, without considering the limited

processing capabilities. The hierarchical IDS

architectures attempt to minimize the processing

overhead by employing comprehensive or multi-

layer detection engines only at some key nodes (i.e.,

cluster-heads), while the remaining nodes use

lightweight engines. However, the creation and

maintenance of clustered/hierarchical structures adds

extra processing load to the network nodes.

Moreover, in these architectures the relative high

nodes’ mobility, experienced in MANETs, may also

increase the processing loads of the nodes.

In both cooperative and hierarchical IDS

architectures, nodes have to exchange alerts, audit

data, and detection results that impose extra

communication overhead to the underlying network.

In the cooperative architectures, cooperation and the

SECRYPT 2010 - International Conference on Security and Cryptography

related overhead takes place only when a suspicious

behavior cannot be resolved as malicious using only

local audit data. On the other hand, in the

hierarchical IDS architectures the communication

overhead takes place when clustered/hierarchical

structures are formed, a cluster-head is elected (or

re-elected), the cluster members move and change

clusters, or a cluster-head and the cluster-members

exchange audit data. The hierarchical architectures

also impose unfair workload distribution among the

network nodes, since the nodes elected as cluster-

heads are overloaded with detection responsibilities.

In both types of IDS architectures (i.e.,

cooperative and hierarchical) nodes’ mobility

decreases the detection accuracy and increases the

rate of false positives. Mobility changes the network

topology, the clusters’ structure, the routing

information maintained at each node, the created

social and trusted relationships among the nodes,

etc., influencing in that way the intrusion detection

process. Moreover, a mobile node may move away

from its neighboring nodes or from a detection

engine that resides in a cluster-head, making

cooperation for detection purposes or thorough

inspection of the node unavailable.

Regarding security, the hierarchical IDS

architectures present points of failure, since they

place the responsibility of intrusion detection in a

subset of elected nodes (i.e., cluster-heads). This fact

makes these nodes potential targets of attacks, and if

an attack succeeds then points of failure occur.

Moreover, these architectures are vulnerable to

byzantine attacks. Such an attack can take place

during the election phase of a cluster-head, where a

number of malicious nodes attempt to elect a

malicious node as cluster-head. A malicious cluster-

head may hinder intrusion detection or falsely

accuse legitimate nodes as malicious. Another

security weakness of both types of architectures (i.e.,

cooperative and hierarchical) is that they are

exposed to man in the middle and blackmail attacks.

Both of them rely on the exchange of intrusion

detection information, either between cooperating

nodes or between a cluster-head and the cluster-

members, in order to perform detections. This

information might be captured, modified, and

retransmitted by a malicious node resulting in a man

in the middle attack. Finally, a malicious node may

transmit false information when requested upon by a

cooperating neighbor or by a cluster-head, resulting

in a blackmail attack.

2.2 Limitations of Detection Engines

Signature-based engines offer low detection latency

and low rates of false positives, but they are not

effective against new types of attacks, which are not

included in the signatures database. Thus,

administrators have to create up-to-date signatures in

order to cope with new attacks. Furthermore,

maintaining and updating a signature database in a

MANET environment is difficult to achieve. Nodes

in a MANET typically have limited memory, and a

signature database requires a centralized signature

distribution authority, which is contradictory to a

MANET environment. Sterne et al. (Stern et al.,

2005) have proposed a hierarchical scheme to

distribute signatures in a MANET. However, this

adds to the communication overhead, and each node

has to allocate a specific memory portion to

maintain the signature database. In addition, in this

scheme, selfish nodes may block the signature

distribution process or provide false signatures in

order to hinder intrusion detection and impose

damage to the network.

On the other hand, anomaly-based engines are

the most popular for MANET IDSs, since they can

detect unknown attacks and do not require a

database. However, they rely on normal profiles,

which might negatively affect the efficiency and

performance of detection, in cases that dynamic

changes in the network occur. More specifically,

nodes’ mobility changes the network topology and

the routing information maintained at each node,

resulting in high rates of false positives. Adjustable

thresholds (Nadkarni et al., 2004) (Sun et al., 2007)

try to reduce these negative impacts, since they

ensure that periodical changes will remain under the

detection threshold; while malicious behaviors that

are persistent will exceed the thresholds indicating

the occurrence of attacks. If for a preset period of

time, no attack occurs, the threshold values are

raised; otherwise they are lowered. However, the use

of adjustable thresholds introduces new security

weaknesses, since malicious nodes may exploit this

mechanism. More specifically, a malicious node

may increase the threshold values, by performing

legitimately for a certain period of time. Then, if the

threshold values are high enough, it may perform an

attack, considering not exceeding the threshold

values and raising alarms.

A specification-based engine compares, at run

time, the behavior of objects (i.e., security-critical

programs, protocols, or applications) with the

associated security specifications. The latter are

created based on the expected functional behavior of

A NOVEL INTRUSION DETECTION SYSTEM FOR MANETS

the objects. Therefore, a specification-based engine

does not directly detect attacks, as happens in

signature-based engines, but it detects the effects of

them, as run-time violations of the specifications. As

the engine relies on monitoring a set of

specifications/constraints for breaches, instead of

specific attacks, it can detect both known and

unknown attacks. Moreover, it avoids the high rates

of false alarms, since it does not use normal profiles,

as happens in anomaly detection.

In general, the development of specifications for

a specification-based engine might be a lengthy and

convoluted process, since the developer has to

determine what is the expected behavior of each

individual application or protocol, and then establish

constrains that characterize this behavior. However,

in MANETs, this overhead can be reduced since the

un-hindered operation of the network relies on

specific protocols at the transport, network, and

data-link layer, where the majority of security

attacks occur (Djenouri et al., 2005) (Yang et al.,

2004). Currently, specification-based engines for

MANETs have limited use, as they monitor only the

network layer for routing attacks (Tseng et al.,

2003), (Tseng et al., 2005), (Hassan et al., 2006),

(Huang et al., 2004), (Orset et al., 2005). In this

paper, we extend the use of specification-based

engines for MANETs that can monitor the transport,

network, and data-link layers of the network stack,

providing an integrated solution capable of detecting

the majority of critical attacks.

3 THE PROPOSED IDS

3.1 IDS Architecture

The proposed IDS does not require the use of

comprehensive detection engines at each network

node, like the cooperative architectures, or any static

structure like the hierarchical architectures. It

consists of several robust RWDs that randomly

traverse a network, while monitoring each visiting

node for malicious behaviour. The number of RWDs

on the network is scalable, in order to cope with

changes in the network topology and thus RWDs

may replicate or merge.

A Random Walker (RW) is a stochastic process,

which represents a path of random successive steps.

RWs can be applied to graphs, in which a RW

process begins at a node on a graph and takes

random successive steps to adjacent nodes. Thus, a

RW can be seen as a method to randomly explore a

graph (Lovasz, 1996). RWs provide a wide range of

applications in computer science, physics, statistics,

economics, and several other fields. In

communication networks, RWs algorithms exhibit

simplicity, low overhead, reliance only on local

information, robustness to changes in a graph

structure, and thus applications based on them are

becoming more and more popular.

The two key advantages of RWs are: (i) they are

inherently robust and scalable to network topology

changes, since they do not require knowledge or

state maintenance for the network structure; and (ii)

they produce little overhead. For these reasons, they

are particularly suitable in MANETs, where: (i) the

network topology changes over time, since nodes

move around the network bounds or join and leave

dynamically without centralized control; and (ii)

node resources are typically sparse. Therefore, the

advantages of RWs can be used to address the

previously mentioned limitations of the existing IDS

architectures for MANETs. Currently, RWs find a

plethora of applications in the context of MANETs,

such as querying, service discovery, routing, service

advertisement, searching, sampling, etc. (Kogias et

al., 2008). However, to the best of our knowledge,

they have not been proposed to support intrusion

detection for MANETs.

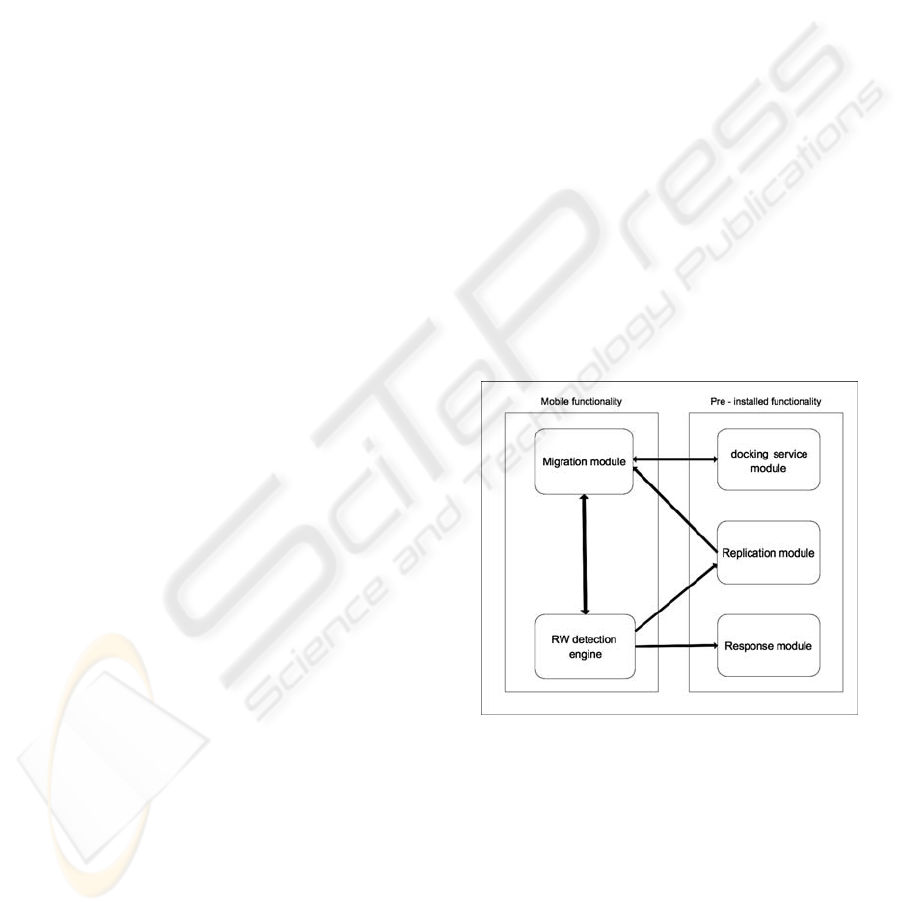

Figure 1: Layout of the RWD.

The proposed RWD is divided into five parts as

illustrated in: (i) the migration module that is

responsible for the migration process of the RWD to

a neighbouring node; (ii) the specification-based

detection engine that includes the detection

functionality of each RWD; (iii) the replication

module that enables the RWD to be replicated; (iv)

the response module that is responsible for notifying

other nodes regarding malicious behaviours detected

and for taking the required defensive action against

them; and (v) the docking service module (which is

SECRYPT 2010 - International Conference on Security and Cryptography

executed in every network node) that monitors for

incoming RWDs and is responsible for accepting

and establishing a secure connection during the

migration process. The replication, response, and

docking modules are pre-installed in every node and

utilized when a RWD visits that specific node. This

approach alleviates the need for transmitting the full

functionality of the IDS, thus reducing the

communication overhead of the proposed

architecture. On the other hand, the migration and

detection modules are transferred during the RWD

migration. This is because the first performs the

migration process, while the second protects this

process from attacks and verifies that the pre-

installed modules have not been tampered.

Subsequently, the functionality of each module of

the proposed IDS is presented and analyzed.

3.1.1 Migration Module

The migration module of the RWD elects randomly

a neighbouring node. Then, it establishes a secure

communication channel with the docking service

module of the node for the secure migration of the

RWD. Security is achieved by using a symmetric

key that minimizes the use of nodes’ resources. In

particular, AES (Daemen et al., 2002) is used for

key generation, which consumes minimum battery

resources for both key setup and encoding/decoding

(Potlapally et al., 2006). To avoid the overhead of a

key distribution scheme, key exchange can be

achieved either through network steganography (Li

et al., 2009) or elliptic curve Diffie-Helman (ECDH)

(Miller, 1986) key exchange. Network

steganography allows for the creation of covert

channels, in which information is embedded within a

variety of system properties and can only be

detected by the designated user of the system. In

wireless networks, information can be conveyed

through MAC-layer covert channels (Li et al., 2009).

On the other hand, ECDH is an asymmetric key

exchange algorithm. It can be used to encrypt the

symmetric key, with minimum energy cost

(Potlapally et al., 2006) (i.e., compared to other

public key algorithms), and without any cost on

security (i.e., reduction of key size).

In general, the following steps take place during

migration:

• Key generation: the migration module of the

node that initiates migration generates a

symmetric key, using AES.

• Key exchange: the key is transferred to the

docking service module of the node selected for

migration (using a covert channel or ECDH), and

thus a secure channel between the two nodes is

established.

• RWD migration: the RWD migrates to the

selected node, through the newly established

secure communication channel.

The process of migration is supervised by the

detection engine, which monitors for any malicious

activity on the part of the receiving node. If the pre-

installed functionality at the receiving node is absent

or tampered, the migration process is aborted and the

receiving node is marked as malicious.

3.1.2 Detection Engine

Each RWD deploys a multi-layer, specification-

based detection engine, analyzed in detail in section

3.2. Contrary to the existing collaborative

architectures (i.e., cooperative and hierarchical), in

which detection engines monitor nodes and decide

on malicious behaviours, remotely, a RWD monitors

a specific node when it visits it. As a result, the

detection engine of a RWD is not necessary to

gather audit data from neighbouring nodes and

execute complex algorithms (i.e., anomaly

detection) to detect abnormalities. Therefore, a

simple, multi-layer, specification-based detection

engine is suitable for this architecture.

The multi-layer specification-based detection

engine has two main responsibilities: (i) to monitor

the migration process of the RWD as mentioned

previously; and (ii) to perform detection at the

visited node. Therefore, it is called by the migration

module just before the migration process, and just

after the RWD has migrated to the node. During the

migration process, the detection engine monitors for

any denial of service (DoS) attack and executes a

remote procedure call at the destination node. The

latter performs a hash check at the pre-installed IDS

modules of the destination node in order to

determine whether the functionality of IDS exists

and it has not been tampered.

After a successful migration, the detection

engine begins monitoring the visited node, for a time

monitoring

, before the RWD migrates to another node.

A prolonged stay of the RWD at a node increases

the possibility of detecting an attack in it, at the cost

of not detecting attacks at neighbouring nodes. The

time T

monitoring

should be sufficient for the detection

engine to detect possible attacks that take place in

the visited node. Therefore, the RWD should stay

longer in critical nodes, whose failure or malicious

behaviour has larger impact on the network.

Parameters that characterize the criticality

/significance of a monitored node include: the

A NOVEL INTRUSION DETECTION SYSTEM FOR MANETS

number of neighbouring nodes, the number of

connections served by the node, the number of

packets traversing the node, etc. Additionally,

monitoring

should be randomized to avoid its

predictability, which might be exploited by

adversaries. Following these, T

monitoring

is given by

(1):

monitoring

= (

min

critical

)

(1)

min

denotes the minimum time required by a RWD

to detect possible attacks, T

critical

is the extra time

added because of the criticality/significance of the

monitored node, and R is a random time added in

order to randomize T

monitoring

. Finally, if a malicious

behaviour is detected, the detection engine calls the

response module, which is responsible for alerting

other nodes and taking defensive actions against the

attack.

3.1.3 Replication, Response and Docking

Service Module

The replication module is responsible for selecting

when a RWD will replicate, based on a probability

P. To achieve the most optimal network coverage, a

topology-dependent replication policy is used. In

such policy, the probability of replication increases

in dense network areas, allowing RWDs to cover

different network paths. As the number of

neighbouring nodes increases, the probability for

replication increases exponentially. A generic

replication probability is given by (2):

P(k

RWD

) =− e

−k

RWD

()

+ 1

(2)

where k

RWD

is the number of neighbours of a node in

which the RWD resides at. Having a low replication

probability leads to scenarios where only a few

RWDs traverse the network, increasing the time

required to reach a malicious node and detect an

attack (i.e., response time). On the other hand,

having a high replication probability leads to

flooding, where too many RWDs traverse the

network. In future work, analytic and simulations

studies will provide optimal values for the

replication probability. When two or more RWDs

visit the same node simultaneously, they merge in

order to limit the amount of RWDs traversing the

MANET and avoid redundant coverage at that

particular network portion.

The response module is called by the detection

engine when a malicious behaviour is detected. It is

responsible for notifying the user(s) or

administrator(s) for the detected behaviour and may

take defensive actions against the attack, such as

removing a malicious node from the routing table

and notifying non-malicious nodes.

Finally, the docking service module is the only

part of the proposed IDS that operates, continually,

at every node on the network. It is executed as a

system service and monitors for incoming RWDs.

When a RWD attempts to migrate to a node, the

node’s docking service module is responsible for

receiving a key and establishing a secure

communication channel with the migration module

of the node that the RWD originates from.

3.2 The Multi-layer Specification-based

Detection Engine

The proposed detection engine performs detections

using a set of specifications, which describe the

normal node’s operations at different layers,

providing an aggregated solution. It monitors the

most important protocols that provide end-to-end

connectivity, routing, packet forwarding, and link

layer connectivity. The advantage of this approach is

twofold: (i) the overhead of specifications

development can be reduced, since aggregated

specifications are developed that focus on the three

most important protocol layers; and (ii) the proposed

multi-layer engine detects the majority of attacks

(Djenouri et al., 2004) (Yang et al., 2004) that occur

in MANETs, protecting the most critical/significant

network operations.

In order to present the proposed engine, we use a

Finite State Machine (FSM). Each state of the FSM

corresponds to either a legitimate or malicious

behaviour of the monitored node. A transition from

one state to another is triggered by the node’s

operations/actions. Specifications are defined as a

tuple (S, NO, S

, δ, F) where S is the set of all

possible states; NO is the set of node operations; S

is the initial state; δ is a function that maps node

operations from a previous state to the current state;

and F is the set of final states that correspond to

malicious behaviours. The proposed multi-layer

specification-based engine is a set of FSMs designed

to monitor the correct operation of critical protocols

at the transport, network, and data-link layers. To

exemplify the operation of the engine, we illustrate a

limited set of specifications, which enable the

detection of some critical attacks, demonstrated in

the following subsections. They cover the transport,

network, and data-link layers and enable the

detection of routing table poisoning, DoS, blackhole,

impersonation, session hijacking, and SYN flooding

SECRYPT 2010 - International Conference on Security and Cryptography

attacks. In the following, for each layer, we analyze

the specifications being monitored and outline the

attacks detected.

3.2.1 Transport Layer Specifications

The transport layer protocols provide end-to-end

connection, reliable packet delivery, flow control,

congestion control, etc. The most important

protocols at this layer are TCP and UDP used for

connection-oriented and connectionless

communication, respectively. Possible attacks that

might be carried out at this layer include SYN

flooding, session hijacking, UDP flooding, land

attack, port scanning, man-in-the-middle, and

spoofing. In

Figure 2, we present a limited set of

specifications used to supervise the correct

establishment and operation of TCP connections at a

node. It is well-known that a TCP connection is

established through a three-way handshake. When

the monitored node initiates a TCP connection, the

detection engine should determine whether the node

is attempting to establish a legitimate connection. To

achieve this, it monitors whether: (i) the node

encapsulates its legitimate address in the transmitted

packets; and (ii) it acknowledges the three-way

handshake. If the node attempts to encapsulate a

false address or avoid transmitting an

acknowledgment (ACK) packet, the engine reaches

a state of malicious behaviour.

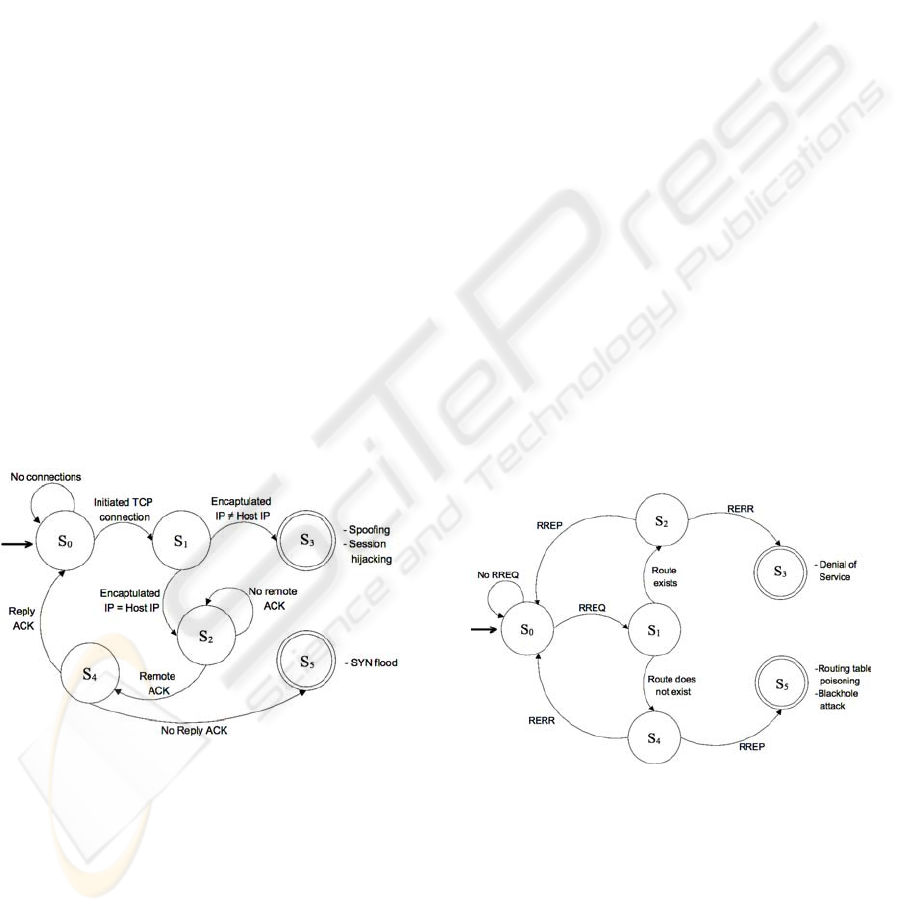

Figure 2: Transport layer specifications.

As illustrated in Figure 2, the engine remains in

the initial state S

, while no new TCP connection

takes place. When a TCP connection is initiated, the

engine moves to S

. In this state, it verifies whether

the monitored node encapsulates its actual address in

the transmitted packets. If it attempts to encapsulate

a different address, then the final state S

is reached,

designating that the node is performing an

impersonation (i.e., spoofing) attack. By transmitting

a false address to a target node, the monitored node

might also attempt a session hijacking attack, in

which it impersonates a victim node and continues a

session that was open between the victim and the

target node. On the other hand, if the monitored

node encapsulates its legitimate address, the engine

moves to S

. In this state, it monitors whether an

ACK is received from the remote node. If such a

packet is received, the engine moves to S

. In this

state the monitored node has to transmit an ACK

packet to finalize the three-way handshake. If this

happens, the engine returns to S

; otherwise, it

reaches the final state S

, designating that the node

attempts a SYN flood attack, since it does not

complete the initiated TCP connection.

3.2.2 Network Layer Specifications

In MANETs, connectivity beyond one-hop

neighbours is provided by routing protocols, which

rely on the cooperation of all nodes. The most

popular routing protocols for MANETs are the Ad-

hoc On Demand Distance Vector (AODV) and the

Dynamic Source Routing (DSR). Since both

protocols are cooperative and distributed in nature,

they are susceptible to a variety of attacks, which

include wormholes, blackholes, byzantine, routing

table overflow, routing table poisoning, rushing,

packet fabrication, non-existing link advertisement,

packet dropping, etc. Nevertheless, the majority of

these attacks can be detected by monitoring the

operation of the employed routing protocol.

Figure 3: AODV monitoring specifications.

In Figure 3, we illustrate a limited set of

specifications that monitor the AODV routing

protocol, which establishes routes on demand. To

ensure its correct operation, the engine supervises all

route control messages at a node. When a node

requires establishing a route to a destination node, it

broadcasts a route request message (RREQ) to all of

its neighbours. Nodes receiving the RREQ store a

reverse route to the source node and forward the

A NOVEL INTRUSION DETECTION SYSTEM FOR MANETS

message. When the destination node receives the

RREQ, it unicasts a route reply message (RREP)

back to the source node. Intermediate nodes

receiving the RREP store the route to the destination

node in their routing tables. If the route to the

destination node is broken, then a route error

message (RERR) is transmitted back to the source

node.

As presented in

Figure 3, the detection engine

awaits for incoming RREQ at the initial state S

When a RREQ is received, the engine moves to S

and observes the route validation process performed

by the monitored node. If the requested route exists,

the engine moves to S

. In this state, the expected

behaviour is to reply with a RREP. If this occurs, the

route request process is completed and the engine

returns to the initial state S

. Otherwise, if the

monitored node attempts to reply with a RERR

message, the final state S

is reached, designating a

DoS attack, since the node attempts to avoid

participation in the routing process. On the other

hand, if the requested route does not exist, the

engine moves from S

to state S

. In S

, the

legitimate behaviour of the monitored node would

be to reply with a RERR message. If this happens,

the engine returns to the initial state S

. Otherwise, if

the node attempts to transmit a RREP message, the

final state S

is reached, designating a routing table

poisoning or blackhole attack. In these attacks, the

node misinforms other nodes regarding a non-

existing route. Advertising such a route, the node

attracts traffic in order to intercept packets. Then, it

drops the packets without forwarding them.

3.2.3 Data-link Layer Specifications

The data-link layer is responsible for one-hop

connectivity between neighbouring nodes. It consists

of the Logical Link Control (LLC) and the Media

Access Control (MAC) sub-layers. The IEEE 802.11

MAC protocol is a standard for MANETs,

responsible for the coordination of transmissions on

a common communication medium. It utilizes a

distributed contention resolution mechanism for

sharing the wireless channel among multiple

wireless nodes. In this mechanism, when a node

wants to transmit data, it initiates the process by

sending a request to send (RTS) frame, and the

destination node replies with a clear to send (CTS)

frame. Any other node receiving the RTS or CTS

frames retreats from transmitting any data for a

certain time. The protocol is vulnerable to a variety

of attacks such as DoS, traffic analysis, monitoring,

MAC disruption, etc.

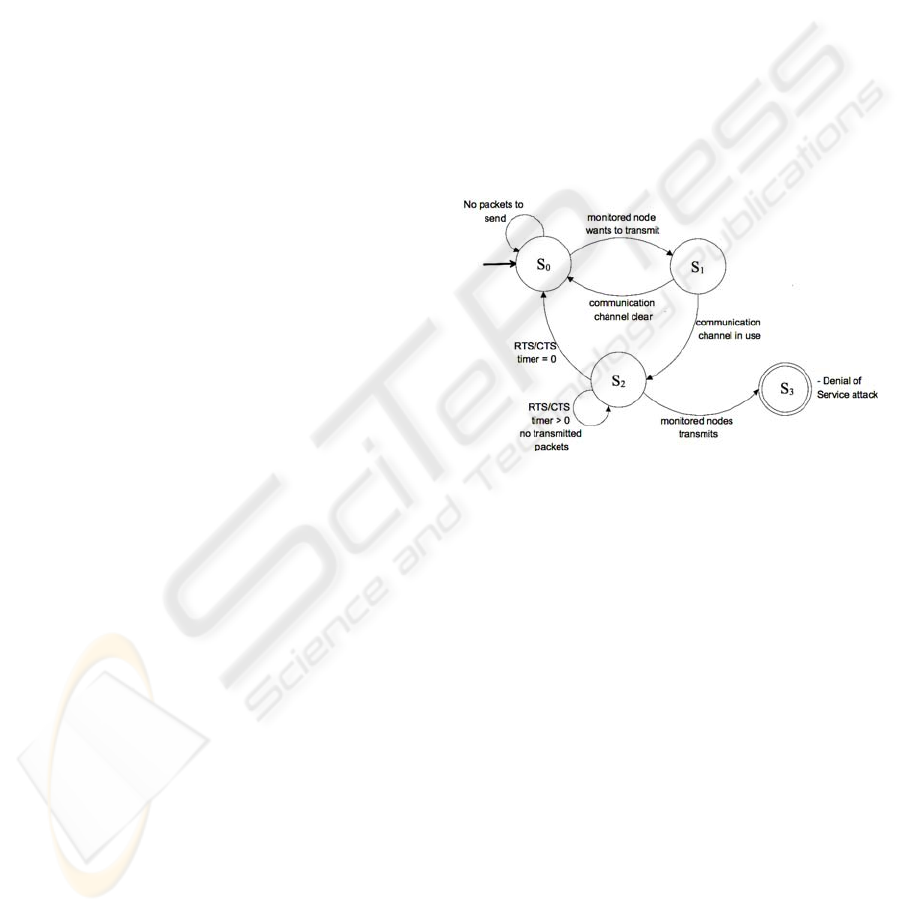

Figure 4, we illustrate a limited set of

specifications that facilitate the engine to monitor

the 802.11 MAC for DoS attacks. It observes

whether the monitored node has any data to transmit

(i.e., state S

). When this occurs, it moves to S

and

monitors whether the communication channel is

clear (i.e., the monitored node has not overheard an

RTS/CTS, and the communication channel is not in

use). If the later holds, the engine returns to the

initial state S

; otherwise, it moves to state S

. In this

state, the engine observes whether the monitored

node attempts to use the occupied communication

channel or retreats, until the RTS/CTS timer expires.

If it attempts to transmit data, then the engine moves

to the final state S

, designating that the node is

attempting a DoS attack. Otherwise, if there is no

transmission within the RTS/CTS timeframe, the

engine moves to the initial state S

Figure 4: 802.11 MAC protocol specifications.

4 EVALUATION AND FUTURE

WORK

The proposed RW-based IDS presents significant

advantages compared to the existing IDSs for

MANETs, which are briefly analysed bellow. The

use of a specification-based engine enables the

detection of known and unknown attacks, and

alleviates the need for a signature database. In

addition, the proposed detection engine is not prone

to high rates of false alarms, as happens in anomaly-

based detection, in cases that dynamic changes occur

in the network (i.e., churn, changes in the topology,

high node’s mobility, etc.). A unique engine

monitors the transport, network, and data-link layers,

reducing the overhead typically associated with the

development of specifications and facilitating the

detection of most critical types of attacks. Current

specification-based engines for MANETs focus only

at the network layer and detect only routing attacks.

SECRYPT 2010 - International Conference on Security and Cryptography

The proposed IDS architecture imposes less

processing overhead than the stand-alone and

cooperative architectures, since it does not require a

comprehensive detection engine at each node.

Furthermore, the processing workload is uniformly

distributed among the network nodes, since the

RWDs are moved randomly. The communication

load imposed by the movement (i.e., migration

process) of RWDs consists of the volume of the

executable code of the detection engine, while the

remaining functionality is pre-installed on each

network node. Thus, during the migration of a RWD

only a small volume of data will be transmitted.

Moreover, the communication overhead from the

migration process on each link does not occur

constantly, as happens in both cooperative and

hierarchical architectures. The detection accuracy of

the proposed IDS is not negatively affected by

nodes’ mobility, since detection does not rely on

cooperation from other nodes or cluster members.

The proposed IDS does not create points of

failure, since detection responsibilities are not

concentrated to a specific node or a fixed set of

nodes. A possible attack against one or more RWDs

does not hinder the detection process in a network,

since other RWDs traverse it. Moreover, the

proposed IDS is not vulnerable to man-in-the-middle

and blackmails attacks, since RWDs do not

exchange audit data and the migration process of a

RWD is protected through the use of an encrypted

communication channel. Finally, since the detection

tasks of a node are not assigned to other nodes, the

proposed IDS does not enable malicious nodes to

accuse legitimate nodes for malicious behaviour.

In future work, the proposed IDS will be

evaluated through analytic and simulation studies

and compared with existing IDSs. More specifically,

the RW-based architecture will be evaluated using:

(a) the response time to attacks, (b) the monitoring

time of a node, and (c) the ratio of RWDs/nodes. By

examining the response time of a RWD to attacks,

we can assess the time period that nodes remain

without protection when an attack takes place, and

thus adjust the replication mechanism accordingly.

The monitoring time of nodes (depends on nodes

criticality/significance) exhibits the distribution of

workload between nodes and is closely related to the

detection accuracy, the ratio of false positives and

the consumption of resources. Examining the ratio

of RWD/nodes, we can assess the scalability of the

proposed architecture in cases that the number of

nodes increases or decreases. On the other hand, the

specifications of the proposed engine will be further

elaborated and enhanced to address the entire

protocols employed at the transport, network, and

data-link layers of MANETs. Moreover, the

proposed engine will be evaluated regarding: (a) the

provided detection accuracy, (b) the rate of false

positives, and (c) the capability of detecting various

attacks at multiple layers. Finally, we will evaluate

the robustness of the proposed IDS under a variety

of security attacks, and the level of security provided

by the network steganography.

5 CONCLUSIONS

MANETs are susceptible to a variety of attacks that

primarily target the protocols of the transport,

network, and data-link layers. Currently, a large

number of IDSs have been proposed that protect

MANETs; however, the majority of them presents

limitations and weaknesses, which mainly derive

from the fact that they are inherited from static or

mobile networks. This paper proposes a novel IDS

that attempts to addresses the limitations and

weaknesses of the existing IDSs. It includes a

random walk-based architecture and a multi-layer,

specification-based detection engine. The proposed

architecture imposes less processing and

communication overhead to the underlying network,

it distributes uniformly the processing workload

among the network nodes, and it is robust to

dynamic network changes. Moreover, it does not

create points of failure, and it is not vulnerable to

man-in-the-middle and blackmail attacks. On the

other hand, the proposed engine enables the

detection of both known and unknown attacks, and

alleviates the need for a signature database. Finally,

it is not prone to high rates of false alarms.

REFERENCES

Mishra, A., Nadkarni, K., Patcha, A., 2004. Intrusion

Detection in Wireless Ad Hoc Networks. IEEE

Wireless Communications, Vol. 11, Issue 1, pp. 48-60.

Djenouri, D., Khelladi, L., Badache, N., 2005. A Survey

of Security Issues in Mobile Ad Hoc Networks. IEEE

Communications Surveys, Vol. 7, No. 4.

Yang, H., Luo, H., Ye, F., Lu. S., Zhang, L., 2004.

Security in mobile ad hoc networks: challenges and

solutions. IEEE Wireless Communications Surveys,

Vol. 11, No 1, pp. 38–47.

Sen, S., Clark, J. A., 2009. Intrusion Detection in Mobile

Ad Hoc Networks. Guide to Wireless Ad Hoc

Networks, S. Misra, I. Woungang, S.C. Misra (Eds.),

Springer, p. 427-454.

A NOVEL INTRUSION DETECTION SYSTEM FOR MANETS

Sterne, D., Balasubramanyam, P., Carman, D., Wilson, B.,

Talpade, R., Ko, C., Balupari, R., Tseng, C-Y.,

Bowen, T., Levitt, K., Rowe, J., 2005. A General

Cooperative Intrusion Detection Architecture for

MANETs. Proceedings of the third IEEE International

Workshop on Information Assurance, pp. 57 – 70.

Nadkarni, K., Mishra, A., 2004. A Novel Intrusion

Detection Approach for Wireless Ad Hoc Networks.

IEEE Wireless Communications and Networking

Conference (WCNC. 2004), vol. 2, pp. 831 – 836.

Sun, B., Wu, K., Xiao, Y., Wang, R., 2007. Integration of

mobility and intrusion detection for wireless ad hoc

networks. International Journal of Communication

Systems, vol. 20, Issue 6, pp. 695 – 721.

Lovasz, L., 1996. Random walks on graphs: a survey.

Combinatorics: Paul Erdos is eighty (Keszthely,

Hungary, 1993), vol. 2, edited by D. Miklos et al.,

Bolyai Soc. Math. Stud. 2, J´ anos Bolyai Math. Soc.,

pp. 353–397.

Kogias, D., Oikonomou, K., Stavrakakis, I., 2008.

Replicated Random Walks for Service Advertising in

Unstructured Environments", to appear in the 7th IFIP

Annual Mediterranean Ad Hoc Networking Workshop

(Med-Hoc-Net), 23-27, Palma de Mallorca, Spain.

Daemen, J., Rijmen, V., 2002. The Design of Rijndael,

AES - The Advanced Encryption Standard. Springer

Verlag, pp. 238.

Miller, V., 1986. Uses of Elliptic Curves in

Cryptography,” Proceedings of Crypto ’85, LNCS

218, Springer-Verlag, pp. 417-426.

Li, S., Ephremides, A., 2009. Covert Channels in Ad-Hoc

Wireless Networks. Elsevier Ad Hoc Networks.

Tseng. C.-Y., et al., 2003. A speciﬁcation-based intrusion

detection system for AODV. In proceedings. of ACM

Workshop on Security of ad hoc and sensor networks.

Tseng, C. H., Song, T., Balasubramanyam, P., Ko, C.,

Levitt, K., 2005. A Specification-based Intrusion

Detection Model for OLSR. In proceedings of the 8th

International Symposium, RAID 2005, Recent

Advances in Intrusion M., El-Kassas, S., 2006.

Securing the AODV protocol using specification-

based intrusion detection. In proceedings of the 2nd

ACM international workshop on quality of service &

security for wireless and mobile networks,

Terromolinos, Spain.

Huang, Y., Lee, W., 2004. Attack analysis and detection

for ad hoc routing protocols. In proceedings of the 7th

International Symposium on Recent Advances in

Intrusion Detection (RAID’04).

Orset, J., Alcalde, B., Cavalli,A., 2005. An EFSM-based

intrusion detection system for ad hoc networks. In

proceedings of the 3rd international symposium on

Automated technology for verification and analysis,

(ATVA 2005),Taipei, Taiwan.

Potlapally, N. R., Ravi, S., Raghunathan, A., Jha, N. K.,

2006. A Study of the Energy Consumption

Characteristics of Cryptographic Algorithms and

Security Protocols. IEEE Transactions on Mobile

Computing, v.5 n.2, p.128-143.

SECRYPT 2010 - International Conference on Security and Cryptography
