ADAPTIVE FILE TRANSFER MIDDLEWARE FOR MOBILE

APPLICATIONS

Mario A. Gomez-Rodriguez, Victor J. Sosa-Sosa and Ivan Lopez-Arevalo

Laboratory of Information Technology (LTI), Cinvestav-Tamaulipas

Parque Científico y Tecnológico TECNOTAM - Km. 5.5 carretera Cd. Victoria-Soto La Marina

C.P. 87130. Cd. Victoria, Tamaulipas, Mexico

Keywords: Wi-Fi, GPRS, MMS, Mobile File Server.

Abstract: Current mobile devices such as mobile phones and PDAs are able to run applications that can demand a

considerable storage space. When these devices run out of local memory, they require backing up their files

in an external storage device, which could restrict the user mobility. This paper presents an Adaptive File

Transfer Middleware (AFTM) for mobile applications. This middleware eases the transfer of files between a

mobile device and an external storage server by accessing the best wireless connection (WiFi,

GPRS/UMTS) available, considering quality and cost of the service. AFTM is also able to use the

Multimedia Messaging Service (MMS) as another option for transferring files. A File Backup Service

(FBS) was built on top of the AFTM. The FBS will detect when the device ran out of local memory and will

automatically send selected files from the mobile device to an external storage server, freeing the mobile

storage memory. To decide which files should be backed up, FBS implements several file replacement

policies. Results showed that the selection of one replacement policy will be a trade-off between the

efficiency of the algorithm and the cost of the wireless service available when a file needs to be backed up.

1 INTRODUCTION

The cell phone is one of the most popular mobile

devices. It has constantly evolved since its invention.

It's common that current mobile devices have two or

more communication interfaces such as USB,

infrared, Bluetooth, GPRS and the IEEE 802.11,

popularly known as Wi-Fi. Wireless networks

improve the utility of portable computing devices,

enabling mobile user's versatile communication and

continuous access to services and resources of the

terrestrial networks. Mobile phones have also been

endowed with more computing power. Intelligent

mobile phones (a.k.a. smartphones) integrate the

functions of PDA (Personal Digital Assistant) in

conventional mobile phones. These technologic

developments allow current mobile phones to run

applications that generate a large number of files

and, as a consequence, require a greater storage

capacity. Unfortunately, the storage capacity on

these devices has not grown at the pace that mobile

applications require. Once a mobile device exceeds

its storage capacity, it is necessary to download its

files (such as text, images, music, videos, etc.) in an

external storage system (e.g., a computer), backing

up the information. This process usually limits the

mobility because users have to connect their mobile

devices to a fixed external storage using a cable

(e.g., USB), or through a short-range wireless

network such as Infrared or Bluetooth. These storage

limitations reduce the mobility and storage capacity

of users, particularly in situations when users are

travelling and they need more space, for instance, to

keep their pictures or videos and there is not

available a nearby external storage device. These

situations motivate the development of supporting

tools that allow files to be exchanged between

mobile devices and external storage systems in a

transparent way, taking into account LAN or WAN

wireless connectivity, cost of the service and

available storage. Since there are different mobile

devices that work with various computing platforms

or operating systems (e.g., Symbian, Blackberry,

Windows Mobile, Android, etc.), it is not feasible to

develop a proprietary tool for a specific platform,

because it would limit its usability. That is why the

design of a solution to this problem must include

A. Gomez-Rodriguez M., Sosa-Sosa V. and Lopez-Arevalo I. (2010).

ADAPTIVE FILE TRANSFER MIDDLEWARE FOR MOBILE APPLICATIONS .

In Proceedings of the International Conference on Data Communication Networking and Optical Communication Systems, pages 45-52

DOI: 10.5220/0002990100450052

 SciTePress

multiplatform considerations that allow better

coverage in different mobile devices.

The situations described above were our motivation

to build an Adaptive File Transfer Middlewar

(AFTM) that can be capable of running on different

operating systems and allow mobile applications to

send and receive files from an external storage

server, connected to Internet through different

wireless technologies, taking into account the cost

and quality of the service. The AFTM was tested by

developing a File Backup Service (FBS) for mobile

phones, which offers a service of swapping files

between the mobile device and an external storage

server in a transparent way. Users of this application

perceive a virtual storage space, which is higher than

the real memory space included in the mobile

device. FBS is similar to a file caching service,

reason why it integrates an efficient replacing policy

to optimize the file access time.

The rest of the paper is structured as follows.

Section II describes related work; some of the

systems described in Section II gave technical

support to the Adaptive File Transfer Middleware

(AFTM). Section III presents the AFTM

architecture, which is divided in three main parts:

Client-side application layer, Core connection layer

and Server-side application layer. In Section IV, a

mobile application named File Backup Service

(FBS) is presented. This application was developed

as a use case for testing the AFTM. Section V

includes final comments and mentions ongoing

work.

2 RELATED WORK

Mobile file systems like Coda (Satyanarayanan et al.,

1990)(Kistler et al., 1992)

, Odyssey (Satyanarayanan,

1996

), Bayou (Demers, 1994) and Xmiddle (Mascolo et

al., 2002

), worked with the data sharing-oriented

problem in distributed computing environments.

This problem could be directly related to the file

transfer problem in mobile phones. Although with

different focus, all of these systems try to maximise

the availability of the data using data replication,

each one differing in the way that they maintain

consistency in the replicas. Coda provides server

replications and disconnected operations; it allows

access of data during the disconnection period and

focuses on long-term disconnections, which more

often occurs in mobile computing environments.

Odyssey is the successor of Coda, which has been

improved introducing context-awareness and

application-dependent behaviors that allow the use

of these approaches in mobile computing settings.

The Bayou system is a platform to build

collaborative applications, its emphasis is on

supporting application-specific conflict detection

and resolution. It has been designed as a system to

support data sharing among mobile users and is

intended to run in mobile computing environments.

The system use a read-any/write-any replication

scheme, thus the replicated data are only weakly

consistent. Unlike previous systems, Bayou exploits

application knowledge for dependency checks and

merges procedures. (Lui et al, 1998) propose a

mobile file system, NFS/M, based on the NFS 2.0

and the Linux platform. It supports client-side data

caching in order to improve the system performance,

reducing the latency during weak connection

periods. (Atkin et al., 2006) propose other file

system that, like NFS/M, supports client-side

caching. Some applications like (

GSpaceMobile, 2009)

and (Emoze, 2009)

, enable the file transfer between

mobile devices and external storage servers.

However, these applications only consider a

proprietary storage server.

(Boulkenafed and Issarny, 2003) present a

middleware service that allows collaborative data

sharing among ad hoc groups that are dynamically

formed according to the connectivity achieved by

the ad hoc WLAN. These middleware enable to

share and manipulate common data in a

collaborative manner (e.g, working meet, network

gaming, etc.) without the need for any established

infrastructure. They implemented their middleware

service within a file system in order to evaluate it.

The result was a distributed file system for mobile

ad hoc data sharing. It is worth mentioning that the

performance measurements were done on a platform

of ten laptops, and they only use IEEE 802.11b

WLAN in ad hoc mode, unlike AFTM, which is able

to use Wi-Fi, GSM, GPRS or UMTS networks.

(Belimpasakis et al, 2008) propose a content sharing

middleware for mobile devices using different

protocols (UPnP, Atom and WebDAV), providing

interfaces for applications, in order to allow 3rd

party developers to create applications with sharing

capabilities. The middlewares mentioned above

make use of both Wi-Fi and GPRS wireless

networks. However, they consider neither

transferring files through a messaging system like

MMS nor the portability issue. We have decided to

develop AFTM using J2ME, offering portability.

DCNET 2010 - International Conference on Data Communication Networking

3 SERVICE ARCHITECTURE

In this section, the AFTM architecture is described

in more detail. The architecture is mainly divided in

three components or layers: Client-side application

layer, Core connection layer and server-side

application layer. Figure 1 depicts this architecture

whose components are presented in the following

sub-sections.

3.1 Client-side Application Layer

(API-ESS)

This layer deals with file transferring operations

(send/receive) required from mobile applications.

One main function is to make transparent the

selection of the available wireless connection (WiFi,

GPRS or UMTS) or messaging service (MMS)

provided by the lower layer (Core) to the mobile

application. The main component of the client-side

application layer is the External Storage Services

Module (API_ESS). This module offers a set of

wrappers for connections with different wireless

networks. It uses a connection selector that indicates

which wireless network will be used. When

connectivity is limited, the connection selector offers

the MMS services as the best option for file

transferring.

The API ESS includes both messaging services SMS

and MMS. Due to the limitations of SMS (about 150

bytes by message), MMS is the default option

chosen by the connection selector.

The API_ESS could include a configuration file that

indicates the priorities assigned to the wireless

connection services. The first in the list indicates the

cheapest service in terms of cost or bandwidth

consumption. The API_ESS functions are divided

into upper level functions and lower level functions.

The upper functions are typically used by mobile

applications, e.g., selectRoot( ), retr(file) and

stor(file). These functions send and receive files

from an external storage service making totally

transparent the type of wireless o messaging service

used. Lower level functions deal directly with

wireless connection and messaging wrappers.

Examples of these functions are:

autoDetectConnection(), getConnection() and

setConnection.

The current implementation of the API_ESS

includes the following wrappers:

• Wi-Fi/GPRS: It enables to send/request files via

the IEEE 802.11 and the GPRS protocols.

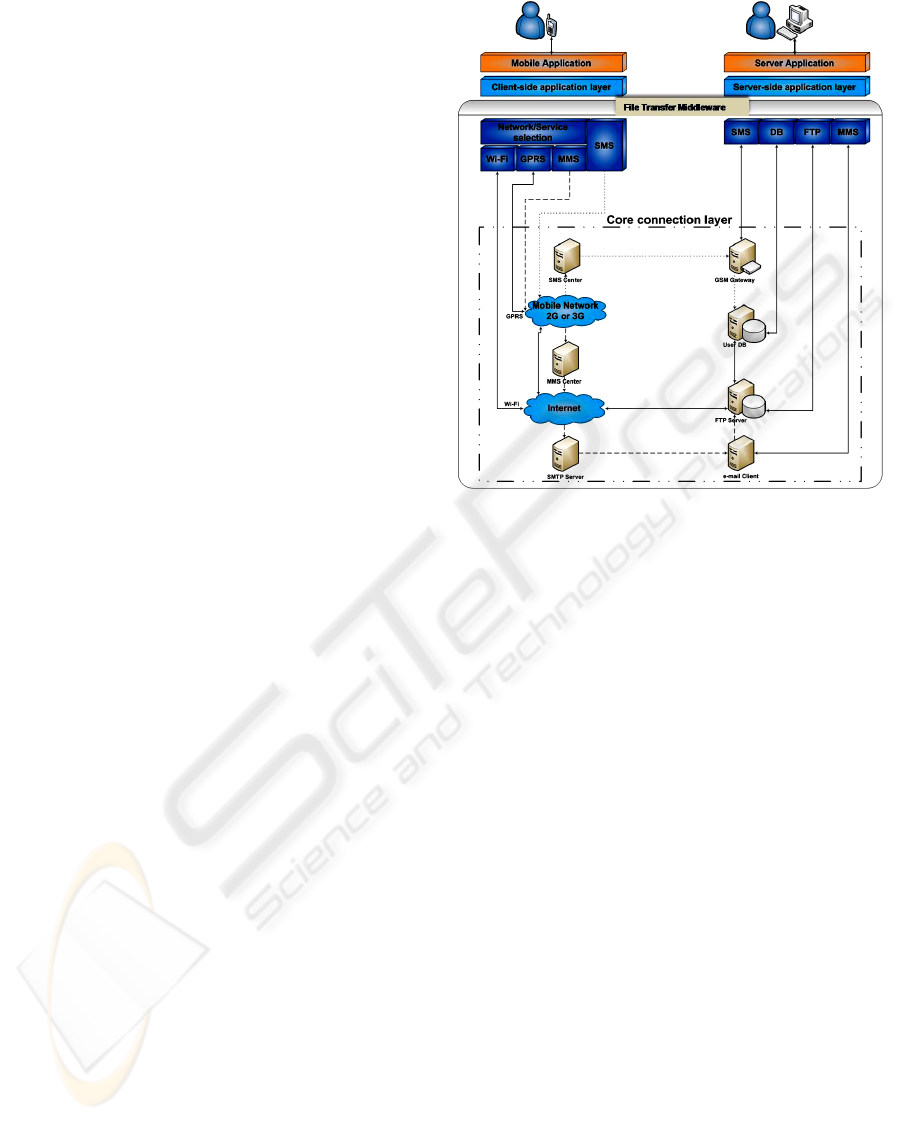

Figure 1: Layers of the File Transfer Middleware (AFTM)

for Mobile Phones with Limited Connectivity.

• MMS: It represents an alternative option for

sending and requesting files using the

Multimedia Messaging Service (MMS). MMS

has to be supported by a mobile phone carrier;

otherwise it will not be available. This wrapper

will commonly be used when the Wi-Fi and

GPRS (or UMTS) networks are not available.

• SMS-M: The purpose of this wrapper is to

provide mobile applications with one more

option for sending information to and/or

receiving from the external storage server in

future applications. The mobile application FBS

uses this wrapper for registering user accounts in

a web storage server that is supported by the

server-side layer of the AFTM.

3.2 Core Connection Layer

This part of the architecture represents the

communication services needed by our middleware.

It includes modules to deal with the most popular

wireless technologies and messaging services. A

brief description of these modules is as follows:

• Center (SMSC): The SMSC is responsible for

relaying messages between short message

entities (SMEs, elements that can send or receive

ADAPTIVE FILE TRANSFER MIDDLEWARE FOR MOBILE APPLICATIONS

text messages) and store and forward messages,

if the recipient SME is not available.

• MMS Center (MMSC): The MMSC is a key

element in the MMS architecture, and it is

composed of an MMS relay and an MMS server,

which are responsible both to store and manage

incoming and outgoing multimedia messages. It

also ensures interoperability with other

messaging systems (Bodick, 2005) by means of

different communication interfaces (e.g., MM3

interface).

• SMTP Server: It receives the files that have been

sent via multimedia messaging (MMS) to an

email account. The data travels across the

wireless network available (2.5G or 3G) and are

routed by the MMSC to the Internet, then get to

our SMTP server. This option is activated when

socket connections fail.

• GSM Gateway: It receives text messages (SMS)

that are sent by the client for complementary

services, e.g., to create an account.

• User DB: It is an optional database that could

contain information of subscribers registered by

mobile applications based on AFTM.

• FTP Server: It is the process responsible for

receiving and storing the files. In the FBS

application, users have to be registered before

obtaining a storage space in the external storage

server. Files managed by the FTP Server can

come from direct socket connected clients (using

a wireless connection) or e-mail clients (using a

MMS connection). This server is one of the key

parts of the architecture as it controls all the files

received in the external storage server.

• e-mail Client: This process is used by the server-

side layer when the original server-side MMS

receiver fails. In this situation, files that are sent

by clients using MMS are redirected to a mail

box defined in the server-side application layer.

The e-mail Client process is in charge of

obtaining these files from the indicated mail box

using the Post Office Protocol (POP3).

3.3 Server-side Application Layer

(API-ISS)

This layer gives developers an infrastructure

(API_ISS) for building a storage server that

considers mobile devices. API_ISS includes

modules for receiving and sending files through

different communication services such as WiFi,

GPRS, UMTS and the Multimedia Message Service

(MMS). Different types of servers can be

implemented using this API. The particular behavior

can be customized, for instance, by developing a

web storage service or a file sharing storage server.

The Internal Storage Service (ISS) module

represents the main module included in the

API_ISS.

The API_ISS is a module that offers a set of

methods, which will be used by server-side

applications. It contains functions for managing

connections and user accounts as well as functions

for receiving and transmitting data through different

wireless networks. It includes similar wrappers like

those located in the client side application layer. It

implements the FTP service, which packs all the

methods for transferring and receiving files going to

or coming from mobile devices. A file storage server

that is developed with the API_ISS could connect

with other distributed storage servers building a big

virtual disk. This distributed approach allows it to

increase its virtual available storage space by

integrating the storage space offered by other

external storage.

4 USE CASE

This section describes a use case for the Adaptive

File Transfer Middleware (AFTM). A mobile

application named FBS that uses our AFTM was

developed. The purpose of FBS is to send files from

a mobile phone to an external storage server when

the mobile phone runs out of memory. This process

is transparent for users that can always see the

complete list of files, even when some of them are

not physically kept in the memory of the mobile

phone. When a file is required by the user, FBS

requests the missing file from the storage server

using any wireless network available or the MMS

service, depending on the service priority defined in

the configuration file. Automatic swapping allows

mobile devices to free storage space in a transparent

way. A web storage server was also developed based

on AFTM. To use our web storage server, users have

to be registered before sending files. The registration

process can be done through a SMS message or by

filling in a web form. FBS and the AFTM were

developed using the J2ME platform. The

configuration, profile and basic libraries needed for

our development are: CLDC 1.1 (Connected Limited

Device Configuration 1.1.), MIDP2.0 (Mobile

Information Device Profile 2.0), WMAPI 2.0

(Wireless Messaging API 2.0), SATSA-Crypto (JSR

177) and PDA Profile (JSR 75).

Due to the fact that FBS works like a caching

system, a file replacement police was included in its

implementation. A benchmark based on metrics

DCNET 2010 - International Conference on Data Communication Networking

taken from different real mobile phones was also

created. The main metrics were: the average storage

space in a mobile phone, the average file size, and

the average data transfer rate in wireless LAN and

WAN networks such as WiFi y GPRS. Table 1

includes measures taken from different mobile

phones and PDAs such as: Nokia5530, 7020, N95

and HP iPAQ HW6945, Blackberry 8220.

Table1: Common measures in limited mobile phones and

PDAs.

MEASURE SIZE

MAX_MEM_SIZE 2GB

MAX_FILE_SIZE 15MB

MIN_FILE_SIZE 469KB

AVG_FILE_SIZE 1.3MB

A collection of more than 1000 files taken from

different mobile phones revealed an average file size

of 1.3MB. More of them were of music, photos and

videos. Transmitting files of 1.3MB from different

mobile phones to an external storage server

connected to Internet using WiFi revealed an

average time of 8.3s (about 1.3Mb/s). Using GPRS

for the same transmissions showed an average time

of 148s (about 73Kb/s).

These experiments gave us a realistic average

transmission time of wireless networks with

different traffic loads. The traffic coming from

Internet connections played an important role in

these measures. (Enriquez, 2009) made several

tests trying to find an optimal block size for

transmitting files between a mobile phone and a data

server (PC) using WiFi and GPRS networks,

considering different traffic hours. The optimal

block size obtained using WiFi was 4KB (Figure 2)

and for GPRS was 96B (Figure 3). However, the

GPRS transfer rate showed a high variability in

hours with high traffic, resulting in many

communications errors. Several block sizes were

tested with high traffic to observe the GPRS

behavior. GPRS showed less variability when a

block size of 64B was used, resulting in a better

behavior. This stable behavior motivated the use of a

block size of 64B in AFTM, instead of 96B found in

(Enriquez, 2009).

As we mentioned above, FBS is a mobile application

that works like a caching service, reason why it

includes a file replacement policy. The main task of

a replacement police is to decide which file will be

sent to the external storage server to free storage

space in the mobile phone memory.

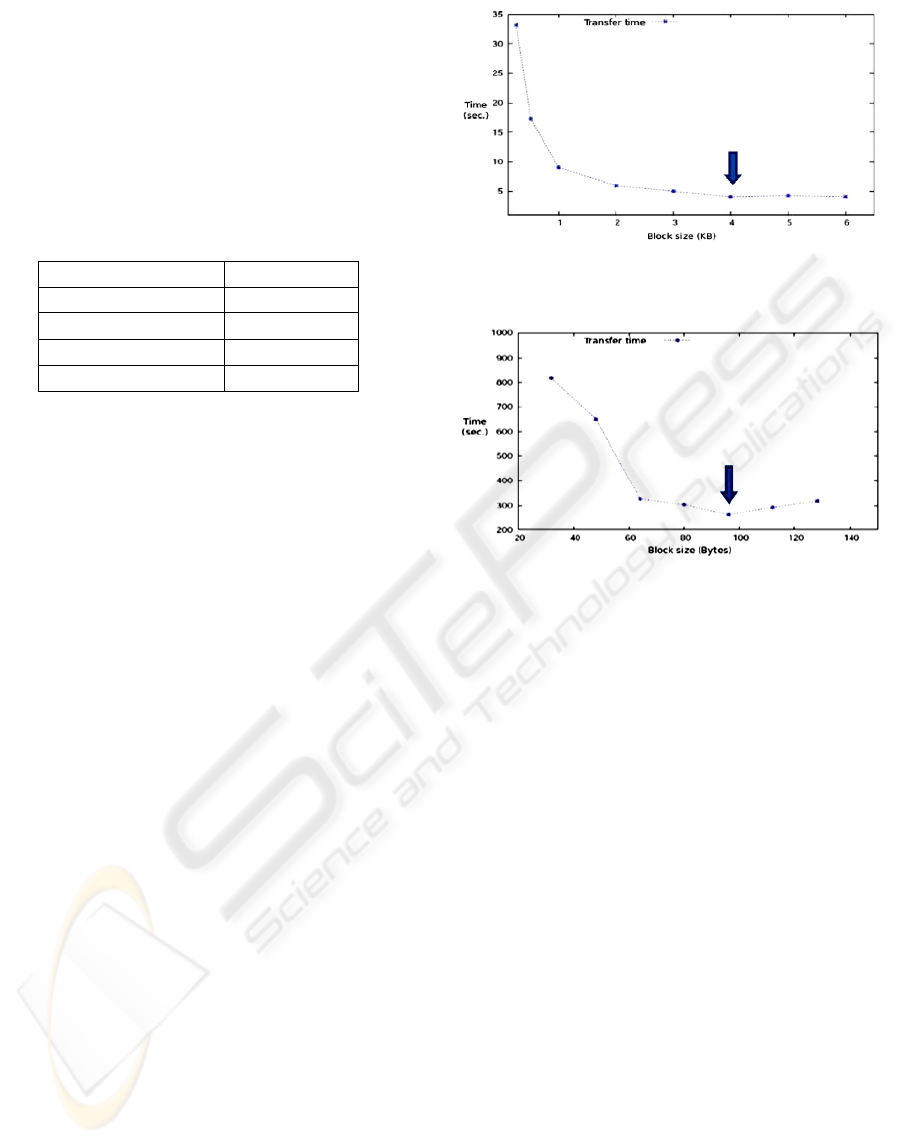

Figure 2: An optimal transmission block size in a WLAN

network.

Figure 3: An optimal transmission block size for a GPRS

network.

In order to find a good replacement policy for FBS,

four algorithms were tested. These algorithms were:

LRU (Least Recently Used), LFU (Least Frequently

Used), LFS (Largest File Size), and SFS (Smallest

File Size). As their names indicate, the LRU policy

will send the least recently used file to the external

storage server. LFU will send the least frequently

used file, LFS the largest file, and SFS the smallest

one. If there is more than one file as the largest or

the smallest, a LRU police is applied. A benchmark

that reproduces a sequence of send/receive

operations, using a group of 120 files with sizes

ranging from 512KB to 2.5MB was implemented.

Thirty one experiments were carried out with

different scenarios. Connections for sending and

receiving files were randomly changing between

GPRS and WiFi, emulating mobile users.

Figure 4 depicts the behavior of the average hit ratio

in FBS using each replacement policy (in 31

experiments). Figure 5 shows the average

transmission time.

As we can see, if FBS replaces files based on the

largest file size (LFS), it obtains the best hit ratio

(almost 8 of 10 files were in the mobile phone

memory when they were requested by the user).

ADAPTIVE FILE TRANSFER MIDDLEWARE FOR MOBILE APPLICATIONS

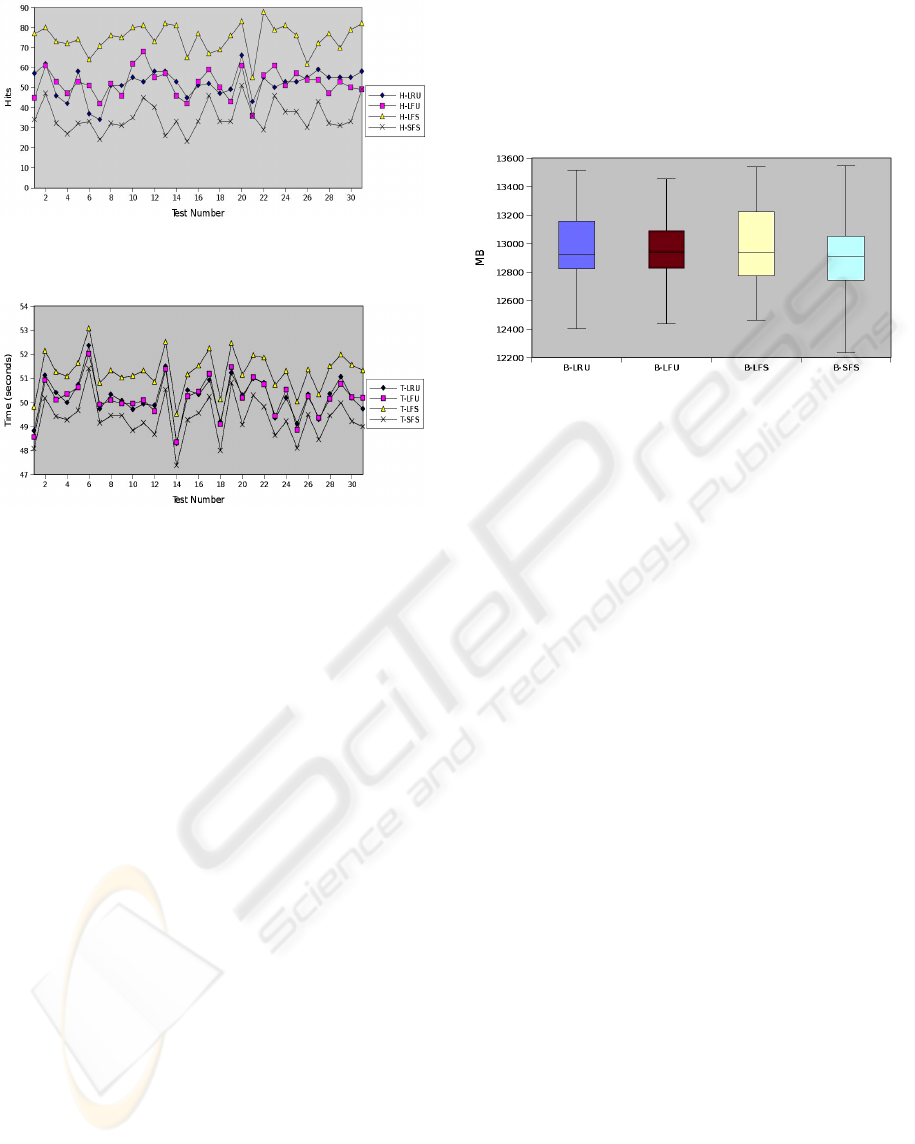

Figure 4: Average hit ratio obtained by FBS using

different replacement polices.

Figure 5: Average transmission time obtained by FBS

using diferrent replacement policies.

However, it also obtains the greatest average

transmission time, which could be a result of

transmitting large files using a GPRS connection at

the moment of a miss. These results give us some

insights to determine if we should prioritize between

the quantity of bytes transmitted and the total time

consumption using the network, especially in the

GPRS/GSM networks. In most of the cases the

wireless communication service is charged based on

bandwidth consumption. Figure 6 shows the total

bandwidth consumption after running all of the

algorithms. These experiments did not show a

correlation between the total bandwidth

consumption and the average transmission time.

Even though the LFU algorithm had low total

bandwidth consumption, it did not show low average

transmission time. It happened so because most of

the time that the mobile application had to

send/receive files (using the LRU algorithm)

coincided with a GPRS connection.

The evaluations using FBS gave us information for

deciding which algorithm could be implemented as

part of our Adaptive File Transfer Middleware

(AFTM), and to consider if it would be better to

include a fixed replacement policy or an adaptive

one, considering if the cost of the communication

service is based on time or bandwidth consumption.

In the current implementation of FBS, users are able

to define a cost-based priority list that best fits his or

her requirements. This priority list has to be included

in a configuration file. Information like depicted in

Figure 4, 5 and 6 can help to decide the order of

priorities based on the cost of the services in a

particular region.

Figure 6: Total bandwidth consumption obtained by FBS

using 4 different replacement policies.

Another important topic considered in FBS was

information privacy. This topic becomes an

important factor when transmitting files from a

mobile phone to an external and public storage

server. In cases where the storage server does not

offer a private place to keep the user information,

FBS can encrypt the files before sending them to the

server. In these cases, the external storage server

will keep only encrypted files, offering privacy to

the information. The encryption process is carried

out by using the Java Specification Request 177

(JSR 177, Satsa Crypto). FBS uses the Advanced

Encryption Standard (AES), which is a symmetric

key algorithm with a key and block size (it could

vary) of 128bits. Experiments for evaluating the

impact in the transferring time when using

encryption were conducted with FBS. The objective

was to find out the impact in terms of the cost of

extra bandwidth and transferring time needed when

encryption is applied. For this experiment, the use of

the MMS service as another option (included in

AFTM) to transfer files was tested. To execute this

experiment, our test bed had to be redesigned,

because the largest public MMS service provider in

Mexico has defined a maximum file size for each

MMS message of 100KB. FBS was tested using a

group of 100 files with sizes ranging from 80 to

100KB.

Table 2 shows how the encryption process increases

the average file transfer time until 3 times in some

cases. We can see how WiFi connections are the

most affected.

DCNET 2010 - International Conference on Data Communication Networking

Table2: Average file transfer time with and without

encryption using files with an average size of 90kb.

Average File

Transfer Time

(AFTT)

WiFi

GPRS

MMS

AFTT without

Encryption

0.07s

1.23s

32.56s

AFTT with

Encryption

0.21s

1.96s

86.12s

Impact Using

Encryption

3 times

1.59 times

2.64 times

This situation is more evident when small files are

transmitted. Since GPRS networks have a low

bandwidth and low transmission rates, the resulting

impact of the encryption process is lower. The

transmission times obtained from the MMS service

showed a high variability, because the public MMS

server provider in Mexico does not guarantee real

time transmissions.

5 FINAL COMMENTS

As mobile devices evolve, they require more storage

capacity to keep the large amount of files that new

mobile applications generate. This paper briefly

introduced an Adaptive File Transfer Middleware

(AFTM) for mobile applications. The middleware

allows mobile applications to store and request files

from an external storage server, taking advantage of

available wireless networks and considering issues

related to the cost of the service. As a use case, a

mobile application that transparently swaps files

between a mobile device and an external storage

server was developed, increasing storage space in

the former. In this application, different file

replacement policies were tested. An important

parameter that has to be considered when deciding

about a replacement policy is the cost of the service.

Results obtained in this work showed that it is not a

trivial decision to select a specific replacement

policy for a mobile device. Mobile devices do not

present a correlation between the bandwidth and

time consumption because they do not keep the

same wireless connection any time. Service costs are

usually defined by wireless WAN providers, and

could be based on bandwidth consumption or time

consumption, criteria that have to be included in the

replacement algorithms. FTS is also prepared for

transferring files using the Multimedia Messaging

Service (MMS), an additional option to be

considered for users when connections are limited.

Our experiments revealed that the time for

transferring encrypted files could rise the original

time in a factor of three. This increase is more

evident when small files are transmitted using

wireless network with high transmission rates.

ACKNOWLEDGEMENTS

This research was partially funded by project

number 51623 from Mix Funds of the National

Council for Science and Technology (CONACYT-

Mexico) and the Government of Tamaulipas State.

REFERENCES

Satyanarayanan, M., Kistler, J. J., Kumar, Okasaki, P., E.

H. Siegel,E. H., and Steere.D. C. (1990) Coda: a

highly available file system for a distributed

workstation environment. IEEE Transactions on

Computers 39(4):447-459.

Kistler J. J. and Satyanarayanan M.. (1992) Disconnected

operation in the Coda file system. ACM Transactions

on Computer Systems lO(1): 3-25.

Satyanarayanan, M. Mobile Information Access. (1996)

IEEE Personal Communications, 3(1):26–33.

Demers, A., Petersen, K., Spreitzer, M., Terry, D.,

Theimer, M., Welch, B. (1994) The bayou

architecture: Support for data sharing among mobile

users.

Mascolo, C., Capra, L., Zachariadis, S., Emmerich, W.:

Xmiddle. (2002) A data-sharing middleware for

mobile computing. Int. Journal on Personal and

Wireless Communications 21(1). 77-103.

Lui, J. C. S., So, O. K. Y., Tam, T. S. (1998) NFS/M: An

open platform mobile file system. In: ICDCS '98:

Proceedings of the The 18th International Conference

on Distributed Computing Systems, Washington, DC,

USA, IEEE Computer Society 488.

Atkin, B., Birman, K. P. (2006) Network-aware adaptation

techniques for mobile file systems. In: NCA '06:

Proceedings of the Fifth IEEE International

Symposium on Network Computing and Applications,

Washington, DC, USA, IEEE Computer Society. 181-

188.

GSpaceMobile: (2009) Available at: https://

www.ibomobi.com/home/.

Emoze™: (2009) Available at: http://www.emoze.com/.

Boulkenafed, M., Issarny, V. (2003) A middleware service

for mobile ad hoc data sharing, enhancing data

availability. In: Middleware '03: Proceedings of the

ACM/IFIP/USENIX 2003 International Conference on

Middleware, New York, NY, USA, Springer-Verlag

New York, Inc. 493-511.

Belimpasakis, P., Luoma, J. P., Börzsei, M. (2008)

Content sharing middleware for mobile devices. In:

ADAPTIVE FILE TRANSFER MIDDLEWARE FOR MOBILE APPLICATIONS

MOBILWARE '08: Proceedings of the 1st

international conference on MOBILe Wireless

MiddleWARE, Operating Systems, and Applications,

ICST, Brussels, Belgium, Belgium, ICST (Institute for

Computer Sciences, Social-Informatics and

Telecommunications Engineering). 1-8.

Bodic, G. L. (2005) Mobile Messaging Technologies and

Services SMS, EMS and MMS. Second edn.

Enríquez, J.A.V. (2009) A vertical handover platform for

applications on mobile devices. Master's thesis,

CINVESTAV. Available at:

http://www.tamps.cinvestav.mx/sites/default/

_les/tesis 1.zip

DCNET 2010 - International Conference on Data Communication Networking
