ULTRA HIGH SPEED SHA-256 HASHING CRYPTOGRAPHIC

MODULE FOR IPSEC HARDWARE/SOFTWARE CODESIGN

Harris Michail

1, 2, 3

, George Athanasiou

, Angeliki Kritikakou

,Costas Goutis

VLSI Laboratory, Departement of Electrical & Computer Engineering, University of Patras, Rio Campus, Patras, Greece

Departement of Computer Engineering and Informatics, University of Patras, Rio Campus, Patras, Greece

Departement of Mechanical Engineering, Technological and Educational Institute of Patras, Patras, Greece

Andreas Gregoriades, Vicky Papadopoulou

Departement of Computer Science and Engineering, European University of Cyprus, Nicosia, Cyprus

Keywords: Hash-Functions, Hardware design, VLSI, High-Throughput, IPSec, SHA-256

Abstract: Nowadays, more than ever, security is considered to be critical issue for all electronic transactions. This is

the reason why security services like those described in IPSec are mandatory to IPV6 which will be adopted

as the new IP standard the next years. Moreover the need for security services in every data packet that is

transmitted via IPv6, illustrates the need for designing security products able to achieve higher throughput

rates for the incorporated security schemes. In this paper such a design is presented which manages to

increase throughput of SHA-256 hash function enabling efficient software/hardware co-design.

1 INTRODUCTION

Security is now considered as a must-have service

for almost all kind of e-applications. This is the

reason why in IPv6, which is bound to be adopted

worldwide, IPSec (SP800-77, 2005) is a mandatory

protocol. IPSec (Internet Protocol Security) is a

protocol suite for securing Internet Protocol (IP)

communications by authenticating and encrypting

each IP packet of a data stream. IPSec can be used to

protect data flows between a pair of hosts (e.g.

computer users or servers), between a pair of

security gateways (e.g. routers or firewalls), or

between a security gateway and a host.

In IPSec and in other applications like keyed-

hash message authentication codes (HMACs) (FIPS

198-1, 2007) and the 802.16 standard for Local and

Metropolitan Area Networks incorporate

authenticating services, an authenticating module

that includes a hash function is nested in the

implementation of the application.

However, in these specific applications there is

an urgent need to increase their throughput,

especially of the corresponding server of these

applications and this is why, as time goes by, many

leading companies improve their implementations of

hash functions. Although software encryption is

becoming more prevalent today, hardware is the

embodiment of choice for military and many

commercial applications (Schneier, 1996). The

security scheme of these throughput-demanding

applications like HMAC in IPSEC and SSL\TLS

incorporate encryption and authenticating modules.

The latter mentioned facts were strong

motivation to propose a hardware design and

implementation applicable to SHA-256 (FIPS 180-2,

2002) hash function which will dominate in the near

future.

The above mentioned SHA-256 module is able

to be efficiently embedded in a design and mapping

of IPSec components in a reconfigurable platform.

This way, a platform aiming to boost performance of

IPSec with low cost will be created, in which only

the critical kernels/components of IPSec will be

mapped for execution on the (expensive)

reconfigurable logic. This way the proposed design

is ideal for IPSec software/hardware co-design

aiming to achieve high throughput data rates.

309

Michail H., Athanasiou G., Kritikakou A., Goutis C., Gregoriades A. and Papadopoulou V. (2010).

ULTRA HIGH SPEED SHA-256 HASHING CRYPTOGRAPHIC MODULE FOR IPSEC HARDWARE/SOFTWARE CODESIGN.

In Proceedings of the International Conference on Security and Cryptography, pages 309-313

DOI: 10.5220/0002991403090313

 SciTePress

2 PROPOSED DESIGN

The generic architecture of a hash function is shown

in Fig. 1. Due to the blocks’ logic variation from

round to round numerous implementations (Diez,

2002), (Sklavos, 2005 - Lee, 2006), are based on

four pipeline stages of single operation blocks. Also

from a heuristic survey (Sklavos, 2005) to hash

functions it is clear enough that the best compromise

is to apply four pipeline stages so as to quadruple

throughput and keep the hash core small as well.

This selection was made in the presented

optimization process as it is shown in Fig.1.

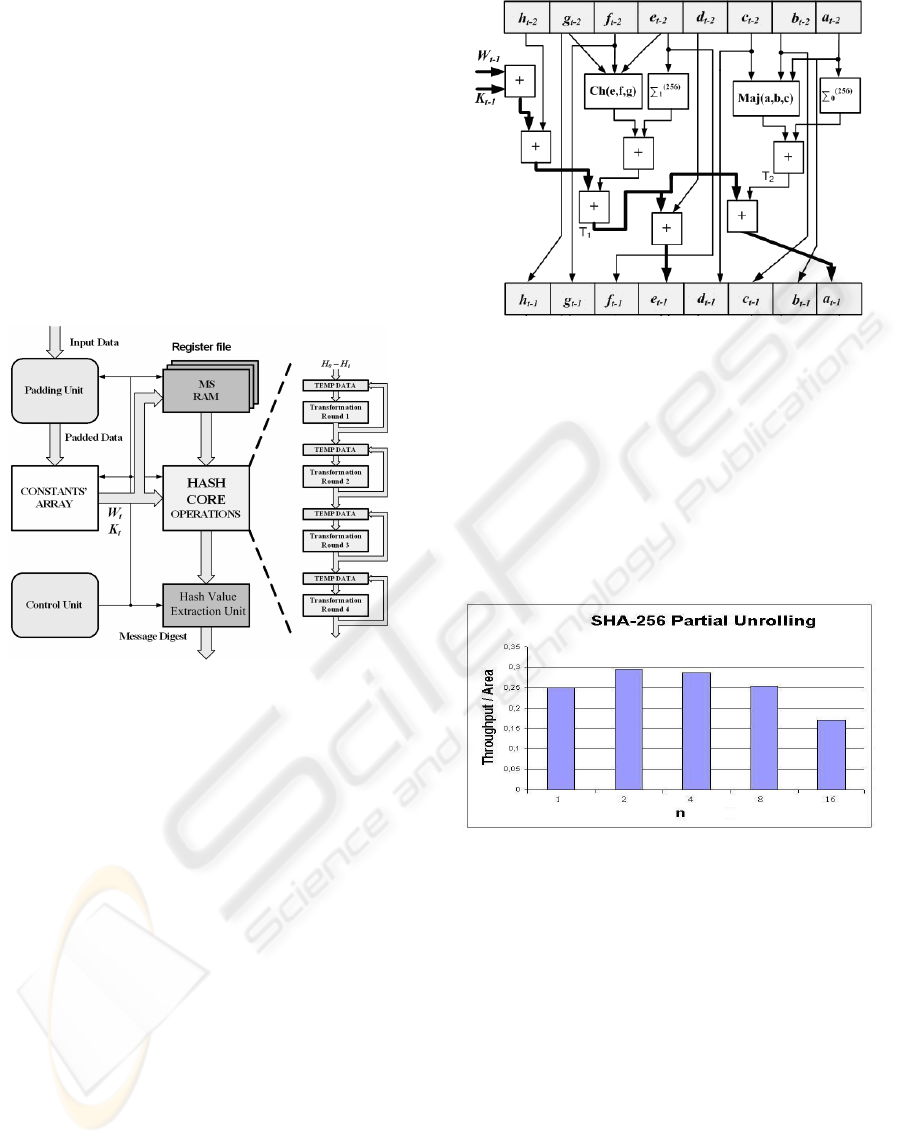

Figure 1: SHA-256 hash core architecture with 4 pipeline

stages.

Exploring the generic architecture of Fig. 1 it is

easily extracted that the critical path is located

between the pipeline stages. The other units, MS

RAM and the array of constants, do not contribute

due to their nature (memory and hardwired logic

respectively), while control unit is a block

containing very small counters which also don’t

contribute to the overall maximum delay. Thus,

optimization of the critical path should be solely

focused on the operation block.

The operation block of SHA-256 is shown in

Fig.2. The critical path (darker line) is located on the

computation of a

and e

values that requires four

addition stages and a multiplexer for feeding back

the output data.

At the first step of our optimization process, a

number of operations are partially unrolled. That

number is determined by a separate analysis on

SHA-256 hash function.

Figure 2: SHA-256 operation block.

This analysis compares variations of partially

unrolled operations, their corresponding throughput,

the required area and then calculating the proper

ratio (cost function). In Fig. 3, the results of a cost

function analysis for SHA-256 algorithm, performed

in Virtex-II FPGA family, are illustrated. As it is

shown, selecting to partially unroll two operations

results in the best achieved Throughput/Area ratio

(ratio > 2).

Figure 3: Effect of unrolling the operation blocks of SHA-

256.

In Fig. 4, the consecutive SHA-256 operation

blocks of Fig. 2, have been modified so as to exploit

parallel calculations. The gray marked areas on Fig.

4 indicate the parts of the proposed SHA-256

operation block that operate in parallel.

It is noticed that two single addition levels have

been introduced to the critical path that now consists

of six addition stages needed for the computation of

and e

values. Although, this reduces the

maximum operation frequency, the throughput is

increased significantly since the message digest is

now computed in only 32 clock cycles (instead of

64). The area requirements are increased since more

adders have been used in order to achieve the partial

unrolling.

SECRYPT 2010 - International Conference on Security and Cryptography

310

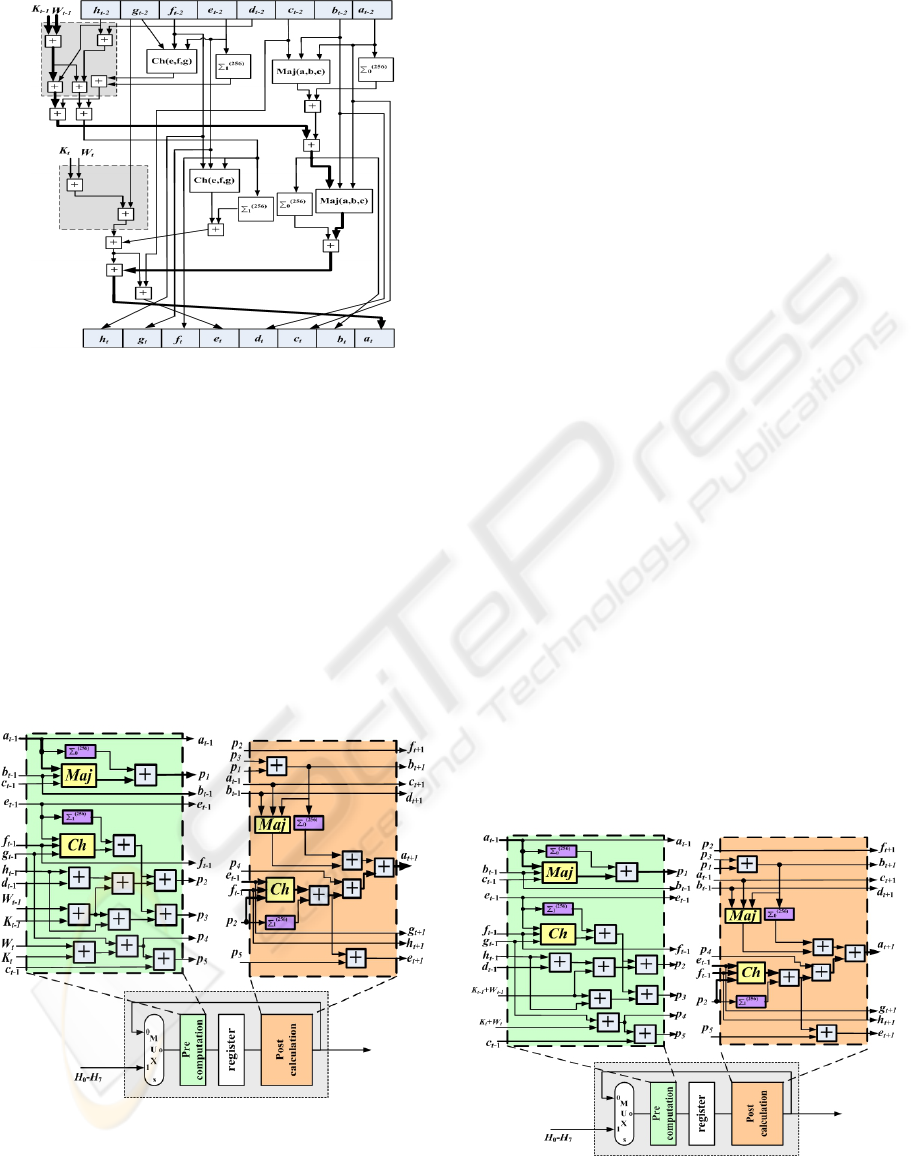

Figure 4: Two unrolled SHA-256 operation blocks.

The next step of the optimization process for our

design has to do with the spatial pre-computation

technique. Taking into consideration the fact that

some outputs are derived directly from some inputs

values respectively we can assume that it is possible

during one operation to pre-calculate some

intermediate values that will be used in the next

operation. These pre-calculations are related only

with those output values that derive directly from the

latter mentioned input values. This pre-computation

technique is applied on the partially unrolled

operation block in Fig. 4 and the new modified

operation block is shown in Fig. 5.

Figure 5: Partially unrolled operation block with pre-

computed values.

Observing Fig. 5 it is noticed that the critical

path is now located on the computation of the

peripheral value p

that is introduced in Fig. 5. The

critical path has been reduced from six addition

stages and a multiplexer to four addition stages, two

non-linear functions (noted as Maj and Ch in Fig. 5)

and a multiplexer. Comparing to the conventional

implementation of the single operation block shown

in Fig. 2, theoretically throughput has been in-

creased by 80%-90%.

This has been achieved by pre-calculating some

intermediate values and moving the pipeline

registers to an appropriate intermediate point to store

them. The new operation block now consists of two

units, the “Pre-Computation” unit which is

responsible for the pre-computation of the values

that are needed in the next operation and the “Post-

Computation” unit which is responsible for the final

computations of each operation.

The third step of our optimization process is a

technique for applying the system-level pre-

computation, so as to achieve data pre-fetching. It

was noticed that all W

values can be computed and

be available for adequate time before they are really

needed in each operation t since they are computed

through some XOR bitwise operations. Also the

values of the constants K

are known a priori. These

two facts give us the potential of pre-computing the

sum W

+ K

outside of the operation block. The sum

is then saved into a register that feeds the operation

block and thus the externally (regarding the

operational block) pre-computed sum W

+ K

available at the beginning of each t

operation. So at

the operational block, from now on it will be

assumed that this sum available at the beginning of

each operation and its computational time is

excluded from the critical path. The new operational

block is illustrated in Fig. 6.

Figure 6: Partially unrolled operation block with pre-

computed values for SHA-256 with pre-fetching of W+K

values.

ULTRA HIGH SPEED SHA-256 HASHING CRYPTOGRAPHIC MODULE FOR IPSEC HARDWARE/SOFTWARE

CODESIGN

311

Inspecting Fig. 6, we observe that the critical

path is located on the computation of the peripheral

value p

, and consists of four addition stages and

two non-linear functions. However we notice that at

the beginning of this path there is the value p

that is

pending to be added to a sum that at the same time is

being calculated.

So for this case, a CSA can be used in order to

add the three values in advance compared to the

necessary time in case we used two adders as in

Fig.6. The Carry Save Adder is applied on the “Post-

Computation” unit as it is depicted in Fig.7 where

we have also used a Carry Save Adder in the “Pre-

Computation” unit. This way the critical path inside

the operation block has been reduced to one

Addition stage, two Non-linear functions and two

Carry Save Adders that are required in order to

compute the value p

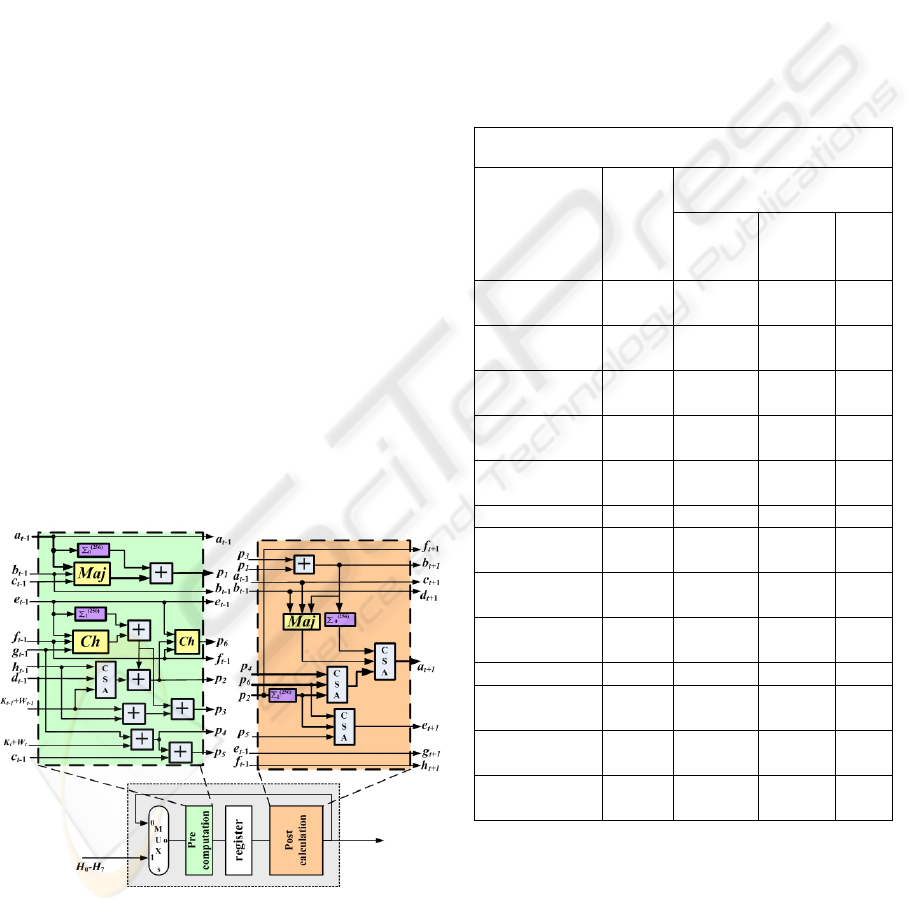

The final proposed operation block for SHA-256

is illustrated in Fig. 7. It processes two operations in

a single clock cycle, and the critical path is shorter

than that of the conventional implementation,

resulting in an increase of through-put of more than

110% (theoretical). The introduced area penalty is 3

adders, 4 Carry Save Adders, two 32-bit registers

and 2 non-linear functions. The introduced area

penalty is about 35% for the whole SHA-256 core

compared to the conventional pipelined

implementation. This corresponds to an area penalty

of about 9% for the whole security scheme. This

area penalty is worth paying for about 110%

increase of throughput.

Figure 7: Proposed SHA-256 operation block.

3 RESULTS AND COMPARISONS

In order to evaluate the proposed optimized design,

SHA-256 hash function was captured in VHDL and

was fully simulated and verified. The XILINX

FPGA technologies were selected as the targeted

technologies, synthesizing the designs for the Virtex

FPGA family. To exhibit the benefits of applying

our optimization process, SHA-256 hash function

was implemented following the steps of this

optimization process and is compared with other

existing implementations proposed either by

academia or industry.

Table 1: Performance Characteristics and comparisons.

SHA-256

Implementation

Op. Freq.

(MHz)

Throughput

(Mbps)

Post-

synthesis

Post

Place &

Route

Area

CLBs

(Ting et al,

2002)

88.0 87 - 1261

(Sklavos et al,

2007)

83 326 - 1060

(Chaves et al,

2006)

82 646 - 653

(Glabb et al,

2008)

77 308 - 1480

(Zeghid et al,

2007)

53 848 - 2530

Proposed

35.1 2210 2077 1534

(Chaves et al,

2006)

150 1184 - 797

(McEvoy et al,

2005)

133 1009 - 1373

(Zeghida et al,

2007)

81 1296 - 1938

Proposed

36.4 2330 2190 1655

(CAST Inc)

(Commercial IP)

96 - 756 945

(Helion Inc)

(Commercial IP)

- - 1900

1614

(LUTs)

(Cadence Inc) d

(Commercial IP)

133 - 971 asic

Virtex FPGA family

Virtex-E FPGA family

Virtex 4 FPGA family

The results from the latter implementations are

shown in Table 1, for a variety of FPGA families.

There are reported both post-synthesis and post-

place & route results. The reported operating

SECRYPT 2010 - International Conference on Security and Cryptography

312

frequencies for the proposed implementations are

related to the corresponding post-synthesis results

As it can be easily seen, the increase observed

for SHA-256, is about 110% gain in throughput and

30% area penalty compared to a non-optimized

implementation with four pipeline stages

(implemented in the same technology).

This way the improvement that arises from our

optimization process is confirmed and evaluated

fairly, verifying the theoretical analysis in the

previous section. Furthermore, comparing the

implementations of other researchers to our

implementations, it can be observed that all of them

fall short in throughput, in a range that varies from

0.75 – 26.4 times less than the proposed

implementation.

4 CONCLUSIONS

In this paper a design for SHA-256 was proposed,

which achieves high throughput with a small area

penalty, thus enabling efficient software/hardware

co-design. The optimization process used is generic

and can be exploited to a wide range of existing hash

functions that are currently used or will be deployed

in the future and call for high throughputs.

This optimization process led to a design with

significant increase of throughput (about 110% for

SHA-256), compared to corresponding conventional

designs and implementations, with a small area

penalty. The results derived from their

implementation in FPGA technologies confirm the

theoretical results of the proposed design and

implementation.

ACKNOWLEDGEMENTS

This work was supported by action “Young

Researchers from Abroad” which is funded by the

Cypriot state-Research Promotion Foundation

(RPF/IPE).

REFERENCES

Chaves, R. and Kuzmanov, G.K. and Sousa, L. A. and

Vassiliadis, S. (2006) “Improving SHA-2 Hardware

Implementations”, Workshop on Cryptographic

Hardware and Embedded Systems (CHES 2006), pp.

298-310.

Cadence, “Hashing Algorithm Generator SHA-256:

Technical Data Sheet”, Web page available at

http://www.cadence.com/datasheets/SHA256_Datashe

et.pdf.

CAST Inc., Web page, available at http://www.cast-

inc.com/cores.

FIPS 180-2, (2002) “Secure Hash Standard”, FIPS

Publication 180-1, NIST, US Dept of Commerce.

FIPS 198-1, “The Keyed-Hash Message Authentication

Code (HMAC)”, FIPS Publication 180-1, NIST, US

Dept of Commerce, 2007.

Glabb, R. And Imbertb, L. and Julliena, G. and

Tisserandb, A. and Charvillon, N.V. (2007) “Multi-

mode operator for SHA-2 hash functions”, Journal of

Systems Architecture, Elsevier Publishing, vol. 53, is.

2-3B, pp. 127–138.

Helion Technology Ltd, Data Security Products, Web

page, available at

http://www.heliontech.com/auth.htm.

Lien, R. And Grembowski, T. And Gaj, K. (2004) “A 1

Gbit/s Partially Unrolled Architecture of Hash

Functions SHA-1 and SHA-512”, in LNCS, vol. 2964,

pp. 324-338, Springer.

McEvoy, R.P. and Crowe, F.M. and Murphy, C.C. and

William, P. (2006) “Optimisation of the SHA-2

Family of Hash Functions on FPGAs”, Emerging

VLSI Technologies and Architectures (ISVLSI’06),

pp.317-322.

Schneier, B. (1996). “Applied Cryptography – Protocols,

Algorithms and Source Code in C” , Second Edition,

John Wiley and Sons.

Selimis, G. and Sklavos, N. and Koufopavlou, O. (2003)

“VLSI Implementation of the Keyed-Hash Message

Authentication Code for the Wireless Application

Protocol”, in ICECS'03, pp.24-27.

Sklavos, N. and Koufopavlou, O. (2005) “Implementation

of the SHA-2 Hash Family Standard Using FPGAs”,

Journal of Supercomputing, Kluwer Academic

Publishers, vol. 31, pp. 227-248.

SP800-77, “Guide to IPSec VPN’s”, NIST, US Dept of

Commerce, 2005.

Ting, K. K. and Yuen, S. C. L. and Lee, K.-H. and Leong, P. H.

W. (2002)“An FPGA based SHA-256 processor”, Lecture

Notes in Computer Science (LNCS), vol. 2438, pp. 577–585.

Springer.

Zeghid, M. and Bouallegue, B. and Bagagne, A.

Machhoot, M. and Tourki, R. (2007) “A

Reconfigurable Implementation of the new Hash

Algorithm”, Availability, Reliavility and Security,

(ARES 2007), pp.281-285.

Zeghid, M. and Bouallegue, B. and Machhoot, M. and

Bagagne, A. and Tourki, R. (2008) “Architectural

Design Features of a Programmable Hgh Throughput

Reconfigurable SHA-256 Processor”, Journal of

Information Assurance and Security, pp.147-158.

ULTRA HIGH SPEED SHA-256 HASHING CRYPTOGRAPHIC MODULE FOR IPSEC HARDWARE/SOFTWARE

CODESIGN

313
