DATA REUSE IN TWO-LEVEL HIERARCHICAL MOTION

ESTIMATION FOR HIGH RESOLUTION VIDEO CODING

Mariusz Jakubowski and Grzegorz Pastuszak

Institute of Radioelectronics, Warsaw University of Technology, ul. Nowowiejska 15/19, Warsaw, Poland

Keywords: Data Reuse, Memory Bandwidth, Motion Estimation, Video Coding.

Abstract: In hardware implementation of a video coding system memory access becomes a critical issue and the

motion estimation (ME) module is the one which consumes most of the data access. To meet the

requirements of HD specification, conventional data reuse schemes are not sufficient. In this paper, the

hierarchical approach to ME is combined with the Level C and D data reuse schemes. Proposed two-level

hierarchical ME algorithm reduces the external memory bandwidth by 77% and the on-chip memory size by

93% with reference to the Level C scheme, and computational complexity by over 99% with reference to

the one-level full search (OLFS), achieving the results close to OLFS.

1 INTRODUCTION

Motion estimation (ME) is a key element of standard

video coders such as H.26x, MPEG-1, MPEG-2, and

MPEG-4, which reduces temporal redundancies

existing in video sequences. The most popular

method, block-matching ME, relies on searching the

best matching position of a 16×16 pixels or smaller

block from a current frame within a predetermined

or adaptive search range (SR) in a reference frame.

In hardware implementations, the most popular ME

algorithm is full search (FS) which checks all the

positions within the search window. FS is regular

and easy to control but very expensive in terms of

computational load and memory transfer. Due to the

rapid advances in VLSI technology, computational

complexity requirements became less critical than

available memory bandwidth. To reduce the data

transfer from the external memory, four levels of

search area data reuse from A to D can be

distinguished (Tuan et al., 2001). Each of the levels

exploits overlapping of adjacent candidate blocks,

candidate block strips, search areas, and search area

strips, respectively. The Level C scheme is often

selected as offering substantial reduction of external

memory bandwidth (EMB) with a reasonable size of

the on-chip memory. Even with the Level C scheme

applied to HD720p video (1280×720, 30 fps) with

SR [-128, 128) and one reference frame, the required

memory bandwidth is reduced from 1.7 TB/s to 536

MB/s, which is still a large number.

To get further reduction of EMB and speed up

the ME process at the same time, two-level

hierarchical search (TLHS) algorithm is proposed.

Different types of the hierarchical search are quite

popular in hardware implementations of the ME

process (Mizosoe et al., 2007), (Chang et al., 2009).

Hierarchical search is based on the idea of searching

the best match on the coarse level of subsampled

search area (SA) and use it as the starting point for

the refinement on the finer level. Since the number

of points to check and the size of SA on each level

are highly reduced, both the computational

complexity and EMB are substantially lower than in

case of the one-level search. In the proposed

solution, it has been decided to use two-level search

scheme as the most beneficial from the data reuse

point of view. Due to large SRs used for ME in HD

sequences, the first-level search is performed on the

subsampled image with 4:1 ratio in both directions

and the second-level search at the full resolution

within a much smaller SR. The results of

experiments performed on several HD sequences

show that performance of the proposed solution is

close to achieved by one-level FS (OLFS) at the full-

resolution image with 77% of EMB reduction with

reference to Level C and over 99% reduction of

computational complexity with reference to OLFS.

The rest of the paper is organized as follows. In

Section II, possibilities of the memory bandwidth

reduction in FS ME algorithm are presented, and the

proposed TLHS scheme is introduced together with

the estimation of the EMB and computational

complexity reduction. In Section III, the results of

the experiments on a few HD720p sequences are

159

Jakubowski M. and Pastuszak G. (2010).

DATA REUSE IN TWO-LEVEL HIERARCHICAL MOTION ESTIMATION FOR HIGH RESOLUTION VIDEO CODING.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 159-162

DOI: 10.5220/0002991801590162

 SciTePress

presented. Section IV gives a conclusion.

2 DATA REUSE IN TWO-LEVEL

HIERARCHICAL MOTION

ESTIMATION

2.1 Data Reuse Schemes for Full

Search Motion Estimation

FS ME algorithm checks each candidate inside SA.

If the horizontal SR is [-p

, p

), the vertical SR [-p

), and the size of the block N×N, the number of

positions to check is 4p

×p

and the size of SA is

(2p

+ N – 1)×(2p

+ N – 1). Since the adjacent

candidate blocks inside SA and SAs of adjacent

current blocks are highly overlapped, it creates the

opportunity for effective data reuse and EMB

reduction at the expense of the on-chip memory size

increase.

In (Tuan et al., 2002), four levels of the data

reuse have been distinguished from Level A to D.

The higher the level, the larger EMB reduction,

however, the larger the size of the on-chip memory

at the same time. Level A reuses pixels of two

horizontally adjacent candidate blocks; Level B,

pixels of two vertically overlapped candidate block

strips; Level C, pixels of two horizontally

overlapped SAs of two adjacent current blocks; and

Level D, pixels of two vertically overlapped SA

strips. The most popular scheme of Level C is

presented in Fig. 1. With HD1080p video, 30 fps, N

= 16, and [-192, 192)× [-128, 128) SA, requirements

for the on-chip memory size and EMB are 101 kB

and 1.17 GB/s at Level C, and 574 kB and 60 MB/s

at Level D, assuming eight-bit-pixel precision. It is

clear that the implementation any of these data reuse

schemes might be too costly either for the sake of

EMB or the on-chip memory size, and further

reduction of these parameters is necessary.

2.2 Two-level Hierarchical Search ME

Algorithm

Hierarchical search is quite popular approach used in

many VLSI architectures to reduce the

computational complexity of ME. Usually, two or

three levels of hierarchy are used, and MV found on

the higher (coarse) level becomes the search center

for the next (finer) level. The size of a current block

is maintained fixed or increased on each level. When

size of a current block is kept constant on each level,

an initial MV is obtained from a relatively large area

which makes it less noise sensitive but often also

less accurate as a larger block on the coarse level

covers a few blocks on the finer level. Thus, in the

proposed solution, it has been decided to scale the

current block size according to subsampling of the

reference frame.

Regarding the number of search levels, two

levels of hierarchy are most beneficial from the data

reuse point of view, since only on the first level SAs

of adjacent blocks are overlapped. In general, SAs

on the fine level are disjointed and have to be

fetched from memory separately for each current

block. Thus, any additional level of hierarchy

increases EMB.

To create the coarse-level image, two approaches

have been considered: subsampling with 4:1 factor

in each direction, and low-pass filtering by simple

averaging. Subsampling is accomplished by the

selection of one pixel from each 16×16 block of a

reference frame and does not required any extra

computation or memory, however, the presence of

noise might deteriorate an initial MV estimation. On

the other hand, averaging of a 16×16 block requires

15 additions and one division by 16 (which can be

easily accomplished by shifting) and the averaged

image must be prepared in advance and stored in an

external memory. With the noise reduction, a more

accurate estimation of an initial MV might be

expected.

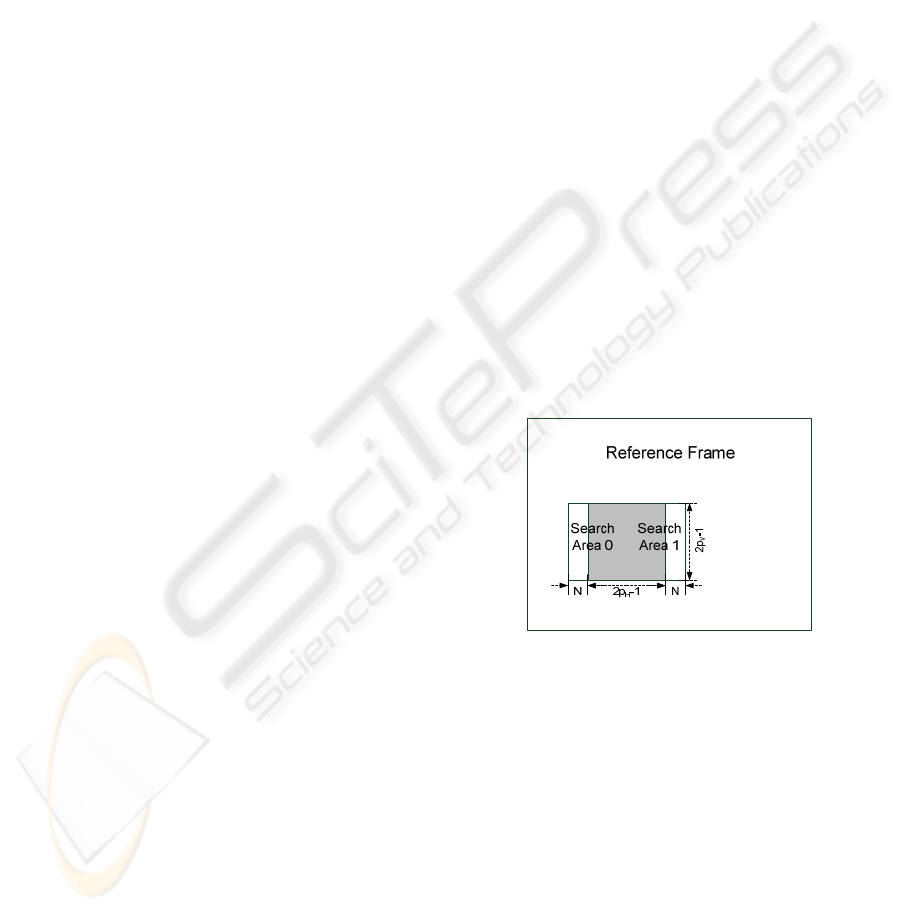

Figure 1: Level C data reuse scheme for FS algorithm.

Overlapped and reused area is grey coloured.

On the first search level of hierarchy, FS ME is

performed on a subsampled or averaged SA. On the

next level, the refinement of an initial MV found on

the previous stage is performed on the full-resolution

SA but much smaller than an initial one. The initial

experiments with five CIF sequences (Container,

Football, Foreman, Mobile, News), 150 frames each

and H.264/AVC JM12.0 reference software with SR

+/-32, quantization parameter QP = 25, one

reference frame, variable block size, and quarter-

pixel ME, allowed to determine that the refinement

range +/-8 is sufficient to achieve the performance

close to OLFS both for low- and high-motion

activity sequences. The averaged SA gives better

SIGMAP 2010 - International Conference on Signal Processing and Multimedia Applications

160

Table 1: EMB and on-chip memory (OCM) size with Level C and D data reuse scheme for OLFS and TLHS.

Format

Level C - OLFS Level D - OLFS Level C - TLHS Level D - TLHS

EMB

[MB/s]

OCM

[kB]

EMB

[MB/s]

OCM

[kB]

EMB

[MB/s]

OCM

[kB]

EMB

[MB/s]

OCM

[kB]

W = 1280, H = 720 FPS =

30, N = 16 p

128, p

= 128 p

= 8, p

= 8

536 67 26 382 122 5 101 25

W = 1920, H = 1080 FPS =

30, N = 16 p

192, p

= 128 p

= 8, p

= 8

1205 101 59 574 297 8 226 36

results especially for complex-texture sequences

such as Mobile, where the noise influence is

particularly harmful for ME efficiency.

2.3 EMB and Computation Complexity

Reduction

Since block size, SR and frame size are reduced by

the factor of 4 in each direction, the proposed

solution offers 16 times reduction of the on-chip

memory and from 16 up to 64 times reduction of the

memory bandwidth with reference to OLFS.

However, some additional on-chip memory and

transfer are necessary for the second-level search. In

particular, (2p

+ N – 1)× (2p

+ N – 1) pixels

must be transferred and stored for each current

block, where p

and p

is the refinement range in

horizontal and vertical direction, respectively. In

Table 1, the values of EMB and on-chip memory

(OCM) size for Level C and D with OLFS and

TLHS have been compared for HD720p and

HD1080p sequences, assuming eight-bit-pixel

precision and one reference frame. For the Level C

scheme with TLHS, EMB is reduced over 4 times

and OCM size about 13 times with reference to

OLFS. In case of the Level D scheme with TLHS,

EMB has been increased almost 4 times but OCM

size reduced over 15 times with reference to OLFS,

which makes it reasonable to exploit this level in an

actual VLSI implementation. If necessary, further

EMB reduction can be obtained with smaller

refinement SR at the expense of coding efficiency.

Regarding the computational complexity

reduction, on the coarse level, 16 times less

positions have to be checked in comparison with

OLFS. Additionally, since size of a block is reduced

16 times, instead of 767 operations for sum of

absolute differences (SAD) calculation, only 47

operations per single search point are necessary. If

averaged SA is used, 15 additions and one division

per pixel of the reference image are necessary but

amount of these operations per reference frame is

negligible in comparison with the rest of

computation.

On the fine level, if FS is used as the search

method, 4p

×p

positions have to be checked. To

get further reduction of the computational

complexity on the fine level, instead FS, three-step

search (TSS) algorithm can be considered as

combining regularity with a reasonable performance.

Number of search points required for TSS equals to

1 + 8log

. When variable block size and sub-pel

ME are used, additional operations for composing

SADs for larger blocks and generating fractional-pel

positions are necessary but they are not taken into

account in this analysis.

Table 2: OLFS and TLHS computational load comparison.

Computational load

[GOPS]

Format

OLFS TLHS

FS on the

fine level

TSS on the

fine level

W = 1280, H = 720 FPS =

30, N = 16 p

128, p

= 128 p

= 8, p

= 8

5056 42 23

W = 1920, H = 1080 FPS

= 30, N = 16 p

= 192, p

= 128 p

= 8,

= 8

17064 118 75

In Table 2, the computational load required for

OLFS and THLS with FS and TSS algorithm on the

fine level is presented. Obtained reduction of the

computational load is about 99.2% and 99.55%

when FS and TSS are used on the fine level,

respectively. In the next section results of

experiments with HD sequences show the impact of

the proposed solution on the coding efficiency.

3 EXPERIMENTAL RESULTS

In the experiments, OLFS is compared with TLHS

DATA REUSE IN TWO-LEVEL HIERARCHICAL MOTION ESTIMATION FOR HIGH RESOLUTION VIDEO

CODING

161

Table 3: OLFS and TLHS performance comparison.

Algorithm

Sequence

OLFS

TLHS

Subsampled search area Averaged search area

FS on the fine level TSS on the fine level FS on the fine level TSS on the fine level

[kb/s]

PSNR

[dB]

[kb/s]

PSNR

[dB]

[kb/s]

PSNR

[dB]

[kb/s]

PSNR

[dB]

[kb/s]

PSNR

[dB]

MobCal 26390.27 37.647 26434.04 37.531 26714.09 37.460 26297.71 37.648 26378.39 37.635

ParkRun 65270.77 37.574 66190.96 37.579 66435.46 37.581 65229.15 37.575 65230.43 37.574

Shields 21041.15 37.781 21156.13 36.794 25173.03 36.612 20924.13 37.071 23692.43 36.843

Stockholm 27522.66 37.628 27531.78 37.617 27708.55 37.614 27541.68 37.630 27655.61 37.633

using both subampled and averaged SA on the

coarse level and FS and TSS ME algorithm on the

fine level. Four HD720p sequences were used, 150

frames each: MobCal, ParkRun, Shields, and

Stockholm. SR was set at 128 both in horizontal and

vertical direction, QP was set at 25, the GOP

structure was IPPP and one reference frame was

used with the variable block size and sub-pel ME

turned on. On the fine level, SR value was set at 8.

Obtained bitrate and PSNR values for each

algorithm are presented in Table 3.

In most cases, TLHS performance is close to

OLFS. In particular, when averaged SA and FS on

the fine level are used, the bitrate is even lower than

obtained with OLFS. It may be explained by the fact

that low-pass filtered image is more suitable for true

motion detection and MV found during the integer-

pel ME gives a better starting point for the sub-pel

ME. In general, averaged SA gives better results

both with FS and TSS on the fine level. The only

sequence for which the TLHS performs visibly

worse than OLFS is Shields. With the aveaged SA

and FS used on the fine level the difference in PSNR

equals to 0.71 dB with a slightly lower bitrate, but

for the rest of settings, the difference in PSNR

exceeds 1 dB and the bitrate might be even 20%

higher than in case of OLFS. In this sequence,

camera pans slowly across a wall of colourful

shields. Due to plenty of fine details in this

sequence, when over 90% of pixels are removed

from an image by subsampling, an initial MV

estimation might be inaccurate. The increase of the

fine-level SA seems not to be the solution, since the

refinement range equals to 40 is required to reduce

the difference below 0.4 dB. Still, considering the

huge EMB and computational load reduction, this

deterioration of quality can be accepted. For the rest

of the sequences, the difference in PSNR is 0.2 dB at

most and less than 2% in bitrate.

4 CONCLUSIONS

Presented two-level hierarchical search ME

algorithm combined with conventional data reuse

schemes reduces EMB up to 77% and the

computational load over 99% with reference to

OLFS. The first-level search is performed on the

subsampled image while search on the fine level - on

the full-resolution image within a much smaller SR.

Results of the experiments performed on a few HD

sequences show that TLHS performance, in most

cases, is almost the same as OLFS.

ACKNOWLEDGEMENTS

The work presented was developed within the Polish

government’s Innovative Economy Operational

Programme 2007-2013.

REFERENCES

Tuan, J. C., Chang, T. S., Jen, C. W., 2002. On the data

reuse and memory bandwidth analysis for full-search

block-matching VLSI architecture. IEEE Trans.

Circuits Syst. Video Technol., vol.12, no.1, pp.61-72.

Mizosoe, H., Yoshida, D., Nakamura, T., 2007. A Single

Chip H.264/AVC HDTV Encoder/Decoder/Transco

der System LSI. " IEEE Trans. Consumer Electronics,

vol.53, no.2, pp.630-635.

Chang, H. C. , Chen, J. W. , Wu, B. T., Su, C. L., Wang, J.

S., Guo, J. I., 2009. A Dynamic Quality-Adjustable

H.264 Video Encoder for Power-Aware Video

Applications. IEEE Trans. Circuits Syst. Video

Technol., vol.19, no.12, pp.1739-1754.

Koga, T., Iinuma, K., Hirano, A., Iijima, Y., and Ishiguro,

T., 1981. Motion Compensated Interframe Coding for

Video Conferencing. In Proc. Nat. Telecom. Conf., pp.

C9.6.1–C9.6.5.

SIGMAP 2010 - International Conference on Signal Processing and Multimedia Applications

162
