SECURE BRIDGING IN LARGE SCALE DEPLOYMENT

OF ETHERNET

Khan Ferdous Wahid

Department of ICT, Universitat Pompeu Fabra, Barcelona, Spain

Javier Rubio-Loyola

CINVESTAV Tamaulipas, Mexico City, Mexico

Keywords:

Layer-2 security, Link security, Secure communication, Secure channel, ID-based security.

Abstract:

Considering the dominance of Ethernet with upcoming 100 Gbps line rate, service providers want to reduce

their transport networks to simpler Layer-2 networks. Since existing Ethernet security mechanisms protect

links in hop-by-hop basis, they cannot control access for disloyal authorized users in virtual or logical shared

media infrastructure LANs. Also they leave data in clear inside intermediate systems, which increase threats

when these systems are placed in public places. To address these critical security issues, we propose an authen-

ticated on-demand secure bridging solution that can provide a point-to-point secure channel between Ingress

and Egress Bridges across Bridged Ethernet network. To build such secure channel, we use Identity-based

authenticated key agreement and signature protocol. Experimental results using our prototype software on a

small multi-segment Ethernet network suggest that our solution is feasible, and guarantees secure bridging.

1 INTRODUCTION

The need for broadband networks and high transfer

rate is rapidly increasing with progressive deploy-

ment of new technologies. Communication between

Servers in Data Centers and usage of multimedia ap-

plications (voice, video etc.) by end users are the driv-

ing force behind the growth. Also companies have

to share large scale information as fast as possible

without any disruption. Service providers must adopt

these demands in a cost effective manner. Ethernet

is considered as a promising solution for the trans-

port protocol because of its simplicity, high capacity,

easy management, easy deployment and cost effec-

tiveness. So Ethernet has evolved towards Metropoli-

tan Area Network (MAN) although it was originally

designed for Local Area Network (LAN), and un-

protected components of the LAN are leaving secure

premises. Hence Layer-2 (Data Link Layer) security

is a rising concern in Computer Networks.

Uncontrolled access to LAN transmission and

source unauthentication can help a station to mas-

querade the sender and to use unauthorized resources.

Also non-recipient stations can get data in promiscu-

ous mode and can change without an acknowledge-

ment. Moreover, ﬂat nature of Layer-2 address format

validates any standard Media Access Control (MAC)

address on a LAN, so intrusion becomes a tradition.

The network community has faced many well known

attacks on Layer-2 over the last several years. We are

not describing any of these threats, because they have

enjoyed rigorous analysis by community including

manufacturers (Altunbasak, Krasser, Owen, Grim-

minger, Huth and Sokol, 2005; Vyncke and Paggen,

2007) and many of them only exist in unsecured net-

works, but our main target is to address the existing

gaps in current security mechanisms. Also recently

published surveys (Furnell, 2004; Bhandari, Grewal

and Jha, 2006; Kolodgy, Pintal and Burke, 2008) de-

pict the rise of insider attacks in organizations. Thus,

one could certainly imagine the risks in the large scale

deployment of Ethernet. Furthermore, no Layer-2 se-

curity approach requires a change in the upper layer

business applications and this transparent behavior is

a dominant factor to its growth.

The IEEE 802 LAN/MAN Standards Committee

provided the Media Access Control Security (MAC-

sec) (IEEE802.1AE, 2006) to encrypt and decrypt

frames, whereas the key agreement scheme is pro-

vided by Port-based Network Access Control (IEEE

251

Ferdous Wahid K. and Rubio-Loyola J. (2010).

SECURE BRIDGING IN LARGE SCALE DEPLOYMENT OF ETHERNET.

In Proceedings of the International Conference on Security and Cryptography, pages 251-260

DOI: 10.5220/0002992202510260

 SciTePress

P802.1X-2010, 2009). Besides, Secure Device Iden-

tity (IEEE P802.1AR, 2009) cryptographically binds

an identity to a device. So the device should identify

itself to a central authority before it can enable op-

eration to get access in the network. These security

mechanisms mainly control the unauthorized access,

but authorized users have full power inside their se-

cure domain, which facilitates disloyal users to abuse

services. How they can abuse is described in detail at

the next section. These mechanisms secure each link

(physical and virtual) separately, which leaves data in

plain text format inside the intermediate systems (e.g.,

Bridges). Thus, physical access to these systems pro-

vides full wiretapping facility.

Here, we present an Identity-based (ID) authenti-

cated on-demand secure bridging mechanism which

provides a point-to-point secure channel between

Ingress Bridges (IB) and Egress Bridges (EB) over

multiple links in Bridged Ethernet network. Our

proposal aims to address the unsecured zones inside

Bridges, thus limits the nature and extent of attacks.

Our system uses several well-known security pro-

tocols (Yuan and Li, 2005; Hess, 2003; FIPS-197,

2001), which are comprehensively described in Sec-

tion 3. The point-to-point nature of our solution pro-

vides full conﬁdentiality between participating en-

tities, and our multi-link secure channel eliminates

unsecured zones. Co-operating with existing stan-

dard mechanisms and providing minimal infrastruc-

ture change while securing the existing gaps make the

design and implementation of our solution a challeng-

ing problem. We clearly elaborate our implementa-

tion on a small multi-link Ethernet network in fourth

section, also we clarify security, efﬁciency and limi-

tation of our system. Then we describe related work

in Section 5. Lastly, we conclude our paper in Section

2 BACKGROUND

Here, we provide brief descriptions of existing Layer-

2 security mechanisms and elaborate on the limita-

tions that we have mentioned in previous section.

2.1 MACsec and Port-based Network

Access Control

The Media Access Control Security (MACsec)

mainly describes encoding mechanisms of the se-

cure frame, incorporation of the secure entity in sys-

tems and operations of the supported secure services

(IEEE802.1AE, 2006). On the other hand, Port-based

Network Access Control provides the authentication,

secure association and key agreement features. To-

gether they provide the complete operations to se-

cure a link. So each device incorporates MACsec and

Port-based Network Access Control feature and sup-

port either group or point-to-point security on a seg-

ment. Group security requires the capability of vir-

tual ports creation inside each port, which is recom-

mended only in the Bridge ports for easy management

of the Bridged network.

The Extensible Authentication Protocol over LAN

(EAPOL) helps the Supplicant (end-station) to get

the authentication through Authenticator (Bridge),

whereas the communication between the Authentica-

tor and Authentication Server (AS) is done through

the Authentication, Authorization and Accounting

(AAA) protocol, typically RADIUS. On successful

authentication, AS sends a master key which is used

to generate a secure connectivity association between

Supplicant and Authenticator. Then the Authentica-

tor sends the randomly generated Secure Association

Key (SAK) to the supplicant over that connectivity

association. When the group security is needed, the

bridge creates individual connectivity association to

each member of a shared medium to individually send

the same SAK. Finally, MACsec encrypts the user

data using the SAK and attaches a MACsec security

tag (SecTAG) in front of the secure data. This Sec-

TAG includes necessary information for the recipi-

ent, like MACsec EtherType, version number, secure

data length, packet number (provides replay protec-

tion) etc. The whole frame, from the destination MAC

address (DA) to the end of secure data, is then in-

tegrity protected using Integrity Check Value (ICV),

which is added after the secure data. The Advanced

Encryption Standard (AES) is used both in the data

encryption and the ICV creation.

2.2 Secure Device Identity

According to (IEEE P802.1AR, 2009), every net-

work interface should be manufactured with a se-

cure Device Identiﬁer (DevID) module that contains

Management interface, Service interface, Asymmet-

ric cryptography (RSA/ECC), Random Number Gen-

erator (RNG), Hash Algorithm (SHA-256) and Stor-

age components. The Storage component stores all

cryptographic keys and certiﬁcate credentials includ-

ing the credential chain up to root credential (manu-

facturer’s root certiﬁcate credential). The DevID se-

cret installed by manufacturer are called Initial Secure

Device Identiﬁer (IDevID).

When a user starts his device, it automatically au-

thenticates itself to the manufacturer’s Certiﬁcate Au-

thority (CA) and stores certiﬁed credentials in Stor-

SECRYPT 2010 - International Conference on Security and Cryptography

252

age component. The Locally-signiﬁcant Secure De-

vice Identiﬁer (LDevID) is generated by DevID mod-

ule on Network Administrator’s request and a Cer-

tiﬁcate Signing Request (CSR) is issued to the Local

CA. When Local CA replies with the signed certiﬁ-

cate credentials, the DevID module stores it in stor-

age component. The LDevID (cryptographically bind

to IDevID) is used as device identiﬁer in the LAN. If

there is no LDevID, the IDevID works as device iden-

tiﬁer although it is not recommended to use directly.

2.3 Limitation of Current Security

Mechanisms

The hop-by-hop security forces the ingress port of

a Bridge to decrypt frames before it relays them to

egress port. Hence packet remains in clear inside ev-

ery Bridge on the communication path. In large Ether-

net network, there would be huge numbers of Bridges

in public places, where physical access to these sys-

tems are easy enough to get disclosed information.

Analysis of the attacks in physical shared media is

not necessary, because the use of physical shared me-

dia has declined over the years (IEEE P802.1X-2010,

2009), but virtual shared media supported in provider

Bridged network can introduce similar threats as the

physical shared media. When customers want to

connect two or more geographically dispersed sites,

they usually use Customer VLAN (C-VLAN) aware

Bridge at the edge of each site where the service

provider is connected, whereas Service Provider uses

Service VLAN (S-VLAN) aware Bridges. If the Cus-

tomer does not trust the Service Provider, normal

MACsec cannot guarantee secure communication be-

tween two sites over the provider network, because

the provider has access to every Bridge inside the

Bridged Ethernet network where data are in clear in-

side each Bridge. To protect this, (IEEE802.1AE,

2006) provides two MACsec at each edge port of the

C-VLAN Bridges. But this special solution requires

double encapsulation and decapsulation, whereas nor-

mal Bridges do not support this feature. More than

two sites may require group Security and it is not

possible to maintain a point-to-point security between

two group members, hence private communication is

impossible in group mode, and this limitation may

hinder secure communication between two similar

departments on two sites. This situation becomes

more critical if one site belongs to another Enterprise.

Then either one of the Enterprises should trust the

other’s Authentication Server or they need to agree

on a pre-shared key, but in real life it is rarely possible

to trust other’s Authentication Server, and pre-shared

key installation for every other organization is a com-

plex solution. Also small companies do not have their

own authentication server, which leaves us in an in-

consistent state. Moreover,a receiverneeds to contact

the CA online to verify the authenticity of sender. In

our opinion, this introduces overhead and complex-

ity in plug-and-play feature of Ethernet and disrupts

continuous communication.

3 DESIGN OVERVIEW

This section describes our main contribution, an

ID-based authenticated on-demand secure bridging

mechanism that addresses the above critical problems

by providing point-to-point security between the IB

and EB (Figure 1). So whenever the source sends a

frame, the IB encrypts the payload and protects the

integrity of the whole frame with an Integrity Check

Value similar to MACsec. Only the EB can decrypt

the frame and check the integrity because it holds

the same secret key. Hence the encrypted frame is

transmitted over the Bridged Ethernet Network, and

no Bridge on the communication path can handle

the frame in clear. A change in the source or des-

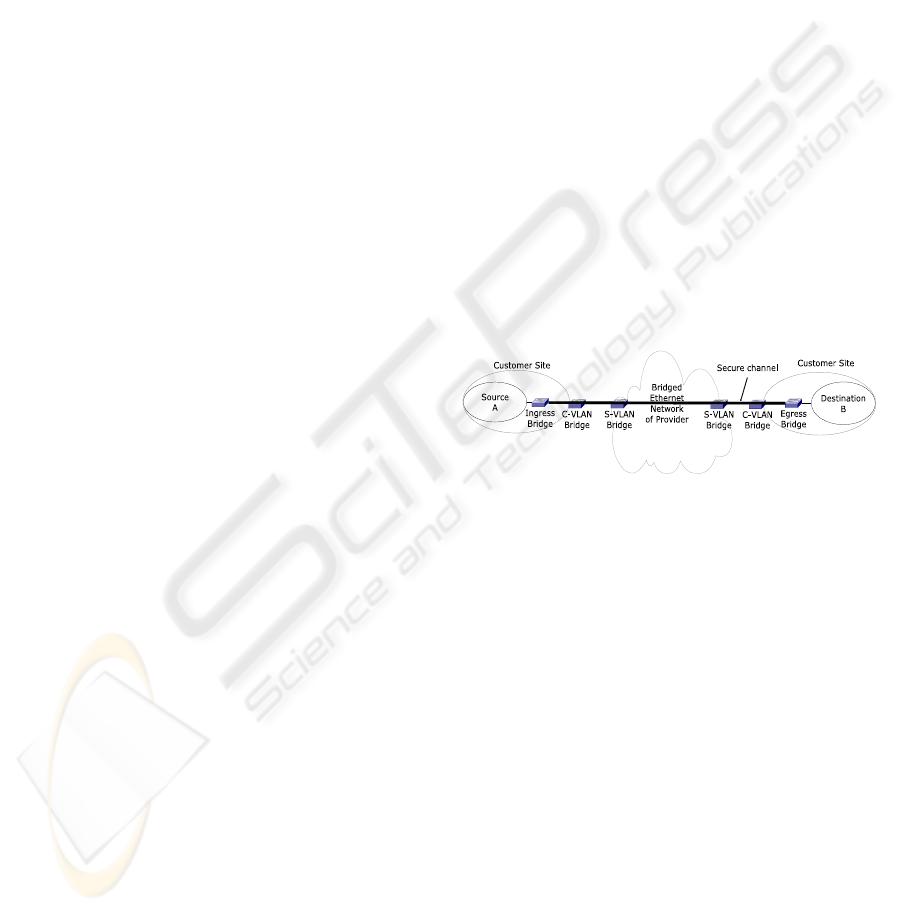

Figure 1: Secure channel over Bridged Ethernet network.

tination host generates another secret key inside the

Bridges which provides separate secure channel for

each pair and protects the pair-wise communication

from other systems. We exclude the host systems

to support unauthenticated non-MACsec host devices

(backward compatibility), but every Bridge should

support MACsec to build the secure infrastructure.

To create a secure channel like Figure 1, we must

provide the same secret key between two Bridges, but

the prediction of all pair-wise communications with

separate secure channels is not possible in a large net-

work because of huge storage requirement, complex

key management and high communication overhead.

For this reason, we want an on-demand scheme that

can easily generate actual amount of keys when nec-

essary and thus can reduce burdens. We can easily

ﬁnd the upcoming two-party communication if we

look for an Address Resolution Protocol (ARP) re-

quest. So we should only initiate a secure channel

when a host generates an ARP request message to ﬁnd

the destination for communication over the Bridged

Ethernet network. To cope with this requirement and

SECURE BRIDGING IN LARGE SCALE DEPLOYMENT OF ETHERNET

253

the plug-and-play capability of Ethernet, we need an

on-demand key agreement technology without pre-

shared key management. For this reason, we choose

ID-based key agreement (Yuan and Li, 2005) and sig-

nature scheme (Hess, 2003). We now brieﬂy review

each technology before presenting our technical de-

tail.

3.1 Review of Yuan-Li ID-based

Authenticated Key Agreement

Protocol

The ID-based cryptographic concept was introduced

by Shamir (Yuan and Li, 2005) but the practical

schemes were started after the proposal of Boneh and

Franklin (Boneh and Franklin, 2001). We choose

(Yuan and Li, 2005) because it has no security weak-

nesses compared to other ID-based solutions. They

modiﬁed the Ryu, Yoon and Yoo’s Protocol (Ryu,

Yoon and Yoo, 2004), which is based on the bilinear

pairing (e.g., Weil (Boneh and Franklin, 2001) or Tate

(Frey and Ruck, 1994) pairing). The Bilinear MAP

is a pairing function called e : G

× G

→ G

that

maps points of an additive group G

to a multiplica-

tive group G

, where both groups are cyclic groups of

prime order p, and satisﬁes the following properties

(Yuan and Li, 2005)-

• Bilinear: we have e(xQ, yR) = e(Q, R)

for any

Q, R of G

and for any x,y of Z

• Non-degeneracy: e(P, P) 6= 1, where P is a gener-

ator of G

• Computability: An efﬁcient algorithm must exist

to compute e(Q, R), for any Q,R of G

The security of (Yuan and Li, 2005) is based on

the Bilinear Difﬁe-Hellman(BDH) problem and the

Computational Difﬁe-Hellman(CDH) problem. Ryu,

Yoon and Yoo’s Protocol has three steps: setup, ex-

tract and key agreement, where (Yuan and Li, 2005)

modiﬁes only the key agreement step to address the

Key Compromise Impersonation Attack and Key Re-

veal Attack. In the setup stage, the Key Generation

Center (KGC), which is the central authority to gener-

ate all private keys, selects G

, G

, e : G

×G

→ G

and P as we described above. The KGC also selects a

key derivation function H (a secure hash function), a

master secret key s ∈ Z

∗

and an encoding function H

{0, 1}

∗

→ G

that maps an arbitrary string to a non-

zero point in G

. Lastly, the KGC generates P

pub

= sP

and publishes < G

; G

; e; P; P

pub

; H

; H >. In the

extract stage the public keys are derived from the cor-

responding IDs like Q

= H

(ID) and the KGC pro-

duces the private key for each ID as S

= sQ

. In the

new key agreement step of (Yuan and Li, 2005), the

user A chooses a random number a ∈ Z

∗

, computes

= aP, and sends T

to B. On the other hand, B

chooses a random number b ∈ Z

∗

, computes T

= bP,

and sends T

to A. Then A and B individually com-

pute a hash and the secret key, as shown in Equation

1 and Equation 2 (Yuan and Li, 2005):

A : h = aT

= abP and K

= e(aP

pub

; T

)

(1)

B : h = bT

= abP and K

= e(T

; bP

pub

)

(2)

Actually these two secret keys are same K

= e(P,P)

abs

e(P,Q

)

e(Q

, P)

e(Q

, Q

)

, so

both parties have the same secret to calculate the same

session key: H(A, B, h, K

3.2 Review of Hess ID-based Signature

Scheme

If the sender knows the receiver’s ID in the above

scheme, he can generate the receiver’s public key

= H

(ID) because H

is a public function, so

sending authenticated T

to B at the ﬁrst place is easy.

But it is complicated when the sender has no infor-

mation about the ID of receiver, which is possible in

Ethernet network that generates ARP request. So we

need an ID-based signature scheme to cope with this

requirement. For this reason we choose a very efﬁ-

cient ID-based signature scheme (Hess, 2003), which

is backed by the survey of (Dutta, Barua and Sarkar,

2004). This scheme has four steps, setup, extract,

sign and verify. The KGC chooses a hash func-

tion H : {0, 1}

∗

× G

→ Z

∗

in the setup stage, and

this is the extra operation in setup and extract steps

than (Yuan and Li, 2005). To sign a message m the

sender chooses a generator P

of G

, a random num-

ber k ∈ Z

∗

and computes r = e(P

, P)

, v = H(m, r)

and u = vS

+ kP

, where the pair (u,v) is the signa-

ture. On receiving the signed message, the receiver

computes r = e(u, P) · e(Q

, −P

pub

)

in the verify

stage and validates the signature if v = H(m, r).

3.3 Our Solution

Here, we divide the description of our solution in dif-

ferent useful properties to show how it fulﬁlls each

criterion.

3.3.1 On-demand Key Agreement

When we combine the above two schemes, we ﬁnd

that the aggregated solution requires two message

transmissions to build the secure channel- 1) From

the sender to the receiver that comprises the signed

SECRYPT 2010 - International Conference on Security and Cryptography

254

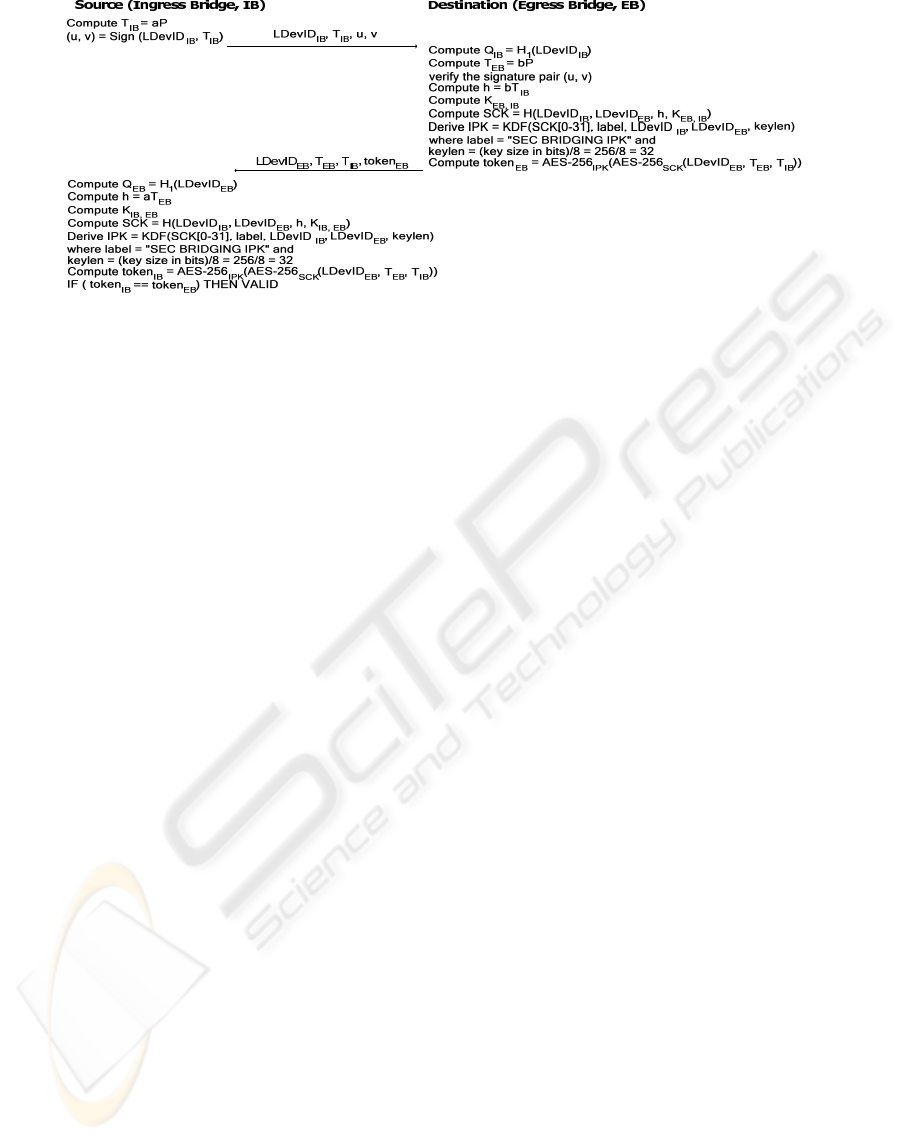

Figure 2: Computation and message exchange in our protocol.

ID and T

of the sender, and 2) From the receiver

to the sender that comprises signed ID and T

of re-

ceiver. The source needs ID-based signature scheme

to send the message to an unknown destination, but

when the destination replies, she has complete in-

formation about the sender, so she can use symmet-

ric key based signature operation to avoid expensive

computation. Also there is no acknowledgement be-

tween the communication parties in (Yuan and Li,

2005). For this reason, we combine the ID-based key

agreement and signature scheme with symmetric en-

cryption in our Key Agreement solution to provide

faster computation. We assume that all the Bridges

inside LAN get their private keys from the KGC. How

to get these keys with minimum hardware change is

explained later in the document. We already have

the AES (AES-256) in our possession from MACsec.

So the source Bridge sends his signed ID (LDevID)

and T

to the destination. On receiving the message,

the destination computes the session key, which is

called Secure Channel Key (SCK) in our contribution,

and derives an Integrity Protect Key (IPK) from this

SCK as MACsec derives the connectivity association

key (CAK) from the master key using Key Derivation

Function (KDF), as shown in Figure 2. If we do not

sign the ﬁrst message to the unknown destination, any

adversary could replace the T

inside the message and

thus the receiver unnecessarily computes everything

and sends the reply to the source, which forces denial

of service (DoS). So, in our opinion, the signing is re-

quired, but it does not prevent all type of DoS.

The destination encrypts her ID, T

and source’s

using the SCK, and the encrypted output is in-

tegrity protected using the IPK. The result of the in-

tegrity protection is attached to the replied message as

a token of authentication and key conﬁrmation. We

attach the source’s T

in the replied message to en-

sure liveness. On reception, the source can individu-

ally follow the same procedure to calculate the token

and can match the token with the received one to ver-

ify the authenticity of the destination along with the

conﬁrmation of SCK. However, two extra message

exchanges to build a secure channel for each pair-wise

communication can reduce the Ethernet performance.

So we are interested in minimizing the overhead.

3.3.2 Minimal Overhead

Normal ARP protocol works with exchange of ARP

Request and Reply messages, and each packet is 42

bytes long. Such small size of ARP packets gives us

an opportunity to add more bits at the end as data or

payload bits, because maximum data ﬁeld length is

1500 bytes in an Ethernet frame. Incorporation of our

protocol messages in ARP packets provides an efﬁ-

cient way to minimize huge overhead, because we do

not require any extra message exchange to build a se-

cure channel. Thus, the message from source to des-

tination (Figure 2) is embedded in ARP request and

the message from destination to source is embedded

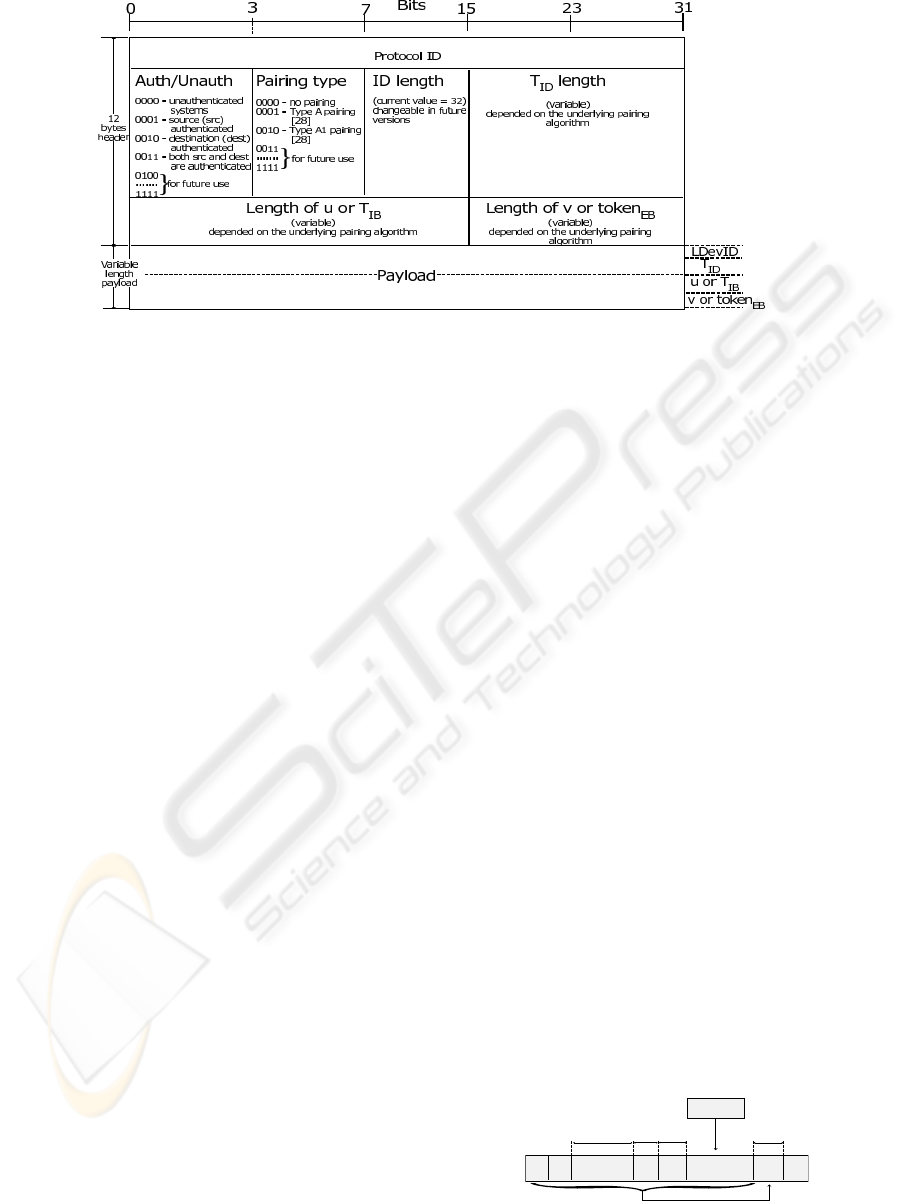

in ARP reply. Our message format for the additional

part of ARP packets comprises 12 bytes header and a

variable length payload (Figure 3).

At ﬁrst we want to write zeroes in the additional

part of ARP messages to avoid information leakage

which is described in (Arkin and Anderson, 2003) and

incited by (Bruschi, Ornaghi and Rosti, 2003). The

header starts with 4 bytes Protocol ID

0xCABFE001.

The next one byte is divided in two 4 bits value. The

ﬁrst or left four bits indicate availability of MACsec

in source and destination host machines. We include

this option for future Link Layer based Firewalls, it

may help those Firewalls to force strict rules for unau-

thenticated devices. The last or right four bits indi-

cate which type of pairing is used in the ID-based op-

erations because there are different types of Elliptic

curves and pairings (Lynn, 2007; PBC Manual, n.d.).

The next one byte contains ID length of the genera-

tor of this frame and following two bytes store T

SECURE BRIDGING IN LARGE SCALE DEPLOYMENT OF ETHERNET

255

Figure 3: Additional frame format in ARP packets (not to scale).

length, whereas the rest 4 bytes of the 12 bytes header

are totally different for ARP request and reply mes-

sages. In ARP request message, the IB generates the

signature and stores the length of (u, v) pair in these

4 bytes (2 bytes for each value). On the other hand,

the EB includes the length of T

and token

in these

bytes of ARP reply messages. The payload part starts

with the ID (LDevID) of the generator, whose length

is presented in the header. For simplicity we do not in-

clude the Ethernet frame ﬁelds in Figure 3, but in ac-

tual operation the IB signs the whole Ethernet frame,

from the Destination Address to the end of T

, and

attaches the (u, v) pair at the end. This operation

binds the source host address to the T

value. It is

easy to know the (u, v) length prior the signing oper-

ation because the values are ﬁxed for a speciﬁc type

of pairing. EB signs the whole Ethernet frame with

AES-256, which binds the hosts’ addresses to the T

and T

. Lastly, both IB and EB calculate the same

SCK. There is one question- how the EB distinguish

him as the EB, because ARP request is a broadcast

message. The EB is directly connected to the real des-

tination, and each port of the bridge knows the desti-

nation MAC through (IEEE P802.1X-2010,2009) op-

erations. If we store IP address along with the MAC

inside each port, the EB can easily understand the ad-

jacent destination. Although physical shared media

is deprecated, each physical port unnecessarily sup-

ports several virtual ports (65534 virtual ports) to ac-

commodate several secure channels for the shared end

stations, which require a signiﬁcant amount of unused

memory. On the other hand, IP storage requires only

32 bit memory, that is, in our opinion, far more rea-

sonable than huge unused memory.

Moreover, we can optimize some operations (in

Figure 2) by pre-computing their values. Any Bridge

can pre-generate a random value c ∈ Z

∗

and calculate

= cP and (cP

pub

+ S

) for the next key and hash

values. Moreover, it can pre-compute r = e(P

, P)

and kP

for signing any upcoming ARP request. We

cannot pre-compute e(Q

, −P

pub

) (Dutta, Barua and

Sarkar, 2004), because we verify the signature of a

sender only once for an ARP request.

3.3.3 Secure Communication

The IB and EB should store the SCK with a map-

ping to associated hosts’ MAC addresses. Whenever

host A and host B send frames to each other, these

Bridges must use this SCK in AES (AES-256) en-

cryption until a new key is generated for the pair,

but the encrypted frame should attach an informa-

tion TAG, like SecTAG of MACsec, so that the re-

ceiver can understand the Frame Type, payload size,

and also can detect any replay attack. Our TAG ﬁeld

comprises EtherType, Short Length (SL) and Packet

Number (PN), as described in Figure 4.

The EtherType for our proposal is

0xACEB

, which

can be registered using the guidelines of (Eastlake,

2008) and the SL is similar to (IEEE802.1AE, 2006).

MACsec has 4 bytes (32 bits) PN that must be used

as an Initialization Vector (IV) in each encryption

to generate different encrypted outputs of the iden-

tical clear texts, but 2

minimum-sized frames can

be sent in approximately 5 min on a 10 Gbps link

(IEEE802.1AE, 2006), so it forces MACsec to change

the key after each 5 minutes to avoid reusing the same

value of PN. We increase the PN size by one byte,

which gives approximately a 21 hour lifetime for each

AES

SCK

TAG field

}

bytes

2 bytes

byte

AES

IPK

DA SA EtherType SL PN Secure Data IPV CRC

User Data

bytes

Figure 4: Frame format in our solution.

SECRYPT 2010 - International Conference on Security and Cryptography

256

key when PN is increased sequentially for each frame.

It is necessary for our solution because ARP cache

generally expires after 20 minutes, whereas some op-

erating systems do not expire the cache entries un-

til cache becomes full (Bruschi, Ornaghi and Rosti,

2003). Moreover, AES needs a 16 byte IV, so we

provide the concatenation result of Source Address

and TAG ﬁeld padded with 2 more bytes of zeroes as

IV in each encryption. The IV usage defends against

any successful attack on SCK. Lastly, we need an In-

tegrity value to help the receiver to verify the correct-

ness of the frame. For this reason, we provide an In-

tegrity Protect Value (IPV) which is generated using

IPK (Figure 4). Whenever one host’s MAC address is

expired in the CAM table, the Bridges should never

use the associated key to secure further communica-

tion, because CAM expiration indicates that the host

is not alive for long time.

3.3.4 Parameter Distribution and Key

Revocation

The EAPOL could be used to distribute parameters

from KGC, and we can initiate it as soon as MACsec

starts its operation without any explicit steps. More-

over, key can be revoked with ARP cache timeout.

Otherwise the revocation time is 21 hours as it is the

maximum time limit for PN exhaustion. As Bridges

may reside far away from each other, they could be

non-synchronized, and counting of 20 minutes for

ARP cache starts differently in two machines. So one

machine can delete the cache and related secret key

much earlier than the other end, and it brings incon-

sistency. Thus our system should store the key for

several minutes to correctly receive encrypted frames

from other end. The machine could store it in a tem-

porary cache after elapse of 20 minutes (or 21 hours).

To force key revocation, the machine can send an

UNARP (Malkin, 1995) like message as soon as it

receives a frame encrypted with a key of temporary

cache (including a correct sequence number).

3.3.5 Minimal Hardware Change

DevID module in (IEEE P802.1AR, 2009) fulﬁls

most of our needs. It contains Hash Algorithm, Ran-

dom Number Generator and Elliptic Curve Cryptog-

raphy. When the module requests for the certiﬁcate

credentials of LDevID, the Local CA can act as the

KGC and can generate the private key, like S

LDevID

= sLDevID, for each system. The generation

of S

LDevID

can be done concurrently with the genera-

tion of certiﬁcate credentials, so there is no need for

extra pairing-based initialization step. We only need a

component inside DevID module that handles all pair-

ing operations and stores S

LDevID

. Our encryption op-

erations do not require any new functionality because

MACsec has the AES. We need to store and bind the

pair-wise key with associated CAM entries, and the

KGC should issue new private keys after a certain pe-

riod of time to prevent any successful attack on the

key. The Local CA, which acts as the KGC in the

Metropolitan Area should be accredited by Trusted

Computing Group (TCG, 2003), Government’s Secu-

rity Division or similar kind of organization.

3.3.6 Support for Unauthenticated Systems

Every port of a Bridge should provide a ﬂag in our

solution. By default the ﬂag value should be zero

which means it is connected to an unauthenticated

host. After successful authentication of a host by

MACsec operations, the ﬂag value automatically be-

comes one which represents authenticated status of

the connected host. If ﬂag value is zero, the Bridge

always decrypts every frame leaving that port to the

unauthenticated host and encrypts each frame upon

reception. If ﬂag value is one, the Bridge decrypts the

frame by SCK and again encrypts using local SAK to

send to an authenticated host. It does opposite opera-

tions when it received a frame from the adjacent host.

4 PROTOCOL ANALYSIS AND

IMPLEMENTATION

4.1 Security and Efﬁciency

Our AES-based secure communication is partially

evaluated in (Wahid, 2010b). Although the hosts are

excluded here from the ID-based scheme, we assume

that somehow one attacker gets the private-public key

pair associated with his ID from the KGC and con-

nects to a link between two Bridges, as shown in Fig-

ure 5. As the attacker has ID-based key now, he could

easily build separate secure channels (channel 1 and

2) with Bridge 1 and Bridge 2, but it is not possi-

ble to take control of the secure channel 3, which is

built between the two Bridges, because our system is

based on the Yuan-Li protocol (Yuan and Li, 2005),

which prevents the Key Compromise Impersonation

and Key Reveal attacks (a.k.a. know key attack).

Bridge 1 Bridge 2

Host BHost A

Attacker

Channel 1 Channel 2

Channel 3

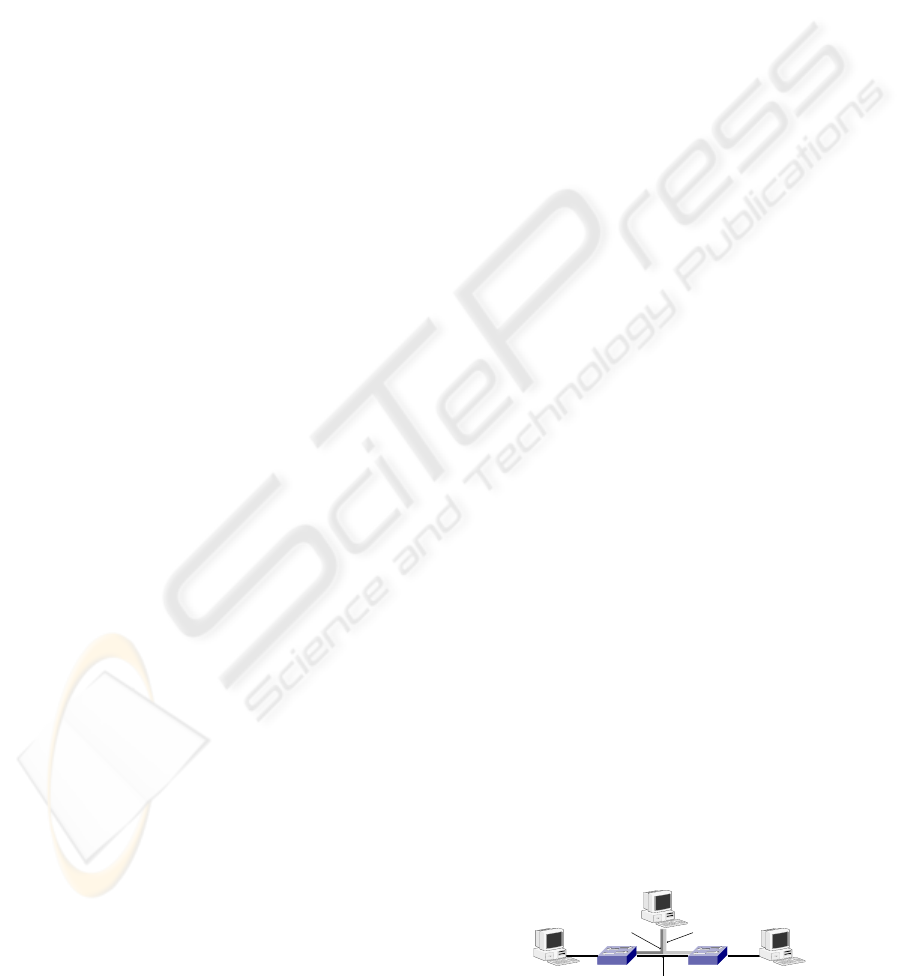

Figure 5: Impenetrable secure channel between two

Bridges.

SECURE BRIDGING IN LARGE SCALE DEPLOYMENT OF ETHERNET

257

Table 1: Computational efﬁciency comparison between

MACsec and our system.

Number of

Bridges service Our

between provider MACsec solution

source and in the

destination network

5 0 10m 4m

6 0 12m 4m

6 1 14m 4m

If host A sends an ARP request to host B, the

Bridge 1 embeds his T

value in the ARP message,

signs it and relays to Bridge 2. The attacker can cap-

ture this message but cannot modify any value be-

cause he has no information about the private key of

Bridge 1. Also any modiﬁcation assures invalid sig-

nature. Besides, he cannot masquerade as the Bridge

1 because MACsec and Yuan-Li protocol prevent any

ID forgery. We see here that our solution along with

MACsec totally prevents data modiﬁcation, masquer-

ade and unauthorized disclosure. Also there is no un-

secured zone in our solution because it provides end-

to-end security, and the inclusion of T

guarantees

liveness, hence, protects replay attacks.

Here the computational efﬁciency of our sys-

tem is compared with standard MACsec operations.

In MACsec, every Bridge decrypts and encrypts

the frame in ingress and egress ports respectively,

whereas our system does those operations only in IB

and EB. We assume that m represents one encryp-

tion or one decryption operation inside Bridges, and

both source and destination hosts are authenticated.

Also we assume that source and destination are in two

customer sites when there is a service provider. We

can see from Table 1 that our solution depicts high

computational efﬁciency compared to MACsec, and

the encryption/decryption operations are constant ir-

respective of the number of intermediate Bridges or

Service Providers. In MACsec, each edge Bridge to

service provider does double encryption/decryption

with computational overhead. Our system can pro-

vide point-to-point security inside the MACsec group

secure domain because it is based on ARP.

4.2 Implementation

We have implemented the ARP-based on-demand

key agreement feature in a closed environment, as

shown in Figure 6. Our test bed comprises four

Linux machines where two of them act like Bridges.

All four machines have the same speciﬁcation and

they are running on CentOS Linux 5.0 kernel-2.6.18-

128.1.6.el5. Each one comprises a 3GHz AMD

Athlon 64 Dual Core processor, 2GB RAM and 1Gb

Network interface. The Bridges are actually coded

in C with raw sockets and open source libraries. For

the pairing-based operation, we use PBC library and

modify the given examples (PBC, n.d.). Besides, we

use the Barreto’s High-speed AES implementation in

C (Krovetz, n.d.).

The average round trip delay in this small Ether-

net network with custom Linux Bridges is 0.265ms

for normal ARP messages. On the other hand, our

solution has a latency of 55.099ms. We take both re-

sults from the average of 100 thousands ARP mes-

sages. We calculate the time inside host A, where the

latency is measured by capturing the time interval be-

tween the ARP request transmission and correspond-

ing ARP reply reception. We get a large difference,

because here we focus on feasibility and functional

capability, rather than optimized performance. Our

key agreement is a one time setup for each pair in ev-

ery 20 minutes because the operating systems gener-

ally expire the ARP cache in 20 minutes, so we think

our solution is very effective and reasonable. Here,

both bridges compute the same SCK, which will be

passed to AES encryption operation for secure com-

munication. The FPGA-based pairing implementa-

tion (Huang, Lee and Li, 2008) can dramatically re-

duce the latency because it speeds up the computation

by 152 times compared to the software prototype and

the operation time reaches µs (Junjie, 2007). For this

reason, we plan to implement our solution on NetF-

PGA (NetFPGA, n.d.).

The KGC part can be easily provided with Secure

Device Identity in real network and the secure com-

munication using AES is already standardized, where

the hardware based implementation gives 34Gbps

throughput (Yang, Mishra and Karri, 2005). For this

reason, we do not test them in our implementation.

4.3 Limitation

Our solution transmits the encrypted frame over the

Bridged Ethernet Network, which prevents trafﬁc

analysis or intrusion detection, but we think the in-

corporation of the Network Interface Card based Fire-

walls (Friedman and Nagle, 2001) or Intrusion Detec-

tion system (Otey, Parthasarathy, Ghoting, Li, Nar-

ravula and Panda, 2003) can detect any intrusion at

the IB and EB.

Bridge Bridge

ARP request

Host B

Host A

ARP reply

Figure 6: Our small platform to test the functionality.

SECRYPT 2010 - International Conference on Security and Cryptography

258

5 RELATED WORK

Security in Layer-2 is an emerging technology. So

there are very few literatures on this topic. Reference

(Altunbasak, Krasser, Owen, Sokol, Grimminger and

Huth, 2004) mainly discuss the IP and MAC address

binding problems. Also they focus on Data Link layer

security issues in IP over Ethernet networks and pro-

pose some extensions in MACsec frame format at

Layer-3 devices to improve security in LANs (Altun-

basak et al., 2005). On the other hand, Altunbasak and

Owen propose a security inter-layering concept for

future network architecture (Altunbasak and Owen,

2007). Theyargue that data link layer could utilize the

secure namespace of upper layers instead of MAC ad-

dresses. They also point out two incompleteness: no

available protocol for secure binding of IP and MAC,

and no available Layer-2 secure identiﬁer. But the lat-

ter could be achieved by Secure Device Identity. Also

binding IP and MAC address can be done by DHCP

snooping technique (DHCP snooping, n.d.), but it

is not an embedded solution. However, their work

focuses only on future network and does not con-

sider threats in current standards. Switch-based sin-

gle secure domain (Wahid, 2010a) depends on (IEEE

P802.1AR, 2009) for safety of its global domain, so

any failure of the identity puts total infrastructure in

danger. Moreover, this approach is only applicable in

internal network.

Usage of the additional part of ARP messages to

convey new protocol information is practiced in (Br-

uschi, Ornaghi and Rosti, 2003; Lootah, Enck and

McDaniel, 2005; Jerschow, Lochert, Scheuermann

and Mauve, 2008; Z´uquete and Marques, 2006),

but only Cryptographic Link Layer (CLL) (Jerschow,

Lochert, Scheuermann and Mauve, 2008) and Secure

LAN (SLAN) (Z´uquete and Marques, 2006) use it for

LAN security. CLL uses several cryptographic mech-

anisms (e.g., MD5, Twoﬁsh, SHA-1, AES, RSA) to

provide link security. In our opinion, such solution is

not a practical approach for real-life systems because

of its large number of modules. Our system only

adds ID-based scheme to the current standards, thus

enforces little modiﬁcation. On the other hand, the

source and destination need to communicate with the

Key Distribution Center (KDC) to securely transmit a

frame in SLAN and such extra communication over-

head becomes a drawback in large network. Obvi-

ously our solution does not require any extra message

exchange. Furthermore, (Park, Lee and Rhee, 2007;

Park and Rhee, 2009) proposes ID-based on-demand

authenticated key agreement protocol to discover au-

thenticated route in wireless networks, but their solu-

tion assumes that the source contains the destination

ID, therefore, they can avoid the computationally ex-

pensive ID-based signature scheme. We cannot avoid

the signature scheme at the ﬁrst phase, because we do

not know the ID (LDevID) of the destination.

6 CONCLUDING REMARKS AND

FUTURE WORK

Our paper has presented an efﬁcient mechanism to

overcome the insecurities induced by hop-by-hop and

group security features of MACsec. We have demon-

strated that it is possible to generate on demand pair-

wise keys within Bridges to secure all real-time end-

to-end communications without new key agreement

messages, therefore, our solution is capable of pro-

tecting private communication over multi-link with

constant cryptographic computations. The feasibility

and functional capability of our design has been val-

idated with a software prototype deployed on a small

multi-segment Ethernet Network. Although the speed

is less than the line speed, we believe that the future

hardware-based (NetFPGA) solution will be able to

operate at a very high rate. We also hope that the ideas

presented here may encourage the network security

research community to address pure Layer-2 security

problems which are at an initial stage.

REFERENCES

Altunbasak, H., Krasser, S., Owen, H. L., Grimminger, J.,

Huth, H-P. and Sokol, J. (2005). Securing Layer 2 in

Local Area Networks. In 4th International Conference

on Networking. Reunion, France.

Vyncke, E. and Paggen, C. (2007). LAN Switch Secu-

rity: What Hackers Know About Your Switches. Cisco

Press, Indianapolis, 1 edition.

Furnell, S. (2004). Enemies within: the problem of in-

sider attacks. Computer Fraud & Security, 7, 6–11.

doi:10.1016/S1361-3723(04)00087-9

Bhandari, R., Grewal, K. and Jha, P. (2006). Scal-

able, High Speed Layer 2 security using IEEE

802.1AE/af. http://whitepapers.techrepublic.com.com

/abstract.aspx?docid=267180

Kolodgy, C. J., Pintal, G. and Burke, B. E. (2008). Oracle

Database Security: Preventing Enterprise Data Leaks

at the Source. Retrieved December 11, 2009, from

http://www.oracle.com/corporate/analyst/reports/infra

structure/sec/209752.pdf

IEEE Std 802.1AE – 2006. IEEE Standard for Local and

Metropolitan Area Networks- Media Access Control

(MAC) Security.

IEEE P802.1AR/D2.0 - 2009. IEEE draft standard for Lo-

cal and Metropolitan Area Networks- Secure Device

Identity.

SECURE BRIDGING IN LARGE SCALE DEPLOYMENT OF ETHERNET

259

IEEE P802.1X-2010 - Revision of 802.1X-2004. IEEE

draft standard for Local and Metropolitan Area

Networks- Port Based Network Access Control.

Hess, F. (2003). Efﬁcient Identity Based Signature Schemes

Based on Pairings. In Nyberg, K., Heys, H. (eds.) SAC

2002. LNCS, vol. 2595, pp. 310-324. Springer, Hei-

delberg.

Yuan, Q. and Li, S. (2005). A New Efﬁcient ID-Based Au-

thenticated Key Agreement Protocol. In Cryptology

ePrint Archive: Report 2005/309.

Boneh, D. and Franklin, M. (2001). Identity-based encryp-

tion from the Weil pairing. In Kilian, J. (ed.) CRYPTO

2001, LNCS, vol. 2139, pp. 213-229. Springer, Heidel-

berg.

Frey, G. and Ruck, H. G. (1994). A remark concerning

m-divisibility and the discrete logarithm in the divisor

class group of curves. In Mathematics of Computa-

tion, vol. 62, no. 206, 865-874.

Ryu, E., Yoon, E. and Yoo, K. (2004). An efﬁcient ID-based

authenticated key agreement protocol from pairings.

In Mitrou, N., et al. (eds.) Networking 2004, LNCS,

vol. 3042, pp. 1458-1463. Springer, Heidelberg.

Park, Y., Lee, W. Y. and Rhee, K. H. (2007). Authenticated

On-Demand Ad Hoc Routing Protocol without Pre-

shared Key Distribution. In Proceedings of the 2007

ECSIS Symposium on Bio-inspired, Learning, and In-

telligent Systems for Security, Edinburg, pp. 41–46.

Edinburgh, UK.

Dutta, R., Barua, R. and Sarkar, P. (2004). Pairing-Based

Cryptographic Protocols : A Survey. In Cryptology

ePrint Archive: Report 2004/064.

Arkin, O. and Anderson, J. (2003). EtherLeak:

Ethernet frame padding information leakage.

http://www.packetstormsecurity.org/advisories/atstake

/atstake etherleak report.pdf

Bruschi, D., Ornaghi, A. and Rosti, E. (2003). S-ARP: a Se-

cure Address Resolution Protocol. In Proceedings of

the 19th Annual Computer Security Applications Con-

ference, pp. 66. Las Vegas, USA.

Lynn, B. (2007). On The Implementation of Pairing-based

Cryptosystems. Ph.D. Thesis. Stanford University. Re-

trieved March 29, 2009, from http://crypto.stanford

.edu/pbc/thesis.pdf

Lynn, B. (n.d.). PBC Library Manual 0.5.0. Retrieved

March 29, 2009, from http://crypto.stanford.edu/pbc

/manual.pdf

Eastlake, D. (2008). RFC: 5342 IANA Considerations and

IETF Protocol Usage for IEEE 802 Parameters.

Malkin, G. (1995). RFC: 1868 ARP Extension - UNARP.

Trusted Computing Group. (2003). Retrieved August

13, 2009, from http://en.wikipedia.org/wiki/Trusted

Computing Group

PBC Library. (n.d.). Retrieved March 29, 2009, from http://

crypto.stanford.edu/pbc/

Krovetz, T. (n.d.). Fast Cryptography. Retrieved December

16, 2009, from http://fastcrypto.org/

Huang, J., Lee, J. and Li, H. (2008). A Fast FPGA Imple-

mentation of Tate Pairing in Cryptography over Bi-

nary Field. In The 2008 International Conference on

Security and Management, pp. 3–9. Las Vegas, USA.

NetFPGA. (n.d.). Retrieved January 29, 2010, from

http://www.netfpga.org/

Junjie, J. (2007). Bilinear Pairing (Eta T Pairing) IP Core.

Retrieved December 08, 2009, from http://www.cs.

cityu.edu.hk/∼ecc/doc/etat datasheet v2.pdf

Yang, B., Mishra, S. and Karri, R. (2005). A High

Speed Architecture for Galois/Counter Mode of Op-

eration (GCM). In Cryptology ePrint Archive: Report

2005/146 (2005).

Friedman, D. and Nagle, D. (2001). Building Firewalls with

Intelligent Network Interface Cards. Technical report

CMUCS00173, Carnegie Mellon University.

Otey, M., Parthasarathy, S., Ghoting, A., Li, G., Narravula,

S. and Panda D. (2003). Towards NIC-based Intrusion

Detection. In Proceedings of the ninth ACM SIGKDD

international conference on Knowledge discovery and

data mining, pp. 723 – 728. Washington, USA.

Altunbasak, H., Krasser, S., Owen, H. L., Grimminger, J.,

Huth, H-P. and Sokol, J. (2004). Addressing the Weak

Link Between Layer 2 and Layer 3 in the Internet

Architecture. In The 29th Annual IEEE Conference

on Local Computer Networks (LCN), pp. 417–418.

Florida, USA.

Altunbasak, H. and Owen, H. L. (2007). Security Inter-

layering for Evolving and Future Network Architec-

tures. In Proceedings of IEEE SoutheastCon 2007,

pp. 615–620. Virginia, USA.

Understanding and Conﬁguring DHCP Snooping. Cisco

IOS Software Conﬁguration GuideRelease 12.1 (12c)

EW. (n.d.). Retrieved January 06, 2010, from http:

//www.cisco.com/en/US/docs/switches/lan/catalyst45

00/12.1/12ew/conﬁguration/guide/dhcp.pdf

Jerschow, Y. I., Lochert, C., Scheuermann, B. and Mauve,

M. (2008). CLL: A Cryptographic Link Layer for Lo-

cal Area Networks. In R. Ostrovsky, R. De Prisco,

and I. Visconti (eds.) SCN 2008, LNCS, vol. 5229, pp.

21–38. Springer, Heidelberg.

Lootah, W., Enck, W. and McDaniel, P. (2005). TARP:

Ticket-based Address Resolution Protocol. In 21st

Annual Computer Security Applications Conference,

pp.106–116.

Park, Y. and Rhee, K. H. (2009). An Authenticated On-

Demand Routing Protocol with Key Exchange for Se-

cure MANET. In IEICE Trans. Inf. & Syst., vol.

E92.D, no. 5, pp. 810–817.

Z´uquete, A. and Marques, H. (2006). A Security Architec-

ture for Protecting LAN Interactions. In S.K. Katsikas

et al. (eds.) ISC 2006, LNCS. vol. 4176, pp. 311–326.

Springer, Heidelberg.

Wahid, K. F. (2010a). Maximizing Ethernet security by

switch-based single secure domain. In Proceedings of

the 7th International Conference on Information Tech-

nology : New Generations. Las Vegas, USA.

Wahid, K. F. (2010b). Rethinking the link security ap-

proach to manage large scale Ethernet network. In

Proceedings of the 17th IEEE Workshop on Local and

Metropolitan Area Networks. New Jersey, USA.

Federal Information Processing Standards Publication 197:

Advanced Encryption Standard (AES). (2001). http://

www.csrc.nist.gov/publications/ﬁps/ﬁps197/ﬁps-197.

pdf

SECRYPT 2010 - International Conference on Security and Cryptography

260
