PROJECT MONITORING AND CONTROL IN MODEL-DRIVEN

AND COMPONENT-BASED DEVELOPMENT OF EMBEDDED

SYSTEMS

The CARMA Principle and Preliminary Results

Rikard Land, Jan Carlson, Stig Larsson and Ivica Crnkovic

Mälardalen University, School of Innovation, Design and Engineering, Västerås, Sweden

Keywords: Model-driven Development, Component-based Software Engineering, Project Monitoring and Control, Risk

Management, CMMI, Empirical Studies.

Abstract: This position paper describes how the combination of the Model-Driven Development (MDD) and

Component-Based Software Engineering (CBSE) paradigms can support project monitoring and control,

and project risk reduction. The core principle for this is articulated and named CARMA, and our research

agenda and preliminary results are described. Through interviews, industry input, process simulation, tool

implementation and pilot projects, and describing an extension of CMMI, we are exploring the CARMA

principle in order to provide guidelines for MDD/CBSE projects.

1 INTRODUCTION

In this paper, we describe the preliminary results of

an evaluation of the combination of two increasingly

maturing approaches: Model-driven development

(MDD) and Component-Based Software

Engineering (CBSE). Current research efforts to

combine these are mostly centered on technology,

but there is a more or less implicit promise to reduce

risk in development projects by adopting these two

paradigms – especially when combined.

The assumed benefits are usually cast in

technical terminology: the software will be correct

by construction, component properties can be

composed into system properties, or models at

different levels are ensured to be consistent

(Håkansson et al, 2006; Selic, 2003; Stahl and

Völter, 2006). Only implicitly are the benefits

understood as e.g. reduced costs and risk (Feiler et

al, 2009). However, organizations need to change

their culture and way of working compared to

previous generations of software development

paradigms (Selic, 2003). Such changes may include:

• New ways of formulating requirements

• Different approaches to verification (how/when)

• New activities, re-ordered activities, significantly

different effort (relative and absolute) than usual

• New methods for project monitoring and control

As far as we know, the MDD/CBSE paradigms have

not been thoroughly evaluated from this point of

view (see section 2 for related work): will the

required effort and commitment pay off? The

purpose of this paper is to describe our initial results

in evaluating the MDD/CBSE combination from the

perspectives of risk management and project

monitoring and control.

The goal of evaluating a combination of two

paradigms, even from this more specific point of

view, is extremely ambitious and needs to be made

more concrete in order to be actionable. The next

sections will describe: in more detail the particular

technology chosen and related work (Section 2); the

formulation of a principle capturing the essence of

risk management and project monitoring and control

in this context (Section 3); our research agenda,

including the possible research methods to evaluate

this principle, and preliminary results (section 4).

The main threat to validity of the evaluation is

that we cannot do industrial case studies by the very

nature of the topic. Our investigation should rather

be seen as a feasibility study, where we collect

insights by means of implementations, interviews,

industrial experience, process simulation, tool

implementation and student projects, and the

formulation of a CMMI extension.

253

Land R., Carlson J., Larsson S. and Crnkovic I. (2010).

PROJECT MONITORING AND CONTROL IN MODEL-DRIVEN AND COMPONENT-BASED DEVELOPMENT OF EMBEDDED SYSTEMS - The

CARMA Principle and Preliminary Results.

In Proceedings of the Fifth International Conference on Evaluation of Novel Approaches to Software Engineering, pages 253-258

DOI: 10.5220/0002997002530258

 SciTePress

2 TECHNOLOGY AND RELATED

WORK

This section describes the fundaments of the fields

of Model-Driven Development (MDD) and

Component-Based Software Engineering (CBSE),

and its relation of the work presented in this paper.

2.1 Model-Driven Development

The principle behind Model-Driven Development

(MDD) is to bridge the gap between various

development artifacts such as requirements,

architectural descriptions, lower-level designs, and

implementation level through a series of more or

less automatic translations (Selic, 2003; Stahl and

Völter, 2006). MDD intends to make the

development process more efficient (through

automatic or semi-automatic translations), and

enable earlier verification (of the models). The final

software will thus to a large extent be correct by

construction (Selic, 2003). OMG’s Model-Driven

Architecture, MDA (http://www.omg.org/mda), is

one important instantiation of this principle, where

the main objective is to achieve platform

independence.

However, the MDD field focuses on languages

that can capture as much as possible, because the

next step in the process should ideally be generated

automatically from a detailed model. The

verification of models can only occur when a

significant time of the project has passed. The

concept of virtual integration in the SAVI program

(Feiler et al, 2009) is similar to the CARMA

principle we formulate, but we further clarify the

essence of the principle and describe how project

planning and milestones are integrated into the

MDD/CBSE paradigm, and we explicitly

incorporate high-level models and estimates which

can be provided very early. This is how risk

reduction is performed in industry today and which

we think estimates will be an unavoidable part of

project management and planning also in the future.

The literature on processes for Model-Driven

Development (MDD) focuses mostly on the division

into platform development and application

development (Stahl and Völter, 2006; Kleppe,

Warmer, Bast, 2003), and the new roles required for

this (Aagedal and Solheim, 2004; Krahn, Rumpe,

and Völkel, 2006; Guta, Szasz, and Schreiner,

2008). Also, while MDD relies on forward

engineering in order to produce correct software, the

combination MDD/CBSE in general also permits

using pre-existing components produced in many

different ways, including wrapped legacy code.

2.2 Component-based Software

Engineering

In Component-Based Software Engineering (CBSE),

the software is designed and constructed as

components with clear boundaries and explicit

interfaces (Szyperski, 2002). This paradigm is

successful in e.g. the desktop domain, and has also

found its way into the embedded systems domain,

which is our focus (Hänninen et al, 2008; Larsson,

Wall, Wallnau, 2005; van Ommering, van der

Linden, and Kramer, 2006). From a process

perspective, this means the processes of component

development and system development are treated

separately, but interact (Crnković, Chaudron, and

Larsson, 2005). Component development could be a

result of system top-down decomposition, and result

in either internal development or in hiring a

subcontractor. A system may also be built from pre-

existing components, such as Off-the-Shelf (OTS)

components (components developed for the

marketplace), or as part of a product line initiative

(Clements and Northrop, 2001).

We have had to choose among the many

component technologies in order to be specific

enough, and identify the characteristics that support

the project monitoring and control, as we envision it,

to the largest extent. Although some literature,

component models and component technologies

describe the “component” concept as a deployable

entity (Szyperski, 2002), others fundamentally

assume there is a concept of component identity

throughout the process, from early design to run-

time. (For embedded software, it is even common

that the component boundaries are optimized away

during the deployment stage, when code is compiled

and linked into one single binary image). To monitor

the development (with support from automatic tools)

as will be described in section 3, it is essential to

adopt this second viewpoint. Also, there must be

compositional reasoning theories and tools available

for various component attributes, as well as an

attribute framework making it possible to trace

component attributes (such as timing properties,

memory consumption) throughout the development

process. Also, for embedded software, development

of hardware models is an essential part of the

development. This is true for the ProCom

component model (Bureš et al, 2008; Sentilles et al,

2008) and associated research at the Progress Centre

for Predictable Embedded Software Systems; there

ENASE 2010 - International Conference on Evaluation of Novel Approaches to Software Engineering

254

are other component models to which our evaluation

will be applicable, but as a choice during our

investigation they do not support all the desired

characteristics to the same extent as ProCom, in

particular the attribute framework: AADL (As-2

Embedded Computing Systems Committee, 2009),

Autosar (www.autosar.org), SysML (www.sysml

.org) and OMG’s MARTE (www.omgmarte.org).

Also, we have good access to ProCom, the Progress

development environment, and the Progress

researchers, which makes it suitable to choose this

track.

2.3 Other Related Work

The principle presented in this paper inherits the

basic ideas from the concepts of daily builds,

continuous integration, continuous verification, and

test-driven development (Beck, 1999; Duvall,

Matyas, and Glover, 2007; Kruchten, 2004), and

adapts them to fit the combined MDD/CBSE

paradigm.

3 SUBJECT OF EVALUATION

3.1 Motivating Example

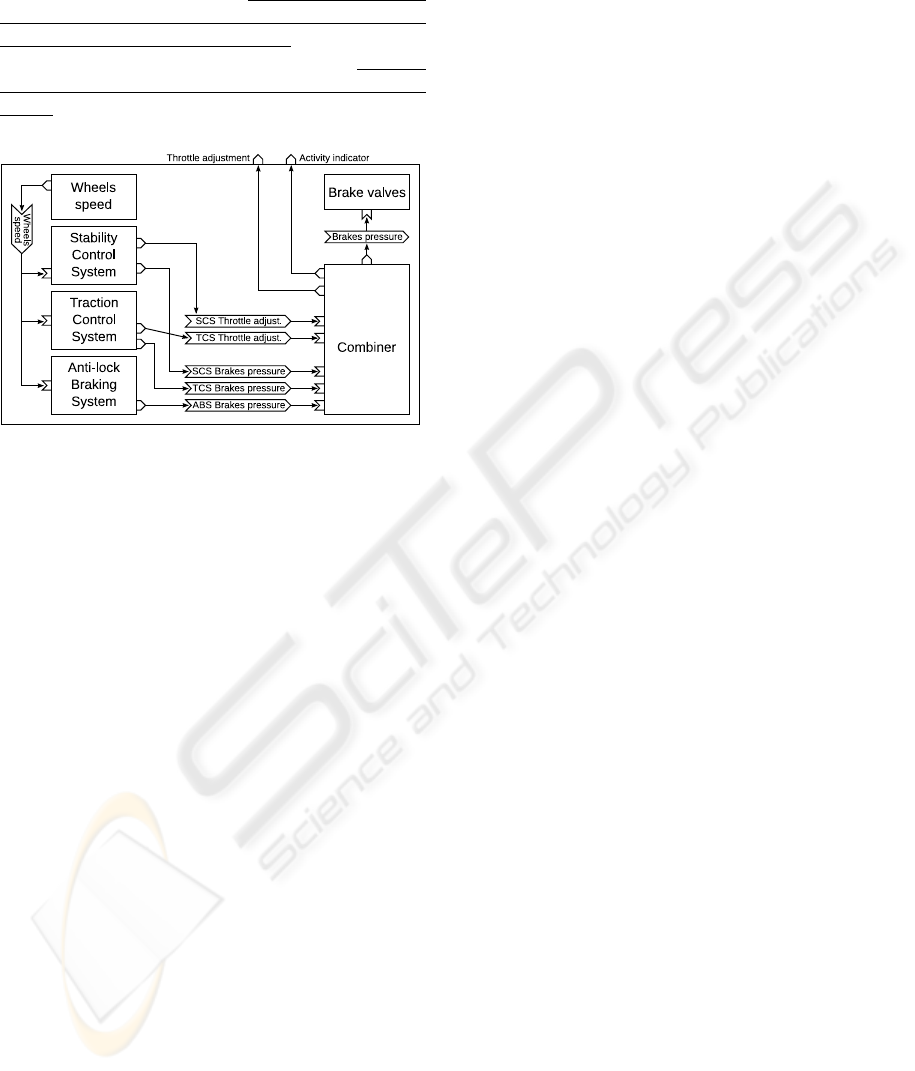

Figure 1 depicts an electronic stability control

system of a car (figure: Bureš et al, 2008; example

previously used in Land et al, 2009). Our envisioned

way to run a MDD/CBSE-oriented project is:

• The different components may either be already

existing, or to be developed. The existing ones

may need modification. (In the figure, for

example the Stability Control System may

require new development, while the Anti-lock

Braking System will be reused from a previous

system with minor modifications, and for the

Wheels speed component, there may be three

potential COTS components available, etc.)

• There are certain properties the system must

fulfill in order to be successful, such as response

times and static memory consumption. (In the

example, the latency from the Wheels speed

input to the Brake valves output must be less

than, say, 10 ms, and the software needs to fit in,

say, 64 kb memory.) Clearly, the functionality is

also a property that needs to be fulfilled, e.g.

according to a requirements specification, a use

case model, and/or state chart models describing

the behavior.

• If these properties cannot be fulfilled, project

management wants to be informed as early as

possible, in order to identify mitigation solutions

(e.g. acquire more powerful hardware, allocate

human resources to optimize the source code,

relax the requirements).

• The properties of interest are (in principle)

derivable from knowledge of individual

components’ properties, their interconnections,

and their allocation to hardware, and the

characteristics of the hardware. For example, the

response time depends on (at least): which

components are invoked from input to output, the

computation time needed by each component

(which depends on hardware), and data transfer

between components (which may be significant

if this involves several communications over a

network). Also behavioral diagrams can in

principle be composed (Håkansson et al, 2008).

(Another model, not shown here, is needed to

describe the allocation of software components

to hardware.) We assume that there exist reliable

such composition theories for the properties of

interest.

• Later in the development, it may be possible to

generate the values for the properties of interest

from implementations. Earlier in the

development, it may be possible to estimate the

values of these properties from half-finished

implementations, or less refined models, adding

a certain margin. Very early in the development,

it is possible to provide values for these

properties through expert estimates, or as

allocated budgets to components based on the

requirements on the system.

• Each attribute type (e.g. “memory consumption”,

“behavior”) may thus be associated with many

different values for a single component instance,

which have been created differently (estimates,

test results, static analysis results, model

checking proofs), and on different versions of the

component (Sentilles et al, 2009).

• It becomes possible to formulate milestones (e.g.

project gates) in terms of expected values of the

attributes. For example, if the requirement on

static memory consumption is 32 kb for a

component, we may define the goal for an early

milestone to be 40 kb, generated from a model in

a language known to give pessimistic values). A

later milestone may be defined for this property

as 24 kb, based on static analysis for a point in

time where an incomplete implementation should

be achieved, with a known set of (planned)

completed features. (If these features are not

PROJECT MONITORING AND CONTROL IN MODEL-DRIVEN AND COMPONENT-BASED DEVELOPMENT OF

EMBEDDED SYSTEMS - The CARMA Principle and Preliminary Results

255

implemented, this should raise a flag in another

milestone criterion, for attribute “functionality”.)

The key observation is that all of these types of

values from very different sources are valuable at

different points during the project from a project

monitoring and control viewpoint, and that they can

be treated in a uniform manner independent of their

source, with support for more or less automatic

generation and composition of the values.

Figure 1: Component design of an electronic stability

control (ESC) subsystem of a car.

3.2 The CARMA Principle

The principle we envision is implicit in (the

combination of) MDD and CBSE, but has not before

been clearly articulated, can be formulated as:

• Components. Choose a component technology

which supports compositional reasoning of

component properties. As early as possible,

define the components of your system (i.e. the

architectural structure).

• Attributes. Keep track of the properties of

(components of) your system through component

attributes. Use a tool that supports management

of these properties, including automatic

composition.

• Requirements. Refine your high-level system

requirements into product requirements, and

specify these in terms of the attributes which are

analyzable with (tools supporting the)

composition theories.

• Milestones. Formulate milestones (e.g. project

gates) in terms of tuples:

<expected value in

relation to product requirement; method to generate

this value>.

• Analysis. Perform verification analysis at the

defined milestones. In addition, the individual

developers, architects, project manager, etc., may

perform analyses of interest at any time; this

resembles debugging in direct connection to

implementation, which is informally done (i.e.

not mandated by a formal process) but an

invaluable tool for the individual developer

before passing the code (or, in MDD, the model)

on to verification as part of the formal process.

We call this principle the CARMA principle

(Components, Attributes, Requirements, Milestones,

Analysis).

The CARMA principle captures what we believe

is a major opportunity in practice if adopting the

MDD/CBSE paradigm. There is risk reduction

inherent in the “correct by design/construction”

paradigm, but it is important to leverage on this at a

project management level, including the time

dimension, the possibility of changed requirements,

which may be due to external events as well as to

internal events in the project. We are performing

several complementary studies of this principle, each

aiming at providing different types of insights. The

studies explore the characteristics of MDD/CBSE

projects implementing the CARMA principle, as is

explained in detail in the next section.

4 PRELIMINARY RESULTS

This section outlines four evaluation methods which

are all underway in our research agenda. For each

we describe the research method shortly, the

evaluation point of view, and preliminary results.

Our main basis for both interviews and

extensions of existing implementation is the

technology development at the Progress Centre for

Predictable Embedded Software Systems

(http://www.mrtc.mdh.se/progress/).

4.1 Interviews and Documentation

Research Question. How do the researchers

developing modeling languages and methods,

analysis methods, synthesis to executable, etc.

envision the benefits of their methods? Is the

approach in large feasible for embedded systems

projects?

Research Method. We have performed interviews

with researchers of various MDD/CBSE modeling/

analysis/construction methods, and tool builders. As

a concrete artifact discussed during the interviews, a

process simulation model (see section 4.2) has been

iterated with these researchers. We have also studied

industrial requirements specifications with the

objective of identifying how closely it matches the

proposed approach.

ENASE 2010 - International Conference on Evaluation of Novel Approaches to Software Engineering

256

Preliminary Results. The interviews and ongoing

collaboration has led to the formulation of the

CARMA principle as well as the construction of a

simulation model (see section 4.2). The study of

industrial requirements specifications have led to the

following observations:

• Some requirements are specified in enough detail

to allow specific pass/fail criteria to be specified,

and are relatively easy to map to the CARMA

principle. In particular:

- Many product requirements are specified in

terms of execution steps, sometimes using

some kind of dynamic diagram. Example:

“During startup, register X shall first be read to

determine the cause of the last shutdown/reset.

If the cause is… then do…”

- Some product requirements describe timing

behavior of some execution steps. “Example:

The first phase of startup shall take less than X

ms; the second step Y ms; …”

- Some product requirements, but not many, are

hardware specifications. Example: “The

processor shall be of type X”; “the software

image shall fit in X bytes of memory”.

• Requirements on safety-related functions are

formulated to be unambiguous and verifiable,

and with the highest level of detail (including

e.g. timing and resource usage as described in the

bullets above). This is due to the potentially

catastrophic effects of a specification error.

4.2 Process Simulation

Research Method. We are simulating a queuing

network model (Kobayashi, 1978) of a development

process where the CARMA principle is adopted. We

vary input parameters such as requirements

volatility, the likelihood of detecting problems in

analysis and verification, the amount and points in

time verification is performed (e.g. milestones

throughout the project, and/or only or mainly at the

end of the project), the actions taken in case a

problem is found (e.g. try to optimize, re-architect

the system, drop or relax requirements, etc.). This

model is iterated with the interviewees as indicated

in section 4.1.

Research Question. If adopting the MDD/CBSE

paradigm and the CARMA principle, what factors

affect the project outcome the most?

Preliminary Results. The simulation results so far

indicate that with frequent milestone verifications,

the same amount of effort is spent on verification as

when verification is performed at the end. However,

the simulation results indicate several drawbacks

with verification occurring only at the end: 1) more

verifiers (i.e., people) are needed at the same time,

2) problems are found late, which cause a feedback

of error correction and re-verification (it is easy to

translate this into a sense of urgency and “fire-

fighting” in the development organization), and 3)

the project time is somewhat prolonged (but not very

much). Also, with more volatile requirements (i.e.

changed or added throughout the project) the total

effort is increased. These results seem intuitively

seem to be applicable more generally, and we take

this as a sign of credibility of the simulation model.

We hope that the simulation results, once fully

analyzed, will provide concrete guidelines on how to

plan and dimension MDD/CBSE development

projects in different circumstances.

4.3 Tool Implementation

Research Method. We are implementing an

extension of the Progress Integrated Development

Environment, which implements the desired

attribute framework for components (Sentilles et al,

2009). In this extension, requirements on attribute

values are distinguished from actual attribute values,

and there will be a general mechanism to compare

these, as well as display summaries and

visualizations of milestone verifications, etc. We

will then use this tool in student projects.

Research Question. Through the construction of the

tool extension, we will hopefully realize details

earlier overlooked. By using the tool in student

projects, we are able to collect insights. We can

nevertheless observe the amount of perceived

overhead the approach introduces, and suggestions

for e.g. automation and user interface improvements.

4.4 Presentation of the Principle as a

CMMI Extension

Research Method. We are systematically extending

a well-known process model, CMMI (Chrissis,

Konrad, and Shrum, 2007), to clarify and explain the

CARMA principle.

Research Question. This is dissemination rather

than evaluation, similar to CMMI extensions for

safety-critical systems (Defence Materiel

Organisation, Australian Department of Defence,

2007) and an extension for the medical domain

(McCaffery, Burton, and Richardson, 2009).

Preliminary Results. An initial version has been

published (Land et al, 2009), and we are currently

extending the guidelines to cover not only the

PROJECT MONITORING AND CONTROL IN MODEL-DRIVEN AND COMPONENT-BASED DEVELOPMENT OF

EMBEDDED SYSTEMS - The CARMA Principle and Preliminary Results

257

software components and associated models are

covered, but also data (e.g. databases) and hardware

nodes and networks, which are extremely important

for accurate analysis of e.g. timing.

5 CONCLUSIONS

Our findings so far indicates that the MDD/CBSE

combination can be used in development projects

and potentially reduce costs, time, and especially

risk. With input from the research fields of MDD

and CBSE as well as industry, the CARMA

principle has been formulated and is shown to be

reasonably realistic. When there are mature tools

available, the results may be developed into

guidelines for application. Further studies will also

need to go beyond ProCom.

ACKNOWLEDGEMENTS

This work was partially supported by the Swedish

Foundation for Strategic Research (SSF) via the

strategic research centre PROGRESS.

REFERENCES

Aagedal, J. Ø., Solheim, I., 2004. “New Roles in Model-

Driven Development”, European Workshop on MDA.

As-2 Embedded Computing Systems Committee, 2009.

Architecture Analysis & Design Language (AADL),

Standard Document Number AS5506.

Beck, K., 1999. EXtreme Programming EXplained:

Embrace Change. Addison Wesley.

Bureš, T., Carlson, J., Crnković, I., Sentilles, S., and

Vulgarakis, A., 2008. ProCom - the Progress

Component Model Reference Manual, version 1.0,

ISRN MDH-MRTC-230/2008-1-SE.

Chrissis, M. B., Konrad, M., and Shrum, S., 2007. CMMI

Second Edition : Guidelines for Process Integration

and Product Improvement, Addison Wesley.

Clements, P., Northrop, L., 2001. Software Product Lines:

Practices and Patterns. Addison-Wesley.

Crnković, I., Chaudron, M., and Larsson, S., 2005,

“Component-based Development Process and

Component Lifecycle”. Journal of Computing and

Information Technology 13(4).

Defence Materiel Organisation, Australian Department of

Defence, 2007. +SAFE, V1.2 : A Safety Extension to

CMMI-DEV, V1.2, SEI technical note CMU/SEI-

2007-TN-006.

Duvall, P., Matyas, S., and Glover, A., 2007, Continuous

Integration: Improving Software Quality and

Reducing Risk. Addison-Wesley Professional.

Feiler, P., Hansson, J., de Niz, D., Wrage, L., 2009.

System Architecture Virtual Integration: An Industrial

Case Study, technical report CMU/SEI-2009-TR-017,

Software Engineering Institute.

Guta, G., Szasz, B., and Schreiner, W., 2008. A

Lightweight Model Driven Development Process

based on XML Technology. Draft Technical report 08-

01 in RISC Report Series, University of Linz, Austria.

Håkansson, J., Carlsson, J., Monot, A., Pettersson, P.,

2008. “Component-Based Design and Analysis of

Embedded Systems with UPPAAL Port”, 6th

International Symposium on Automated Technology

for Verification and Analysis, Springer.

Hänninen, K., Mäki-Turja, J., Sandberg, S., Lundbäck, J.,

Lindberg, M., Nolin, M., and Lundbäck, K.-L., 2008.

”Framework for Real-Time Analysis in Rubus-ICE”,

in 13th IEEE International Conference on Emerging

Technologies and Factory Automation, IEEE.

Kobayashi, H., 1978. Modeling and Analysis: An

introduction to System Performance Evaluation

Methodology, Addison-Wesley Publishing Company.

Kleppe, A., Warmer, J., Bast, W., 2003. MDA Explained :

The Model Driven Architecture: Practice and

Promise, Pearson Education.

Krahn, H., Rumpe, B., and Völkel, S., 2006.“Roles in

Software Development using Domain Specific

Modelling Languages”, in 6th OOPSLA Workshop on

Domain-Specific Modeling.

Kruchten, P., 2004. The Rational Unified Process : An

Introduction. Addison-Wesley, 3rd edition.

Land, R., Carlson, J., Larsson, S., and Crnković, I., 2009.

“Towards Guidelines for a Development Process for

Component-Based Embedded Systems”, in

International Conference on Computational Science

and Applications (ICCSA), Springer.

Larsson, M., Wall, A., and Wallnau, K., 2005. Predictable

Assembly: The Crystal Ball to Software. ABB Review.

McCaffery, F., Burton, J., Richardson, I., 2009.

“Improving software Risk Management in a Medical

Device Company”, in ICSE Companion.

Selic, Bran, 2003. “The Pragmatics of Model-Driven

Development”, IEEE Software 20(5), IEEE.

Sentilles, S., Vulgarakis, A., Bureš, T., Carlson, J., and

Crnković, I., 2008. “A Component Model for Control-

Intensive Distributed Embedded Systems”. In

Proceedings of the 11th International Symposium on

Component Based Software Engineering, Berlin.

Sentilles, S., Stepan, P., Carlson, J., Crnkovic, I., 2009.

“Integration of Extra-Functional Properties in

Component Models”, in 12th International Symposium

on Component Based Software Engineering, Springer.

Stahl, T., Völter, M., 2006. Model-Driven Software

Development: Technology, Engineering, Management.

John Wiley & Sons.

Szyperski C., 2002. Component Software - Beyond Object-

Oriented Programming, Addison-Wesley, 2nd edition.

van Ommering, R., van der Linden, F., Kramer, J.,and

Magee, J., 2000. “The Koala Component Model for

Consumer Electronics Software”. IEEE Computer

33(3), IEEE.

ENASE 2010 - International Conference on Evaluation of Novel Approaches to Software Engineering

258
