COMMON LANUGAGES FOR SEMANTIC WWW

Beyond RDF and OWL

Seiji Koide

Information Technology, The Graduate University for Advanced Studies Sokendai, Tokyo, Japan

Hideaki Takeda

National Institute of Informatics and SOKENDAI, 2-1-2, Hitotsubashi, Chiyoda-ku, Tokyo 101-8430, Japan

Keywords:

Semantic web, RDF, OWL, Object, KIF, Common logic, Reﬂection, SWCLOS.

Abstract:

OWL has established itself as a standard of ontology description language not only in Semantic Web but also

in diverse disciplines and engineering ﬁelds. However, endeavors to describe ontology in OWL are revealing

the extent of ability on the OWL current speciﬁcation in practical views. In this paper, we see an overview of

basic assumptions of knowledge representation languages for Semantic Web, and point out several basic and

problematic issues of OWL, which are captured by our own experience of developing a language processor

called SWCLOS, the ﬁrst OWL Full processor developed on top of Common Lisp Object System (CLOS),

and we address our approach to solve them. It includes explicit descriptions of role concepts, auto-epistemic

local closed world assumption, ternary truth values, and unique name assumption for atomic objects. These

settings are implemented into SWCLOS. Finally, we envision the direction of languages for semantic WWW.

1 INTRODUCTION

It seems that Web Ontology Language (OWL) has

successfully established itself as a de facto standard

of ontology description language not only in the Se-

mantic Web community but also in diverse disciplines

and engineering ﬁelds, e.g., ontology, linguistics,

modeling in software engineering, enterprise busi-

ness patterns, etc. We had also developed an OWL

Full language processor called SWCLOS (Koide and

Takeda, 2006)

on top of Common Lisp Object Sys-

tem (CLOS), and attempted to apply it in several ap-

plications. SWCLOS is an amalgamation of Object-

Oriented language in Lisp and Web Ontology Lan-

guage OWL, and then we saw how an ontology de-

scription language that is ﬁrmly underpinned by for-

mal logic and denotational semantics on Resource

Description Framework (RDF) is useful to software

engineering so as to assure formal descriptions of sys-

tem speciﬁcation.

In the process of developing SWCLOS we, how-

ever, encountered a few subtle and basic problems of

semantic disparity to be coped with among computa-

Source codes are available at http://www-

kasm.nii.ac.jp/˜koide/SWCLOS2-en.ﬁles/Page408.htm

tional models of RDF, OWL, logics, and objects. For

example, ordinary programming languages and log-

ics such as Description Logic (DL) stand on Unique

Name Assumption (UNA), but OWL is not regarded

to stand on UNA. Ordinary software models and log-

ics are based on Closed World Assumption (CWA),

but OWL and DLs are regarded as on Open World

Assumption (OWA). In case that we had set such full

setting as non-UNAand OWA for Semantic Webs into

SWCLOS, it amounted to the result of either very few

viable interpretations with less common knowledge

or excessive need of common knowledge for models

on class disjointness and individual differentiation in

several Semantic Web applications. Hence, we refac-

tored SWCLOS with introducing new moderate set-

tings based on context dependent role and disjoint-

ness of substance classes, auto-epistemic local closed

world assumption, ternary truth values that allow un-

known value, and UNA for atomic objects in non-

UNA environment. Such experience of developing

SWCLOS and the subsequent applications brought us

to deeper understanding on the theory and relations

of RDF(S)/OWL, logics, and Object-Oriented seman-

tics. Table 1 summarize the basic computational

assumptions underlying Common Lisp, Description

Koide S. and Takeda H. (2010).

COMMON LANUGAGES FOR SEMANTIC WWW - Beyond RDF and OWL.

In Proceedings of the Fifth International Conference on Evaluation of Novel Approaches to Software Engineering, pages 86-95

DOI: 10.5220/0002999000860095

 SciTePress

Table 1: Basic Computational Features of Languages.

UNA/nonUNA CWA/OWA Truth Value arity

Common Lisp UNA CWA Ternary n

DL UNA OWA Binery 2

OWL nonUNA OWA Binery 2

Common Logic nonUNA OWA Ternary? n

Logic, OWL, and Common Logic.

This paper is structured as follows. In Section 2,

we see an overview of RDF, RDF Schema, OWL,

Common Lisp, and Common Logic. Section 3 de-

scribes problematic non-Unique Name Assumption

and OWA, and also discusses the equality of entities

in the RDF universe and the OWL universe. In Sec-

tion 4, we propose a new frameworkthat involves role

concepts based on discussion of several top ontolo-

gies. The auto-epistemic local closed world assump-

tion and ternary truth value are explained at Section

5. Finally, we envision the direction of languages for

semantic WWW at Section 6.

2 SEMANTICS IN RDF, OWL,

LISP, AND COMMON LOGIC

2.1 Denotational Semantics in RDF

Every scientiﬁc theory is a system of sentences which

are accepted as true and which may be called asserted

statements (Tarski, 1995). To deduce the truth value

of asserted sentences, words in sentences are discrim-

inated from things denoted by words (denotations),

and then the relations between words and denotations

and among denotations are interpreted according to

axioms and rules in a given formal way. Such system-

atic denotational semantics is called “Tarskian” (Mc-

Dermott, 1978). A set of all entities as denotation

is called a domain or universe of discourse (Tarski,

1995). Axioms and rules for interpretation must en-

able the structure of the universe of discourse so as to

reﬂect the structure of the real world. Entailment in

logic with axioms must follow rules in the real world,

see Figure 7.6 in (Russell and Norvig, 2003).

Resource Description Framework (RDF) is an as-

sertional language intended to be used to express

propositions using precise formal vocabularies and

the syntax which is applicable to WWW with the

components such as URI references, literals, XML

schema typed literals, or nodes in WWW (Hayes and

McBride, 2004). RDF captures WWW as labeled di-

rected graph. The semantics of RDF graph is spec-

iﬁed and formalized as follows by set-theoretical de-

notational semantics based on the Tarskian model the-

ory.

In the RDF simple interpretation I of vocabulary

V ,

1. A non-empty set R

of entities, called the domain

or universe of I .

2. A set P

, called the set of properties of I .

3. A mapping EXT

from P

into the powerset of

the set R

× R

, i.e., the set of sets of pairs hx,yi

with x and y in R

4. A mapping S

from URI references in V into

∪ P

5. A mapping L

from typed literals in V into R

6. A distinguished subset LV of R

, called the set of

literal values, which contains all the plain literals

in V .

Here, EXT

(p) is called the property extension of p,

and it represents a set of sets of pairs hx,yi, where x

and y are entities in the universe of discourse. In other

words, a property makes a set of the binary relation

between entities in the universe of discourse.

The notion of property is introduced with two

words, rdf:Property and rdf:type, in rdf vocabulary as

follows.

Axiom 1. If an entity is a member of the set of

properties of I , then the entity makes a pair with

rdf :Property

= S

(rdf:Property

) and then the pair

is a member of property extension of rdf :type

(rdf:type), and vice versa:

x ∈ P

iff hx,rdf :Property

i ∈ EXT

(rdf :type

)

A particular pair of hx, yi for property p is also

called a triple in inﬁx notation or x p y. In this ex-

pression, x is called subject, y is called object, and

p is called predicate. A set of triples is called an

RDF graph in Semantic Web. An RDF graph may

include blank nodes. A blank node has no URI ref-

erence and may be designated by a nodeID instead

of a URI reference. An RDF graph that does not in-

clude blank nodes is called a ground graph. The de-

notation of a ground RDF graph (truth value) in I is

given by recursively applying the above interpretation

and axioms for ground triples. The semantics of un-

grounded graphs is extended from the ground graphs,

see (Hayes and McBride, 2004) for details. Next sub-

sections describe the semantic extensions of interpre-

tation for RDF Schema (RDFS) and OWL.

2.2 Semantics of Class in RDF Schema

The notion of class-instance is introduced as an rdfs-

extension of the universe of discourse using the notion

of class extension, see below.

rdf:Property is a QName in XML Namespace for

URI reference http://www.w3.org/1999/02/22-rdf-syntax-

ns#Property.

COMMON LANUGAGES FOR SEMANTIC WWW - Beyond RDF and OWL

Axiom 2. If an entity is a member of class extension of

another entity, then a pair of both becomes a member

of property extension of rdf :type

, and vice versa.

x ∈ CEXT

(y) iff hx,yi ∈ EXT

(rdf :type

)

CEXT

(y) represents the class extension of y, and it

denotes a set of instances of y. Here, y is called a

class.

It is obvious that every property in the universe

turns out to be an instance of rdf :Property

. Here,

, which is initially deﬁned as the universe itself

in the rdf simple interpretation, is redeﬁned with ter-

minology rdfs:Resource as a class extension of rdfs:

Resource

. In addition, using the notion of class ex-

tension, the set of all classes in the universe is also

deﬁned with new terminology rdfs:Class. Datatypes

and literals are also deﬁned as follows.

= CEXT

(rdf :Property

)

= CEXT

(rdfs:Resource

)

= CEXT

(rdfs:Class

)

= CEXT

(rdfs:Datatype

)

LV = CEXT

(rdfs:Literal

)

For these rdfs vocabulary, rdfs-interpretation sat-

isﬁes the extra conditions for RDFS, see (Hayes and

McBride, 2004).

The class-superclass relation in the universe is

speciﬁed with terminology rdfs:subClassOf as the in-

clusiveness of the class extensions of class/superclass

as follows.

Axiom 3. If a pair of two entities is a member of prop-

erty extensions of rdfs:subClassOf

, then the both en-

tities are instances of rdfs:Class

and the class exten-

sion of the predecessor in the pair is included by the

class extension of the successor.

hx,yi ∈ EXT

(rdfs:subClassOf

) ⇒

x,y ∈ C

∧ CEXT

(x) ⊆ CEXT

(y)

2.3 Semantics in OWL

The OWL Web Ontology Language is a language

for deﬁning and instantiating Web ontologies. The

OWL language provides three increasingly expressive

sublanguages designed for use by speciﬁc commu-

nities of implementers and users. OWL Lite is the

simplest sublanguage and it supports those users pri-

marily needing a classiﬁcation hierarchy and simple

constraint features. OWL DL supports those users

who want the maximum expressiveness without los-

ing computational completeness (all entailments are

guaranteed to be computed) and decidability (all com-

putations will ﬁnish in ﬁnite time) of reasoning sys-

tems. OWL DL was designed to support the exist-

ing Description Logic business segment and has de-

sirable computational properties for reasoning sys-

tems (Smith et al., 2004). However, OWL Lite and

OWL DL do not completely support RDF semantics.

OWL Full is meant for users who want maximum

expressiveness and the syntactic freedom of RDF. In

OWL Full a class can be treated simultaneously as a

collection of individuals

and as an individual in its

own right (metamodeling).

The OWL speciﬁcations include many features

and capabilities that are useful to describe Web on-

tologies, and OWL Lite and DL speciﬁcations and

its semantics are described in the bunch of speci-

ﬁcations (Smith et al., 2004; McGuinness and van

Harmelen, 2004; Patel-Schneider et al., 2004a). OWL

Full speciﬁcation is, however, removed from them,

and not yet developed as well.

2.3.1 OWL compatibility to RDF

The compatibility between OWL and RDF is dis-

cussed in (Patel-Schneider et al., 2004b). Although

OWL is regarded to be constructed on top of RDF, it

is not so easy actually by historical reasons and oth-

ers. The speciﬁcation (Patel-Schneider et al., 2004b)

that speciﬁes the universe of OWL is included in the

universe of RDF on one hand, see below.

= CEXT

(owl:Class

) ⊆ C

= CEXT

(owl:Thing

) ⊆ R

On the other hand, it simultaneously states that

= C

and OT

= R

for OWL Full. As a mat-

ter of fact, the OWL deﬁnition ﬁle

contains the deﬁ-

nition of the ﬁrst inclusiveness above, and the second

one can be entailed in the RDF universe by the rdfs

entailment rule rdfs4a

. Thus, SWCLOS realized the

OWL universe in the RDF universe naturally by load-

ing the ﬁle in RDF subsystem of SWCLOS.

In addition, we introduced the following proposi-

tion as axiom in order to include OWL classes in the

OWL universe, and to make the OWL universe OWL

Full. See details in (Koide and Takeda, 2006) and

SWCLOS documents

Proposition 1. The extension of the denotation of URI

reference of owl:Class is included by the extension of

the denotation of URI reference of owl:Thing.

⊆ OT

(1)

“individual” is a term in Description Logic and synony-

mous with “instance”.

http://www.w3.org/2002/07/owl.rdf

http://www.w3.org/TR/rdf-mt/#rulerdfs4

SWCLOS documents are available at http://www-

kasm.nii.ac.jp/˜koide/SWCLOS2.ﬁles/Page408.htm

ENASE 2010 - International Conference on Evaluation of Novel Approaches to Software Engineering

This axiom enables every class in the OWL uni-

verse to have roles (properties) for individuals such

as owl:sameAs, owl:differentFrom, etc.

2.3.2 Metamodeling capability in OWL Full

SWCLOS is the ﬁrst full-ﬂedged language as OWL

Full processor, in which the capability of metamod-

eling objects is borrowed from the power of the dy-

namic and reﬂective features of Lisp and metaclass-

ing capability of CLOS. We had implemented many

OWL axioms into CLOS using Meta-Object Proto-

col (MOP) of CLOS. Whereas the complete freedom

of metamodeling certainly results in undecidability,

most examples demonstrated by the OWL DL party

as OWL Full undecidabilityare unreasonably extreme

and make no sense from the view of engineering. We

had showed several metamodeling examples of SWC-

LOS in (Koide and Takeda, 2006) within the under-

standable rationale of engineering from our practical

experience, and in (Koide and Takeda, 2009), we ad-

dressed a set of metamodeling criteria that enables

SWCLOS to perform ontology metamodeling.

2.4 Semantics in Common Lisp

Common Lisp as a dialect of lisp is produced by the

activity of ANSI standardization on lisps during 1981

through 1997 in U.S., and many systems are run-

ning on Common Lisp today in academic ﬁelds and

industrial applications. However, the semantics em-

braces some ambiguities speciﬁcally from the view-

point of denotational and extensional semantics like

RDF semantics. The problem of subclassing and

metaclassing in Common Lisp is discussed in (Koide

and Takeda, 2009). In this section, we attempt to cate-

gorize computer languages with emphasizing the spe-

cialty of lisp as computer language, and discuss the

relation among them according to the semantics that

is addressed by (Smith, 1984) on the reﬂective lan-

guage 3-Lisp.

In a lisp system like early lisp system Lisp 1.5,

which is equipped with symbol, function, and list,

and without any other structural devices like object

in Object Oriented programming, a syntactic lisp ex-

pression (S-expression) is reduced to a nominal form

that is equivalent to the original one in the sense of

λ-calculus. For example, an expression “(+ 1 2)” is

reduced to “3”. However, we can quote an expression

to inhibit the reduction, and then we can change ex-

pressions and construct another form, such as “(cons

(quote *) (cdr (quote (+ 1 2))))” turns out “(* 1 2)”.

This speciﬁc feature of lisp family languages is re-

cently called homoiconic. In this ﬁrst computational

model, lexical expressions are not discriminated from

the denotations.

Second computational model in this section dis-

criminates symbols from the denotations. A lexical

expression “3” denotes number 3, and a lexical ex-

pression “t” and “nil”, which are reduced to “t” and

“nil”, respectively, denote true and falsity, respec-

tively, in the universe of discourse. However, no sym-

bol but “t” and “nil” denotes anything until it is de-

ﬁned so. This mapping from a lexical expression to

the denotation is analogous to that in RDF semantics.

In the third computational model, a symbol refers

a complex structure as internal structured device in a

modern computer language as well as the external list

structure in the ﬁrst lisp model. In this case, a symbol

can be used to refer a referent that denotes an entity

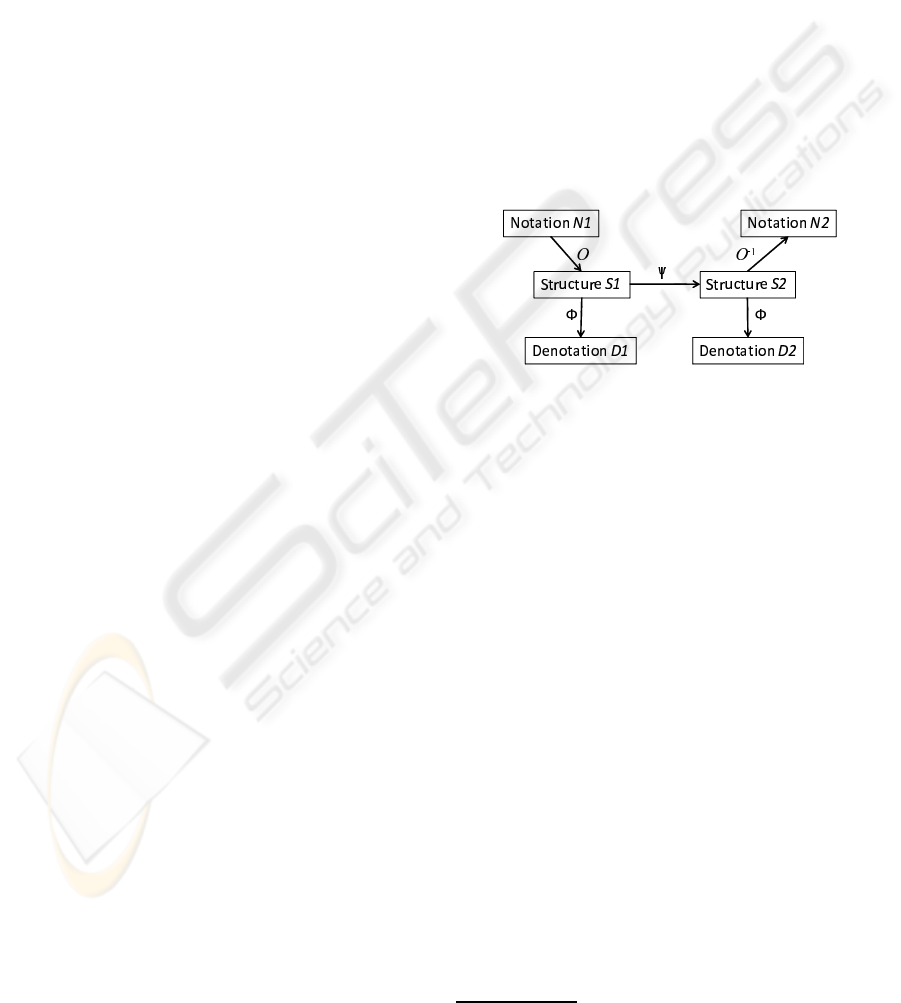

in the universe. Figure 1 shows the framework in this

third computational semantic model (Smith, 1984).

Figure 1: The Framework for Computational Semantics.

Smith called the mapping O internalization, and

the inverse operation O

−1

externalization. He also

noted that O (and O

−1

) is usually ignored in logic.

The φ is the interpretation function, which is anal-

ogous to the interpretation in denotational seman-

tics, and the reduction ψ, which is, Smith says, the

relationship among symbols, corresponds entailment

rules and rule application in logic. Smith pointed out

that the lisp evaluator crosses semantical levels, and

therefore obscures the difference between the simpli-

ﬁcation ψ and the interpretation φ. Smith called this

lisp speciﬁc nature de-reference (φ = ψ). It has be-

come the theoretic base of his work on the reﬂective

language 3-Lisp.

Assumptions and axioms in domain knowledge

can be syntactically represented by a set of symbols

and structures expressed among them. Those expres-

sions of assumptions are reduced to entailed asser-

tions by a prover ψ.

2.5 Semantics in Common Logic

Common Logic

is an abstract language of ISO stan-

dard of a logic framework intended for information

exchange and transmission. The framework allows a

http://common-logic.org/

COMMON LANUGAGES FOR SEMANTIC WWW - Beyond RDF and OWL

variety of different syntactic forms, called dialects, all

expressible within a common XML-based syntax and

all sharing a single semantics. The dialects, which

have different syntax but interchangeable from one

to another, include Common Logic Interchange For-

mat (CLIF)

, Conceptual Graph Interchange Format

(CGIF)

, XML Common Logic (XCL)

, and Com-

mon Logic Controlled English (CLCE)

. CLIF may

be conceived to be a modernized version of Knowl-

edge Interchange Format (KIF)

(Hayes and Menzel,

2001).

Common Logic has some novel features syntac-

tically and semantically. It allows a syntax which is

signature-free. The abstract syntax model is analo-

gous to polymorphism in Object-Oriented program-

ming and no ﬁxed arity like Common Lisp (polyadic).

As shown in Table 1, the arity of RDF and OWL is

strictly constrained to 2. Not only Common Logic

allows n-ary, but also the arity is not ﬁxed for a

predicate or property. Guha and Hayes initially pro-

posed such features as the RDF syntax for a common

base language of Semantic Web languages (Guha and

Hayes, 2003). In their proposal for the candidate

of RDF, they expected a base language for Seman-

tic Web languages, and claimed the basic language,

called L

base

, that supports basic inference and seman-

tics, and then allows RDF and extending different se-

mantics at the upper layers in the Semantic Web stack.

They imagined that L

base

provides L

language in i-th

layer of Semantic Web language stack.

Common Logic also permits ‘higher-order’ con-

structions such as quantiﬁcation over classes or rela-

tions while preserving a ﬁrst-order model theory. The

semantics allows theories to describe intensional en-

tities such as classes and properties. The ﬁrst solution

of this ‘higher-order’ constructions will be metamod-

eling in Common Logic.

It seems that the modernized features of Com-

mon Logic is a reﬂection of the progress of mod-

ern computer languages. For example, the semantics

of Common Logic introduced a new term, universe

of reference, in addition to the universe of discourse

in denotational semantics. A dialect is called segre-

gated in which some names are non-discourse names,

namely the denotations of the non-discourse names

are in the universe of reference, but not in the uni-

verse of discourse in an interpretation. “Segregated

dialects are commonly described to have a universe

of discourse, without mentioning the universe of ref-

http://www.ihmc.us/users/phayes/CLIF.html

http://conceptualgraphs.org/

http://www.altheim.com/specs/xcl/1.0/

http://www.jfsowa.com/clce/specs.htm

http://www-ksl.stanford.edu/knowledge-sharing/kif/

erence; and for non-segregated dialects the universes

of discourse and of reference are identical. The dis-

tinction makes it possible to provide a single seman-

tics which can cover both styles of dialect”. The mo-

tivation of introducing the universe of reference and

non-discourse names is likely to be for the provision

against people who do not want to concern some ter-

minologies out of concerning ontologies.

However,

this notion is very akin to Smith’s reference and de-

reference framework in the previous section. There-

fore, we might be able to rephrase that the second lan-

guage model of Common Lisp is non-segregated, and

the third is segregated, in which symbols and inter-

nal structures are segregated. This language model

will support to develop logic systems using objects in

imperative computer languages which include sym-

bols or variable names, structures, objects, whereas

the meaning of “segregated” may be misunderstood

from its introductory usage in Common Logic.

3 NON-UNIQUE NAME

ASSUMPTION AND EQUALITY

3.1 Equality of Individuals

Unique Name Assumption, that is, different names

always denote different entities, which is usually

adopted into computer languages, is not adopted in

Semantic Web. In OWL language, owl:sameAs prop-

erty may be applied to different URIs to indicate that

two different URI references denote the same entity

as individual in the OWL universe. Oppositely, the

owl:differentFrom property (and the combination of

owl:AllDifferent and owl:distinctMembers, too) may

be used to indicate two different URI references de-

note different entities. Thus, in case of no information

on the equality in OWL, the equality of two entities is

not determined

, then, the decision of the equality

of entity must be performed in the RDF universe. To

discuss the equality of entities in RDF semantics, it is

appropriate to discuss the equality of two subgraphs

that the two entities are in position of subject.

The algorithm for the equality computation in the

RDF universe is explained as follows.

Two RDF graphs G and G

′

are equivalent if there

from the discussion on (Neuhaus, 2010) at the confer-

ence.

Instance properties of owl:FunctionalProperty and

owl:InverseFunctionalProperty also affect the equality as

individual.

http://www.w3.org/TR/rdf-concepts/#section-graph-

equality

ENASE 2010 - International Conference on Evaluation of Novel Approaches to Software Engineering

is a bijection M between the sets of triples for the two

graphs, such that:

1. M maps blank nodes to blank nodes.

2. M (lit) = lit for all RDF literals lit which denotes

nodes of G.

3. M (uri) = uri for all RDF URI references uri

which denotes nodes of G.

4. s

, p

, and o

for triple s/p/o, where I means the

interpretation of lexical token s, p, and o, are in G

if and only if M (s)/p/M (o) also denotes a triple

in G

′

For the discussion of equality under the non-

UNA condition, we superimpose owl:sameAs and

owl:differentFrom properties onto the above algo-

rithm. In case that s in G and s

′

in G

′

are blank

nodes in a bijection M , s/p/o is equivalent to

M (s

′

)/p/M (o

′

), if o = M (o

′

) in OWL semantics,

that is, two blank nodes s and s

′

are equivalent. In

case that s and s

′

are named with different names

and we cannot determine the equality by the names,

our approach determines the equality between s and

′

through the structures of edges in two graphs.

Namely, we check p and the equality of o and o

′

. This

algorithm traverses two graphs, until the decision is

obtained. Note that RDF graph is a directed graph. In

graph equality checking, if two nodes have sub-trees,

the corresponding sub-trees on both graphs are recur-

sively checked for the equality. Thus, if we reach at

terminal nodes (atomic nodes that do not have edges

any more) but no information is obtained, we fall into

a troublesome situation. For example, in compari-

son of ex:Y/ex:p/ex:Aand ex:Z/ex:p/ex:B, if ex:A and

ex:B are both atomic, the non-UNA computation can-

not conclude whether or not ex:Y is equivalent to ex:Z

as well as ex:A and ex:B. In such condition, in or-

der to derive useful computational results, we must

deﬁne the equality or difference among every atomic

individuals. It is very laboriouswork to describe com-

mon knowledge such as Bill is different from George,

Barack, Al, and so on.

Therefore, we devised a ﬂag for non-UNA and set

up falsity to the ﬂag as default. Note that the equality

of two blank nodes is checked both in UNA and in

non-UNA. In the default condition, we stand in UNA

as well as for ordinary computer languages, then two

nodes that have different URI references are differ-

ent, and then two blank node trees are distinct if we

cannot ﬁnd the corresponding edges of graphs or we

ﬁnd the lexically differentURI references at the corre-

sponding position in the trees. In non-UNA condition

with the ﬂag setting, the graph equality checking is

performed even though two URIs at the correspond-

ing position are different, until we ﬁnd either the dif-

ference of graph structures or the difference of nodes

that are explicitly stated in OWL statements. In our

approach, two atomic nodes with different names are

regarded as different in the equality checking, even

though the ﬂag indicates non-UNA. Thus, this algo-

rithm is paraphrased UNA for atomic objects in the

non-UNA condition.

3.2 Equivalency and Disjointness of

Classes

3.2.1 Complete Relation for Class Equivalency

In OWL, owl:equivalentClass is applicable to indi-

cate the equivalency of two objects as class. For

example, food:Wine in Food Ontology

is equiva-

lent to vin:Wine in Wine Ontology with the state-

ment of owl:equivalentClass. In addition, the other

three complete relations,

i.e., owl:intersectionOf,

owl:unionOf, and owl:oneOf also decide the equiva-

lency of classes. If two concepts (classes) have equiv-

alent values for these complete relational properties,

the two concepts must be regarded as equivalent

class. For example, vin:DryWine and vin:TableWine

in Wine Ontology are equivalent as class in exten-

sional semantics (they share the same class exten-

sions), because the both have the same value for

owl:intersectionOf property.

3.2.2 Explicit and Implicit Disjointness of

Classes

On the other hand, owl:disjointWith and

owl:complementOf can be applied to classes to

state disjoint classes. These properties explicitly state

that two concepts are deﬁnitely different as class.

Thus, in case of no declaration of equivalency

and disjointness of classes, we cannot conclude

the equality as classes immediately. However, the

complete relations except owl:equivalentClass de-

cide not only the equality but also the difference of

classes. For example, even though we have no di-

rect statement of disjointness for vin:RedWine and

vin:WhiteWine, the disjointness is deduced through

property owl:intersectionOf and owl:hasValue re-

striction vin:Red of vin:RedWine and vin:White of

vin:WhiteWine, because it is explicitly stated that

vin:Red is different from vin:White. Furthermore,

we can also conclude some useful results by re-

sorting to the rdf graph checking mentioned above.

For example, we can ﬁnd that vin:CaliforniaWine

http://www.w3.org/TR/2004/REC-owl-guide-

20040210/food.rdf

http://www.w3.org/TR/owl-ref/#DescriptionAxiom

COMMON LANUGAGES FOR SEMANTIC WWW - Beyond RDF and OWL

is not equal to vin:ItalianWine in spite of no ex-

plicit information of disjointness, because the graph

equality checking deduces that vin:CaliforniaRegion,

in which vin:CaliforniaWine is located, is different

from vin:ItalianRegion, in which vin:ItalianWine is

located, even if we are in non-UNA.

However, for atomic concepts, we cannot con-

clude that Man is disjoint to Woman, if those concepts

are atomic in non-UNA. Thus, we are forced to do

very laborious work to describe common knowledge

such as Man and Woman are disjoint, Plant and Ani-

mal are disjoint, Ape and Monkey are disjoint, Virus

and Bacteria are disjoint, and so on.

ANSI Common Lisp speciﬁes that CLOS classes

are pairwise disjoint if they have no common subclass

and one class is not a subclass of the other. Namely,

each class is disjoint to the others as default until we

connect them in superclass relation or set a common

subclass. This agreement is supported by the premise

that an object in CLOS is typed to only one class. In

the RDF universe, an entity can be typed to multi-

ple classes. So, the nature of disjointness in CLOS is

not applicable in the RDF universe in theory. How-

ever, in SWCLOS, the pseudo multiple-classing ma-

chinery is implemented, using the CLOS class and

multiple-inheritance mechanism. Therefore, from the

viewpoint of CLOS, the algorithm of disjointness for

CLOS is still valid in the RDF universe in virtue of

CLOS. In the next section, we introduce an idea of

role concept that is divided from substantial concept

with the premise of pairwise disjointness.

4 SUBSTANTIAL CONCEPTS

AND ROLE CONCEPTS

4.1 Pairwise Disjoint Datatype

In SWCLOS, we deﬁned XML datatype wrappers as

mapping XML Schema descriptions to lisp datatypes

in lisp value space. We deﬁned xsd datatypes in

lisp space and the same datatypes are also deﬁned as

CLOS classes in the RDF universe in order to treat

them in the RDF universe. Therefore, independent

XML Schema datatypes in SWCLOS are pairwise

disjoint by the implicit disjointness of CLOS classes,

e.g., xsd:ﬂoat is disjoint with xsd:integer, xsd:URI,

xsd:string, xsd:boolean, etc.

4.2 Ontological Categories and

Disjointness

OWL provided the description of class disjoint-

ness and forced us labor-intensive work as described

above. W3C new recommendation for OWL, namely

OWL 2 speciﬁcation (Carroll et al., 2009), attempts

to solve the disjointness problems without ontologi-

cal consideration in depth. In OWL 2, Person may be

described as owl:disjointUnionOf Man and Woman.

However, we are still forced to describe explicitly

disjointness for all disjoint classes, or basic atomic

concepts. We strongly claim that the approach to de-

scribe disjointness must be well-founded on ontolog-

ical consideration.

Sowa (Sowa, 1995; Sowa, 1999) showed a lattice

of the top-level ontological categories of things. Each

of the twelve elemental concepts in the top ontology

has different characteristics and those combinations,

i.e., independent, physical, relative, abstract, and me-

diating. The concepts of the independent exist itself

and they show the ﬁrstness. The concepts of the rela-

tive or role only live with the ﬁrstness and they show

the secondness. The mediating describes concepts

that mediate the ﬁrstness and the secondness.

Guarino (Guarino, 1998) parted ontology into two

catagories, i.e., particular that represents substantial

entities and universal that is the category of entities

required to describe the particulars. Physical objects,

abstract processes, phenomena, quality, and materi-

als fall into the particular, and attributes, relations are

categorized into the universal.

Mizoguchi, et al., developed an ontology build-

ing tool called Hozo (Mizoguchi et al., 2007; Kozaki

et al., 2007) based on ontological deep discussion

and have utilized Hozo for many application ﬁeld of

ontology building. Using Hozo, ontology builders

can easily construct complex concepts that are com-

posed of substantial sorts and non-substantial roles.

For example, Wife is a part of Family and composed

of Woman and Wife-role. The concept Woman is a

substantial and may have slots of gender, age, etc.

The role concept Wife-role is not a substantial, in

other words, it always requires substantial concepts

to work, but may have its own slots such as married-

year, partner, etc. In a sense, it is regarded that the

concept Family represents the context in which the

concept Wife is activated from Woman with Wife-

role.

We also proposed Aspect Theory of ontology

in the study of Knowledgeable Community (Takeda

et al., 1995), which is a framework of knowledge

sharing and reuse based on a multi-agent architecture.

In this framework, while ontologies are the minimum

ENASE 2010 - International Conference on Evaluation of Novel Approaches to Software Engineering

requirement for each agent to join the community,

each of heterogeneous ontologies describes an aspect

of an entity and knowledge. A mediator agent that

embodied knowledge for mediation helps other agents

to communicate each other. In this theory, the aspect

may be rephrased as a context on which an agent fo-

cused for discourse. For example, a concept Temple

is an aggregation of concepts in aspect of religion,

cultural asset, building architecture, corporate body,

and so on. In most case without communication, we

usually focus on one aspect of entity and do not need

to take care the other aspects in a particular context.

However, for agents in a particular discourse, the me-

diator translates heterogeneous ontologies from one

to another and mediates agent’s speech acts that are

broad-casted in the community.

4.3 Introduction of Role Concepts

In this paper, in order to solve the labor-intensive dis-

jointness problem, we propose two ontological cate-

gories according to (Kozaki et al., 2007), i.e., substan-

tial concepts and role concepts, and realize them on

top of RDF semantics. Neither owl:disjointUnionOf

nor owl:AllDisjointClasses in OWL 2 are introduced.

The substantial concepts are described in OWL syn-

tax, but we adopt the assumption of implicit dis-

jointness for substantial concepts in the same way of

CLOS as described above. On the other hand, the

discussion of disjointness on role concept is mean-

ingless, because the role concept cannot have any in-

stance by itself. A complex concept (role holder) is

composed of a substantial concept and role concepts.

Two complex concepts such as Husband and Teacher

can share individuals, but those individuals should be

interpreted as instances of Man in Husband and Per-

son in Teacher. The syntax and semantics of role con-

cepts are described at Appendix A.

5 OPEN WORLD ASSUMPTION

AND TERNARY TRUTH VALUE

5.1 Auto-epistemic Local Closed World

Assumption

Negation as Failure (NaF) is a well-known convention

for inference in Closed World Assumption (CWA).

This convention is, however, not applicable in World

Wide Web. Therefore, two queries are usually is-

sued as “P?” and “not P?” for query-answer sys-

tems. In case that we cannot obtained any results with

two queries, it may be called unknown. As shown so

far, rigorous non-UNA and full Open World Assump-

tion in Semantic Web often produce shortcomings in

practical ontology building. The implicit disjointness

principle adopted in SWCLOS is very useful all over

the life-cycle of ontology engineering. This princi-

ple can be rephrased such that we assume axioma-

tized classes are disjoint each other until the disjoint-

ness are explicitly axiomatized. In some sense, it is

a kind of convenient and arbitrarily default reasoning.

A reasoner replies that the concept A is disjoint with

the concept B because of no evidence that supports

it. After the statement that the concept A and B has a

subclass C, the same agent replies the concept A and

B are not disjoint. However, even so, note that SWC-

LOS signals an alarm if a user attempts to make an in-

stance of class A and B that is explicitly stated as dis-

joint, and also note that SWCLOS implicitly makes

a shadowed-class as a subclass in CLOS of class A

and B, if A and B are not explicitly disjoint and it is

required by users (Koide and Takeda, 2006).

Concerned with the existential restriction of prop-

erty or owl:someValuesFrom, the full OWA is also

meaningless from the viewpoint of ontology build-

ing, since the existential restriction under the OWA

means the possibility that a satisﬁable value may be

deﬁned somewhere in WWW or someone in the team

members may add a proper constraint tomorrow or

after. The full OWA implies that ontology builders

cannot know all for target ontologies. However, this

assumption is not enjoyable in actual fact in personal

and collaborative ontology building process. It is nat-

ural to distinguish the local world for target ontologies

and the given general WWW. Hence, we have intro-

duced the notion of auto-epistemic local closed world

assumption. In this idea, agents can introspectively

check their knowledge within their extent of capabil-

ities. An agent sits in locally closed world as envi-

ronments around it. The ﬂag for auto-epistemic lo-

cal closed world assumption is set true as default in

SWCLOS, and the satisﬁability for slot value is ag-

gressively checked even in case of the existential re-

striction. Namely, if an existential restriction is not

satisﬁed, then the interpretation is not satisﬁed. Set-

ting the ﬂag false means the completely full OWA. In

this case, no alarm is signaled for the existential re-

strictions.

5.2 cl:subtypep

cl:subtypep

in ANSI Common Lisp returns two

values, say, value1 and value2. Table 2 is taken from

ANSI Common Lisp specs

http://www.franz.com/support/documentation/8.1/

ansicl/dictentr/subtypep.htm

COMMON LANUGAGES FOR SEMANTIC WWW - Beyond RDF and OWL

Table 2: Two Return Values on cl:subtypep(type1, type2).

value1 value2 meaning

true true type1 is deﬁnitely a subtype of type2.

false true type1 is deﬁnitely not a subtype of

type2.

false false subtypep could not determine the

relation ship, so type1 might or might

not be a subtype of type2.

If value1 is true, then value2 is deﬁnitely true. So,

a return value of pair ht, nili never happens in ANSI

Common Lisp.

We extended this semantics and applied it for

subtype (subclass) predicates in RDFS and OWL.

Namely, we see that ht, ti is true value, hnil, ti is false

value, and hnil, nili is unknown value in RDF(S) and

OWL semantics. The ternary truth table are used for

the subsumption computation and elsewhere in SWC-

LOS, see the details in (Koide and Takeda, 2006).

6 CONCLUSIONS AND FUTURE

WORK

In this paper, we described an overview of several

knowledge representation languages around World

Wide Web, focusing on semantics of languages. We

claimed that today’s OWL, including OWL 2, em-

braces some drawbacks for the practical usage. It

seems to lead people into a blind alley without think-

ing what ontologyis and howit should be represented.

Common Logic intends to be a common framework

of concrete knowledge representation languages that

are compatible with World Wide Web. Although ac-

tual dialect implementation of Common Logic is not

emerging and no one can foresee the future of Com-

mon Logic, our experience for SWCLOS suggests the

future of something else than OWL.

REFERENCES

Carroll, J., Herman, I., and Patel-Schneider, P. F.

(2009). Owl 2 web ontology language rdf-

based semantics. W3C Candidate Recommendation.

http://www.w3.org/TR/owl2-rdf-based-semantics/.

Guarino, N. (1998). Some ontological principles for design-

ing upper level lexical resources. In Rubio, A., Gal-

lardo, N., Castro, R., and Tejada, A., editors, the First

International Conference on Lexical Resources and

Evaluation, pages 527–534, Granada, Spain. ELRA

- European Language Resources Association.

Guha, R. V. and Hayes, P. (2003). Lbase: Semantics for

languages of the semantic web. Note, W3C.

Hayes, P. and McBride, B. (2004). RDF Semantics. W3C

Recommendation. http://www.w3.org/TR/rdf-mt/.

Hayes, P. and Menzel, C. (2001). A semantics for the

knowledge interchange format. In In IJCAI 2001

Workshop on the IEEE Standard Upper Ontology.

Koide, S. and Takeda, H. (2006). OWL-Full reasoning from

an object oriented perspective. In Asian Semantic Web

Conf., ASWC2006, pages 263–277. Springer.

Koide, S. and Takeda, H. (2009). Meta-circularity and mop

in common lisp for owl full. In ELW ’09: Proceed-

ings of the 6th European Lisp Workshop, pages 28–34,

New York, NY, USA. ACM.

Kozaki, K., Sunagawa, E., Kitamura, Y., and Mizoguchi,

R. (2007). Role representation model using owl and

swrl. In Proc. of 2nd Workshop on Roles and Rela-

tionships in Object Oriented Programming, Multia-

gent Systems, and Ontologies, Berlin.

McDermott, D. (1978). Tarskian semantics, or no notation

without denotation! Cognitive Science, 2:277–282.

McGuinness, D. L. and van Harmelen, F. (2004). OWL

Web Ontology Language Overview. W3C Recom-

mendation. http://www.w3.org/TR/owl-features/.

Mizoguchi, R., Sunagawa, E., Kozaki, K., and Kitamura, Y.

(2007). The model of roles within an ontology devel-

opment tool: Hozo. Appl. Ontol., 2(2):159–179.

Neuhaus, F. (2010). The semantics of modules in common

logic. In Smith, B., Mizoguchi, R., and Nakagawa, S.,

editors, Interdisciplinary Ontology, volume 3, pages

107–117. Open Research Centre for Logic and Formal

Ontology, Keio University.

Patel-Schneider, P. F., Hayes, P., and Horrocks, I. (2004a).

Owl web ontology language semantics and abstract

syntax. W3C Recommendation.

Patel-Schneider, P. F., Hayes, P., and Horrocks, I.

(2004b). OWL Web Ontology Language Seman-

tics and Abstract Syntax section 5. rdf-compatible

model-theoretic semantics. W3C Recommendation,

http://www.w3.org/TR/owl-semantics/rdfs.html.

Russell, S. and Norvig, P. (2003). Artiﬁcial Intelligence: A

Modern Approach Second Edition. Prentice Hall.

Smith, B. C. (1984). Reﬂection and semantics in Lisp. In

POPL ’84: Proceedings of the 11th ACM SIGACT-

SIGPLAN symposium on Principles of programming

languages, pages 23–35, New York, NY, USA. ACM

Press.

Smith, M. K., Welty, C., and McGuinness, D. L. (2004).

OWL Web Ontology Language Guide. W3C Recom-

mendation. http://www.w3.org/TR/owl-guide/.

Sowa, J. F. (1995). Top-level ontological categories. Int. J.

Hum.-Comput. Stud., 43(5-6):669–685.

Sowa, J. F. (1999). Knowledge Representation: Logi-

cal, Philosophical, and Computational Foundations.

Brooks Cole Publishing Co., Paciﬁc Grove, CA.

Takeda, H., Iino, K., and Nishida, T. (1995). Agent orga-

nization and communication with multiple ontologies.

Int. J. Cooperative Inf. Syst., 4(4):321–338.

Tarski, A. (1946/1995). Introduction to Logic. Dover. First

publishing in 1936 in Polish.

ENASE 2010 - International Conference on Evaluation of Novel Approaches to Software Engineering

APPENDIX

Syntax and Semantics of Role Concept Description

Syntax in S-expression of SWCLOS.

substantial-concept-def ::=

(defConcept

concept-name slot-form*

)

slot-form ::=

(

role [ lang ] form+

)

form ::=

(

typetag [ name ] [ lang-form ] slot-form*

)

(

datatype data

)

(

lang form

)

| cl:string | cl:number | uri

lang-form ::=

(xml:lang

lang

)

role-concept-def ::=

(defRole

role-name [ holder-name ]

:partOf

whole-name

from-concept slot-form*

)

(defRole

name [ holder-name ]

:in

context-name from-concept slot-form*

)

from-concept ::=

(from

name slot-form*

)

concept-name, role-name, holder-name, whole-name, context-name, and name are QNames in S-expression in SWCLOS,

or lisp symbols.

Example

(defConcept Woman

(owl:intersectionOf Person

(owl:Restriction (owl:onProperty hasGender)

(owl:hasValue Femail)))

(rdfs:subClassOf (owl:Restriction (owl:onProperty name)

(owl:someValuesFrom xsd:string))

(owl:Restriction (owl:onProperty age)

(owl:allValuesFrom xsd:positiveInteger))))

(defRole WifeRole Wife :partOf Family

(from Woman (name xsd:string) (age (greaterThan 16)))

(partner Husband) (marriageYear Year))}

Table 3: Role Concept Semantic Conditions (Axioms).

x ∈ CEXT

(y) iff hx,yi ∈ EXT

(rdf:type

)

= CEXT

(rdfs:Class

), R

= CEXT

(rdfs:Resource

)

x ∈ C

⇒ hx,rdfs:Resource

i ∈ EXT

(rdfs:subClassOf

)

hx,yi ∈ EXT

(rdfs:subClassOf

) ⇒ x and y ∈ C

∧ CEXT

(x) ⊆ CEXT

(y)

EXT

(rdfs:subClassOf

) is transitive and reﬂexive on C

owl:Class

∈ C

∧ OC

= CEXT

(owl:Class

) ⊆ C

owl:Thing

∈ OC

∧ OT

= CEXT

(owl:Thing

) ⊆ R

⊆ OT

Concept

∈ OC

∧ CO

= CEXT

(Concept

) ⊆ OC

Role

∈ C

∧ RO

= CEXT

(Role

) ⊆ C

hx,yi ∈ EXT

(partOf

) ⇒ x ∈ RO

,y ∈ CO

hx,yi ∈ EXT

(in

) ⇒ x ∈ RO

,y ∈ C

hx,yi ∈ EXT

(from

) ⇒ x ∈ RO

,y ∈ CO

x ∈ RO

⇒ CEXT

(x) = {}

x,y ∈ C O

: CEXT

(x) ∩ CEXT

(y) = {} / CEXT

(x) ∩ CEXT

(y) = {}

RH ≡ CO

× RO

RH expresses the extension of role holders in the universe.

A : B/B means default reasoning such that if A and no evident of not B, then B.

COMMON LANUGAGES FOR SEMANTIC WWW - Beyond RDF and OWL
