KNOWBENCH

A Semantic User Interface for Managing Knowledge in Software Development

Dimitris Panagiotou and Gregoris Mentzas

School of Electrical and Computer Engineering, National Technical University of Athens

9 Iroon Polytechniou Street, Athens, Greece

Keywords: Semantic User Interface, Software Development, Knowledge Workbench, Knowledge Management in

Software Development, KnowBench.

Abstract: Modern software development consists of typical knowledge intensive tasks, in the sense that it requires that

software developers create and share new knowledge during their daily work. In this paper we propose

KnowBench a knowledge management system integrated inside Eclipse IDE that supports developers

during the software development process to produce better quality software. The goal of KnowBench is to

support the whole knowledge management process when developers design and implement software by

supporting identification, acquisition, development, distribution, preservation, and use of knowledge – the

building blocks of a knowledge management system.

1 INTRODUCTION

Modern software development consists of typical

knowledge intensive tasks, in the sense that it

requires that software developers create and share

new knowledge during their daily work. Since

software development is a highly collaborative task,

developers are in need of simple and easy-to-use

tools that also enable collaborative work.

Knowledge has to be collected, organized,

stored, and easily retrieved when it needs to be

applied. Probst (1997) has well described the

building blocks of KM systems: identification,

acquisition, development, distribution, preservation,

and use of knowledge. Many knowledge problems

occur because organizations neglect one or more of

these building blocks.

In this paper we propose KnowBench

(knowledge workbench) which strives to provide an

intelligent, semantic user interface environment – a

knowledge management system integrated inside a

widely used software development environment

namely Eclipse IDE (http://www.eclipse.org/) that

supports developers during the software

development process to produce better quality

software. The goal of KnowBench is to collect

knowledge the developers gain during software

development in order to avoid mistakes and leverage

successes in future projects.

KnowBench mainly supports software

developers in resolving error handling and

component reuse problems by providing an

ontology-based knowledge management system that

is build upon the KM systems’ building blocks.

The rest of the paper is organized as follows. In

the next section, we depict KnowBench’s

architecture and core components. Thereafter, we

give the results of its evaluation which draws the

guidelines for further optimization and

improvements of the system. Finally, we conclude

the paper.

2 KnowBench

The KnowBench system can be used to capture the

knowledge and experience generated during the

software development process. Although every

software development project is unique in some

sense, sharing similar experiences can assist

developers to perform their activities in a better way.

Moreover, reusing knowledge can prevent the

repetition of past failures and guide the solution of

recurrent problems.

KnowBench provides functionality that can be

used for articulating and visualizing formal

descriptions of software development related

knowledge in a flexible and lightweight manner.

508

Panagiotou D. and Mentzas G. (2010).

KNOWBENCH - A Semantic User Interface for Managing Knowledge in Software Development.

In Proceedings of the 5th International Conference on Software and Data Technologies, pages 508-511

DOI: 10.5220/0003006105080511

 SciTePress

This knowledge is then retrieved and used in a

productive manner by a semantic search engine and

a P2P metadata infrastructure – namely GridVine

(Mauroux, 2007). Thus, the collaboration of

dispersed software developers is achieved who can

benefit from each others’ knowledge about specific

problems or the way to use specific source code

while developing software systems.

2.1 Ontologies

We have deployed software development ontologies

(Georgousopoulos, 2007) inside the KnowBench

system in order to describe and capture knowledge

related to software artefacts. The system architecture

allows for the extension or the use of different

software development ontologies. The set of the

deployed ontologies includes three main ontologies

(artefact, problem/solution and annotation) which

interact among each other and are all under a

common parent ontology (KnowBench ontology)

which binds them.

The artefact ontology describes different types of

knowledge artefacts such as the structure of the

project source code, reusable components, software

documentation, knowledge already existing in some

tools, etc. The problem/solution ontology models the

problems occurring during the software development

process as well as how these problems can be

resolved. The annotation ontology describes general

software development terminology as well as

domain specific knowledge. This ontology provides

a unified vocabulary that ensures unambiguous

communication within a heterogeneous community.

This vocabulary can be used for the annotation of

the artefacts.

2.2 Architecture

Figure 1 depicts the overall KnowBench

architecture. The core components delivering

KnowBench’s functionality are: semantic search,

global metadata store, software development

semantic wiki (DevWiki) and (manual/semi-

automatic) semantic annotation of source code. In

the rest of this section we give more details about

their actual interaction.

The above components are based on these APIs:

semantic annotation API, shallow NLP and IE

(information extraction) API (wrapping up and

customizing Text2Onto (Cimiano, 2004)), the

semantic search API and the global metadata store.

The global metadata store API provides an

abstract layer on top of the local and P2P

repositories through customized APIs (Jena and

GridVine-based APIs (McBride, 2002, Mauroux,

2007).

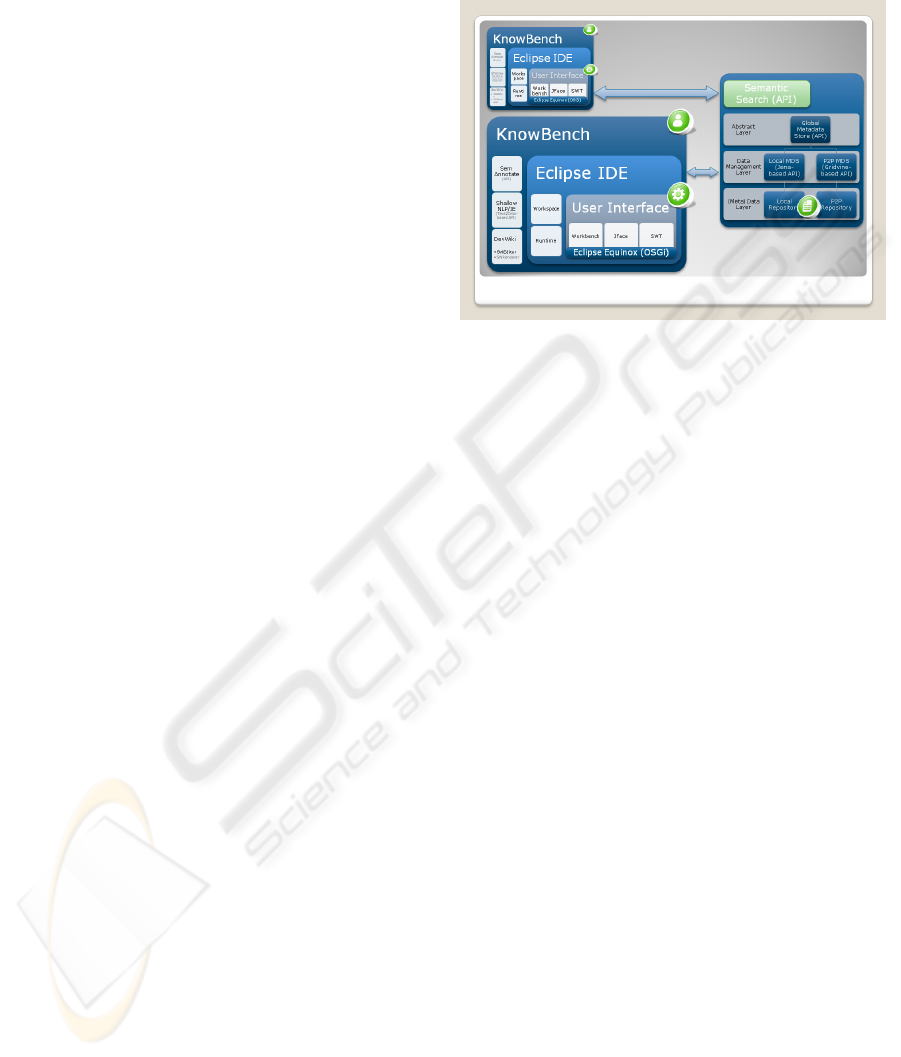

Figure 1: KnowBench architecture.

2.3 Core Components

Below we outline the core components which

constitute the KnowBench system.

2.3.1 Semantic Search

KnowBench supports advanced methods for

knowledge search through a semantic search engine

(Giesbrecht, 2008) by taking into account three

different types of search, namely keyword,

structured and semantic search.

2.3.2 Global Metadata Store

The global metadata store consists of two

components (APIs) – the LocalMDS and P2PMDS

and two managers – KeyStore Manager and Policy

Manager. It provides an abstract layer for handling

these and its purpose is to manage knowledge stored

either locally or in the P2P network.

The P2PMDS is based on the GridVine/P-Grid

system (Aberer, 2005) and is customized for

KnowBench in order to realize an access control

aware P2P metadata store using the services of

KeyStore and Policy managers.

2.3.3 Software Development Semantic Wiki

(DevWiki)

KnowBench utilizes the DevWiki system

(Panagiotou, 2009) in order to assist software

developers in the articulation and navigation of

software development related knowledge. DevWiki

uses a lightweight and flexible editor with auto-

KNOWBENCH - A Semantic User Interface for Managing Knowledge in Software Development

509

completion and popup support. Browsing through

knowledge is done like surfing through a

conventional wiki using the semantic links between

different knowledge artefacts. This browser is

available inside the Eclipse IDE so that the software

developer does not have to switch to another

external browser.

2.3.4 Manual/Semi-automatic Semantic

Annotation of Source Code

An important aspect of the KnowBench is the ability

to annotate semantically source code (Panagiotou,

2008). We have extended the standard Eclipse JDT

editor to add this possibility. The software developer

is able to annotate source code with semantic

annotation tags that are available or define new tags

and extend the used annotation ontology.

The manual semantic annotation of source code

provides granularity regarding the respective source

code fragment to be annotated. This granularity level

is restricted by the underlying Eclipse platform itself

as the IJavaElement interface is exploited to map

between source code fragments and metadata.

On the other hand, the shallow natural language

processing (NLP) and information extraction (IE)

API is used to semi-automatically annotate source

code corpora. The API is built on top of the

Text2Onto API and provides customizations suitable

for source code (e.g. java keywords are ignored such

as import, package for, while, etc.).

In order to achieve this goal in KnowBench we

exploited ontology learning (Maedche, 2004) and

information extraction techniques (Cunningham,

2002). Ontology learning is needed in order to

extract ontology concepts from source code corpora

that can be used for annotating it. On the other hand,

information extraction is needed in order to

instantiate the annotation ontology with individuals

(like in manual semantic annotation). A framework

exploiting both technologies is Text2Onto (Cimiano,

2004) which we adopted and extended in order to

implement the desired functionality.

3 KM SUPPORT WITH

KNOWBENCH

3.1 Evaluation According to the KM

Building Blocks

We have conducted detailed evaluation of

KnowBench in small groups of software developers

in the following organizations: (1) Intrasoft

International S.A. – 2 developers, (2) Linux

Industrial Association – 2 developers, (3) TXT e-

Solutions – 2 developers and (4) Thales Research &

Technology – 3 developers. See (Samiotis, 2009) for

a comprehensive report on the KnowBench

evaluation.

We grouped the evaluation results according to

the KM building blocks depicted in section 2. Please

note that the knowledge identification block is not

described below as the KnowBench ontologies serve

this purpose. (Samiotis, 2009) provides details on

the KnowBench support of the knowledge

identification block.

3.2 Knowledge Acquisition

According to the respondents, KnowBench achieves

a good score (73% are positive) for its support in

acquiring existing knowledge. Regarding the

supported types of knowledge sources, 85% of the

respondents were satisfied with the support; 23%

found that additional types of knowledge sources

relevant for coding should be supported. As far as

the system’s response time, although 64% of the

respondents found it quite fast – some further

optimization of the system would be useful.

3.3 Knowledge Development

All respondents found the knowledge development

support in KnowBench clear and easy to follow and

agree that the system provides support at an

adequate level (76%). The meaning of knowledge

items is understandable for 86% of the respondents.

Regarding annotations, their meaning and purpose

were clear for 86% of the respondents. 79% of the

respondents found the granularity level of source

code that can be annotated sufficient. 92% of the

respondents found that KnowBench provides

friendly and easy-to-use forms for creating

annotations and only 36% of them considered the

manual annotation as effortful activity. On the other

hand, in semi-automatic annotation, 42% of

proposed annotations were chosen, thus 82% of the

respondents were satisfied with the suggestions.

3.4 Knowledge Sharing

Knowledge sharing in KnowBench meets the

expectation of 69% of respondents. Even though all

aspects of knowledge sharing in KnowBench are

above the threshold, only the level of details to be

specified in order to share knowledge and the

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

510

usefulness of shared information received high

marks (greater than 90%).

3.5 Knowledge Usage

The search functionality received an average score

(57%). The respondents were satisfied with the

quantity and quality of search results. As far as

quantity of search results is concerned, 91% of the

respondents found the number of results optimal.

For 73% of the respondents the list of result did not

contain any irrelevant result. As regards the quality

of search results, 62% of the respondents confirmed

that the search results satisfy their information needs

more than average.

3.6 Knowledge Preservation

The lifecycle of the knowledge items i.e. creation,

update, deletion in KnowBench seems to be

supported well (expectation of 67% of the

respondents). Modification of knowledge is not a

time consuming function for 75% of the respondents

and can be done very easily by 73% of the

developers.

4 CONCLUSIONS

In this paper we presented the KnowBench system –

an intelligent, semantic user interface environment

for software developers which is integrated in the

Eclipse IDE. Semantic web technologies provide the

driving force to better manage knowledge in

software development activities inside KnowBench.

KnowBench offers an easy to use environment to

facilitate knowledge articulation and visualization

pertinent to software development. Additionally, it

provides means to annotate manually or semi-

automatically this kind of knowledge in order to

foster easier knowledge acquisition and sharing by

exploiting a semantic search engine and a P2P

metadata infrastructure. Thus, better and more

flexible collaboration among software developers

scattered across the globe is facilitated.

ACKNOWLEDGEMENTS

This work was partly supported by the TEAM

project, which is funded by the EU-IST program

under grant FP6-35111. The authors are responsible

for the content of this publication.

REFERENCES

Aberer, K. Datta, A. Hauswirth, M. Schmidt, R. 2005.

Indexing data-oriented overlay networks, 31st

International Conference on Very Large Databases

(VLDB), Trondheim, 30 Aug - 2 Sep, 2.

Cimiano, P., Pivk, A., Schmidt, L.T., Staab, S., 2004.

Learning taxonomic relations from heterogeneous

sources, In Proc. ECAI 2004 Ontology Learning and

Population Workshop.

Cunningham, H., Maynard, D., Bontcheva, K., Tablan, V.,

2002. GATE: A framework and graphical

development environment for robust NLP tools and

applications, In Proc. 40th Annual Meeting of the

ACL.

Georgousopoulos C., Happel H-J., Khan O., Maalej W.,

Narendula R., Ntioudis S., Panagiotou D., Stojanovic

L., 2007. TEAM Project Deliverable D9: User

Requirements and Conceptual Architecture.

Giesbrecht, E., Stojanovic, L., Tran, T., 2008. TEAM

Project Deliverable D29: Second iteration prototype of

Semantic Search.

Maedche, A., Staab, S., 2004. Ontology learning, In Proc.

Staab, S., Studer, R. (eds.), Handbook on Ontologies,

pp. 173-189. Springer.

Mauroux, P.C., Agarwal, S., Aberer, K., 2007. GridVine:

An Infrastructure for Peer Information Managment,

IEEE Internet Computing, vol. 11, no. 5, pp. 36-44

McBride, B., 2002. Jena: A Semantic Web Toolkit, IEEE

Educational Activities Department, Piscataway, NJ,

USA, pp. 55-59.

Panagiotou, D., Mentzas, G., 2009. A Semantic Wiki for

Software Development. In Proc. 13th Panhellenic

Conference on Informatics, 10 - 12 September 2009,

Corfu, Greece.

Panagiotou, D., Paraskevopoulos, F., Ntioudis, S., 2008.

TEAM Project Deliverable D31: 2

iteration

prototype of Knowledge Desktop.

Probst, G.B., 1997. Practical knowledge management: a

model that works, Prism, No. second quarter, pp.17-

33.

Samiotis, K., Stojanovic, L., 2009. TEAM Project

Deliverable D39: Summative Evaluation Report.

SETF, 2006. A Semantic Web Primer for Object-Oriented

Software Developers, http://www.w3.org/TR/sw-oosd-

primer/.

KNOWBENCH - A Semantic User Interface for Managing Knowledge in Software Development

511
