A MODEL-BASED NARRATIVE USE CASE

SIMULATION ENVIRONMENT

Veit Hoffmann and Horst Lichter

Research Group Software Construction, RWTH Aachen University, Ahornstr. 55, Aachen, Germany

Keywords: Requirements, Use Cases, Scenarios, Simulation, Quality Assurance, Model-based Development.

Abstract: Since their introduction use cases are one of the most widespread used techniques to specify functional

requirements. Because low quality use cases often cause serious problems in later phases of the develop-

ment process the simulation of use cases may be an important technique to assure the quality of use case de-

scriptions. In this paper we present a model based use case simulation environment for narrative use cases.

At first we motivate core requirements of a simulation environment and an underlying execution model.

Moreover we describe our model based simulation approach and present some first experiences.

1 INTRODUCTION

Defects in requirements specifications often lead to

severe problems. They cause projects to exceed the

planned budget or even lead to a complete failure

(The Standish Group, 2003). As a consequence qual-

ity assurance of the requirements is an essential and

crucial task.

Empirical studies (Weidmann, Hoffmann & Lichter

2009) show that since their introduction by Ivar

Jacobson in 1986 (Jacobson 1987 & 2004) use cases

are one of the most important requirements tech-

niques to specify the functional behavior of a sys-

tem. Many publications (Cockburn 2000, Armour &

Miller 2001, Kulak & Guiney 2003, Bittner &

Spence 2003) address use case modeling which is

nowadays an integral part of modern development

processes like the Unified Process (Jacobson, Booch

& Rumbaugh 1999).

Despite of its frequent usage in practice, use case

modeling has two principal weaknesses:

1. Each use case describes multiple scenarios at

once. Stakeholders, especially domain experts,

report problems to evaluate the correctness of

use case descriptions because the scenarios de-

scribed by the use cases are often scattered over

one basic and several alternative behavioral

fragments.

2. Since each use case only specifies one specific

system function or even a part of it, it is difficult

to evaluate the global system behavior resulting

from the interactions of the use cases. Hence,

traditional inspection techniques are not well

suited to identify inconsistencies between use

cases or missing behavior (Drenger & Peach

2004).

Simulation is a proven technique and an intuitive

means to assess the behavior of a system. Therefore

simulation of use cases may help to overcome those

problems. By means of simulation stakeholders can

experience the behavior by entering simple stimuli

and thus evaluate the modeled functionality by step-

ping through the specified scenarios. Moreover,

simulation may be used proactively during the speci-

fication process to support step-wise refinement. The

results of different use case simulation runs may be

analyzed to deduce information about the structure

of the described behavior.

In this paper we present

• the requirements of an integrated use case simu-

lation environment supporting use case quality

assurance,

• and a simulation approach for so called narra-

tive use cases based on petri-net semantics.

The remainder of this paper is organized as follows:

In sections 2 and 3 we introduce central terms used

in this paper and give an overview to related re-

search. Section 4 contains a brief introduction to

narrative use cases. In section 5 we present the core

requirements for a use case simulation environment.

We describe an execution model for the simulation

of narrative use cases and a model based transforma-

Hoffmann V. and Lichter H. (2010).

A MODEL-BASED NARRATIVE USE CASE SIMULATION ENVIRONMENT.

In Proceedings of the 5th International Conference on Software and Data Technologies, pages 63-72

DOI: 10.5220/0003006900630072

 SciTePress

tion approach in section 6. Section 7 presents an

example of our simulation approach and section 8

introduces the developed simulation environment.

Finally we evaluate our approach in section 9 and

give some remarks as well an outlook to future re-

search in section 10.

2 DEFINITIONS

According to Jacobson a use case is a set of se-

quences of actions (including variants) that a system

performs to yield an observable result of value to an

actor. A use case defines of set of coherent scenarios

which resemble the same goal. A scenario is a sin-

gle behavioral path determined by set of consecutive

events that lead to a defined result. A scenario in-

stance is a concrete instantiation of a scenario con-

taining all decisions and runtime information needed

to specify a run through a scenario from its start to

its end.

Simulation of behavior is typically based on formal

execution models. An execution model is

represented by a graph defining the simulation se-

mantics. In this paper we distinguish two concepts of

execution models. The topology of an execution

model is its graph structure. It consists of the nodes

of the graph and their connections. The dynamics

addresses the runtime information of an execution

model needed to control an execution sequence on a

given topology.

3 RELATED WORK

Many publications (Sutcliffe et.al. 1998, Lee, Cha &

Kwon 1998, William et. al. 2005, Glinz, Seybold &

Meier 2007) have discussed the importance of simu-

lation as a means to support modeling and analyzing

behavioral requirements descriptions. Furthermore

several approaches defining execution semantics for

use cases have been published. These approaches

can be distinguished into two classes:

(1) Approaches using a formal executable specifi-

cation language (Whittle & Jayaraman 2006,

Jorgenson & Bossen 2004).

(2) Approaches relying on a “structured” textual

notation which is transformed “semi”-

automatically to a notation with defined execu-

tion semantics (Somé 2006, Zhao & Duan

2009).

We consider the latter more suitable and promising

because in industry text-based use case notations are

highly accepted (Weidmann, Hoffmann & Lichter

2009).

Our approach is strongly related to the work of

Somé (2006) who has proposed a state-machine

based formalization of structured textual use cases

and a tool support for the simulation of those state

machines. Nevertheless our approach has two main

differences compared to Somé’s work. First our

approach does not suffer from the problem that the

simulation allows unspecified scenarios and second

the topology of our execution model is more robust

against changes. Because changes have to be made

very often during the specification process, this is an

important advantage. Kwon et. al. (1998) describe a

simulation approach based on a special extension to

petri-nets. Their work relates on a manual transfor-

mation and focuses on the analysis of parallel beha-

vior, whereas our approach uses an automated trans-

formation algorithm.

4 NARRATIVE USE CASES

A narrative use case is a structured textual descrip-

tion of a use case. We have proposed a narrative use

case meta model (Hoffmann, Lichter & Nyssen

2009) that allows to describe use case behavior in a

flow oriented textual manner. In a narrative use

case model each single use case step is described in

unconstrained natural language.

To model the control flow inside a use case a couple

of control flow elements are used. Figure 1 shows

two narrative use cases (taken from the well known

ATM example).

In a narrative use case model every use case is

represented by a narrative description. Each narra-

tive description consists of a set of flows describing

the use case’s behavior by means of a set of actions

and anchors.

Actions are behavioral atoms written in natural

language and each action represents a single step

performed by an actor or the system itself.

Anchors mark spots within a flow where beha-

vior from another flow may be inserted. Different

kinds of anchors exist to represent the different

kinds of relationships between flows - i.e. inclusion

and extension of flows.

Finally, flows are equipped with contexts specifying

situations and conditions in which the behavior

described in a flow is applied. Narrative use case

models support inclusion and extension between

flows as well as exceptional relationships. Each of

those relationships is represented by an individual

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

context. Moreover special interaction contexts

represent associations between a primary actor and a

use case. They are used to identify those flows being

the interaction starting points of a scenario.

Narrative Description Withdraw Cash

Flow: Main Flow

Associated Actors: Customer

Contexts:

Interaction Context triggered by Customer

Flow of Events:

1. Enter Card The Customer enters the

card

2. Include Authenticate::Log in

3. Enter Amount The Customer enters the

amount to withdraw

4. Dispense Money The System dispenses the

selected amount of money

5. Return Card The System returns the card

Narrative Description Authenticate

Flow: Log in

Associated Actors: Customer

Contexts:

Inclusion Context Incl. by Flow: Withdraw

Cash

Flow of Events:

1. Alternative Anchor {Waiting for PIN}

2. Enter PIN The Customer enters the

PIN.

3. Alternative Anchor {PIN Evaluation}

Flow: Check PIN

Contexts:

Extension Context Extending {PIN Evaluation}

if invalid PIN entered.

Return to {PIN Evaluation}

if PIN valid

Return to {Waiting for PIN}

if PIN invalid

Flow of Events:

1. Check PIN The System checks the PIN

Figure 1: ATM narrative use cases.

5 SIMULATION ENVIRONMENT

REQUIREMENTS

Simulation is a well-known prototyping technique

and an intuitive means to assess the behavior of a

system. The effectiveness of simulation to support

modeling and quality assurance of use case based

requirements specifications highly depends on the

tool support (the use case simulator) and on the

execution model that is the basis of the simulation.

In the following we briefly describe the core re-

quirements on a use case simulator as well as on its

underlying execution model.

5.1 Simulator Requirements

A use case simulator should be usable for multiple

purposes. It should enable all stakeholders to per-

form step-wise inspections of the use cases and offer

automatic analyses of the simulation information.

Moreover the simulator should support regression

based validity analyses of scenario instances after

the use case model has been changed (as proposed

by Glinz et. al. (2007)). We have identified the fol-

lowing major requirements:

• Stakeholder-specific Visualization

The simulator should be usable by different

stakeholders, especially domain experts and cus-

tomers who are typically unaware of a formal

simulation model. Therefore the simulation envi-

ronment should provide a customizable visuali-

zation of the simulation runs. Moreover it should

include perspectives for different kinds of stake-

holders.

• Flexible Integration with other Tools

During requirements engineering use cases and

various other requirements artifacts are devel-

oped in parallel. Furthermore use cases are

needed in later phases of the development

process, like testing or GUI-design. Consequent-

ly the simulator should allow the integration of

other requirements engineering tools and models

and it should provide extension points to support

specific development tasks in all phases of the

development process.

• Precise Execution of the Modeled Behavior

The simulator should execute the behavior speci-

fied in the use cases as precise as possible. It

should be able to perform all legal scenarios and

prohibit the simulation of scenarios that are not

specified in the use case model.

• Simulation of Incomplete Models

As use case specifications vary in their degree of

completeness and formality the simulator should

provide appropriate mechanisms to handle miss-

ing or informally specified information.

• Simulation of Global System Behavior

Defects in the functional behavior are often

caused by the interaction of use cases. Thus, the

simulator should support the execution of mul-

tiple consecutive use cases to enable the analysis

of the system’s global behavior.

A MODEL-BASED NARRATIVE USE CASE SIMULATION ENVIRONMENT

• Reuse of Simulation Data

Scenario instances resulting from simulation runs

should be used for static analyses, documentation

of scenarios or as input to other development

tasks like testing. Thus, whenever a simulation

run is performed the simulator should be able to

store all runtime information of the simulated

scenario instances.

• Analysis of the Simulation Runs

The simulator should support static analyses of

simulations runs. This includes quantitative ana-

lyses like coverage measures as well as analyses

of the structure of the execution model e.g. the

identification of inconsistencies in behavior de-

scriptions or the determination of change im-

pacts. Additionally the simulator should support

the revalidation of scenarios instances after the

simulated use cases have been incrementally re-

fined.

5.2 Execution Model Requirements

As denoted before, we prefer a structured textual use

case notation because of the acceptance in industry.

Although narrative use case descriptions have a

defined structure, the resulting behavior specifica-

tions have no formal execution semantics. Therefore

a formal execution model must be developed that

matches the narrative use case concepts best. We see

the following important requirements regarding the

execution model:

• Finite, Scalable Model

Because the simulator should be usable in real

world projects the transformation of a narrative

use case model to an execution model should al-

ways result in a finite model even if the specified

behavior contains iterations or recursive defini-

tions. Besides, the size of an execution model

and the space and time complexity of the trans-

formation algorithm should scale for big real

world projects.

• Robust Model Topology

The simulator should be usable from the early

phases of use case development onwards. There-

fore the topology of the execution model should

be robust against changes. When additional in-

formation like a new condition or a new step is

added or a sequence of steps is changed, the

change should only have local effects to the ex-

ecution model’s topology. This is a prerequisite

to perform impact analyses of a change to infor-

mation derived from the execution model e.g.

test cases or GUI prototypes.

• Composition of Execution Models

The execution model should offer mechanisms to

compose different partial models to one inte-

grated model and to decompose a model into

fragments. Ideally composition is done without

copying the partial models to the integrated one.

6 SIMULATION CONCEPTS

In this section we describe our approach to simulate

narrative use case descriptions based on the re-

quirements described in section 5. The core of our

simulation approach is a formal petri-net based ex-

ecution model. To simulate a narrative use case

model it is transformed to a respective execution

model by a recursive transformation algorithm. Dur-

ing a simulation run all information about the simu-

lated scenario instances is stored in a dedicated trace

model. Thus different kinds of static analyses on the

use case model, the corresponding execution model

and the trace model as required in section 5 are poss-

ible.

6.1 Execution Model Concepts

The proposed execution model is based on colored

petri-nets. First we briefly introduce colored petri-

nets then we describe the topological and dynamic

elements offered by the execution model.

6.1.1 Colored Petri-Nets

Petri-nets are a well known formalism to specify

step-wise processes that include choice, iteration,

and concurrent execution. They are bipartite directed

graphs consisting of places, transitions, and directed

arcs. Arcs run from a place to a transition or vice

versa. The execution semantics of petri-nets is based

on tokens, which are passed along the arcs of the

net. Petri-nets, unlike other popular execution for-

malisms, have exact mathematical execution seman-

tics, together with a well-developed mathematical

theory for process analysis.

Colored petri-nets are an extension to standard petri-

nets proposed by Jensen (1997, 2003). In colored

petri-nets the tokens are distinguishable and the

decision whether a transition can fire depends on the

nature of the tokens. To be more explicit the tokens

contain attributes and the values of those attributes

are considered to decide whether a transition may

fire or not. Although the expressiveness of colored

petri-nets is identical to standard ones the topology

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

needed to express a certain behavior is noticeably

smaller than the one of an equivalent standard petri-

net.

6.1.2 Modeling the Topology

As a consequence to use colored petri-nets, our ex-

ecution model consists of transitions and places.

Both elements may have a reference to an element of

the respective narrative use case model. Additionally

we have introduced a concept to simplify the struc-

ture of the petri-nets. All transitions have an incom-

ing- and an outgoing-mode describing their execu-

tion semantics. Both modes may either be “AND” or

“XOR”. Incoming-mode means that a transition can

fire in “XOR”-mode if one incoming place has a

token, or if all incoming places have tokens in

“AND”-mode.

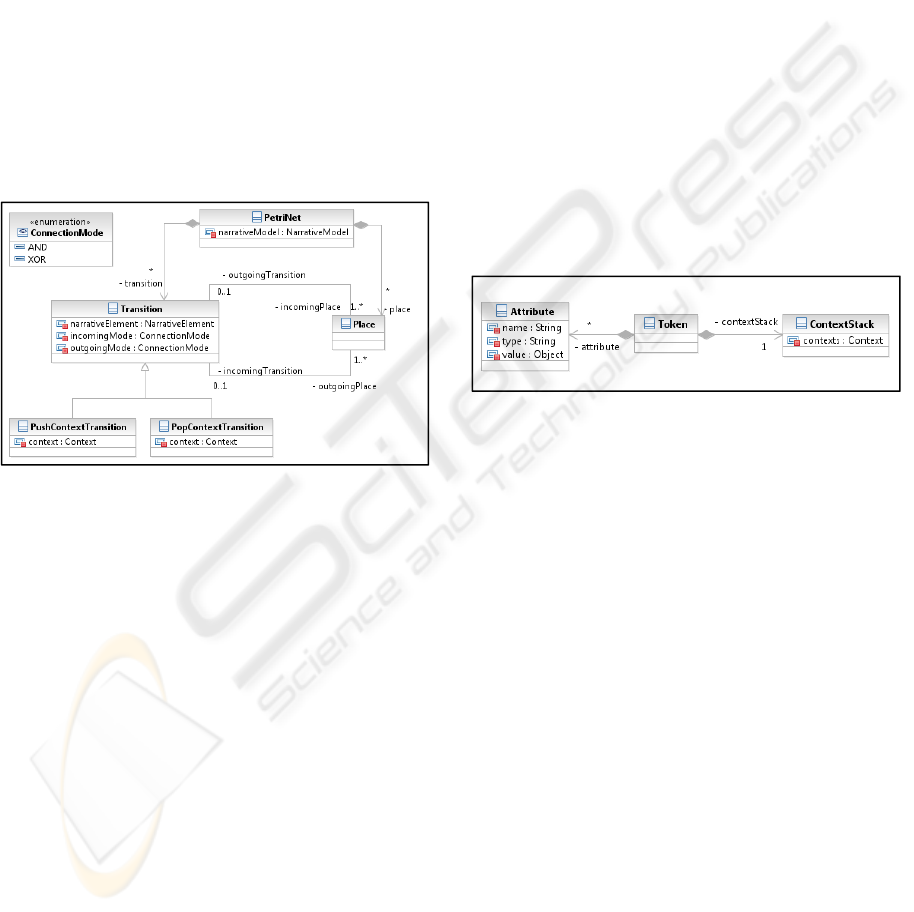

Figure 2: Execution model: Part Topology.

The outgoing-mode specifies how many token are

created after the execution of a transition. A transi-

tion creates one token in exactly one of the outgoing

places “XOR” in XOR-mode or a token in every

outgoing place in “AND”-mode. Although colored

petri-nets don’t comprise incoming and outgoing

mode, those modes don’t contradict the theoretical

concepts of colored petri-nets. Moreover the execu-

tion model contains two specific kinds of transitions

called push context transition and pop context

transition. The semantics of these elements will be

explained in the next section. Figure 2 depicts the

central topological elements of our execution model

and their relationships.

6.1.3 Modeling Dynamic Behavior

The core elements of the dynamics are tokens. To-

kens may have an arbitrary number of attributes.

Each attribute has a name, a type, and a value. Addi-

tionally each token has a context stack. The context

stack contains references to contexts from the narra-

tive use case model (see section 4) that have been

traversed before the creation of the token. The stack

is used to determine where to continue the simula-

tion after the end of a flow has been reached.

This concept (usage of runtime information) is

needed because the decision where to continue can’t

be made only based on attribute values. For exam-

ple, if we introduce an additional use case with an

include-relationship to the existing use case “Au-

thentication” in the ATM example, the simulator has

to decide where to continue after the “Authentica-

tion” use case was completed successfully.

The context stack of a token may only be modified

by the aforementioned Push- and PopContext-

Transitions. A push context transitions adds a con-

text to the stack, if a new context is reached during

the simulation. A pop context transition removes the

context from the stack after the end of the behavior

in a certain context has been reached. Figure 3 de-

picts the elements of the execution model’s dynamic

view.

Figure 3: Execution model: Part Dynamics.

6.2 Generating the Execution Model

The transformation of a narrative use case model to

a corresponding execution model is done recursive-

ly. The core idea of the transformation is that only

actions are behavioral atoms. All other elements

(e.g. flows) of narrative use case models are consi-

dered behavioral frames enclosing at least one

behavioral fragment. Each behavioral fragment

consists of a set of narrative use case model ele-

ments. This means: flows enclose their contained

events, contexts enclose the flows whose usage they

describe, and anchors enclose the contexts they are

connected to.

The transformation algorithm itself is based on a set

of generic transformation strategies. For each

narrative model element type the respective trans-

formation strategy defines the execution model ele-

ments that are created. That way, every narrative use

case model element is transformed separately ac-

cording to the respective transformation strategy into

one or more transitions connected by places.

The transformation of a narrative use case model

starts at the interaction starting points of its scena-

A MODEL-BASED NARRATIVE USE CASE SIMULATION ENVIRONMENT

rios. Then it moves along the scenarios to their ends.

At first the transformation algorithm connects all

interaction contexts of the narrative use case model

to an initial execution model frame. Then it trans-

forms the behavior described in the flows of the

narrative use cases in a depth first manner. The

flows that are directly connected to an interaction

context are transformed first. Other flows are

processed when respective anchors to the flows are

reached.

During the transformation every behavioral

frame is transformed into an initial and a final transi-

tion. The initial transition is the predecessor of the

enclosed behavioral fragments and the final transi-

tion is the successor. Thus the execution model

evolves from outside-in, since in each transforma-

tion step elements are added to the beginning as well

as to the end of the execution model.

During the transformation every element of the

narrative use case model is transformed exactly

once. Whenever an element is reached for a second

time it is not transformed again. Instead, a reference

to its execution model representation is generated.

Thus the transformation of a behavioral fragment

terminates when the last event of a flow is trans-

formed or when an element is reached that already

has an execution model representation. Since a be-

havioral frame may contain several behavioral frag-

ments, its transformation terminates when all beha-

vioral frames are transformed. Then the transforma-

tion algorithm moves on to the next element of the

narrative use case model.

Thus the transformation algorithm terminates af-

ter each flow reachable from any scenario of the

narrative use case model was processed once. After

completion of the transformation all elements are

transformed and all connections between the ele-

ments are established. Therefore all scenarios de-

scribed in a narrative use case model can be per-

formed based on the respective execution model.

In the following we briefly explain the transforma-

tion strategies for the narrative use case element

types. Figure 4 shows the caption used in the figures

of this section.

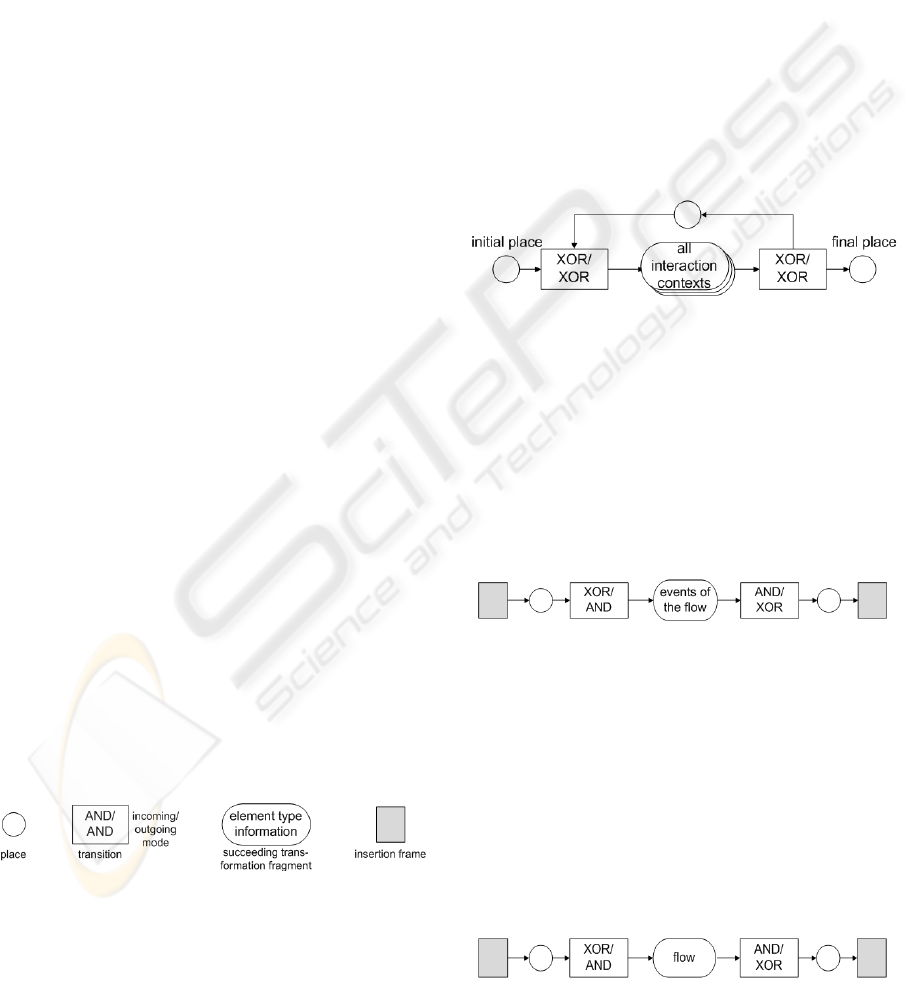

Figure 4: Caption of the transformation strategies.

White colored elements are created during the trans-

formation of a behavioral frame. Stroked elements

depict sections that are transformed in a succeeding

transformation step. Finally the gray boxes in the left

and right corners of a transformation fragment

represent the frame into which the elements are

inserted.

6.2.1 Initial Execution Model

The initial execution model contains all scenarios of

the narrative use case model. Thus it represents the

global behavioral frame. Its initial transition is called

start delimiter and its final transition is called end

delimiter of an execution model (see Figure 5). The

start delimiter is connected to the initial place, which

holds the first token when a simulation run is started.

The end delimiter is connected to the final place that

holds the last token at the end of a simulation run.

Moreover the start and the end delimiter are con-

nected by a place to support the execution of mul-

tiple use cases consecutively.

Figure 5: Initial execution model.

6.2.2 Flows

A flow encloses all its contained events. Since it

may be executed in several different contexts the

initial transition of a flow has an XOR-incoming

mode. The final transition has an XOR-outgoing

mode because the execution may only continue in

the context which the flow was called from in the

first place.

Figure 6: Flow transformation fragment.

6.2.3 Contexts

The execution model representation of all kinds of

contexts is identical. Its initial transition is a push

context transition and has an XOR-incoming mode,

since a context may be connected to several incom-

ing anchors. The final transition is a pop context

transition with an XOR-outgoing mode, since the

execution may continue at only one outgoing anc-

hor.

Figure 7: Context transformation fragment.

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

6.2.4 Events

Actions are behavioral atoms and can be represented

by single transitions, because they don’t contain a

behavioral fragment.

Inclusion- and extension anchors are on the con-

trary behavioral frames.

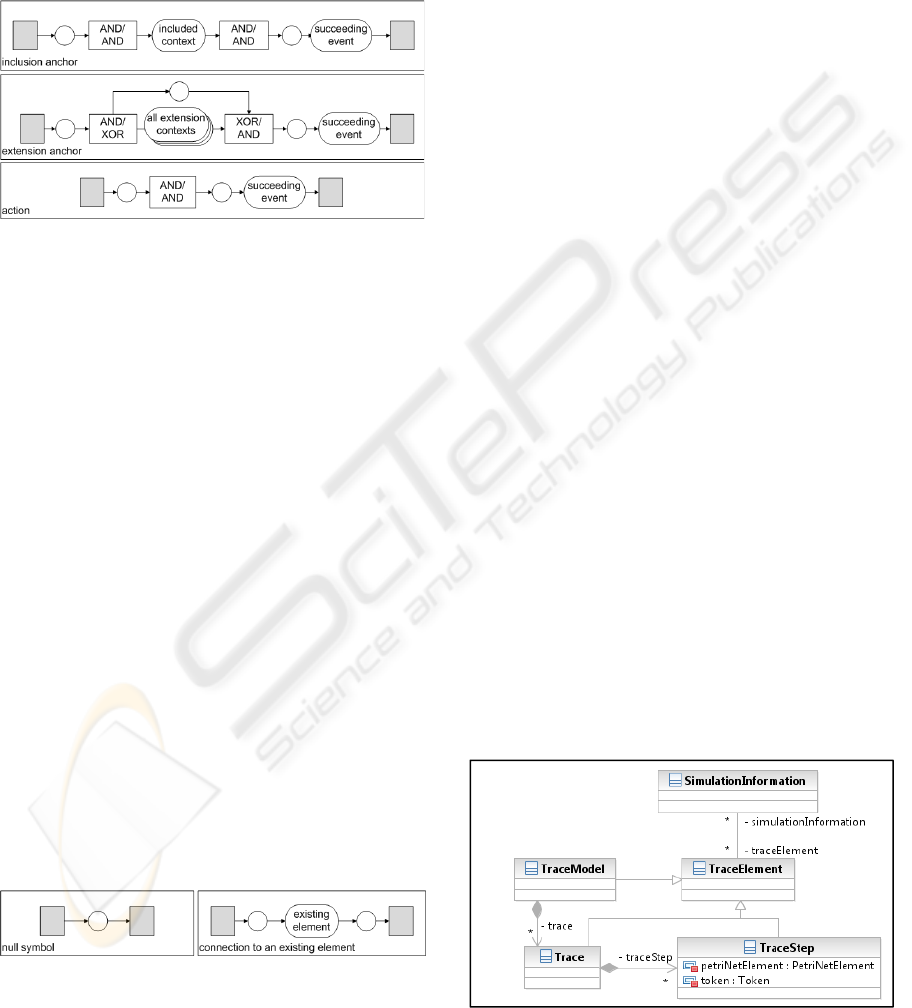

Figure 8: Event transformation fragments.

An inclusion anchor is connected to only one flow

which always must be executed when the inclusion

is reached. An extension anchor on the contrary may

be connected to several flows which may or may not

be executed depending on the conditions that are

specified in the extension contexts of the connected

flows. As a consequence the initial and the final

transition of extension anchors are connected direct-

ly and they have an XOR-outgoing mode to decide

which extension to select (Figure 8).

6.2.5 Additional Transformation Concepts

As denoted before each element is transformed only

once. This approach guarantees that the transforma-

tion creates a finite model which scales with the size

of the narrative use case model. The reference to an

already transformed element is established by creat-

ing two petri places to connect the behavioral frame

to the existing element (Figure 9).

Finally, so called null-symbols are inserted whenev-

er the end of a recursion is reached. This is the case

if the end of a flow is reached or in any situation

where information is missing (e.g. a missing inclu-

sion context at an inclusion is replaced by a null-

symbol).

Figure 9: Additional concepts.

6.3 Use Case Simulation

The simulation of a narrative use case model is per-

formed using its execution model. A simulation run

is started by initializing the execution model with a

single token at the start delimiter. During the simula-

tion run the token is passed along the petri-net. At

points where multiple paths could be traveled, the

decision is made based on the values of the attributes

in the current token. The simulator can check wheth-

er a decision can be made automatically based on

formalized information available at the decision

point. If this is not possible the user has to decide

where to continue the simulation. A simulation run

is finished after all tokens are passed to the end

delimiter of the execution model. During a simula-

tion run all runtime information is stored in a trace

model which we present briefly in the following.

6.3.1 Trace Model

Figure 10 depicts the elements of the trace model. A

trace model instance usually contains information

about several simulation runs of different scenario

instances that have been performed together – e.g. a

set of scenarios that have been inspected during a

use case review. This enables analyses of the corre-

lation of simulation runs like coverage measure-

ments. In the trace model the simulation information

of each scenario instance is stored in a separate

trace. All traces consist of a set of trace steps con-

taining the details of a simulation run. Every trace

step holds a reference to an element of the topology

of the execution model and a reference to a token.

Thus a simulation run is fully qualified by a trace

and can be executed again based on the trace infor-

mation. Moreover all trace elements may hold refer-

ences to simulation information elements. Simula-

tion information elements are used to add special

purpose information to a trace – e.g. review findings.

Figure 10: Elements of the trace model.

A MODEL-BASED NARRATIVE USE CASE SIMULATION ENVIRONMENT

7 EXAMPLE

In this section we point up our simulation approach

alongside the ATM example introduced in section 4.

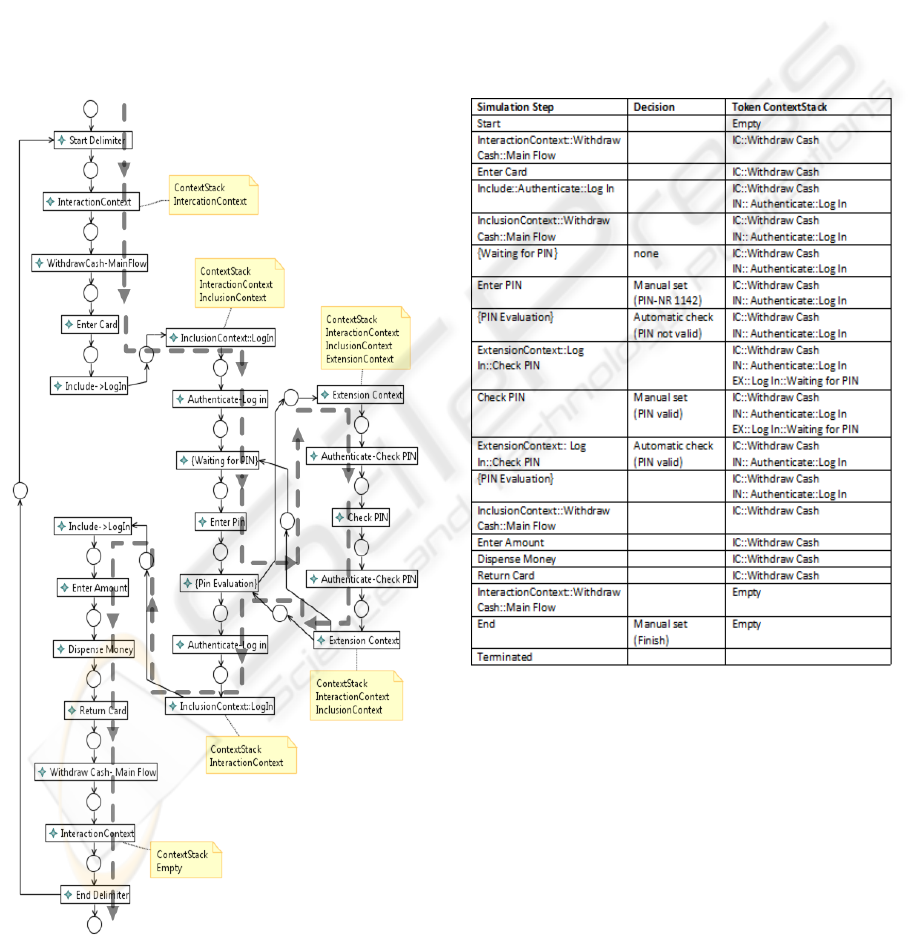

Figure 11 shows the execution model for the two

narrative use cases. The transitions are labeled ac-

cording to their referenced narrative use case model

elements. The dotted arrows visualize a simulation

run on the execution model. Additionally the context

stack of the simulation run is denoted at the Push-

and pop context transitions of the execution model.

Figure 12 depicts the trace recorded during the simu-

lation run.

Figure 11: ATM execution model & simulation run.

8 TOOL SUPPORT

We have integrated a simulation environment for

narrative use case models called USE (Use case

Simulation Environment) into NaUTIluS, the use

case editor of the Eclipse based development plat-

form ViPER (ViPER, n.d.). USE is based on an

EMF-implementation (EMF, n.d.) of the execution

and the trace model. USE consists of a simulator and

a set of views to visualize simulation information.

After a narrative use case model is transformed

to a corresponding execution model the simulator

can run simulations.

Figure 12: Trace of a scenario instance.

Whenever a simulation reaches a decision point

(different scenarios are possible) the simulator de-

cides automatically based on the information stored

in the tokens or asks the user to decide which scena-

rio should be pursued. During a simulation run the

simulator stores trace information and provides

feedback to the user about the current simulation via

standard Eclipse notification mechanisms. Moreover

USE defines several extension points to customize

the simulator for specific tasks.

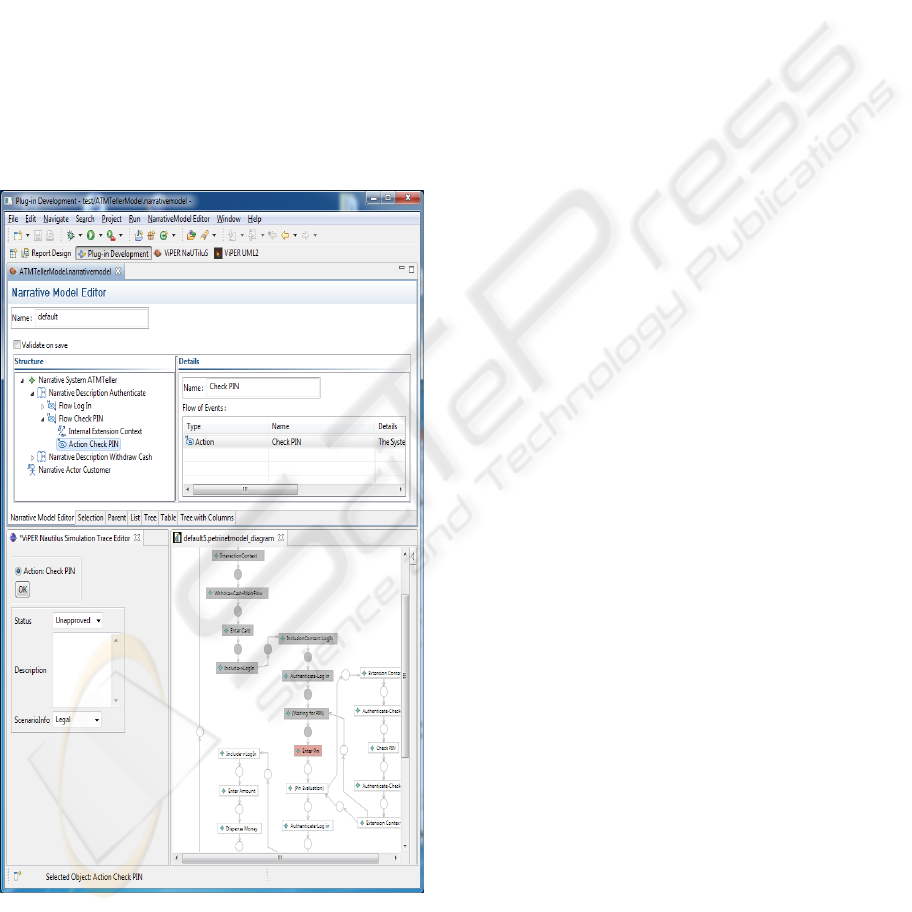

Figure 13 shows a screenshot of USE with some

visualization views.

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

9 EVALUATION

The herein proposed simulation approach complete-

ly meets the requirements motivated in section 5.

The execution model has a precisely defined execu-

tion semantic, its topology is robust against changes

and supports incremental refinement of the use cas-

es, because changes only have local effects.

The explained recursive transformation algo-

rithm scales for real world narrative use case models

and is able to handle missing information or incom-

plete behavior by inserting so called null-symbol

placeholders.

The simulations can be performed using the si-

mulation environment USE which stores all runtime

information in a dedicated trace model for later

analyses.

Figure 13: USE screenshot.

Finally, USE is easily connectable with other re-

quirements models as it relates on Eclipse frame-

work standards and provides highly flexible me-

chanisms to configure custom visualization.

Our simulation approach has three outstanding

advantages compared to state machine centered

techniques.

1. The concept of petri-nets and its token semantic

strongly reflects the step-by-step idea of use cas-

es. While state machines rely on states that are

not explicitly modeled in use cases, our approach

maps the steps of a narrative use case directly to

transitions of a petri-net. Thus the transformation

algorithm is straightforward and a comprehensi-

ble visualization of the behavior is possible.

2. Our execution model is context aware since the

execution contexts are stored in the tokens dur-

ing the simulation. Therefore our approach can

handle situations where the control flow is not

directly derivable form the system state. State

machines would have to introduce implicit states

to cover context aware behavior. Those implicit

states are difficult to derive and increase the

complexity of the respective state machine.

3. The topology of colored petri-nets is robust

against changes in the referenced narrative use

case model because changes only have local ef-

fects.

We have evaluated the presented use case simulation

approach alongside with USE in some academic

projects performed in student’s master thesis. The

simulation has been well accepted and first expe-

rience shows that behavior simulation is an intuitive

way to analyze narrative use case models. The simu-

lation-based approach has especially proven useful

in projects with very detailed use case descriptions

containing many (complex) alternatives to the nor-

mal use case behavior.

10 CONCLUSIONS AND OUT-

LOOK

In this paper we have introduced a model-based

simulation approach for narrative use cases. We

have pointed out the most important requirements of

a useful and efficient use case simulation environ-

ment. Furthermore we have presented a petri-net

based execution model, a model-based transforma-

tion algorithm and a narrative use case simulation

strategy. Finally we have sketched the simulation

environment that we have developed based on the

presented concepts. First experiences of our simula-

tion approach in student projects are promising.

A MODEL-BASED NARRATIVE USE CASE SIMULATION ENVIRONMENT

Currently we are evaluating the usefulness and ac-

ceptance of the presented approach in different small

and medium size projects we perform at the faculty

and with different industrial cooperation partners.

Until now we are using the simulation environment

only to support the inspection of use cases. In the

future we plan to enlarge our approach to an inte-

grated requirements specification technique. Besides

we are currently doing first experiments to generate

GUI prototypes based on the simulation information

and to generate test specifications based on instance

scenarios created with the simulation environment.

Finally we are currently developing tool support

for static analyses on the narrative use case model as

well as on the corresponding execution model.

REFERENCES

The Standish Group, 2003. Chaos chronicles v3.0 Tech-

nical report.

Weidmann, C., Hoffmann, V. & Lichter, H., 2009. Einsatz

und Nutzen von Use Cases - Ergebnisse einer

empirischen Untersuchung. In Softwaretechnik-

Trends, Band 29, Heft 2, pp. 62 -67.

Jacobson, I., 1987. Object-oriented development in an

industrial environment. OOPSLA '87: Conference

proceedings on Object-oriented programming systems,

languages and applications, ACM Press, New York,

pp. 183-191.

Jacobson, I., 2004. Use Cases - Yesterday, today, and

tomorrow. Software and System Modeling, vol 3, pp.

210-220.

Cockburn, A., 2000. Writing Effective use cases, Addison-

Wesley.

Armour, F. & Miller, G., 2001. Advanced use case Model-

ing Volume One, Software Systems. Addison-Wesley

Longman Publishing Co., Inc., Boston.

Kulak, D. & Guiney, E, 2003. Use Cases: Requirements in

Context. Addison-Wesley Longman Publishing Co.,

Inc., Boston.

Bittner, K., & Spence, I., 2003. Use Case Modeling. Addi-

son-Wesley Longman Publishing Co., Inc., Boston.

Jacobson, I., Booch, G. & Rumbaugh, J., 1999. The Uni-

fied Software Development Process, Addison-Wesley

Longman Publishing Co., Inc., Boston.

Denger, C. & Paech, B., 2004. An Integrated Quality

Assurance Approach for Use Case Based Require-

ments, Proceedings Modellierung 2004, Marburg, pp.

307–308.

Sutcliffe, A.G., Maiden, N.A.M., Minocha, S. & Manuel,

D., 1998. Supporting Scenario-Based Requirements

Engineering, IEEE Transactions on Software Engi-

neering, vol. 24, no. 12, pp. 1072-1088.

Lee, W.J., Cha, S.D. & Kwon, Y.R., 1998. Integration and

Analysis of Use Cases Using Modular Petri Nets in

Requirements Engineering, IEEE Transactions on

Software Engineering, vol. 24, no. 12, pp 1115-1130.

Williams, C., Kaplan, M., Klinger, T. & Paradkar A.,

2005. Toward Engineered, useful use cases. Journal of

Object Technology, Special Issue: Use Case Modeling

at UML-2004, vol 4, pp. 45-57.

Glinz, M., Seybold, C. & Meier, S., 2007. Simulation-

Driven Creation, Validation and Evolution of Beha-

vioral Requirements Models. Dagstuhl-Workshop

Modellbasierte Entwicklung eingebetteter Systeme

(MBEES 2007). Informatik-Bericht 2007-01, TU

Braunschweig, pp. 103-112.

Whittle, J. & Jayaraman, P.K., 2006. Generating Hierar-

chical State Machines from use case Charts, RE '06:

Proceedings of the 14th IEEE International Require-

ments Engineering Conference (RE'06), IEEE Com-

puter Society, Washington, DC, pp. 16-25.

Jorgensen, J.B. & Bossen, C., 2004. Executable Use Cas-

es: Requirements for a Pervasive Health Care System.

IEEE Software, 21(2), pp. 34-41.

Somé, S., 2006. Supporting use case based requirements

engineering. Information and Software Technology

48, pp. 43-58.

Zhao J. & Duan Z.: Verification of Use Case with Petri

Nets in Requirement Analysis, ICCSA (2), pp. 29-42.

Hoffmann, V., Lichter, H. & Nyßen, A., 2009. Towards

the Integration of UML-and textual Use Case Model-

ing, Journal of Object Technology, vol. 8, no. 3, pp.

85-100.

Jensen, K., 2003. Coloured Petri Nets: Basic Concepts,

Analysis Methods and Practical Use, vol.1 (Mono-

graphs in Theoretical Computer Science. An EATCS

Series).

Springer.

Jensen, K. 1997. A Brief Introduction to Coloured Petri

Nets, Tools and Algorithms for the Construction and

Analysis of Systems, pp. 203-208.

ViPER project site, http://www.viper.sc.

Eclipse Modeling Framework project site,

http://www.eclipse.org/modeling/emf/

ICSOFT 2010 - 5th International Conference on Software and Data Technologies
