Finding Fuzzy Communities in Directed Networks

Kun Zhao, Shao-Wu Zhang and Quan Pan

School of Automation, Northwestern Polytechnical University, Xi’an, China

Abstract. To comprehend the directed networks in a fuzzy view, we introduce

a new matrix decomposition approach that reveals overlapping community

structure in weighted and directed networks. This method decomposes a

directed network into modules by optimally decomposing the asymmetric

feature matrix of the directed network into two matrices separately representing

the closeness degree from node to community and the closeness degree from

community to node. Their combined result uncovers the community structures

in a fuzzy sense in the directed networks. The illustrations on an artificial

network and a word association network give reasonable results.

1 Introduction

A cogent module representation of a network will retain the important information

about the network and highlight the underlying structures and the relationships in the

network. Many researches have been devoted to the development of algorithmic tools

for discovering communities [1]. Nearly all of these methods, however, are not

intended for the analysis of directed network. Yet, directedness is an essential feature

of many real networks. Ignoring direction may reduce considerably the information

that one can extract from the network structure. In particular, neglecting link

directedness when looking for communities may lead to partial, or even misleading,

results. Very few algorithms [2], [3], [4] currently available are able to handle

directed graphs, since the presence of directed links places a serious obstacle towards

community detection problems.

Another subject that attracts much attention in network studies is the detection of

overlapping communities, or fuzzy clustering. Specifically, many real world networks

exhibit an overlapping community structure, which is hard to grasp with the classical

graph clustering methods [5], [6], [7] where every node of the graph belongs to

exactly one community. Up to now, only a small number of studies [8], [9], [10] have

addressed the problem of overlapping community. Typically, there is an algorithm

takes symmetrical non-negative matrix factorization (s-NFM) [10] into optimization

framework and achieves explicit physical meaning for the clustering results, which

are helpful for the network analysis after clustering. As for directed networks,

however, symmetrical factorization could not treat the asymmetry which is resulted

from the directedness in edges. To solve this problem, we constructed a new

optimization framework based on the approximation to the directed feature matrix

with matrices of two types of directed paths. In order to complete the framework, we

also proposed a directfied and fuzzified variant of the modularity function first

Zhao K., Zhang S. and Pan Q. (2010).

Finding Fuzzy Communities in Directed Networks.

In Proceedings of the 6th International Workshop on Artiﬁcial Neural Networks and Intelligent Information Processing, pages 3-12

 SciTePress

introduced by Newman [11]. New function provides a reasonable basis for the

determination of the optimal number of communities. The clustering results contain

abundant information and equally possess explicit physical meaning. We tested our

method on a computer-generated graph and a real-world graph and gained significant

and informative community divisions in both cases.

2 The Algorithm

2.1 Optimization Scheme for Directed Graphs

Consider a directed and weighted network G(N,E), which can be described by the

weighted adjacency matrix A=[A

]

where n is the number of nodes, and A

>0 if

and only if (i,j)∈E and 0 otherwise. Let the feature matrix of G be Y=[Y

]

where

denotes the similarity from node i to node j. Note that the relationship between a

pair of nodes is easy to grasp in the sense of connecting path. As the path linking a

pair of nodes increases, the relationship of the pair is enhanced. Then, in this paper,

we make the path number as the central metric of various relationships in network.

Undirected graph is defined as a graph in which edges have no orientation. It is,

therefore, no need to distinguish between the paths that start from a given node and

the paths that arrive in it because they are essentially the same in undirected graphs.

However, in directed graphs, these two types of paths are usually not equivalent since

not all edges are bidirectional. Suppose that n nodes can be grouped into r overlapping

communities. Here we introduce the concept of node-community similarity matrix

rnik

= ][

, which is non-negative, to represents the number of paths (or the

similarity degree) from nodes to communities, and the concept of community-node

similarity matrix

rnik

= ][

, which is non-negative, to represents the number of

paths (or the similarity degree) from communities to nodes. Generally,

concerns

the outgoing edges of node, and

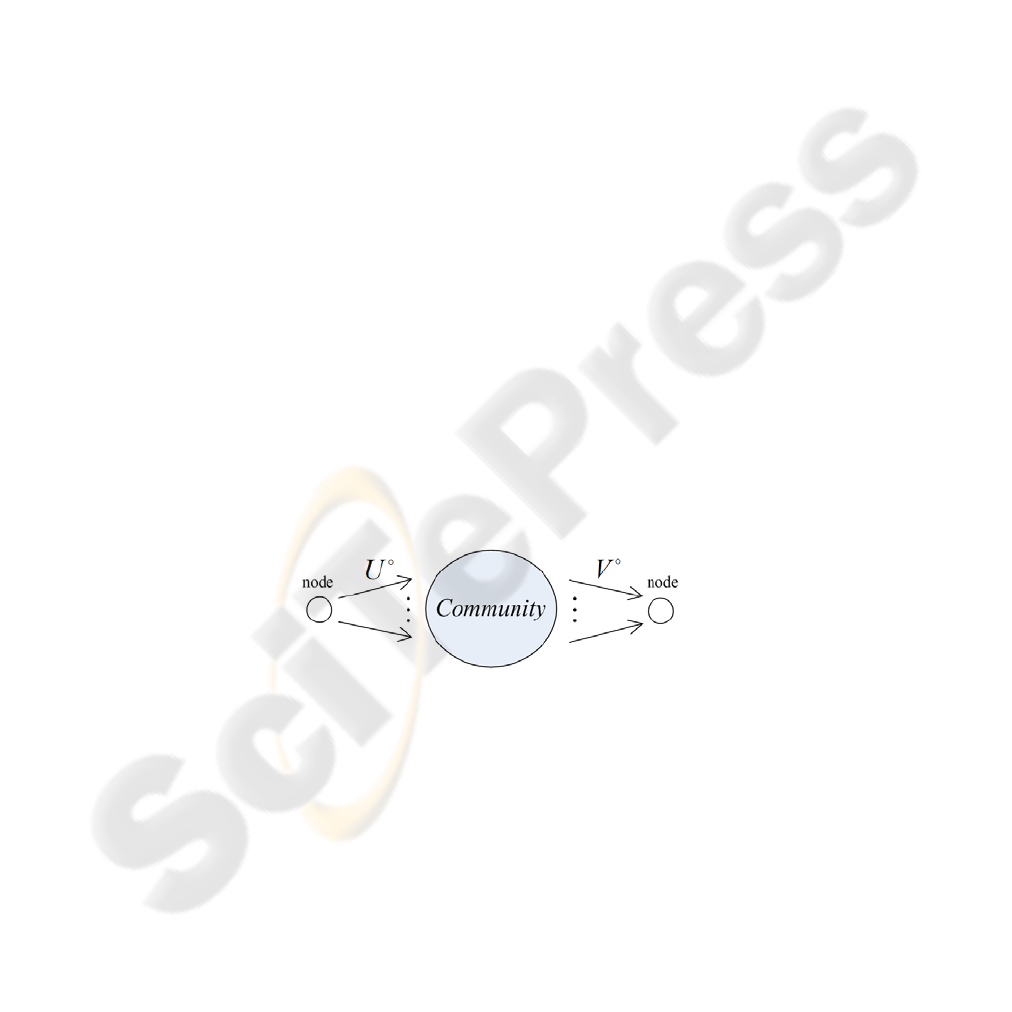

concerns the incoming edges of node. Fig. 1

illustrates the difference between the two types of paths in directed network.

Fig. 1. Schematic illustrations of the two types of paths in directed graph (community → node

and node → community).

Since

and

respectively denote the number of paths from node to

community and the number of paths from community to node,

could further

be an approximation of similarity between nodes. That is, we can use

and

reconstruct Y:

YVU

→

(1)

For convenience, we hope to have the following approximation form:

YVSU

→

(2)

where

and

are non-negative matrix which are separately the column

Frobenius normalization form of

and

, and the r×r non-negative diagonal

matrix

stores the weights of the columns of

and

. Note that Equation (1)

is essentially equal to Equation (2), then

VUVSU

(3)

Equation (2) leads us to the following Frobenius norm (Euclidean distance

equation), which measures the fitness of the given matrices

and

of graph

G(V,E) by quantifying how precisely they approximate the network structural

information Y:

∑

−−=−=

≥

Fro

VSUYVSUYVSUYVSUYF )]()[(

),,,(min

(4)

where A

B means the Hadamard product (or element-by-element product) of

matrices A and B.

Now the community detection problem is reduced to the optimization of F

. In

other words, we must find the optimal

and

to minimize F

. To solve this

optimization problem, we will develope a modified Non-negative Singular Value

Decomposition.

2.2 Method of Compressed Non-negative Singular Value Decomposition

Matrix factorization plays an important role in scientific computation. The commonly

used one is singular value decomposition (SVD) [12]. It approximates one matrix

with three lower rank matrices (including one rectangular matrix and two square

matrices) with orthogonality constraints, in which the left and right singular vectors

correspond to the column and row spaces of the original matrix. SVD has been

successfully applied in both science and engineer areas [13]. However the results by

SVD on real data always lose physical meaning because they usually contain negative

values, and this can not be interpretable easily from intuitive insight. To make the

results more interpretable, Liu [14] took the non-negativity constraints into SVD and

developed a non-negative SVD (NNSVD).

NNSVD is very help for our theme. We only need to make appropriate

modification on it. Firstly, both of

and

are not square matrices and they do

not have orthogonality constraints. Secondly,

and

must be achieved by the

normalization after matrix factorization. We take the above conditions in NNSVD and

propose the iteratively update rules of a compressed Non-negative Singular Value

Decomposition (c-NNSVD):

⎩

⎨

⎧

=−

≠

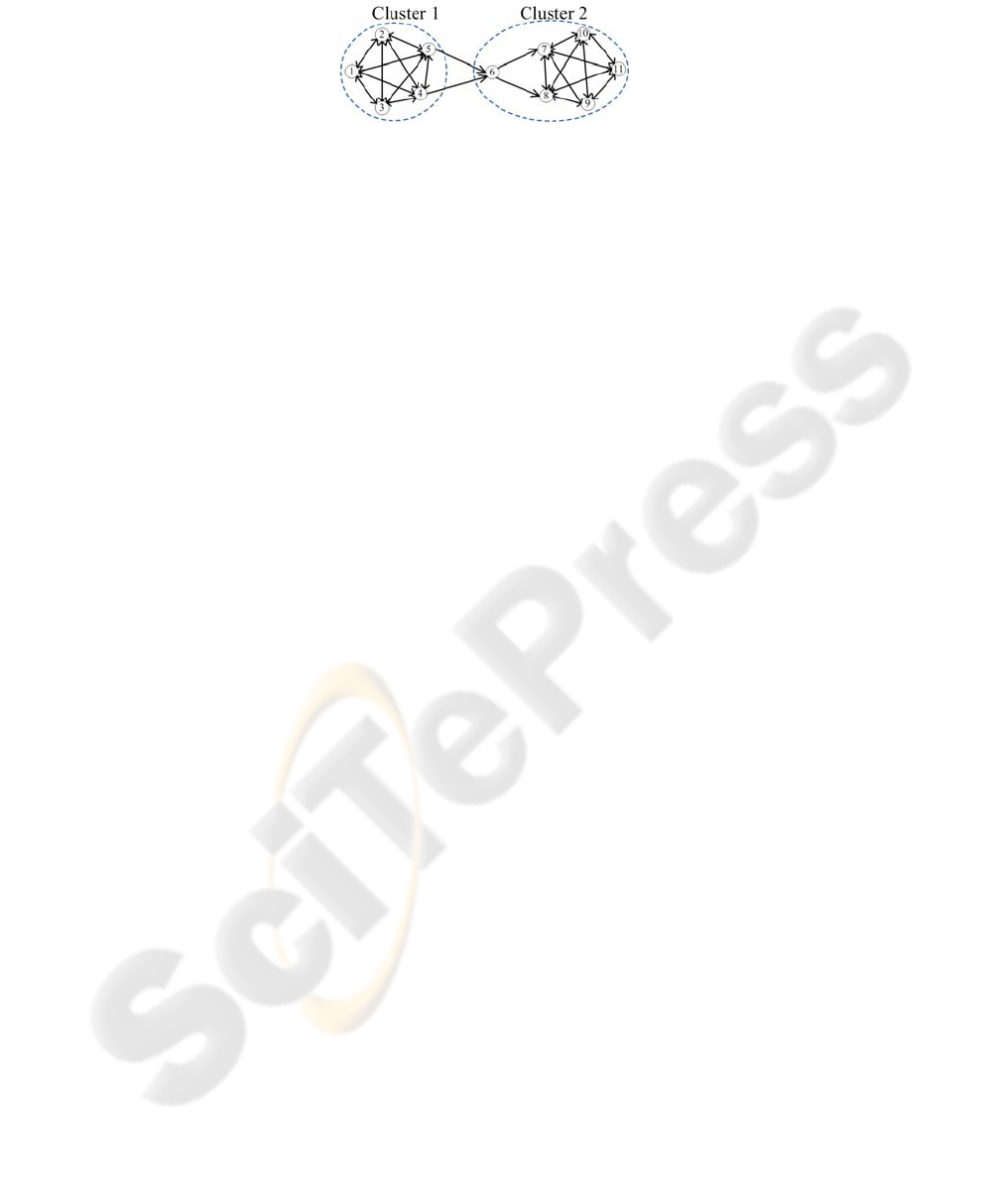

jid

jiA

(8)

where d

is the degree of node i. Diffusion kernel , the exponential of matrix L, is

defined as:

"++++=

⎟

⎠

⎞

⎜

⎝

⎛

+==

∞→

!32

11lim)exp( LLL

ββ

(9)

where

is a positive constant to control the degree of diffusion. In undirected

networks, the resulting matrix K is symmetric and positive definite. It is a valid

kernel. A similarity matrix Y can be obtained by normalizing the kernel matrix K in

such a way:

jjii

(10)

Note that, the diffusion kernel of undirected network starts with a symmetric

adjacency matrix. However, in directed network, the adjacency matrix A is not

symmetric. Therefore, directed networks should have an alternative form of kernel

which could be traced back to a different Laplacian. The Laplacian of undirected and

weighted network is the following matrix:

⎪

⎩

⎪

⎨

⎧

=−

≠

jid

jiA

out

(11)

where

out

is the out degree (weighted) of node i. It is naturally an asymmetric

matrix. So, its kernel matrix K

=exp(

) and the resulted feature matrix are also

asymmetric. Frankly speaking, K

do reflect the number of directed paths from one

node to another in an asymmetric manner. In this paper, we choose

= 0.1 in the

feature matrices in our study.

2.4 Directfied and Fuzzified Variant of the Modularity Function

If a priori knowledge of the community number is absent, the optimal number of

communities should be determined by some computational methods in a self-

consistent way without human intervention. Recently, a concept of modularity

function Q introduced by Newman and Girvan [11]

has been broadly used as a valid

measure for community structure. It comes from the notion that: only if the number of

edges within communities is significantly higher than would be expected purely by

chance can we justifiably claim to have found significant community structure. The

original modularity of a network is then defined as:

⋅

⎥

⎦

⎤

⎢

⎣

⎡

−=

∑

(12)

where A

is an element of the adjacency matrix,

is the Kronecker delta symbol,

and c

is the label of the community to which vertex i is assigned.

Then one maximizes Q over possible divisions of the network into communities,

the maximum being taken as the best estimate of the true communities in the network.

So, the optimal number of fuzzy communities can be determined by the modularity

function Q which gains its maximum on a certain value of r.

In the fuzzy clustering method of Nepusz

[8], a fuzzified variant of the modularity

Q is presented as:

ijf

Q ⋅

⎥

⎦

⎤

⎢

⎣

⎡

−=

∑

(13)

where

∑

kjkiij

HHs

and

is the fuzzy membership degree of node i to the

community k. The probability of the event that vertex i belongs to the same

community as vertex j becomes the dot product of their membership vectors, resulting

in the similarity measure s

, which can be used in place of

to obtain a fuzzified

variant of the modularity.

As for directed network, Newman [2] presented a new modularity function Q

which is generally applicable for directed networks:

out

ijd

⋅

⎥

⎦

⎤

⎢

⎣

⎡

−=

∑

(14)

where A

is defined in the conventional manner to be 1 if there is an edge from j to i

and zero otherwise, and

out

is the out-degree of node i and

is the in-degree of

node j and M is the total number of directed edges in the network. Indeed edge i-j

make larger contributions to this expression if

and/or

out

is small.

Each of the above two modularity, Q

and Q

, has its advantages which the other

one does not has. To combine their advantages, we propose another variant of the

modularity Q as:

out

ijdf

Q ⋅

⎥

⎦

⎤

⎢

⎣

⎡

−=

∑

(15)

which can be applied to fuzzy clustering in directed networks.

The modularity can be either positive or negative, with positive values indicating

the possible presence of community structure. One can search for community

structure precisely by looking for the divisions of a network that have positive, and

preferably large, values of the modularity. In order to determine the optimal number

of fuzzy communities in directed networks, we iteratively increase r and choose the

one which results in the highest modularity Q

3 Test of the Method

3.1 Random Graph

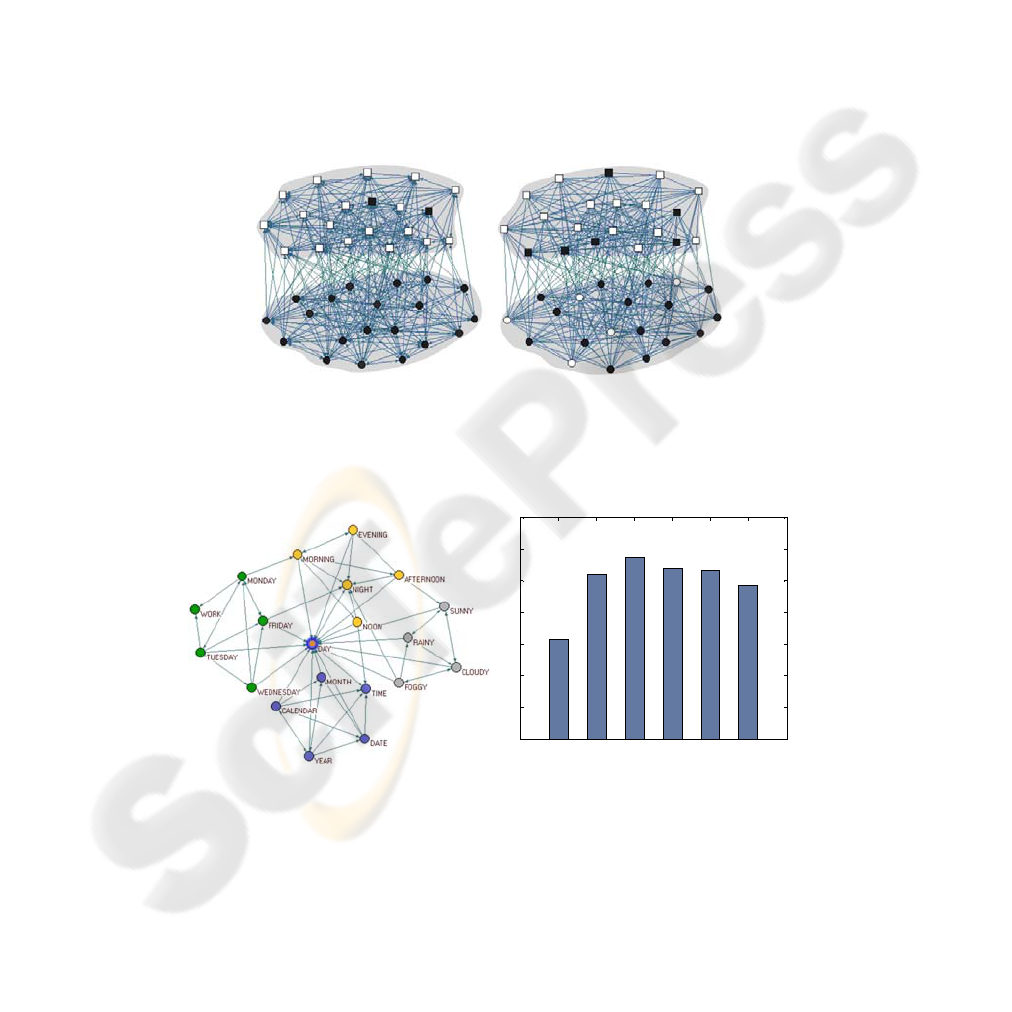

For illustrative purposes, we consider an artificial computer-generated network,

designed specifically to test the performance of the algorithm. As Fig. 3a shows, this

network is generated with N = 40 nodes, split into two communities containing 20

nodes each. We put 120 directed edges in each community at random and 120

directed edges between the two communities at random. The edges that fall within

groups are biasedly assigned directions so that they are more likely to point from one

group to another. As we apply c-NNSVD on this network, the two communities are

detected almost perfectly: just two nodes out of 40 are misclassified. This is

confirmed in Fig. 3(a), which shows the results of the application of our method. If

we ignore the directions, however, using the algorithm presented in [10], there is

nearly no community structure to be found in this network, as Fig. 3(b) shows.

(a) (b)

Fig. 3. Community assignments for the two-community random network described in the text

from (a) the algorithm of this paper and (b) an undirected clustering algorithm in [10]. The true

community assignments are denoted by vertex shape or shaded region. The different colors

represent different communities obtained by the algorithms.

2 3 4 5 6 7

0.1

0.2

0.3

0.4

0.5

0.6

0.7

Number of communities

Qdf

(a) (b)

Fig. 4. The communities of the word DAY in the South Florida Free Association coupled with

the determination of the optimal number of communities. (a) By the method presented in this

paper, the word DAY is discovered to be the overlapping node which has the largest

membership degree to the yellow group and the second-largest membership degree to the blue

group. (b) Histogram of Q

for different choices on number of communities.

3.2 Word Association Graph

We examined a directed network obtained from the South Florida Free Association

norms list [17] (containing 10617 nodes and 63788 links), where the weight of a

directed link from one word to another indicates the frequency that the people in the

survey associated the end point of the link with its start point. We picked a sub-

network with 20 nodes from the list and chose 4 as the optimal number of clusters, see

details in Fig. 4(b) which indicates that the peak for Q

of 0.5745 is achieved at r = 4.

For illustration in Fig. 4(a), we showed the (colour coded) modules of the word DAY

obtained by c-NNSVD, with the overlap emphasized in nested color. According to its

different meanings, this word participates in four, strongly internally connected

modules. The green community can be associated with work days. The yellow

community consists of day times, the gray community contains common adjectives of

day related to weather, and the blue community can be associated with the calendar.

Separately, the closeness degrees of the word DAY to the four communities is 0.018,

1.355, 0.019 and 0.059, which indicate that the yellow group is the dominant

community of node DAY and the blue group follows.

4 Conclusions

In this paper we presented a new algorithm for identifying overlapping communities

in directed networks based on two matrices of similarity between node and

community. An integrated quantity was proposed to give a consolidated result and it

was shown, through several examples that this leads to detection of the overlapping

community structure of the directed network.
