APPLICATIONS OF EXPERT SYSTEM TECHNOLOGY IN THE

ATLAS TDAQ CONTROLS FRAMEWORK

Alina Corso-Radu, Raul Murillo Garcia

University of California, Department of Physics and Astronomy

4129 Frederick Reines Hall, Irvine, CA 92697-4575, U.S.A.

Andrei Kazarov

CERN, on leave from PNPI, St.Petersburg, Russian Federation

Giovanna Lehmann Miotto, Luca Magnoni, John Erik Sloper

CERN, Genève 23, Switzerland

Keywords: Controls, Expert-system, Knowledge, Verification, Testing, Recovery, ATLAS.

Abstract: The ATLAS Trigger-DAQ system is composed of O(10000) of applications running ~1500 computers

distributed over a network. To maximise the experiment run efficiency, the Trigger-DAQ control system

includes advanced verification, diagnostics and complex dynamic error recovery tools, based on an expert

system. The error recovery (ER) system is responsible for analysing and recovering from a variety of

errors, both software and hardware, without stopping the data-gathering operations. The verification

framework allows users to develop and configure tests for any component in the system with different levels

of complexity. It can be used as a standalone test facility during the general TDAQ initialization procedure,

and for diagnosing the problems which may occur at run time. A key role in both recovery and verification

frameworks is played by the rule-based expert system, which is also known as a knowledge-based system,

to analyse errors and decide on appropriate recovery actions. The system is composed of a dynamic set of

rules that describe the TDAQ system behaviour and by an inference engine that takes decisions on which

actions to perform. The system is currently used on a daily basis for the operation of the ATLAS

experiment. The paper describes the architecture and implementation of the TDAQ error-recovery system

and verification framework with emphasis on the latest developments and experience gained over the first

LHC beam runs.

1 INTRODUCTION

The paper describes the verification, diagnostics and

error-recovery components of the Controls system of

the ATLAS Trigger-DAQ (TDAQ) system. The

ATLAS is one of the experiments built to study the

proton-proton collisions delivered by the Large

Hadron Collider (LHC) at CERN.

The main aim of verification, diagnostics and

error-recovery components, that are all based on the

same rule based expert system technology, is to

maximize data taking efficiency by helping the

operator to control and diagnose the TDAQ

smoothly, through the use of the expertise provided

by the system developers.

First, the overview of the use of the expert

system technology in the scope of TDAQ Controls

system is given, including motivations, architecture

overview and some details of implementation. Then

some components are described in more detail,

focusing on their recent developments and use in

real experiment environment during first data-taking

periods of LHC machine.

512

Corso-Radu A., Garcia R., Kazarov A., Lehmann Miotto G., Magnoni L. and Sloper J. (2010).

APPLICATIONS OF EXPERT SYSTEM TECHNOLOGY IN THE ATLAS TDAQ CONTROLS FRAMEWORK.

In Proceedings of the 5th International Conference on Software and Data Technologies, pages 512-516

DOI: 10.5220/0003008605120516

 SciTePress

2 EXPERT SYSTEM IN TDAQ

CONTROLS FRAMEWORK

2.1 Motivations for the Application of

Expert System in TDAQ Controls

System

Requirements

At present the TDAQ system of the ATLAS

experiment (Atlas, 2008) is a very complex

distributed computing system, composed of

O(10000) of applications running on more than 1500

computers distributed over a network (Atlas, 2003).

The system is scheduled to increase further to ~ 50

thousand applications on 3000 computers to sustain

the foreseen event rates at the nominal luminosity of

the LHC.

The TDAQ Controls system (Lehmann, 2009)

has to guarantee the smooth and synchronous

operations of all TDAQ components and has to

provide the means to minimize the downtime of the

system caused by runtime failures, which are

inevitable for a system of such scale and complexity.

Tests

Repository

Expert

System

Operator

Online

Recovery

DVS

Test

Manager

online

error

handling

offline

verification

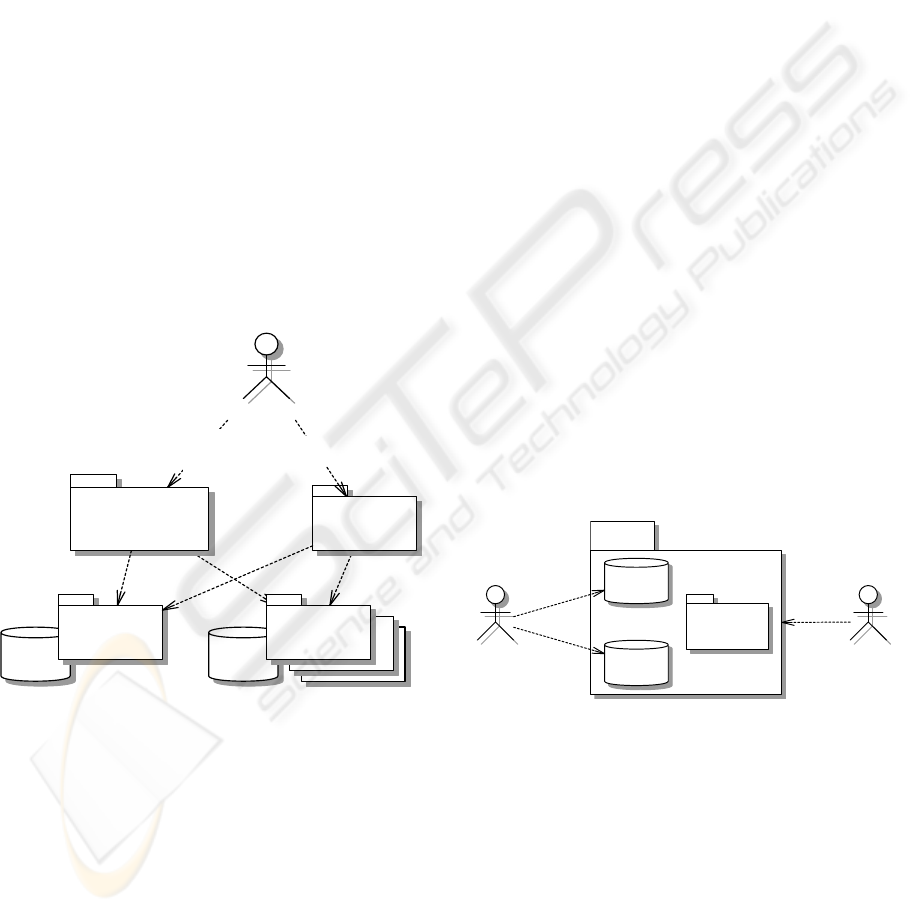

Figure 1: Use of Expert System by TDAQ Controls

components.

Architecture

To accomplish its objective, the Controls system

includes some high-level components which are

responsible for the automation of system

verification, diagnostics of failures and recovery

procedures (Figure 1): DVS (Diagnostics and

Verification System) (Kazarov, 2007) and Online

Recovery (Sloper, 2008). These components are

built on top of a common technology of a forward-

chaining Expert System (ES) framework, that allows

to program the behaviour of a system in terms of “if-

then” rules and to easily extend or modify the

knowledge base (KB).

The Online Recovery is composed of a global

server, that handles errors that have a system-wide

impact, and by local units to handle errors that can

be dealt with at a subsystem level, that is, errors that

do not have an immediate effect on the rest of the

system.

For execution of atomic tests from a Test

Repository, the Test Manager service is used, which

in turn utilizes other Controls services that are not

covered in this paper.

TDAQ Controls tools (Liko, 2004) are designed

using a framework approach, thus giving the

possibility to extend its basic functionality by filling

the provided framework with subsystem-specific

tests and rules.

Given the lifetime of the experiment which is

more then 10 years, a mean of storing and reusing

the expertise of the system developers, and also the

operational experience with the system is important.

This is achieved by storing the verification, error

diagnostics and recovery procedures (in the form of

rules in the knowledge base (KB)) and by using this

knowledge on the running system through years.

Also, the system components tests developed by

subsystem experts are stored in a Test Repository

and thus made available for verification and

diagnostics procedures performed by TDAQ

operators as schematically show on Figure 2 (more

details given in chapter 3Error! Reference source

not found..

Controls

Tests

Repository

Expert

System

OperatorExpert

rules

tests

uses

Figure 2: Storing the developers expertise in TDAQ

Controls system.

2.2 CLIPS Expert System

The CLIPS expert system toolkit (CLIPS, 2010) was

chosen for the implementation of the knowledge-

based components of the Controls system. Its

principal features and capabilities are presented

below:

originally developed in NASA

available as open source

APPLICATIONS OF EXPERT SYSTEM TECHNOLOGY IN THE ATLAS TDAQ CONTROLS FRAMEWORK

513

can be used as a standalone application or as

embeddable (C-source) library, which allows

integration of ES functionality in the existing

applications

implements a number of different programming

paradigms:

“if-then” rules and a forward-chaining inference

engine

object-oriented constructs (“COOL” language)

traditional algorithmic constructs (functions, cycles

etc.)

One of the key (if not unique) features of CLIPS

is the possibility to describe the architecture of your

application using an object-oriented approach

(including classes, multiple inheritance, methods)

and to develop “generic” rules for classes of objects

which will be then applied to a particular set of

objects according to a particular configuration

without any modification of the pre-loaded rules.

This model fits very well with the TDAQ

configuration object-oriented approach and gives a

powerful tool for developing rule-based control

applications in TDAQ framework.

2.3 Integration of CLIPS in TDAQ

Controls Framework

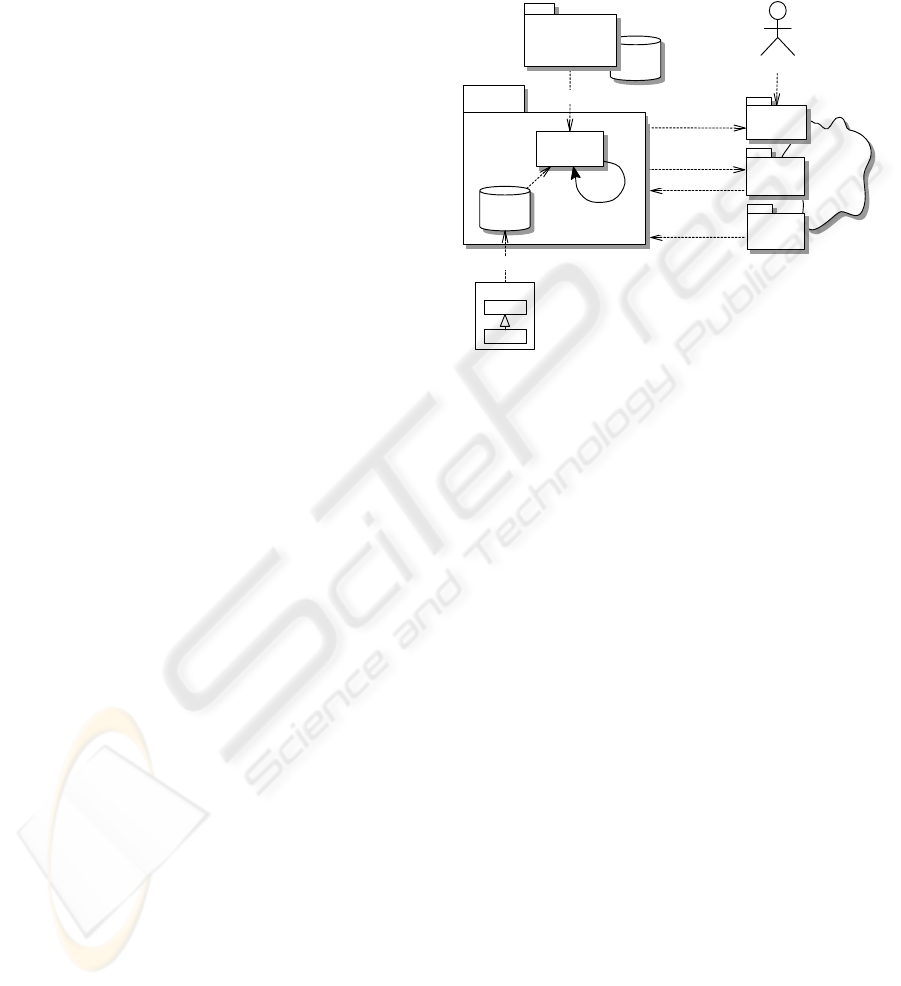

Figure 3 presents shows how the expert s is

integrated and interacts with the main TDAQ

Control services.

The whole TDAQ system is fully described and

configured via the Configuration Database Service

according to a pre-defined configuration object-

oriented schema. The corresponding schema

developed in the CLIPS object language COOL is

loaded to all instances of the ES. The actual set of

objects for a particular configuration is loaded into

the ES as a class hierarchy representing proxies of

the applications and the hardware in the system.

These objects, together with information gathered

from the Monitoring service and test results can then

be used in the ES engine to match the loaded rules.

The CLIPS inference engine adopts a forward

chaining approach: the agenda is how CLIPS keeps

track of which rules are to be executed next run, and

a rule is added to the agenda when all its conditions,

given the status of objects in the systems, are

satisfied.

CLIPS parses the knowledge base at run time.

This allows to easily customize the behaviour of

recovery procedures supplying different set of rules

as arguments to the recovery applications. In a

complex and dynamic framework such as the TDAQ

system it is very difficult to detect a priori all the

different errors that might occur and what

appropriate actions should be taken. It is therefore

very important that the expert system can be easily

changed and customized as more data is gathered

and a better understanding of the system is gained.

OO schema

ExpertSystem

Agenda

rules

inference

Operator

objects

classes

CDB

Configuration

Service

TDAQ

System

errors,

messages

test results

test requests

Testing

recovery actions

Controls

Monitoring

Figure 3: Integration of Expert System in Controls

framework.

3 DIAGNOSTICS AND

VERIFICATION SYSTEM (DVS)

DVS is a framework used to assess the correct

functionality of the system, to detect and diagnose

eventual problems. DVS allows the configuration of

one or several tests for any component in the system

by means of a configuration database. The system

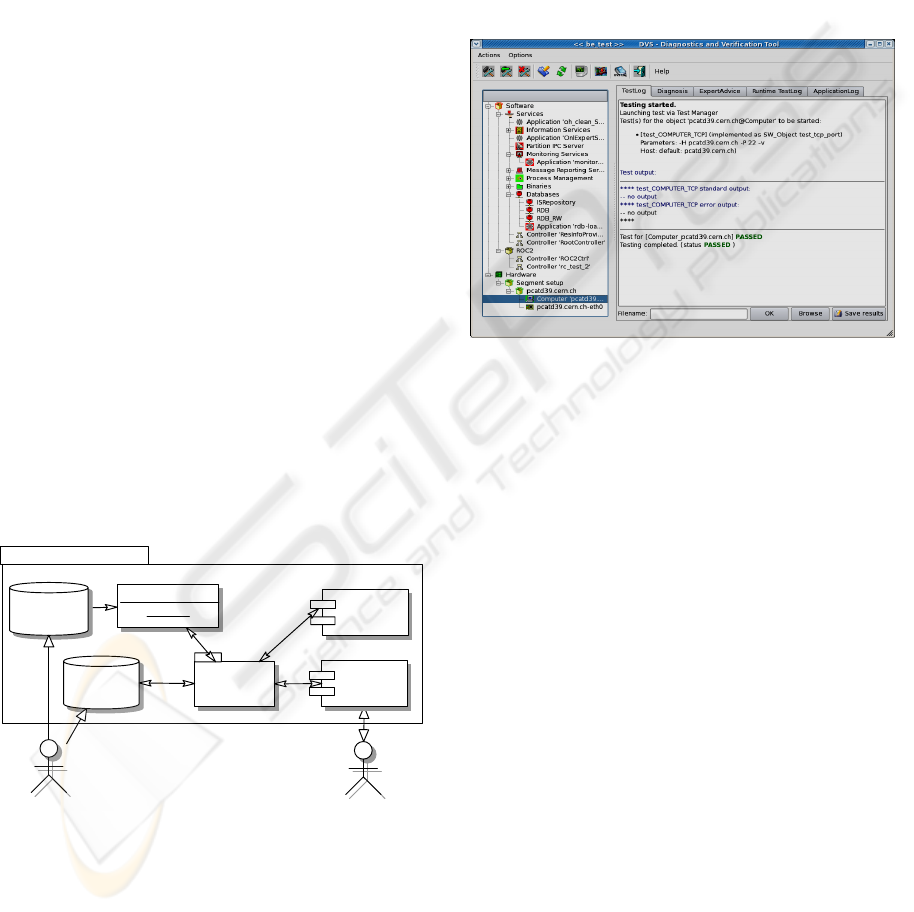

and the testing results can be viewed in a tree like

structure using a user friendly graphical user

interface.

3.1 Tests Configuration and Access

Library

Having a possibility to examine and verify the

functionality of any component in the system is

essential for the diagnostic, i.e. for understanding the

causes of a problem and for identifying the faulty

components – either during the error recovery

procedures on the running system or in pre-

initialization phase.

A test is a binary running on a particular host in a

system. It verifies a particular functionality of a

TDAQ component and returns a single result value:

PASSED, FAILED, UNRESOLVED, TIMEOUT

and some text output. For a single component a

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

514

number of tests can be associated which can be

organized in sequences, executed synchronously or

asynchronously. Tests and their relationships are

fully described in the configuration database as a

part of a particular TDAQ configuration. The

following attributes are available for test description:

parameters, host, dependencies, time-outs, scope,

complexity and mask. Any test can be associated

either to a particular object in the configuration

database or to all objects of a particular type. In the

latter case the test's parameters and host can be

parametrized by attribute values of the concrete

objects when the test is launched.

In the spirit of the TDAQ Control services, the

Tests Configuration schema and data access library

allows ATLAS subsystem experts to define more

advanced tests for detector-specific h/w and s/w

components and thus to make the verification

functionality available to other Control services, like

Run Control and DVS.

3.2 DVS Core

DVS extends the functionality of the Test Manager

by presenting a particular TDAQ configuration in a

form of testable tree-like structure, allowing to

automate testing and diagnostics of problems at

different levels of the configuration. Its core

components are the Test Repository database

describing all tests and the expert system filled with

some knowledge by an expert. The functionality is

available to end-users via C++ API and via a user-

friendly GUI.

DVS

Expert

Operator

Test

Repository

Knowledge

Base

Expert System

engine

DVS GUI

C++ API

DVS

console

Figure 4: Architecture of DVS.

3.3 DVS Graphical User Interface

A new version of the DVS graphical user interface

has been developed recently. The previous version

based on Java was using JNI (Java Native Interface)

for the communication with the DVS core library.

This choice had proved to be not scalable enough

and not easy to debug and maintain. A Qt4 based

implementation replaced the previous GUI.

Figure 5 shows the main panel of the DVS GUI.

In its left side the tree of testable components is

displayed. The user can select a single component or

a group in the tree and run all defined tests by

clicking a single button. As tests finish, the

components icons change colour reflecting the

result. On the right hand side the test results,

diagnosis and recovery advice are presented.

Figure 5: DVS Graphical User Interface – main panel.

Other features were implemented following the

constant user feedback received: log file browser for

accessing log files produced by the TDAQ

applications running in a distributed environment,

test scope to prevent destructive tests to be executed

during data-taking sessions, test runtime output for

long-running tests.

4 RECOVERY SCENARIOS

IMPLEMENTED WITH

ONLINE RECOVERY AND RUN

CONTROL FRAMEWORK

This section introduces a simple recovery scenarios.

The rule in Fig. 6 describes a general recovery

mechanism in case an application has died. The left

hand side (LHS) of the rule contains the conditions

to identify the error situation, the right hand side

(RHS) lists the actions to be taken.

In the TDAQ framework applications are

arranged in a tree structure, with a controller

responsible for a segment, a subset of the whole

system. Following this recovery rule, when an

application that satisfies the conditions described in

the LHS the expert system takes care of notifying

APPLICATIONS OF EXPERT SYSTEM TECHNOLOGY IN THE ATLAS TDAQ CONTROLS FRAMEWORK

515

the associated controller to ignore the application

from now on.

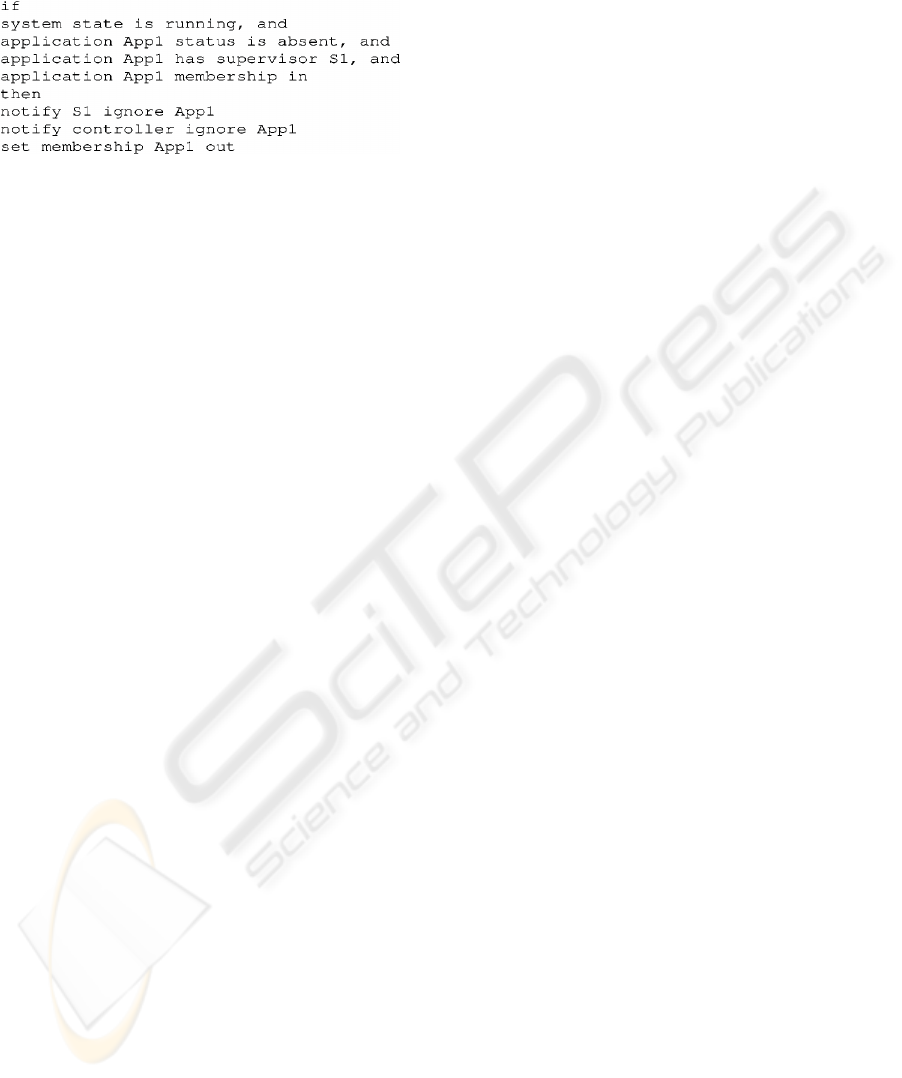

Figure 6: Sample recovery rule.

This approach can be applied to more advanced

scenarios. In the ATLAS TDAQ framework, the

expert system server holds the main responsibility of

dealing with detector frontend failures. There is an

automatic recovery procedure which allows for

Read-Out Drivers (RODs) that are permanently busy

or otherwise faulty to be recovered without stopping

the run. The expert system drives the recovery

operations, detecting the error conditions and

holding the data acquisition triggers for the time

needed to disable the failing component and to

restore safe data taking operations.

5 CONCLUSIONS

We described the architecture and the

implementation of the diagnostics and verification

tool and the error-recovery mechanism, two

components of the ATLAS Trigger-DAQ suite. The

aim of these components is to increase as maximum

as possible the experiment data-taking efficiency, by

helping the operator to spot problems easily without

the need to stop the data-taking process. The

common feature of the two components is the usage

of the rule-based expert system technology that

allows to program the behaviour of a system in

terms of “if-then” rules and to easily extend or

modify the knowledge base. We describe the system

improvements after the experience gained during the

first LHC data-taking periods.

REFERENCES

ATLAS Collaboration, 2008. The ATLAS Experiment at

the CERN Large Hadron Collider. Journal of

Instrumentation, 3 (2008) S08003.

ATLAS Collaboration, 2003. ATLAS High-Level Trigger,

Data Acquisition and Controls Technical Design

Report. CERN Technical Design Report. Available at:

http://cdsweb.cern.ch/record/616089. [Accessed 30

March 2010].

CLIPS, 2010. CLIPS: A Tool for Building Expert Systems.

Available at : http://www.ghg.net/clips/CLIPS.html.

[Accessed 30 March 2010].

Kazarov, A., Corso-Radu, A., Lehmann Miotto, G.,

Sloper, J. E. & Ryabov, Y., 2007. A rule-based

verification and control framework in ATLAS

Trigger-DAQ. IEEE Transaction on Nuclear Science.

54 (2007) 604-608.

Lehmann, G. et al., 2009. Configuration and Control of the

ATLAS Trigger and Data Acquisition. Proceedings of

The 1st International Conference On Technology And

Instrumentation In Particle Physics. Tsukuba, Ibaraki,

Japan, 12-17 Mar 2009.

Liko, D. et al., 2004. Control in the ATLAS TDAQ

System. Computing in High Energy Physics and

Nuclear Physics. Interlaken, Switzerland, 27 Sep - 1

Oct 2004.

Sloper, J. E., Lehmann Miotto, G. & Hines, E., 2008.

Dynamic Error Recovery in the ATLAS TDAQ

System. IEEE Transaction on Nuclear Science. 55

(2008) 405-410.

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

516
