TOWARDS A HACKER ATTACK REPRESENTATION METHOD

Peter Karpati, Guttorm Sindre

Dept. of Computer and Information Science, Norwegian University of Science and Technology, Sem Sælands vei 7-9,

Trondheim, Norway

Andreas L. Opdahl

Dept. of Information Science and Media Studies, University of Bergen, Bergen, Norway

Keywords: Intrusion analysis, Security requirements, Misuse case, Attack tree, Attack pattern.

Abstract: Security must be addressed at an early stage of information systems development, and one must learn from

previous hacker attacks to avoid similar exploits in the future. Many security threats are hard to understand

for stakeholders with a less technical background. To address this issue, we present a five-step method that

represents hacker intrusions diagrammatically. It lifts specific intrusions to a more general level of

modelling and distils them into threats that should be avoided by a new or modified IS design. It allows

involving different stakeholder groups in the process, including non-technical people who prefer simple,

informal representations. For this purpose, the method combines five different representation techniques

that together provide an integrated view of security attacks and system architecture. The method is

illustrated with a real intrusion from the literature, and its representation techniques are tied together as a set

of extensions of the UML metamodel.

1 INTRODUCTION

Experience tells us that hackers can be very

creative, to the point of routinely beating systems

with a considerable focus on security (Mitnick &

Simon, 2006). An important lesson for secure

systems modelling is to model not only the system

with its wanted functionality and security

precautions, but also combine system models with

representations of real or possible attacks to be able

to investigate and learn from them. This is the

philosophy behind techniques such as attack

sequences (see section 4.1), attack trees (Schneier,

1999), attack patterns (Gegick & Williams, 2005)

and misuse cases (Sindre & Opdahl, 2005). Each of

them have their strengths and weaknesses. Attack

sequence descriptions provide nice high level

overviews of complex attack sequences, but they

are flat and offer little detail. Attack trees and

patterns break threats nicely down into AND/OR

hierarchies, but they are not concerned with attack

sequences or with the legitimate functionality of the

system. Misuse case diagrams show threats in

relation to the system's functionality and users, but

offer little support for attack sequences or for

breaking high level threats down into more detailed

ones (Opdahl & Sindre, 2009).

Furthermore, none of the established techniques

show the relationship between threats and system

architecture although architecture is essential for

security in several ways: its components suggest

typical weaknesses and attack types, and the path

each of the system's functions (or use cases) takes

through the architecture suggests which weaknesses

a user of that function might try to exploit. We

therefore recently proposed a new technique

providing an integrated view of security attacks and

system architecture, namely misuse case maps

(Karpati et al., 2010). Compared to the other

techniques, misuse case maps have the disadvantage

of being more complex, and thus most suitable for

technically competent stakeholders.

A single representation technique is not enough

to balance the needs of security experts against

those of other stakeholders, nor enough for

balancing the needs for overview versus detail,

behaviour versus structure, function versus

architecture etc. This paper therefore introduces the

Hacker Attack Representation Method (HARM), an

Karpati P., Sindre G. and Opdahl A. (2010).

TOWARDS A HACKER ATTACK REPRESENTATION METHOD.

In Proceedings of the 5th International Conference on Software and Data Technologies, pages 92-101

DOI: 10.5220/0003010000920101

 SciTePress

overall method for illustrating complex security

attacks using a combination of five techniques. We

propose five steps for representing hacker intrusions

and offer guidelines for how to use the five

techniques together. HARM's key improvement

over the current state of practice and research is that

it enables many different stakeholders to take part

in the discussion of hacker intrusions, which is only

available for security experts today. It thus allows

knowledge of complex intrusions to be used already

in the early analysis stages and it properly links

security issues with architecture considerations.

The rest of this paper is structured as follows:

Section 2 discusses related work. Section 3 then

presents and motivates the overall five-step method.

Section 4 illustrates HARM by a running example,

elaborating the various techniques included and

their purposes. Section 5 outlines how the method

can be grounded in the UML metamodel through a

small number of extensions, thus enhancing the

interoperability between HARM and mainstream

modelling approaches. Finally, section 6 discusses

the results and concludes the paper.

2 RELATED WORK

Since the start of the new millennium, attention has

been drawn to complex intrusions, as opposed to the

earlier focus on isolated attack steps. A pioneering

effort was the JIGSAW attack specification

language (Templeton & Levitt, 2000), which

describes the components of an attack in terms of

concepts and capabilities. Capabilities are atomic

elements defining the circumstances (situation,

needed information) required for a particular aspect

of an attack to occur. Concepts embody abstract

situations that form the attack steps in a complex

intrusion. Requirements are defined for concepts

and relate capabilities and configurations. If the

requirements for a concept are met then the concept

holds and can provide new capabilities (meaning

that the attack can advance to the next stage). This

way, the language allows flexible variations of

exploits to create sophisticated attack scenarios.

This model can be applied for vulnerability

discovery, intrusion detection or attack generation.

JIGSAW was followed by attack graphs (AG)

(Sheyner et al., 2002), which drew immediate

responses from the security research community.

AGs represent all possible attacks on a network.

Their nodes and edges express possible actions

(usually exploit steps) along with the resulting

changes to the state of the network. They are useful

for network hardening and penetration testing

among other things.

A central merit of JIGSAW and AG was to shift

the focus from isolated malicious events to whole

intrusion scenarios. This shift led to exploring better

methods for secure systems development, more

advanced penetration testing tools and more

sophisticated intrusion detection systems (IDS). An

important aspect of IDS systems is how the alerts

are combined to support identification of different

intrusion attempts. There are different ways to

correlate alerts. For example, (Templeton & Levitt,

2000) suggest to exploit the included definition of

requires and provides blocks in the specification to

match alerts, but give no specific method for it.

(Ning et al., 2002) correlate alerts by matching the

consequence of previous alerts and the prerequisite

of later ones through hyper-alert correlation graphs

based on predicates. It addresses the limitations of

JIGSAW by allowing alert aggregation and partial

satisfaction of prerequisites. (Cheung et al., 2003)

use the components of the EMERALD intrusion

detection framework (Neumann & Porras, 1999),

which is based on real-time forward-reasoning

expert systems.

Recent efforts have proposed to combine

security models (from threat modelling through

mitigation to testing and inspection into methods for

secure software development. The Suraksha project

(Maurya et al., 2009) offers a workbench with the

possibility to embed security considerations into the

system from the earliest stages of software

development. The approach suggests the following

steps: 1) identifying system objectives, assets and

their risks; 2) analyzing functional requirements

using UML and developing use cases (UC); 3)

applying the STRIDE concept for each UC and

developing lightweight misuse case (MUC)

diagrams; 4) developing attack trees (AT) from

each abstract threat node in the MUC diagrams; 5)

using DREAD for each AT; 6) selecting relevant

threats; 7) modifying the MUCs and extending them

with more details; 8) finalizing the security

requirements, considering them as functional

requirements, converting the MUCs to UCs and

suggesting mitigations in the form of security use

cases (SUC); 9) finding appropriate security

patterns (SP) and going back to step 1 as long as

there are remaining SUCs without an SP. The

Suraksha tool supports these steps and we used it to

create the MUCs and ATs for this paper.

The SHIELDS project (Tøndel et al., 2010) also

proposes to combine MUCs (modelling abstract

threats) with ATs (detailing those threats) and to

TOWARDS A HACKER ATTACK REPRESENTATION METHOD

provide references in the MUC diagrams to security

activity descriptions that mitigate the threats. A

security repository is introduced for storing

deliberate models and relations for reuse. The

proposal differs from Suraksha by referencing the

threats more explicitly and focusing more on

reusability of models.

The PWSSec (Process for Web Service

Security) approach (Gutierrez et al., 2006) guides

developers in the integration of security into the

development stages of Web Services (WS)-based

software. The process is iterative and incremental,

and consists of three stages: 1) the specification of

WS-specific security requirements, 2) the definition

of the WS-based security architecture and 3) the

identification, integration and deployment of WS

security standards. Stage 1 produces attack trees

(AT) and misuse cases (MUC) as outputs among

other models. The leafs of the ATs show the threats

which are refined by a set of attack scenarios

defined by MUCs. The process also provides a

security architecture formed by a set of coordinated

security mechanisms (Gutierrez et al., 2005a) in

stage 2. The base for this is the WS-based security

reference architecture (Gutierrez et al., 2005b)

which guides the system designers in the task of

allocating the security requirements into the

security architecture. The core of the security

reference architecture is the WS Security Kernel

managing a set of Abstract Security Services thus

covering a set of security requirements.

None of these techniques relate threats, attacks,

vulnerabilities and mitigations to systems

architecture. (Only PWSSec considers architecture

and relates security mechanisms to it through the

WS-based reference architecture in form of

Abstract Security Services.) Use case maps (UCM)

outline the architecture of systems and show their

relations to specific use cases (of functions), thus

providing high-level overviews that support design

and development (Buhr & Casselman, 1995; Buhr,

1996). UCMs can include multiple scenarios to

represent a chosen aspect of the system’s behaviour.

The basic UCM notation consists of three types of

building stones: 1) runtime components as

rectangular boxes, 2) responsibilities bounded to

components as crosses, and 3) scenario paths

capturing a causal sequence of responsibilities

(lines cutting through the responsibilities). A

scenario path starts with a filled circle representing

pre-conditions or triggering causes and ends in a bar

representing post-condition or resulting effect. (See

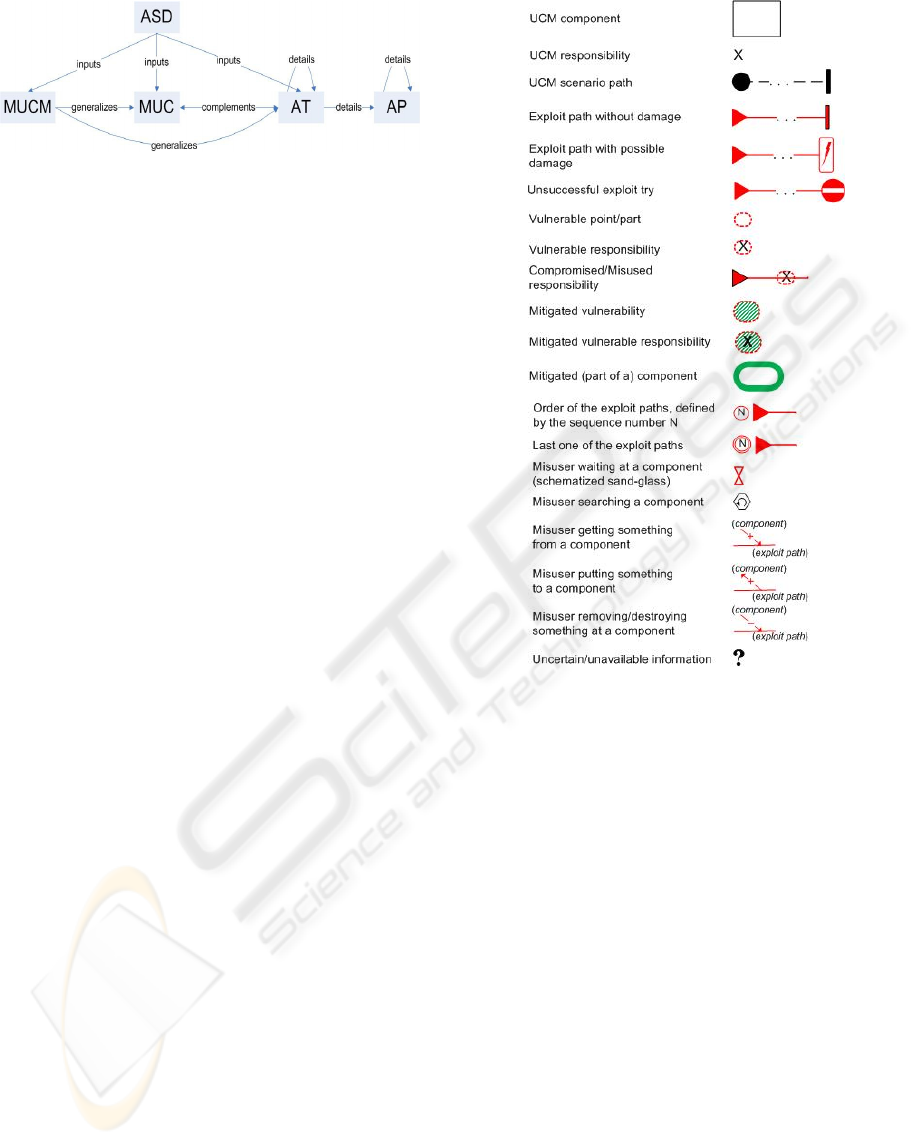

the first three elements in Fig. 2.) We have recently

adopted UCMs to deal with security (Karpati et al.,

2010). Misuse case maps (MUCM) provide

integrated overviews of misuse cases (as exploit

paths, the “negative” variant of scenario paths) and

system architecture, highlighting vulnerabilities and

suggesting possible mitigation points.

3 OUTLINE OF HARM

This section presents an outline of the HARM

method. We will first present the method steps, then

discuss the relations between the representation

techniques and give guidelines for using them

together. The following section will present an

example of a real attack from the literature.

3.1 Relation to Existing Approaches

HARM retains the focus in Suraksha (Maurya et al.,

2009) and SHIELDS (Tøndel et al., 2010) on whole

intrusion scenarios. But the two approaches are not

directly suitable for our purpose because of the

formalisms involved and their limited

expressiveness. Compared to attack graphs, we also

intend to scale up from a subset of technical attacks

(like network attacks) to general attacks, e.g.,

combinations of social engineering, physical entry

and computer hacks. Systems like (Ning et al.,

2002; Cheung et al., 2003; Neumann & Porras,

1999) are interesting for us because they are based

on complex attack models. For example, (Cheung et

al., 2003) utilize attack trees and attack patterns too,

but combine them in a different way than HARM

does since their aim is a bit different (develop

models for multistep attack scenarios generally) and

the definition of the attack patterns also differ.

Compared to Suraksha and SHIELDS, our approach

presents complex intrusions at a detailed level in

addition to threats and it focuses less on mitigations.

Relative to misuse case maps (Karpati et al., 2010),

HARM retains the focus on architecture, but

introduces additional perspectives.

PWSSec is a process specifically designed for

web services whereas HARM is a general method.

PWSSec uses business and security goals as well as

organizational security policy to derive attack

scenarios (Gutierrez et al., 2005a) while HARM

works in an exploratory way starting by intrusion

cases . Thus, the two approaches complement each

other since the first provides a general design while

the second opens up space for creativity and

presents the view of always developing, ingenious

attackers.

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

3.2 Method Steps

HARM consists of the following five steps:

1. Outlining the intrusion: Make a simple,

structured description of the case as alternating

attacking activities and outcomes. The case

may be the trace of a known multi-stage

attack, the plan for a penetration test or the

detailed reconstruction of an intrusion at hand.

This step may involve the cooperation of

security experts, system administrators or

system designers. It uses the ASD

representation technique.

2. Detailing the scenarios: Analyze each

attacking activity in further detail in relation to

other activities and the architectural context,

including the specific vulnerabilities that have

been exploited and possible mitigations. This

step may involve the same actors as step 1 and

it uses MUCMs.

3. Providing functional context: Distill essential

facts from the detailed scenarios, by

introducing a functional and user perspective

on the attacking activities, vulnerabilities and

mitigations, so that threats and solutions can

be considered from different viewpoints (e.g.,

business, usage, technical viewpoints, etc.).

This step uses the MUC diagram

representation to encourage involvement of

the broadest possible set of stakeholders.

4. Refining the attack structure: Relate specific

attacks to other attack types in a hierarchy,

allowing elicitation of threats from specific

vulnerabilities and preparing to lift the

appropriate mitigations to a more general

level. System designers and software

developers might be responsible for finalizing

this step, using the AT technique. This step

interlaces with step 3 since there can be a lot

of mutual influence while creating the MUC

diagram and the AT.

5. Distilling the threats: Consider in detail the

threats and mitigations captured in previous

steps to make a design out of it based on

expert knowledge embedded in APs. This step

involves system/software designers and

software developers and security experts if

available.

Hence, we adopted the combination of MUCs

and ATs from Suraksha and SHIELDS and added

further representation techniques. Requirements are

elicited an exploratory way: from specific cases

towards general designs. Starting with

vulnerabilities, exploits and mitigations specified in

a limited context (ASD & MUCM), the method

helps to generalize them using previously collected

knowledge and relations to similar entities (MUC &

AT & AP). It also supports further development

into well-considered security strategies.

3.3 The Modelling Techniques

and their Relations

The method uses the following representation

techniques:

 Attack Sequence Descriptions (ASD)

summarizing attacks in natural language.

 Misuse Case Maps (MUCM) depicting the

system architecture targeted by the attack and

visualizing traces of the exploit(s).

 Misuse Case (MUC) diagrams showing threats

in relation to wanted functionality.

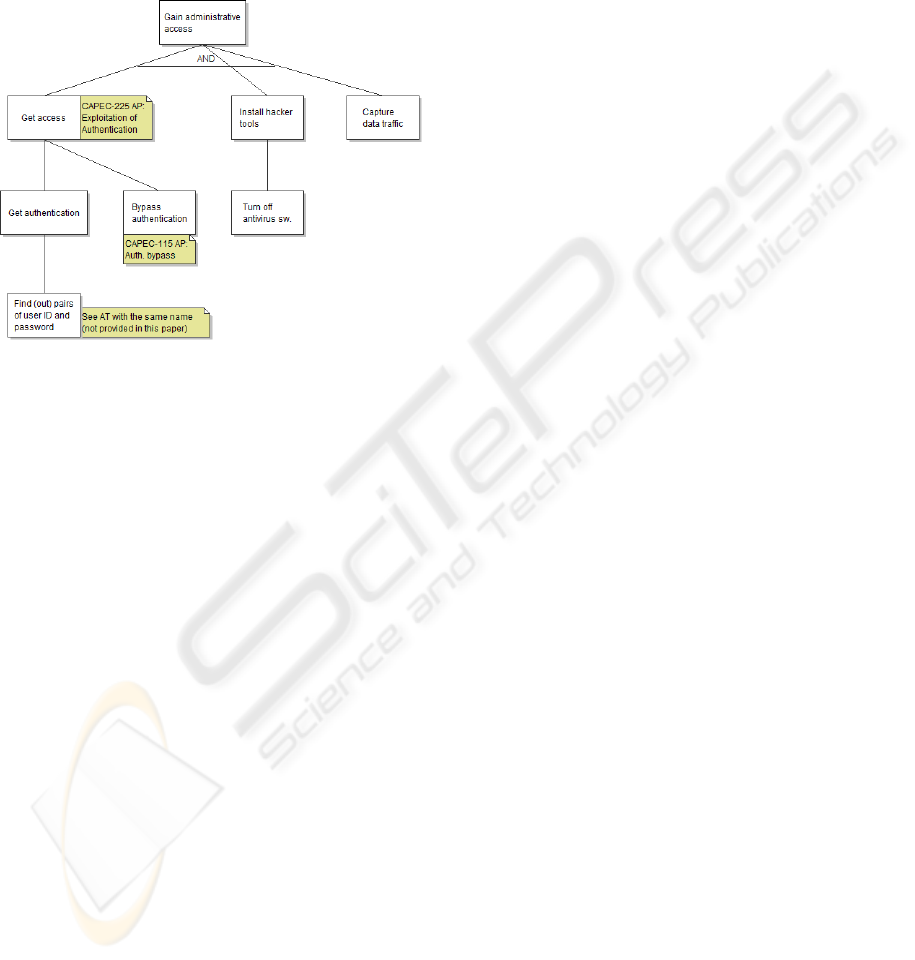

 Attack Trees (AT) presenting the hierarchical

relation between attacks.

 Attack Patterns (AP) describing an attack in

detail with additional information of context and

solutions.

Fig. 1 shows the relations between the

techniques. ASD is the starting point and contains

the information required to create or identify further

models. It is specific to the case in focus, just like

the MUCM. Beside depicting the architecture and

the trace of the intrusion, the MUCM also facilitates

discussion about alternative vulnerabilities and

mitigations, still oriented by the specific case. The

MUC diagram takes a step up and looks at the case

from a more general viewpoint, showing the use

cases appearing in the ASD and related ones within

their functional context. Details unnecessary for

threats and mitigation modelling are eliminated.

While MUCM and MUC include regular use cases,

ATs focus only on the attacks, exploring

refinements and alternatives, as well as whether

attacks may fit together with other (technical)

attacks. They complement MUCs since they lead

the focus towards standard textbook threats while

MUCs lead it towards problem-specific threats

(Opdahl & Sindre, 2009). APs define more details

about a type of an attack considering them in their

context of prerequisites and other acquired pieces of

knowledge.

TOWARDS A HACKER ATTACK REPRESENTATION METHOD

Figure 1: Relations of the applied attack modelling

techniques.

4 USING HARM IN PRACTICE

This section illustrates HARM by applying it to a

real penetration test described in (Mitnick & Simon,

2006). We present the models introduced at each

step and discuss their relationships to one another.

4.1 Outlining the Intrusion: Attack

Sequence Description (ASD)

An ASD consists of ordered steps where a step

defines an activity of the attacker or relevant

outcomes/revelations for the following steps

(indicated by ”activity => outcome”), all formulated

in natural language. Some remarks can be added to

the steps in brackets to help understanding. An ASD

is presented from the intruder’s point of view.

The example ASD summarizes an entry into the

computer system of a company for penetration test

purposes (Mitnick & Simon, 2006, ch. 6). The

description in the book does not reveal all the

details to prevent the reproduction of the intrusion,

thus we lack some information in our models, too.

1. Checking the web server => it runs Apache

2. Checking the firewall => found a hidden

default configuration setting allowing in

packets with a source UDP or TCP port of 53

to almost all the high ports (above 1023)

3. Trying to mount off the file sys. using NFS =>

Firewall blocked access to NFS daemon and

common system services

4. Using an undocumented Solaris feature

(portmapper - rpcbind - bound to port 32770)

to get the dynamic port of the mount daemon

(mountd) from the portmapper and direct an

NFS request to it => the target system's file

system was remotely mounted an downloaded

5. Recognizing a PHF vulnerability => trick the

PHF CGI script to execute arbitrary

commands (by passing the Unicode string for

a newline character followed by the shell

command to run; PHF is used to access web-

based phone book by querying a DB)

Figure 2: Basic UCM and MUCM notation.

6. Through PHF: found that the Apache server

process was running under the “nobody”

account (i.e., the computer system was

secured) and its configuration file was owned

by “nobody” (means: it could be overwritten

through the PHF CGI script which was

running also under “nobody”) => change

httpd.conf so that the server restarts as “root”

and wait => the server restarted because of a

blackout

7. Installing a backdoor to prevent getting shut

out of the system

8. Setting up a sniffer on all e-mail going in and

out and searching the (Oracle) DB for CIO’s

salary (as a proof for their customer)

9. Continue to penetrate the entire network

10. Sometime after step 6: Installing sniffer

programs everywhere: a) at the firewall so

they were aware of all maintenance work

there, b) at a router where a system

administrator failed to enter the right password

for more times => gaining many administrator

passwords to different internal systems

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

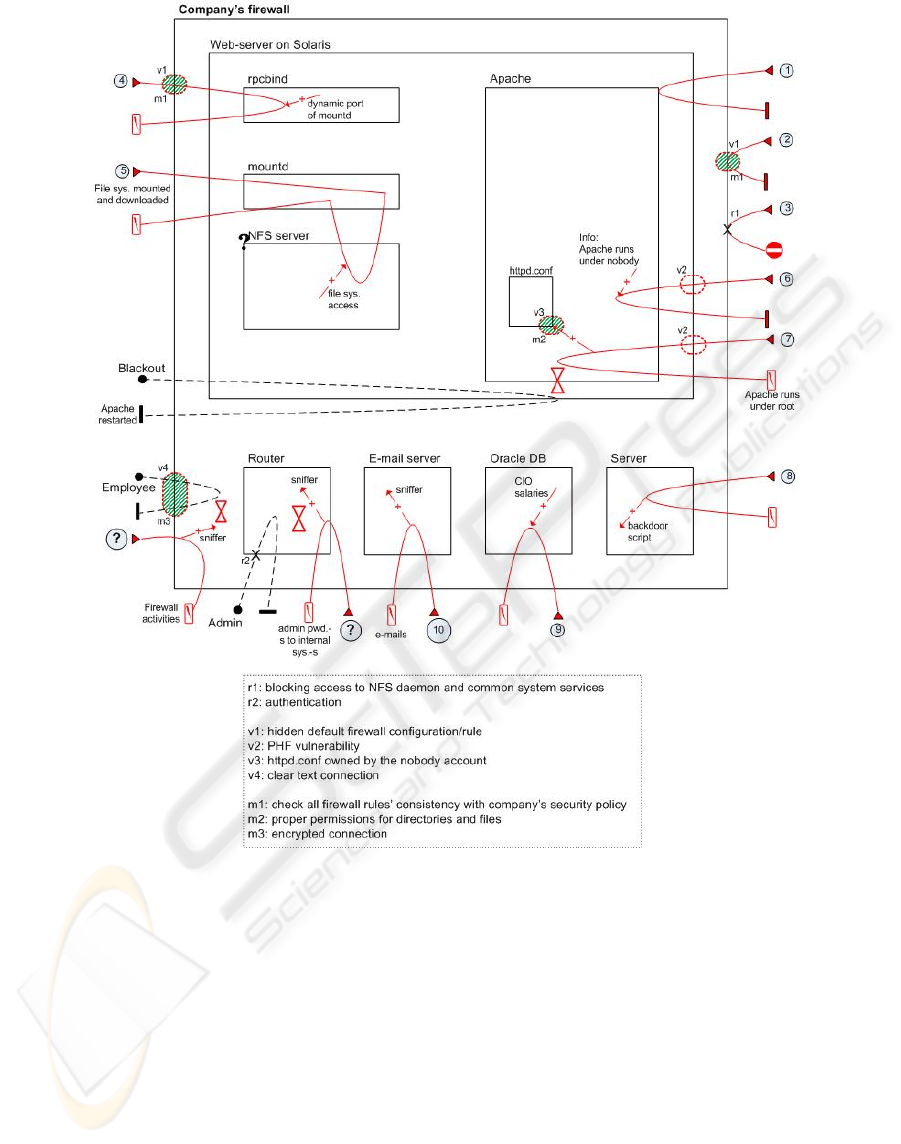

Figure 3: MUCM based on the penetration test ASD (steps numbers are different).

Next, the MUCM is built according this

description.

4.2 Detailing the Scenarios: Misuse

Case Maps (MUCM)

Misuse case maps (MUCMs) (Karpati et al., 2010)

combine misuse cases (MUC) (Sindre & Opdahl,

2005) and use case maps (UCM) (Buhr &

Casselman, 1995), presenting an integrated view of

security issues and system architecture. MUCMs

address security requirements by focusing on

vulnerabilities, threats and intrusions (inherited

from MUCs) from an architectural point of view

(inherited from UCMs). Their notation is based on

the UCM notation and extended by vulnerabilities,

exploits and mitigations.

The system may have vulnerable points (such as

authentication responsibility) or parts (such as

components without up-to-date security patches)

which are suspect to threats. Mitigations can help to

counter the threats and appear in the MUCM as

desired possibilities which translate to security

requirements later. Misuses are depicted by the

exploit path’s crossing of a vulnerable point or part.

The notation offers many further possibilities that

we will not describe in detail here, such as labels

attached to other symbols and a question-mark

notation for still unclear steps.

The example MUCM shown in Fig. 3 is based

TOWARDS A HACKER ATTACK REPRESENTATION METHOD

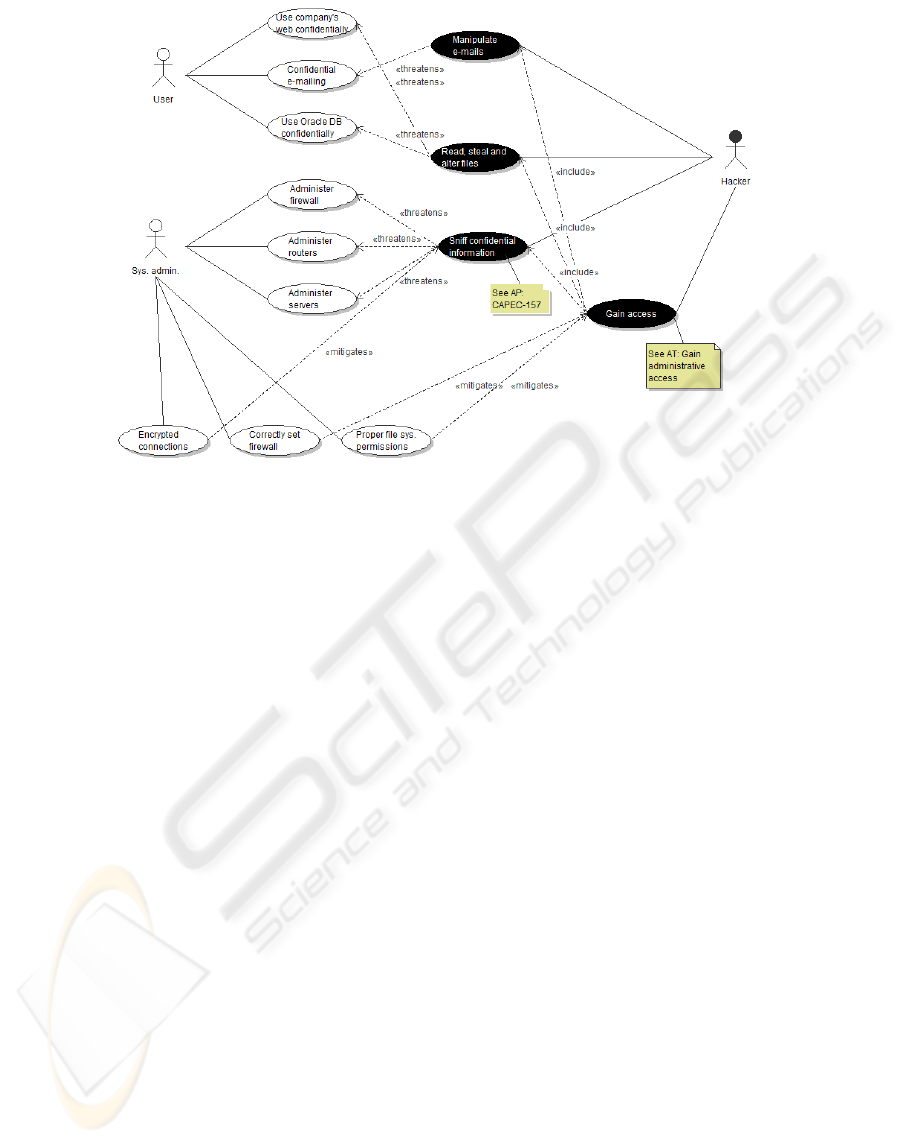

Figure 4: MUC generalized from the penetration test example.

on the ASD but the numberings of the steps are

different. We incorporated mitigations as well but

only those which were mentioned in connection

with the case. The list of the specific vulnerabilities,

addressed responsibilities and mitigation

possibilities can be found below the map. The case

will be generalized in a MUC and an AT.

4.3 Providing Functional Context:

Misuse Cases (MUC)

Misuse cases (MUC) (Sindre & Opdahl, 2005) have

become popular for security requirements elicitation

and threat modelling. They complement use cases

(UC) for security purposes by extending them with

misusers, misuse cases and mitigation use cases, as

well as new relations like threatens and mitigates.

MUC diagrams use an inverted notation and are

combined with regular UCs. MUCs facilitate

discussion among stakeholders including regular

developers with no special security training. Fig. 4

shows how a MUC diagram deals with non-

functional security issues by representing the view

of an attacker (Alexander, 2003). We allow further

references to ATs and APs in a MUC in order to

show the relations among them.

Fig. 4 shows how the use and misuse of the

system is lifted to a more general level. The

vulnerabilities take the form of threats or misuses

and links to other models appear which elaborate

more on them. The mitigations also appear in a

more general context: the threat of sniffing

confidential information anywhere in the system is

mitigated by encrypted connection in the MUC

while the vulnerability of clear text connections at

one place in the system (firewall maintenance) was

mitigated by the encrypted connections at that

specific place in the MUCM. The customers and

field experts can also easily input their knowledge

and desires here, for example discussing what is

confidential and how much cost is it worth to secure

this confidentiality.

4.4 Refining the Attack Structure:

Attack Trees (AT)

Attack trees (AT) (“threat trees” by Microsoft)

provide a structured way for describing a high level

attack and various ways for its realization

(Schneier, 1999). The high level attack is in the root

node of the tree and is decomposed AND/OR into

lower-level attacks that must succeed to realize the

higher-level ones. Nodes in the AT can have values

and thus can answer questions like “Which is the

cheapest attack?” or “Which is the best low-risk,

low-skill attack?”. ATs have diagrammatical and

textual outline notation (Schneier, 2000). They can

be used to evaluate proposed designs but are also

applicable at an early requirements stage. We use

them to detail general aspects of the intrusion

together with attack patterns like in Fig. 5 for the

penetration test case (see the labels).

The hacker in the example case acquired a first

access to the system by using the PHF vulnerability

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

and thus bypassing authentication. Fig. 5 shows

another alternative for getting access: through

regular authentication by finding (out) identifiers

and passwords. There are many alternatives to

achieve this which are depicted in a separate AT not

shown here. It shows how we can gain more general

threats from a specific vulnerability.

Figure 5: AT for the MUC from the penetration test

example.

4.5 Distilling the Threats: Attack

Patterns (AP)

An attack pattern (AP) describes the approach used

by attackers to generate an exploit against software.

It consists of a minimal set of nodes in an attack

tree that achieves the goal at the root node (Barnum,

2007). An AP may be a subtree of an AT from the

root node to at least one leaf node. In a simple case,

when the AT has only OR branches, it is a path

from a leaf node to the root and called attack path.

APs detail ATs which provide a higher level view.

APs are described with the following

information: Pattern name and classification,

Attack prerequisites, Description, Related

vulnerabilities or weaknesses, Method of attack,

Attack motivation-consequences, Attacker skill or

knowledge required, Resources required Solutions

and mitigations, Context description, References

(Barnum, 2007). An extensive collection of AP-s

can be found at capec.mitre.org.

The APs referenced in figure 4 and 5 give

further details on the threats in focus. It may include

alternatives for the solutions already acquired in the

previous steps of HARM thus adding new

mitigation possibilities. Since APs are created by

security experts, they also enhance the quality of the

model. Although we used only one intrusion

scenario here, more can be modelled together in a

practical situation, resulting more other diagrams.

5 TOWARDS A METAMODEL

FOR HARM

To provide a stronger backbone for HARM, and to

prepare for tool support and more formal analyses,

this section will outline a metamodel for HARM as

a possible extension of the UML metamodel,

starting with its two most central behavioural

concepts; Behaviour and Action (OMG, 2009). A

Behaviour belongs to a Classifier (which thus

becomes a BehaviouralClassifier) and is intended to

represent complex behaviours. An Action can be

part of a Behaviour and is intended to represent

atomic behaviours. Both Actions and Behaviours

can be executed. The other BehaviouralClassifier

besides Behavior in UML is Actor.

To these concepts, the HARM metamodel adds

Misbehaviours, MisbehaviouredClassifiers,

AntiActions and Misusers. Each of them is a

“negative variant” of the corresponding UML

concept. For the moment, we define them as

specialisations of their respective UML

metaclasses. Subclassing is appropriate from an

abstract syntactical perspective, because the new

concepts can enter the same relationships as the

original concepts (although they sometimes take an

inverted meaning). Subclassing is also appropriate

from a concrete syntactical perspective, as the new

concepts will be drawn with the same icons and

connection points as the original concepts (although

they will usually be shaded or filled). But

subclassing is not quite correct from a semantic

perspective, because the new concepts have

modalities that are different from the original ones.

For example, an Action represents (atomic)

behaviour that is both permitted and wanted,

whereas an AntiAction represents behaviour that is

unwanted and should be forbidden. Apart from

modality, though, the semantics of the new and

original concepts remain the same. It is easy to

provide a cleaner semantics by introducing a new

common superclass, e.g., “BasicAction”, to capture

the common syntax and semantics of Actions and

AntiActions, which now become siblings, but we

leave this for further work as it would interfere with

the existing UML definition.

To incorporate use case maps into the HARM

metamodel, we take as our starting point the

proposal of (Amyot & Mussbacher, 2000) of basing

TOWARDS A HACKER ATTACK REPRESENTATION METHOD

the definition of use case maps on UML's activity

diagrams. We retain this strategy, although activity

diagrams have since moved from state-transition to

place-transition based semantics. Specifically, a

path in a use case map is considered a type of UML

Activity (a subclass of Behaviour), and the path

elements in the use case maps are considered

ActivityNodes. Start and end points in the map

correspond to Initial- and FinalNodes, whereas

AND and OR elements correspond to

ControlNodes. The various action elements in the

map correspond to particular subtypes of UML

Actions.

To incorporate misuse cases into the HARM

metamodel, we introduce MisuseCase as an

additional MisbehaviouredClassifier in addition to

Misuser. MisuserCase and Misuser inherit all the

regular use-case relationships, to which we add two

new DirectedRelationships: Threatens and

Mitigates.

To incorporate misuse case maps into the

HARM metamodel, we take the incorporation of

use case maps above as our starting point. A misuse

case map is just a use case map where at least one

path (a Behaviour) has been turned into an exploit

path (a Misbehaviour), thus comprising at least one

AntiAction. Like Aymot and Mussbacher, we have

to leave for further work the relation between

misuse (and use) case maps and the architectural

concepts from UML's other language units, such as

its deployment diagrams.

To incorporate attack trees and patterns, we can

use the MisuseCase concept again, or add a new

Attack subclass of MisbehaviouredClassifier. As

pointed out in (Sindre et al., 2002), generalisation

relationships, already inherited from UML's

Classifier concept, can be used to account for OR-

decomposition of attacks, whereas include

relationships can account for AND-decomposition.

Due to limited space, we leave attack sequence

descriptions for further work.

6 CONCLUSIONS

AND FURTHER WORK

We have presented the Hacker Attack

Representation Method (HARM), which illustrates

complex security attacks through a combination of

five representation techniques. We have also

offered guidelines for how to use the techniques

together, and outlined how HARM can be defined

as an extension to the UML metamodel. The key

improvement over state of the art is that it enables

different groups of stakeholders to understand and

take part in discussions of hacker intrusions. It

allows knowledge of complex intrusions to be used

already in the early analysis stages and it links

security considerations with architecture.

Our running example based on a real penetration

test indicates that HARM may indeed be a useful

contribution to the arsenal of available IS and SE

methods. Its combination of techniques allows the

adjustment of representations to the stakeholders’

different backgrounds. Each group of stakeholders

can work with appropriate diagrams at an

appropriate abstraction level. When customers and

domain experts are involved in the discussion,

MUC and MUCM might be the best choice,

whereas AT can be a great addition for

requirements engineers and developers. APs can

help to transfer knowledge between regular

developers and security experts.

We admit that proposing yet another modelling

method for information systems and software

engineering must always be done with care, given

that the number of available methods is already

high and rising. However, as observed already

decades ago, one single method cannot cover the

wide range of different system tasks (Benyon &

Skidmore, 1987). Also, when several different

diagram types are used to illustrate a complex

system, each diagram can be kept simpler by

focusing on particular aspects of the system under

discussion. There is a continual need for developing

improved approaches, and the diversity of

modelling techniques is therefore not only

inevitable, but perhaps even desirable (Steele &

Zaslavsky, 1993). In particular, there is a need to

develop better methods for system tasks that have

previously not been given enough attention, e.g.:

security in early-stage system analysis (Mead &

Stehney, 2005).

The metamodel outlined suggests that UML

may be a good starting point for defining HARM in

more detail. Despite its known weaknesses, in

particular regarding semantics, UML's metamodel

is well suited because it is widely accepted and

incorporates use cases, which is the “positive

variant” of one of the central techniques in HARM.

UML also defines several of the other concepts

needed by HARM. Defining it as an extension of

the UML metamodel also prepares for including

“negative variants” of further representation

techniques, such as the mal-activity diagrams

proposed in (Sindre, 2007). A negative consequence

of using the UML metamodel is that our proposal

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

100

inherits several of UML's weaknesses. For example,

Actions and Behaviours become separated, with

neither being a subclass of the other, and they are

also distinct from BehaviouredClassifiers. In

consequence, the relationships between paths and

path elements in UCM/MUCM, misuse cases in

MUC, primitive attacks in AT/AP etc. often become

indirect even when the represented phenomena

appear similar.

Our work on HARM so far has focussed on

capturing technical intrusions. In the future we also

plan to investigate other types of intrusion, such as

physical ones and social engineering attacks.

Generally we will explore further how the HARM

techniques with vulnerability taxonomies can be

used for attack and test generation. Further work is

needed to add detail, e.g., about how previous

attacks are selected and system boundaries defined,

how multiple misuse case maps are distilled into

misuse case diagrams, how requirements can be

derived from attack patterns etc. As a consequence,

it is possible that the detailed five-step method will

be elaborated and reorganised, although the broad

progress of HARM will most likely remain.

ACKNOWLEDGEMENTS

This work was done in the ReqSec project funded

by the Norwegian Research Council.

REFERENCES

Amyot, D., Mussbacher, G. (2000) On the Extension of

UML with Use Case Maps Concepts. Proc. UML

2000, pp 16-31.

Alexander I. (2003) Misuse Cases: Use Cases with

Hostile Intent, IEEE Software, 20(1):58-66.

Barnum, S. (2007) Attack Patterns as a Knowledge

Resource for Building Secure Software, In A. Sethi

(ed.) Cigital: OMG Software Assurance WS

Benyon, D., Skidmore, S. (1987) Towards a Tool Kit For

the Systems Analyst, The Computer Journal 30(1):2-7

Buhr R. J. A. (1996) Use case maps for attributing

behaviour to system architecture, Proc. 4th Int. WS on

Parallel and Distributed Real-Time Systems, p.3

Buhr R.J.A., Casselman R.S. (1995) Use Case Maps for

Object-Oriented Systems, Prentice Hall

Cheung, S., Lindqvist, U., Valdez, R. (2003) Correlated

Attack Modeling (CAM), Final Technical Report by

SRI International, October 2003

Gegick, M., Williams, L., (2005) Matching attack

patterns to security vulnerabilities in software-

intensive system designs, Proc. SESS05 — building

trustworthy applications, pp 1-7

Gutierrez, C., Fernandez-Medina, E., Piattini, M. (2005a),

Web services enterprise security architecture: a case

study. Proc. WS on Secure Web Services (SWS'05) ,

Fairfax, VA, USA.

Gutierrez, C., Fernandez-Medina, E., Piattini, M. (2005b),

Towards a Process for Web Services Security,

Proc.WOSIS'05 at ICEIS'05, Miami, Florida, USA.

Gutierrez, C., Fernandez-Medina, E., Piattini, M. (2006),

PWSSec: Process for Web Services Security, In Proc.

ICWS '06, pp.213-222, 18-22

Karpati P., Sindre G., Opdahl A. L. (2010) Illustrating

Cyber Attacks with Misuse Case Maps, Proc. REFSQ

Maurya, S., Jangam, E., Talukder, M., Pais, A.R. (2009)

Suraksha: A security designers’ workbench. Proc.

Hack.in 2009, pp. 59–66.

Mead, N.R, Stehney, T. (2005) Security Quality

Requirements Engineering (SQUARE) Methodology.

In Proc SESS'05. St. Louis, MO, May 15-16, 2005

Mitnick K. D., Simon W. L. (2006) The Art of Intrusion,

Wiley Publishing Inc.

Neumann, P.G., Porras, P.A.. (1999) Experience with

EMERALD to date. Proc WS on Intrusion Detection

and Network Monitoring, pp:73-80

Ning, P., Cui, Y., Reeves, D.S. (2002) Constructing

attack scenarios through correlation of intrusion

alerts. Proc. 9th ACM conf. on CCS, pp: 245-254

OMG Unified Modeling LanguageTM (OMG UML),

Superstructure Version 2.2, Feb. 2009

Opdahl A. L., Sindre, G. (2009) Experimental

Comparison of Attack Trees and Misuse Cases for

Security Threat Identification, Information and

Software Technology, 51(5):916-932

Schneier, B. (1999) Attack Trees, Dr. Dobb's Journal

Schneier, B. (2000) Secrets and Lies: Digital Security in a

Networked World, Wiley.

Sheyner, O., Haines, J., Jha, S., Lippmann, R., Wing,

J.M. (2002) Automated Generation and Analysis of

Attack Graphs, Proc. IEEE Symposium on Security

and Privacy, p.273, May 12-15

Sindre, G. (2007). Mal-Activity Diagrams for Capturing

Attacks on Business Processes. Lecture Notes in

Computer Science, vol. 4542. pp 355-366

Sindre, G., Opdahl A.L. (2005). Eliciting Security

Requirements with Misuse Cases. Requirements

Engineering 10(1): 34-44

Sindre, G., Opdahl, A.L., Brevik, G.F. (2002)

Generalization/Specialization as a Structuring

Mechanism for Misuse Cases. Proc. SREIS'2002.

Steele, P., Zaslavsky, A. (1993) The Role of Metamodels

in Federating System Modelling Techniques, In Proc

ER'93, Dallas, USA, pp 301-12

Templeton, S.J., Levitt, K. (2000) A requires/provides

model for computer attacks, Proc. WS on New

security paradigms, pp.31-38.

The Mitre Corp. (2010): Common Attack Pattern

Enumeration and Classification, capec.mitre.org.

Accessed: 30.3.2010.OMG (2009)

Tøndel, I.A., Jensen, J., Røstad, L. (2010) Combining

misuse cases with attack trees and security activity

models Proc. OSA workshop.

TOWARDS A HACKER ATTACK REPRESENTATION METHOD

101
