SOFTWARE RELEASES MANAGEMENT IN THE TRIGGER

AND DATA ACQUISITION OF ATLAS EXPERIMENT

Integration, Building, Deployment, Patching

Andrei Kazarov

CERN, Geneva, Switzerland, on leave from Petersburg Nuclear Physics Institute, Gatchina, Russian Federation

Mihai Caprini

National Institute of Physics and Nuclear Engineering, Bucharest, Romania

Igor Soloviev

Department of Physics, University of California Irvine, Irvine, U.S.A.

Reiner Hauser

Michigan State University, East Lansing, U.S.A.

Keywords: Software, Release, Package, Building, Maintenance, Patching, CMT, RPM.

Abstract: ATLAS is a general-purpose experiment in high-energy physics at Large Hadron Collider at CERN.

ATLAS Trigger and Data Acquisition (TDAQ) system is a distributed computing system which is

responsible for transferring and filtering the physics data from the experiment to mass-storage. TDAQ

software is developed since 1998 by a team of few dozens developers. It is used for integration of all

ATLAS subsystem participating in data-taking, providing framework and API for building the s/w pieces of

TDAQ system. It is currently composed of more then 200 s/w packages which are available for ATLAS

users in form of regular software releases. The s/w is available for development on a shared filesystem, on

test beds and it is deployed to the ATLAS pit where it is used for data-taking. The paper describes the

working model, the policies and the tools which are used by s/w developers and s/w librarians in order to

develop, release, deploy and maintain the TDAQ s/w for the long period of development, commissioning

and running the TDAQ system. In particular, the patching and distribution model based on RPM packaging

is discussed, which is important for the s/w which is maintained for a long period on the running production

system.

1 INTRODUCTION

ATLAS Trigger and Data Acquisition (TDAQ)

system (Atlas, 2003) is a distributed computing

system which is responsible for transferring and

filtering the physics data from the ATLAS

experiment to mass-storage. TDAQ project was

started in the middle of 1990's as a number of small

R&D projects. In 2010 TDAQ software is composed

of more then 200 s/w packages which are built for 2

Linux platforms. The following table gives the

overview of the s/w evolution in last 10 years in

terms of number of packages and supported h/w

platforms. The total number of source files in the

s/w is currently more then 10000.

Table 1: TDAQ s/w evolution.

year s/w version

N of

packages

Platforms

2000 0.0.9 18 SunOs, LynxOs, Linux

2002 0.0.17 27 SunOs, LynxOs, Linux

2005 1.4.0 136 Linux SLC3

2010 2.0.3 210

32 and 64 bit Linux SLC4

and 5, MacOs (partially)

220

Kazarov A., Caprini M., Soloviev I. and Hauser R. (2010).

SOFTWARE RELEASES MANAGEMENT IN THE TRIGGER AND DATA ACQUISITION OF ATLAS EXPERIMENT - Integration, Building, Deployment,

Patching.

In Proceedings of the 5th International Conference on Software and Data Technologies, pages 220-225

DOI: 10.5220/0003010802200225

 SciTePress

The TDAQ s/w is providing framework and API

used by other ATLAS groups to develop s/w pieces

which are all together compose the s/w running the

ATLAS trigger and data-acquisition system at the

experiment pit. Therefore, the proper s/w release

development, deployment and maintenance policy is

important to guarantee the smooth evolution of the

s/w from the integration stage to the deployment and

patching on the running system.

The s/w is made available to users in forms of

regular s/w releases. The requirements for the s/w

development model and s/w releases are listed

below:

− support of h/w platforms and compilers

used in ATLAS

− support of debugging

− support for different programming

languages and s/w tool-kits: C/C++, Java,

Python, IDL, Qt

− support of external s/w, integration with

ATLAS-wide and CERN-wide s/w

− support for remote installation

− support for patching

The development environment provided to users

should support the model of developing a package or

set of packages against a particular release.

Releases must be installed on a shared file

system (AFS, managed by CERN IT) for the testing

and development, made available for download for

the remote institutes and test labs and finally be

installed for the use at ATLAS pit for data-taking.

Before being released, a stage of integration and

testing of the s/w is necessary to guarantee the

quality and functionality of the s/w.

Still being in the development stage, the s/w was

actively used for integration with ATLAS

subdetectors and for commissioning the system at

the test beams (Gadomski, 2006).

To conclude, the s/w release model and tools

must provide the functionality and flexibility which

allow the development of TDAQ s/w, its testing and

validation, the deployment for remote labs and

institutes, the integration with the ATLAS

experiment production s/w, and finally the

maintenance of the s/w through the years of the life

of the experiment.

2 S/W RELEASE MODEL

2.1 Definitions

Package: an independently developed piece of s/w

providing some well-defined functionality in form of

libraries, applications and data files. Normally there

may be few developers contributing to a package.

Typically the source code of a Package resides in a

separate area in a code repository (e.g. SVN, see

Section 3.1).

Version Tag: a reference in the code repository

which uniquely defines some version of a package.

Usually it has a form of <package>-MM-VV-PP.

Platform: a combination of h/w and s/w tags which

identifies the type of binaries to be built. For

instance: i686, Linux slc5, gcc43, debug, profiled. A

release is build for a number of platforms (Section

3.2.2).

Release: a set of tagged packages built together for a

number of platforms, providing some well defined

and documented functionality for end users and

made available for distribution. It is a way in which

all efforts of developers of many packages is

exposed to users in a common structure.

2.2 Release Policy and Live Cycle

The release policy should provide a good balance

between moving the s/w forward and keeping it

stable for end users. Two types of releases are

foreseen by the model: major releases and minor

releases. Major releases may contain important

changes in the architecture of s/w, new functionality

and API changes in packages, database schema

changes and other similar changes which require

some actions from end users.

Minor releases may contain some internal

changes which do not require code changes at user's

side.

In addition, a patching schema is foreseen, where

a particular problem may be fixed by a binary patch

to a package in the release which is already deployed

to the system.

In the last years when the major development

was done, 2-3 major releases per year were

produced, and each one may be followed by 1-2

minor releases. In the present condition, when the

release is used for data-taking in ATLAS pit, no

major changes in s/w is possible, and all

maintenance and implementation of new required

features is made via the patching mechanism which

is described in more details in Section 4.

SOFTWARE RELEASES MANAGEMENT IN THE TRIGGER AND DATA ACQUISITION OF ATLAS

EXPERIMENT - Integration, Building, Deployment, Patching

221

On Figure 1 the life cycle of a typical TDAQ

release is presented.

Integration

(nightly builds)

Integration

(nightly builds)

few months

build

2-3 days

validation

deployment &

maintanance

deployment &

maintanance

1-1.5 years

1 month

patching

Figure 1: s/w release cycle.

The integration phase is finished when all the

required functionality is available and all packages

are successfully built altogether the nightly build

(Section 2.4). Then the release is built and made

available for testing on the shared filesystem and on

the dedicated labs for the validation phase. In case of

major problem found in this phase, the release may

be rebuilt including new tags of packages which

failed in the validation.

After validation phase, the release made

available for download and can be deployed to the

production sites. From this point, the patching

procedures are activated (Section 4.1.2).

2.3 Scope of TDAQ s/w, External

Dependencies

2.3.1 Scope and Projects

TDAQ s/w is organized in a tree of “projects” or

sub-releases: tdaq-common, dqm-common and main

tdaq release. Such factorization made possible the

integration of TDAQ s/w with other ATLAS s/w

projects as shown in Figure 2.

Such integration allows to use many commonly

used packages provided by other projects (described

in the next section) but from other side it dictates the

platforms and compilers which can be used in the

project and also directly affects the time schedule of

s/w releases.

tdaq-common

dqm-common

LCGCMT

tdaq

High-Level Trigger

ATLAS Offline

ATLAS detectors

Figure 2: integration of TDAQ s/w projects with other

ATLAS projects and external s/w.

2.3.2 External and Third-party s/w

The following third-party s/w packages are widely

used within TDAQ s/w:

Boost (version 1.39), Python 2.5, Qt4, Java

1.6.0, Oracle v10 client, ROOT 5.0.22.

These packages are built and maintained by

other teams and are accessed by other projects from

LCGCMT project (LCG, 2010).

Some other more specific packages are

integrated and built within TDAQ release:

OmniORB (a CORBA implementation), CLIPS

(expert system framework) and maintained as other

TDAQ s/w packages.

2.4 Nightly Builds

Regular “nightly” builds are performed on a shared

filesystem during the night hours, so every day

developers access the most fresh versions of all

packages built together as “nightly” release.

Nightly builds are the main area for the

integration of new developments and the target for

regular automatic validation tests.

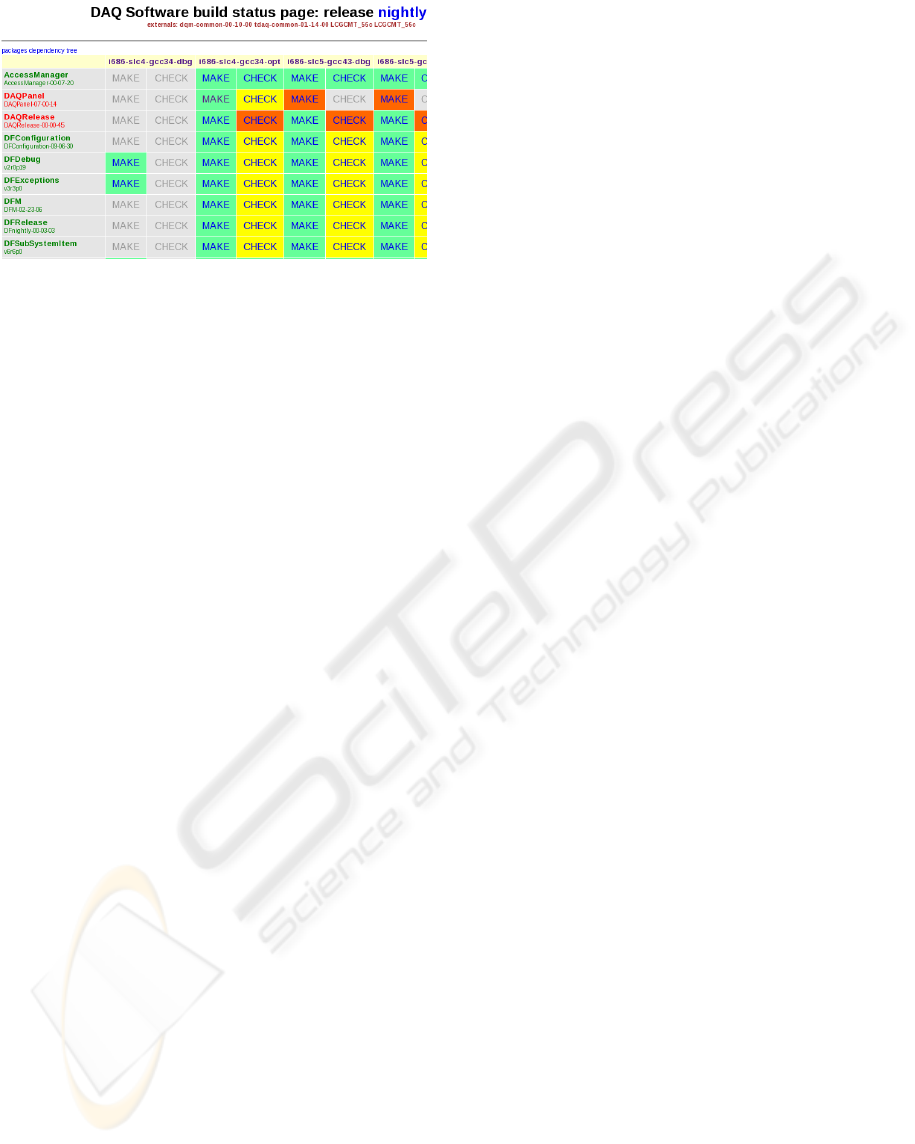

Figure 3 shows a fragment of the web page

which displays the results of a nightly build in form

of a table. In the first column all packages and their

versions used in the build are listed. Other columns

correspond to the platform used in this build, e.g.

i686-slc4-gcc-34-opt. For every package and

platform combination, the log files from the make

and check targets are accessible.

In case of failure of the make or of the check target

of a package, an e-mail is sent to the responsible

developers of that package, as defined in the

package configuration file.

When a particular nightly release is successfully

built for all essential packages and platforms and

passed some validation checks, it is installed in more

permanent area and thus it can used by developers in

case the most fresh nightly build is failed by some

reason.

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

222

Figure 3: Web page with nightly release build table

(fragment).

2.5 Developers Guidelines

A typical working mode of a developer includes the

following steps:

• check-out a package (or few packages) from

code repository

• prepare a package and build it against a release

• check the functionality of the package

• commit and tag the package in the code

repository

• submit the tag for the release build

Normally developer has a number of packages in

his working area. The mechanism is provided to

build the run-time environment such that this area is

taken into account when developer runs the s/w in

order to validate the changes before committing the

changes back to the code repository.

3 DEVELOPMENT TOOLS

3.1 Code Repository

The SVN code management system (SVN, 2010)

and repository is used for keeping the user's code

and tracking the changes. In the earlier stages, CVS

system was used, but since the global CERN policy

and support was moved to SVN, TDAQ project

moved the code repository to SVN as well. The

web-access to the repository is made available via

Trac [http://trac.edgewall.org/] and WebSVN

systems [http://svnweb.cern.ch/world/wsvn].

3.2 Development Tools

3.2.1 CMT: Configuration Management

CMT stands for Configuration Management Tool

(CMT, 2010). It was approved as a principal tool for

configuring the build and the runtime environment

in ATLAS.

CMT is not a full-featured s/w release tool, but

rather a low level configuration tool. A number of

policy files, make fragments and scripts were

developed in order to implement all the functionality

required for a release build tool.

CMT allows to describe what is provided by a

package in a special 'requirements' file and to avoid

writing ordinary makefiles for different platforms. A

requirements file includes all settings for building

libraries, applications and custom targets, and also

for defining the runtime (shell) environment which

is used for running the s/w. Essentially CMT

provides a number of make fragments, such that they

are built together and made used from the top-level

makefile when developer runs the standard “make”

command.

CMT packages can “use” other packages, thus

giving the possibility to create dependencies

between packages and to organize a group of

packages - in other words called “releases”. The

build and run-time settings are inherited through the

“use” chain.

3.2.2 Compilers and Build Platforms

The GNU compiler collection (GCC) is used as a

primary compiler for the s/w. The current version in

use is 4.3.2 on SLC5 Linux. Given the fact that

TDAQ s/w is used in scope of other projects and

also uses external s/w (see Section 2.3.2), the

supported version of the compiler is defined at the

experiment level.

The build platform tag is composed of 2 parts:

the h/w part which defines the hardware and the OS

(e.g. i686-slc5) and the s/w part which defines

compiler and compiler options (e.g. gcc43-opt).

Later these tags are used to select which binaries

can be started on particular nodes in the TDAQ

system.

The following table summarizes currently

supported build configurations.

SOFTWARE RELEASES MANAGEMENT IN THE TRIGGER AND DATA ACQUISITION OF ATLAS

EXPERIMENT - Integration, Building, Deployment, Patching

223

Table 2: Supported build platforms.

Tag Details

i686-slc4-gcc34-opt 32 bit, SLC4 Linux, gcc34

compiler, optimised code

i686-slc4-gcc34-dbg debug (-O0 -g)

i686-slc5-gcc43-opt 32 bit, SLC5 Linux, gcc43

compiler, optimised code

i686-slc5-gcc43-dbg debu

86_64-slc5-gcc43-opt 64 bit, SLC5 Linux, gcc43

piler, optimised code

3.2.3 Distributed Compilation

To achieve maximum performance of the releases

builds, a number of techniques is used:

• release for each platform is build

independently

• independent packages within a release are

built in parallel, using CMT tbroadcast tool

• a combination of multi-job feature of gmake

(“-jN”) and distcc (distributed CC) is used to

fully utilize a cluster of multi-core build

nodes

The described approach allows to build the

whole TDAQ release for one platform in 1-2 hours.

3.2.4 Installation Policy

After the build, all items which a package is

contributing to the release are installed in a common

installation area, according to a pre-defined layout.

Typically the sequence of gmake commands issued

by a user looks like

> gmake && gmake inst

A number of installation pattern are defined in

the TDAQ CMT policy package, allowing

developers to install different types of files

according to a predefined layout of the installation

area. The following type of files may be installed:

binaries (libraries, applications); scripts; Jar

archives; Python scripts and libraries; package data

files (e.g. images); examples; documentation.

The common installation area essentially forms

the distribution of the release which can be exported

for external use.

3.2.5 Check Target

Every package may provide a way to test it's basic

functionality e.g. by building and executing some

test application or by launching more complex

scenario from a script. This is done in special

“check” target which is normally launched after the

installation phase.

> gmake && gmake inst

> gmake check

During the nightly builds, check targets are

launched automatically for all packages, thus

helping to spot some basic problems with the s/w.

3.3 Documentation

Standard LXR and Doxygen documentation (for

Java and C++) are generated for every release,

including nightly builds.

In addition, each package provides “release

notes” which are distributed with the package, and

also a combined digest of all changes in the release

is generated.

3.4 Debugging and Profiling Tools

The memory debugging and performance profiling

tools are important to guarantee the quality of the

s/w. We widely use valgrind (Valgrind, 2010) tool

for finding memory allocation problems and for

code performance profiling (“cachegrind”).

Unfortunately this tool is difficult to use to debug

race-condition related errors in a network and multi-

threaded environment environment, because it

executes the code in scope of a virtual machine

which slows it down by few tens times.

4 DISTRIBUTION AND

PATCHING

4.1 RPM: Distribution and Installation

Tool

Initially the release was distributed as a number of

“tar-ball” files by a helper script. Later, we have

chosen the standard in the Red Hat Linux world

RPM (RedHat Package Manager, (RPM, 2010)) as

the main distribution and installation tool.

During the installation phase of the make

process, a record is kept on which files get installed

in the installation area and later this list is given to

RPM build tool to build RPM packages. Every CMT

TDAQ package is packaged as a number of RPM

packages, according to the following convention:

<release>_<package>_<tag>-<version>.noarch.rpm

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

224

Where <tag> is either the binary tag for binaries

for particular platform (tag), or “noarch” for

platform independent file or “src” for package

sources. Such scheme gives the flexibility to install

only required subset of the s/w release.

Given the number of involved projects, packages

and dependencies between them, to facilitate the

installation procedures, the apt repository manager is

used (Apt, 2010). It is capable to access a number of

RPM repositories, resolve dependencies and

download packages for further local installation with

RPM.

4.2 Patching Policy and Experience

Initially the whole release was distributed as a small

number of big RPM packages without the possibility

to install or update an individual package. This

caused problems for the patching policy for TDAQ

s/w, where it was required to have a possibility to

easily install a new ("patched") version of a

particular package without disturbing the rest of the

s/w and also a possibility to roll-back the patch i.e.

to install the previous version of the package.

To fulfil this requirement, the granularity of

packaging was changed such that each CMT

package can be distributed independently. CMT

version of a package (which corresponds to tag in

SVN) is transformed in the RPM package version.

With such schema, a patch for the release is just a

new RPM version of a particular package. Thus, a

package can be upgraded or downgraded in a

relatively short time, which is essential in the

condition when the intervention to the running

system is very limited in time and must be done

smoothly and as quickly as possible.

The building of new versions of packages are

fully automated, developers simply needs to submit

a new tag to the build system.

Currently the joint ATLAS s/w RPM installation

at ATLAS pit contains about 2500 packages holding

2.5 million files which take almost 90 Gb of the disk

space. Such a scale makes it a challenge for the

packaging tool.

5 CONCLUSIONS

The paper presented an overview of the model,

policies and tools for software releases management

in a big ATLAS TDAQ project. The feature of this

project is that it's s/w has being actively developed

through last 10 years by a big distributed team of

developers and at the same time was widely used in

validation and production environment of the

ATLAS experiment, where it will be maintained in

another 10 years.

It is shown that the developed s/w release model

and tools fulfil this demanding requirements and

conditions. The key aspects of the model and the

basic tools used for the implementation are

described, emphasising the policies used for

maintaining the s/w on a productions system through

the coming years of running the ATLAS experiment.

REFERENCES

ATLAS Collaboration, 2003. ATLAS High-Level Trigger

Data Acquisition and Controls Technical Design

Report, CERN/LHCC/2003-022.

Gadomski, S. et al, 2006. Deployment and Use of the

ATLAS DAQ in the Combined Test Beam, Nuclear

Science, IEEE Transactions on Volume: 53 , Issue: 4 ,

2006 , Page(s): 2156 – 2161.

LCG, 2010. LCG-AA Software Elements, Available at

http://lcgsoft.cern.ch/ [Accessed 30 March, 2010]

SVN, 2010. Central SVN Service, Available at http://

svn.web.cern.ch/svn/index.php [Accessed 30 March

2010].

CMT, 2010. CMT Configuration Management Tool.

Available at http://www.cmtsite.org/ [Accessed 30

March 2010].

Valgrind, 2010. Valgrind 3.3 -Advanced Debugging and

Profiling for GNU/Linux applications. Available at

http://www.network-theory.co.uk/valgrind/manual/

[Accessed 30 March 2010]

RPM, 2010. Maximum RPM, Available at http://

www.rpm.org/max-rpm/ [Accessed 30 March 2010].

APT, 2010. Advanced Packaging Tool, Available at http://

en.wikipedia.org/wiki/Advanced_Packaging_Tool.

[Accessed 30 March 2010].

SOFTWARE RELEASES MANAGEMENT IN THE TRIGGER AND DATA ACQUISITION OF ATLAS

EXPERIMENT - Integration, Building, Deployment, Patching

225
