IMPLEMENTING QVT IN A DOMAIN-SPECIFIC MODELING

FRAMEWORK

István Madari, Márk Asztalos, Tamás Mészáros, László Lengyel and Hassan Charaf

Department of Automation and Applied Informatics, Budapest University of Technology and Economics

Magyar Tudósok körútja 2, Budapest, Hungary

Keywords: Bidirectional Model Transformations, Model-transformation Driven Synchronization, QVT.

Abstract: Meta Object Facility 2.0 Query/Views/Transformation (QVT) is OMG’s standard for specifying model

transformations, views and queries. In this paper we deal with the QVT Relations language, which is a

declarative specification of model transformation between two models. The QVT Relations language

specifies several great features in practice, such as implicit trace creation support, or bidirectional

transformations. However, QVT lacks implementation because its specification is not final and far too

complex. The main contribution of this paper is to show how we integrated QVT constructs in our domain-

specific modeling environment to facilitate a later implementation of QVT Relations-driven bidirectional

model transformation.

1 INTRODUCTION

Model transformation is an essential area of model-

based development, applied for code generation,

analysis, verification and simulation tasks. Model

transformation can be implemented in different

ways. In order to define a transformation, for

instance, visual languages or textual languages can

both be used. Languages can be declarative or

imperative as well. In addition, the model

transformation can be unidirectional or n-directional.

(Czarneczki, 2003) provides further details on

classifying model transformations.

In contrast with unidirectional approaches,

n-directional transformations can be executed in

multiple directions. However, with unidirectional

transformations, multiple directions can be

implemented as well (if each direction is assigned to

a unidirectional transformation). Although, this

solution has almost the same implementation

challenges like n-directional approaches. Usually the

reverse direction cannot be specified in conjunction

with the original transformation, so that several

transformation paths may exist between the given

artifacts. Moreover, in many cases no applicable

reverse direction exists. Thus, there is no clear,

always applicable method for defining the reverse

direction.

A special case of n-directional transformations is

bidirectional transformation, where the

transformation can be executed in two ways. In

particular, the transformation language can define

both the forward and backward direction in the

transformation rules.

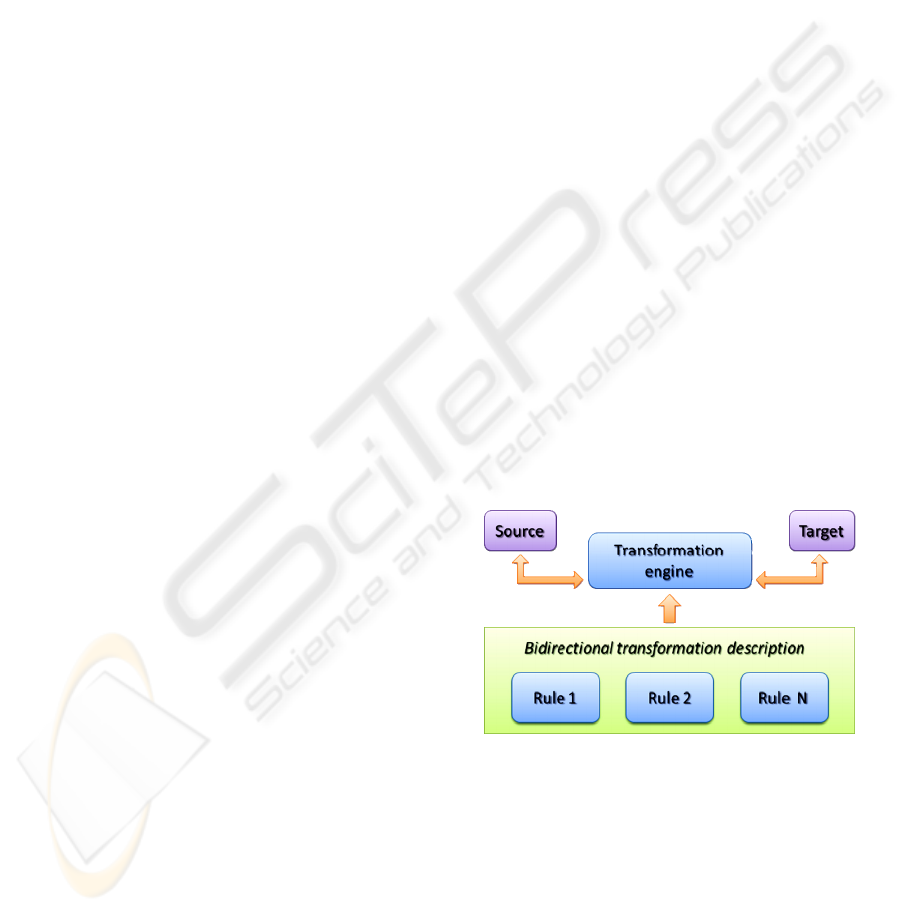

Figure 1: Bidirectional execution of model transformation.

From this definition, the transformation engine can

execute the rules in each direction. Figure 1 shows

an example for a bidirectional transformation: a

source and a target model are depicted, and between

the two models there is a transformation description,

which can be executed both in the forward and the

backward direction.

Beyond two-way execution, bidirectional

transformation can be used in implementing

incremental model synchronization solutions. In our

304

Madari I., Asztalos M., Mészáros T., Lengyel L. and Charaf H. (2010).

IMPLEMENTING QVT IN A DOMAIN-SPECIFIC MODELING FRAMEWORK.

In Proceedings of the 5th International Conference on Software and Data Technologies, pages 304-307

DOI: 10.5220/0003011203040307

 SciTePress

approach we also use bidirectional transformations

to implement our incremental model synchronization

algorithm (Madari, 2009).

In order to implement bidirectional model

transformations we have to express bidirectional

rules in our modeling framework. Our approach

utilizes QVT (Query/Views/Transformations)

Relations language (Bast et al., 2005) to define

bidirectional model transformations. QVT Relations

is a declarative transformation language that can

express bidirectional model transformation relations

with their left-hand side (LHS) and right-hand side

(RHS) structures. However, due to the complexity of

the whole standard, QVT lacks implementation.

Our approach does not provide a completely new

transformation engine. We use our unidirectional

transformation mechanism to support the QVT

Relation in such a way that we generate the

corresponding forward and backward

transformations with the appropriate control

structures from the QVT description. Figure 2

depicts the generation process from a QVT

transformation.

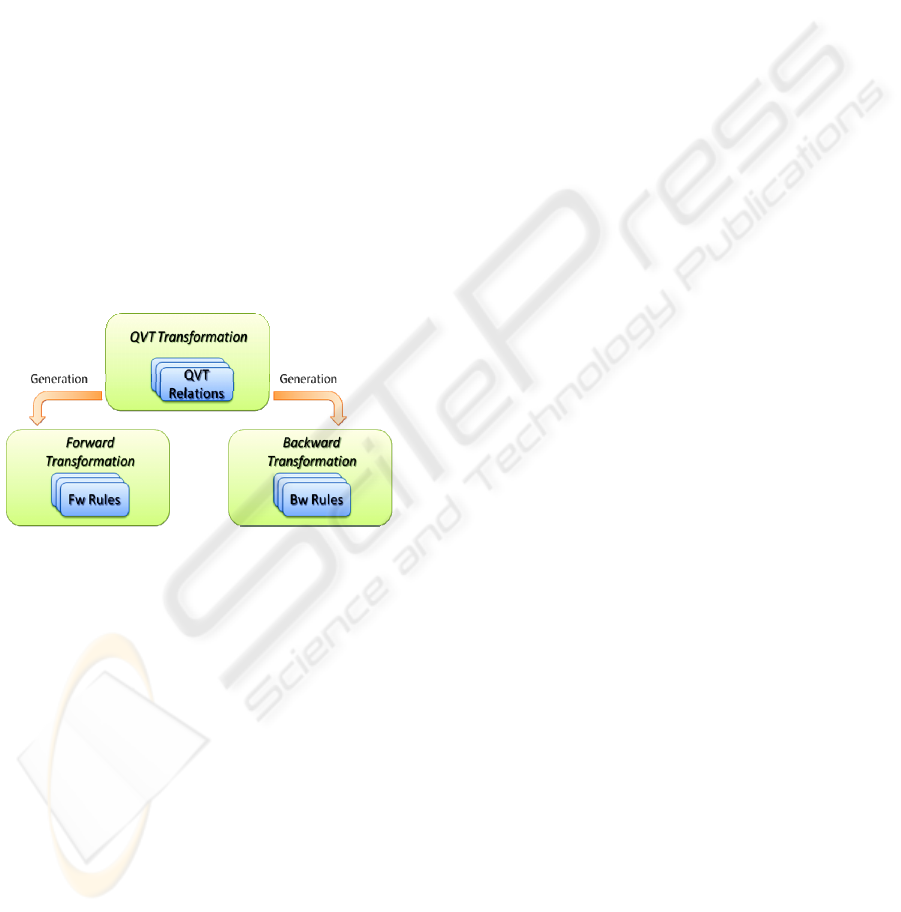

Figure 2: Generation of forward and backward

transformations from QVT transformation.

Current paper discusses how we have implemented

the QVT Relation language in our graph rewriting-

based model transformation system (Visual

Modeling and Transformation System, VMTS

(VMTSSite)).

The rest of this paper is organized as follows:

Section 2 provides background information

including our modeling framework (VMTS).

Furthermore, Section 2 gives an overview of OMG’s

QVT language and triple graph grammars. Section 3

presents how QVT constructs are implemented

within VMTS. Finally, Section 4 concludes the

paper.

2 BACKGROUND AND RELATED

WORK

Visual Modeling and Transformation System

(VMTS) (Angyal et al., 2009) is a graph-based

metamodeling system. The concept of metamodeling

means that we can create models not only in

predefined modeling languages, but also we can

create new modeling languages as well. Models and

transformation rules are formalized as directed,

labeled graphs, which consist of individual attributed

nodes and edges VMTS is a model transformation

system, which transforms models by executing

graph rewriting. VMTS is very flexible due to its

plug-in architecture. Users can easily define new

domains; as well as the graphical representation of

instance models.

A formal description of bidirectional

transformations can be given with triple graph

grammars. Triple graph grammars (TGGs) were

introduced in 1994 (Schürr, 1994). Triple graph

grammar rules model the transformations of three

separate graphs: source, target and correspondence

graphs.

QVT (Query/Views/Transformations) is the

OMG (Object Management Group) standard for the

transformation of MOF (Meta-Object Facility)

models. QVT defines a standard way to transform

source models into target models. Both QVT and

TGGs declaratively define the relation between two

models. With this definition of relation, a

transformation engine can execute a transformation

in both directions and based on the same definition,

can also propagate changes from one model to the

other.

OMG published simplified Unified Modeling

Language (UML) and Relational Database

Management System (RDBMS) metamodels in the

appendix of the QVT standard. The UML and

RDBMS metamodels created in VMTS as well, to

present the feasibility of our approach.

QVT relations can be extended with Where and

When clauses. Both two clauses define conditions

which need to hold in order to apply the current

QVT relation. The difference between the two

clauses is that When specifies which conditions are

needed to hold before applying the current relation

(i.e. it is like a pre-condition of the current relation),

while Where defines the conditions that need to hold

after apply the QVT relation (i.e. it is like a post-

condition). The conditions can refer to other QVT

relations, to an OCL expression or a custom

function.

IMPLEMENTING QVT IN A DOMAIN-SPECIFIC MODELING FRAMEWORK

305

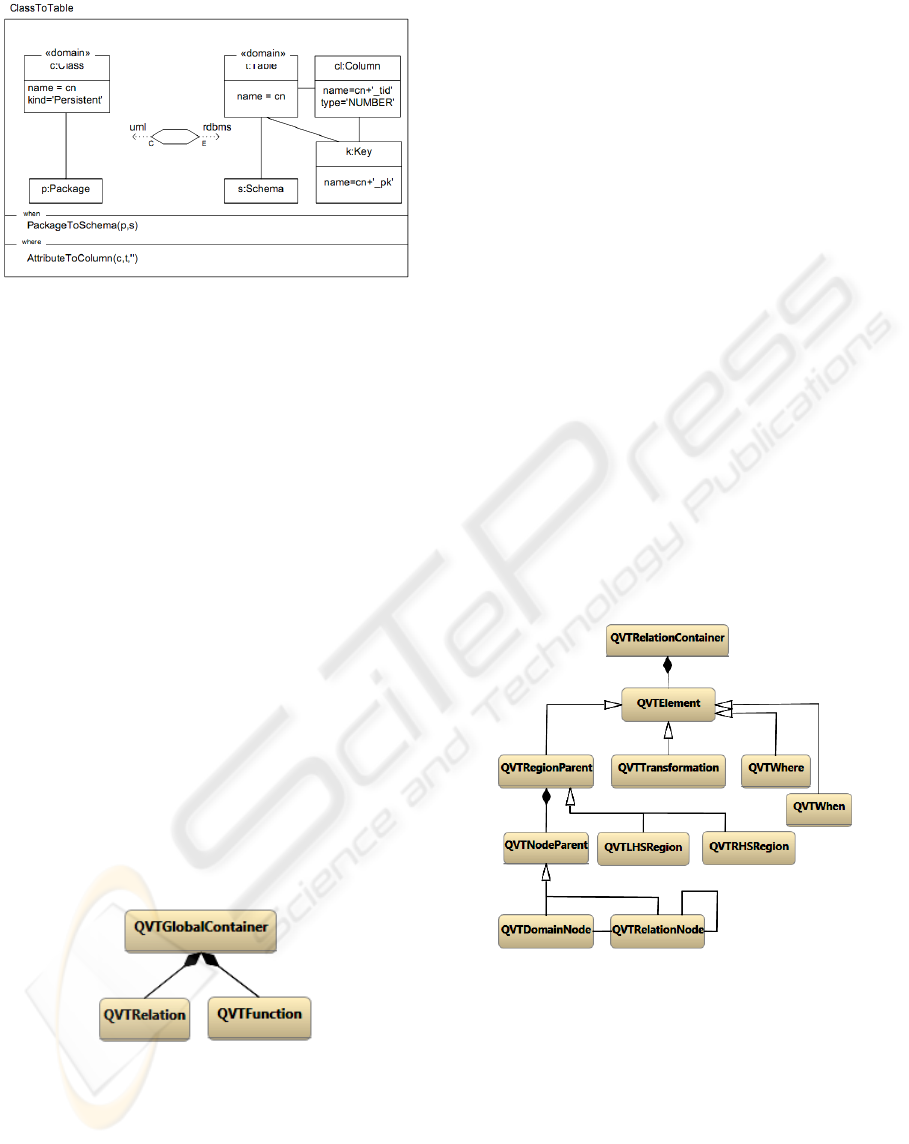

Figure 3: QVT relation with When and Where clauses.

In Figure 3 a QVT relation is depicted with When

and Where clauses. As a matter of fact, the current

relation in Figure 7 can be held if and only if the

PackageToSchema relation has been held, and the

AttributeToColumn relation can also be held.

3 REALIZATION OF

QVT RELATION

In this section we give a detailed overview of how

we implemented the QVT Relations in VMTS

modelling framework.

In VMTS, new domain-specific languages can be

easily created. QVT transformation is also a domain

itself, thus the first step was to define the

corresponding metamodels in VMTS. To realize the

QVT Relation two metamodels had to be created:

one for the QVT Relation and one for a composite

domain that represents the whole QVT

transformation. The QVT transformation consists of

QVT relations, functions, input and output model

definitions. The metamodel of a QVT transformation

is depicted in Figure 4.

Figure 4: QVT transformation metamodel.

The QVTGlobalContainer element contains QVT

relations and QVT functions (QVTRelation and

QVTFunction in Figure 4). It is a high-level

container, which also sets the transformation

properties (such as the current input and output

models). The QVT Relation domain is more

complicated: it contains more nodes, attributes, and

relationships. Figure 5 depicts the metamodel of the

QVT relation. QVTRelationContainer is the topmost

element of the QVT relation metamodel. Its purpose

is to wrap every node of a QVT relation. The

QVTRelationContainer has only one attribute:

RelationName. A QVT relation contains only one

QVTRelationContainer in each instance model.

QVTRelationContainer can contain

QVTElements elements. It is a general model

element because we never use it directly (i.e. it is not

necessary to drop it into the diagram). In fact, nodes

to be contained by the QVTRelationContainer are

inherited from QVTElement thus the inherited nodes

can also be contained by QVTRelationContainer.

QVTRegionParent is also a general node in the

metamodel, which means that it is not used directly

in the instance models. However, two elements

inherit from QVTRegionParent: QVTLHSRegion

and QVTRHSRegion. The regions are the LHS and

RHS of QVT relations. The model elements (the

regions) contain the relation nodes that describe the

pattern to be checked or enforced during the

transformation. Both of the regions have to belong to

a domain, which determines the possible nodes that

can be used in the regions. In other words, the LHS

and the RHS can contain nodes only from the

selected domains.

Figure 5: QVT relation with When and Where clauses.

QVTWhen and QVTWhere nodes contain clauses of

the current relation. They can contain string type

values such as OCL expressions, unique function

names or QVT relation names. The values are stored

in the Expression attribute of the QVTWhere and

QVTWhen elements.

Nodes in regions are not yet shown. Two types

of nodes can be distinguished in the LHS and RHS

regions: QVTDomainNode and QVTRelationNode.

To understand what the difference is between the

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

306

Figure 6: Relation ClassToTable in VMTS.

two types of nodes, see the relation in Figure 3. The

ClassToTable relation defines nodes in the LHS and

RHS patterns labeled with the “<<domain>>” string.

This type of node in our metamodel is represented

by the QVTDomainNode element. QVTRelationNode

stands for the nodes without the “<<domain>>”

identifier. Figure 6 shows a created QVT relation in

VMTS.

4 CONCLUSIONS

In this paper we have briefly described the QVT

Relation language with examples, as well as the

VMTS modeling framework. We have discussed

how the QVT Relation language has been

implemented in our domain-specific modeling

environment. Furthermore, it has been explained

how to create the necessary metamodels, and

implementation details of the concrete syntax have

been given. With the presented approach we can

define QVT relations and transformations in VMTS.

Our future research targets three important

fields:

(i) Generating forward and backward VMTS

transformations from the QVT relations instead of

executing the QVT transformation directly is a

major objective. The advantage of this approach is

that developers can modify the backward and the

forward directions independently.

(ii) The forward and backward transformations

cannot necessarily be generated automatically from

the QVT description. We have to analyze the QVT

transformation properties to determine under which

circumstances can the forward and backward

transformations generated.

(iii) Formal validation of the synchronization and

checking process in the generated unidirectional

transformations is also a direction for future work.

ACKNOWLEDGEMENTS

This paper was supported by the János Bolyai

Research Scholarship of the Hungarian Academy of

Sciences.

REFERENCES

Czarnecki, K., Helsen, S., 2003. Classification of Model

Transformation Approaches. In OOPSLA’03,

Workshop on Generative Techniques in the Context of

Model-Driven Architecture.

Schürr, A., 1994. Specifcation of graph translators with

triple graph grammars. In WG’94, Proceedings of the

International Workshop on Graph-Theoretic

Concepts in ComputerScience.

Asztalos, M., Madari, I., 2009. Vtl: An improved model

transformation language. In AACS’09, Proceedings of

Automation and Applied Computer Science Workshop.

Madari, I., Angyal, L., Lengyel, L., 2009. Traceability-

based Incremental Model Synchronization. In

WSEAS’09, WSEAS Transactions on Computers.

Angyal, L., Asztalos, M., Lengyel, L., Levendovszky, T.,

Madari, I., Mezei, G., Mészáros, T., Siroki, L., and

Vajk, T., 2009. Towards a fast, efﬁcient and

customizable domain-speciﬁc modeling framework. In

IASTED’09, In Proceedings of the IASTED

International Conference.

Bast, W., Belaunde, M., Blanc, X., Duddy, K., Griffin, C.,

Helsen, S., Lawley, M., Murphree, M., Reddy, S.,

Sendall, S., Steel, J., Tratt, L., Venkatesh, R., Vojtisek,

D., 2005. MOF QVT Final Adopted Specification.

VMTSSite, Visual Modeling and Transformation System,

http://vmts.aut.bme.hu/

IMPLEMENTING QVT IN A DOMAIN-SPECIFIC MODELING FRAMEWORK

307
