SPECIFICATION AND VERIFICATION OF WORKFLOW

APPLICATIONS USING A COMBINATION OF UML ACTIVITY

DIAGRAMS AND EVENT B

Ahlem Ben Younes and Leila Jemni Ben Ayed

Research Unit of Technologies of Information and Communication (UTIC) ESSTT, Bab Manara, Tunisia

Keywords: Specification, Formal Verification, Validation, UML, Event B, Workflow Applications.

Abstract: This paper presents a transformation of UML activity diagrams (AD) into Event B for the specification and

the verification of workflow applications. With this transformation, UML models could be verified by

verifying derived event B models, automatically, using the B powerful support tools like B4free. The

workflows is initially expressed graphically with UML AD and translated into Event B. The resulting model

is then enriched with Invariants/Assertions describing functional properties of workflow models such as

deadlock-inexistence. We present translation rules of UML AD into EventB, and we propose also a

translation process of UML AD into EventB specifications based on the refinement technique of Event B to

encode the hierarchical decomposition in UML AD. Also, we propose a solution to specify time in Event B,

and by an example of workflow application, we illustrate the proposed technique.

1 INTRODUCTION

The workflow applications are characterized by a

high complexity. Increasingly, they have to obey to

realiabity, safety, timed requirements. Today, UML

AD (Johason, 1998) are considered as an OMG

standard notation in the area of workflow

applications modelling (Dumas, and Hofstede,

2001). However, the fact that UML lacks a precise

semantics is a serious drawback of UML-based

techniques. Also, UML AD is not adapted to the

verification of workflow applications. In previous

works (Ben Younes and Jemni Ben Ayed,

2007,2008), we have proposed a specification and

verification technique for workflow applications

using a combination of UML AD and Event B. The

work presented in this paper is a part of them. The

proposed approach gives readable models and an

appropriate formal method which allows verification

of required properties (no_deadlock, liveness,

fairness) to prove the correctness of the workflow

specification. In this context, several solutions have

been proposed. Some of them use model checking

for the verification. Van der Aalst (Van der Aalst,

2000) proposed a technique which uses Petri nets for

the verification of the correctness of workflow

applications using a compositional verification

approach. Karamanolis and al (Karamanolis and all,

2000) use process algebra for the verification of

workflow properties. Our contribution, in this

context, consists of using event B method and its

associate refinement process and tools for the formal

verification of workflow applications. The

verification is based on a proof technique and

therefore it does not suffer from the state number

explosion occurring in classical model checking as

in the cases of works in (Van der Aalst, 2000),

(Guelfi and Mammar, 2005) and (Karamanolis and

all, 2000). The Event B method (Abrial, 1996b) is a

variant of the B formal method (Abrial, 1996a),

proposed by Abrial to deal with distributed, parallel

and reactive systems (Abrial, 1996b). B models

provides an automatic proof which convince the user

that the system is effectively correct and satisfies

properties which are presented as

invariants/assertion. The concept of refinement is the

key notation for developing B models. The

refinement of a formal model allows one to enrich

the model in step by step approach. The last

refinement gives the implementation machine which

map directly to a programming language such as C

or ADA. The strong point of B is support tools like

as AtelierB (Clearsy,2001) or B4free (Clearsy,2004),

an academic version of AtelierB. Most theoretical

aspects of the method, such as the formulation of

312

Ben Younes A. and Jemni Ben Ayed L. (2010).

SPECIFICATION AND VERIFICATION OF WORKFLOW APPLICATIONS USING A COMBINATION OF UML ACTIVITY DIAGRAMS AND EVENT B.

In Proceedings of the 5th International Conference on Software and Data Technologies, pages 312-316

DOI: 10.5220/0003012003120316

 SciTePress

proof obligations, are carried out automatically. The

automatic and interactive provers are also designed

to help specifiers to discharge the generated proof

obligations. All of these points make B well adapted

to large scale industrial projects (Behm,1998).

However, B is still difficult to learn and to use.This

is why we have proposed in our previous work (Ben

Younes and Jemni Ben Ayed, 2007) an approach

which combines the use of UML AD and Event B

for the specification and the verification of workflow

applications. The workflow is initially modeled

graphically with UML AD (Step1). After that, the

resulting graphical readable model is translated into

Event B in incremental development with successive

refinements (Step2). This refined model is enriched

by relevant properties (no deadlock, no livelock,

strong fairness, etc) (Step3) which will be proved

using the B4free tool (Clearsy,2004) (step4). So, this

allows one to rigorously verify semi-formal

specifications in AD UML by analysing derived

Event B models. On the other hand, we can use AD

UML specifications as a tool to develop Event B

specifications. In our works (Ben Younes and Jemni

Ben Ayed, 2007,2008) , we have presented the

translation process which uses the B method

refinement and proposed translation rules for the

basic concepts of UML AD (activity, Sequence of

activities, choice (decision), loop parallel activities

(fork and join) and atomic process) and also for

dynamic invocations concept (Ben Younes and

Jemni Ben Ayed, 2008) into Event B. In this paper,

we discuss contribution of our proposed approach

for the verification of workflow applications and we

extend our work presented in (Ben Younes and

Jemni Ben Ayed, 2007) by adding new translation

rules for the synchronization in UML AD ( event,

send/receive concepts) into Event B. Also, we

propose in this paper a solution to specify time in the

event B method and derivation of temporal

expressions in UML AD (timeout) into Event B.

These translation rules give not only a syntactical

translation, but also give a formal semantics using

the Event B method semantics for the activity

diagrams. In this context, there have been efforts for

defining semantics for activity diagram in the works

of Eshuis (Eshuis and al, 2001, 2004) and also the

works of (Guelfi and Mammar, 2005). However,

these works not consider the hierarchical

decomposition of activities in UML AD, and suffer

from the state number explosion. Moreover, in

Eshuis (Eshuis and al, 2004, 2001) approach, no

details are given about how time is defined.

Although, the work of (Guelfi and Mammar, 2005)

propose a systematic way for translating the

semantic of timed activity Diagrams into the

PROMELA input language of the SPIN model

checker, but they no consider the hierarchical

decomposition of activities in UML AD, no

translation rules are given about the refinement in

UML AD. Our contribution, in this context, consists

of using Event B method and its associate

refinement process to encode the hierarchical

decomposition of activities in UML AD and tools

for the formal verification of workflow applications.

Moreover, in the refinement of B, it is not needed to

re-prove these properties again while the model

complexity increases. Notice that this advantage is

important if we compare this approach to classical

model checking where the transition system

describing the model is refined and enriched like in

SPIN model checker. This paper is structured as

follows. Section 2 presents derivation rules of event,

send/receive event and time in UML AD into Event

B notation. By an example we illustrate our

contribution in section3. Finally, a summary of our

work concludes the paper

2 TRANSLATION FROM UML AD

TO EVENT B

A- The translation of the send event action into

Event B

In Event B, we translate the send of an internal event

by the definition of new variable v_Name_Evt for

each new internal event Name_Evt. This variable

takes the value TRUE if the event occurs and FALSE

in the other case.

B- The translation of the receive event action in

UML AD into Event B

In Event B, we translate the receive event action by:

The definition of a new boolean variable

v_Name_Evt for each event Name_Evt generated

by the environment. The definition of a new variable

hand;the generation of an event Detect_Evt. The B

event Detect-Evt allows all event (for example v-E)

to have a random value. It simulates the event

detection when the detection system has the control.

The control is given alternatively to the detection

system when hand =1 and to the control system in

the other cases.

C- The representation of the time in Event B

The timeout expressed in B, will impose alternation

between the clock, the control system and the

detection system. We use the variable hand and the

control is given alternatively to the clock when

SPECIFICATION AND VERIFICATION OF WORKFLOW APPLICATIONS USING A COMBINATION OF UML

ACTIVITY DIAGRAMS AND EVENT B

313

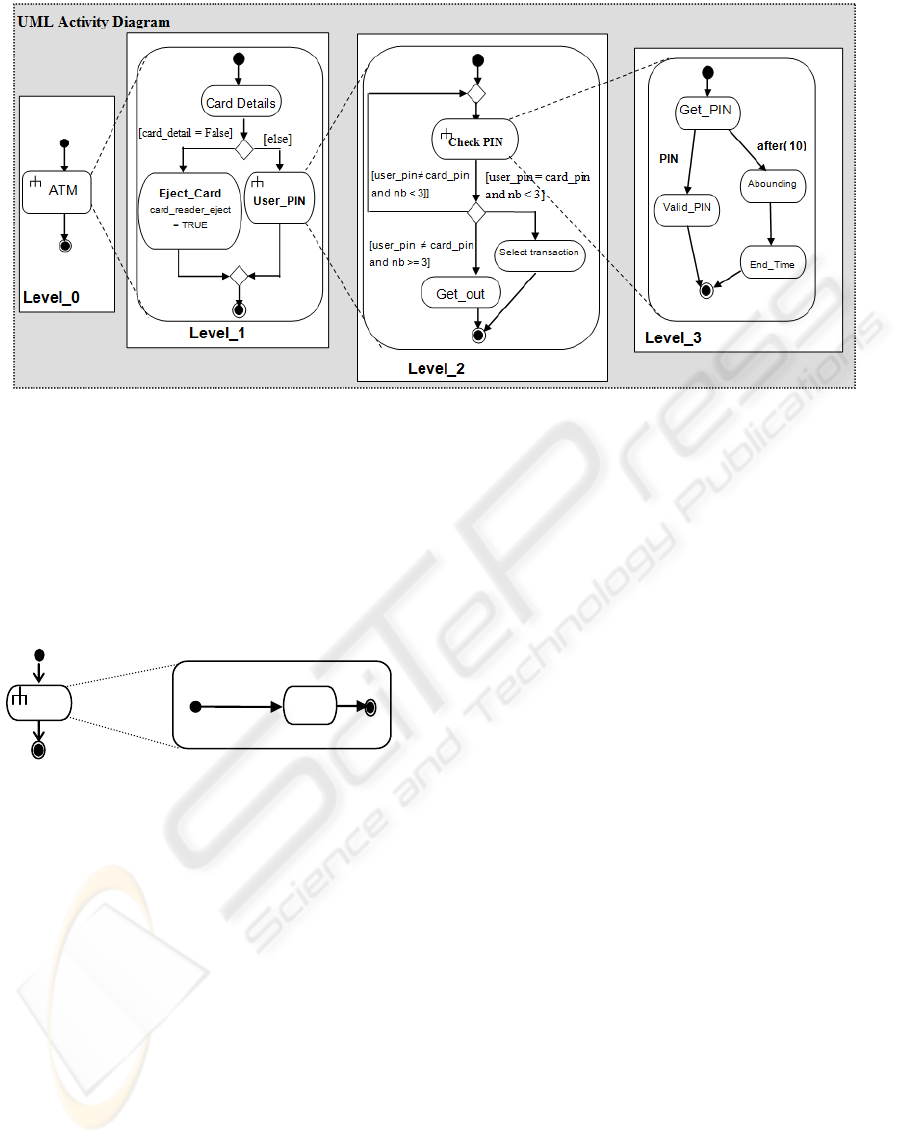

Figure 1: The UML AD model of the workflow ATM application.

hand=2 and to the system in the other cases. In

UML AD, temporal event is specified with the after

keyword (see Fifure1). The after (n) event

expression, where n is a positive integer, means that

n time units after the source of the edge was entered

a timeout is generated. The formulation of the

timeout in Event B is based on some derivation rules

that we already introduced.



Act0

Act01

after(n)

We propose to drift the timeout by: the definition

of a integer variable Timeout which represents the

time of the next generation of the event timeout; the

definition of the event Evt_Init for initializing the

variable Timeout with the value of the current time

and the duration n ( Exemple n =10 time unit); the

definition of the B event Evt_Wait. Initially,

hand=0. The event Evt_Init sets this variable to 1,

and initializes the variable timeout. This passes the

control to Evt_wait or Evt_Act01(Associated to the

activity Act01). If (time < timeout)) then the variable

hand passes to 1 (event Evt_Wait) to increment the

time (event tick) but if (time>= timeout) this

(Evt_Act01) is allows the following activity Act01

to be execute.

3 EXAMPLE

We illustrate the proposed technique over an

example of a workflow application, which we have

implemented using Event B tool B4free. This

application represents a simplified ATM login.

Step1: Initially, we describe this workflow

application using UML. The resulting model is

composed of three decomposition levels (See Figure

1). Step2: In the second step, by the application of

the translation process and using the translation

rules. Three refinement steps which correspond to

each level of three level of decomposition in the

UML AD model are necessary. Step3 (Verification

and Validation of the ATM Login application):

The ASSERTIONS clause contains liveness

properties expressing that there is no deadlock. This

property is ensured by asserting that the disjunction

of all the abstract events guards implies the

disjunction of all the concrete events guards. This

guaranties that the new events can be fired (no

deadlock). In each new refinement, we add this

property. The INVARIANT clause allows to

express the safety properties (called safety invariant)

and the typing information (Typing invariant). Each

refined model is enriched by relevant properties

(safety, liveness, ect) which will be proved using the

B4free tool. These properties shall remain true in the

whole model and in further refinements: It is not

needed to re-prove again verified properties in the

refined model while the model complexity increases.

It is the advantage of using B4free tool. For

example:

- The safety property that the system ejects the card

reader only if the card details are false: this

property is added in the resulting refined model

Ref1_ATMcard ( associated to the LEVEL1) in

the clause INVARIANT as follows:

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

314

- The temporal property T1 (the system should not

be continuously open for more than 10 seconds

without the even PIN present) can be proved by

adding the safety invariant, in the resulting

refined model Ref3_ATMcard ( associated to the

LEVEL3 in UML AD model), which expresses

that if the system is in the node Abounding (

pin_state =1), then necessarily the deadline has

arrived:

In the refinement Ref3_ATMcard, the event

Tick maintains the control and allows time advance.

In this way, we avoid the Livelock problem in the

construction of a resulting B system. By the

application of the translation rule for the time (see

section 4.2), we use the variable hand (see section

4.2.B ) and the control is given alternatively to the

clock when hand=2, to the system when hand= 0,

and to the detect system when hand=1. The variable

hand describes the events interleave and prevent

that an event is fired infinitely (an event will be

infinitely crossed in detriment of others).

4 CONCLUSIONS

In this paper we have proposed a specification and

verification technique for workflow applications

using UML AD and Event B.

We have extended our

work

(Ben Younes and Jemni Ben Ayed, 2007,2008)

and have proposed new derivation rules

for the

synchronization in UML AD ( event, send/receive

concepts) into Event B. Also, we propose in this

paper a solution to specify time in the event B

method and derivation of temporal expressions in

UML AD (timeout) into Event B. In our approach,

variants are defined to ensure the correct firing order

of events in these models. Also, decreasing variants

are defined to solve livelock problem. These

translation rules give not only a syntactical

translation, but also a formal semantics using the

Event B method semantics for the UML AD.

Currently, we are working on the implementation of

this approach. Another thing needed to be mentioned

is that we just formalize the subset of UML activity

diagrams. For instance, object flows do not be

included in our model. However, our approach is

also suitable for formalizing it.

REFERENCES

Johason.R, I. Jacobson, and G.Booch, 1998. “The Unified

Modelling Language reference Manual” .Addison-

Wesley,.

Ben Younes, A and L Jemni. Ben Ayed , 2007 “ Using

UML Activity Diagrams and Event B for Distributed

and Parallel Applications”. In 31st Annual IEEE

International Computer Software and Applications

Conference (COMPSAC 2007), Volume 1.

Dumas, M. and ter Hofstede, A. H. M., 2001 “ UML

activity diagrams as a Workflows Specification

language ”. In UML2001 page 76-90. Spinger-Verlag.

Clearsy, 2001. System Engineering Atelier B, Version

3.6,.

Abrial. J. R, 1996a “The B Book. Assigning Programs to

Meanings”. Cambridge University Press.

Clearsy 2004, “B4free,” Available at http://

www.b4free.com.

Eshuis, R., and Wieringa R., 2001. A formal semantics for

UML Activity Diagrams – Formalising workflow

models, Technical Report. Twente, Dept. Of Computer

Science.

Abrial J-R., 1996b.” Extending B without changing it”

(for developing distributed systems)”. In H Habrias,

editor, First B Conference.

Van der Aalst, W. M. P., 2000 “Workflow Verification:

Finding Control-Flow Errors Using Petri-Net-Based

Techniques”, in Business process management:

models, techniques, and empirical studies. Lecture

Notes in Computer Science 1806, Springer-Verlag.

REFINEMENT Ref1_ATMcard

REFINES ATMcard

INVARIANT

/* Safety properties*/

( card_reader_eject = TRUE => card_detail= FALSE )

REFINEMENT Ref3_ATMcard ………………….

REFINE Ref2_ATMcard

INVARIANT /*Temporal properties*/

(pin_state = 1) ֜ (time >= timeout) /* T1*/

REFINEMENT Ref3_ATMcard

………………….;

VARIABLES

hand, time, evt_pin, pin_state, timout …..

INVARIANTS

hand

∈

{0,1,2}

∧

evt_pin

∈

BOOL

∧

time

∈

∧

timeout

∈

∧

pin_state

∈

{0,1,2,3 } /* the state variable pin_state is associated to the

composed activity Chek_PIN*/

INITIALISATIOIN

hand:= 0 || evt_pin:=FALSE|| time :=0|| pin_state:=3……

EVENTS

Dect_Evt= SELECT hand =1 THEN hand := 0 || evt_pin :

∈

BOOL

END;

Tick= SELECT hand =2

∧

pin_state=2

THEN hand :=1|| time := time+1 END;

Evt_GetPin= SELECT hand=0

∧

pin_state=3 ….

THEN hand :=1|| pin_state :=2|| timeout := time+ 10

END;

Evt_Wait_Pin = SELECT hand=0

∧

pin_state=2

∧

evt_pin = FALSE

∧

time < timeout…

THEN hand := 2 END;

Evt_ValidPin= SELECT hand=0

∧

pin_state=2

∧

evt_pin = TRUE

∧

time < timeout

THEN pin_state :=0

END;

Evt_Abounding= SELECT hand=0

∧

pin_state=2

∧

evt_pin = FALSE

∧

time >=timeout

THEN pin_state := 1 END;

SPECIFICATION AND VERIFICATION OF WORKFLOW APPLICATIONS USING A COMBINATION OF UML

ACTIVITY DIAGRAMS AND EVENT B

315

Karamanolis, C., Giannakopoulou D., Magee, J., and S.

M. Wheater, 2000 “Formal verification of workflow

schemas,” University of Newcastle, Tech. Rep.

Ben Younes, A and Jemni. Ben Ayed, L .2008 “From

UML Activity Diagrams to Event B for the

Specification and the Verification of Workflow

Applications”. In 32st Annual IEEE International

Computer Software and Applications Conference

(COMPSAC 2008).

Eshui R., and Wieringa. R. 2004. Tool Support for

verifying UML Activity Diagram, IEEE transaction on

software Engineering , vol 30 , N°7;

Guelfi N, and Mammar A. 2005. ‘’A Formal Semantics of

Timed Activity Diagrams and itsPROMELA

Translation’’. In the 12th Asia-Pacific Software

Engineering Conference (APSEC’05).

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

316
