KAOS-β: A Goal-oriented Process Model for EIS

Malihe Tabatabaie, Fiona A. C. Polack and Richard F. Paige

Department of Computer Science, University of York, YO10 5DD, York, U.K.

Abstract. There is increasing demand for approaches to develop more effective

enterprise information systems (EIS). A possible solution is to focus on eliciting

and elaborating goals prior to capturing EIS requirements. Focusing on EIS goals

could help the developer team and other stakeholders (particularly decision mak-

ers) achieve a shared and structured understanding of the goals of the EIS and the

overall enterprise. We present an investigation of the use of the KAOS approach

to goal modelling in the domain of EIS. As a result, we propose a tailoring of

KAOS for this domain; the tailoring has been developed through empirical stud-

ies. Our tailoring, called KAOS-β, is described, and an empirical evaluation is

presented, investigating its applicability for deﬁning and structuring the goals of

groups of EIS.

1 Introduction

This paper describes an approach to the analysis of Enterprise Information Systems

(EIS) based on the well-known KAOS goal-based approach. The approach uses struc-

turing and modelling of the goals of EIS to address some of the common challenges of

EIS [7]:

– lack of clear links between EIS and the organisation’s key priorities; lack of agreed

measures of success;

– lack of effective engagement with stakeholders;

– lack of understanding of and contact with the supply industry at senior levels in the

organisation;

– lack of ability to visualise complex software systems.

Elsewhere, we review current EIS structure and development[21, 20]. An enterprise

is a collection of small or medium-sized businesses (SMEs) and partners that operates

as a single organisation. Most EIS are designed and developed for the whole enterprise,

rather than for a single business unit or departmentof the enterprise. They can deal with

the problems of a large organisation (which includes different SMEs or partners), and

they can deal with the problems of an organisation that includes different departments

[21]. This leads to a deﬁnition of EIS as a software system that integrates the business

processes of organisation(s) to improve their functioning [20, P. 24].

The challenges of EIS vary across enterprises, with many challenges related to scale

and complexity. Some factors that create complexity in EIS are [21]:

– size and growth of information technology (IT), information systems (IS) and the

organisation itself;

Tabatabaie M., A. C. Polack F. and F. Paige R.

KAOS-B: A Goal-oriented Process Model for EIS.

DOI: 10.5220/0003016000400049

In Proceedings of the 8th International Workshop on Modelling, Simulation, Veriﬁcation and Validation of Enterprise Information Systems (ICEIS 2010), page

ISBN: 978-989-8425-12-6

– the interactions between different IT and IS;

– the involvement of many different parties in the constructions and use of IT and IS;

and,

– the ever-increasing rate of organisational and social change.

It is these factors that give rise to the failures of communication and understanding

identiﬁed as challenges [7], above.

We identify the systems architecture as the key part of an EIS, and propose a goal-

oriented approach to facilitate communication and understanding in the development

of EIS. Through a structured process of analysis and modelling, EIS developers are

led towards an understanding of the priorities of the enterprise and its organisational

goals. Analysis requires identiﬁcation of a sufﬁciently complete sets of goals, by en-

gagement with different groups of stakeholders. Engagement with senior staff helps to

create understanding between developers and senior managers who make the decisions.

Structuring the goals of EIS leads towards a vision of the EIS-to-be and systems-as-is,

and can address the challenge of EIS structural visualisation.

The need to identifyenterprise-levelgoals led us toreviewwell-knowngoal-oriented

approaches. The KAOS approach is identiﬁed as the best match to EIS needs, and sec-

tion 3 shows how the approach is used to analyse EIS goals. Like most goal-oriented

approaches, KAOS provides heuristic rules for analysis and presentation. Whilst [13]

describes how heuristic rules build on each other, and presents a case study in which

KAOS is applied in steps, there is no general systematic guide to application of KAOS

or validation of its results. Based on the example of a stroke-care EIS, a structured,

ﬂexible process, KAOS-β (KAOS-beta), is devised to guide goal development. KAOS-

β exploits KAOS heuristics and addresses its limitations for enterprise-level analysis.

The evaluation (section 4) addresses some of the challenges of evaluating such a pro-

cess, and presents some results of evaluating KAOS-β. Finally section 5 summarises

the challenges, results and future directions of this work.

2 Goal-oriented Approaches

There are at least 15 distinct goal-oriented approaches (GOAs) [11], from many ar-

eas of computer science

. Existing GOAs address system-level goals, so need adapta-

tion for EIS-level goal analysis. Approaches generally lack goal evaluation guidance.

However, four approaches were identiﬁed as possible candidates for EIS goal analysis:

GSN [12], KAOS [13], GBRAM [2], and i

∗

[3]. i

∗

is a well-known approach that has

been applied to health care [1]; it claims to encourage the involvement of stakeholders

in requirement analysis, and to help the developers to achieve deep understanding of

the domain; however, it proved difﬁcult to adapt i

∗

to the level of EIS goal analysis.

GSN is a goal-structuring notation used for presenting the structure of arguments, for

example in safety certiﬁcation, and has been applied in research contexts to require-

ments analysis [9]. GSN structures an argument using goals, for presentation to stake-

holders; in this way it can be a bridge between developers and stakeholders, but has

A separate paper on the analysis of GOAs that was undertaken here is in preparation, and will

be available on the lead author’s website

little guidance on goal identiﬁcation and validation [19]. KAOS and GBRAM address

system-level requirements engineering, and have approaches for deﬁning and reﬁning

system goals; KAOS is the better-documented approach. The Objectiver tool guides

and supports the construction and documentation of KAOS models. Although KAOS

gives little guidance on goal evaluation, it does validate system models using heuris-

tics, for instance applying a “why” question, both bottom-up and top-down, to the goal

model [13]. KAOS is thus the most appropriate basis for an EIS goal-analysis approach,

but it needs some adaptation.

3 KAOS Adaptation for EIS

This section presents a brief summary of KAOS and introduces an example EIS whose

goals are to be analysed (Section 3.1). The EIS is then analysed using KAOS, leading

to the derivation of KAOS-β.

KAOS is a goal-driven methodology, designed to elicit and validate requirements

and to prove their consistency [6]. The developers of the Objectiver tool

state that

KAOS extends the traditional “what question” approach to requirements with “why”,

“who” and “when” questions; the approach comprises:

1. identifying and reﬁning goals progressively until constraints that are assignable to

individual agents are obtained;

2. identifying objects and actions progressively from goals;

3. deriving requirements on the objects and actions to meet the constraints; and

4. assigning the constraints, objects and actions to the agents composing the system.

KAOS develops a goal model, from which other models can be derived, covering

the various views and aspects of the requirements engineering for a system: the obsta-

cle model, the agent model, the operation model, the object model and the behaviour

model. Lamsweerde [13] provides heuristic rules and patterns for the creation of the

goal model. Preliminary goals are elicited by analysis of the current system, require-

ments and documentation, and through consideration of the KAOS taxonomy of goal

categories. For each goal, sub-goals are identiﬁed by a process described as “identifying

goals along reﬁnement branches” [13]: a process of systematic challenge using struc-

tured “how” and “what” questions. During reﬁnement, mappings between goals and

agents are established and reﬁned until there is one agent per goal. Obstacles, threats

and conﬂicts related to the goals are identiﬁed. Lamsweerde’s guidelines are accompa-

nied by advice on common pitfalls, reuse of reﬁnements etc [13].

To develop a variant of KAOS for EIS goal analysis, KAOS was applied to a well-

documented stroke-care EIS. The following section describes the example domain; in

section 3.2 we outline the ﬁndings of the KAOS analysis. Section 3.3 summarises the

KAOS-β process.

www.objectiver.com

3.1 The Stroke-care EIS

Stroke care is the management of medical procedures within a health service – here

the UK’s NHS. The health service enterprise is made up of many business processes,

and related organisations include hospitals and government bodies. NHS stroke care

is an EIS within the wider health service enterprise: the organisational and medical

systems depend on different business processes and partners and coherent EIS support.

Stakeholders in the stroke-care enterprise include patients, their relatives, politicians,

health specialists, IT specialists and health-service managers.

The strategic importance of stroke care (stroke is the third-greatest cause of death

in the UK) has generated various EIS proposals and documents, representing the views

of society and organisations who are interested in achieving the goals of stroke care.

The UK Department of Health’s National Stroke Strategy (NSS) identiﬁes the lasting

and profound impact of strokes; it proposes a strategy for stroke care and stroke pre-

vention [22], and is the main source in this study, because of its coverage of goals,

non-functional requirements and soft goals. The NSS is backed up with: public doc-

uments on Danish electronic patient records [10] and US stroke care systems [17]; a

regional health trust report covering IT for stroke care [14]; and some limited interview

results.

3.2 Applying KAOS and Deriving the KAOS-β Process

The KAOS analysis follows the sequence of heuristic goal applications described for a

case study by Lamsweerde [13]. The Objectiver tool was used to develop a KAOS goal

model. This identiﬁed limitations of the KAOS, particularly in relation to modularity

and traceability. Taking inspiration from other GOAs, KAOS was then adapted to give

the KAOS-β process. Here, we highlight how KAOS has been adapted for EIS, and, in

this way, outline how KAOS-β process differs from KAOS.

Preliminary goal identiﬁcation [13] discovered a number of top-level goals of the

stroke-care EIS, capturing the strategic-level aspirations of the enterprise. As in KAOS

[13], the documentation of each goal includes a name (a unique identiﬁer) and a deﬁni-

tion, describing the goal in natural language. The deﬁnition also identiﬁes phenomena

related to the goal that could be monitored and controlled in the system. In EIS goal

analysis, traceability of the goals and requirements to their source is crucial, both in

analysis and in the presentation of results to the enterprise. The outcome of goal anal-

ysis is a set of integrated plans (an architecture) for EIS; it is the starting point for

system-level analysis and design activities, and these must be able to trace back to the

sources used in devising the EIS architecture. To support traceability, the KAOS-β pro-

cess adds a mandatorysource feature to the documentation of every goal. This identiﬁes

the document pages/paragraphs that are the origin of each goal.

In KAOS, optional features of each goal are Type, Category, Source, Priority, Sta-

bility, FitCriterion, FormalSpec, and Issue [13]. Because the level at which KAOS-β

is used (EIS architecture development rather than system-level requirements engineer-

ing), features such as FitCriterion, which relate to measurability of goals, are of limited

value.However, contextualinformationis often needed: for example, it is useful to iden-

tify which speciﬁc stakeholders have an interest in a goal, and goals may include terms

or assumptions that need elaborating or disambiguating. Earlier application of GSN to

the stroke-care example [21] had made signiﬁcant use of the GSN context concept [12],

and has thus been incorporated in to the KAOS-β goal documentation. KAOS-β also

adds a notes feature, to record goal information that does not ﬁt in any other ﬁeld,

perhaps regarding future consequence or the need to further information. With these

modiﬁcations, KAOS-β uses the same notations for forms and models as KAOS [13],

we use a tabular format for recording goal features.

The documentation of goals leads to further goals, as well as the modiﬁcation or

removal of some goals. Whilst iteration may be implicit in the KAOS guidelines, in

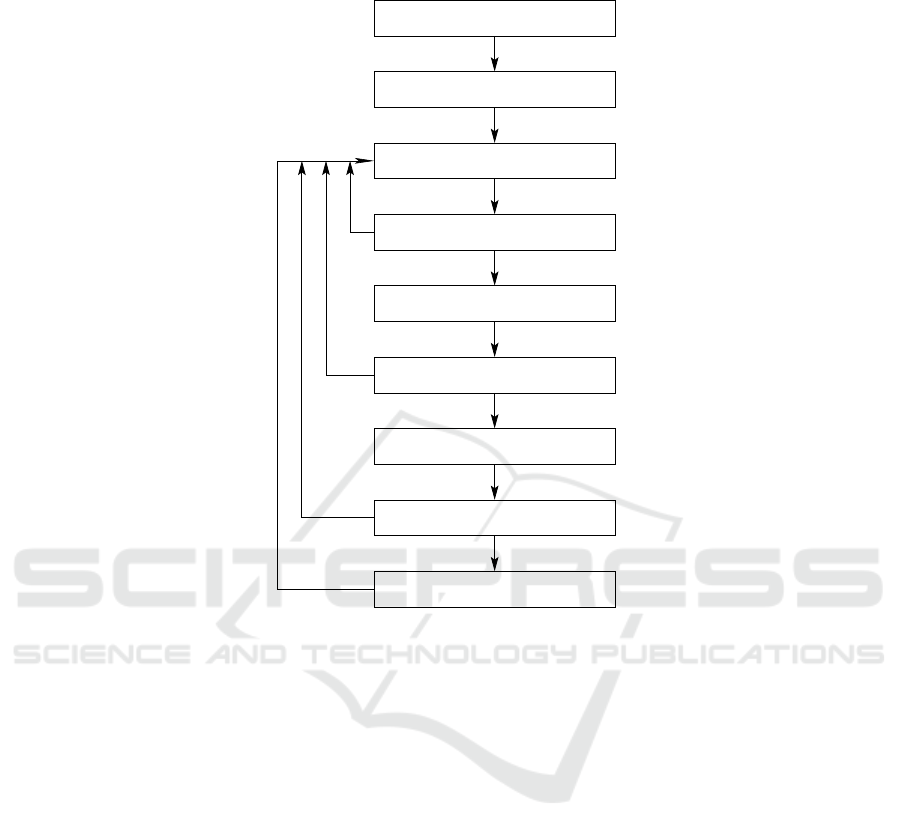

KAOS-β, we make the possibility of iteration explicit, to help analysts in applying the

process.

In KAOS, consideration of goal categories contributes to goal identiﬁcation [13].

The KAOS categories (behavioural vs Soft goals, and their sub-categories) refer to

system-level requirements, and are less helpful at the strategic enterprise level. Instead,

we use a modular structuring concept, and we apply it during the reﬁnement of top-level

goals to derive sub-goals. In the stroke-care example, goal reﬁnement led to goal-bloat

– the graph of goals and sub-goals becomes unmanageable. This is exacerbated by

KAOS’ reliance on a single goal model, with no modularity. KAOS-β modularity is

inspired by GSN modularity. In the stroke-care goal analysis, modules are identiﬁed

via participant or stakeholder groups: health care specialists (doctors, nurses, ambu-

lance staff etc.); community members (patients, family of patients etc.); stakeholders

who deal with systems development (IT specialists, domain specialists, decision mak-

ers etc.). This leads to modules of relevance to the enterprise as well as to the EIS design

activities, such as an IT module and a social module.

The goal model records the reﬁnement links between goals. In KAOS, a link is

documented with details of the reﬁnement that has been made: Name, SysRef, Status

and Tactic [13]. In KAOS, the name feature is used to remove any ambiguity. System

reference (SysRef) refers to system-to-be or system-as-is. Status records whether the

goal is still under reﬁnement. Tactic records the reﬁnement tactic used to derive the

sub-goal [13]. In KAOS-β, the tactic feature is used (additionally) to provide source

information – that is, which documents or other sources were used in arriving at the

reﬁnement. This supports traceability, and also helps in evaluating the goal model.

In KAOS, the heuristics of goal reﬁnement result in detection of agents, consid-

eration of the wishes of agents, and the allocation of goals to agents. In the KAOS-β

process, these heuristic rules are consolidated into two steps, to identify agents and to

link them to goals. The identiﬁcation of agents is closely related to the identiﬁcation

of personnel and stakeholder groups that form the basis of KAOS-β modules. Whilst

KAOS-β uses the KAOS heuristic of asking “who” questions to identify agents, it does

not use any system modelling (KAOS proposes sequence diagrams etc to relate goals

and agents) because this is inappropriate to the EIS level. KAOS-β uses KAOS agent

categories: in the stroke-care case, non-human agents are related to the operational

context of the EIS, whilst the human agents are different groups of users and stake-

holders: Patients; Health specialists (doctors, nurses, etc.); System developer; System

maintainer; Decision makers (Hospital Managers, Government, Domain experts, etc.);

Health Staff (system operators, data entry personnel etc.).

The KAOS heuristics advise reﬁning goals until there is one agent per goal. In

enterprise goal analysis, it is important to record responsibilities, but it is unnecessary

(and inappropriate) to break down goals in such detail, since these are not (yet) the basis

for system-level transactions. In the enterprise design level, there may be many agents

to each goal.

In KAOS, the heuristics and patterns related to analysing obstacles, threats and

conﬂicts are part of goal reﬁnement. This interesting step allows the designers to detect

and address (through additional goals) interactions among goals and requirements [13].

In KAOS-β, the analysis of goal interaction and the resultant iteration is raised to the

status of a step in the process. For example, the stroke-care strategy documents yield

conﬂicting goals relating to the ease of access to patient data (eg. by patients and for

emergency stroke treatments) and data security (eg. the need to limit who can access

personal data). As in KAOS, conﬂicts are identiﬁed in the goal diagram.

3.3 The Structure of KAOS-β

The KAOS method is, in principle, applicable to EIS goal analysis. Most of the changes

proposed are either the need for more detail to support traceability, or the need to pro-

vide clearer guidance on the path or paths that can be taken to develop the goal analysis.

Omissions in KAOS-β are related to level: KAOS-β is applied at the level of enterprise

strategy, to derive an EIS architecture, rather than at the system level to engineer re-

quirements.

Figure 1 summarises the steps and most likely iterations of the KAOS-β process. As

in KAOS, step 1 concerns identiﬁcation of the top-level goals. For an EIS, this involves

searching for strategic objectives, business goals, domain-speciﬁc objectives, and goals

that could be reﬁned by analysing requirements and problems.

In step 2 the designers use modularity to structure the goal model. The heuristicused

in the example to derive modules is to consider participant groups, many of whom are

later designated as agents. Modularity is a critical step: from this point, each KAOS-β

step is applied to each module.

Within each module, step 3 is akin to KAOS goal reﬁnement. In step 4 the de-

signers document the goals, which leads to identiﬁcation of missing, redundant, or mis-

speciﬁed goals: the documentation process is thus part of the validation of the identiﬁed

goals. Iteration of steps 3 and 4 is usually required.

In steps 5 and 6 the designers reﬁne goals and document the reﬁnement links, cre-

ating traceability within the goal structure. Iteration occurs as new goals are identiﬁed.

Step 7 detects agents in the same way as KAOS. In step 8 the designers associate

the agents to goals. In step 9 the designers search for obstacles, threats, and conﬂicts,

with the appropriate iteration to step 3 to check for any changes in the goal set or the

links. All these iterations are part of evaluating and improving the goal structure.

4 Evaluation of KAOS-β

The KAOS-β process model is a straightforwardextension and modiﬁcation of KAOS’s

heuristic rules, adapted to the level of EIS goals. Evaluation is a non-trivial problem,

Step 1: Identify top goals

Step 2: Identify modules

Step 4: Document goals

Step 5: Refine goal links

Step 6: Document links

Step 7: Identify agents

Step 8: Link goals and agents

threats and conflicts

Step 9: Identify obstacles,

Step 3: Identify goals in each

module

Fig.1. Structure of the KAOS-Beta Process.

particularly in the context of a small project that does not have the capacity to apply the

process in many realistic situations. There is little guidance on process evaluation, and

that which exists is often inapplicable. For example, Gruhn [8] proposes an approach

that evaluates application of a process in a speciﬁc context; the approach also focuses

on temporal and dynamic aspects of process application: neither is appropriate here.

We are evaluating KAOS-β in several directions. This paper focuses on three: gen-

eral process characteristics; internal validity (or soundness) and external validity (based

on [4]).

Internal validity addresses the detail of the process: the structure, applicability and

heuristics, as well as how the outputs are validated. The KAOS-β process model is

represented as a series of steps. Clearly identifying a process, its steps and links makes

it possible to address its internal validity. It can be seen that the process and the steps

themselves conform to most of the process characteristics listed above; KAOS-β also

offers the potential for evolvability and adaptability.

In terms of detail, KAOS is a widely-used approach to requirements engineering,

and we can assume that it is internally valid. We can thus infer at least some internal va-

lidity for the KAOS-β process model through its derivation from KAOS, as summarised

in section 3.3. The internal differences between KAOS-β and KAOS are derived by ap-

plication of the process to an EIS. Here, internal validity can be shown by appeal to

best practices: we add modularity to manage the scope of EIS goal analysis, and we add

traceability so that goal models can be maintained, and can be used to initiate speciﬁc

systems projects in the enterprise.

The KAOS-β process includes explicit iteration, to support the exploratory nature

of goal analysis. The validity of the output of the process (the goal model) is improved

through iterative development and oversight of the process and results by the enterprise

stakeholders.

In terms of goal evaluation, KAOS-β Step 9, identifying obstacles and threats, re-

quires the analyst to consider interaction and negative aspects of goals in evaluating

the goals. KAOS goes further, for example looking at the converse of goals; KAOS-β

evolution should consider adding further goal evaluation heuristics as optional steps, or

adaptation options for use in other EIS situations.

KAOS heuristics advise continuing goal identiﬁcation “to the system boundary”

as a stopping condition, and also advise that reﬁnement should continue until each

goal maps to one agent. For KAOS-β, we propose a validation check that deﬁnes the

boundaries of each module and of the EIS (i.e. the scope of the goal analysis), and

determines that the identiﬁed goals reach the boundaries: this is a coverage condition.

The second validation check is that all goals should be mapped to agents – though we

allow goals to map to many agents, as above: when the enterprise wishes to proceed

to system development, the goal model would form the starting point for requirements

engineering.

External validity looks at the general requirements for a valid process. Here, we use

Ramsin’s criteria [16] for evaluating software engineering processes. However, ﬁrst we

consider the general requirements for a (software engineering) process. We draw on

evaluations of process presentation techniques for UML [5] and Petri-nets [4, 15], and a

general deﬁnition of process as a set of activities, associated results and a product [18],

and add to the requirements of a process the need for deﬁned inputs, deﬁned outputs,

and linkage between steps. The type and domain of input and output of the process shall

be deﬁned for the users of the process. The KAOS-β process outlined above conforms

to these general process characteristics: it is a process to create an enterprise-level goal

structure and EIS architecture; it comprises a set of well-deﬁned activities, represented

as steps, with associated results that link the activities. As a result a goal structure which

is part of the software product design is created.

Good engineeringpractice also proposes that aprocess shouldbe customisable,both

in its ability to evolve, and in relation to adaptation to different situations. This cannot

be assessed directly at this stage.

The criteria-based evaluation applied all Ramsin’s criteria [16], though space does

not permit a complete presentation here. Three criteria require comment: (a) considera-

tion of the clarity, rationality and consistency of the process deﬁnition which cannot be

assessed until KAOS-β is fully reported; (b) coverage of generic lifecycle development

activities is addressed in so far as is possible, but KAOS-β preceeds most conventional

lifecycle development activities; (c) support for umbrella activities (risk management,

project management and quality assurance) have not yet been addressed. The other cri-

teria are summarised in table 1.

This qualitative analysis illustrates that KAOS-β could be applied for some cases

of EIS. We could get conﬁdence about it by testing it in different cases. We believe that

there is no one good process that could be applied to all types of EIS, hence instead we

should focus on the best practices.

Table 1. Evaluation of KAOS-β against Ramsin’s criteria [16].

Seamlessness and smoothness of

transition between phases, stages

and activities

√

KAOS-β retains and improves the ﬂow between ac-

tivities (steps), facilitating iteration or omission of

optional steps

Basis in the requirements

√

KAOS-β address the needs of the example EIS goal

analysis and is aligned with general deﬁnitions of

process and of EIS

Testability and Tangibility of arte-

facts, and traceability to require-

ments

√

Artefacts are tangible: goals, agents, reﬁnement

(goal-model); testability is heuristic; KAOS-β trace-

ability is explicit

Encouragement of active user in-

volvement

√

Intended and facilitated in KAOS-β, as in KAOS

Practicability and practicality (

√

) KAOS-β is applicable EIS; it is a practical modiﬁca-

tion of KAOS. Full practicality needs umberella ac-

tivities (further work)

Manageability of complexity

√

KAOS-β’s clear activities and links minimize com-

plexity

Extensibility / Conﬁgurability /

Flexibility / Scalability

√

Addressed by iterative process, modularity; process

potentially customisable

Application scope (Information

Systems)

√

Scope is EIS goals/architecture

5 Conclusions and Future Work

KAOS-β is a modiﬁcation of KAOS for EIS goal analysis. It has been developed

through experimental application of KAOS to the stroke-care enterprise, a non-trivial

example of EIS that includes different business processes, stakeholders and viewpoints.

Some of the work being undertaken to evaluate KAOS-β and to validate the output of

the process is outlined.

Work is continuing on the development and documentation of KAOS-β. Support

for traceability needs evaluating and testing. More work is needed in identifying and

applying appropriate evaluation techniques. KAOS-β can be applied further within the

identiﬁed modules of the stroke-care goal model, and should be applied to other EIS, to

determine shortcomings and to improve the quality of the process model.

References

1. Yuan An, Prudence Dalrymple, Michelle Rogers, Patricia Gerrity, Jennifer Horkoff, and Eric

Yu. Collaborative social modeling for designing a patient wellness tracking system in a

nurse-managed healthcare center. In International Conference on Design Science Research

in Information Systems and Technology. ACM, 2009.

2. Annie I. Ant´on. Goal-based requirements analysis. In IEEE International Conference on

Requirements Engineering, pages 136–144, 1996.

3. Jaelson Castro, Manuel Kolp, and John Mylopoulos. Towards requirements-driven informa-

tion systems engineering: the tropos project. Information Systems, 27(6):365–389, 2002.

4. Bill Curtis, Marc Kellner, and Jim Over. Process modeling. Comm.ACM, 35(9):75–90, 1992.

5. Marlon Dumas and Arthur H.M. ter Hofstede. UML activity diagrams as a workﬂow speci-

ﬁcation language. In UML 2001, volume 2185 of LNCS, pages 76–90. Springer, 2001.

6. Emmanuelle Delor and Robert Darimont and Andr Rifaut. Software Quality Starts with the

Modelling of Goal-Oriented Requirements. Available at:www.objectiver.com, 2009.

7. RAE-BCS Working Group. The challenges of complex IT projects. Technical report, The

Royal Academy of Engineering, 2004.

8. Volker Gruhn. Validation and veriﬁcation of software process models. In Software develop-

ment environments and CASE technology, pages 271–286. Springer, 1991.

9. Ibrahim Habli, Weihang Wu, Katrina Attwood, and Tim Kelly. Extending Argumentation to

Goal-Oriented Requirements Engineering . In Proc. ER 2007, volume 4802 of LNCS, pages

306–316. Springer, 2007.

10. Eben Harrell. In Denmark’s Electronic Health Records Program, a Lesson for the U.S.

[online]. Available at: www.time.com, April 2009.

11. Evangelia Kavakli and Pericles Loucopoulos. Goal driven requirements engineering: Anal-

ysis and critique of current methods. In Information modeling methods and methodologies,

pages 102–124. IGI, 2005.

12. T. P. Kelly. Arguing Safety – A systematic approach to managing Safety Cases. PhD thesis,

University of York, Department of Computer Science, 1998.

13. Axel Van Lamsweerde. Requirements Engineering: From System Goals to UML Models to

Software Speciﬁcations. Wiley, 2009.

14. Leeds Team. Team notes: Research strategy on information systems for stroke care. Techni-

cal report, University of Leeds, August 2008.

15. Tadao Murata. Petri nets: Properties, analysis and applications. Proc.IEEE, 77(4):541–580,

1989.

16. Raman Ramsin. The Engineering of an Object-Oriented Software Development Methodol-

ogy. PhD thesis, University of York, Department of Computer Science, 2006.

17. Lee Schwamm, Arthur Pancioli, Joe Acker, Larry Goldstein, Richard Zorowitz, Timothy

Shephard, Peter Moyer, Mark Gorman, Claiborne Johnston, Pamela Duncan, Phil Gorelick,

Jeffery Frank, Steven Stranne, Renee Smith, William Federspiel, Katie Horton, Ellen Mag-

nis, and Robert Adams. Recommendations for the establishment of stroke systems of care.

American Stroke Association, 36:690–703, 2005.

18. Ian Sommerville. Software Engineering. Addison Wesley, 8 edition, 2006.

19. Malihe Tabatabaie. Applying gsn to stroke care. Technical report, University of York, 2009.

20. Malihe Tabatabaie, Richard Paige, and Christopher Kimble. Exploring the boundaries of

enterprise information systems. In YDS 2008, pages 27–34, 2008.

21. Malihe Tabatabaie, Richard Paige, and Christopher Kimble. Exploring enterprise informa-

tion systems. In Social, Managerial, and Organizational Dimensions of Enterprise Informa-

tion Systems, pages 415–432. IGI, 2010.

22. DH Stroke Policy Team. National Stroke Strategy. Department of Health: www.dh.gov.uk/

en/Publicationsandstatistics/Publications/, 2007.
