TOWARDS A COMMUNITY FOR INFORMATION SYSTEM

DESIGN VALIDATION

S. Dupuy-Chessa, D. Rieu and N. Mandran

LIG Laboratory, CNRS, University of Grenoble, 681 rue de la Passerelle, BP 72, 38402 St Martin d'Hères, France

Keywords: Design, Validation, Evaluation, Patterns, Community.

Abstract: Information systems become ubiquitous. This opens a large spectrum of possibilities for end-users, but the

design complexity is increasing. So domain specific languages are proposed sometimes supported by

appropriate processes. These proposals are interesting but they are under-validated. Even if validation is a

difficult task, which requires specific knowledge, we argue that validation should be systematic. But many

problems remain to be considered to achieve this goal: 1) computer scientists are often not trained to

evaluation; 2) the domain of information systems design validation and evaluation is still under

construction. To cope with the first problem, we propose to capitalize evaluation practices into patterns so

that they can be reusable for non-specialists of validation practices. For the second issue, we propose an

environment where evaluation specialists and engineering methods specialists can work together to define

their common and reusable patterns.

1 INTRODUCTION

Nowadays, technological progresses such as

microprocessors and sensors miniaturization, and

communication technologies explosion, allow end-

users to access information everywhere at any time

and in a personalized manner. In other words,

information becomes instantaneous, universal and

ubiquitous. This opens a large spectrum of

possibilities for the end-users: they can see their bus

timetable on their mobile phone; they can see

contextualized information on special devices while

visiting a museum; etc. For instance, simply

considering the new human-computer interaction

possibilities triggers business evolution (Godet-Bar,

2008). Therefore design complexity is increased by

adding parameters like devices, location, user’s

characteristics... As mentioned by L. Palen (Palen,

2002), the level to design such systems has been

moved up: many different people (designers,

stakeholders, sponsors end-users) are involved in the

design; many new domain specific languages are

proposed to represent the ubiquitous aspects;

personalised processes must be defined.

However if many proposals for languages or for

processes exist, they are focused too often on the

conceptual contributions while their validation, even

empirical, is not addressed. For instance, in the

software engineering domain, validation is absent of

approximately 30%-50% of the papers that require

validation (Tichy, 1997) (Zelkowitz, 1997).

Considering that this issue is increased by the

expansion of new languages and processes for

ubiquitous information systems, we think that it is

time to cope with the problem of validation in

information systems design methods.

In other domains of computer science such as

human-computer interaction or empirical software

engineering, evaluations are required for any

contribution. In information systems, some works

have defined conceptual frameworks for defining the

quality of languages (Lindland, 1994) (Krogstie,

1998) (Moody, 2003). If these proposals are

interesting to understand the characteristics of a

language or to provide a framework for evaluation,

they do not help non-specialists with practical

considerations. Only few works give practical

guidelines: for instance, (Aranda, 2007) (Patig,

2008) define generic experimental protocols for

models understandability. But evaluation remains

still very much an «art» than a «science» (Nelson,

2005).

To address this issue, we think that evaluation

specialists and engineering methods specialists must

collaborate in order to share and consolidate their

362

Dupuy-Chessa S., Rieu D. and Mandran N. (2010).

TOWARDS A COMMUNITY FOR INFORMATION SYSTEM DESIGN VALIDATION.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Information Systems Analysis and Speciﬁcation, pages

362-367

DOI: 10.5220/0003016503620367

 SciTePress

practices. They must create a community for

evaluation where they can exchange their

knowledge. This knowledge must be also reusable

even for non-specialists in evaluation so that

validation can become systematic. So we propose to

formalise evaluation knowledge with design

patterns, which are well-known by information

system specialists. We are creating an environment

for the diffusion of these patterns, but also for their

elaboration in a collaborative way.

In the next section, we present our vision of

patterns for validation. The third section details the

concept of collaborative design patterns and a tool

that we are currently developing for their creation.

Finally, we conclude this paper with some

perspectives.

2 PATTERNS FOR VALIDATION

2.1 Methods Validation Practices

An information systems design method consists of

modelling languages, a development process model

and tools to manage models or to support process.

The quality of all these aspects has been studied in

some extends in the literature (Dupuy-Chessa,

2009).

Many different ways have been proposed to

evaluate models (Lindland, 1994) (Lange, 2005) (Si-

Said, 2007) or languages (Krogstie, 2003) (Aranda,

2007). Only a few of them have addressed the

problem of process validation. Anyway we can note

the existence of different approaches, which can be

combined in order to offer a global vision of

evaluation practices.

The main approach to evaluate a language is to

realize empirical evaluations with user experiments.

These evaluations are complex because they must

not assess the quality of particular instances of the

languages (e.g. a particular class diagram), but the

quality of the language in general (the class

diagram). (Siau, 2001) uses an approach based on

the human-information processing model Goals

Operators Methods and Selection Rules (GOMS) to

evaluate UML diagrams. The authors measure the

execution time to realize some UML diagrams so as

to determine their complexity.

Another approach to measure a language

complexity is to study its meta-model. A complex

meta-model should lead to a greater expressive

power and thus to smaller models (Mohagheghi,

2007). (Rossi, 1996) explains that there exists an

intrinsic dependency between the meta-model and

the learnability of a language: a modelling language

is composed of a set of diagrams for which some

metrics are calculated. The conceptual complexity of

a diagram is a sum vector of the above diagram

metrics while the complexity of the whole language

is a sum vector of the complexity of its diagrams. In

such a view, the relations between diagrams are not

considered. However the approach has permitted to

compare several object-oriented languages and to

conclude that object-oriented languages become

more complex with time.

Based on their generic quality framework, which

defines the various views of language quality,

Krogstie et al. have also evaluated UML in its 1.4

version. They concluded that UML is difficult to

comprehend because there are many fundamentally

different concepts, which are not always formally

defined.

Finally there is a reverse inference approach

(Moody, 2005) where researchers work backwards

from the quality characteristics of the final system to

the characteristics of the model. We use this

approach to evaluate a new component model, called

Symphony Objects model, because we hypothesised

the existence of a causal relationship between the

characteristics of our conceptual model (the

Symphony Objects model) and the characteristics of

the code. Then we try to evaluate the Symphony

Objects model through the quality of several of its

implementations (Ceret, 2010).

All these proposals are valuable for language

validation and could be reused and combined to

ameliorate information systems design validation.

But they often need to be generalized and described

as practical guidelines.

For processes, their quality is generally

measured by evaluating the process model. For

instance, (Mendling, 2007) studies the

characteristics that make a process model

understandable. Many other works have been

realized in the domain of business process models.

But it is also possible to realize empirical

experiments to validate a process without

considering its model. In (Hug, 2010), we describe a

qualitative evaluation of a method for information

systems engineering processes.

2.2 Formalization with Patterns

Many approaches exist to validate a new language or

a new process. But there are rarely presented in a

reusable way. To be reusable, they must present

practical guidelines such as those proposed in

(Aranda, 2007) and (Patig, 2008). These works

TOWARDS A COMMUNITY FOR INFORMATION SYSTEM DESIGN VALIDATION

363

define generic experimental protocols for models

understandability. We want to promote such

proposals by developing these guidelines in a well-

known approach: design patterns.

A pattern proposes a solution to a recurring

problem occurring in a given context. Patterns are

used to represent both knowledge and know-how

that are linked together through methodological

guidance.

In our context, patterns can be used to provide

techniques and tools for capitalizing knowledge and

know-how of the validation domain. A pattern

allows to identify a problem to resolve (for example,

how to evaluate the understandability of a notation),

proposes a generic and correct solution to this

problem (for example, the generic protocol proposed

by (Aranda, 2007) ) and finally offers indications to

adapt this solution to a particular context (for

instance, how to apply the protocol to UML

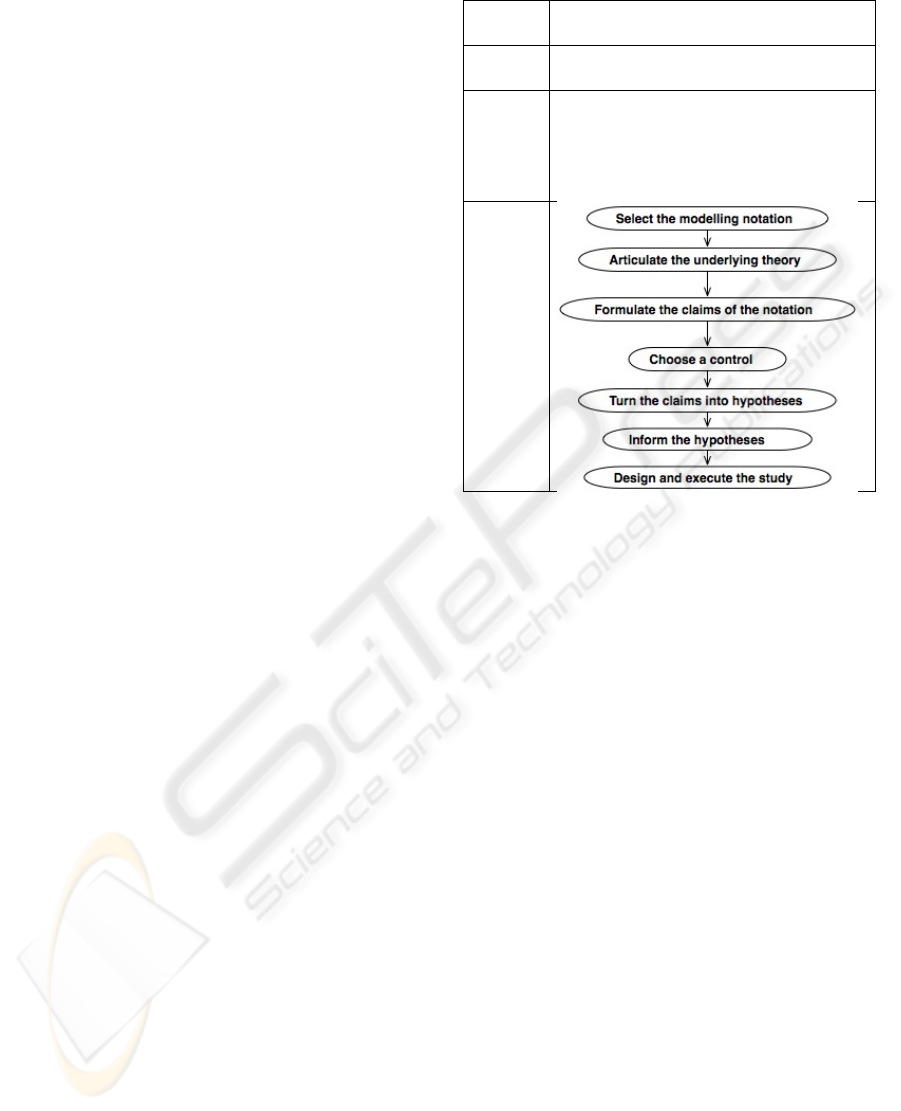

notation). In table 1, the solution of the pattern, i.e.

the protocol, is a know-how represented by an

activity diagram. The first step is to select the

notation. Then the assumptions about the notation

must be identified (“Articulate the underlying

theory” activity). The third activity is to formulate

the claims of the notation regarding comprehension.

A control must be chosen in order to have a baseline

for comparison. Then the claims are turned into

testable hypotheses. Other research area can also

bring some insights about the hypotheses (“inform

the hypotheses”). Finally the study itself is designed

and executed.

In table 1, the pattern describes a know-how; so

it is a process pattern. A process pattern details the

steps to follow to reach a goal (for example, how to

evaluate understandability, how to formulate the

claims of the notation etc) whereas a product

pattern permits expressing a goal to reach (for

example, “What are the characteristics of languages

quality?”).

Finally, problems have still to be solved

regarding pattern organization in order to ensure

effective reuse. Patterns must organize hierarchically

and functionally problems and the manner to resolve

them. They form hence an engineering guide called

patterns catalogues. For the understandability

evaluation problem, all these activities of the pattern

solution (Table 1) can also be represented by

patterns that would be linked in order to show their

dependency. So we will obtain a catalogue of 8

patterns for “understandability evaluation”: one for

the global protocol and one for each of its

composing activity.

With patterns, all the different approaches for

Table 1: Pattern Example.

Pattern

name

Understandability evaluation

Problem how to evaluate the understandability of a

notation?

Motiva-

tion

The effectiveness of models depends on the

communication quality of their languages.

This quality aspect relies partly on

understandability, which can be validated

with this solution.

Solution

evaluation can be described and presented in an

uniform way so that it is easier to find the adequate

solution of a given problem. We hope that this can

help in making evaluation more systematic.

3 TOWARDS AN EVALUATION

COMMUNITY

3.1 Definition of Collaborative Patterns

Usually, patterns express consensual solutions of an

expertise domain. Then patterns are formulated by

domain experts and are used by a whole community.

Recently, the pattern concept has become a way of

sharing and concealing community knowledge

(ODP, 2010): the “best” solution can be at any time

reconsidered and then, modified. The pattern does

not belong to a person, but to a set of experts who

work together in order to consolidate the knowledge

of their domain. Patterns are becoming

collaborative.

We propose to manage collaborative patterns by

adapting the Lécaille’s work on the evolution of a

type of objects: the digigraphics

during design

according to three action modalities (Lecaille, 2003):

• Draftisanobjectonwhichweapplythe

modalities of creation and validation of

hypothesisorsolutionstoaproblem.Theyare

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

364

defined by thedesignactorherselfor conjointly

with other actors who use graphics represented in

traceable objects, printings or in screen views.

• Exhibit is an object on which we apply a

persuasion modality in accordance with what is

represented either for convincing about the existence

of a problem or for showing a solution and allowing

a common construction and the exchange of the

point of view.

• Enabled trace is a traceable or digigraphic

object that one applies a modality of circulation

without constraints. The creator accepts to diffuse it

to the others, after her consent or her agreement with

a collective prescription which she takes part to.

In our work, we consider Draft, Exhibit and

Enabled trace as the three possible states of a

collaborative pattern (Fig. 1).

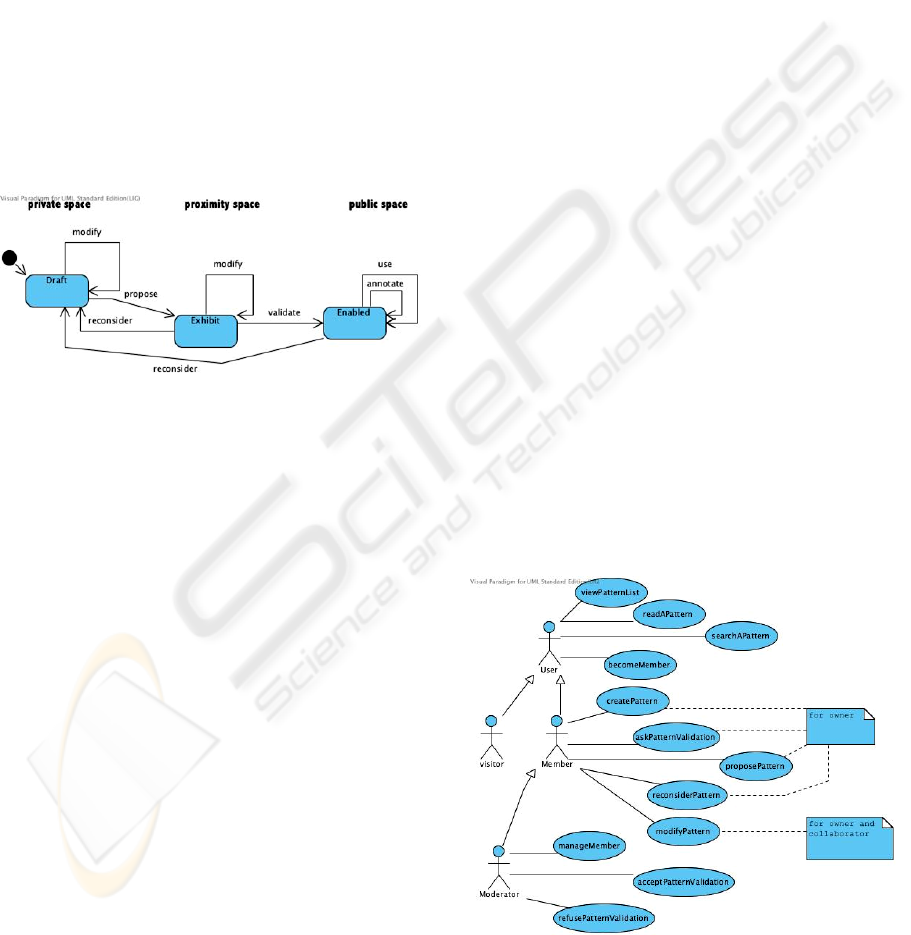

Figure 1: Collaborative pattern lifecycle.

Drafts are kept in the personal (private)

workspace of a community member. Then the

creator needs to confront her ideas with other

members’ point of view; she proposes the pattern to

her proximity workspace based on her personal

network and her loyal relationships. In the proximity

workspace, the creator can expose herself to critics

and judgment of others. When the collaborative

pattern is considered as enabled, it is validated to be

transmitted outside the personal network in the

public space. In the public space, a pattern cannot be

modified but it can be used (i.e. selected and adapted

to a given problem). It can also be annotated (i.e.

commented with marks or evolution suggestions) so

that the pattern creator can decide to reconsider it if

necessary.

The operations on patterns cannot be realized by

anyone. We distinguish 3 roles for a pattern:

• Pattern owners are the pattern creator and any

other person that the creator has accepted as

owner. They can do all operations on their

patterns. In our case, owners will be experts in

evaluation. 

• Pattern collaborators are people in the proximity

workspace of the pattern owners. They can view

and modify the pattern when it is in the

“Exhibit” state. For the domain of information

systems design validation, collaborators can be

other specialists in evaluation, but also

specialists in information systems design. Thus

the evolution of a pattern is a cooperative

activity where the experts of two different

domains must work together in order to create a

valid solution.

• Readers can view, use and annotate the pattern 

when it is in the public space. Readers are non-

specialists of the pattern domain who are simply

looking for information. They can be 

information system specialists looking for a way

of validating their proposal or evaluation

specialists who search for new evaluation

solutions.

Collaborative patterns seem to be a solution to

construct, gather and share the evaluation knowledge

for information systems design. However to be

easily used, they need to be available with a

common tool support.

3.2 Tool Support

In our vision, the evaluation community will share

their knowledge in a web site. This web site will

present the community (their actors, their goals…).

It will also support discussion in a wiki or in a forum

in order to allow the community members to

contribute to the community life. The global

community will be managed by a moderator who

will be responsible for accepting new members,

validating patterns,…(Fig. 2).

Figure 2: Main use cases.

TOWARDS A COMMUNITY FOR INFORMATION SYSTEM DESIGN VALIDATION

365

Figure 3: Website generated by AGAP.

There are also two other actors inside a

community:

• Visitors who are not yet members of the

community. They can only view and search for

patterns.

• Members who have adhered to the community.

They can use and annotate patterns. They can

also create patterns, becoming then “pattern

owner”. And if they are “pattern collaborator”

of a pattern, they can modify this specific

pattern.

The evaluation community web site will also

contain collaborative patterns. Each pattern will be

described in a web page on which it will be possible

to realize the operations identified in the previous

section: creation, modification, use, reconsideration,

validation, but also sharing with the proximity

network or the community. For each pattern, we will

propose a forum to keep discussion opened and to

permit annotations.

As the management of the evaluation community

must be similar to the one of any other community,

we are developing a tool for managing collaborative

patterns in general. Our tool, C-OPEN

(COllaborative Pattern Environment), will permit

the creation of a new community (for instance the

evaluation one) and their management.

This tool will be based on the principles of the

AGAP tool (Conte, 2002) that was designed to

support pattern catalogues. AGAP allows designers

to enter information for patterns (structure, context,

motivation, solution, links between patterns etc) and

then to generate an autonomous website

corresponding to a patterns catalogue.

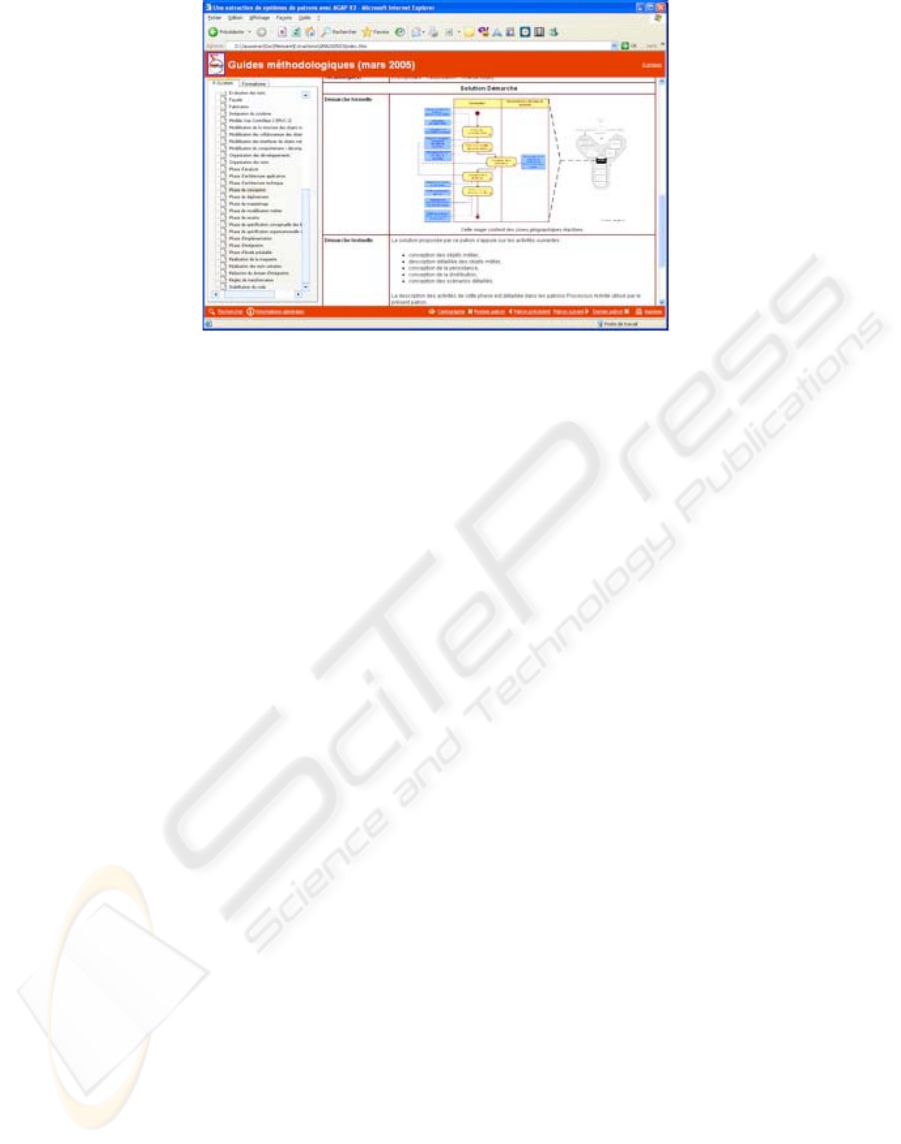

Fig.3 shows a screenshot of the main page of a

patterns catalogue, which represents the activities of

the Symphony development method. The main part

of the interface is dedicated to the display of the

pattern chosen by the user. In the pattern, the

solution, represented by a model (here an activity

diagram), can be selected in order to be reused.

Finally all the patterns are browsable with the list

presented on the left. They can also be found by a

search function.

C-OPEN will add the management of the

collaborative aspects that we have described

previously to AGAP. It will be implemented using

the Alfresco content management solution in order

to facilitate its maintenance.

4 CONCLUSIONS AND FURTHER

WORK

This paper argues for a more systematic validation

of the research proposals of the information systems

design domain. In order to achieve this goal, we

would like to create an evaluation community where

evaluation specialists could share their knowledge

via collaborative patterns. Patterns are viewed not

only as a way of describing knowledge

collaboratively, but also as a mean to share this

knowledge with non-specialists. A specific web site

can then present the knowledge into a user-friendly

way.

Currently we are working with evaluation

specialists so as to identify and describe some of

their knowledge. This will give us our first patterns

for information systems design evaluation.

Moreover, we will be soon able to propose a tool

support for the community so that it will be easy

share knowledge about evaluation. The first

community supported by the tool will be the

evaluation one with the patterns that we are

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

366

currently identifying. It will give us the starting

point of the evaluation community for information

systems design. We hope that the existence of this

community will encourage information systems

specialists to validate their proposals.

REFERENCES

Aranda J., Ernst N., Horkoff J., Easterbrook S., 2007, A

Framework for Empirical Evaluation of Model

Comprehensibility”, In Int. Workshop on Modeling in

Software Engineering (MISE’07), IEEE.

Ceret E., Dupuy-Chessa S., Godet-Bar G., 2010, Using

Software Metrics in the Evaluation of a Conceptual

Component, In Proc. Of the 4

Int. Conf. On research

Challenge in Information Science RCIS’2010, IEEE,

France.

Conte A., Giraudin J. P., Hassine I., Rieu D., 2002,Un

environnement et un formalisme pour la définition, la

gestion et l’application de patrons, revue Ingénierie

des Systèmes d’Information (ISI), volume 6 N°2,

Hermès. [in french]

Dupuy-Chessa S., 2009, Quality in Ubiquitous

Information System Design, In Proc of the 3

Int.

Conf. On research Challenge in Information Science

RCIS’2009, IEEE, Maroc,

Hug C., Mandran N., Front A., Rieu D., 2010, Qualitative

Evaluation of a Method for Information Systems

Engineering Processes, In Proc. Of the 4

Int. Conf.

On research Challenge in Information Science

RCIS’2010, IEEE, France.

Godet-Bar G., Dupuy-Chessa S., Rieu D., 2008, When

interaction choices trigger business evolution, In Proc

of 20th International Conference on Advanced

Information Systems Engineering (CAiSE'08), LNCS

5074, Springer, Montpellier, France, pp 144-147.

Krogstie J., 1998, Integrating the Understanding of

Quality in Requirements Specification and Conceptual

Modeling. Software Engineering Notes, ACM

SIGSOFT, 23(1), pages 86-91.

Krogstie J., 2003, Evaluating UML Using a Generic

Quality Framework, chapter UML and the Unified

Process, Idea Group Publishing, pages 1-22.

Lécaille P., 2003, La trace-habilitée, une éthnographie des

espaces de conception dans un bureau d’études

mécanique: l’échange et l’équipement des objets

grapho-numériques entre outils et acteurs de la

conception, PhD dissertation in INPGrenoble,

novembre 2003. [in french]

Lange C., Chaudron M., 2005, Managing Model Quality

in UML-based Software Development”, In Proc. Of

the 13

Int. Workshop on Software Technology and

Engineering Practice (STEP’05), pages 7-16.

Lindland O. I., Sindre G., Solvberg, A., 1994,

Understanding quality in conceptual modeling. 1EEE

Software, pages 42-49.

Mendling J., Nemann G., Van Der Aalst W., 2007, On

correlation between process Model Metrics and Errors,

In Proc. 26

Int Conference on Conceptual Model

(ER’2007),New Zealand.

Mohagheghi P., Aagedal J., 2007, Evaluating Quality in

Model-Driven Engineering, In Int. Workshop on

Modeling in Software Engineering (MISE’2007),

IEEE.

Moody, D. L., 2003, The Method Evaluation Model: a

Theorical Model for Validating Information Systems

Design Methods. In 11th European Conference on

Information Systems ECIS 2003.

Moody D., 2005, Theoretical and practical issues in

evaluating the quality of conceptual models: current

state and future directions, Data & Knowledge

Engineering, Vol 55, pages 243-276.

Nelson J., Poels G., Genero M., Piattini M., 2005, Quality

in Conceptual Modeling: five examples of the state of

the art”, Data & Knowledge Engineering, vol 55,

pages 237-242.

Ontology Design Patterns web site, 2010, http://

ontologydesignpatterns.org/wiki/Main_Page (last

consultation March 2010).

Palen L., 2002. Beyond the Handset: Designing for

Wireless Communications usability. ACM

Transactions on Computer-Human Interaction, 9(2),

pages 125-151.

Patig S., 2008, A practical guide to testing the

understandability of notations, Conferences in

Research and Practice in Information Technology

Series; Vol. 325, In Proc. of the fifth on Asia-Pacific

conference on conceptual modelling - Volume 7,

pages 49-58

Siau K., Tian Y., 2001, The Complexity of Unified

Modeling Language: A GOMS Analysis, In Proc. Of

the 22th Int. Conference on Information Systems,

pages 443-447.

Rossi M., Brinkkemper S., 1996, Complexity Metrics for

System Development Methods and Techniques,

Information Systems, Vol. 21, num. 2, pages 209-227.

Si-Said Cherfi S., Akoka J., Comyn-Wattiau I., 2007,

Perceived vs. Measured Quality of Conceptual

Schemas: An Experimental Comparison . In Tutorials,

posters, panels and industrial contributions at the 26th

International Conference on Conc, Grundy, John and

Hartmann.

Tichy W., Lukowicz P., Prechelt L., Heinz E., 1997,

Experimental evaluation in computer science: a

quantitative study. Journal of Systems Software, 9,

pages 9-18.

Zelkowitz M., Wallace D., 1997, Experimental validation

in software engineering, Information and Software

Technology, 39, pages 735-743.

TOWARDS A COMMUNITY FOR INFORMATION SYSTEM DESIGN VALIDATION

367
