INFORMATION MICROSYSTEMS

Jordi Pradel, Jose Raya and Xavier Franch

Agilogy, Universitat Politècnica de Catalunya (UPC), Barcelona, Spain

Keywords: Information Systems, Data Conceptual Models, Architectural Styles.

Abstract: Given their need to manage the information they have under control, organizations usually choose among

two types of widely used IT solutions: 1) information systems based on databases (DBIS) that are powerful

but expensive to develop and not much flexible; 2) spreadsheets, which threaten the integrity of the data and

are limited in exploiting it. In this paper we propose a new type of IT solution, namely information

microsystems (MicroIS), that aims at reconciling the best of these two worlds: the low development and

maintenance costs, ease of use and flexibility of spreadsheets, with the structure, semantics and integrity of

DBIS. The goal is not to replace any of the above two paradigms but to lie somewhere in between

depending on the changing needs of the organization. From the various possible points of interest of this IT

solution, the article will focus specifically on issues related to data management, introducing the conceptual

model of MicroIS, the transformations and validations that can be done around it, and they way in which the

structure of the information is inferred from the data that users provide.

1 INTRODUCTION

Nowadays, organizations of any kind require storing

and processing a big amount of information of all

types. With this goal, they may follow different

options. On the one hand, the development of

information systems (IS) allows managing the

information in a highly efficient and secure way

with purposes such as transaction processing,

decision-making support, knowledge management,

etc. Such systems usually are deployed as a

collection of services (bespoke, acquired or licensed)

over an architectural solution that relies on a

(typically relational) data base. We label this type of

solution with the acronym DBIS (Data Base-based

Information System).

Another type of tool that has facilitated

information processing in organizations is that of

spreadsheets. Through an extremely simple and easy

to understand paradigm and offering an almost

unlimited flexibility concerning the contents of each

table’s cell, it becomes straightforward to create, at a

minimum cost, small systems that allow storing

information and solving, at least partially, the

automation needs of the organization without being

necessary to face a complex IT solution

development process.

Both paradigms lie in opposite edges with

respect to flexibility: whilst DBIS restrict the system

entries that are valid, spreadsheets allow writing

almost any value at any cell. This divergence results

in a big difference concerning data integrity, that is

almost complete in DBIS and virtually inexistent in

spreadsheets. They are very different with respect to

development cost: spreadsheets allow reusing the

same generic user interface in all the applications,

whilst in DBIS it is necessary either to develop the

whole, or part of a former one, system, or to

parameterise a generic system, being required in

both cases to have some knowledge on software

development and integration, which results in a high

initial cost to be invested before obtaining the

implied benefits. Last, another aspect equally

important is the difference with respect to mobility:

whilst spreadsheets may be ported without much

effort from one platform to another, DBIS require a

migration process that is not so straightforward.

The purpose of this paper consists on presenting

a solution that allows building IS with the same

properties than spreadsheets: easy of use, a minimal

initial cost and short-term return on investment but

that, unlike spreadsheets, supports evolution into an

DBIS, with integrity rules, relationships among data,

etc. The proposal will reflect the decisions made by

two of the three authors in their daily work in a

small IT solution-provider company (4 IT workers)

that is specialized in deploying custom-made IT

solutions to small enterprises that usually cannot

afford the high cost of DBIS. In fact, the case study

Pradel J., Raya J. and Franch X. (2010).

INFORMATION MICROSYSTEMS.

In Proceedings of the 5th International Conference on Software and Data Technologies, pages 57-62

DOI: 10.5220/0003020000570062

 SciTePress

that will be used throughout the paper for illustration

purposes reflects one of these real projects. Since

our purpose is to facilitate the deployment of small

IS, we have named this new type of IT solution as

Information Microsystems (MicroIS for short). Fig.

1 summarises the main purpose of MicroIS as a

compromise among DBIS and spreadsheets.

Structure and semantics

Personalization

Integrity

Flexible structure

Ease of use

Short-term Return on Investment

Limited functionality

Proliferation of copies

Lack of integrity

Rigidity

Need of programming

Aprioristic modeling

DBIS Spreadsheet

Information

Microsystems

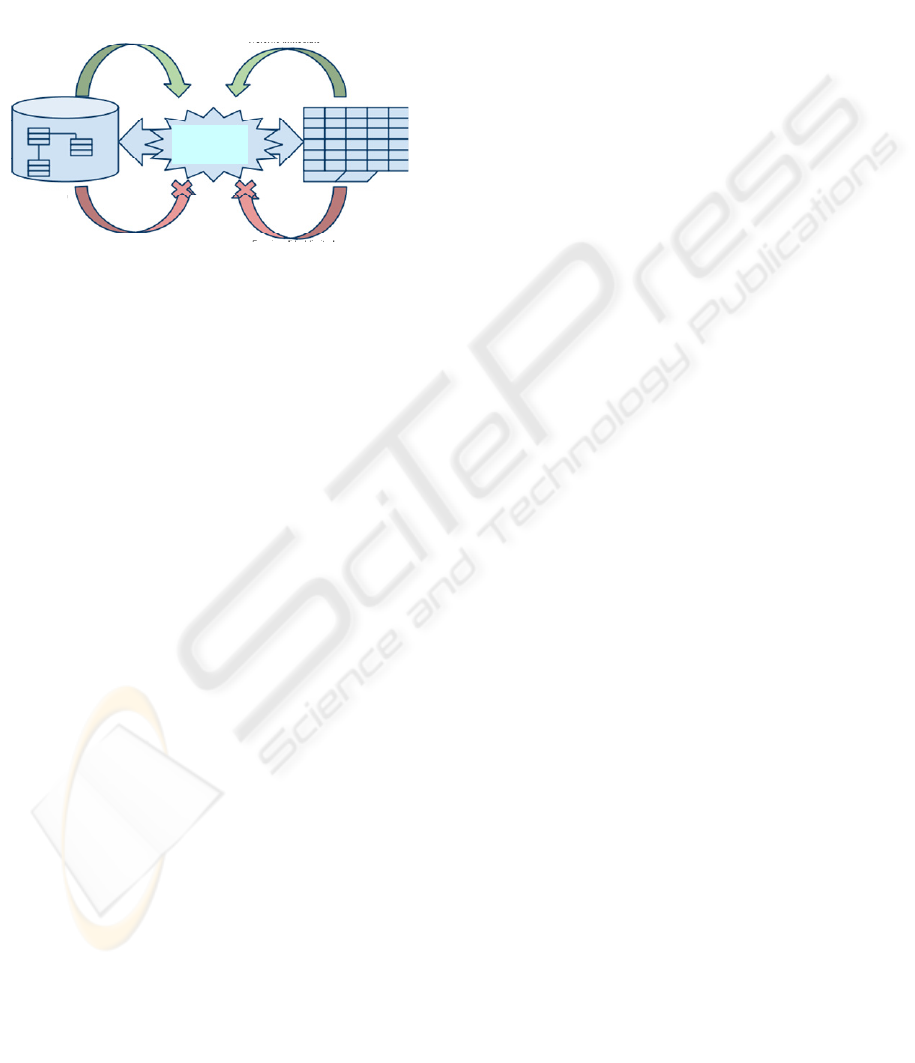

Figure 1: MicroIS: a trade-off among DBIS and

spreadsheets.

As shown in this introduction, the problem faced

by MicroIS is complex and for reasons of space we

focus on this work in areas directly related to the

issue of data structuring. In particular we address the

two following features:

 Semi-automatic data modeling: The system shall,

by appropriate heuristics, suggest the user

possible improvements in the data schema from

the analysis of the stored information so far, in a

way that that a user without knowledge of

conceptual modeling may add structure to his/her

IS. Therefore, the data schema can evolve safely

and easily, without affecting the data already

stored.

 Non-intrusive integrity constraints: The system

will know the data integrity constraints and will

show and ask the user for those values that do

not comply them, and eventually will provide

suggestions for corrections, but these possible

violations of the rules will never prevent the user

to enter the data that they want. At every

moment, the user will be able to locate and

correct the inconsistencies if desired.

2 RELATED WORK

The dichotomy DBIS – Spreadsheets is well-known

and has been addressed by several authors. The

Dabble blog (2005) presents clearly the problematic

of those DBIS whose utility does not guarantee the

return on investment that its development requires

and relates this fact with the concept of "long-tail"

(Kraus, 2005), stating that there is a great deal of

small IS that have not been developed as such for

this reason. The conclusion, however, is very clear

stating that the solution to this problem is not

spreadsheet adoption.

Why, then, are spreadsheets used to implement

this type of system? Baker, Foster-Johnson, Lawson,

and Powell (2006) did an analysis of spreadsheets

over a population of approximately 1600

individuals, noting that only 23% of respondents did

some form of modeling prior to the development of

the spreadsheet. It is reported that the absence of a

need for aprioristic modeling facilitates the IS

creation, because the user can start to enter data

from the very beginning, and add formulas and

formats as need, whilst they are discovered.

Problems arise once information needs evolve, and

inconsistencies start to appear or simply its daily use

becomes cumbersome given the little support

provided by the system for the introduction and

exploitation of data (unlike DBIS, which normally

have a presentation layer designed for that purpose).

At this point, the spreadsheet solution cannot evolve

further and the organization faces again the need of

affording the development cost of an IS. The

DabbleDB application aims at facilitating the

handling of data and schema evolution. Despite

sharing the motivation, we believe that DabbleDB is

not the ideal choice for this type of systems because

it requires an active connection to an Internet server

and, therefore, is not usable in a great deal of

situations. Moreover, it lacks the ability of self-

organizing, so that the whole modelling

responsibility falls on the user without assistance

from the system.

An alternative solution would be the relational

treatment of the information stored in a spreadsheet.

Thus, Cunha, Saraiva and Visser (2009) proposed

the HaExcel tool, which proposes a bidirectional

correspondence between spreadsheets and relational

databases (RDB). However, the objectives

mentioned in the introduction of this paper, namely

implicit modeling and non-intrusive integrity

constraints, are not part of the HaExcel objectives.

In Microsoft ADO.net the possibility of establishing

this correspondence is also mentioned but with the

toll of limiting significatively limiting the starting

structure of the spreadsheet.

Another approach to the problem consists on

reducing the cost of developing the IS through the

automatic generation of applications, based on:

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

models, such as AndroMDA; code, as in OpenXava;

or in existing databases such as Ruby On Rails.

Despite their reported benefits, we believe that all

these tools share a number of disadvantages derived

from the use of RDB: the need for modelling from

the start, that prevents users without development

skills to implement their own solutions (thus their

fail on overcoming "pragmatic" solutions as

spreadsheets); lack of flexibility in the

implementation of the scheme; and the difficulty of

evolution, since the process of generating the

application is unidirectional.

3 CASE STUDY

For illustration purposes, we present a simplified

version of a real project developed by Agilogy, an

application that manages the information of anthro-

pometric data and the visits of customers to a small

dietetics organization, Lalinia. Given this small size,

Lalinia couldn’t afford the development and exploit-

tation of an DBIS due to the high cost of this type of

solution. But on the other hand, Lalinia wouldn’t

accept the spreadsheet option due to the risks related

to the low level of data integrity. The most

fundamental factors for choosing MicroIS were:

 Reduced information. The volume of data to

manage is limited enough as not to require a data

base with rich functionality.

 Low development cost. Given the skeleton of the

MicroIS solution type, creating a new MicroIS as

the one for Lalinia becomes basically a

customization/adaptation process.

 Flexibility. Since Lalinia didn’t have a similar

system before, the main stakeholders (basically,

the dietist and the secretary) were not sure of

knowing the appropriate system requirements in

advance. Even more, the stability of data

requirements along time was not guaranteed. As

a result, it was considered mandatory to be able

to add new structure to the information once new

requirements are gradually discovered.

 Easy of use. It was a requirement that the

application didn’t interfere with the natural flow

of a client’s visit, so Lalinia accepted to allow

incorrect data entry during the visit that would be

correct at some later moment, or even could

eventually remain incorrect.

 Data entry support. The system should be aware

of the data semantics so as to make possible their

input (choosing the values of an association from

a combo box, help fulfilling the constraints

bound to an attribute, etc.).

In Fig. 2, we show a possible scenario that

illustrates the factors above mentioned. The two

main types of information to store are represented in

a tabular form: the personal information and the

anthropometric data; in the second sheet each visit is

represented using a row (item). It may be observed

some of the situations that are typical in these

MicroIS related to data structuring:

 Attributes which are specific to an item. For

instance, there is an item (Luisa Fernández) that

has a datum (the vacation home address) that, for

the rest of clients, is rarely known. These data

are not known in advance, i.e. each client may

provide some particular data and Lalinia wants to

be able to classify the information that is

considered useful instead of simply maintaining

it in a generic comment field. Also, it may

happen that at some future moment, one of this

datum becomes standard, either because a lot of

clients provide it, or because Lalinia discovers

some unexpected utility that increases its

criticality.

 Document that has some potential errors. The

client Juan Pérez has not given his telephone

number but nevertheless Lalinia wants to keep

the rest of data of this item whilst the missing

information does not arrive.

 Lack of structure. Whilst the weight is a data that

is sampled in each single visit, the height may be

just measured the first time, except for the case

of children and teenagers. But nevertheless, if the

dietist decides to measure the height beyond the

first visit, it must be possible to record the new

measure.

 High variability. We may observe the different

forms in which the clients provide their contact

telephone number. Any attempt to anticipate to

all the possible cases and determine a structure in

advance is condemned to failure.

The proposed solution allows these situations to

exist but at the same time provokes some

vulnerability bound to the possible existence of

inconsistencies. These inconsistencies may appear at

the intra-sheet level (for instance, in the

Anthropometric Data sheet we may observe a

typographic mistake in the second client row, first

name, that should be the same than the row above)

or at the inter-sheet level (e.g., in this very sheet the

first and last names of the client are copied and

pasted manually from the contents written in the

Personal Data sheet, therefore if some data is

INFORMATION MICROSYSTEMS

modified in the latter, the required modification in

the former should be made manually, it is not

enforced). These undesired situations must be also

considered in the given solution.

Personal Data

First

name

Last name Telephone e-mail Fax Address

Vacation

address

Jordi Garcia Gil

934130000

ext. 512

+54875 Spring, 1

Montse Tolrà

934444444

10-14h

666666666

(mobile)

mtolra@

gmal.com

River, 5

Marta Vallès

45665432

morning

99999999

afternoon

+54875 Hope, 65

Juan

Pérez

López

juan@hot

m.com

+34567

Luisa

Fernández

Martínez

935559876

luisa@ya

hoo.com

Pine, 14

Tower

Heights, 5

Anthropometric Data

First name Last name Date Weight Height

Juan Pérez López 15/5/09 120 kg 185 cm

Jusn Pérez López 20/5/09 115 kg

Luisa Fernández Martínez 17/5/09 50 kg 160 cm

Luisa Fernández Martínez 25/5/09 52 kg 1’60

Figure 2: A possible, valid state for Lalinia’s MicroIS.

4 MICROIS MODEL

A MicroIS is basically a small data repository.

However, its nature is closer to that of an office

product than to the nature of a typical relational data

base, since it has to manage sets of information of a

reasonable size by means of an interactive tool that

manages the structure, the data and the user interface

altogether. This graphical interface will be based on

a generic model for all the application although, as

usual office tools do, will allow customization.

If we focus on the data perspective, the main

difference among a DBIS and a spreadsheet is the

independence of the stored data with respect to the

scheme that determines its structure, as in the “Type

Object” pattern by Johnson and Woolf (1997). This

can be observed in the UML conceptual data model

presented in Fig. 3, where there appear two areas

neatly differentiated: data (to the left) and structure

(to the right) of the MicroIS class.

Given that the data items exist independently of

classifications, they will be identified individually

by means of an artificial key generated by the

system. Each item will have bound a set of

properties (identified by their name inside the item,

e.g., Last Name or Vacation Address) that will be

composed by an ordered set of values (e.g., the class

Telephone in those items that have more than one

telephone). These values may be primitive values,

references to other types or formulae.

At their turn, the type system defined by the

schema of a MicroIS is composed of primitive types

(supported natively by the system) and classes.

Classes are generic definitions of items’ structure

(e.g., Personal Data and Anthropometric Data) and,

as such, they define a set of attributes that will of a

concrete type: primitive type, formula or reference

(bidirectional, therefore it will be also required to

know the inverse attribute, see for instance the

inverse association in the figure). The classes allow

adding consistency to the MicroIS whilst facilitating

the input of data by the user. They also allow

creating views, formula and queries since they

provide a method for selecting items.

Each item may be classified as belonging to a

particular schema’s class. Each class will act as a

template of the properties that are expected that the

item has (each attribute will correspond with the

property of the item that has the same name), in

addition to establishing a set of validation rules (see

Section 5).

5 SEMANTIC VALIDATION

Validations are part of the very schema and thus

they are defined together with it, and its fulfilment is

checked in the same way that the other constraints of

the schema; in fact, the type of validations that a

given item must fulfil will depend on its classes and

attributes. A tool implementing the proposed para-

digm should, consequently, validate the fulfilment of

the schema and the validations for all the different

items. The validation subsystem has been defined in

an extensible way so that in future versions of the

MicroIS concept, adding new types of integrity

constraints becomes an easy process. Even, with an

appropriate user interface, the ultimate intention is to

let the final client of the particular MicroIS instance

to define their own validation checks.

The validation subsystem has been integrated

into the MicroIS conceptual data model, as it is

shown in Fig. 4, where several restrictions currently

implemented are shown.

It may be observed that the class Constraint

offers two operations over Items.

Constraint::appliesTo?(i: Item) indicates if a

Constraint must be checked for a particular item,

whilst

Constraint::compliant?(i: Item)

indicates if an item for which a Constraint must be

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

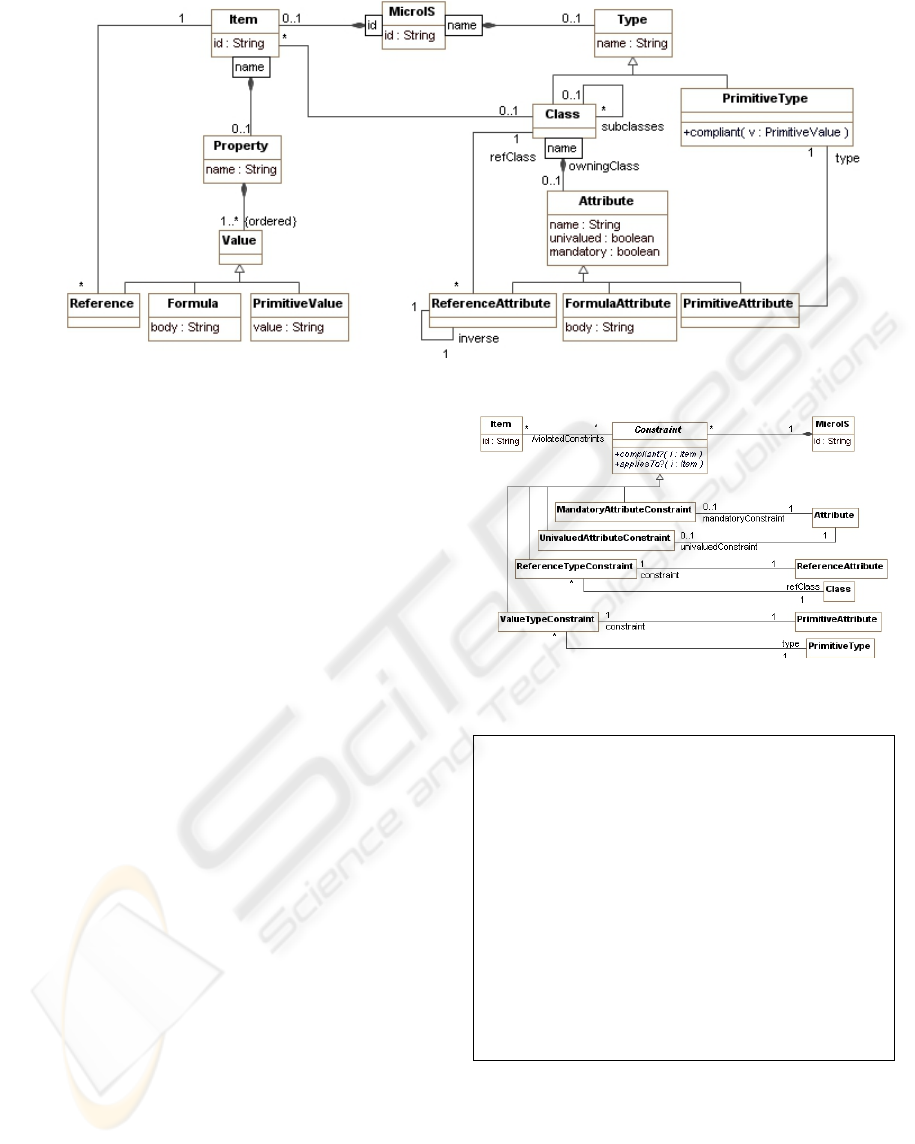

Figure 3: A UML data conceptual model for MicroIS.

check is compliant with it or else it violates it.

These operations are abstracts, therefore they must

be defined in each type of constraint. As an example,

Fig. 5 shows the definition of those operations for

two particular types of Constraint. Both constraints

are applicable to items whose class corresponds to

the class of the attribute bound to the Constraint.

6 TRANSFORMATIONS

From the viewpoint of data structure, the main

characteristic of MicroIS is schema flexibility. To

maintain the integrity of the information it is

necessary to define exactly what transformations can

be carried out on the schema and how they will

affect both the scheme itself and the population of

existing items. To study this problem we rely partly

on Ambler and Sadalage’s work (2006), which

studies a set of refactoring operations for introducing

changes in relational data bases that are already in

production and proposes a series of techniques to

gradually migrate systems utilizing these data bases.

Unlike refactoring in data bases, modifying the

schema is much easier when items are out of it and

the compliance to the schema is optional and

therefore it is permitted to be in a temporary

situation where no all the restrictions are met.

Figure 4: A UML data conceptual model for MicroIS

validations.

context MandatoryAttributeConstraint::

appliesTo?(i:Item) =

i.class=self.attribute.class

context MandatoryAttributeConstraint::

compliant?(i:Item) =

i.property[self.attribute.name]->size()>0

context ValueTypeConstraint::appliesTo?(i:Item) =

i.class=self.primitiveAttribute.class

context ValueTypeConstraint::compliant?(i:Item) =

(i.property[self.primitiveAttribute.name]

->size()==0 or

i.property[self.primitiveAttribute.name]->

foreach(v|v.oclIsTypeOf(PrimitiveValue)

and

self.primitiveAttribute.

primitiveType.compliant?(v)))

Figure 5: OCL definition of two types of constraints.

So far, we have identified 16 atomic

transformations that we have implemented in this

first version of MicroIS. As an example, Figure 6

shows the detail of one of them, the classification of

items, using a template that we have defined for this

purpose.

INFORMATION MICROSYSTEMS

Name: Classify Item

Summary: Binds a class C to an item I

Motivation: Indicates that the item I belongs to class C with the goal

that, from this moment, all the validation rules defined over C are

applied over I, and that I is included in all the views and queries of

items of class

Effects over data: None

Effects over the schema: the item I includes the class C as its class

Restrictions that may be violated: All that apply over C

Contract: -- effects of the transformation on the model

context MicroIS::classifyItem

(itemId: String, className: String)

let I: Item = self.items[itemId] in

let C: Class = self.types[className] in

pre: I->notEmpty()

pre: C->notEmpty()

post: I.class = C

Figure 6: Definition of the transformation Classify.

7 CONCLUSIONS

This article has proposed a new paradigm of

information system, the MicroIS, which stands in the

middle between information systems based on

databases and spreadsheets. This paradigm, although

it had originated in the context of information

systems for managing the core business of small

organizations in a desktop application setting, could

be applied in other type of environments.

Concerning data, the main feature of the new

paradigm is the ability to fluctuate between different

states of consistency / structure according to user

needs. For this purpose, it has been necessary to

standardize and document all possible

transformations on the scheme so that, at all times,

integrity of information is preserved.

The paradigm that we propose involves the user

in maintaining the integrity of the data to allow it to

store information that does not follow the rules of

integrity. For this reason we believe that this

paradigm does not apply to systems where the

information handled is critical (because of the

possibility of inconsistencies) or systems where the

volume of information is too large for manual

processing and individual potential inconsistencies.

Given our experience over 10 years in development

projects for organizations of all types, conditions

that make the MicroIS an attractive alternative are:

flexibility, because the possibility of having different

states of structuring and consistency, facilitates

adaptation to changing requirements; low

development cost, because it is possible to develop

small information systems without the need for

specialists and with an investment much lower than

in the case of DBIS and with a return on investment

much faster; usability, due to the existence of a

generic interface for all MicroIS, which facilitates

their usability.

Some aspects of MicroIS have not been covered

in this article for space reasons, including self-

structuring, the creation of queries (based on an

expression language), the creation of views (based

on the same expression language that queries) and

the presentation of the generic user interface that

allows working consistently with different MicroIS

while establishing the standard mechanisms of

personalization (based on views).

Our future work is aimed at giving more

expressiveness to auto-modeling features, both

regarding the detection of situations and the

suggestion of alternatives, especially in reference to

the identification of non-trivial situations like

generalization / specialization relationships.

ACKNOWLEDGEMENTS

This work is partially supported by the project

TIN2007-64753.

REFERENCES

Ambler, S. W., Sadalage, P. J. (2006). Refactoring

Databases: Evolutionary Database Design. New

York: Addison-Wesley.

Dabble blog. (2005). Shouldn’t be Spreadsheets. Retrieved

April 30, 2010, from http://blog.dabbledb.com/

2005/03/shouldnt-be-spr.html

Baker, K. R., Foster-Johnson, L., Lawson, B. and Powell,

S.G. (2006). A Survey of MBA Spreadsheet Users.

Retrieved April 30, 2010, from http://mba.tuck.

dartmouth.edu/spreadsheet/product_pubs.html.

Cunha, J., Saraiva, J. and Visser, J. (2009). From

Spreadsheets to Relational Databases and Back.

Proceedings of ACM SIGPLAN Workshop on Partial

Evaluation and Program Manipulation, PEPM09,

Savannah, Georgia, USA.

Johnson R. and Woolf B. (1997). Type Object Pattern.

New York: Addison-Wesley.

Kraus, J. (2005). The long Tail of Software. Millions of

Markets of Dozens. Retrieved April 30, 2010, from

http://bnoopy.typepad.com/bnoopy/2005/03/the_long_

tail_o.html.

ICSOFT 2010 - 5th International Conference on Software and Data Technologies
