A Software Framework for Mapping Neural Networks

to a Wafer-scale Neuromorphic Hardware System

Matthias Ehrlich

, Karsten Wendt

, Lukas Z¨uhl

, Ren´e Sch¨uffny

Daniel Br¨uderle

, Eric M¨uller

and Bernhard Vogginger

Technische Universit¨at Dresden, Lehrstuhl f¨ur Hochparallele VLSI-Systeme und

Neuromikroelektronik, 01062 Dresden, Germany

Ruprecht-Karls-Universit¨at Heidelberg, Kirchhoff-Institut f¨ur Physik

69120 Heidelberg, Germany

Abstract. In this contribution we will provide the reader with outcomes of the

development of a novel software framework for an unique wafer-scale neuromor-

phic hardware system. The hardware system is described in an abstract manner,

followed by its software framework which is in the focus of this paper. We then

introduce the benchmarks applied for process evaluation and provide examples

of the achieved results.

1 Introduction

Several current neuromorphic research projects, such as Fast Analog Computing with

Emergent Transient States – FACETS [1] or the Spiking Neural Network Simulator –

SpiNNaker [2], aim at the exploration of novel computational aspects of large scale,

biologically inspired neural networks with over a million neurons, simulated in real-

time or even with a speed-up in respect of the biological archetypes on full custom or

modiﬁed general purpose hardware.

The undertaken hardware research of FACETS encompasses the development of

a novel neuromorphic wafer-scale hardware system in an collaborative effort of the

Ruprecht-Karls-Universit

at Heidelberg – UHEI and the Technische Universit

at Dres-

den – TUD. The current level of development,Stage 2 incorporates the design of a wafer

element and its dedicated software framework for the mapping of neural architectures

onto the hardware substrate as well as the conﬁguration and control of said system.

The wafer-scale hardware system is ﬁrst described in section 1.1 followed by the

details of the software framework in section 2. The benchmarks applied are presented

in section 3 along with examples. An outlook concludes this contribution.

1.1 FACETS Stage 2 Architectural Overview

For the description of the FACETS Stage 2 hardware system as introduced by [1], [3]

and in the following referred to as FS2 hardware we will focus on details of the architec-

ture that inﬂuence the mapping of given neural networks onto the hardware. Figure 1 (a)

Ehrlich M., Wendt K., Z

uhl L., Sch

uffny R., Br

uderle D., M

uller E. and Vogginger B. (2010).

A Software Framework for Mapping Neural Networks to a Wafer-scale Neuromorphic Hardware System.

In Proceedings of the 6th International Workshop on Artiﬁcial Neural Networks and Intelligent Information Processing, pages 43-52

 SciTePress

shows an abstract view of one wafer element of the FS2 hardware system. The foun-

dation layer of the FS2 hardware is an array of reticles shown as light gray squares,

housing High Input Count Analog Neural Network – HICANN or HC circuitry that was

developed at UHEI [1] and implements neural functionality such as neurons, synapses

and weight adaptation. On top resides a layer of communication circuits called Digital

Network Chip – DNC developed at TUD [3]. The third and topmost layer represents

a regular grid of FPGAs

, colored dark gray. Disabled or inoperable components are

colored white.

(a) (b)

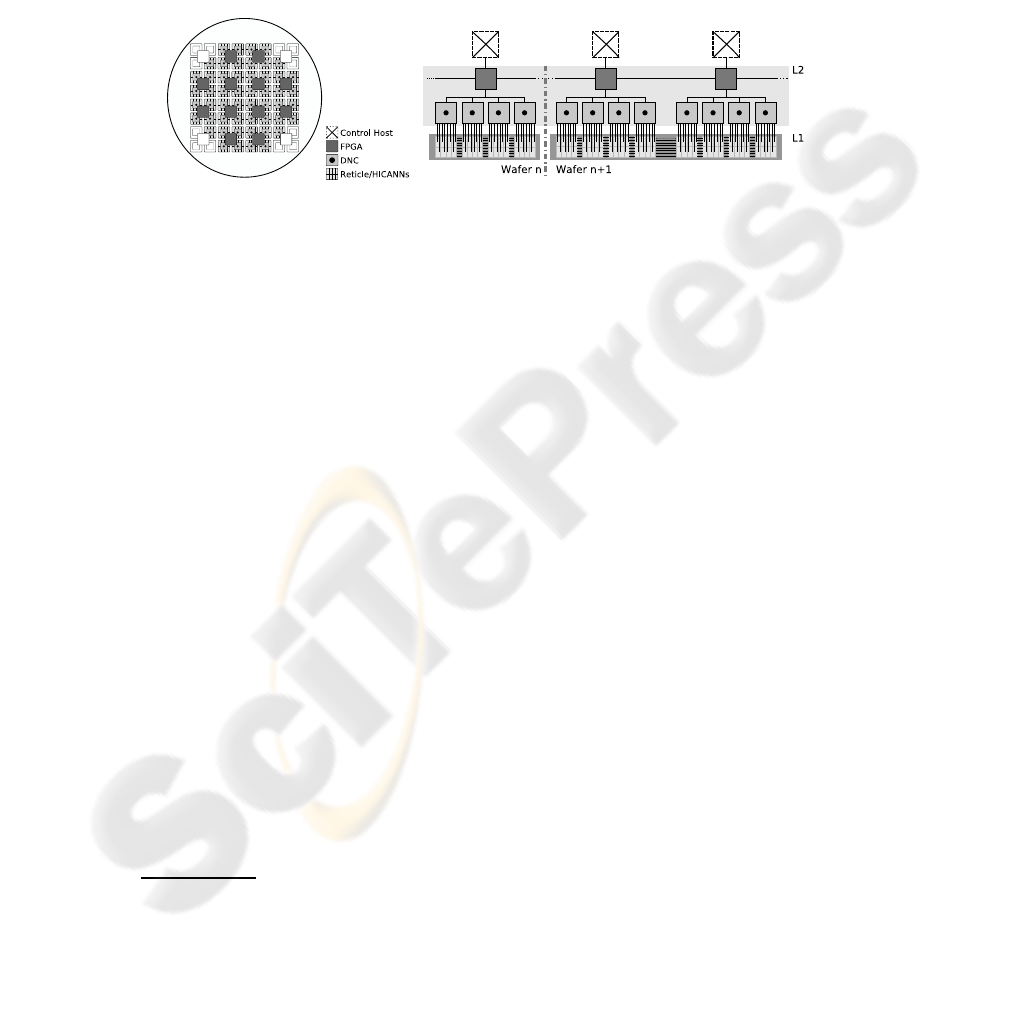

Fig.1. Abstract view of a) one wafer from top and b) the communication hierarchy from side.

Figure 1 (b) depicts the communication networks, their hierarchy and connectivity.

Two distinct communication networks can be distinguished. An asynchronous, address

coded, named Layer 1 – L1 utilized by HCs at wafer level for intra-wafer communi-

cation and a second one, named Layer 2 – L2 utilized by DNCs and FPGAs for syn-

chronous, packet based inter-wafer communication. Host computers are connected via

Ethernet to the FPGAs to handle the mapping, conﬁguration and control process de-

scribed in the following.

1.2 The HICANN

A simpliﬁed view of the HC chip following [1], [4] is drawn in ﬁgure 2 as a symmetric

array of neural and communication elements. The dendritic membranes, or denmems

are the neural core components. Each denmem provides two synaptic input circuits

emulating ion channels. Up to 2

denmems can be grouped, i.e. connected together to

form a neuron with a higher synaptic input count or a more detailed model by increasing

the number of conductive time constants. Synapses, situated in an adjacent synapse

array are connected to the denmems. Whether a synapse is connected to the excitatory

or inhibitory input of a denmem is decided row-wise in the synapse driver, or syndriver.

A syndriver is fed from one of 2 × 2

vertical L1 bus lanes via select-switches or from

a neighboring syndriver. It drives the synapses via strobe lines, as depicted as thin lines

in ﬁgure 2 lens (1), and selects the receiving synapse via an address, the thick lines.

A ﬁxed part of the synapses address determines the strobe line to use and follows the

address pattern shown in lens (2). Each synapse belongs to the denmem located below

the synapse array in the same column. A group of denmems is connected to one of 2

Field Programmable Gate Array

horizontal L1 bus lanes and L2 by a priority-encoder that multiplexes and prioritizes

the bus access.

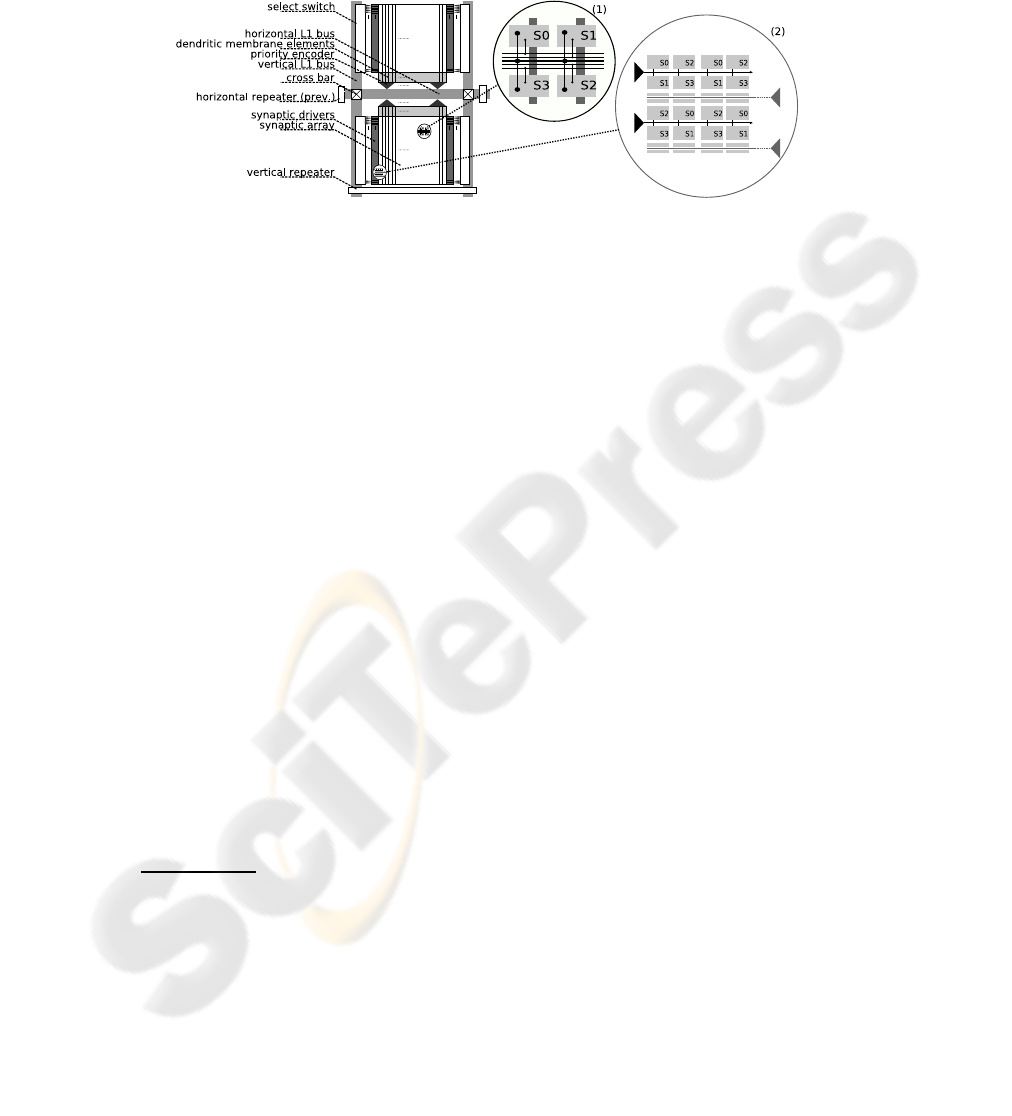

Fig.2. A schematic view of one HICANN [1], [4].

Repeaters and cross-bars are then conﬁgured to interconnect the vertical and hori-

zontal buses with unidirectional connections. The neural pulses generated by the den-

mems are transmitted asynchronously on L1 as bit sequence encoding the senders ad-

dress or arbitrarily on L2 encoding the address and the pulse timing.

1.3 Parameter Space

Every denmem implements the dynamics of the Adaptive Exponential Integrate-and-

Fire – AdEx model [5] including model’s mechanisms such as spike frequency adaption

and active spike generation. A total of 24 parameters determine the behavior of a den-

mem, some of which correspond directly to the AdEx model, others are of technical

nature

The synaptic weight of a synapse is determined by an individual digital weight

value of 4-bit resolution and a ﬁxed maximum conductance g

max

, which can be set for

every synapse row by a programmable analog parameter. The synapse circuit generates

a square current pulse, which is injected into one of the synaptic input circuits of the

denmem, where it modulates a transient synaptic conductance. The amplitude of this

square current pulse is weight × g

max

and its length is τ

STDF

, where τ

STDF

is modulated

by the short term depression or facilitation – STDF [6] plasticity mechanism in the

synapse driver.

We assume a hardware model setup for conﬁguration of the FS2 hardware follow-

ing [1], [4]. With an 8×8 HCreticle array of 8 HCs per reticle and 48 functioning reticles

per wafer, thus a total of 512 HCs. Furthermore, 8 HCs per DNC result in 48 DNCs and

4 DNCs per FPGA give a total of 12 FPGAs. With N

MaxHC

∈



, 2

, ..., 2



As conﬁgurable parameters allow to vary time constants of neural and synaptic dynamics it is

possible to operate the FS2 hardware system with a speed-up from 10

to 10

compared to

biological scale, depending on the system’s load, as excessive speed-up may lead to pulse loss

due to limited bandwidth.

MaxHC

is held constant for a network and determined by the detail level of the neuron

model [1] or the synaptic input count of a neuron [4].

maximum neurons per HC the total number of available neurons is given by N

H × N

MaxHC

, where H denotes the number of HCs available for mapping

. The num-

ber of synapses available on the hardware S

= H × S

, with S

being number

of synapses per HC, which for the used conﬁguration is constant with: 2 × 25 6

and the

number of dendritic elements per HC D which equals 2 × 256. With 2

denmems per

priority encoder this results in 8 priority encoders and thus a 6-bit L1 address.

2 The FACETS Stage 2 Software Framework

The FS2 software framework provides the functionality to map a given network onto

the hardware, conﬁgure it, control the simulation and examine the results of the map-

ping and simulation process.

2.1 PyNN & Hardware Abstraction Layer

For the FACETS hardware systems, a user interface is now available that provides a

novel way to bridge the gap between the domains of pure software simulators and neu-

romorphic hardware devices [7], [8]. The Python-based neural network modeling lan-

guage PyNN [9], see Figure 3 has been developed by FACETS members. It represents

a simulator-independent set of functions, classes and standards for units and random

number generation that can be used to describe complex models of networks of spiking

neuronsusing a biological terminology - either in an interactive or in a scripting fashion.

Models written with the PyNN API can be executed with various established software

simulation tools such as NEURON [10], NEST [11], Brian [12] or PCSIM [13]. For all

supported back-ends a speciﬁc Python module automatically translates the PyNN code

into the native scripting language of the individual simulator and re-translates the re-

sulting output into the domain of PyNN. Thus, PyNN allows to easily port experiments

between all supported simulators and to directly and quantitatively compare the results.

Among many other beneﬁts, this uniﬁcation approach can increase the reproducibility

of experiments and decreases code redundancy.

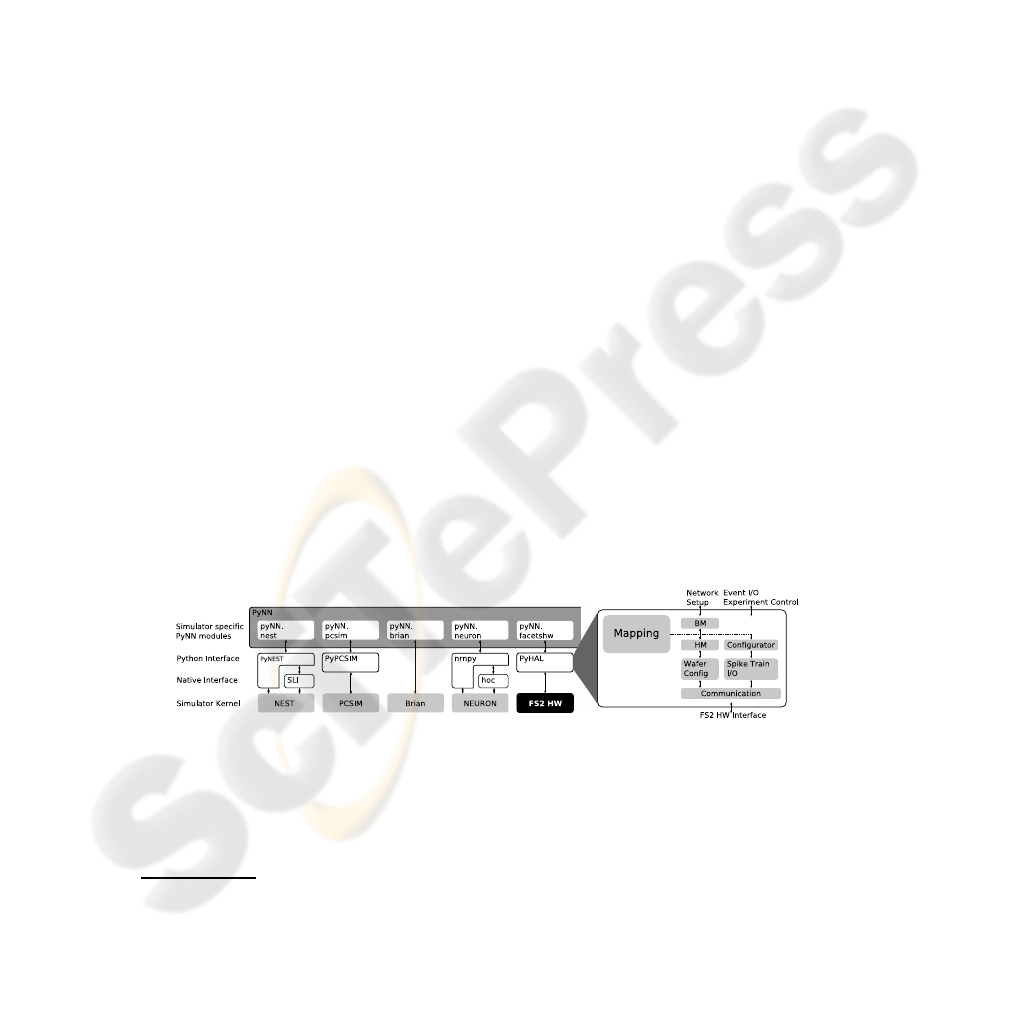

Fig.3. PyNN framework following [9] and the FS2 HAL.

The integration of the FACETS hardware systems into the PyNN concept adopts

these beneﬁts. Additionally,the PyNN hardwaremodule offers a transparent method via

which the communities of computational neuroscience and neuromorphic engineering

H is not necessarily equal to the total number of HCs available in the system.

can exchange experiments and results. With the novel approach, non-hardware-experts

can be provided with a well documented interface that is very similar to interfaces of

most established software simulators [14].

While PyNN itself represents a precise deﬁnition of the user interface, the Hardware

Abstraction Layer – HAL module actually implements the automated translation of any

given network setup into the data model described in the following, which performs the

mapping of the experiment onto the available hardware resources and into the hardware

parameter domain. The said translation process also conducts the transition between the

Python domain of PyNN and the C++ objects of the mapping framework and all lower

software layers.

2.2 Data Model

To cope with the hierarchical structure of the hardware system a data model resembling

a hierarchical hyper graph was developed [15]. The graph model consists of vertices

representing data objects and edges as relationships among them. Where a vertex holds

atomic data, an edge can be a hierarchical, a named or a hyper edge. Hierarchical

edges model a parent-child relationship, thus structuring the model. Named edges form

a directed and named relation between two vertices from/to any location in the model

and hyper edges assign a vertex to a named edge, characterizing it in more detail. Its

ﬂexibility allows to store every information during the conﬁguration process, i.e. the

models itself as well as the placement, routing and parameter transformation data.

2.3 Data Interface

To overcome the access of nodes and edges or subsets of the graphs elements by navi-

gating the native data structure we provide a novel path-based query-language, named

GMPath. Via GMPath, along with its corresponding API as described in the accompa-

nying publication [16] data can be retrieved from or stored to the models by a program

via static or dynamically created queries.

2.4 The Mapping Process

With regard to topology constraints between hardware blocks such as connectivity, con-

nection counts, priorities and distances as well as source/target counts the mapping

determines a network conﬁguration and parameter set for the hardware. This is accom-

plished in the three steps of placement, routing and parameter transformation.

During placement, the mapping process assigns neural elements like neurons or

synapses to distinct hardware elements. As placement comprises different optimiza-

tion objectives, it can be characterized as a multi-criteria problem the solution quality

of which inﬂuences the overall mapping results signiﬁcantly. Possible objectives are,

e.g. to minimize the neural input/output variability clusterwise, to minimize the neural

connection count, also clusterwise, or to minimize routing distances while maintaining

compliance with constraints such as parameter limitations or hardware element capac-

ities. As the optimization problem is NP-complete a force-based optimization heuristic

with user-deﬁned weightings, named NFC, was developed to achieve these objectives in

acceptable computation time. This algorithm balances ”forces”, the implementation of

said optimization objectives in an n-dimensional space until an equilibrium is reached.

In a subsequent separation step it assigns its data objects to clusters with afﬁne proper-

ties. We distinguish between the simple algorithms described in [17] and the NFC.

The routing subsequently determines a conﬁguration for the synaptic connections

on L1 and L2 and can be split into the two subsequent steps of intra- and inter-wafer

routing. The intra-wafer routing algorithms [4] route connectivity exclusively on L1

and reserve L2 for inter-wafer routing which is inactive for a wafer-scale system.

Parameter transformation ﬁnally maps the model parameters of given neurons and

synapses, such as weights, types or thresholds into hardware parameter space. As not

every biological parameter, or its corresponding model parameter in the PyNN descrip-

tion, has its individual counterpart in hardware but is often emulated by a set of correlat-

ing parameters, an adequate biology-to-hardware parameter translation has to be found,

e.g for the membrane circuits a transformation from 18 biological parameters of the

PyNN AdEx neuron model description into a conﬁguration of 24 adjustable electrical

hardware parameters.

The desired speedup factor between 10

to 10

which is determined by the temporal

dynamics of the membrane and synaptic circuitry is ﬁnally set by adjusting parameters

as the size of the membrane capacitances, conductances responsible for charging it or

the current controlling the synaptic conductance.

2.5 Analysis

A new standalone application named Graph Visualization Tool – GraViTo aids the user

with the analysis and debugging of mapping data. GraViTo incorporates envisioNN

and H3 graph viewer [18] modules that display graph models in textual and graphical

form and gathers statistical data. One can selectively access single nodes inside the data

structure and visualize its context, dependency and relations with other nodes in the

system.

Views of GraViTo are shown in ﬁgure 4, such as the tree view to browse the hierar-

chical structure of the graph model, the GMPath query view and the 3D view. The 3D

view is specialized on rendering BM and HM and the mapping between them in three

dimensional form to provide a contextual view over the models, their components and

connectivity. It also provides a global overview over the hardware components and the

networks. To support the analysis of the mapping results various statistics are gathered

and displayed, e.g. as histograms for utilization of the crossbars, the HC blocks or the

synaptic connection lengths.

3 Benchmarks

Benchmarks aid in evaluating the mapping process. First benchmarks concerning map-

ping efﬁciency with focus on intra-wafer routing and hardware utilization were car-

ried out at UHEI [4] with random networks, macrocolumns and locally dense/globally

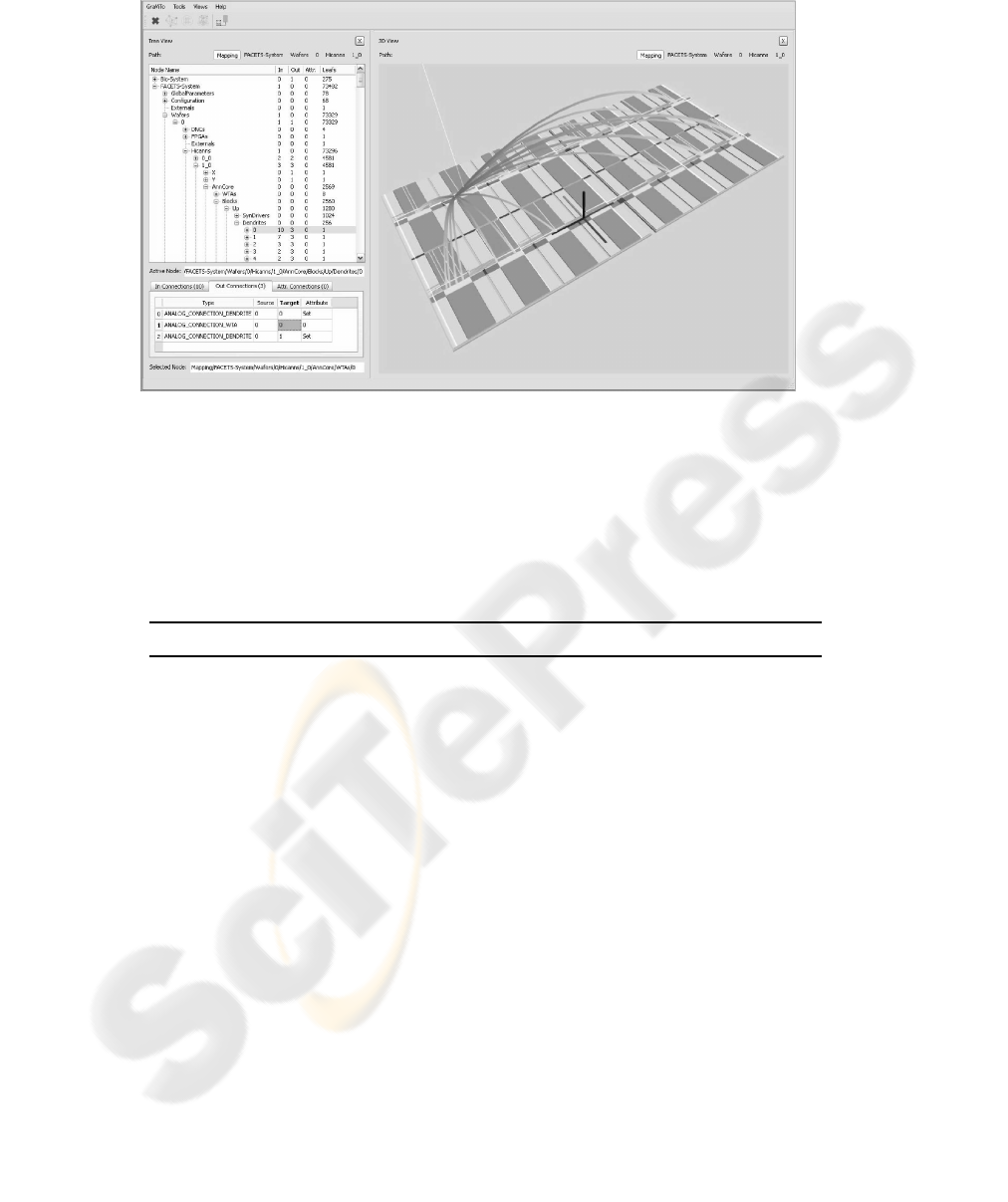

Fig.4. Screenshot of GraViTo’s viewers.

sparse connected networks in order to explore the system’s design space. New bench-

marks are listed in table 1. The new benchmarks are implemented in PyNN and were

provided from FACETS project partners but also from the neuromorphic research com-

munity outside of FACETS.

Table 1. Selected Benchmarks.

Benchmark Description

INCM ALUF Synﬁre Chain based on [19], provided by

L’Institut de Neurosciences Cognitives de la M´eediterran´ee

– INCM, Marseille, France in cooperation with

Albert-Ludwigs-Universit¨at Freiburg – ALUF, Freiburg, Germany

KTH Layer 2/3 Attractor Memory following [20], provided by

Kungliga Tekniska H¨ogskolan - KTH, Stockholm, Sweden

UNIC Model of Self-Sustained AI States following [21], provided by the

Integrative and Computational Neuroscience Unit – UNIC of the

Centre national de la recherche scientiﬁque – CNRS, Gif-sur-Yvette, France

As an example we apply the mappingprocess to the scaled benchmarksin a 4×4 ret-

icle conﬁgurationwith an N

MaxHC

= 2

to evaluatethe mapping quality. As a measure

of the overall mappingquality the parameters as deﬁned in [4] apply. The routing quality

Route

= S

Map

BIO

, with S

Map

being the number of mapped synapses over S

BIO

which is the number of synapses in the BM. Thus, (1 − q

Route

) is the relative synapse

loss. The hardware efﬁciency is described by e

= S

Map

, where S

de-

notes the synapses available on the FS2 hardware for mapping. As a further parameter

for network classiﬁcation we deﬁne the connection density ρ

Syn

= S

BIO

(a) (b) (c)

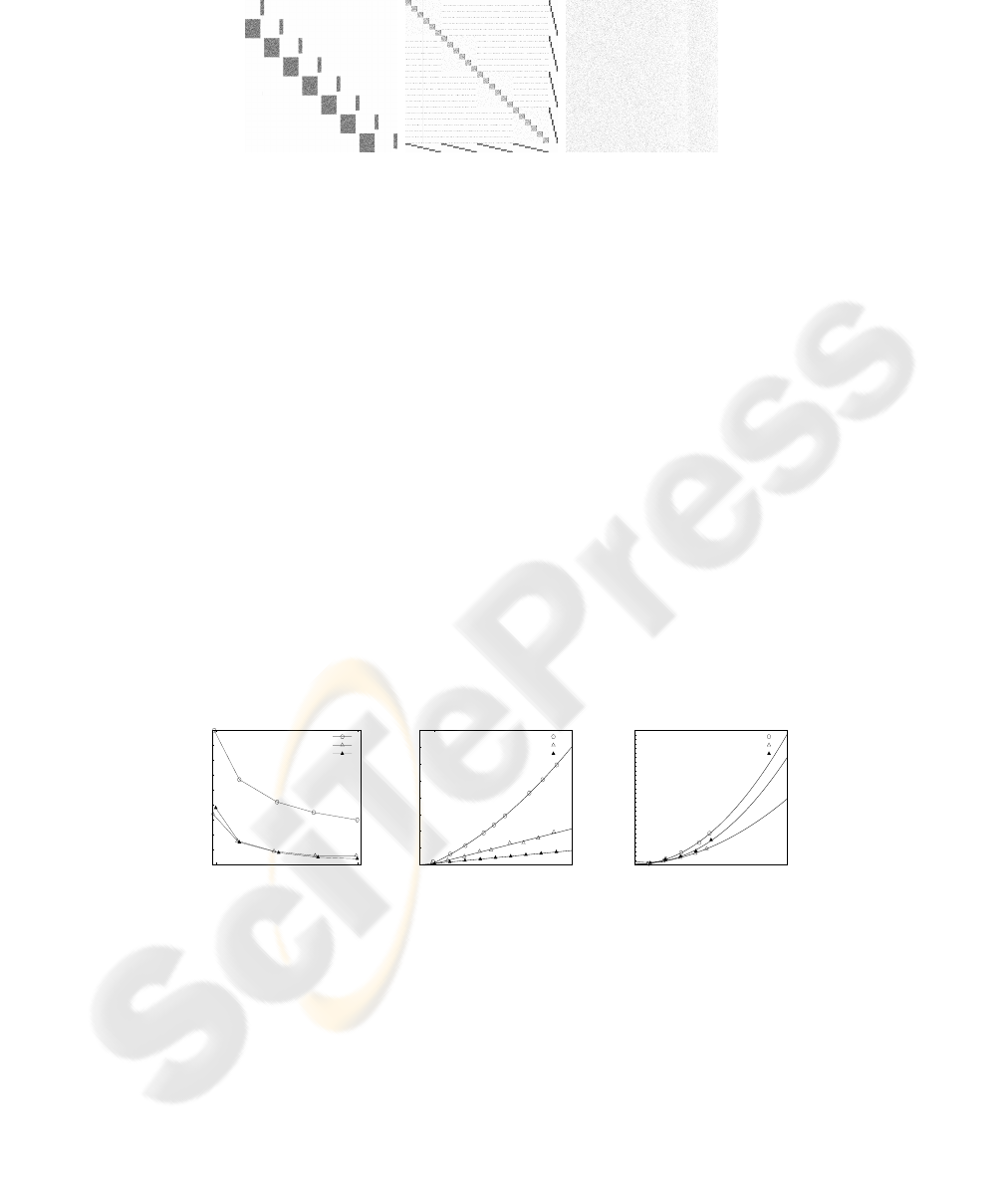

Fig.5. Connection matrices of the (a) INCM, (b) KTH and (c) UNIC networks.

Connection matrices for networks of 10

neurons as shown in ﬁgure 5 illustrate the

benchmarks synaptic connectivity types. Darker areas represent groups of neurons with

an ρ

Syn

above average.

As stated in [2] the worst scenario are randomly connected networks with a constant

Syn

due to their absent locality. In case of avg. S

BIO

above the conﬁgured HW limit

one may reduce the neurons per HC, provide more synapses and thus improve q

Route

at the expense of less e

, but an expanded distribution of neurons and thus longer

connections may consume even more routing resources in turn at a certain point again

reducing q

Route

The ρ

Syn

of the benchmarks however decrease with approx. 1/x, see 6 (a) leading

to an almost constant or only slightly increasing average synaptic input count. Never-

theless the mapping results for networks with N

BIO

above 10

show a clear decrease in

Route

by exceeding 15% compared to fully routed which may be caused by intra-wafer

routing resources utilized to capacity, invigorated by an observation of the steepest de-

cline in q

Route

for UNIC, the network with the lowest avg. ρ

Syn

Tests also showed that the NFCalgorithm can minimize the routing losses compared

to the simple algorithms up to 20% for networks with a higher locality, such as the

INCM, the more efﬁcient the larger the network.

0.01

0.02

0.03

0.04

0.05

0.06

0.07

0.08

0.09

connection density [%]

#Neurons

INCM

KTH

UNIC

(a)

100

200

300

400

500

600

700

800

Model Size [MByte]

#Neurons

INCM

KTH

UNIC

(b)

100

200

300

400

500

600

NFC runtimes [min]

#Neurons

INCM

KTH

UNIC

(c)

Fig.6. Networks avg. ρ

Syn

(a), BM size (b) and NFC algorithm runtime (c).

As a second major requirement for the usability of the FS2 hardware simulator

platform a fast conﬁguration and reprogramming is inevitable so we use the scaling test

also to determine the software process’ scalability in terms of time and space.

Figure 6 (b) shows that the BMgraph grows almost linearly depending on the number

of neurons and the synaptic density. So for the given benchmarks the model sizes for

networks with a neuron count of N

BIO

≤ 10

and an approximate average ρ

Syn

≤

10% stay within a acceptable limt of 10GB. The simpler algorithms runtime scales with

O(n) and remains within an upper bound of approximately 3 hours whereas the NFC

algorithms, in spite of the cubical problem, grows below O(n

), as can bee seen in 6 (c)

fulﬁlling the requirement of a resonable runtime for complex mapping problems.

Test where carried out under Red Hat 4.1.2 running on an AMD Opteron

875

Dual Core CPU @2.2GHz quad processor system with 32GByte of RAM.

4 Conclusions

Although the FS2 hardware system is on a higher level of abstraction similar to other

reconﬁgurable hardware architectures it is unique in both its functionality and the sys-

tems dimension. So new algorithms and heuristics are necessary that take into account

the peculiarities of such a system. We presented outcomes and benchmark examples of

the complete FS2 software framework which seamlessly integrates the FS2 hardware

system into PyNN.

As shown by the benchmarks, a mapping is found in a reasonable time, however, the

networks structure of larger networks is modiﬁed by the software process and through

hardware resource limitations. To examine the impact of these losses on the networks

behavior comparative simulations with pre- and post- mapping netlists are carried out

on simulators introduced in section 3. As a further consequence we consider the incor-

poration of L2 into intra-wafer communication as essential as it will alleviate the L1

losses. Iterative optimization of the mapping results will then trade-off between simula-

tion speedup, hardware efﬁciency and routing quality by adjusting the software process

parameters.

An in depth evaluation of the benchmark results will follow with the upcoming

publication of the NFC algorithm.

Acknowledgements

The research is ﬁnanced by the European Union in the framework of the Information

Society Technologies program, project FACETS (Nr. 15879). Furthermore, we would

like to thank Jens Kremkow of ALUF, Pradeep Krishnamurthy of KTH and Andrew

Davison of CNRS for making the PyNN scripts available to us.

References

1. Schemmel, J., Fieres, J., Meier, K.: Wafer-scale integration of analog neural networks. In:

Proceedings IJCNN2008, IEEE Press. (2008) 431–438.

2. Khan, M., Lester, D., Plana, L., Rast, A., X.Jin, Painkras, E., Furber, S.: SpiNNaker: Map-

ping Neural Networks onto a Massively-Parallel Chip Multiprocessor. In: Proceedings 2008

International Joint Conference on Neural Networks, IJCNN 2008. (2008) 2849 – 2856.

3. Ehrlich, M., Mayr, C., Eisenreich, H., Henker, S., Srowig, A., Gruebl, A., Schemmel, J.,

Schueffny, R.: Wafer-scale VLSI implementations of pulse coupled neural networks. In:

International Conference on Sensors, Circuits and Instrumentation Systems SSD’07. (2007)

4. Fieres, J., Schemmel, J., Meier, K.: Realizing Biological Spiking Network Models in a

Conﬁgurable Wafer-Scale Hardware System. In: IEEE International Joint Conference on

Neural Networks IJCNN. (2008) 969 – 976.

5. Brette, R., Gerstner, W.: Adaptive Exponential Integrate-and-Fire Model as an Effective

Description of Neuronal Activity. Journal of Neurophysiology 94 (2005) 3637–3642

6. Schemmel, J., Br¨uderle, D., Meier, K., Ostendorf, B.: Modeling Synaptic Plasticity within

Networks of Highly Accelerated I&F neurons. In: Proceedings of the 2007 IEEE Interna-

tional Symposium on Circuits and Systems (ISCAS’07), IEEE Press (2007)

7. Br¨uderle, D., M¨uller, E., Davison, A., Muller, E., Schemmel, J., Meier, K.: Establishing

a Novel Modeling Tool: A Python-based Interface for a Neuromorphic Hardware System.

Front. Neuroinform. 3 (2009)

8. Davison, A., Muller, E., Br¨uderle, D., Kremkow, J.: A common language for neuronal net-

works in software and hardware. The Neuromorphic Engineer (2010)

9. Davison, A. P., Br¨uderle, D., Eppler, J., Kremkow, J., Muller, E., Pecevski, D., Perrinet, L.,

Yger, P.: PyNN: a common interface for neuronal network simulators. Front. Neuroinform.

2 (11) (2009) 1 – 10

10. Hines, M. L., Carnevale, N. T.: The NEURON Book. Cambridge University Press, Cam-

bridge, U.K. (2006)

11. Gewaltig, M. O., Diesmann, M.: NEST (NEural Simulation Tool). Scholarpedia 2 (2007)

1430

12. Goodman, D., Brette, R.: Brian: a simulator for spiking neural networks in Python. Front.

Neuroinform. 2 (2008)

13. Pecevski, D. A., Natschl¨ager, T., Schuch, K. N.: PCSIM: A Parallel Simulation Environment

for Neural Circuits Fully Integrated with Python. Front. Neuroinform. 3 (2009)

14. Br¨uderle, D., Bill, J., Kaplan, B., Kremkow, J., Meier, K., M¨uller, E., Schemmel, J.:

Simulator-Like Exploration of Cortical Network Architectures with a Mixed-Signal VLSI

System. In: Proceedings of the 2010 IEEE International Symposium on Circuits and Sys-

tems (ISCAS’10). (2010) Accepted

15. Wendt, K., Ehrlich, M., Sch¨uffny, R.: Graph theoretical approach for a multistep mapping

software for the FACETS project. In: 2nd WSEAS Int. Conference on Computer Engineering

and Applications (CEA’08). (2008)

16. Wendt, K., Ehrlich, M., Sch¨uffny, R.: GMPath - A Path Language for Navigation, Infor-

mation query and modiﬁcation of data graphs. In: 6th International Workshop on Artiﬁcial

Neural Networks and Intelligent Information Processing (ANNIIP). (2010) Accepted

17. Wendt, K., Ehrlich, M., Mayr, C., Schffny, R.: Abbildung komplexer, pulsierender,

neuronaler Netzwerke auf spezielle neuronale VLSI Hardware. Dresdner Arbeitstagung

Schaltungs- und Systementwurf DASS 2007 (2007) pp. 127–132

18. Munzner, T.: H3: Laying out large directed graphs in 3d hyperbolic space. In: Proceedings

of the 1997 IEEE Symposium on Information Visualization. (1997) 2–10

19. Kremkow, J., Perrinet, L., Aertsen, A., Masson, G.: Functional consequences of correlated

excitatory and inhibitory conductances. (2009) Submitted

20. Lundqvist, M., Rehn, M., Djurfeldt, M., Lansner, A.: Attractor dynamics in a modular net-

work of neocortex. Network:Computation in Neural Systems 17:3 (2006) 253–276

21. Destexhe, A.: Self-sustained asynchronous irregular states and Up/Down states in thala-

mic, cortical and thalamocortical networks of nonlinear integrate-and-ﬁre neurons. Journal

of Computational Neuroscience 3 (2009)
