Continuous Maintenance of Multiple Abstraction Levels

in Program Code

Moritz Balz, Michael Striewe and Michael Goedicke

Paluno – The Ruhr Institute for Software Technology

University of Duisburg-Essen, Campus Essen, Essen, Germany

Abstract. During development of software systems multiple notations are in use

to describe requirements, design, source code, run time traces, and more. These

notations usually have different purposes and semantics so that it is difﬁcult to

keep information consistent during development. In this position paper we pro-

pose an alternative approach to model-driven software development that enhances

program code with abstract speciﬁcation information. Thus the program code can

be considered at different views for design, veriﬁcation, execution, and monitor-

ing, while information of interest is continuously available in a coherent notation.

1 Introduction

When software systems are developed, several stages are passed through, in which dif-

ferent notations describe certain aspects of the software at different abstraction levels

and with different purposes. This entails that important information is not available con-

sistently; even worse, pieces of information in different notations are hard to synchro-

nize if the software is maintained over longer periods of time. An overview of notations

to encounter is given in ﬁgure 1.

Implemen-

tation

Validation &

Veriﬁcation

Execution

Monitoring

Development Time

Run Time

Design &

Architecture

Design Time

{} {}

01010

10101

01010

Languages

& Models

Source Code Source Code

& Models

Byte Code Tracing

Design

Recovery

Replacement

}

All

Notations

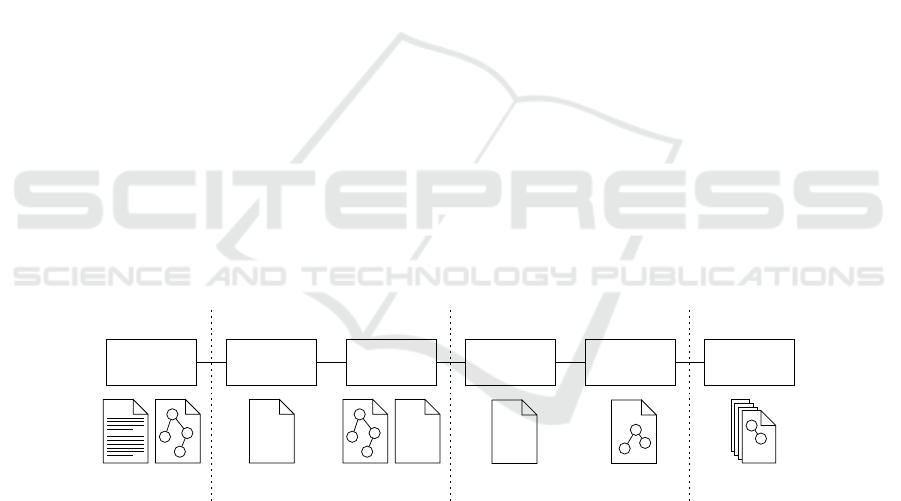

Fig.1. Different stages of development processes and notations that are used to describe the

software or certain aspects of it. While all notations focus on different views of the software, they

are hard to synchronize over time.

At design time, software architecture and functionality are derived from require-

ments and recorded in semi-formalized description languages or formalized models.

Based on this, source code is derived from speciﬁcations, either with manual program-

ming or – in the case of some model-drivensoftware development (MDSD) approaches

Balz M., Striewe M. and Goedicke M.

Continuous Maintenance of Multiple Abstraction Levels in Program Code.

DOI: 10.5220/0003026500680079

In Proceedings of the 2nd International Workshop on Future Trends of Model-Driven Development (ICEIS 2010), page

ISBN: 978-989-8425-10-2

– with code generation [1]. The notation of the source code belongs to certain general-

purpose programming languages or domain-speciﬁc languages (DSLs). Design and im-

plementation can be veriﬁed afterwards, either at the level of speciﬁcations or of the

programming language [2]. At run time, software is represented by compiled machine

code or byte code containing detailed imperative statements. Running systems can be

monitored, which usually relies on the existence of meta data relating executable code

to speciﬁcations [3]. Finally, when software is put out of service, design recovery can

be applied to all existing information to transfer knowledge into successional systems.

These different notations are usually independent and cannot be synchronized auto-

matically because they describe speciﬁc aspects only. A general-purpose programming

language in which detailed algorithms are implemented is used in most cases, even

with code generation: When systems cannot be modelled completely, generated code

is amended, tuned, or customized to ﬁt special requirements, APIs, or frameworks [4].

Thus MDSD cannot reduce the number of notations since such code does not integrate

in high-levelspeciﬁcations seamlessly. In contrast, attempts to cover all aspects by mod-

eling languages lead to modeling stacks being as complex as programming languages

[5].

On the other hand, program code of modern programming languages became more

and more expressive over time. Fragments of object-oriented languages can be arranged

according to informal or formalized design patterns [6]. In languages providing con-

cepts for type-safe meta data, attribute-enabled programming [7] gives code fragments

additional semantics that are interpretable at development time and run time. We pro-

posed to enhance this to embed model speciﬁcations in program code [8,9] by deﬁning

program code patterns representing the abstract syntax of models. By this means pro-

gram code does not only carry implementation details, but also model speciﬁcations, so

that different aspects do not require different notations, but are views on the same soft-

ware. Since access to this code is possible with structural reﬂection [10] at run time, ex-

ecution frameworks can interpret and invoke the fragments and thus execute the model

speciﬁcations. This is for example applicable to models that describe the behavior of

(parts of) applications precisely, like state machines or process models.

We will here describe our approach to reduce the number of notations during devel-

opment. We introduce a concept for maintaining multiple abstraction levels in program

code in section 2 and describe its systematic application throughout the development

process in section 3. Afterwards we discuss the approach in section 4, consider related

work with respect to alignment and synchronization of such notations in section 5, and

conclude in section 6.

2 Multiple Abstraction Levels in Program Code

Above we stated the goal to reduce the number of notations present in many software

development activities. However, it is not desirable to reduce the number of views on

the software since different abstraction levels fulﬁll different purposes, especially if

formal speciﬁcations are used. Thus it is necessary to decouple notations and views. We

decided to enhance the idea of design patterns with respect to formal models and make

the program code interpretable for different views. Since model speciﬁcations are by

Contract Deﬁnition in Source Code

public class AfterMeasurementState implements IState

{

@Transition(target = UpUpState.class , contract = BeginUpUpContract.class )

public void beginUpUp(MeasurementModule actor) throws MeasurementAbortedException

{

actor.doMeasure ();

}

// ...

}

State Deﬁnition

Target State Pointer

Contract Pointer

Action Label

Transition

State and Transition Deﬁnition in Source Code

}

public class BeginUpUpContract implements IContract< IMeasurementVariables >

public boolean checkCondition( IMeasurementVariables vars )

{

return (!vars.getAbort() && !vars.getRestart() && vars.getTooLow());

}

{

public boolean validate( IMeasurementVariables before , IMeasurementVariables after )

{

return ( after.getNumberOfWorkers() == ( before.getNumberOfWorkers() + before.getWorkerDistance()) );

}

Contract Deﬁnition

Variable DeﬁnitionsCurrent Variable Values

Guard

Update

Variable Labels

Current Variable Values

Cached Variable Values

Variable Labels

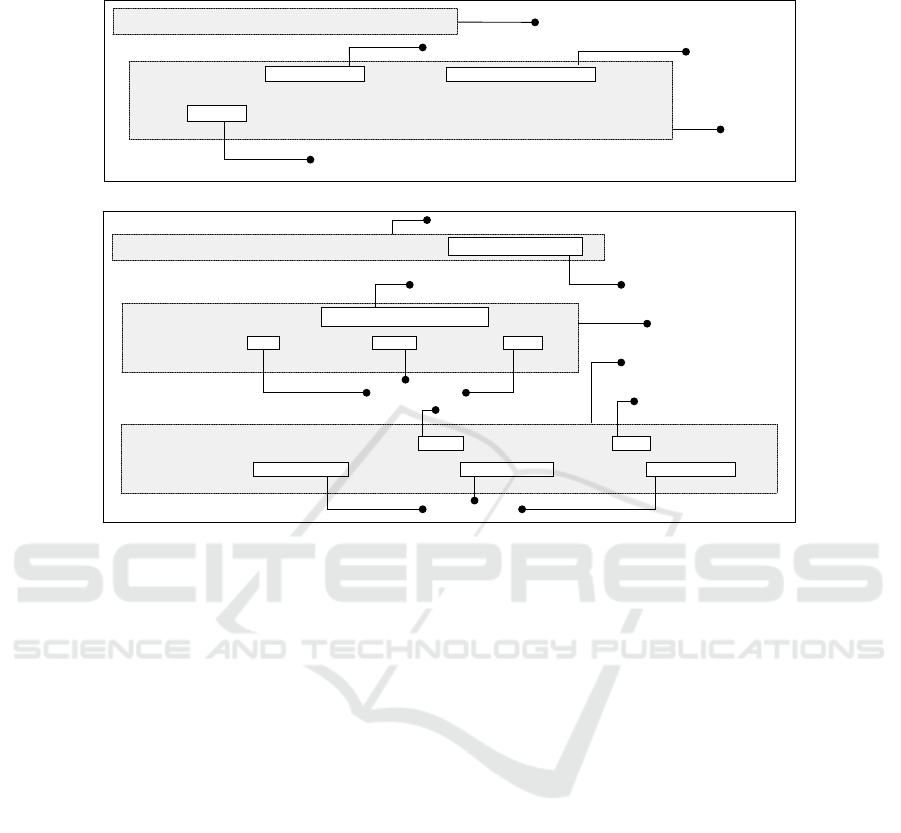

Fig.2. A state deﬁnition with an outgoing transition and its contract. The ﬁrst method of the

contract checks a pre-condition with the current variable values, while the second method checks

a post-condition by comparing the current values to previous values.

this means embedded in the program code structures, the approach is called “embedded

models”.

2.1 Example

An exemplary embedded model for state machines is shown in ﬁgure 2. It is imple-

mented by a set of classes, each marked by interfaces to be a “state” or “contract”

class. The class at the top is a state class whose unique name represents the state’s

name. Methods in state classes are marked as transitions by a Java meta data annotation

@Transition whose attributes refer to the target state and a contract class (bottom

of ﬁgure 2) containing guards and updates. An interface type referred to as “actor”

is passed to transition methods. Its methods are interpreted as action labels which are

called when the transition ﬁres.

Guards and updates are implemented as two methods in a contract class, both eval-

uating boolean expressions. In case of guards (method checkCondition), the re-

turned boolean value decides whether the related transition may ﬁre or not. They use

the current variable values of the state machine for this decision. In case of updates

(method validate), the returned boolean value indicates whether variables match

the expected value or value range after actions have been performed. Therefore updates

compare the current values with the values from the point in time before the transition

ﬁred to validate the changes to the state space. Both methods access a “variables” type

which is a facade type representing the variables constituting the state space of the state

machine, thus allowing an abstraction over the state space of the whole system. The

“variables” type contains “get” methods for each variable, which are by this means de-

ﬁned with a label and a data type and which may return aggregated data in order to

realize the abstractions named above.

2.2 General Approach

The program code introduced above is interpretable at different abstraction levels, e.g.

some lines of code are both a method in terms of the programming language and a

transition in terms of the state machine model. Considering the domain-speciﬁc nature

of these different abstraction levels, the program code must be prepared to represent

different abstraction levels for each embedded model. The principle for all domain-

speciﬁc views is illustrated in ﬁgure 3.

Program Code Pattern

Interfaces

Other Code

Speciﬁcations

Execution

Framework

Transformation

Program Code

Model n

...

Model 1

Model-to-Model

Transformations

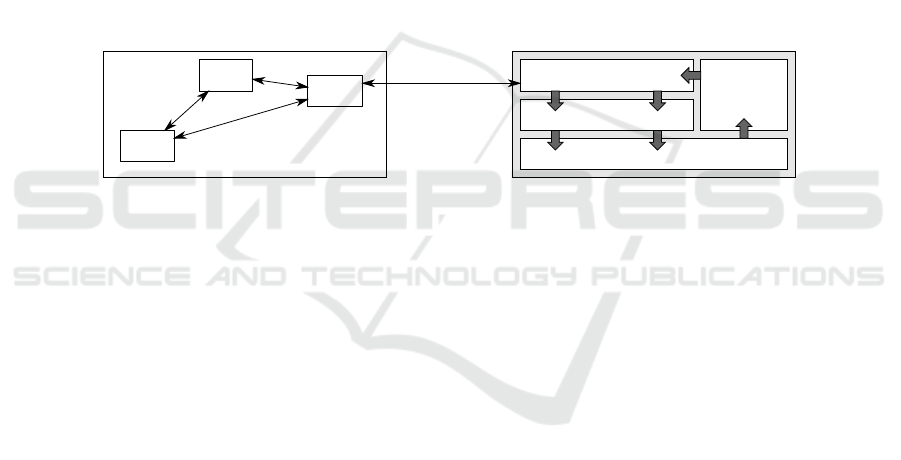

Fig.3. The elements of an embedded model deﬁnition relating program code to model spec-

iﬁcations at higher levels of abstraction. Code formed following the pattern is executed by a

framework and connected to other code by appropriate interfaces.

First, the model speciﬁcations of interest must be deﬁned. Since not all models are

backed by common meta models the speciﬁcations can be very different and no gen-

eral deﬁnition can be given. However, the following kinds of elements can be expected:

Static elements represent static structures and their relations. A logic for expressions

describes dynamic aspects by connecting static structures with logical formulas. Ele-

ments or entities outside a model can be referenced by labels that provide appropriate

names. Connections between static structures and formulas are realized by functions

that arrange and combine model elements.

Based on this the core of the embedded model can be deﬁned: A program code

pattern arranges program code fragments so that they are interpretable with respect

to model speciﬁcations. Considering programming languages like Java or C#, a set of

appropriate fragments is available: Static structures can be represented by types, meth-

ods, and annotations. Their relations can be deﬁned with parameter types, containment,

and inheritance hierarchies. Considering formulas, appropriate expressions at least for

propositional logic exist. Connections between static structures and/or expressions can

be represented in program code in different ways, for example with annotations or con-

tainment. The pattern deﬁnition distinguishes two types of program code fragments:

Some of the code is created per instance, i.e. for one concrete model, following certain

rules how fragments must be arranged to represent the model syntax. Such rules may

imply the use of certain types, interfaces, or meta data deﬁnitions that can be identi-

ﬁed by tools. These are pre-deﬁned, i.e. speciﬁed and implemented when an embedded

model deﬁnition is created and shared among implementations afterwards.

At the level of the program code the patterns describe model instances. This descrip-

tion entails that no detailed execution information is contained in the program code,

since this would mix high-level speciﬁcations with algorithmic details. For this reason

execution is realized by frameworks that access the program code following the pattern

by reﬂection. Interpretation and invocation of code fragments at run time thus result in

a sequence of events and data ﬂow matching the semantics of the formal model.

Embedded models are not self-contained, but part of arbitrary program code so that

well-deﬁned interfaces realize abstractions between model speciﬁcations and other pro-

gram code. Data-oriented abstraction means that data read from the program code into

the model may be aggregated, thus one value delivered to the model may be composed

of many variable values in the program code. For action-oriented abstraction, meth-

ods provide entry points to arbitrary business logic which is referenced in the model,

thus abstracting from the actual implementation in the program code. By this means

every abstraction between model and actual implementation is explicitly visible in the

interfaces.

When the program code pattern is by this means deﬁned, it can be considered at dif-

ferent abstraction levels. For this reason transformations extract view-speciﬁc informa-

tion from program code. Internal transformations provide non-persistent views on the

code so that no additional notation is necessary. This is desirable since changes in one

view are reﬂected in the others directly. However, external notations may be necessary,

for example if speciﬁc tools require certain ﬁle formats or if models are communicated

outside the actual development so that program code is not usable. In this case external

transformations translate model information from a program code pattern into external

notations. If these notations carry the information of the formal model completely, it

can also be transformed or merged back to program code unambiguously.

With these elements of an embedded model deﬁnition the program code can carry

information at different abstraction levels. We will now describe the systematic use of

this information throughout the development process.

3 Development Process

Program code containing embedded models with information at different abstraction

levels can be the primary notation during development, so that the number of notations

can be reduced as shown in ﬁgure 4: Only source code and compiled program code

are needed as explicit notations, with the compiled code being derived from the source

code. During design, veriﬁcation, monitoring, and design recovery, the models are spe-

ciﬁc views on the program code that are extracted on demand. We will now explain the

use of embedded models in the development process in detail for the exemplary domain

of state machines.

Implemen-

tation

Validation &

Veriﬁcation

Execution

Monitoring

Development Time Run Time

Design &

Architecture

Design Time

{}

01010

10101

01010

Design

Model Views

Source Code

Veriﬁcation

Model Views

Byte Code

Monitoring

Model Views

Design

Recovery

Replacement

Design

Model Views

Trans-

formation

Compilation

Trans-

formation

Trans-

formation

Trans-

formation

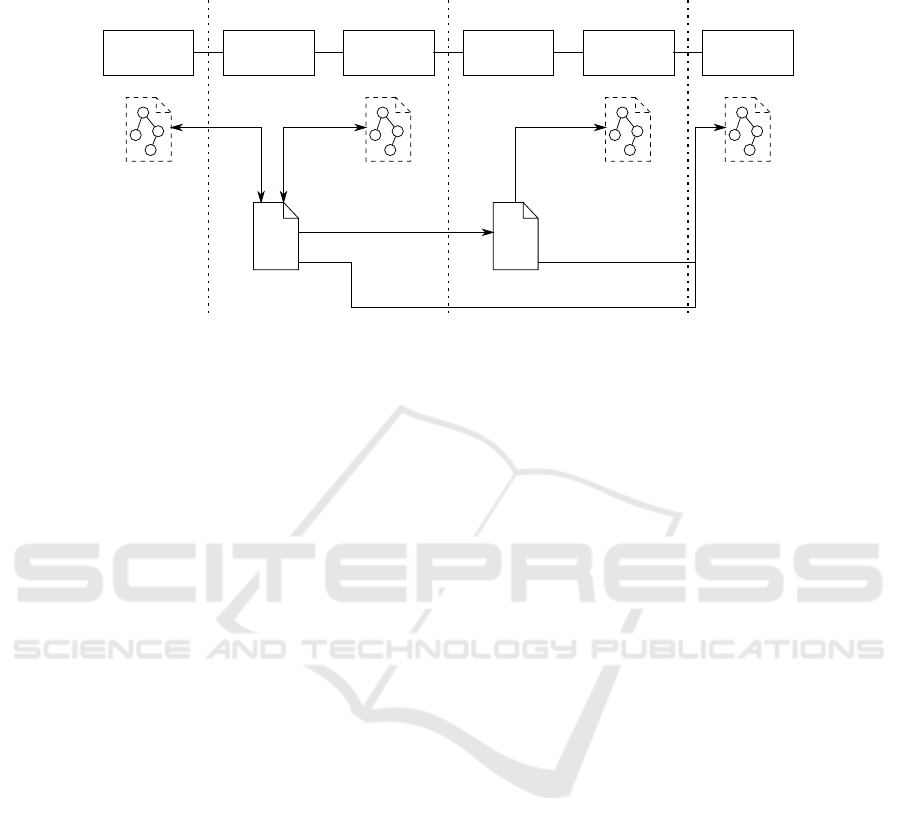

Fig.4. Different views on source code and compiled byte code during development which are

provided by unidirectional and bidirectional transformations. The views may rely on separate

notations, but the essential modeling information is available in the program code in any case.

3.1 Design and Implementation

When the program code carries design information as well as the actual implementa-

tion, the related activities in the development process are not clearly separated. During

design, we expect two use cases for embedded models:

First, models are usually deﬁned in dedicated notations of modeling tools. Such

models can be reﬁned and/or exchanged between tools with appropriate model-to-

model transformations where source and sink carry the semantics of the models so

that the transformation is unambiguous. This does usually not apply to program code

since it contains detailed execution logic only. However, program code patterns with

their expressiveness can participate in model transformations: With external transfor-

mations (compare section 2.2), program code structures can be created as a result of

model transformations, and modeling information can be extracted from the code and

used in other notations.

Second, modeling can be used to create the program code directly. This is useful

if the design is not that complex that it requires external notations. In this case design

tools create program code directly from visual representations, for example for state

machines. The design information is thus only a different view on the system to de-

velop and by this means an internal transformation between model speciﬁcations and

the program code.

3.2 Veriﬁcation

When program code has been designed and implemented with embedded models, the

contained modeling information allows for veriﬁcation at different abstraction levels.

However,veriﬁcation with respect to models relies not only on the existence of a model,

but also of a speciﬁcation the model is veriﬁed against. Thus appropriate views must

provide model speciﬁcations and interpret the embedded model accordingly. For this

purpose subsets of the modeling information that are of interest are extracted from the

program code. Any abstraction or reﬁnement explicitly happens alongside interfaces or

pre-deﬁned types.

For state machines we developed an external transformation into timed automata

[8] to verify them in the model checker UPPAAL [11]. By generating states out of

state classes, transitions out of transition methods, guards and updates out of contracts,

and model variables out of the respective facade type methods, a formal state machine

model can be extracted from the code and checked e.g. for deadlocks. More precise,

this allows to check the actual implementation against a formal speciﬁcation instead of

just checking the models.

Since embedded model interfaces are interpretable with respect to model semantics,

assertions can be made about other code connected with them. These assertions are

based on the semantics of the interfaces, for example with the existence of pre- and

post-conditions surrounding method calls. In state machines, the update information in

contract classes can be used as additional assertions for continuous validation with real

data during run time, thus implicitly checking the whole system behavior against the

abstract model.

For the same reason, views for static analysis can determine if other program code is

valid with respect to the model speciﬁcations it is interacting with. In addition, dynamic

analysis and model checking (for example with Java PathFinder [12]) are applicable to

validate data exchange and state spaces at run time. In this context an embedded state

machine eases any static analysis based on slicing since transitions offer natural starting

points for slices. In general the patterns used to structure the code with respect to any

class of models can be used to structure the veriﬁcation process and reduce the search

space.

3.3 Execution

After compilation in Java, the resulting bytecode contains most static structures like

classes and methods and provides access to them with structural reﬂection at run time.

However, this has limitations since not all source code semantics are available; for ex-

ample, Java reﬂection treats method contents as black boxes. In this context embedded

models are executed by frameworks using reﬂection for reading, interpreting, and in-

voking program code. The resulting sequences of actions adhere to the semantics of the

underlying formal model. Execution is thus a speciﬁc view on compiled program code

that accesses modeling information to create sequences of actions.

Considering execution semantics of state machines, the model is connected to busi-

ness logic during transitions, and the paths through the state machine depend on deci-

sions in guards and thus on variable values. The purpose of the state machine is thus to

invoke actions in an appropriate sequence. The execution framework instantiates state

classes beginning with the initial state. It reads annotations in transition methods after-

wards and instantiates contract classes referenced there. Then the guard methods are

invoked and the variables are passed to them, and the result is used to determine if the

related transition will ﬁre. The next state is then determined from the class reference

given in the annotation, and the procedure is repeated until a ﬁnal state is reached.

3.4 Monitoring

Compiled code with embedded models is interpretable for tracing and monitoring with

respect to the model speciﬁcations. This is of interest since embedded models interact

with other business logic and use real data at run time. Thus more complex state spaces

can exist than those used for veriﬁcation. For monitoring, traces in terms of class in-

stantiations, method calls, and changes of variable values can be generated. Two kinds

of monitoring can be distinguished:

Active monitoring is controlled by the execution framework notifying listeners so

that appropriateviews can be realized at the levelof the framework.However,the degree

of detail is limited by the platform’s reﬂection capabilities, and overhead introduced by

interpretation and emission of information must be considered for productive systems.

Passive monitoring relies on instrumentation techniques of the platform. In Java the

debugging interface is appropriate to gather information about running software. Since

program code patterns deﬁne entry points into program code, instantiations and invo-

cations of that code can be surveyed. Passive monitoring can be applied to all elements

of the programming language, including method contents, so that a running embedded

model can be considered in detail. However, noticeable overhead of instrumentation

techniques entails that this will not be usable in production environments.

For state machines the following information is of interest: (1) Initialization and

start of a state machine with information about all states, transitions, and variables as

extracted from code; (2) activation of states indicating that guard evaluation and tran-

sition selection in this state will happen subsequently; (3) selection of transitions in-

dicating that program control will be handed over to business logic; (4) validation of

updates after transitions with a comparison of current variable values and cached vari-

able values from the point in time before the transition ﬁred. With an appropriate tool

as shown in ﬁgure 5, an embedded state machine can be analyzed with respect to a

graphical representation highlighting active states and transitions, variable values, and

guard evaluation.

In summary, the views used at development time can be transferred to the run time

when the well-deﬁned program code structures are executed.

3.5 Design Recovery

When software is put out of service, data and business logic are often to be transferred

to successional systems. However, experience shows that documentation is often in-

complete, out of sync with the actual system, or not existent at all. Especially modeling

information would in such cases be of help since model speciﬁcations are often used to

describe essential parts of the system that may be of interest for reengineering or can

support the recovery of design in the software.

Modeling information in source code or byte code can be accessed as described for

design, veriﬁcation, execution, and monitoring. It is appropriate for reengineering and

design recovery since it is no external meta data, but constitutes (a part of) the actual

system that is to be replaced. Thus embedded models support design recovery if basic

information about their use is available.

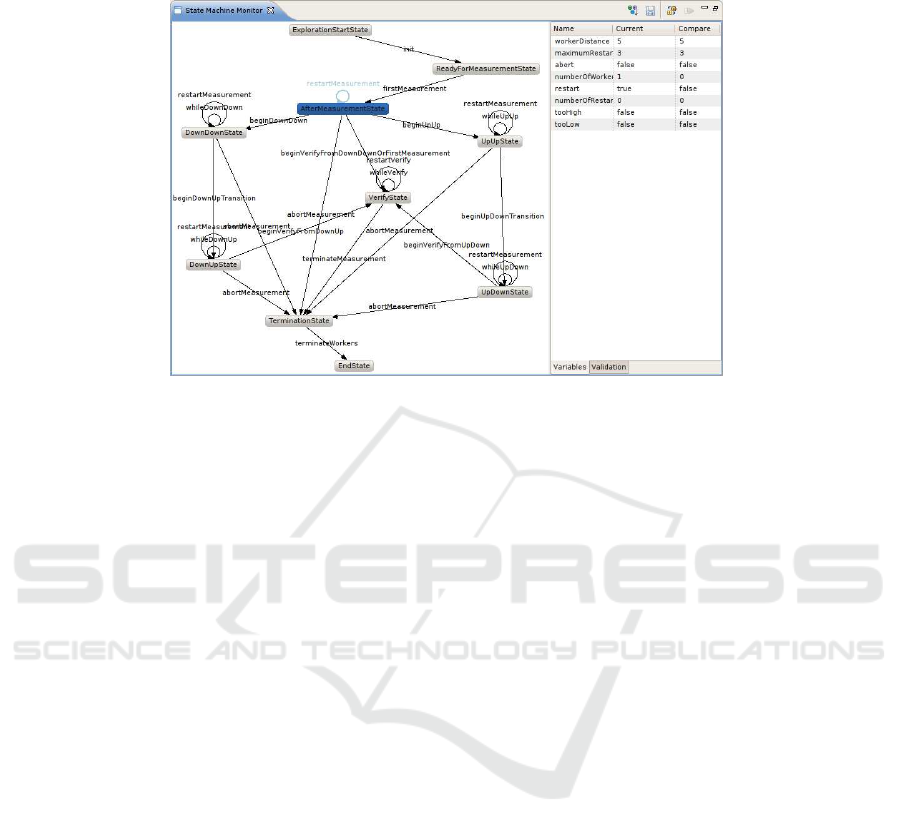

Fig.5. A state machine view realized by a monitoring tool. It shows selection of states and tran-

sitions as well as variable values and evaluation of guards and updates.

4 Discussion

The approach presented here is contrary to other MDSD approaches since it consid-

ers program code not as result derived from abstract speciﬁcations, but the primary

notation containing information about models. We chose this approach because pro-

gram code is an integral part of most software development activities: When complex

requirements, speciﬁc libraries or frameworks, or performance requirements demand

non-standardized solutions, model speciﬁcations cannot cover complete applications

under development. This leads to situations where a semantic gap exists between model

speciﬁcations and the actual program code that is derived from them or must interact

with derived code. The use of different notations thus increases complexity which is not

reduced by tools unambiguously.

Embedded models are therefore applicable when domain-speciﬁc models are used

in programs where developers have to work with program code explicitly. In such cases

the tight integration of speciﬁcations and program code as described in this contribu-

tion is desirable from our point of view and can be used throughout the development

process. Notations that are only used to provide domain-speciﬁc views on the program

code can be replaced by appropriate program code patterns for design, veriﬁcation, exe-

cution, monitoring, and design recovery of software. The approach has so far been eval-

uated in the development of mid-sized real-world applications [13]. The development

activities described in this contribution are already supported by tools that interpret the

program code at development time and run time and provide speciﬁc views for differ-

ent purposes. However, different semantic gaps can be expected for different modeling

classes, so that further research is necessary to determine the applicability of embedded

models.

In summary, we are convinced and have partly evaluated that embedded models are

appropriate for the given use case of application development.

5 Related Work

We consider work related to this contribution that aims either at reducing the number

of different notations in use during development or at seamless synchronization with

respect to formal models.

While model round-trip engineering identiﬁes relations between program code and

models, it requires manual effort since modiﬁcations in the code cannot always be inter-

preted with respect to semantics of abstract models [14]. In contrast, embedded models

only consider program code that follows the syntax of program code patterns and is

therefore interpretable unambiguously. Several approaches relate source code to high-

level speciﬁcations using meta data, e.g. [15], thus enhancing its formal description at

the same abstraction level while using different notations. Similar, framework-speciﬁc

modeling languages consider the semantics of frameworks to enable continuous round-

trip engineering at this abstraction level [16]. Different to these approaches, embedded

models focus on establishing relations between different abstraction levels.

In contrast to Internal DSLs [17], embedded models allow not only to interpret

statements, but more complex static structures in the code. Other than design patterns

speciﬁed with respect to modeling languages [18], embedded models are completely

founded on formal model semantics. In difference to modeling constraints in object-

oriented source code [19] or model checking for source code [12], embedded models

do not focus on veriﬁcation of the program code itself, but on its relations to high-level

speciﬁcations.

While execution of model speciﬁcations like UML diagrams [20], constraint or ac-

tion languages [21], or DSLs [22] leads to a clean and model-centric view of systems,

it requires complete modeling of applications or integration of modeling notations with

program code. Program code patterns of embedded models, in contrast, are invoked ac-

cording to the execution semantics, while all information is embedded in the program

code.

In summary, these related approaches are not appropriate to either reduce the num-

ber of notations in use during development or enable a seamless synchronization that

considers formal models as well as program code.

6 Conclusions

In this contribution we presented an approach to reduce the number of notations used

during software development if the implementation is based on model speciﬁcations.

Since program code is explicitly available in many projects, we considered the expres-

siveness of modern object-oriented general-purpose programming languages and en-

hanced the idea of design patterns with program code patterns that represent the syntax

of models. By this means less notations are required since the program code itself is

interpretable at different levels of abstraction. The resulting domain-speciﬁc views on

the program were discussed with the example of state machines for design, veriﬁcation,

execution, monitoring, and design recovery of software. Embedded models are thus ap-

plicable for software under developmentthat uses domain-speciﬁcmodels together with

program code that is not based on models. Since the development activities described

here have been evaluated in mid-sized real-world applications and are supported by

appropriate tools we can state that the approach is feasible.

Future work will focus on extending the concept with respect to different aspects.

First the transfer to other modeling domains will be of interest which will include com-

pletely different modeling domains like components,ontologies, or rules. In this context

the integration in meta-modeling languages (like UML’s OMF) and model interactions

will be of interest, both with the objective to cover larger parts of applications under

development and leverage the principle of working with only one notation for different

abstraction levels.

References

1. Hailpern, B., Tarr, P.: Model-driven development: The good, the bad, and the ugly. IBM

Systems Journal 45 (2006) 451–461

2. Holzmann, G.J., Joshi, R., Groce, A.: Model driven code checking. Automated Software

Engineering 15 (2008) 283–297

3. Bodden, E.: The Design and Implementation of Formal Monitoring Techniques. In: Com-

panion to the 22nd Annual ACM SIGPLAN Conference on Object-Oriented Programming,

Systems, Languages, and Applications, OOPSLA 2007, October 21-25, 2007, Montreal,

Quebec, Canada, ACM (2007) 939–940

4. Vok´aˇc, M., Glattetre, J.M.: Using a Domain-Speciﬁc Language and Custom Tools to Model

a Multi-tier Service-Oriented Application – Experiences and Challenges. In Briand, L.,

Williams, C., eds.: Model Driven Engineering Languages and Systems, 8th International

Conference, MoDELS 2005, Montego Bay, Jamaica, October 2-7, 2005, Proceedings. Vol-

ume 3713 of LNCS., Springer (2005) 492–506

5. Fowler, M.: PlatformIndependentMalapropism (2003) http://www.martinfowler.com/bliki/

PlatformIndependentMalapropism.html.

6. Mikkonen, T.: Formalizing Design Patterns. In: ICSE ’98: Proceedings of the 20th interna-

tional conference on Software engineering, Washington, DC, USA, IEEE Computer Society

(1998) 115–124

7. Schwarz, D.: Peeking Inside the Box: Attribute-Oriented Programming with Java 1.5. ON-

Java.com (2004) http://www.onjava.com/pub/a/onjava/2004/06/30/insidebox1.html.

8. Balz, M., Striewe, M., Goedicke, M.: Embedding State Machine Models in Object-Oriented

Source Code. In: Proceedings of the 3rd Workshop on Models@run.time at MODELS 2008.

(2008) 6–15

9. Balz, M., Goedicke, M.: Embedding Process Models in Object-Oriented Program Code. In:

Proceedings of the First Workshop on Behavioural Modelling in Model-Driven Architecture

(BM-MDA). (2009)

10. Demers, F.N., Malenfant, J.: Reﬂection in logic, functional and object-oriented program-

ming: a short comparative study. In: In IJCAI ’95 Workshop on Reﬂection and Metalevel

Architectures and their Applications in AI. (1995) 29–38

11. Larsen, K.G., Pettersson, P., Yi, W.: UPPAAL in a Nutshell. Int. Journal on Software Tools

for Technology Transfer 1 (1997) 134–152

12. Visser, W., Havelund, K., Brat, G., Park, S., Lerda, F.: Model Checking Programs. Auto-

mated Software Engineering Journal 10 (2003)

13. Striewe, M., Balz, M., Goedicke, M.: SyLaGen - An Extendable Tool Environment for

Generating Load. In Mller-Clostermann, B., Echtle, K., Rathgeb, E., eds.: Proceedings of

”Measurement, Modelling and Evaluation of Computing Systems” and ”Dependability and

Fault Tolerance” 2010, March 15 - 17, Essen, Germany. Volume 5987 of LNCS., Springer

(2010) 307–310

14. Demeyer, S., Ducasse, S., Tichelaar, S.: Why Uniﬁed is not Universal? UML Shortcomings

for Coping with Round-trip Engineering. In: UML’99: The Uniﬁed Modeling Language

- Beyond the Standard, Second International Conference, Fort Collins, CO, USA, October

28-30, 1999, Proceedings. (1999) 630–644

15. Serugendo, G.D.M., Deriaz, M.: Speciﬁcation-Carrying Code for Self-Managed Systems.

In: IFIP/IEEE International Workshop on Self-Managed Systems and Services. (2005)

16. Antkiewicz, M.: Round-trip engineering using framework-speciﬁc modeling languages. In:

OOPSLA ’07: Companion to the 22nd ACM SIGPLAN conference on Object-oriented pro-

gramming systems and applications companion, New York, NY, USA, ACM (2007) 927–928

17. Freeman, S., Pryce, N.: Evolving an Embedded Domain-Speciﬁc Language in Java. In:

OOPSLA ’06: Companion to the 21st ACM SIGPLAN Symposium on Object-oriented Pro-

gramming Systems, Languages, and Applications, New York, NY, USA, ACM (2006) 855–

865

18. Mak, J.K.H., Choy, C.S.T., Lun, D.P.K.: Precise modeling of design patterns in uml. In: ICSE

’04: Proceedings of the 26th International Conference on Software Engineering, Washington,

DC, USA, IEEE Computer Society (2004) 252–261

19. Beckert, B., Hhnle, R., Schmitt, P.H.: Veriﬁcation of Object-Oriented Software. The KeY

Approach. Springer-Verlag New York, Inc. (2007)

20. Starr, L.: Executable Uml: How to Build Class Models. Prentice Hall PTR, Upper Saddle

River, NJ, USA (2001)

21. Raistrick, C., Francis, P., Wright, J.: Model Driven Architecture with Executable UML.

Cambridge University Press, New York, NY, USA (2004)

22. Hen-Tov, A., Lorenz, D.H., Schachter, L.: ModelTalk: A Framework for Developing Domain

Speciﬁc Executable Models. In: Proceedings of the 8th OOPSLA Workshop on Domain-

Speciﬁc Modeling. (2008)
