TOWARDS A GENERIC DESIGN FOR GENERAL-PURPOSE

SENSOR NETWORK NODES

Position Paper

Stefan Gruner

Department of Computer Science, University of Pretoria, Lynnwood Road, 0002 Pretoria, South Africa

Keywords: Standardisation, Sensor network node, Cybernetic interaction model, Micro operating system, Software

application interfaces.

Abstract: The key to mature and efficient industrial software engineering is standardisation more than an aggressive

struggle for innovation only for the sake of its own. This is assumption is also held for the area of sensor

networks development, which is becoming an increasingly important field at the interface between software

and hardware engineering. This short position paper proposes and outlines a generic design for the nodes of

such sensor networks, which could be used in the future as the basis of almost any conceivable sensor

network application. On such a basis of generic standardisation, the development of specific and particular

sensor network applications will then be mainly a matter of hardware-independent programming with APIs,

as it is already well known in the classical domain of operating systems in ordinary desktop PCs.

1 MOTIVATION AND RELATED

WORK

Software engineering for common-place devices

(like personal desktop computers) has become

comparatively easy during the past decades, mainly

because of reasonably high levels of standardisation

in the design of hardware platforms, operating

systems (OS) and application program interfaces

(API) in the context of those common devices.

Software engineering for non-standard devices, such

as robots (Campbell, 2009) or the physical nodes of

(wireless) sensor networks, is still comparatively

harder, which has (amongst other reasons) much to

do with a shortage of standardisation in this field.

There is much agreement amongst many software

engineering experts that only the specialization of

well-defined sub-areas of software engineering will

eventually lead to methodological maturity of the

discipline. For comparison: there is no such thing as

general ‘hardware engineering’; in the domain of

hardware we can find automotive engineering,

electronics, railway engineering, and so on. Positive

examples in our field, software engineering, are

compiler construction, or relational data-base

construction, which are well understood since many

years and do not confront us with major difficulties

any longer. In the long run, the same must become

true also for other sub-areas of software engineering,

such as the construction of software for sensor

network applications, embedded systems, and so on.

Further positive examples pointing into the right

direction are the standardisation of software systems

for the automobile industry (Dörr, 2008), as well as

the already mentioned standardisation attempts for

robotic platforms (Campbell, 2009).

The need for standardised frameworks in the

area of wireless sensor network development was

most recently also addressed by (Alkazemi, 2010).

In that paper a general system model was outlined

on the basis of several layers from the hardware

level via operating system levels up to the interfaces

for the user application software. Also in (Alkazemi,

2010) one can thus find a ‘classical’ well-understood

technique being transfered into a comparatively new

application domain, namely the domain of wireless

sensor nodes. In such a way by separating a node’s

hardware from the user’s application programs with

intermediate layers of firmware and system-software

the re-usability of such a node in different scenarios

can be considerably increased (Alkazemi, 2010).

The same principle of layering was also applied in

the approach of (Dörr, 2008) for non-standard

hardware in the domain of automobile software

engineering. In all these layered approaches there is

of course a trade-off between flexibility and speed:

259

Gruner S. (2010).

TOWARDS A GENERIC DESIGN FOR GENERAL-PURPOSE SENSOR NETWORK NODES - Position Paper.

In Proceedings of the Fifth International Conference on Evaluation of Novel Approaches to Software Engineering, pages 259-264

DOI: 10.5220/0003029802590264

 SciTePress

more layers between hardware platform and the user

application program will lead to more application

flexibility at the expense of computational speed

(performance) whereas less intermediate layers will

lead to greater speed at the expense of flexibility. At

the moment, the user applications are mostly

implemented very close to the hardware of a sensor

node, which is due to the limited storage capacity of

such devices, such that the programming of the user

application code is a cumbersome task and the result

of such efforts will not be characterised by high

reusability. In some way we could say that wireless

sensor networks with their small computational

nodes have taken us back into the early days of

computing when storage and computational power

was limited and sophisticated operating systems did

not exist. However, according to Moore’s law, one

might reasonably expect that this situation will

change rather sooner than later, such that a layered

application approach to the deployment of software

on tiny sensor nodes will become feasible, too.

Under this presumption also this short position paper

is presented.

This short position paper outlines a generic

model, at a high level of abstraction, of sensor

network nodes which is supposed to serve as a basis

for future standardisation efforts at the interfaces

which this model defines. The finer details of

construction and implementation (for example,

whether communication between a node and its

partners is synchronous or asynchronous, whether a

node has a unique identity or is anonymous in a

network, whether or not a node can change its

internal state on the basis of a memory, etc.) are left

deliberately un-specified, such that the model does

not undermine its own reusability by being overly

specific. The ‘engine’ part of this model is derived

from (Ellis, 2008), with additional parts added to

describe the interactions between a node and its

environment. For each part identified by this model

it should then become possible for designers and

developers to create standardised interfaces and re-

usable software module libraries, such that (in the

end) the deployment of software-driven sensor

network applications of any kind will become very

much a matter of component-based development

(CBD) (Lau, 2004) (Alkazemi, 2010) of well

understood devices (Maibaum, 2008) in the fashion

of the classical engineering disciplines.

2 SCHEMA OF A SENSOR NODE

A conceptual assumption is made ab-initio: For a

network of nodes, being a distributed concurrent

system (Tanenbaum, 2007), it is here assumed for

the sake of simplicity that every node, as an atomic

unit of the network, is not yet another, concurrent

micro-system in itself; instead it is assumed here that

every node is based on a mono-processor with

internally sequential operations. This does not imply

any loss of generality: Should one technically wish

to construct a distributed sensor network system of

which the nodes are concurrent systems (on the

micro-level) based on poly-processors themselves,

then we would be dealing with a distributed system

of higher order, whereby each concurrent poly-

processor node can also be modeled as a distributed

system in the same terms of the model described in

this position paper. For better understandability the

model will be developed and discussed stepwise in

the following paragraphs.

Initially we know only that we have a unit,

which is a sensor node, which somehow interacts

with its environment. The environment typically

comprises all sorts of things, including other units,

but the inner details of the unit and its forms of

interactions are not yet specified. This situation is

shown in Figure 1.

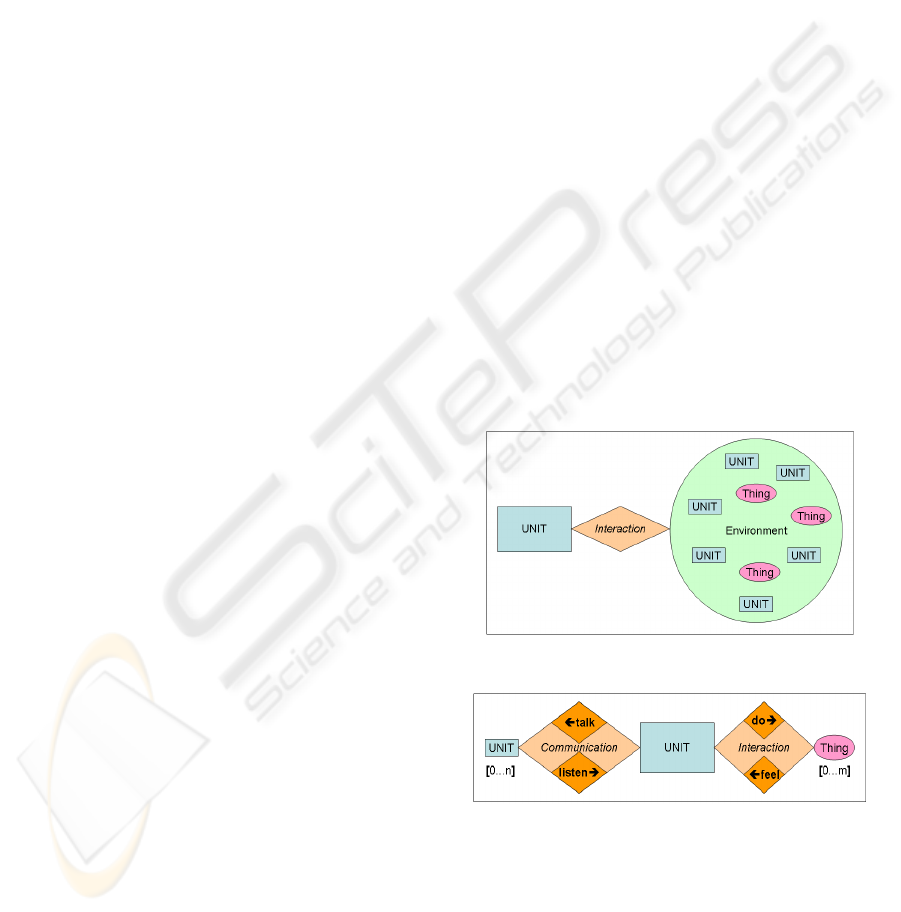

Figure 1: Unit interacting with a diverse environment.

Figure 2: Classification of different types of interactions in

various directions.

Thus we realize that different modes of

environment engagement will be needed: one for the

units (of the same or similar type) with which our

first unit forms a society, and one for the other

influential or influencable entities or agents or

‘things’ which do not have ‘member’ status in the

ENASE 2010 - International Conference on Evaluation of Novel Approaches to Software Engineering

260

society of units that constitutes a wireless sensor

network. This can be modeled as shown in Figure 2,

with communication amongst units and (other)

interaction between units and things, whereby in for

communication we can further distinguish talking

and listening, whereas in interaction we can further

distinguish doing and feeling. In other words: any

device which can be described in terms of the

schema of Figure 2, regardless of the details of its

technical construction, is a general-purpose node for

deployment in a sensor network application.

We have now reached the point at which we can

no longer regard our model unit as black box any

longer. Feeling and doing, talking and listening are

usually implemented technically by sensor(s) and

actuator(s), sender(s) and receiver(s), the abstract

model of which is depicted in Figure 3. The control

relation, by which sender, receiver, sensor and

actuator are related, is obviously also not an atomic

concept: there should be some form of memory (‘M’

in Figure 3) to capture a unit’s possibly changeable

internal state, as well as the finer structures and

algorithms (not shown in Figure 3) by which the

control relation must be implemented.

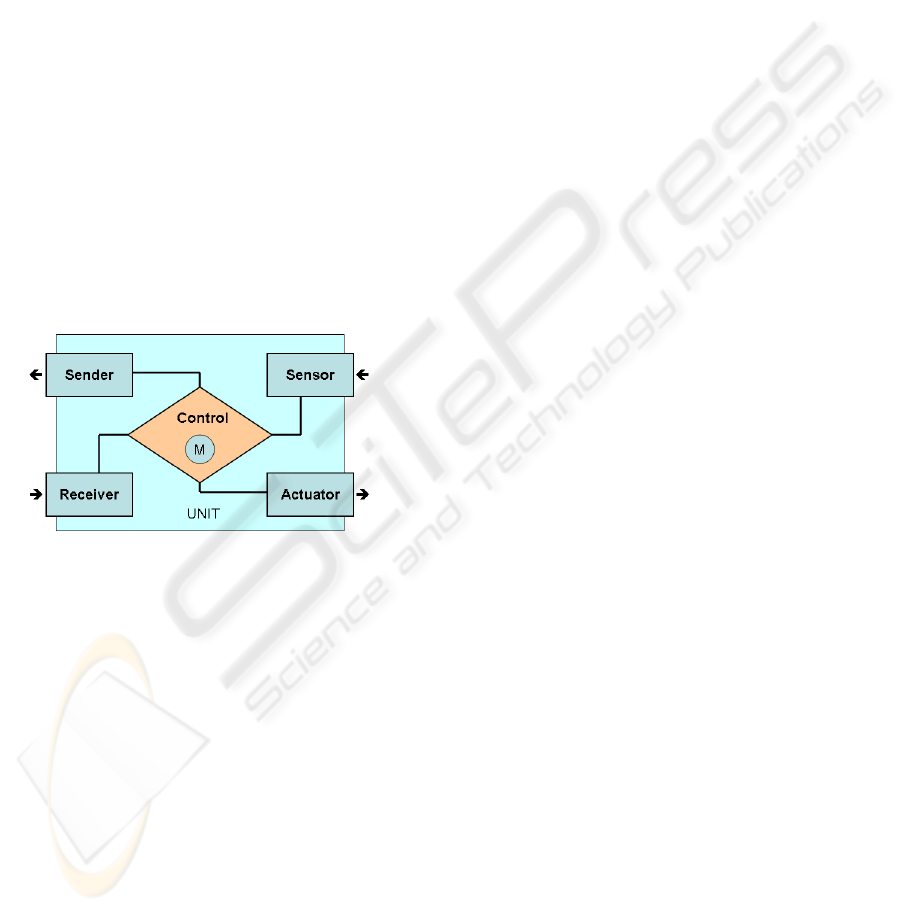

Figure 3: Coarse components of the stanndardised general-

purpose sensor network node unit.

With such a purposefully abstract design

schema, many technical variations, for different

network applications, are possible:

• A unit could communicate with only one

other unit in a master-servant-relation;

• A unit could communicate with N other

peer units, whereby N is a-priori defined

and fixed;

• A unit could communicate with n other

peer units, whereby n is not a-priori defined

and could even vary in time as n(t);

• A unit could be ‘mute’ (no talking);

• A unit could be ‘deaf’ (no listening);

• A unit could sense only one type of feeling

(in various degrees of intensity);

• A unit could sense N different types of

feelings (in various degrees of intensity);

• A unit could perform only one type of

action to the environment;

• A unit could perform N different types of

action to the environment;

• A unit could be ‘blind’ (no sensing);

• A unit could be environmentally passive

(without acting).

Depending on the behavioural variations as outlined

above, the following technical variations seem to be

reasonable:

• Where N is fixed a-priori, the unit could

possess a multiplicity of N distinguished

senders, receivers, sensors, actuators as sub

components, each of which would then be

individually accessible by the controller.

• Where n is not a-priori determined, or even

variable as n(t) during the passage of time,

each of the unit’s sub components (sender,

receiver, sensor, actuator) could be

implemented internally (on the fine scale), for

example, as queue-buffered multiplexer with

an internal scheduler, as it is well known from

the standard operating systems literature

(Silberschatz, 2008).

Needless to emphasise that these implementational

variations will also depend on further physial

variations, for example: whether the signals to and

from the environment will come through a cable, or

wirelessly via radio waves, and so on.

In the following we still need to look at the finer

details of the control model (symbolized by the

orange `diamond’ shapes in Figure 3). Following

(Ellis, 2008) one can distinguish basically two types

(modulo finer variations) of cybernetic feedback

loops for such controlers, namely the simple, basic,

non-adaptive feedback control process, and the

considerably smarter adaptive selection process.

Both of them are suitable schemas also for the units

of sensor networks in our context, as shown and

discussed in the following paragraphs. Thereby it

should be clear from the start that those loops have

to be immediately supported by the hardware of the

unit, as they are always the same; but the particular

activities within such a cycle can vary from case to

case and from application to application and must

thus be implemented in software for the sake of

flexibility and hardware-independent programming

of such units.

The basic feedback loop according to (Ellis,

2008) is depicted in Figure 4. The meaning of this

picture is that a system tries to stabilize its internal

state by repeatedly comparing its internal state with

a set of pre-defined goals. In the case of discrepancy

TOWARDS A GENERIC DESIGN FOR GENERAL-PURPOSE SENSOR NETWORK NODES - Position Paper

261

the controller attempts to change the system’s

internal state such as to better approximate the pre-

defined goals. These goals can either be implicitly

encoded (‘hardwired’) into the system, or –which

whould be preferable from a software engineering

perspective for the sake of flexibility and wider

applicability– they can also be explicitly provided in

and by a separate module (in program code). Also

note that nothing is stipulated about how frequently

this cycle has to be executed in real time – this is an

important issue in the ‘real world’ of sensor network

applications in which nodes with little resources in

battery capacity have to ‘fall asleep’ from time to

time in order to save their own energy.

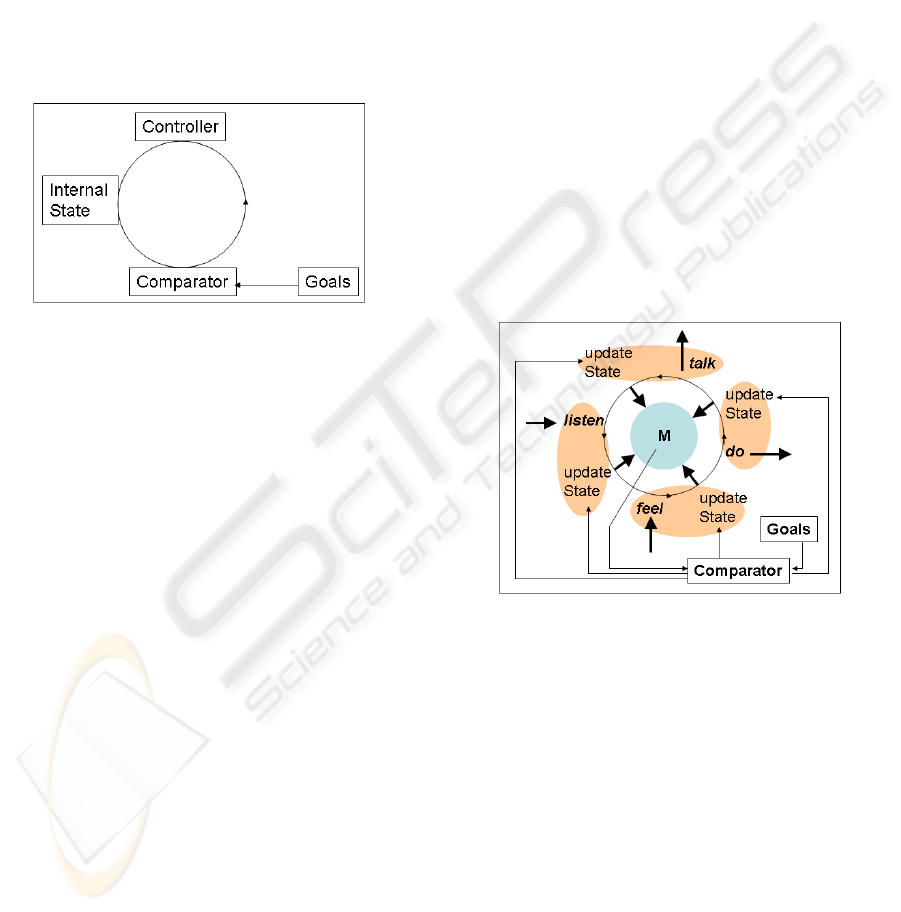

Figure 4: Simple non-adaptive feedback loop (Ellis 2008).

An example for such a simple feedback loop would

be a simple thermostat: Let the goal temperature in

an air-conditioned room be 21

C. If the actual room

temperature raises above that value, the controller

would start cooling; if the actual room temperature

falls below that value, the controller would start

heating. To avoid hectic (and costly) ‘vibrations’ of

the system around a ‘point’ goal (such as 21

C) one

could also define a ‘range’ goal (such as 20–22

C),

such that cooling would start only above 22

C, and

heating would start only below 20

C; in this way the

system needs to trigger actions less frequently and

could thus save some of its own battery power. On

the basis of such a simple design schema, a number

of variations are possible, for example:

• The number of goals can vary from 1 to N;

(it is however fixed a-priori in this design).

• In the case of only 1 goal, the goal could be

trivial (‘true’, always fulfilled), in which

case the comparator sub-component would

become obsolete; (which is basically

equivalent to having no ‘goal’ at all: take,

for example, a broadcaster unit which only

forwards received messages to other units

in a network).

• The system could also be ‘stateless’, i.e.

with only 1 internal state that cannot vary

over time; such a system would not need

any freely programmable random access

memory (RAM) – though this is probably

not a very realistic variant in our context of

software-driven sensor networks.

However, this basic model of (Ellis, 2008) needs to

be somewhat modified in our context, particularly

since the primary purpose of a unit in a sensor

network is not to ‘survive’ by self-stabilisation in its

environment; the purpose of a unit in our context is

to communicate and to interact (for which ‘survival’

is only an existential precondition). Moreover, the

modified process cycle (on the basis of Ellis’s) must

also take our four sub components, which interface

with the unit’s environment (i.e. sender, receiver,

sensor, actuator), into consideration. The according

schema is depicted in Figure 5. Where by the chosen

interactions with the environment (feel, do, talk,

listen) will then also depend on the actual internal

state M as parameter, (thus, strictly speaking:

feel_M, do_M, talk_M, and listen_M). This we

could also call the different modes of interactions,

which can be described as

IF(boolean_condition(M)) THEN {...} ELSE {...}

Figure 5: Node design on the basis of the simple non-

adaptive feedback loop.

In this model we have basically four sub routines

(shaded in orange colour in Figure 5) for the external

interactions, whereby each of them has an internal

side effect in the form of a memory update by means

of which the unit’s external interactions (or the

consequences thereof) can be ‘logged’ for future

reference. For the sake of general applicability of the

unit, these behavioural details of those four sub-

routines should be defined in software, whereas the

cycle itself should be directly hardware-supported

for the sake of efficiency. This concept can also be

found in the design of the ‘Apache’ web-server,

which also has a basic ‘loop’ with ‘hooks’ at which

additional, case-specific functionality (modules) can

be connected (Tanenbaum, 2007). Possible technical

ENASE 2010 - International Conference on Evaluation of Novel Approaches to Software Engineering

262

variations of this schema include, amongst others,

the following possibilities:

• The unit’s designer could re-arrange the

sequential order in which the internal and

external events are carried out in one cycle.

• In case that a unit would be ‘deaf’ or ‘mute’

or memory-less, the according external or

internal events (environmental interaction,

memory update) could also be skipped.

There is also a more complex and more flexibile

cybernetic feedback system which can temporarily

vary and adapt itself within the limits of some

higher-order norms which Ellis called a “value

system” (Ellis 2008). Such an adaptive cybernetic

system is depiced in Figure 6, (whereby I have made

some minor simplifications of Ellis’ original picture,

for the sake of easier understanding). The picture

basically tells us that (and how) an active unit,

embedded in an environment, can modify its own

goals in order to respond flexibly to evolutionary

pressure (from the environment) for the purpose of

survival in that (variable) environment.

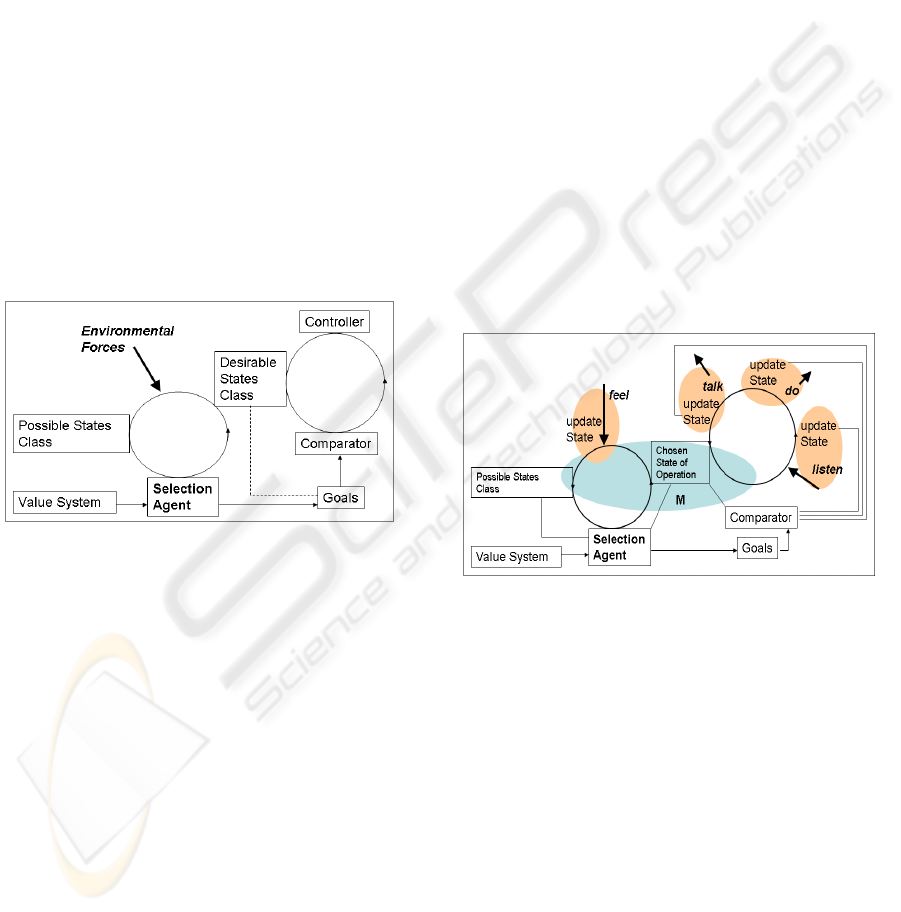

Figure 6: Cybernetic system with double feedback loop,

similar to the concept from (Ellis 2008).

Also the double feedback loop can be nicely

illustrated by example a thermostat that tries to keep

the temperature of an air-conditioned room at the

goal value of around 21

C. Cooling and heating, a

large toom, however, costs a lot of fuel, and fuel can

run low at times. The following environmental

adaptation cycle, including a selection agent, can be

added to the system: If it is winter (i.e. very cold

outside) and the fuel supply (for heating) is low,

then the goal temperature for the thermostat is

lowered by the selection agent to around 19

C. If it

is summer (i.e. very warm outside) and the fuel

supply (for cooling) is low then the goal temperature

is raised by the selection agent to around 23

Thereby, the simple thermostat cycle (in the inner

loop) keeps running as usual. The system has now

several possible internal states, one of which is

variably regarded as desirable, depending on further

external circumstances.

The question is now how to adapt this more

complicated cybernetic model into a generic,

general-purpose network node design in the context

of this paper; again we have to attach somehow our

four sub processes of interaction (listen, talk, feel,

do) to these now two cybernetic feedback loops as

they are shown in Figure 6. This could obviously be

done in very many different combinations, though

not every possible combination will make sense

from the perspective of purposeful technical system

design and software engineering. For such types of

cybernetic units I suggest the following standardized

schema for an ‘all-purpose’ type of sensor network

nodes – though, as said above, many other (though

similar) design schemas would equally be possible

for more special purposes and applications. Once

again we must also consider that the genuine

purpose of our sensor network units is not to survive

just for the sake of survival (as in Ellis’ original

scheme), but rather to provide some useful

computational and behavioural services to the users

of such a sensor network after its deployment.

Figure 7: Schema of a sensor network node based on the

double cybernetic feedback loop.

To justify the suggestion about the following design

I hint at the following anthropomorphisms and basic

experiences from human society – remember that a

sensor network was also characterized as ‘society of

units’ above.

Our ability to talk and to listen is largely

independent from environmental circumstances such

as the weather, whether its cold or hot etc.; therefore

the communicative sub processes should be attached

to the rapid, ‘inner’ feedback cycle (as before). A

similar argument can be brought forward w.r.t. our

small-scale actions and acivities. Would we now

allocate our fourth sub process, namely ‘feeling’, to

the inner feedback cycle as well, then the

placeholder for ‘Environmental Forces’ (see Figure

6 again) would remain un-instantiated, such that the

TOWARDS A GENERIC DESIGN FOR GENERAL-PURPOSE SENSOR NETWORK NODES - Position Paper

263

entire ‘outer’ feedback loop (including the selection

agent, the value system, etc.) would be useless and

obsolete. Consequently, the sub process for feelings

must be connected to the second (the outer, the

environmental) cybernetic cycle. The resulting

schema for higher-order network units designed

along those considerations is sketched in Figure 7,

whereby both cybernetic feedback cycles are

understood to be executed in the mode of

interleaving (pseudo-parallelism) by the unit’s

mono-processor and both cybernetic feedback cycles

also access the same memory (RAM, ‘M’ in Figure

7) the contents of which defines the unit’s internal

states.

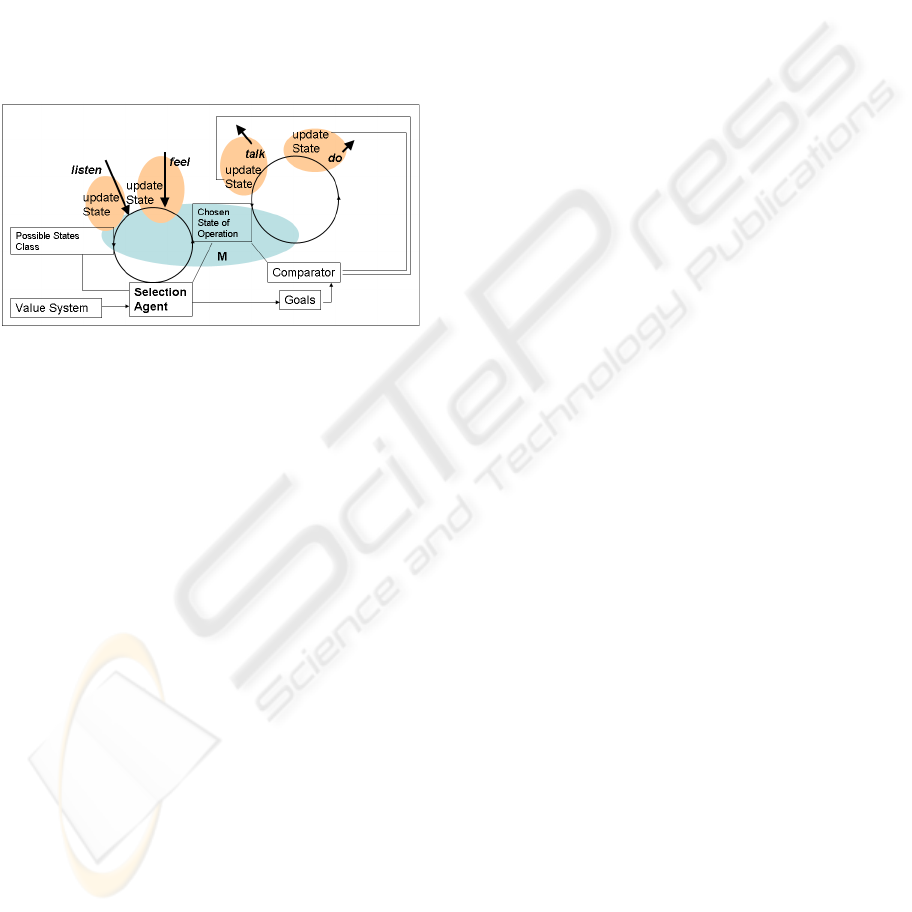

Figure 8: Variation of the double loop design, with the

listening function hooked to the outer feedback loop.

Another feasible variant of this schema is shown

below in Figure 8, whereby also the ability to listen

is there attached to the environmental loop; consider

the thermostat example of above again, in which the

device would now receive the information about

winter or summer via messages through the

communication lines (rather than through the low-

level sensor lines).

3 SUMMARY

The conjecture underlying this short position paper

is that the design schemas outlined above will be

suitable to serve as a standardized templates for the

development of sensor network applications in

hardware and software. Thereby –in the end– each

interface identified and shown in those paterns could

be subject to industrial normalisation, as well as the

provision of micro operating systems and APIs for

the benefits of the application programmer (who

does not want to have to care about the unit’s

hardware particularities on the physical level).

Interface software between sensor node platforms

and the specific, particular user-application software

for such nodes could then be provided in analogy to

(Campbell, 2009) (Dörr, 2008). For rather simple

applications (e.g. soil temperature measurements in

geology) the simple design schema with only one

feedback loop may probably be sufficient. For more

sophisticated applications, e.g. in Robotics and

Artificial Swarms, a node design on the basis of the

double feedback loop schema may probably be the

more intelligent and more flexible ones for the

modular, component-based construction of such

units.

I suggest that, based on those design schemas,

sensor network applications in the future could be

easily produced as a matter of hardware-independent

API-programming, as we already know it today in

the domain of standard devices such as desktop PCs.

In summary this paper suggests that ‘typical’ sensor

network nodes suitable for most kinds of sensor

network application should become as ‘orinary’ as

software-driven mobile phones or PCs. However,

the technical development of such small-scale

general-purpose devices, with APIs for the

installation of scenario-specific application software

on them, requires cooperation between hardware and

software engineers.

ACKNOWLEDGEMENTS

This work is supported by the National Research

Foundation (NRF) of the Republic of South Africa.

Many thanks also to the anonymous reviewers of the

ENASE’2010 conference for their helpful comments

on the draft of this short position paper.

REFERENCES

Alkazemi, B.Y., Felemban, E.A., 2010. Towards a

Framework for Engineering Software Development of

Sensor Nodes in Wireless Sensor Networks.

Campbell, McG., 2009. Robots to get their own Operating

System. New Scientist 8, pp. 18-19.

Dörr, H., 2008. The AUTOSAR Way of Model-Based

Engineering of Automotive Systems. LNCS 5214, p.38

Ellis, G.E.R., 2008. On the nature of causation in Complex

Systems. Transact. of the Roy. Soc. of South Africa 63

/1, pp. 69-84.

Lau, K.K., 2004. Component-based Software development

Case Studies. World Scientific Publ.

Maibaum, T., 2008. Formal Methods versus Engineering.

Proc. 1

Internat. Workshop on Formal Methods in

Education and Training, Kitakyushu, Japan.

Silberschatz, A., Galvin, P.B., Gagne, G., 2008. Operating

System Concepts. John Wiley &Sons Publ., 8

edition.

Tanenbaum, A.S., van Steen, M., 2007. Distributed Syst.

Principles and Paradigms. Pearson/Prentice Hall Publ.

edition.

ENASE 2010 - International Conference on Evaluation of Novel Approaches to Software Engineering

264
