PYSENSE: PYTHON DECORATORS FOR WIRELESS SENSOR

MACROPROGRAMMING

Davide Carboni

CRS4, Parco Tecnologico, Pula, Italy

Keywords: WSN, Macroprogramming, Python, Distributed systems.

Abstract: PySense aims at bringing wireless sensor (and "internet of things") macroprogramming to the audience of

Python programmers. WSN macroprogramming is an emerging approach where the network is seen as a

whole and the programmer focuses only on the application logic. The PySense runtime environment

partitions the code and transmits code snippets to the right nodes finding a balance between energy

consumption and computing performances.

1 INTRODUCTION

Decentralized computing architectures in wireless

sensor programming are emerging in contrast with

mainstream WSNs, characterized by a single

application gathering and reporting data. One of the

main reasons to decentralize computation is to

achieve better energy efficiency and to prolong

network lifetime. Radio is by far the most energy

demanding device on wireless sensor boards (Pottie

& Kaiser 2000), and sending a byte over 1 meter

long radio channel is much more expensive (in

joules) that performing an integer computation.

From this simple assertion descends the choice to

consider nodes in a WSN not only as simple sensors

gathering data and transmitting them back to a

central computer, but rather as elements capable of

computation in a distributed system. To quantify

how energy efficiency is achieved lets consider a

simple example.

We assume as large as 1 the normalized energy

needed to compute an integer instruction in a mote,

and as large as 100 the cost of sending an integer

over 1 meter long radio channel.

We can then obtain the energy needed to run a

distributed program as follows:

E = O +100 * ∑ B

* d

(1)

where E is total energy consumed by mobile nodes

during the program execution; B

is the number of

integers transmitted in the i-th transmission; d

is the

distance covered by the i-th transmission; O is the

total number of instructions computed by motes. We

acknowledge that this model may be considered

simplistic but this is not the point of this work. In

(Heinzelman et al. 2002) has been proved that node-

clustering and application specific data processing

can prolong the network lifetime of one order of

magnitude. Nevertheless, it shows in Fig. 1 how

clustering and data processing on cluster heads can

improve the energy balance.

If we consider a simple example of three motes

equipped with thermometer and a program to

compute the average temperature: in (a) every node

sends its temperature and the computation is

performed outside the network; in (b) the

clusterhead collects data from its nodes and act as a

router; in (c) the cluster head perform the

computation and sends a smaller amount of data to

the central computer.

According to the energy model seen before the

energy consumption is 230 in (a), 160 in (b) and

60.03 in (c).

No matter the model chosen for E, our work is to

define a programming tool that supports the

clustering of motes in order to minimize the energy

consumption delegating computation to cluster

heads and to motes depending on computational

capabilities. In other words, we argue that given an

energy consumption model E and an application

code C, there exists a partitioning of code

C={c

,...,c

} and a set Tx of transmissions

Tx={tx

,tx

,...,tx

} which is optimal for E. In this

position paper we envision a programming

environment called PySense which supports the

165

Carboni D. (2010).

PYSENSE: PYTHON DECORATORS FOR WIRELESS SENSOR MACROPROGRAMMING.

In Proceedings of the 5th International Conference on Software and Data Technologies, pages 165-169

DOI: 10.5220/0003038801650169

 SciTePress

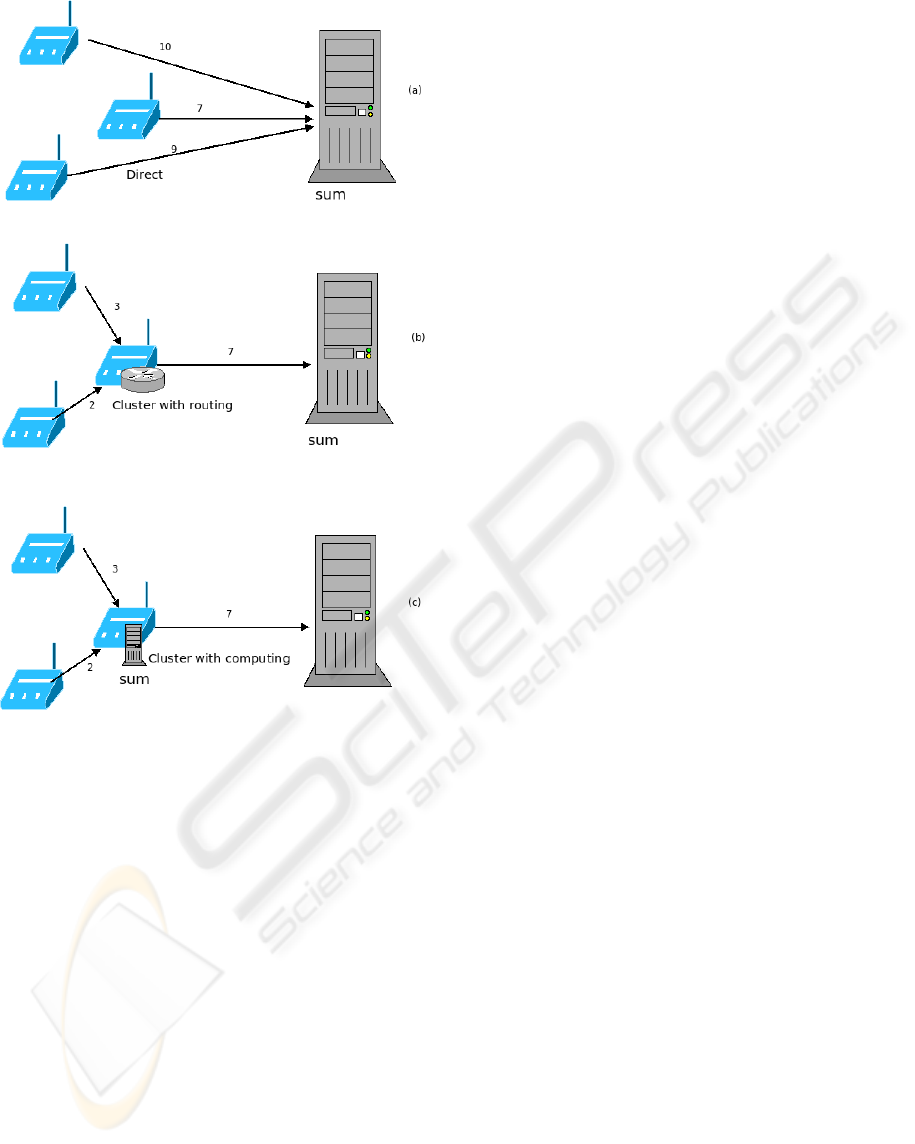

Figure 1: In (a) every node sends its temperature and the

computation is performed outside the network; in (b) the

cluster head collects data from its nodes and act as a

router; in (c) the cluster head perform the computation and

sends a smaller amount of data to the central computer.

The number over arrows is the distance covered by a

transmission.

programmer in partitioning the code among nodes in

order to find the optimal compromise between

computation and communications.

2 THE PYSENSE SYSTEM

The idea is to base the language on Python because

is a development language widely adopted in PC

applications and that have proven to be very

appreciated for its balance of functional, procedural

and object oriented constructs.

The elements of the system are:

1. The PySense language and API, which is a

language hosted by Python decorators.

PySense programs are written in Python and

the idea is to use the Python decorator to add

some semantics to classes and functions

constructs. In this way no new keywords are

added to the language so existing code is not

broken.

2. The Base Runtime Environment (BRE) is a

computer with unlimited energy and

unbounded computing capabilities (i.e.

memory, CPU, storage, threading).

3. The Remote Runtime Environment (RRE), is

the execution environment running on board

of motes and able to receive and deploy

Python expression or bytecode at runtime.

The code partitioning is the strategy that allows

the BRE to analyse the code and according to the

network topology to split the program into pieces to

be deployed either on the BRE or on one or more

RREs. Our approach recalls the aspect-oriented

programming in which cross-cutting concerns are

kept aside from business logic. The concerns about

code partitioning and migration on motes are

implemented with meta-programming inspecting the

code and modifying it at runtime. Few classes are

defined in the API: Cluster, Region, and the class

decorator Mote.

Region describes a region in the space. A Region

can be defined either from a cartesian/polar

bounding box or from a graph path. On Region

instances one can apply the set algebra operations as

specified in Python. For instance, the expression:

Region((0,0,100,100)) |

Region(“/floors/3/312”)

defines the union ('|') between the bounding box

(0,0,100,100) and the room 312 on third floor of the

building root ('/'). While the expression:

R.items(M)

returns the set of items (motes) defined by class M

located in the region R. The details of the location

mechanism are beyond the scope of this paper. For

sake of clarity, we assume that the position of motes

is either known in advance by the BRE or

dynamically retrieved by some system not covered

here.

The Cluster class is the super class for all

clusters. Given C a subclass of Cluster it is possible

to create a cluster with the expression:

C([m1,m2,....,mk])

where m

are instances of classes decorated with

@mote (see later). The expression:

C(R.items(M))

is the cluster of motes located inside region R. How

clusters are composed and which mote is elected as

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

166

cluster head is beyond the scope of this paper and

will be investigated in future works. We want just

point the fact that a cluster may elect both a cluster

router and a cluster computer which may be running

on different motes. The former is chosen according

to the network topology and distribution of motes in

space, while the latter is chosen according to

memory and CPU capabilities.

As previously mentioned, the PySense language

is hosted in Python decorators. Python decorators

are special purpose functions that are invoked in the

code when classes or functions are defined. The

syntax of decorators is:

@<func decorator>

def f(x):

@<class decorator>

class C:

respectively for decorating a function f and for

decorating a class C. The use of decorators is some

how similar to aspect programming (Elrad et al.

2001) and allows to keep aside all the code needed

to inspect the application logic and to modify it

according to the partitioning needed for

macroprogramming.

The first decorator is @mote and is applied to

classes. A class M decorated with @mote is

inspected to find getter and setter methods. We

adopt the convention that a getter is a “protocol” to

read from a remote sensor while a setter is a

“protocol” to write on a remote effector. Thus, the

class:

@mote

class M:

def getX(self):pass

def setY(self,y):pass

becomes in the BRE a proxy class to real motes

equipped with a sensor named X.

An invocation:

m.getX()

will result in a message:

TO m.addr READ x

where m.addr is the network address of the mote

associated to instance m. While the invocation:

m.setY(2)

is translated in a message:

TO m.addr WRITE y 2

Invoking an action on a mote (e.g. a rotation of

an engine) may require an unpredictable amount of

energy. This possibility is given but the programmer

must carefully consider the power consumption on

his own.

Differently from normal Python classes, @mote

classes are limited in the number of instances that

they can create. If we define a class as follows:

@mote

class M:

def getX(self):pass

def getY(self):pass

def setZ(self,value):pass

That means that only motes equipped at least

with sensors x and y and with actuator z can be

associated with M. The number of such motes is the

maximum number of M instances that the BRE can

create with M(). Any further invocation of M() will

cause an exception to be thrown. A @mote class can

have also pure computational methods (to be

distinguished from getter/setter). Some decorators

can be used for these methods. In the example

below:

@mote

class M:

def getX(self):pass

@onboard

def f(self,args):<some code here>

@onbase

def g(self,args):<some code>

@auto

def h(self,args):<some code>

The method f is expected to run on RREs after a

lazy deployment: the bytecode of f is sent to a mote

only when f is called on that mote for the first time.

Moreover, a mote required to compute f can receive

the bytecode of f not necessarily from the BRE, but

if available, from a closer mote or from its cluster

head.

The method g is simply executed on the BRE

and this does not pose any issue. The code of

method h is treated in a way discussed below. When

moving code from BRE to RRE three different

approaches are in principle possible:

1. The names that cannot be resolved on RRE

are transmitted to from BRE to RRE. This

implies the movement of bytecode for each

unresolved name (e.g. functions, classes,

globals) and given that each piece of code

can depend on other pieces this may cause

the movement of an entire graph of code.

This approach is highly demanding in terms

of memory for the recipient RRE and the

initial deployment is also costly in terms of

bandwidth.

2. Another approach is to not solve locally on

PYSENSE: PYTHON DECORATORS FOR WIRELESS SENSOR MACROPROGRAMMING

167

the RRE but instead to replace every

reference to an unknown name with a

remote call from the RRE to the BRE. This

approach is lightweight in terms of memory

but may require a lot of messages from RRE

back to BRE.

3. The last approach is to prevent code

deployment on the RRE if one or more

names are remotely unknown and in that

case the BRE launches an exception causing

the programmer to reconsider the design of

the code.

In our design, for @onboard methods the third

approach is always used, while for @auto the

system determines automatically which is the best

strategy according to network topology and motes

capabilities.

When on BRE is invoked a code f(x,y,...)

deployed on a RRE, a message:

TO <addr> CALL f x,y,...

is produced and sent to the mote with address addr.

The decorators @onboard, @onbase and @auto can

be also used to decorate methods of Cluster

instances. In this case the semantics is the same than

before, except that an unknown mote (unknown at

design time) is elected cluster head and delegated to

perform remote computation.

As mentioned by (Newton et al. 2007) no paper

in this area can elude the example of the spatial

average temperature.

@mote

class M:

def getTemperature(self):pass

class C(Cluster):

@onboard

def average(self):

return sum(

[m.getTemperature() for m in

self.motes]) / len(self.motes))

C(region.items(M)).average()

The simple program above defines the class M as

a mote with temperature sensor, then defines a

cluster C and engages it to compute the average

method on the cluster head. Every

m.getTemperature invocation is translated as a

message:

TO <m.addr> READ temperature

sent from the cluster head. The variable region is a

generic Region instance previously created. In the

following section are described some simple

programs similar to those described for Regiment

(Newton et al. 2007).

3 SAMPLE PROGRAMS

The first program measures the CO2 concentration

and sends back data to base runtime. The result

variable values is scoped in the BRE.

@mote

class CO2Sense:

def getConc(self):pass

values=[c.getConc() for c in

region.items(CO2Sense)]

In the example above, all motes are inquired by

the BRE. In the example that follows a cluster is first

composed and data are collected by the cluster head

and then sent to the BRE.

@mote

class CO2Sense:

def getConc(self):pass

class CO2Cluster(Cluster)

def collect(self):

return [m.getConc() for m in

self.motes]

values=CO2Cluster(region.items(CO2Sense

)).collect()

The next program behaves as the previous one,

but only values beyond a threshold TH are sent to

the BRE.

class CO2(Cluster):

@onboard

def collect(self):

filter(lambda x:x>TH ,

[m.getConc() for m in self.motes])

values=[CO2Cluster(region.items(CO2Sens

e)).collect()]

4 RELATED WORKS

This position paper is located in the field of

distributed computing and in particular in the field

of WSN programming. WSNs are distributed

systems equipped with limited computational

capabilities, radio communication stack and very

constrained energy resources. As assumed in the

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

168

previous sections, the computation is less energy

demanding than communication and thus

computation and communication activity must be

organized together.

Many authors have proposed languages and

middleware for WSN programming, most of them

use nesC (Gay et al. 2003) as C dialect for node

level programming with execution of native code in

the motes, while other systems like Maté (Levis &

Culler 2002) use a virtual machine approach.

For the systems cited above high-level, global

behaviour must be expressed in terms of complex,

local actions taken at each node. To address this

issue different network-oriented programming

models have been proposed. One of the most

assessed strategies is to consider the whole WSN as

a distributed database to be queried with SQL

expressions (Madden et al. 2005) or XML

expressions. This approaches are not well-suited for

developers who wish to implement specific

behaviour at a lower level than the query interface.

Another promising approach is the so-called macro-

programming. In Regiment (Newton et al. 2007) a

global defined logic is automatically de-globalized

into pieces of code at node level. The Regiment

syntax is inspired by ML(Milner 1997) while

PySense is based on Python. Another macro-

programming language based on Python is Kairos

(Gummadi et al. 2005) in which the programmer is

presented with three constructs: reading and writing

variables at nodes, iterating through the one-hop

neighbours of a node, and naming and addressing

arbitrary nodes. Kairos language is an extension of

the Python language while PySense is a hosted

language on top of Python decorators and relies on

the runtime deployment of code on mobile Python

interpreters. Kairos authors have apparently

abandoned the project and have recently proposed

Pleiades(Kothari et al. 2007) , an extension of C

language with dynamic code partitioning and

migration.

5 CONCLUSIONS AND FUTURE

WORK

We consider useful developing a new tool in this

area given the huge potential of WSNs as

technology and the easiness to learn Python as

programming language even for application domain

experts.

At the time of writing, PySense is still

incomplete to be used in real world applications and

its development is ongoing. The BRE is almost

completely implemented while the set of RRE is at

the moment emulated by a network server that

emulates the reception of requests, the transmissions

of responses, and the computation of migrated code.

The real RRE is under development and based

on the Pymite VM developed in the Python-on-a-

chip project (python-on-a-chip). Thus, the current

commitment for the PySense project is now to fulfil

the design depicted in the paper with a complete

implementation to be tested with real world

applications.

REFERENCES

python-on-a-chip - Project Hosting on Google Code.

http://code.google.com/p/python-on-a-chip/

Elrad, T., Filman, R.E. & Bader, A., 2001. Aspect-

oriented programming: Introduction. Communications

of the ACM, 44(10), 29–32.

Gay, D. et al., 2003. The nesC language: A holistic

approach to networked embedded systems. In

Proceedings of the ACM SIGPLAN 2003 conference

on Programming language design and

implementation. pag. 11.

Gummadi, R., Gnawali, O. & Govindan, R., 2005. Macro-

programming wireless sensor networks using kairos.

Lecture Notes in Computer Science, 3560, 126–140.

Heinzelman, W.B. et al., 2002. An application-specific

protocol architecture for wireless microsensor

networks. IEEE Transactions on wireless

communications, 1(4), 660–670.

Kothari, N. et al., 2007. Reliable and efficient

programming abstractions for wireless sensor

networks. In Proceedings of the 2007 ACM SIGPLAN

conference on Programming language design and

implementation. pag. 210.

Levis, P. & Culler, D., 2002. Mate: A tiny virtual machine

for sensor networks. ACM SIGARCH Computer

Architecture News, 30(5), 95.

Madden, S.R. et al., 2005. TinyDB: an acquisitional query

processing system for sensor networks. ACM

Transactions on Database Systems (TODS), 30(1),

173.

Milner, R., 1997. The definition of standard ML, MIT

Press.

Newton, R., Morrisett, G. & Welsh, M., 2007. The

regiment macroprogramming system. In Proceedings

of the 6th international conference on Information

processing in sensor networks. pag. 498.

Pottie, G.J. & Kaiser, W.J., 2000. Wireless integrated

network sensors. Communications of the ACM, 43(5),

51–58.

Younis, O., Krunz, M. & Ramasubramanian, S., 2006.

Node clustering in wireless sensor networks: Recent

developments and deployment challenges. IEEE

Network, 20(3), 20–25.

PYSENSE: PYTHON DECORATORS FOR WIRELESS SENSOR MACROPROGRAMMING

169
