TOWARDS THE INTEGRATION OF BIOINFORMATICS DATA

AND SERVICES USING SOA AND MASHUPS

Elarbi Badidi

and Larbi Esmahi

College of Information Technology, United Arab Emirates University, PO.Box. 17551, Al-Ain, United Arab Emirates

School for Computing & Information Systems, Athabasca University

1 University Drive, Athabasca, Alberta, T9S 3A3, Canada

Keywords: Data Integration, Application Integration, Mashups, Service Oriented Architecture, and Web Services.

Abstract: Worldwide biological research activities are generating publicly available biological data at a phenomenal

pace. Data is usually stored in different formats (fasta, genbank, embl, xml, etc.). Therefore, retrieving,

analyzing, parsing, and integrating these heterogeneous data require substantial programming expertise and

effort that scientists do not have overall. Bioinformaticians have often considered several approaches to

integrate heterogeneous data and software applications. Most of these integration approaches require

significant computer skills. Recently, a new technology, called mashups, has emerged to simplify this

integration. In this paper, we discuss widely used approaches for integrating data and applications in

bioinformatics and our ongoing effort to use mashups in conjunction with Service Oriented Architecture

(SOA) for integrating data and applications in Life Sciences.

1 INTRODUCTION

Data and application integration is one of the

toughest problems facing bioinformatics today.

Indeed, to enable the discovery of new biological

insights, scientists have to interpret many types of

information from a variety of sources including

nucleotide and amino acid sequences, protein

structures, and various other sources. Unfortunately,

it is not easy for scientists to access all these

information in an integrated way due to: a) the

heterogeneity of data formats, b) the heterogeneity

of interfaces, and c) the variety of bioinformatics

software tools used by the underlying data sources.

The need for data and tools integration is widely

acknowledged in the bioinformatics community.

Successful data integration is one of the keys to

enhanced productivity in biology and

biopharmaceutical R&D. Worldwide biological

research activities are increasingly generating data

spread across public databases and throughout

organizations in various formats (Fasta, Staden,

Embl, Genbank, etc.). Furthermore, most of the

software applications in bioinformatics are

incompatible with one another as they use different

input and output formats. Bioinformaticians have

considered several approaches to address the

challenges of data integration. As a result of that,

numerous integration platforms and frameworks

flourished in both academia and bio-industry.

In the last few years, SOA embodied by Web

services has emerged as a key technology for

providing services over the Web. Web services are

interoperable across platforms and neutral to

languages, which makes them suitable for access

from heterogeneous environments. Web services

technology has all the potential to be a major

component in the integration endeavor because it

provides a higher layer of abstraction that hides

implementation details from applications. Using this

technology, applications invoke other applications’

functions through well-defined, easy-to-use

interfaces. Each organization is free to concentrate

on its own competence and still leverage the services

that other research groups provide.

Recently, a new technology, called mashups, has

emerged to simplify data integration. Mashups allow

end-users to extract and integrate data from disparate

sources using a visual approach. In this paper, we

describe our work in progress that investigates how

these emerging technologies may be applied to

integrate biological data and services.

Badidi E. and Esmahi L. (2010).

TOWARDS THE INTEGRATION OF BIOINFORMATICS DATA AND SERVICES USING SOA AND MASHUPS.

In Proceedings of the 5th International Conference on Software and Data Technologies, pages 95-98

DOI: 10.5220/0003041200950098

 SciTePress

2 BACKGROUND

2.1 Bioinformatics Data integration

Bioinformatics data sources (e.g. GenBank, Entrez,

PDB, Swissprot, etc.) cover various domains, such

as genes, proteins, or sequence annotations. To get

the best out of such a massive amount of data, three

main approaches for data integration have been

commonly considered: database federation, adoption

of XML as a common format for the exchange and

storage of biological data, and adoption of

ontologies.

Database federation approach relies on a

middleware that acts a mediator amongst

heterogeneous, disparate, and autonomous databases

(Kemp et al., 2002). The middleware provides a

uniform query interface, which allows end-users to

store and retrieve data from multiple disparate

databases using a single query. The system

decomposes the query into sub-queries for

submission to the appropriate constituent databases,

after which the middleware integrates the result sets

of the sub-queries. The advantage of this approach is

that it does not require modification of the

constituent databases of the federation.

XML, The Extensible Markup Language, is

increasingly becoming a popular format for the

exchange and storage of biological data (Achard et

al., 2001). Most biological databases such as

GenBank, PIR, and SWISS-PROT are XML-

compliant. XML is used to describe biological data

in a standardized format that can be shared and

easily transported via standard Internet protocols.

To overcome the heterogeneous terminologies

used in databases, ontologies are often used to

standardize terms and concepts for which the

meaning and relationships are explicitly defined by a

standards organization. In bioinformatics, ontologies

represent a new style of data integration as they set

naming conventions for data elements stored in

biological databases. The Gene Ontology (GO) from

the Gene Ontology Consortium is an example of

ontology in bioinformatics (Masseroli et al., 2006).

2.2 Bioinformatics Tools Integration

Bioinformaticians have considered several

approaches and technologies to deal with the issue

of bioinformatics tools integration. One of the

approaches develops and employs locally interactive

environments to facilitate bioinformatics analyses.

Examples of such environments are Isys (Siepel et

al., 2001) and Applab

(Senger, 1999). The

disadvantage of this approach is that the integration

environment as well as the tools must be installed

and configured locally, which requires substantial IT

expertise. The second approach takes advantage of

the growing use of the Web to make the tools

available throughout Web interfaces using HTML

forms and different scripting languages (Perl, CGI,

etc.). The integration of tools is in most cases data-

driven, as, for example, in Bionavigator (Littlejohn,

2001) and NCSA biology workbench (Unwin et al.,

1998). The advantage of this approach is that the

user does not need to install bioinformatics tools

locally, but only requires a Web browser. A third

approach is also Web-oriented, but it uses relatively

new technologies at the server side to integrate

various bioinformatics software tools. These

technologies are Java RMI, EJB, and CORBA.

Examples of integration frameworks using the above

technologies are Anabench (Badidi et al., 2003),

Applab (Senger, 1999).

The recent advances in distributed computing

have lead to SOA and the Web and Grid services

technologies, which promise to ease the integration

and interoperability issues. In life sciences, the

service orientation is seen as a promising approach

for the integration of heterogeneous and

incompatible bioinformatics applications available

from different providers. It has quickly caught the

interest of several organizations and research

centers. Most of them have published their tools as

Web services. The National Center for

Biotechnology Information (NCBI;

http://www.ncbi.nlm.nih.gov/) has published its

Entrez Utilities as Web Services. The European

Bioinformatics Institute Web service (EBI;

http://www.ebi.ac.uk/) provides programmatic

access to data retrieval and analytical tools for

several molecular databases. Besides, new

environments and frameworks have emerged to

enable the orchestration and the execution of

biological Web services. The most notable systems

include Taverna (Oinn et al., 2004) and BioMoby

(Wilkinson et al., 2003).

2.3 Bioinformatics Mashups

Recently, the “Mashup” technology has emerged as

a new approach for creating Web applications that

fuse data from numerous sources to create a new

service and to provide the user with an integrated

experience. Data mashups typically provide visual

representations of data available in public databases.

Similarly, service mashups aim to support end-users

in creating and building new and advanced Web

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

applications by means of easy-to-accomplish service

compositions. Various mashup tools and

frameworks have flourished in the last few years.

They let end-users access and combine data from

various sources (databases, Web services, feeds,

etc.). Examples of well known mashup platforms are

Yahoo Pipes (http://pipes.yahoo.com), and Google

Mashup Editor (http://code.google.com/gme/).

Bioinformaticians have a wide range of tools and

services at their disposal, each providing some value

when used in isolation, but offering greater promise

when integrated with others in the investigation of

more complex scientific questions. Sophisticated

scientific workflow management systems such as

Taverna (Oinn et al., 2004) or Kepler (Ludäscher et

al., 2006) can support almost any level of

complexity. Mashups, however, may provide a

middle ground between manual cut-and-paste

interaction with the Web and these sophisticated

workflow engines. They allow developing

lightweight applications by combining data and

services in accordance with the user requirements.

Recently, there were few attempts to develop

some basic biomashups. Sumitomo et al. (Sumitomo

et al., 2008) describe basic mashups, such as a

mashup to translate Uniprot ID into Genbank Id, a

Genbank to Pubmed mashup, and a biomashup to

get the characteristics of a protein given its Uniprot

ID. Kei-Hoi et al. (Kei-Hoi et al., 2008) discuss the

potential of mashups and current Web 2.0

technologies to integrate data from disparate sources

in the health care and life sciences (HCLS) domains.

We strongly believe that the proliferation of

mashups platforms together with Web 2.0

techniques will contribute extensively to the wide

adoption of mashups in Life Sciences. Life scientists

empowered with Biomashups will be able to

integrate local data with data from other sources

(public biological databases, workbench portals,

etc.). They will also be able to customize and exploit

the results rather than consuming biological data in

the way the publisher (organizations and research

centers) presents that data.

3 BIOMASHUP ARCHITECTURE

3.1 Objectives

Given the limited number of biomashups that have

been developed so far by the bioinformatics research

community, and given the unprecedented advances

made in the area of mashups technology and the

Service Oriented Architecture, we set out to use an

architecture that will allows us to:

1. Investigate the feasibility of applying “Mashup”

technology in conjunction with SOA

technologies in bioinformatics to cope with the

issue of data and services integration.

2. Apply these technologies to some real-case

scenarios (e.g. in proteomics and/or genomics)

that typically require, from the scientist, to go

through several steps by using various software

tools or Web-based applications before getting

an answer to his/her question.

3. Investigate how biological protocols can be

implemented using mashups. Then, compare this

mashups-based approach with established

workflow systems and SOA service composition.

Comparison will evaluate the following aspects:

usability, composition effectiveness, support to

the user, and extent of necessary technical

knowledge.

4. Examine how mashup technology and SOA can

contribute to data and services integration in the

biomedical field in general. Healthcare and

bioinformatics share many common aspects

especially in terms of heterogeneity of data

formats and data exchange protocols.

3.2 Architecture Overview

Figure 1 illustrates our proposed Mashups-based

architecture for bioinformatics data and applications

integration. The architecture relies on a central

component, which is the Mashup Server. The

Mashup Server may acquire data from various data

sources including biological databases (Genbank,

EMBL, Uniprot, Swissprot, …), biological Web

services (BioMoby, MyGrid, Soaplab, NCBI,…),

publication databases (Pubmed, …), and feeds. It

then processes and combines acquired data to

present the result as small components, called

Mashlets, which can be integrated in portals, Web

pages, wikis and blogs. Legacy applications may be

integrated by being wrapped as Web services. In our

previous work (Removed for blind review), we have

implemented a system that allows wrapping

command-line bioinformatics tools as Web services.

The mashup application will produce, then, a

single interface replacing the manual process of

accessing multiple data sources. Using mashup

applications, scientists can collaborate more

effectively, be more productive, and reduce the risk

of error.

Enterprise Mashup servers have emerged

recently following the success of mashup platforms

in implementing interesting enterprise applications

TOWARDS THE INTEGRATION OF BIOINFORMATICS DATA AND SERVICES USING SOA AND MASHUPS

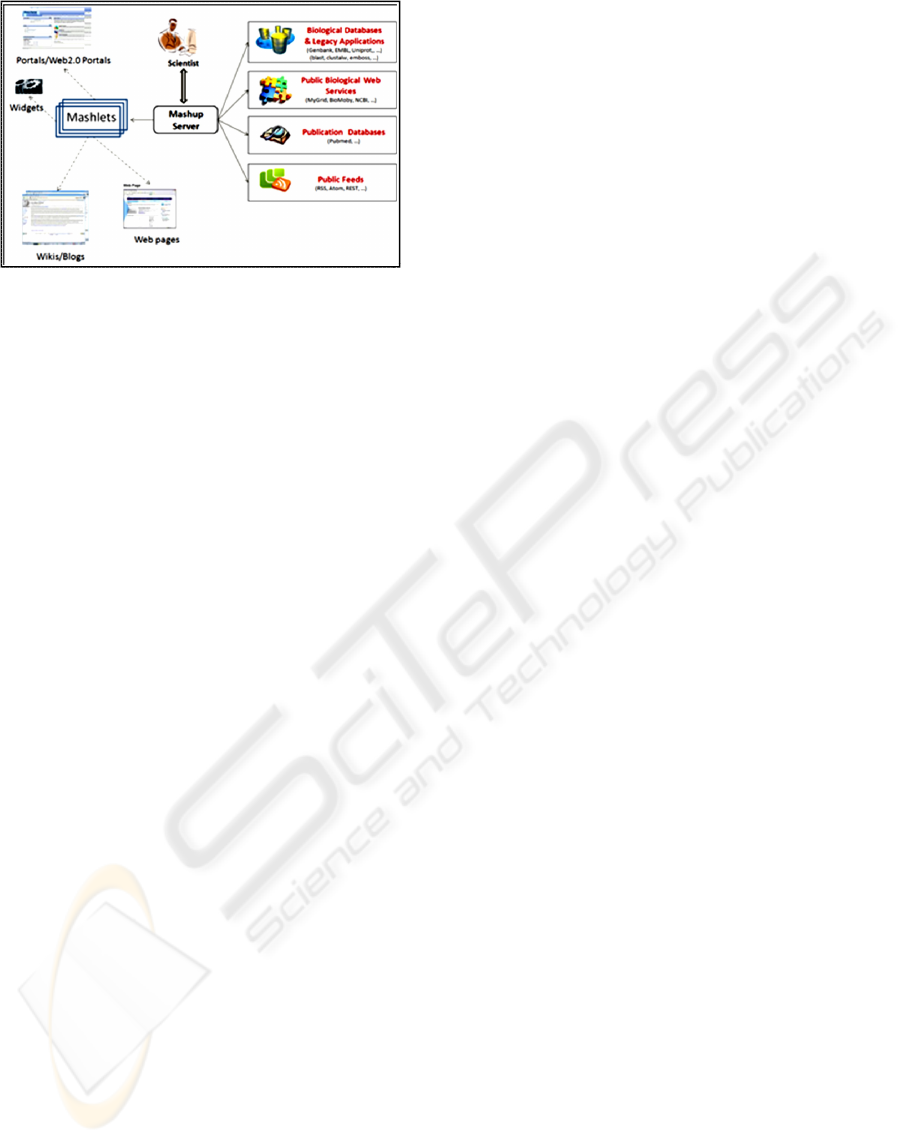

Figure 1: Integration of bioinformatics data and services

using mashups technology.

We are considering to use open source mashup

server such as WSO2 mashup server

(http://wso2.org/projects/mashup), which support

different data formats commonly used by biological

databases. JackBe Presto Enterprise Mashup Server

(http://www.jackbe.com/) is also a potential

candidate as it provides many interesting features.

4 CONCLUSIONS

As a result of worldwide biological research

activities, data is spread across disparate databases

and organizations in various formats. Data Mining

and analysis require comprehensive integration of

these heterogeneous data. The need for data and

services integration is widely recognized in the

bioinformatics community. Successful data

integration is one of the keys to enhanced

productivity in biology and biopharmaceutical R&D.

In this paper, we have provided an overview of

existing approaches for data and applications

integration in bioinformatics. We have also

discussed the promise of emerging technologies,

service oriented architecture and mashups.

Furthermore, we have presented our work in

progress in implementing an architecture that relies

on a mashups server and Web services for

integrating data and applications in Life Sciences.

REFERENCES

Achard, F., Vaysseix, G., and Barillot, E., 2001. XML,

bioinformatics and data integration. Bioinformatics,

17(2):115-25.

Badidi, E., Salem, M. V., Bouktif, S., and Esmahi, L.,

2009. A Web Services based Framework for Uniform

Integration of Command-line Bioinformatics Software

Tools. International Journal on Web Services

Practices (IJWSP), 4 (1) (2009). 36-43.

Badidi, E., De Sousa, C., Lang, B. F. and Burger, G.,

2003. AnaBench: a Web/CORBA-based workbench

for biomolecular sequence analysis. BMC

Bioinformatics, 4: 63.

Kei-Hoi, C., Kevin Y. Y., Jeffrey, P. T., and Matthew, S.,

2008. HCLS 2.0/3.0: Health care and life sciences data

mashup using Web 2.0/3.0. Journal of Biomedical

Informatics, 41(5): 694–705.

Kemp, G. J. L., Angelopoulos, N., and Gray, P.M.D.,

2002. Architecture of a Mediator for a Bioinformatics

Database Federation. IEEE Transactions on

Information Technology in Biomedicine, 6(2): 116-

122.

Littlejohn, T.G., 2001. Bioinformatics tools for genome

projects. In Molecular Breeding of Forage Crops,

Spangenberg, G. (ed.), Kluwer Acad. Publ., The

Netherlands, 83-99.

Ludäscher, B., Altintas, I., Berkley, C., Higgins, D.,

Jaeger-Frank, E., Jones, M., Lee, E., Tao, J., and Zhao,

Y., 2006. Scientific Workflow Management and the

Kepler System, Concurrency and Computation:

Practice & Experience, 18(10): 1039-1065.

Masseroli, M., and Pinciroli, F., 2006. Using Gene

Ontology and genomic controlled vocabularies to

analyze high-throughput gene lists: Three tool

comparison. Computers in Biology and Medicine,

36(7): 731-747.

Oinn, T., Addis, M. J., Ferris, J., Marvin, D. J.,

Greenwood, M., Carver, T., Wipat, A., and Li, P.,

2004. Taverna, lessons in creating a workflow

environment for the life sciences. Paper presented at

the GGF10, Germany, 2004.

Senger, M., 1999. AppLab - A CORBA-Java based

Application Wrapper. Retrieved from

http://www.omg.org/docs/corbamed/98-03-08.pdf

Siepel, A., Farmer, A., Tolopko, A., Zhuang, M., Mendes,

P., Beavis, W., and Sobral, B., 2001. ISYS: a

decentralized, component-based approach to the

integration of heterogeneous bioinformatics resources.

Bioinformatics, 17, 83-94.

Sumitomo, J., Hogan, J. M., and Roe, P., 2008.

BioMashups: The New World of Exploratory

Bioinformatics? In Proceedings of the Fourth IEEE

International Conference on eScience, 422-423.

Unwin, R., Fenton, J., Whitsitt, M., Jamison, C., Stupar,

M., Jakobsson, E., and Subramaniam, S., 1998.

Biology Workbench: A WWW-based Virtual

Computing and Analysis Environment for the

Biological Sciences. Bioinformatics(Databases and

Systems, S. Letovsky (Ed.)), 233-244.

Wilkinson, M. D. and Links, M., 2003. BioMOBY: An

open source biological web services proposal.

Briefings in bioinformatics, 3(4): 331–341.

ICSOFT 2010 - 5th International Conference on Software and Data Technologies
